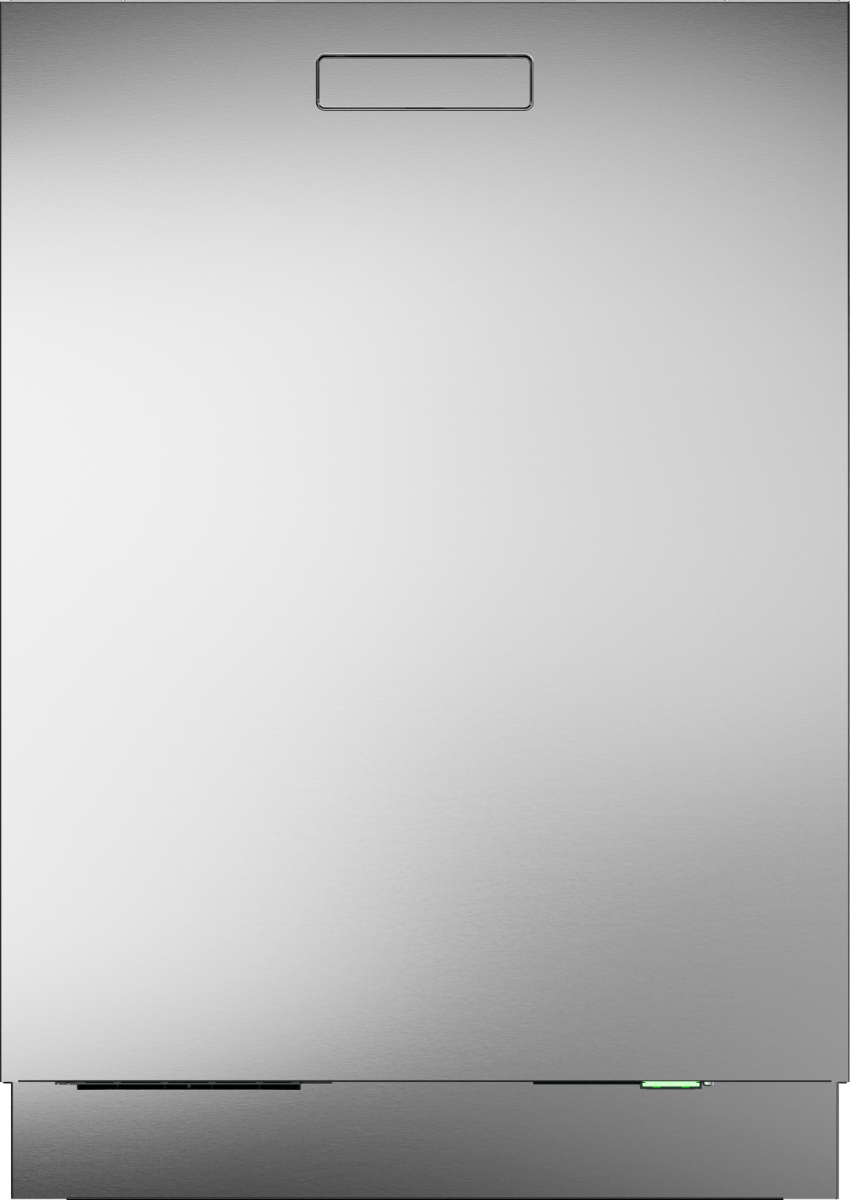

Asko DBI776IXXLSSOF Dishwasher
Rebates &
Promotions
Asko Dishwasher Rebate - Receive up to a $300 rebate with purchase of qualifying Asko Dishwasher. Download Valid: 01/01/2024-12/31/2024
Asko 5 Year Extended Warranty Rebate - Purchase a qualifying Asko Dishwasher and receive a free 5 Year Extended Warranty. Download Valid: 01/01/2024-12/31/2024
Aqua Safe™ system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe™ system is an advanced safety system which ensures a leak-safe dishwasher day and night.
Light Lock™
Light plastic cans and bowls are easily flipped over and filled with water. The LightLock™ smart fixation helps them to retain their position throughout the program.
Vase/bottle holder
Our special holder for tall, narrow objects like baby bottles, vases and bottles is combined with a special power zone that makes sure that the cleaning result is perfect.
Anti siphon
For our fully integrated dishwashers, the Anti-siphon solution safely keeps the water inside the machine. This is especially important if the dishwasher is placed above floor level.
Power Zone Cutlery™
Power Zone Cutlery™ is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.
Extra wide knife stand
Our smart knife holders are found in the middle, upper, and the top basket. They are all are extra deep so that the blades remain steady. Cutting edge, not fingers.
Auto wash
ASKO s Auto Wash with the SensiClean™ sensor ensures the right temperature, washing cycle and drying regardless of what you have put in the machine. Every time.
Aqua Detect™ Sensor
The Aqua Detect™Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump s capacity is five times the inlet valve s.
Aqua Level™ Sensor
The Aqua Level™ Sensor ensures an optimized water level, even if a bowl turns over and is filled with water. It also keeps the machine from starting if the water is turned off.
Quick Pro Wash
Sometimes you need to use the same kitchen ware with short intervals. The Quick Pro Wash program only takes half an hour - perfect at the dinner party or when you bake.
LED interior light
The combination of outer and inner LED-lights is designed for best intensity and durability. It gives you a good overview of the door area as well as the inside of the dishwasher.
Speed mode
When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.
9 Spray™
ASKO s spray system consists of up to 9 effective spray zones to ensure a totally clean load. In the lower rack there are three power zones to take care of the dirtiest parts.
Touch Proof™
The ultra-thin, transparent TouchProof™ coating protects your dishwasher stains and grease Easy to clean, scratch resistant it will keep your dishwasher looking brand new year after year.
Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.
2 - Spray arms
The 2 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.
Kid Safe™
To stop small fingers from starting the dishwasher the Kid Safe™ makes the control panel easy to lock. This also prevents altering any settings by mistake.
Multi position glass rack
The Multi position glass rack is a very practical rack that can be mounted in three different positions - all depending on your needs.
Night Mode
Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.
Foldable Glass support
Sometimes you need the space of the upper rack for other items than glasses. Good thing that the tines are foldable here as well.
Folding tines
The foldable tines in the lower tray makes it easy to load different sizes of pots and pans. Flexibility at its best.
Self Cleaning
ASKO s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.
Upper half wash
The Upper basket program sprays only the top part of the machine and uses less water and energy than a normal program. Saves both your time and the environment.
Time program
When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.
Quick Pro
A fast and effective program using variable water pressure to boost cleaning performance and that quickly takes care of slightly dried leftovers. When combined with Speed mode, the program cycle is even shorter - as fast as 39 minutes.
Status Light™
ASKO s new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program.
17 - Loading capacity
Room for 17 place settings, fit larger pots and plates in the upper rack. Our XXL dishwasher have four level rack system including; Knife rack, Upper rack, Middle rack, Lower rack.
20 years
Dishwashers designed to last for 20 yearsToday, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better - for our customers and for the planet. We develop our dishwashers responsibly and design them to make a difference. To ensure that they can do so for a long time, we test them equivalent to 20 years of lifetime.
Focus points
Focus points - a hint of natureOpening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place - where it doesn t compete for space or attention - instead, it makes the room.
Adjustable power zones
Adjustable power zonesTo make an already powerful cleaning system even more powerful, we have created two adjustable power zones with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There s also a bridging function where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don t need them simply switch them off
Turbo Combi Drying™ with sensor control
Turbo Combi Drying™ with sensor controlThis is our most advanced drying method. It is based on the same principles as Turbo Combi Drying, but the automatic door opening is regulated by a sensor that measures the temperature in your kitchen. If the kitchen is colder than normal, the door will open at a later stage. If it is warmer, the door opens earlier. This means that energy for drying is used more efficiently.
Knife holders
Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.
Style™
For those with a sense of style, but who also appreciate the value of functional, user-friendly design. Our top-of-the-line Style models naturally combine functionality with clean lines and a stylish minimalism. They feature superior programs, endless flexibility and high quality, while the attractive and unique full colour/easy-to-read (TFT) display highlights the well thought-out and user-friendly design.
10 Spray™
ASKO s spray system consists of up to 10 effective spray zones to ensure a totally clean load. In the lower rack there are three power zones to take care of the dirtiest parts.
Removable middle rack
The Twin Tubes™ spray zone makes the middle rack perfect for lightly soiled glasses etc. Easy to remove if you need more space. Spray pressure is retained if the basket is removed.
2 - Spray arms
The 2 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.
Plastic wash
The Plastic program washes and dries your plastic kitchen ware perfectly. And, if there s room left you can of course wash the ordinary porcelain and glass at the same time.
Green mode
The Green mode saves water and energy by lowering the temperature and extending the washing cycle. Still, the result is just as perfect as the Normal program. Let s go greener!
Brushless motor
A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.
Crystal Glass
Wash fragile items made of crystal/glass, such as crystal glass from Orrefors, using the gentle dishwashing program Crystal glass.
15-3/4" plates in lower rack
Our XXL dishwashers have room for a 40 cm big plate in the lower rack when the middle rack is removed and the upper rack in the upmost position.
ECO wash
Use when you want to save water and energy. For normally soiled load, such as plates, serving dishes, cups, glasses and so on.
China Guard
Our china guard ensures secure rotation of the upper sprayarm.
You'll need an ASKO fully integrated model if you want your appliance to blend in with the rest of your kitchen's décor.
These appliances blend seamlessly into your kitchen, hiding neatly beneath your countertop and behind your cabinetry
Dimensions & Capacity Width: 23.937"
Height: 34.3"
Depth: 21.8"
- Number of place settings: 17 pcs
- Number of racks: 3
- Upper rack type: Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items
- Size: XXL
- Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
- No
- Automatic dosing system: Yes, integrated
- Installation: Built-in
- Series: Style
| Number of place settings | 17 pcs |
| Number of racks | 3 |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Size | XXL |
| Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening | Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening |
| No | No |
| Automatic dosing system | Yes, integrated |
| Installation | Built-in |
| Series | Style |
| Construction and performance | |
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | Yes |
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| Automatic water-softener for better washing performance | Yes |
| Number of spray arms | 2 pcs |
| Number of spray zones | 10 |
| Cleaning systems | Twin Tubes™ - separate spray zone for the middle basket Cutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Sensi Clean™ Sensor - measures dirtiness level Stainless steel spray arms Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off. The water pressure is adapted depending on program, type of dishes and dirtiness level. |
| Exterior handle | Integrated handle with soft closing |
| Use and flexibility | |
| Number of place settings | 17 pcs |
| Number of racks | 3 |
| Top tray | Without top tray |
| Upper rack type | Exclusive, all tines are foldable, divisble/foldable wine shelves, Light Lock™ for fastening lightweight items |
| Upper rack height adjustable | Yes |
| Upper basket | Perfect ergonomy with easy sliding telescopic rails Small distance between the basket threads - makes loading easy and prevents small items to fall through Light Lock™ for fastening lightweight items China Guard - Protects fragile load from the rotating spray arm Extra wide knife stand Dividable pin rows Wine glass fixings in TPE Two foldable glass supports Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc. Foldable wine shelves to right Divisble/foldable wine shelves to left |
| Middle basket | Perfect ergonomy with easy sliding telescopic rails Removable rack for bowls, cups and glasses Removable rack for large utensils Middle basket connection fitted with non-return valve Handle |
| Lower rack type | Exclusive |
| Lower rack | Foldable/divisible rear pin row Vase/bottle holder for cleaning vases/baby bottles Foldable/divisible front pin row Cutlery basket Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with ASKO logo Sliding tines for easy adaptation to stone ware etc. |
| Automatic dosing system | Yes, integrated |
| Interior light | Yes, 4 LED lights |
| Interaction and control | |
| Possible to control via Wi-Fi | Yes, integrated |
| Type of display | Graphic TFT display |
| Status Light™ - Visual indication of dishwashing progress | Yes |
| Remaining time indication | Yes |
| Wash end indication | Displayed with sound and light |
| Language settings | Norwegian German Russian Finnish Swedish Portuguese Lithuanian English Latvian Croatian Italian French Chinese traditional Spanish Estonian Czech Ukrainian Japanese Slovak Slovenian Chinese simpified Polish Danish Dutch |
| Functions, programs and modes | |
| Programs | Upper half Sanitize Lower half Crystal glass Time program Intensive program Auto wash Standard ECO wash Anti odour Quick Pro wash Self cleaning Light wash Plastic wash |
| Delayed start | Possible to delay up to 24 hours |
| Options and modes | Sensor controlled door opening - Optimizes the drying process according to the room temperature Time set Heat Boost Mode Green mode - Less energy and water is used. The program time is extended Enable/disable automatic door opening Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Super Rinse™ - Two extra rinses |
| Design and integration | |
| From the front adjustable door spring | No |
| From front adjustable rear foot | Yes |
| Installation | Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Trim kit Steam protection strip |
| Sliding door | No |
| Possible to install elevated | Yes |
| Min. niche width | 24 '' |
| Min. niche height | 34 1/4 '' |
| Depth (incl. wall spacing) | 21 7/8 '' |
| Height setting | 2 1/16 '' |
| Adjustable kick plate | 30-94/0 |
| Safety and maintenance | |
| Aqua Safe™ | Sealing points outside container Extra durable stainless steel container Waterproof bottom plate Detection of water leakage on the bottom plate Aqua Detect™ - Instant recognition of any leakage in the motor compartment Aqua Level™ Sensor - Ensures an optimized water level Stand-by water protecion - Leakage detection when machine is off Extra durable PEX inlet hose Maximum time for water intake Light and sound alarm Anti Block™ - Self cleaning drain pump |
| Aqua Safe™ system | Yes |
| Child safety | Kid Safe™ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Salt refill indicator | Notification in display |
| Technical data | |
| Water connection | Hot&cold water |
| Adapter for water connection | No |
| Max. temperature of inflow water | 140 °F |
| Noise level (max) | 39 dB(A) |
| Reference programme | 1 |
| Duration of standard programme | 125 min |
| Estimated yearly energy consumption | 220 kWh |
| Energy consumption - normal program | 1 kWh |
| Estimated annual water consumption | 647.5 gal |
| Water consumption | 3 gal |
| Power consumption in standby mode | 0.5 W |
| Plug type | USA |
| Connected load | 1300 W |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 A |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,03-1 |
| Net weight | 101.4 lb |
| Dimensions | |
| Width | 23 15/16 '' |
| Height | 34 5/16 '' |
| Depth | 21 13/16 '' |
| Maximum product height | 36 3/8 '' |
| Length of electrical cord | 71 7/16 '' |
| Depth with door open | 48 7/16 '' |
| Length inlet hose | 64 3/16 '' |
| Length outlet hose | 90 9/16 '' |
| Logistic information | |
| Packaging width | 25 3/16 '' |
| Packaging height | 36 5/8 '' |
| Packaging depth | 26 3/4 '' |
| Gross weight | 108.7 lb |
| Product code | 740097 |
| EAN code | 3838782650659 |
