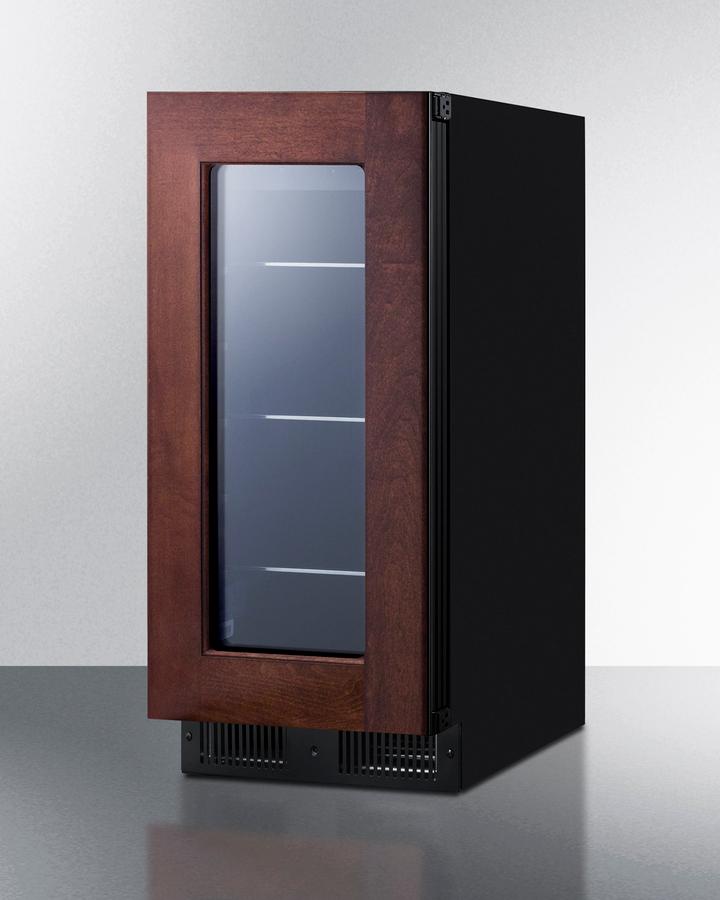

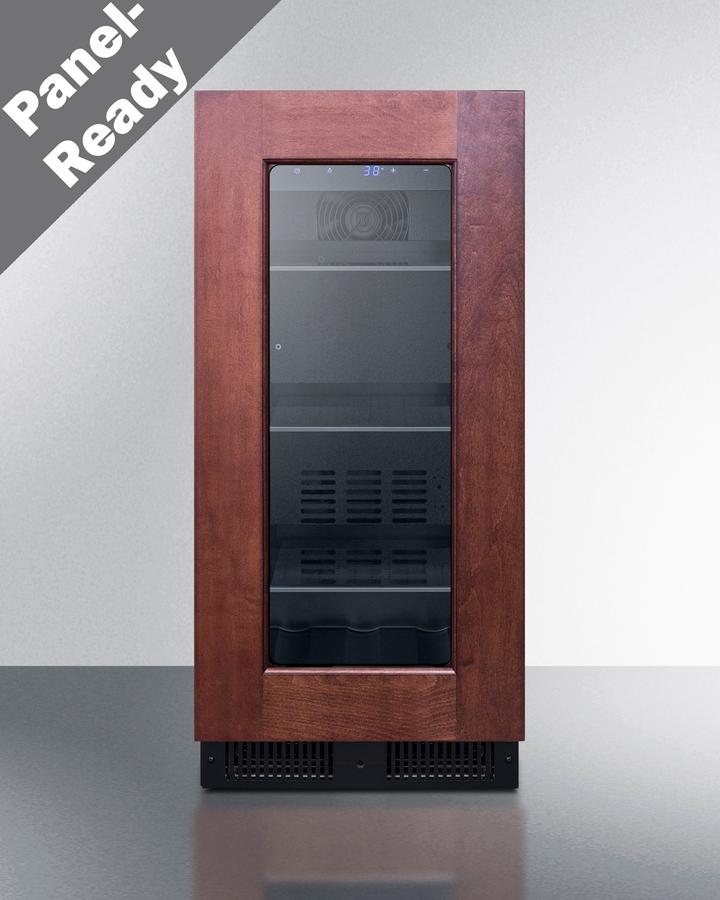

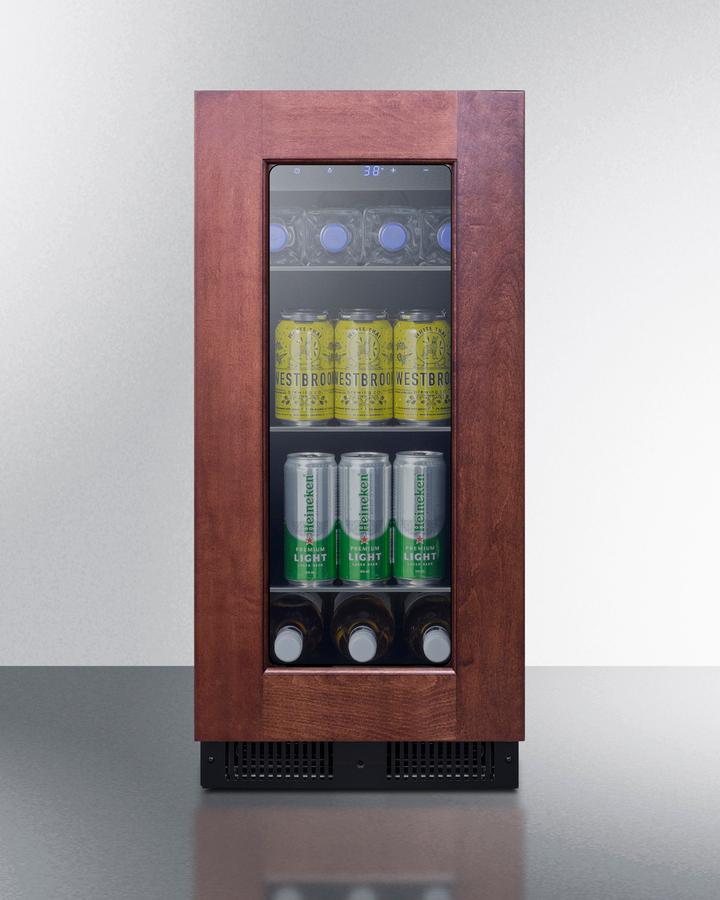

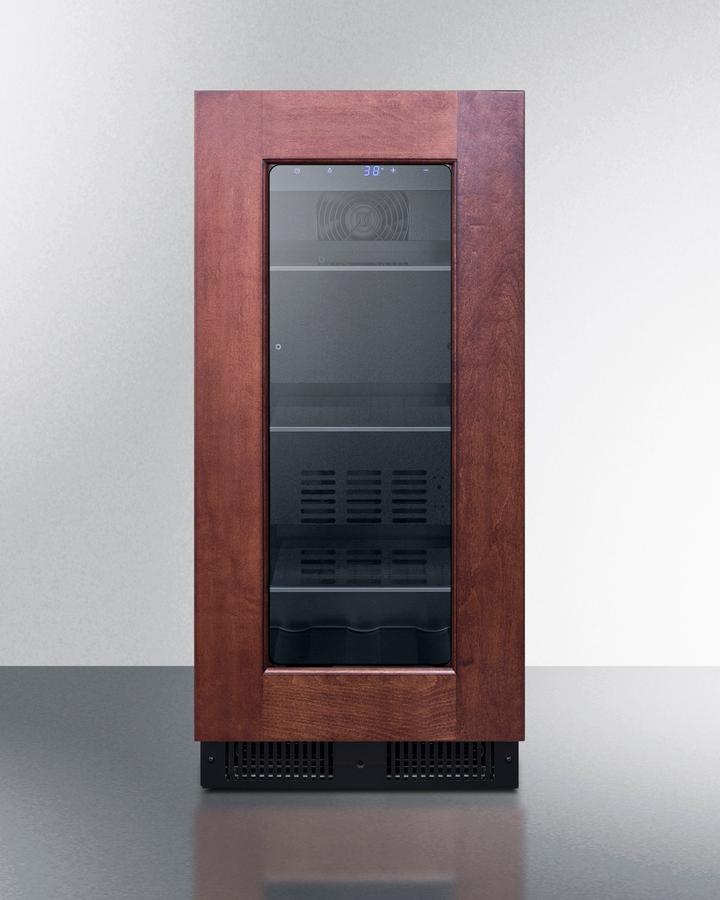

Summit ALBV15PNR 15" Wide Built-In Beverage Center, Ada Compliant (Panel Not Included)
Summit Offers The Industry'S Largest Selection Of 32" High Ada Compliant Appliances, With Quality Choices For Built-In Or Freestanding Use In 15" Wide Spaces. The Albv15Pnr Is A Beverage Center Sized Just Under 15" Wide And 32" High To Fit Under Lower Ada Compliant Counters. The Front-Breathing System Allows Built-In Installation, While The Fully Finished Black Cabinet Also Makes It Safe For Freestanding Use. This Unit Includes A Fully Articulating European-Style Hinge And 2-Piece Bracket Kit That Lets You Easily Install Overlay Panels Over The Door Trim To Create A Custom Look. The Double Pane Tempered Glass Door Provides A Full View Of Stored Contents And A Front Lock Offers Convenient Security. For Added Space Savings, The Albv15Pnr Is Designed With A Sealed Back And Right Angle Cord. This Unit Is Also Height Adjustable With Adjustable Leveling Legs And An Extra Kickplate That Allows You To Raise The Unit Up To An Additional 3". Three Adjustable Glass Shelves Offer Flexible, Spill-Proof Storage, With Black Trim For Added Color Matched Style. This Model Utilizes Automatic Defrost For Easy Maintenance And Includes An Internal Fan To Ensure More Even Temperature Distribution. An Audible Alarm Sounds If The Door Has Been Left Open For Over One Minute, Or If The Temperature Has Risen Out Of The Recommended Storage Range. This Unit Is Also Equipped With Sabbath Mode To Allow Users The Option Of Disabling Certain Electrical Functions During Periods Of Religious Observance. With Its Unique Size And User-Friendly Features, The Albv15Pnr Is The Perfect Choice For Space-Constrained Ada Compliant Settings. For A Matching Wine Cellar, See The Alwc15Pnr.
- Built-in or freestanding glass door refrigerator sized to fit in ADA compliant spaces
- Sized at 32" high for use under lower ADA compliant counters

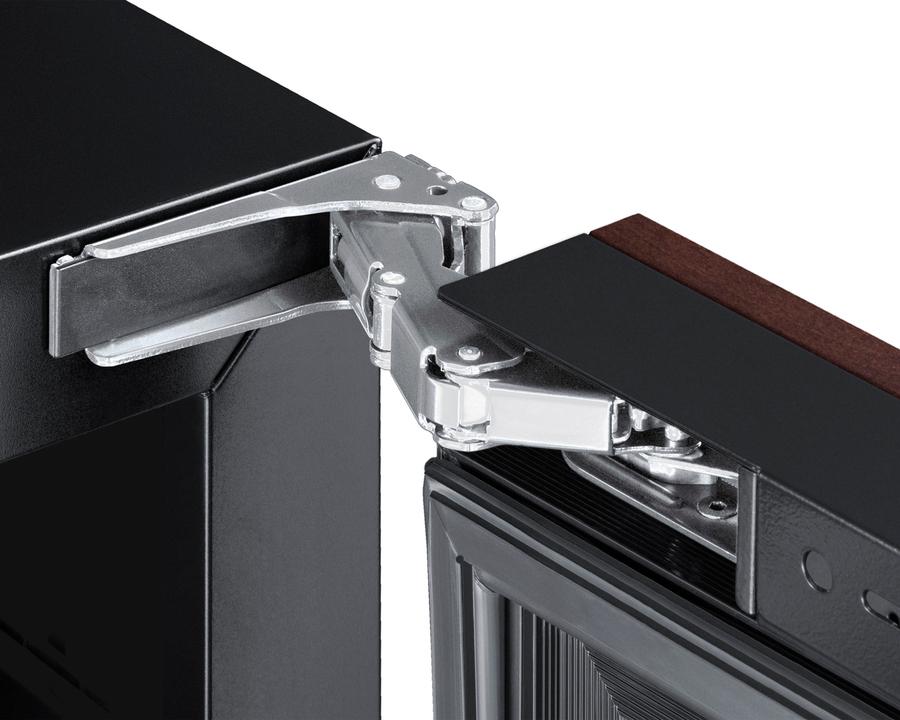

- European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry
- Make the best use of space by installing your appliance under the counter
- ETL-S listed to NSF-7 Standards for use in commercial establishments
- Provides a full display of stored contents with a heat-safe double tempered design
- Keyed lock for a secure interior, with two keys included
- Electronic controls for precise temperature management.
- Temperature readout can be shown in Celsius or Fahrenheit
- Gentle illumination with an on/off switch
- Reduced maintenance with the convenience of auto defrost

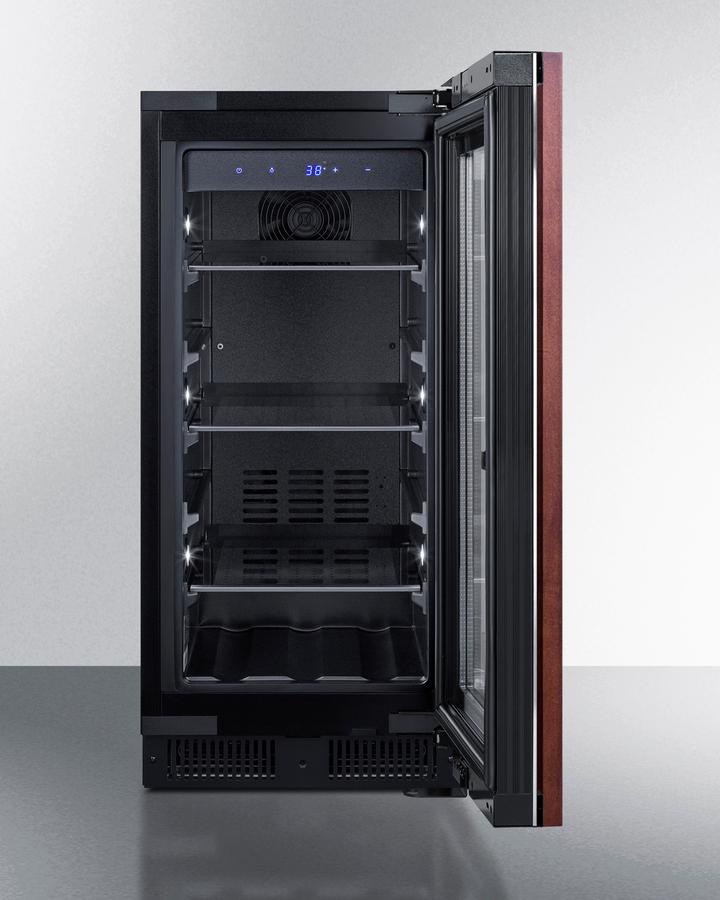

- Flexible storage with spill-proof convenience
- Floor includes slots to hold bottles in place
- User-reversible door swing on the refrigerator for added flexibility
- Leveling legs can raise the unit to up to 34.5" for more standardized counters. An extra kickplate cover is included to cover the added space
- Stainless steel look for added elegance
- Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance
- Audible alarm sounds if the interior temperature rises out of set range
- Alarm sounds if the door is left open for more than 60 seconds
- Design allows you to plug the unit in flush against the wall socket with no need to add extra depth
- Space saving design makes it easier to install flush against the wall
- Smoother opening and a better fit with an integrated European hinge
- Pair with the ALWC15PNR for a perfectly matched set
- Allows the unit to be used freestanding
- Environmentally friendly design with no ozone-damaging chemicals
- Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
- Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door
Overview | |
Height of Cabinet | 32.0' (81 cm) |
Width | 14.75' (37 cm) |
Depth | 23.63' (60 cm) |
Depth with door at 90° | 39.0' (99 cm) |
Capacity | 2.3 cu.ft. (65 L) |
Defrost Type | Automatic |
Door | Glass/Panel-Ready Frame |
Cabinet | Black |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Energy Usage/Year | 270.0kWh/year |
Amps | 1.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 68.0 lbs. (31 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101082899 |
Refrigerator Features | |
Door Swing | RHD |
Reversible | Yes |
Shelf Type | Glass |
Shelf Qty | 3 |
Adjustable Shelves | Yes |
Thermostat Type | Digital |
Fan Type | Interior and Exterior |
Refrigerant Type | R600a |
Refrigerant Amount | 0.78oz. |
High Side PSI | 270.0 |
Low Side PSI | 105.0 |
Level Legs Qty | 4 |
Interior Light | Yes |
Temperature Range | 36 - 43 F |
Dimensions | |
Interior Height | 21.25' (54 cm) |
Interior Width | 10.5' (27 cm) |
Interior Depth | 17.25' (44 cm) |
Compressor Step Height | 3.5' (9 cm) |
Compressor Step Width | 10.5' (27 cm) |
Compressor Step Depth | 5.0' (13 cm) |
