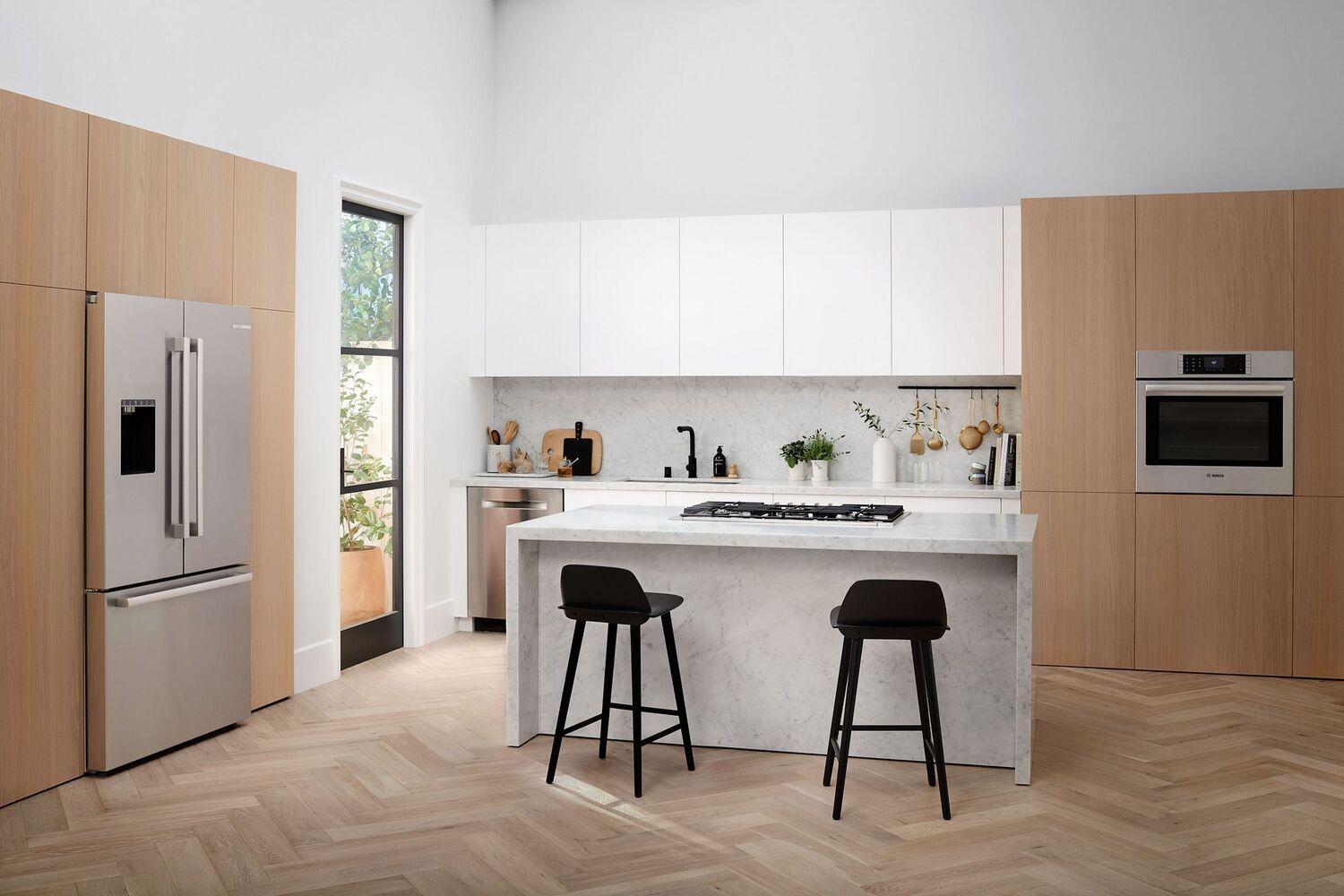

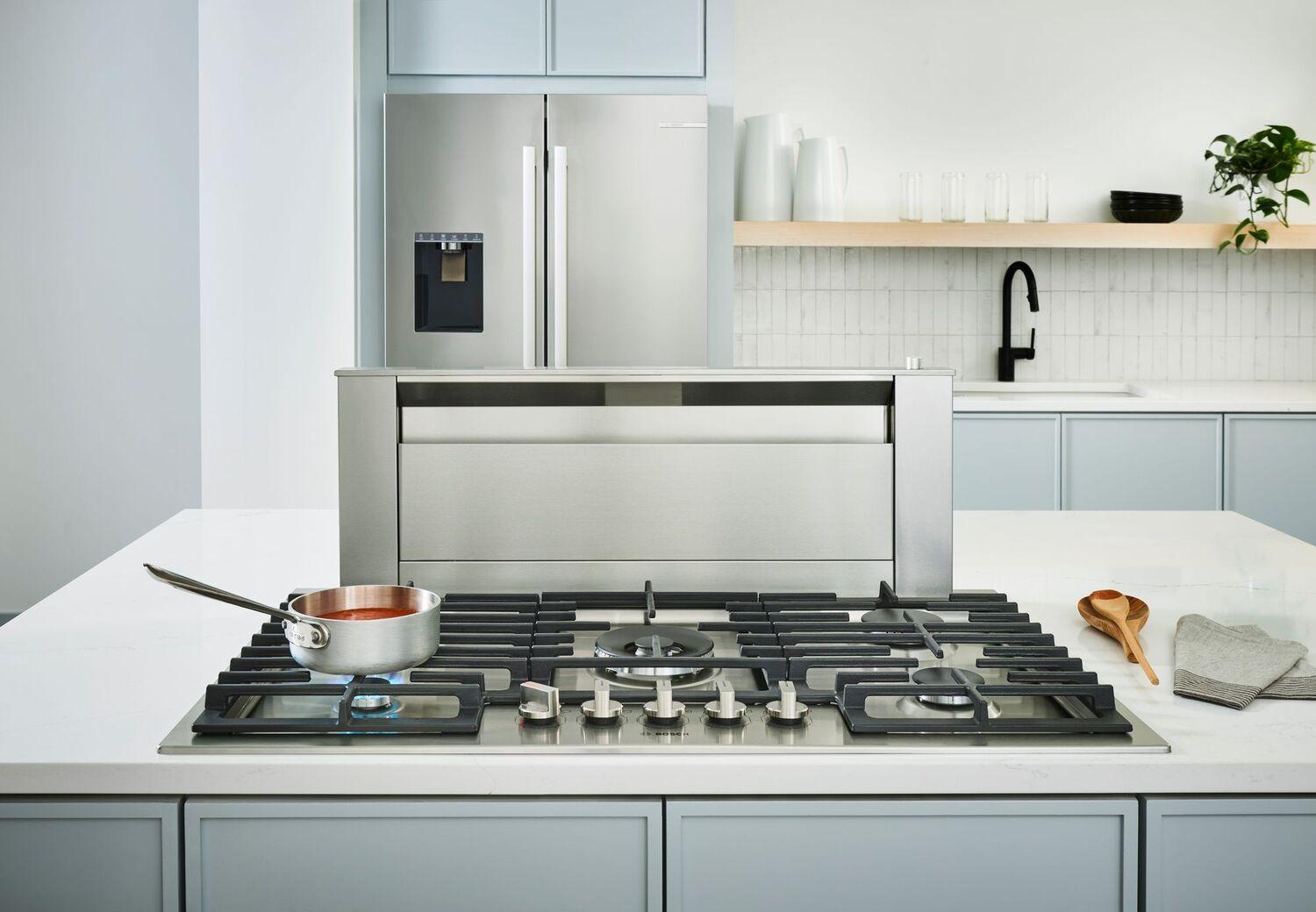

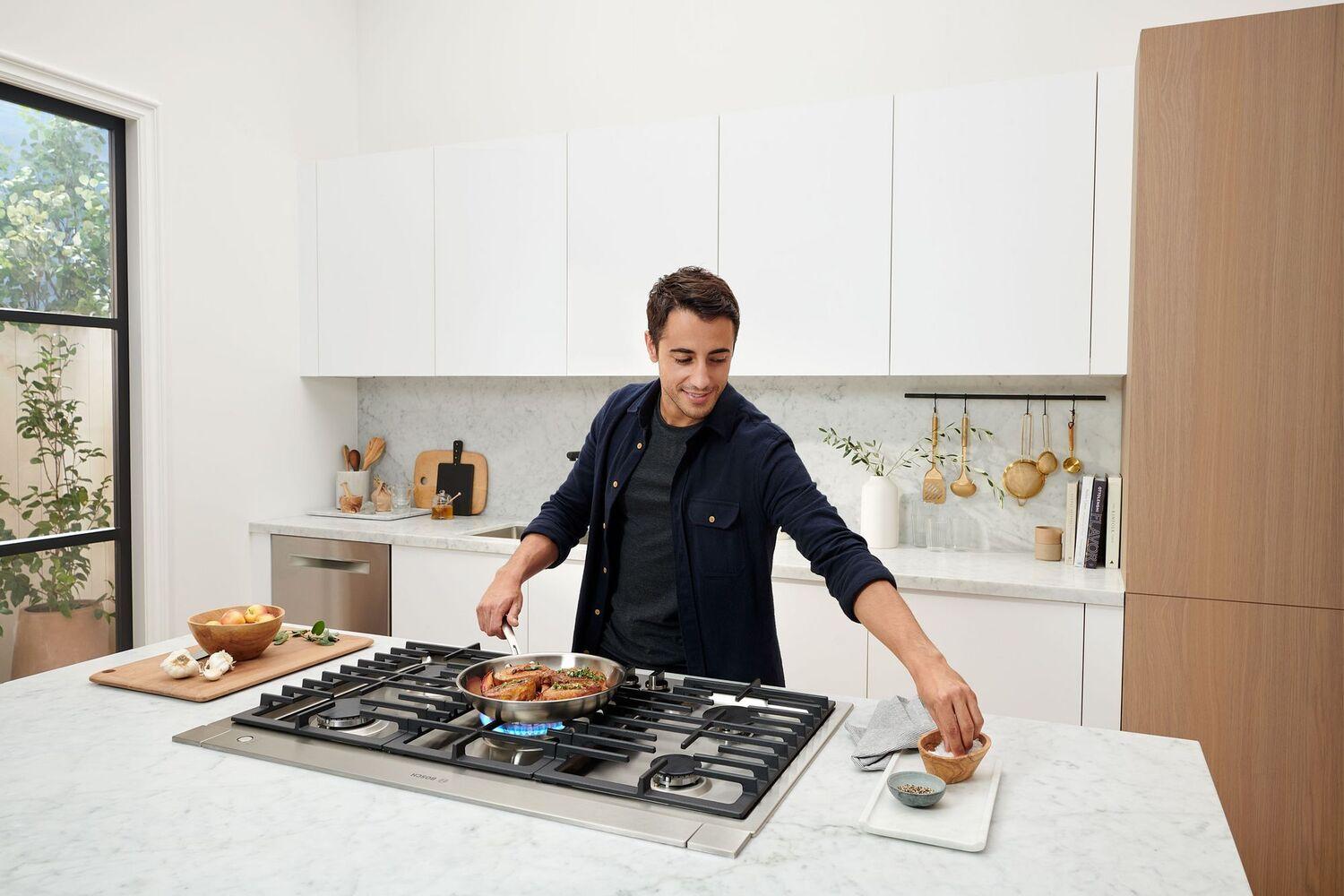

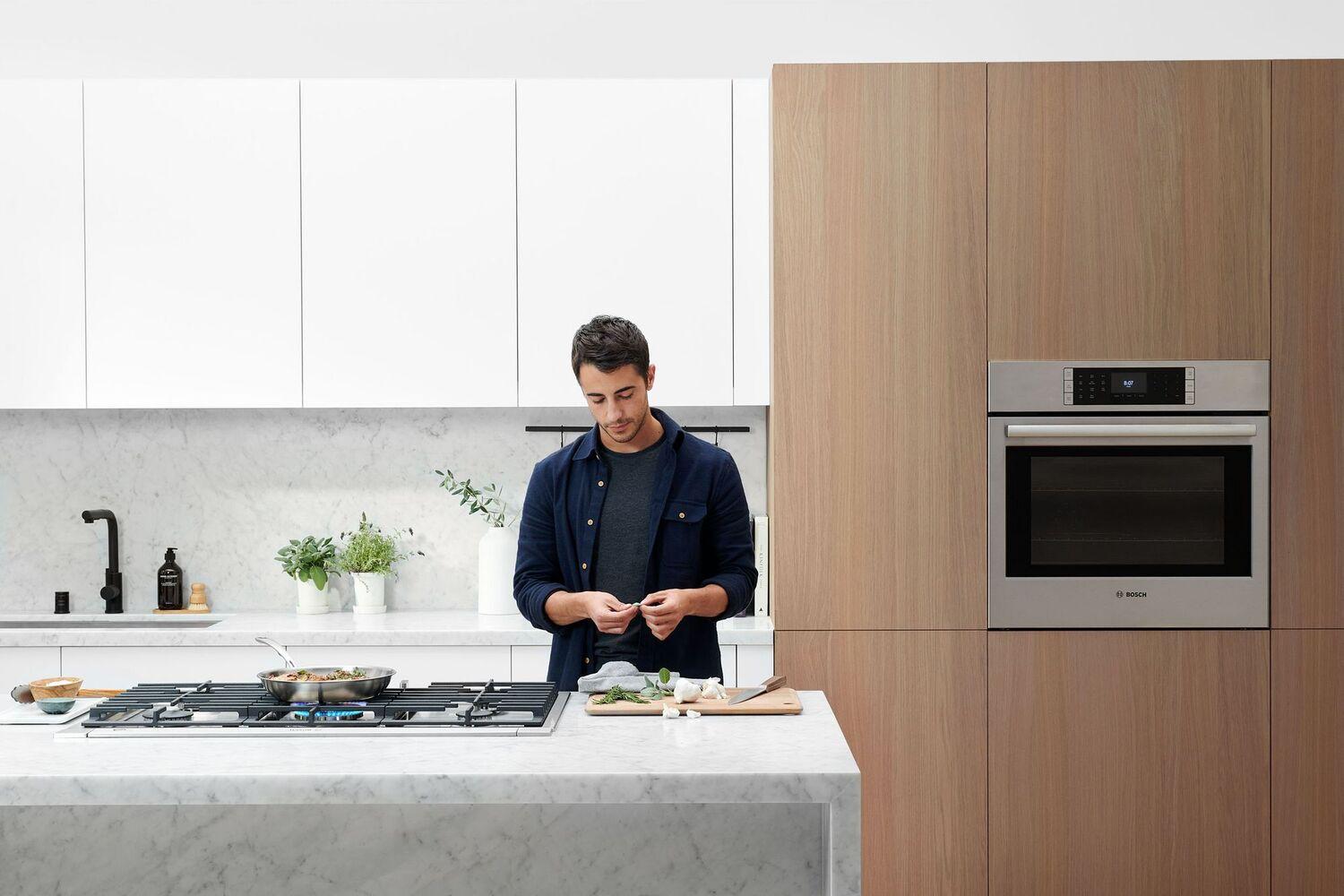

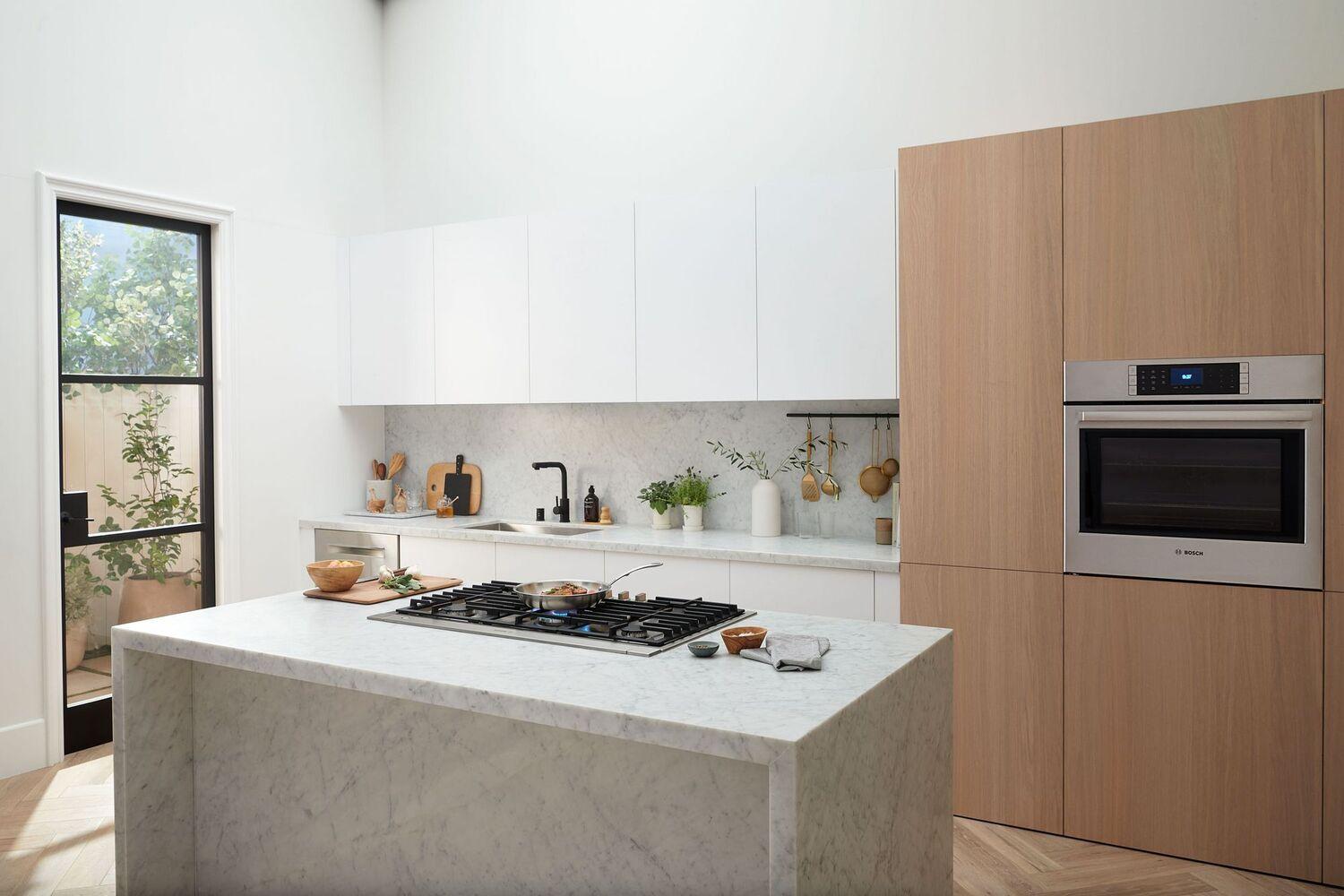

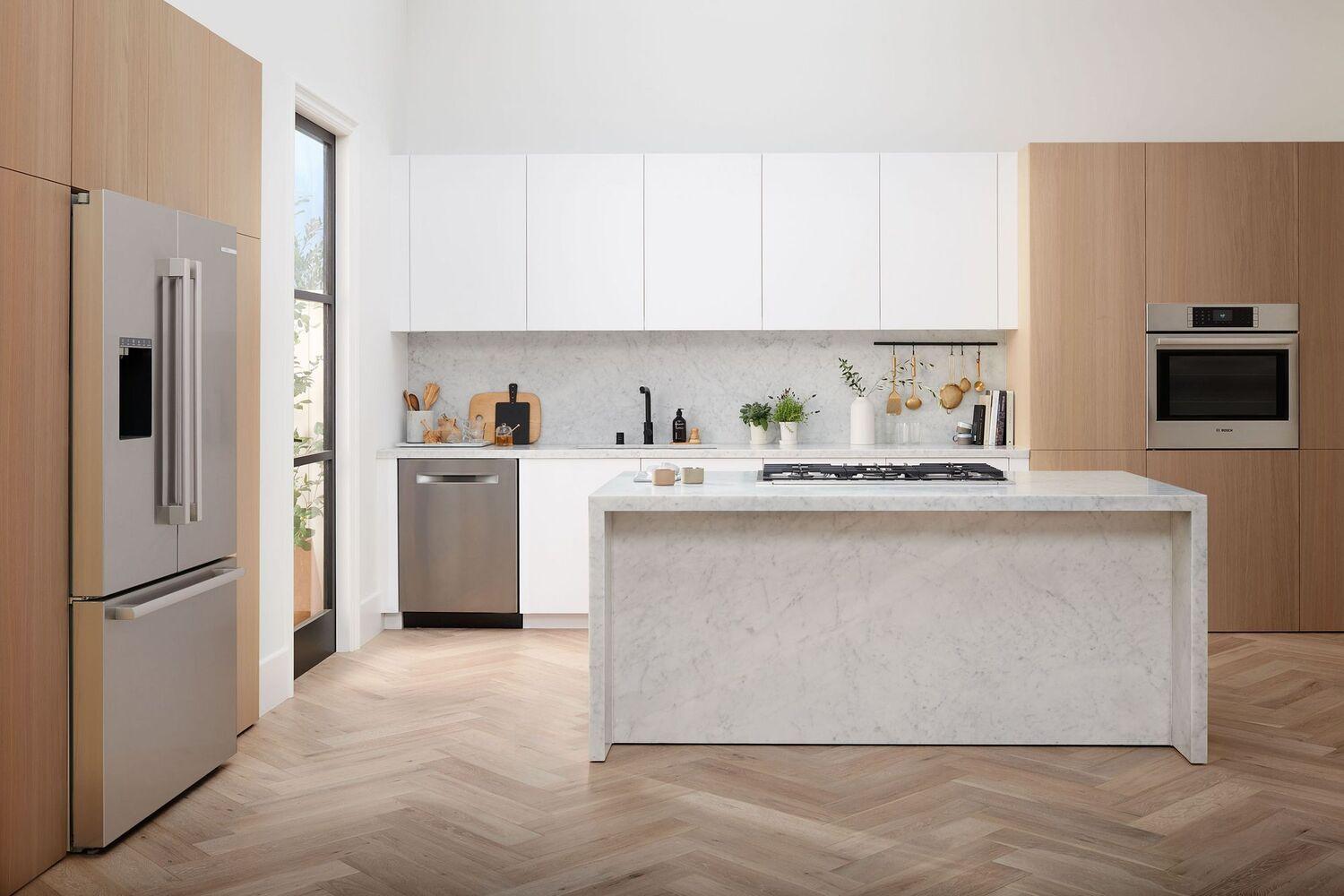

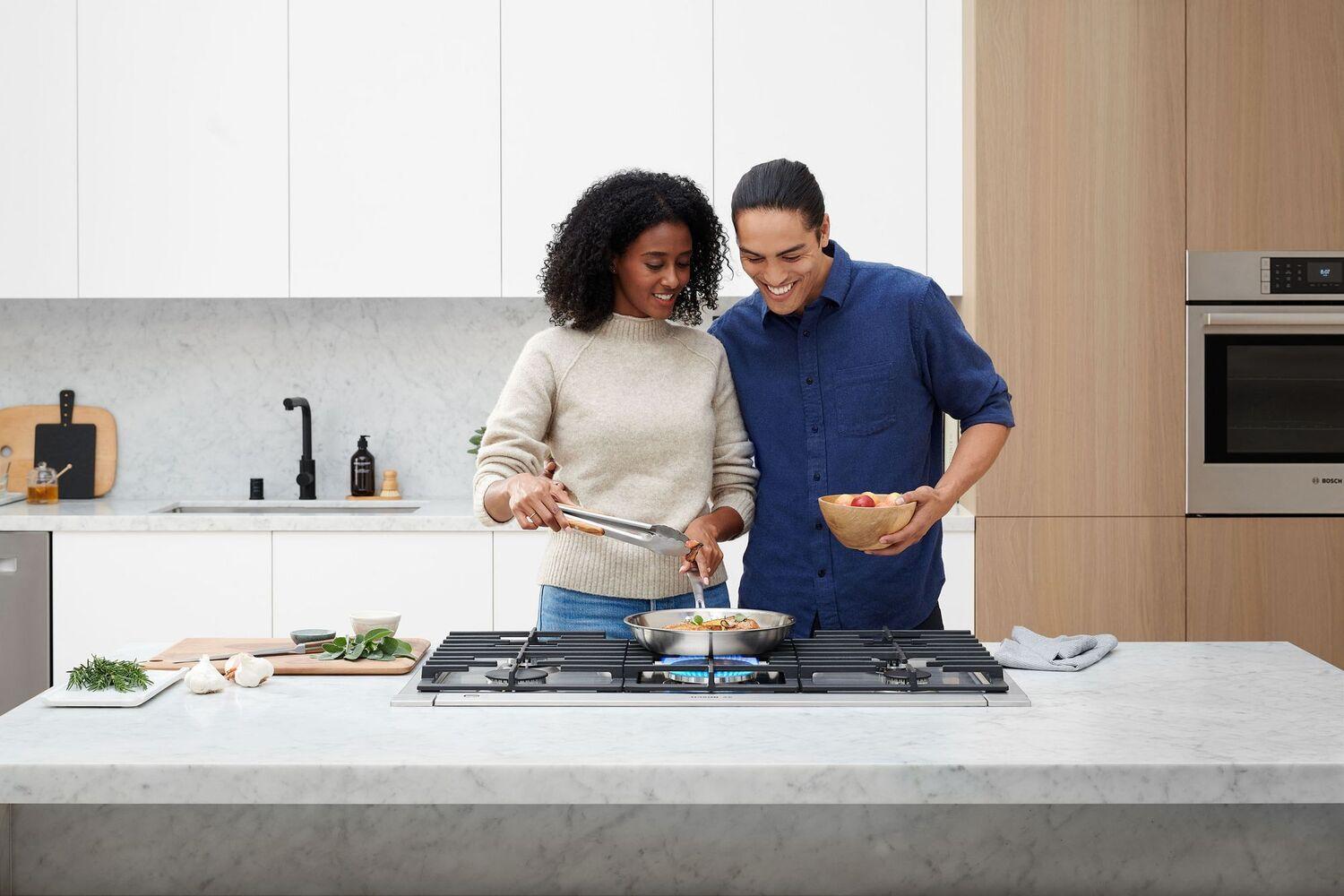

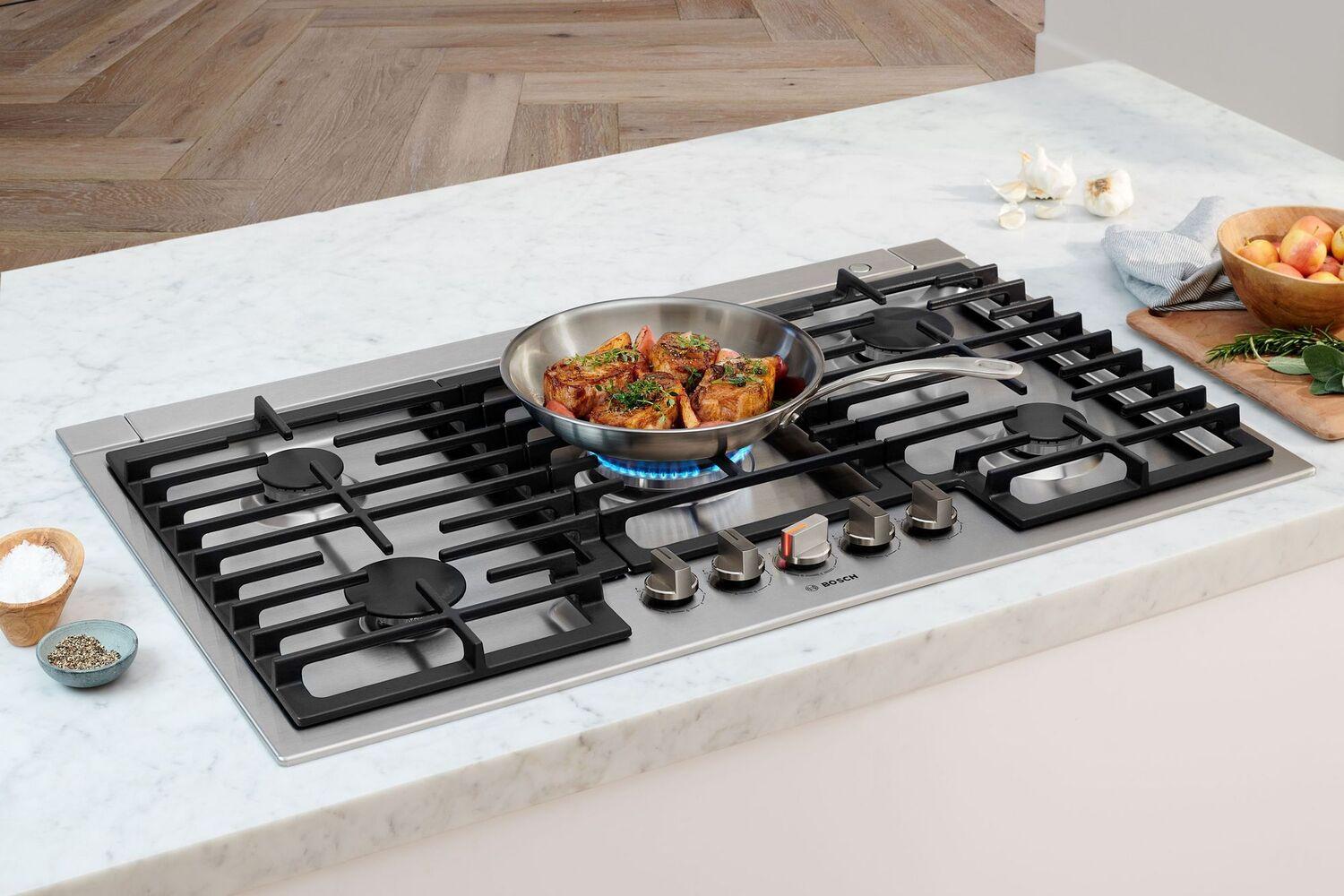

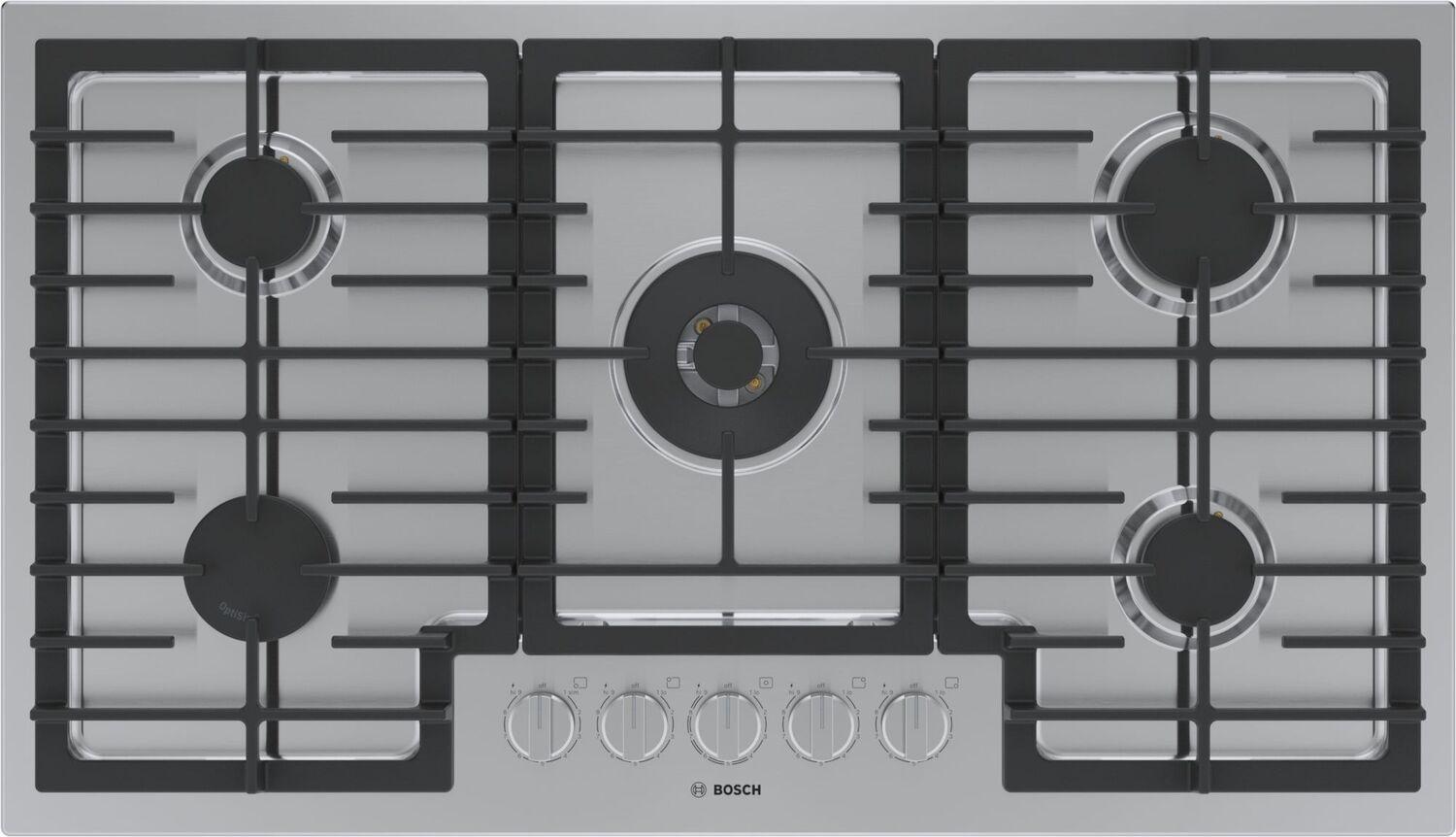

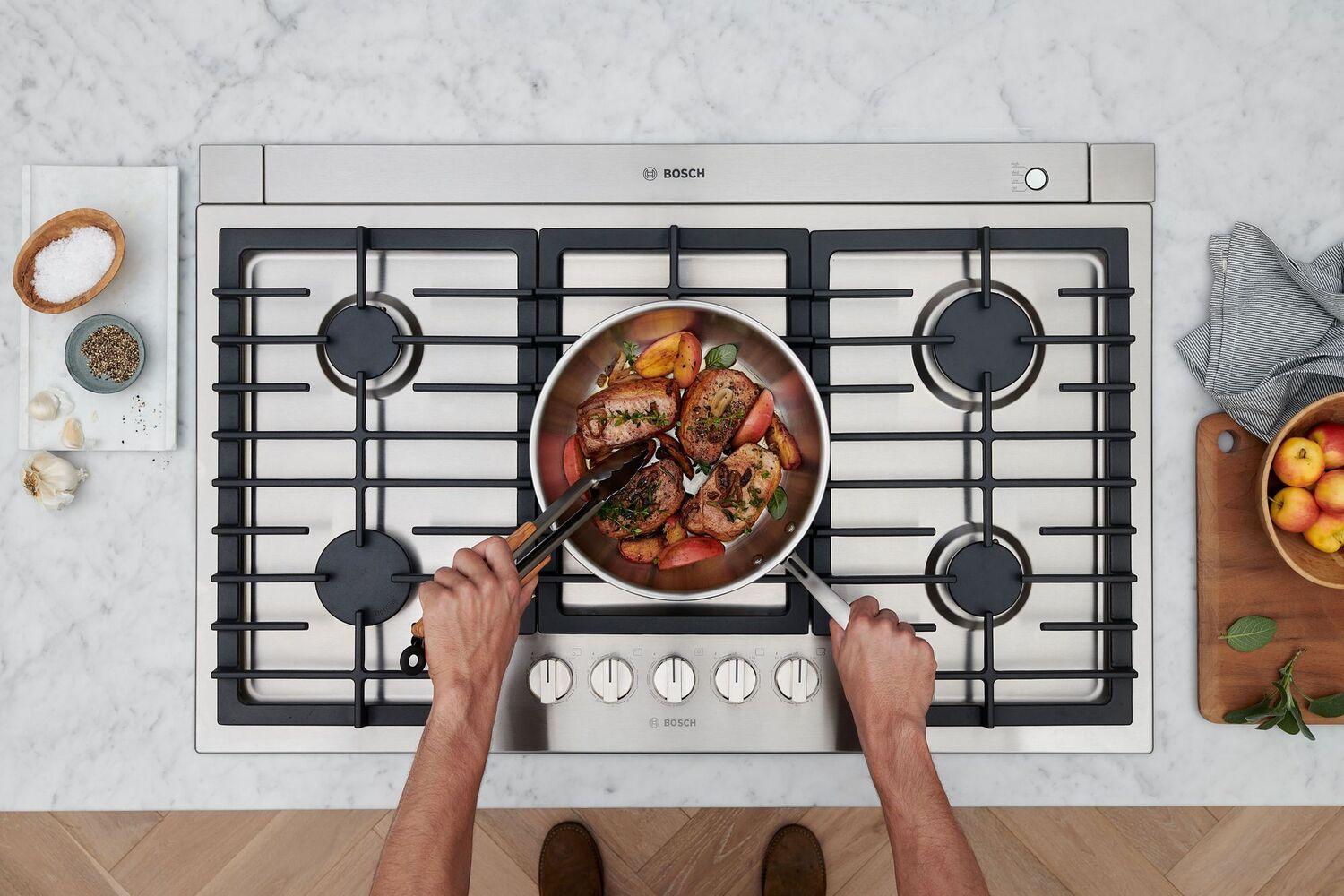

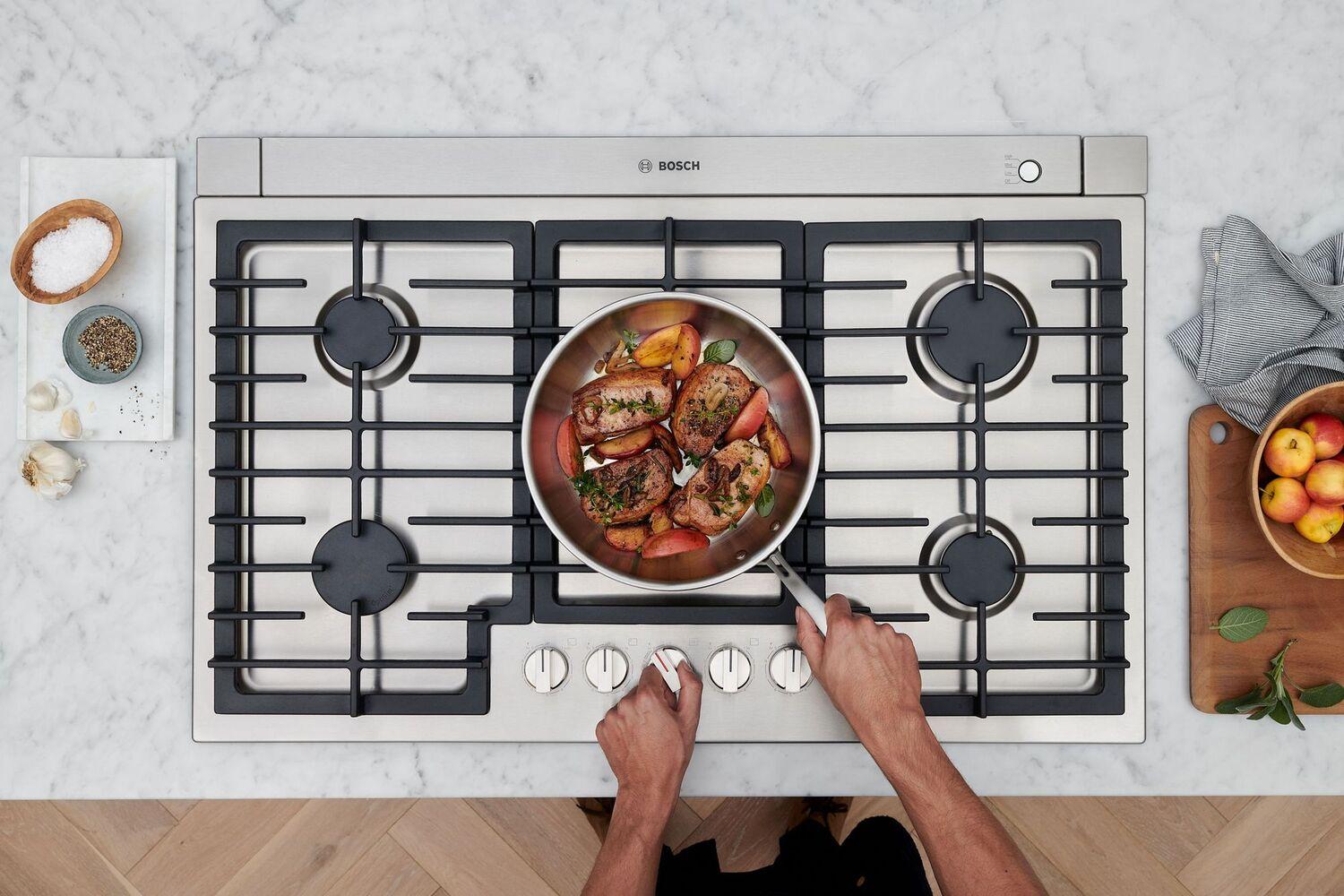

Bosch NGM8659UC 800 Series Gas Cooktop 36" Stainless Steel Ngm8659Uc
Rebates &
Promotions

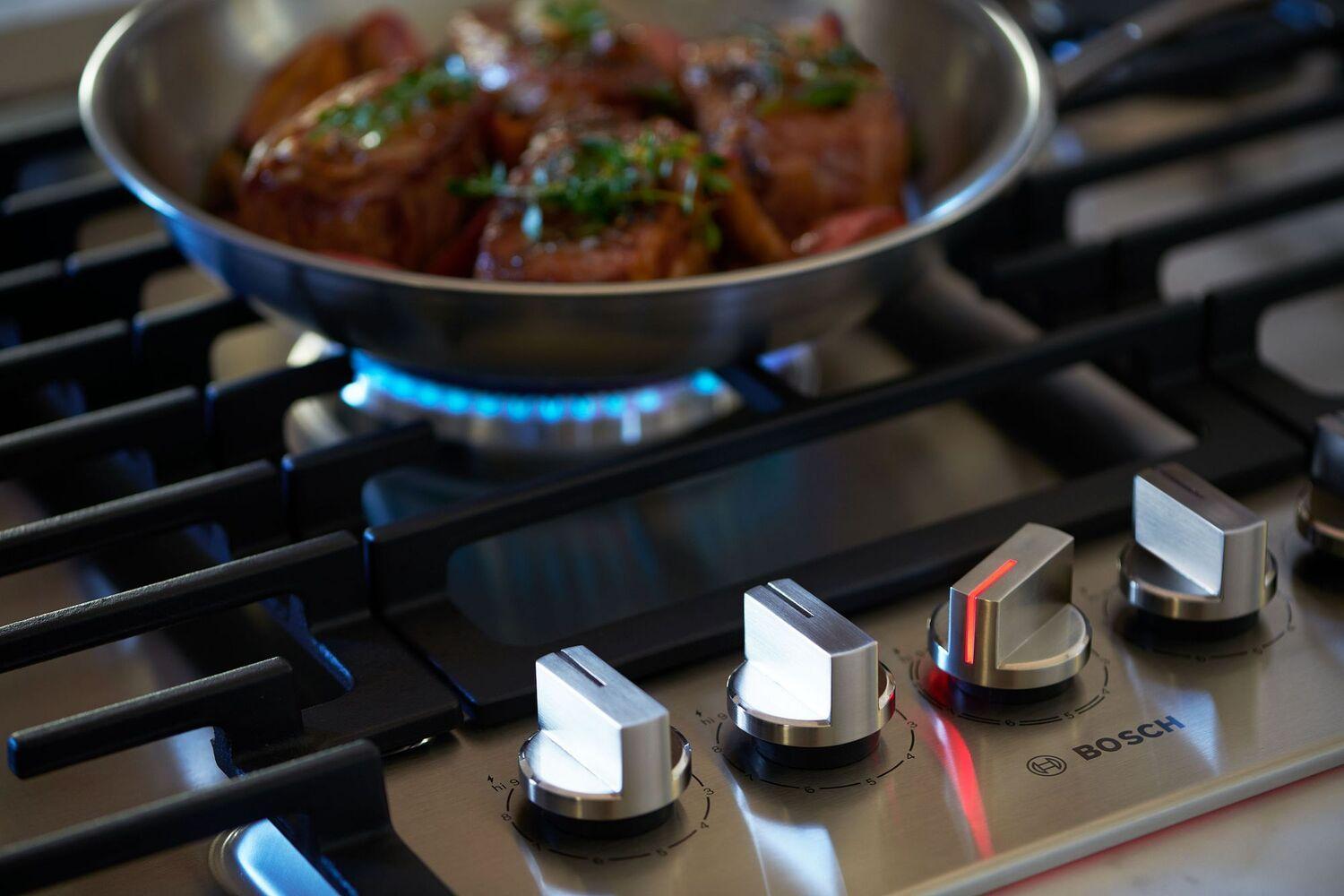

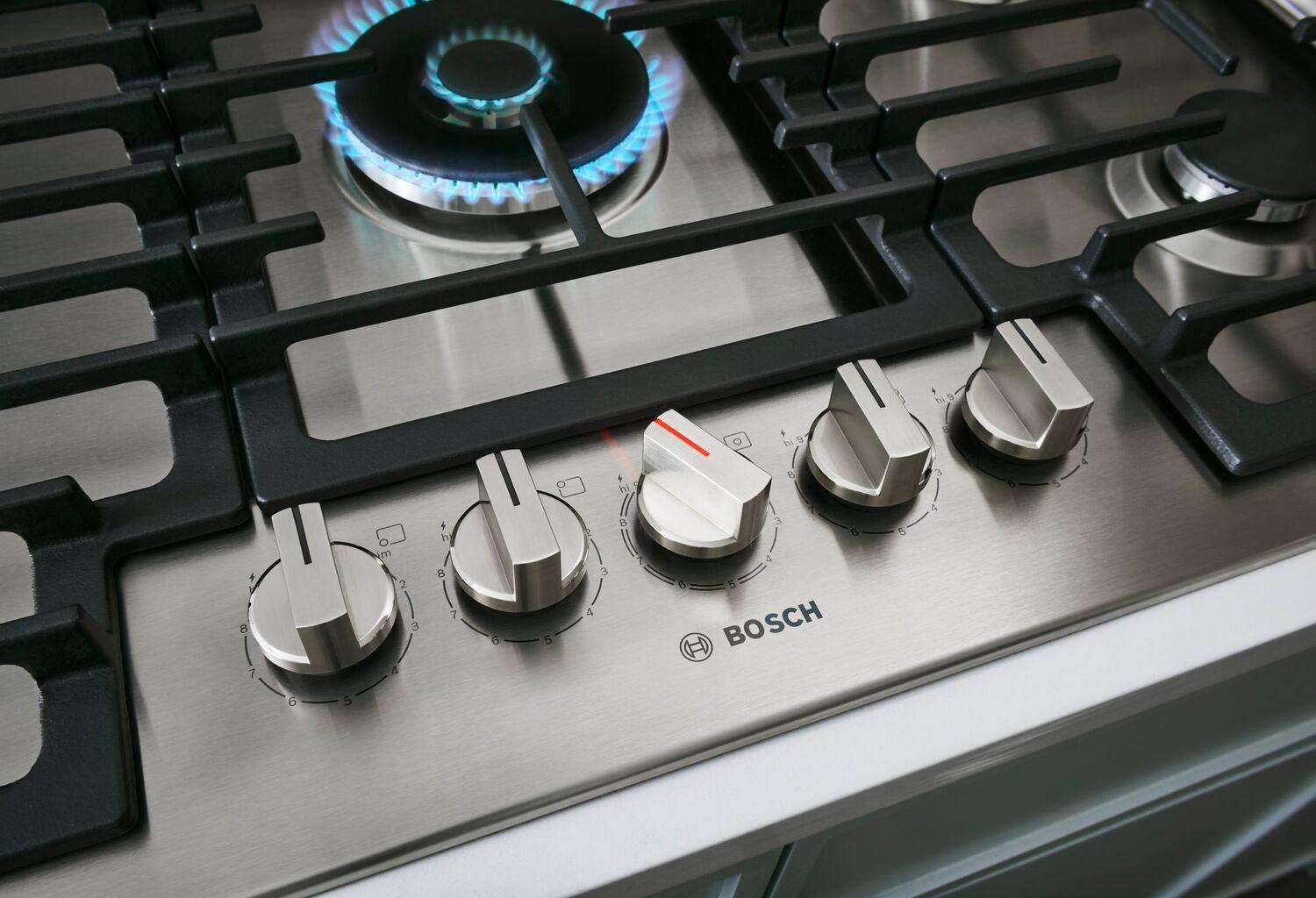

Sleek Knobs with LED Indicators
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.
Simmer delicate sauces with the OptiSim® Burner
The OptiSim burner design is wider and thicker which diffuses heat evenly for better flame control when simmering delicate sauces.
Boil water quickly with a Dual-Flame Power Burner
The dual flame ring power burner has two rings for low and high flame settings so you can go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.

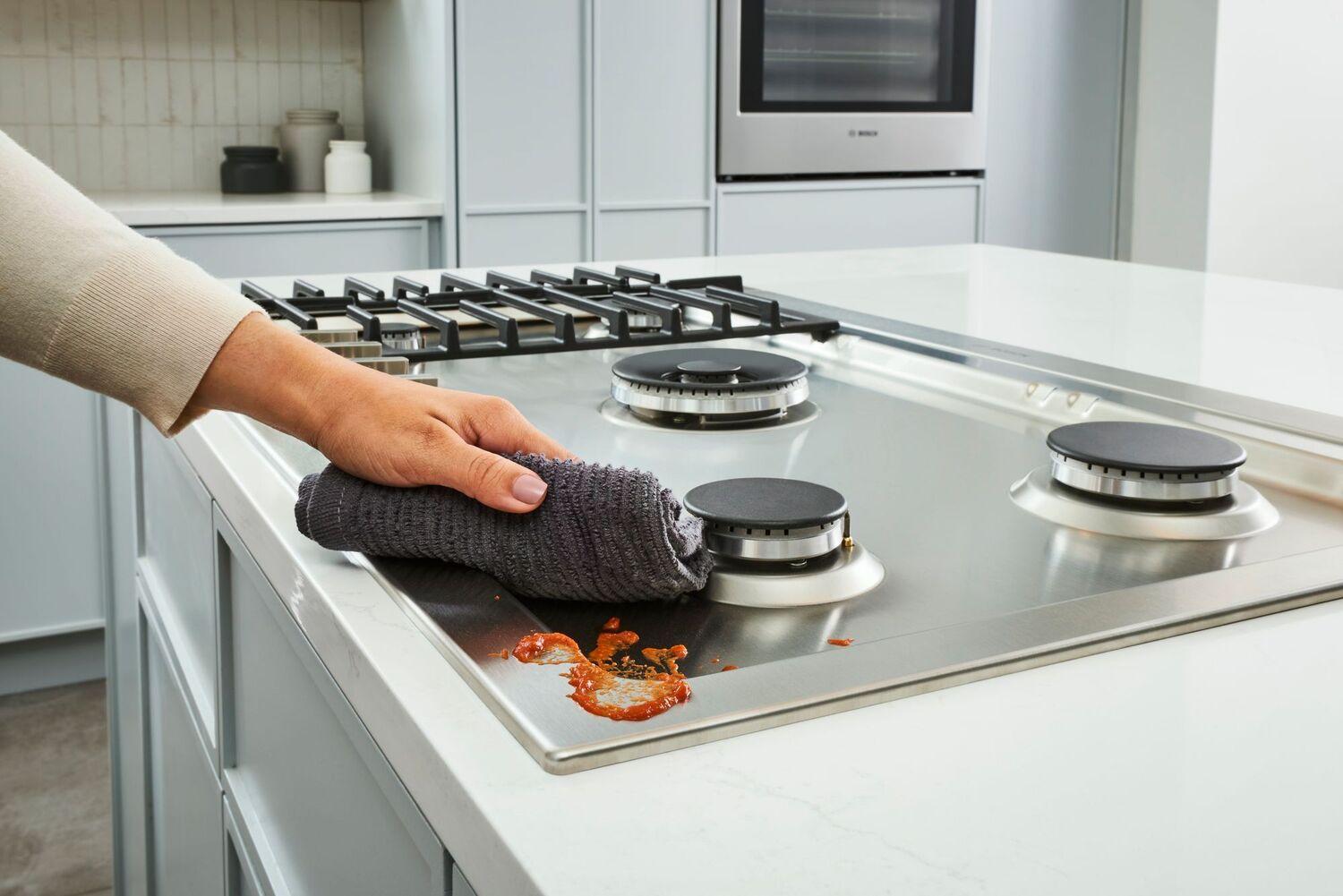

Dishwasher-safe grates
A special enameling process allows the grates to be washed directly in the dishwasher instead of by hand for easier clean up.
- Eliminate the guesswork of cooking with FlameSelect®
- Sleek Knobs with LED Indicators
- Simmer delicate sauces with the OptiSim® Burner
- Boil water quickly with a Dual-Flame Power Burner
- Dishwasher-safe grates
- Easy to clean, low-profile design
- Slide your pans from burner to burner
Features and Specifications | |
General | |
Energy source | Gas |
Type of Control | Front, Illuminated, sword knobs |
Safety | SMARTFLAME |
Features | Flame select, Wok burner |
Construction type | |
Color of frame | Stainless steel |
Color of Surface | Stainless steel |
Design | Built-in |
Number of electric elements | 0 |
Number of electric cooking zones | 0 |
Number of gas burners | 5 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Type of grate | Cast iron |
Total Number of Heating Elements | 5 |
Number of radiant elements | 0 |
Number of electric warming zones | 0 |

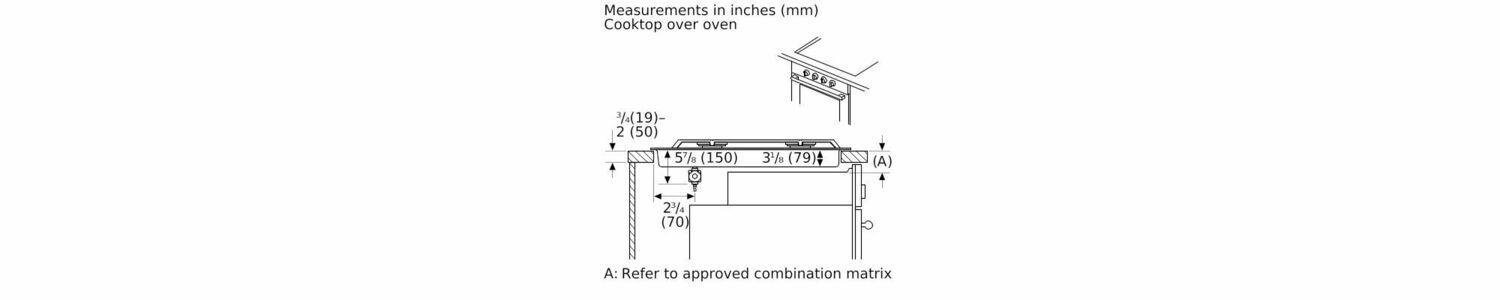

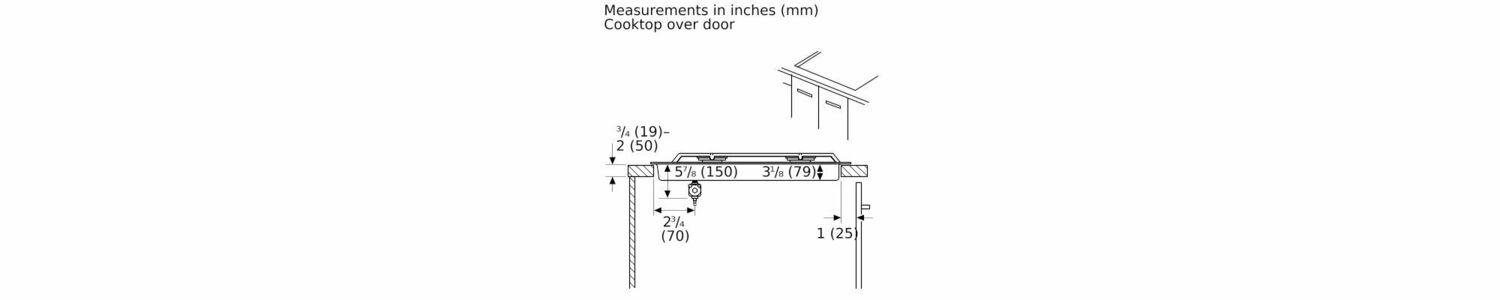

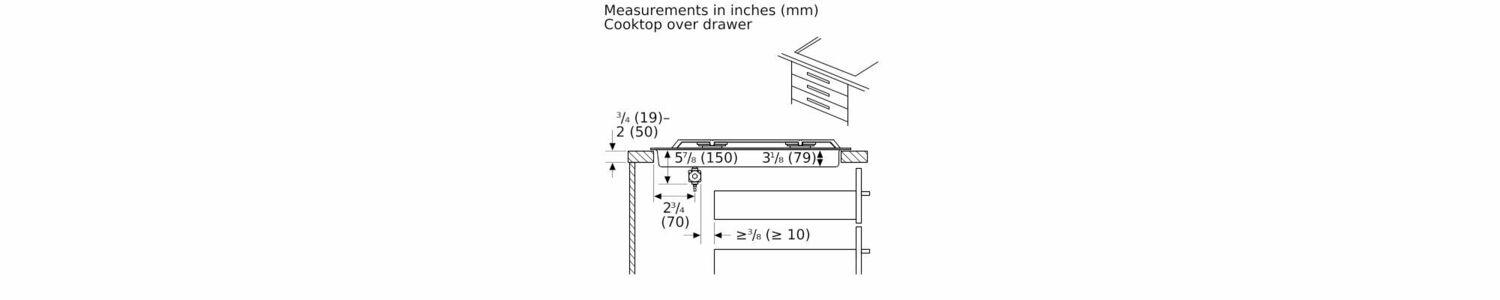

Size and weight | |

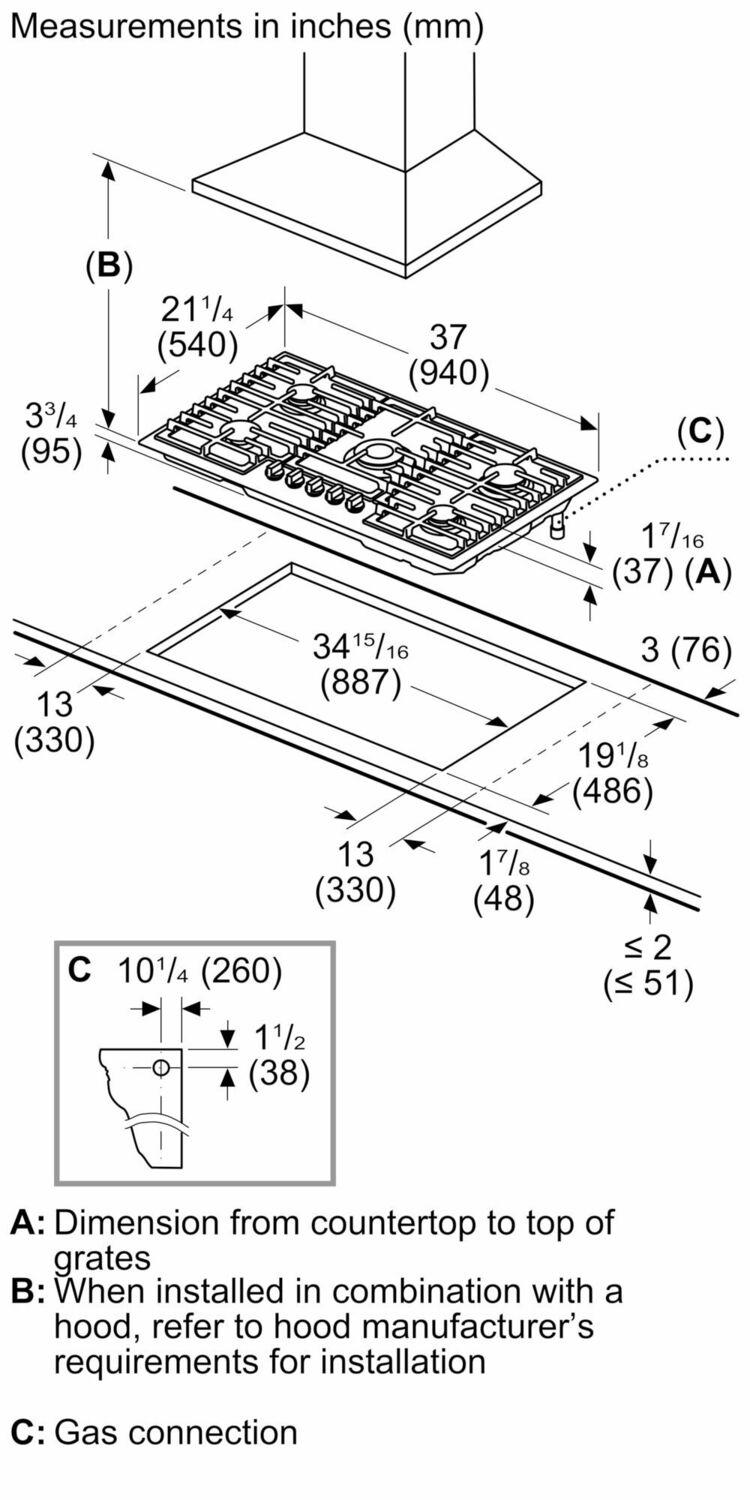

Overall Appliance Dimensions (HxWxD) (in) | 3 13/16'' x 37'' x 21 1/4'' |
Net Weight | 31.000 lbs |

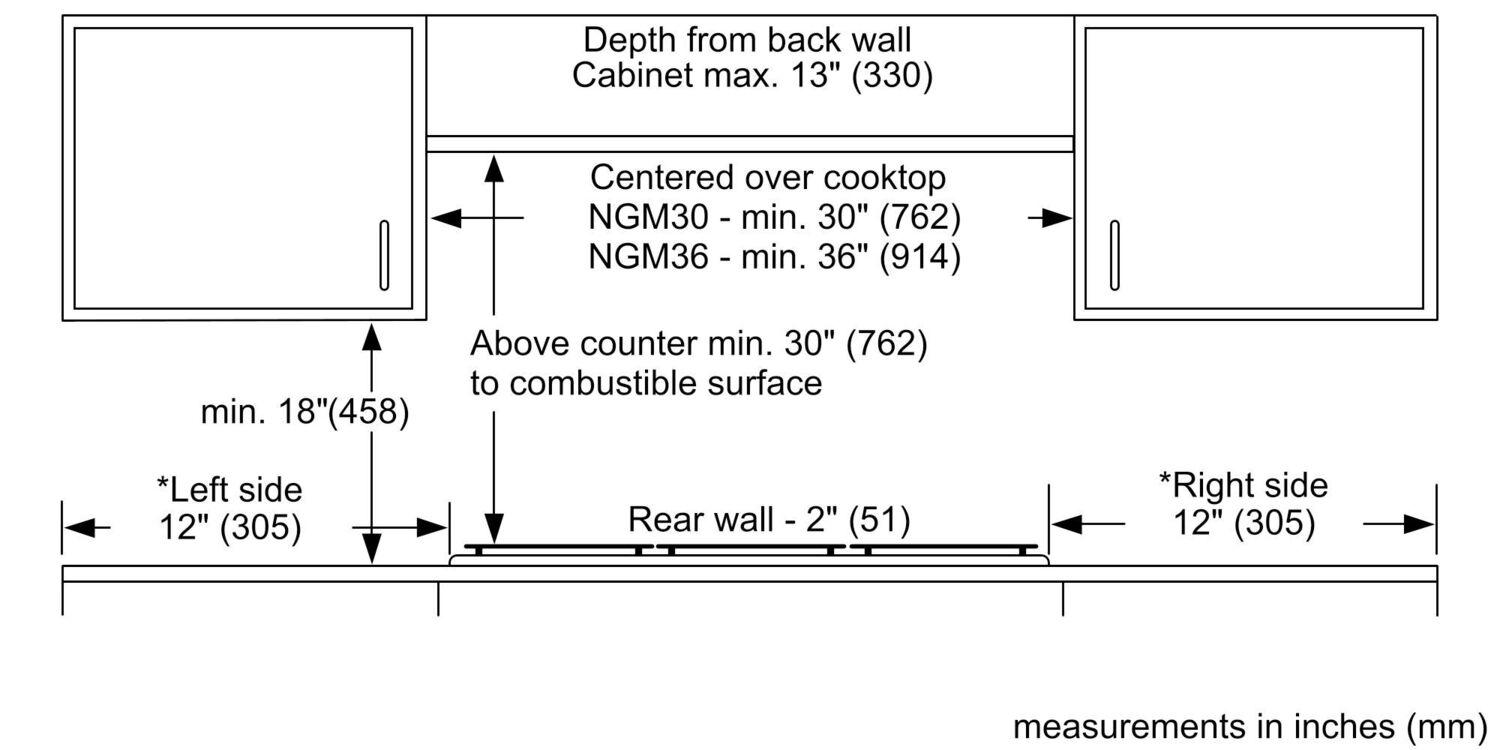

Minimum distance from counter front (in) | 1 7/8'' |
Minimum distance from rear wall (in) | 3'' |
Cooking zone 1 | |
Location of heating element | front left |
Power of heating element (kW) | 1 kW |
Type of heating element | Gas |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 3 | |
Location of 3rd heating element | back left |
Power of 3rd heating element (kW) | 1.75 kW |
Type of 3rd heating element | Gas |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Location of 5th heating element | back right |
Power of 5th heating element (kW) | 3 kW |
Type of 5th heating element | Gas |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 1.75 kW |
Type of 7th heating element | Gas |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Safety | |
Residual Heat Indicator | Separate |
Type of safety device for gas | Electromagnetic for each burner |
Safety | SMARTFLAME |
Connection | |
Total connected gas load | 12,500 W |
Location of gas connection | Bottom, Rear, Right |
Frequency | 60 Hz |
Energy source | Gas |
Power Cord Length | 40'' |
Watts | 360 W |
Accessories | |
Included Accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
