Broan F403604 Broan® 36-Inch Convertible Under-Cabinet Range Hood, 230 Max Blower Cfm, Stainless Steel
Broan F403604 Broan® 36-Inch Convertible Under-Cabinet Range Hood, 230 Max Blower Cfm, Stainless Steel

Broan® 36-Inch Convertible Under-Cabinet Range Hood, 230 Max Blower Cfm, Stainless Steel The F40000 Series Provides Installation Flexibility With 4-Way Convertibility To Fit Virtually All Applications. The Hood Is Designed For Under Cabinet Use And Installs As 3-1/4 In. X 10 In. Ducted Opening With Vertical Or Horizontal Ducting; Or 7 In. Round Vertical Ducting Or As Non-Ducted With Air Recirculation. The Hood Is Equipped With A 230 Max Blower Cfm Designed For Years Of Trouble Free Service, An Easy To Clean Grease Filter, A Protective Lamp Lens That Distributes Light Evenly Over The Cook-Top, And Control Switches For Fan Speed And Light Activation


  • Provides installation flexibility with 4-way convertibility to fit virtually all applications

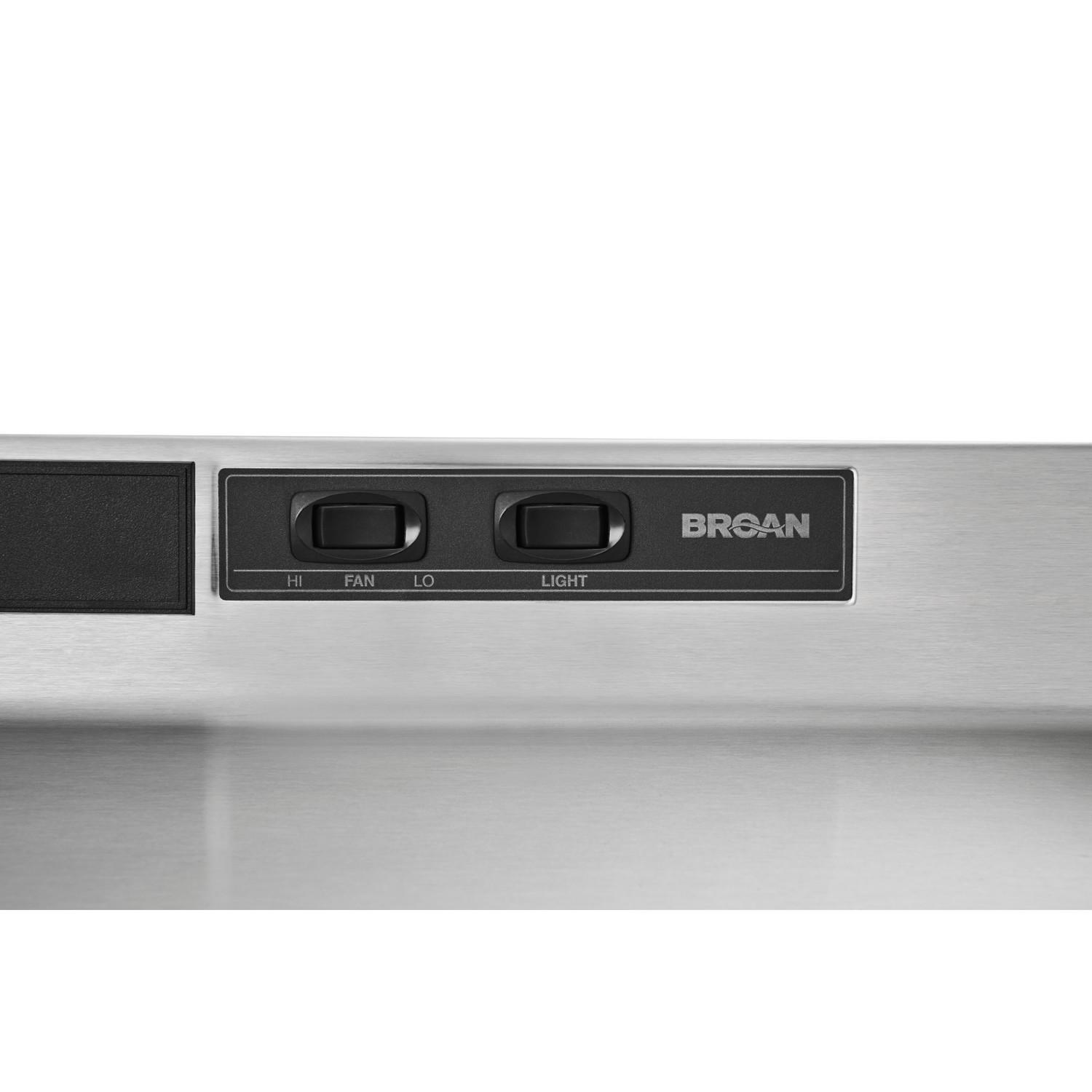

  • Simple to use rocker switches let you adjust the fan speed and the light setting separately
  • Two fan speeds help you tackle a variety of venting jobs
  • 230 MAX Blower CFM quickly removes smoke and cooking odors from the air
  • Vertical and horizontal exhaust option lets you connect the ductwork to the top or rear of the range hood

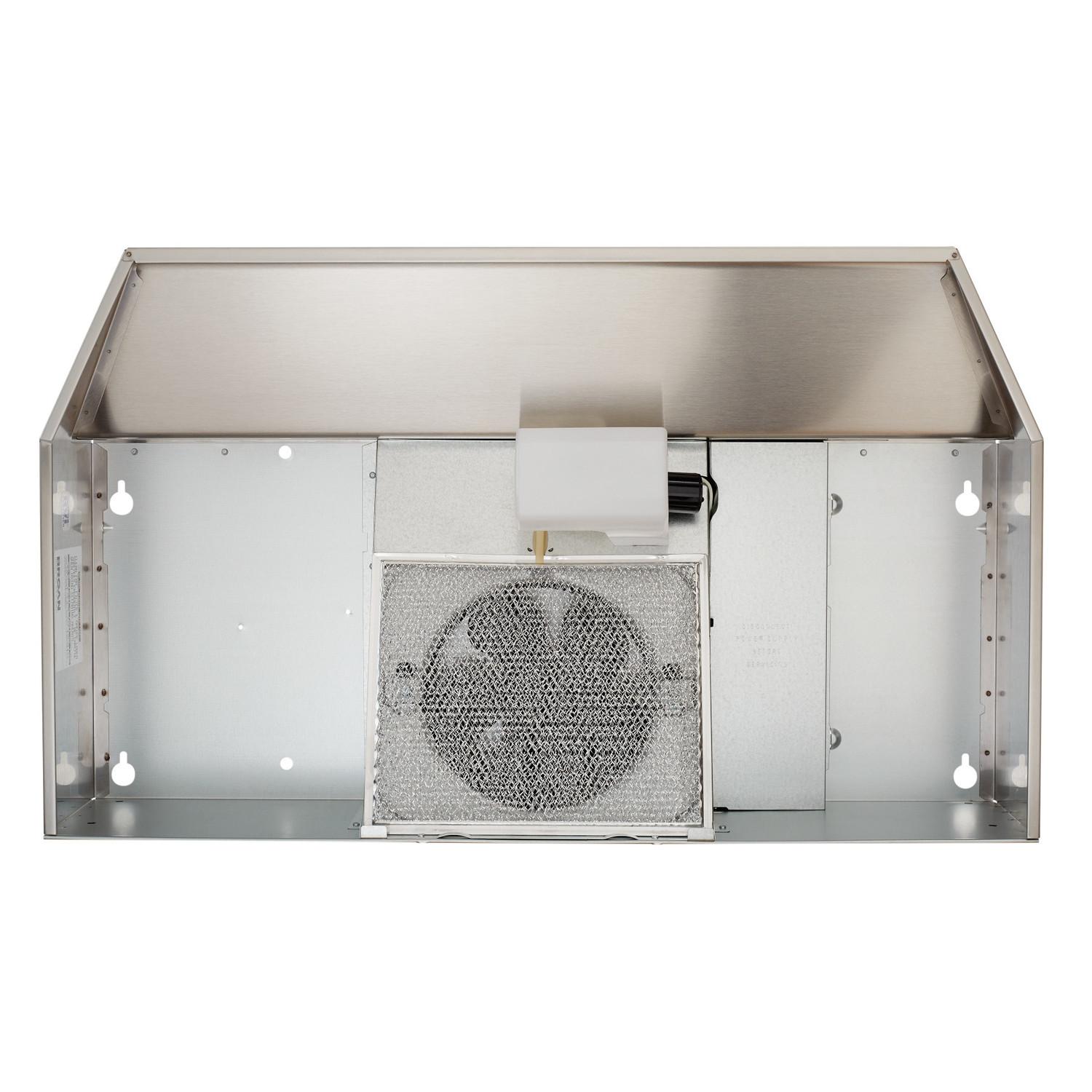

  • Removable, reusable, dishwasher-safe aluminum mesh filter for easy cleaning and maintenance; supports ductless filtration via non-ducted filter (purchase separately)
  • Uses up to a 75-Watt in incandescent light to brightly illuminate the cooking area (bulb sold separately)

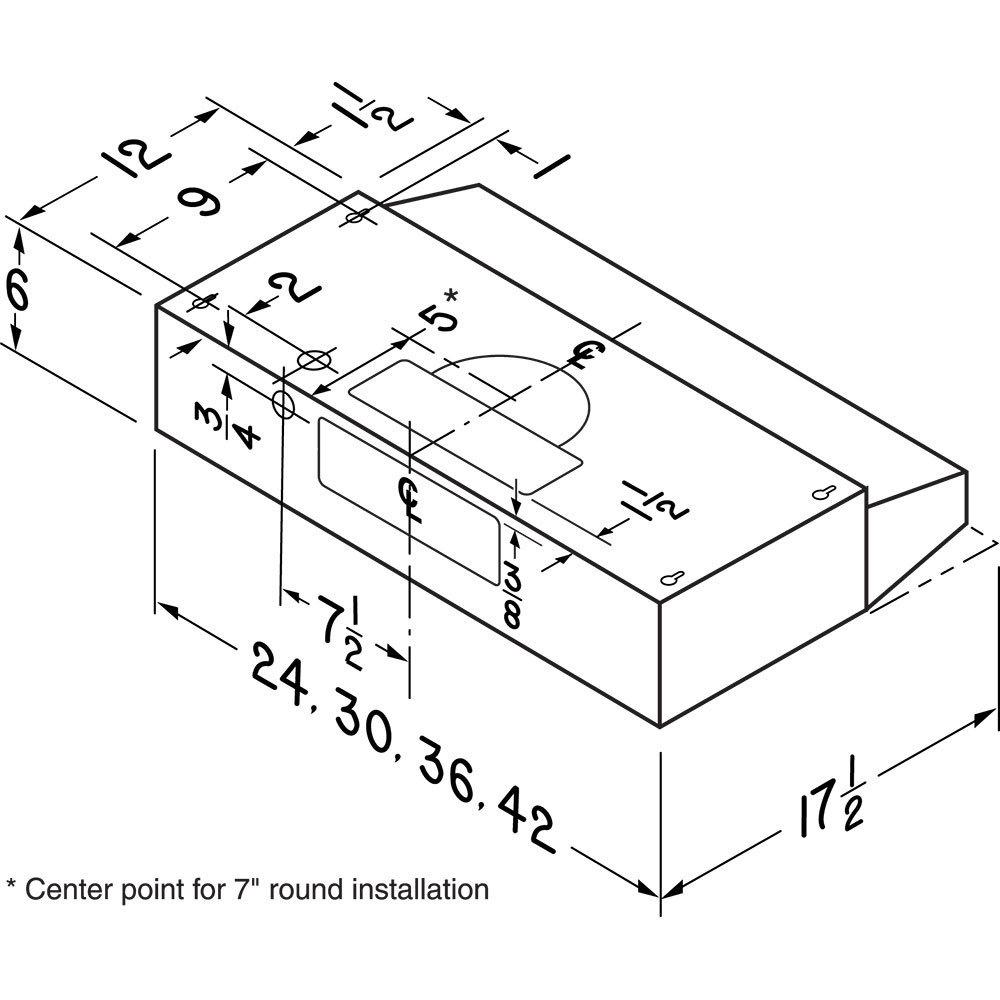

  • Includes a 3-1/4 in. x 10 in. damper/adapter and a 7 in. round adapter for easy installation (7 in. damper sold separately)
  • Enclosed light and fan/filter assemblies, mitered corners and hemmed edges for good looks and easy cleaning
  • One year limited warranty
  • UL listed and HVI 2100 certified

Filter Type Aluminum
Heat Sentry™ No
HVI Certified Yes
Lighting Type Incandescent
Sound Level (Sones) 6.5
UL Listed Yes
ADA Compliance Yes
Damper Included No
ENERGY STAR® certified No
Light Bulb Wattage 75
Light Bulbs Included No
Light Levels 1
Material Steel
Nightlight Or Nighlight Setting No
Ductless Recirculation Capable Yes
Ductless Filter Or Kit Included No
Remote Operation Capable No
Speed Levels 2
Switch Control Type Rocker
Rated Voltage 120
Boost Mode No
Country of Origin United States
Color Finish Stainless Steel
Rated Amps 2.5
Product Depth 17.5'
Product Height 6'
Product Width 36'
Built-In Timer No
CFM 230 Max
Diameter 7' Round
Vent Type Convertible Built-In
Duct Direction Horizontal/Vertical
Bulb (Recommended Type) A19
Manufacturer Warranty 1 Year
Wattage 300
