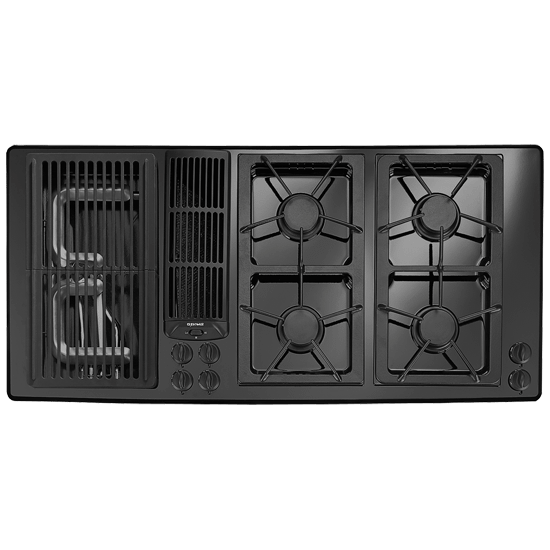

Jennair JGD8345ADB Designer Line Modular Gas Downdraft Cooktop, 45"
Jennair JGD8345ADB Designer Line Modular Gas Downdraft Cooktop, 45"
SKU: JGD8345ADB
Overview This Large Jenn-Air® Luxury Modular Gas Downdraft Cooktop Offers The Flexibility ... Read more...
Colors:
BlackWhen Will I Get My Order?
x
When Will I Get My Order?
x
Jennair JGD8345ADB Designer Line Modular Gas Downdraft Cooktop, 45"
Overview This Large Jenn-Air® Luxury Modular Gas Downdraft Cooktop Offers The Flexibility To Reconfigure The Cooking Surface Based On Your Preferred Cooking Style, And The Ability To Grill Indoors. It Features Designer Line Styling As Well As A Built-In Ventilation System That Clears The Air Without A Hood. Specifications Configuration And Overview (Ul)(Li)Cooktop Type: Modular Downdraft(/Li)(Li)Size: 45(/Li)(Li)Surface Material: Stainless/Porcelain Coated Steel(/Li)(Li)Burner Or Element Style: Gas Burner(/Li)(Li)Number Of Burners: 4(/Li)(Li)Installs Over Built-In Oven: No(/Li)(Li)Ada Compliant: No(/Li)(Li)Fuel Type: Gas(/Li)(/Ul) Controls (Ul)(Li)Digital Display: No(/Li)(Li)Downdraft Vent: Yes(/Li)(/Ul) Cooktop Features (Ul)(Li)Left Front Power: 8000 Btu(/Li)(Li)Left Front Type: Grill(/Li)(Li)Left Rear Power: 8000 Btu(/Li)(Li)Left Rear Type: Grill(/Li)(Li)Center Rear Power: 10,000 Btu(/Li)(Li)Center Front Power: 10,000 Btu(/Li)(Li)Right Front Power: 10,000 Btu(/Li)(Li)Right Rear Power: 10,000 Btu(/Li)(/Ul) Dimensions (Ul)(Li)Depth: 21 3/4(/Li)(Li)Height: 13 13/16(/Li)(Li)Width: 45(/Li)(Li)Cutout Depth: 21(/Li)(Li)Cutout Width: 43 1/4(/Li)(/Ul)
- Modular Design - Modular cartridges allow you to reconfigure this cooktop to suit your cooking preferences. An additional grill assembly, radiant or coil element cartridge can be purchased.
- Downdraft Ventilation with Two-Speed Fan - This powerful ventilation system captures smoke and odors right at the surface as you cook, clearing the air beautifully without a hood
- Replaceable E-ven Heat™ Grill Assembly - This luxury downdraft rangetop's "E"-shaped burner delivers even heat across the entire grill surface, providing beautifully even indoor grilling.
- Four Fixed Sealed Burners - The fixed sealed burners, which prevent spills and drips from entering the burner box, make it easy to maintain a pristine cooking surface.
- Indoor Grilling Capability (Left Bay) - The left side of this modular cooktop is designed to accommodate a grill module, giving you the option for indoor grilling.
- Convertible to LP - An included accessory, a conversion kit easily configures this cooktop to use propane instead of natural gas.
- Countertop/Island/Peninsula Install without Hood - Because it features a built-in downdraft ventilation system and doesn't require a hood, this cooktop offers exceptional design flexibility.
- Electronic Ignition - A method of ignition in which the gas is ignited at the burner port by an electric spark.
- Infinite Burner Control Settings - Enjoy precise controls by selecting your preferred burner setting - from low to high and everywhere in between.
- Porcelain-on-Cast-Iron Continuous Grates - These heavy-duty grates, which feature a porcelain coating to withstand high temperatures, form a continuous grid across the cooktop, allowing you to easily slide heavy pans from one burner to another.
- Excalibur® Nonstick Grill Grate Finish - A finish on Jenn-Air® grill grates that produces superior release capabilities through a four-step manufacturing process. It keeps food from sticking to the grill, making grilling and cleanup easy.
- Porcelain-Enamel/Stainless Steel Surface - This surface transfers heat efficiently and is highly durable, with a subtle sheen that's easy to maintain.
- 325 CFM Rating - This luxury Designer Line modular gas downdraft cooktop's ventilation system operates at up to 325 CFM to quickly remove smoke, steam and cooking odors.
| Burner Detail | |
| Burner Type | Sealed |
| Center Rear Brnr Low LP (BTU) | 1650 |
| Centr Front Brnr High Na (BTU) | 10000 |
| Centr Rear Brnr High LP (BTU) | 9000 |
| Centr Rear Brnr High Nat (BTU) | 10000 |
| Centr Rear Brnr Low Nat (BTU) | 1650 |
| Ignition Type | Electronic |
| Left Front Brnr High LP (BTU) | 7500 |
| Left Front Brnr High Nat (BTU) | 8000 |
| Left Front Brnr Low Nat (BTU) | 4000 |
| Left Rear Brnr High Nat (BTU) | 8000 |
| Left Rear Burner High LP (BTU) | 7500 |
| Left Rear Burner Low Nat (BTU) | 4000 |
| Right Front Brnr High LP (BTU) | 9000 |
| Right Front Brnr High Na (BTU) | 10000 |
| Right Front Brnr Low Nat (BTU) | 1500 |
| Right Rear Brnr High LP (BTU) | 9000 |
| Right Rear Brnr High Nat (BTU) | 10000 |
| Right Rear Brnr Low Nat (BTU) | 1500 |
| Cooking Surface Controls | |
| Color | Color Coordinated |
| Location | Split |
| Material | Plastic |
| Type (Switch/Rotation Degrees) | Knobs |
| Cooktop Specs | |
| Cooktop Material | Porcelain on Steel |
| Gas Specifications | |
| LP Gas Convertible | Yes |
| Grate Detail | |
| Grate Color | Black |
| Grate Material | Porcelain on Cast Iron |
| Grate Type | Continuous |
| Model | |
| Fuel Type | Natural Gas |
| Modular Cooktop | |
| Number of Bays | 1 |
