Bosch SHPM78Z56N 800 Series Dishwasher 24'' Black Shpm78Z56N
CrystalDry™
Patented new CrystalDry™ technology transforms moisture into heat up to 176 F to get dishes 60% drier,* for the ultimate dry. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry™ on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry™. Drying performance may vary by dish type.
AquaStop®
Our 24/7 AquaStop® system contains leaks through a precisely engineered tub and a solid molded base. Sensors detect leaks and pump out water, even when the system is off. So you never have to worry about leaks whether you're at home or away.
RackMatic®
RackMatic® adjustable upper rack easily adjusts to 9 different positions to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
When your dishes are done, so are you
With Bosch PrecisionWash®, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
Quality is in the details
Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.
AquaStop® Plus
A leak is the last thing you want to happen to your kitchen floors. AquaStop® Plus features additional sensors to ensure that any potential leaks are quickly detected and contained.
The dishwasher that removes more than food
The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.
Flexible 3rd Rack
Our Flexible third rack features expandable wings that easily lower to accommodate more of your deeper items, while adjustable tines let you customize the rack’s loading space to fit awkward bulky items.
24h Delay Start Timer
Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours. 24h Delay Start Timer lets you run your dishwasher at off-peak times.
The quietest dishwasher brand in the U.S.*
Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.
InfoLight®
A light that tells you when your dishwasher is running. InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.
When you don't have a full load of dishes
The Half Load Option reduces cycle time and water consumption so you conserve water when you only need to wash small, lightly soiled loads that fill half or less of the dishwasher's capacity.
InfoLight® Beams on Floor to Indicate Dishwasher is Running
RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions
AquaStop® Leak Protection Works 24/7 Design Full Size Stainless Steel Tall Tub Installs Perfectly Flush
16 Place Setting Capacity
LED Remaining Time Display Performance 6 Programs and 5 Options
Detergent Tray Optimizes Detergent Dissolving
Speed60® gets your dishes from dirty to dry in about an hour
Extra Dry Option for Better Drying Results
Load Size Sensor Automates Wash Temperature
Sanitize Option Eliminates Bacteria and Enhances Drying Results Efficiency 269 kWh/yr - Energy Star® Convenience 24 h Delay Start Timer

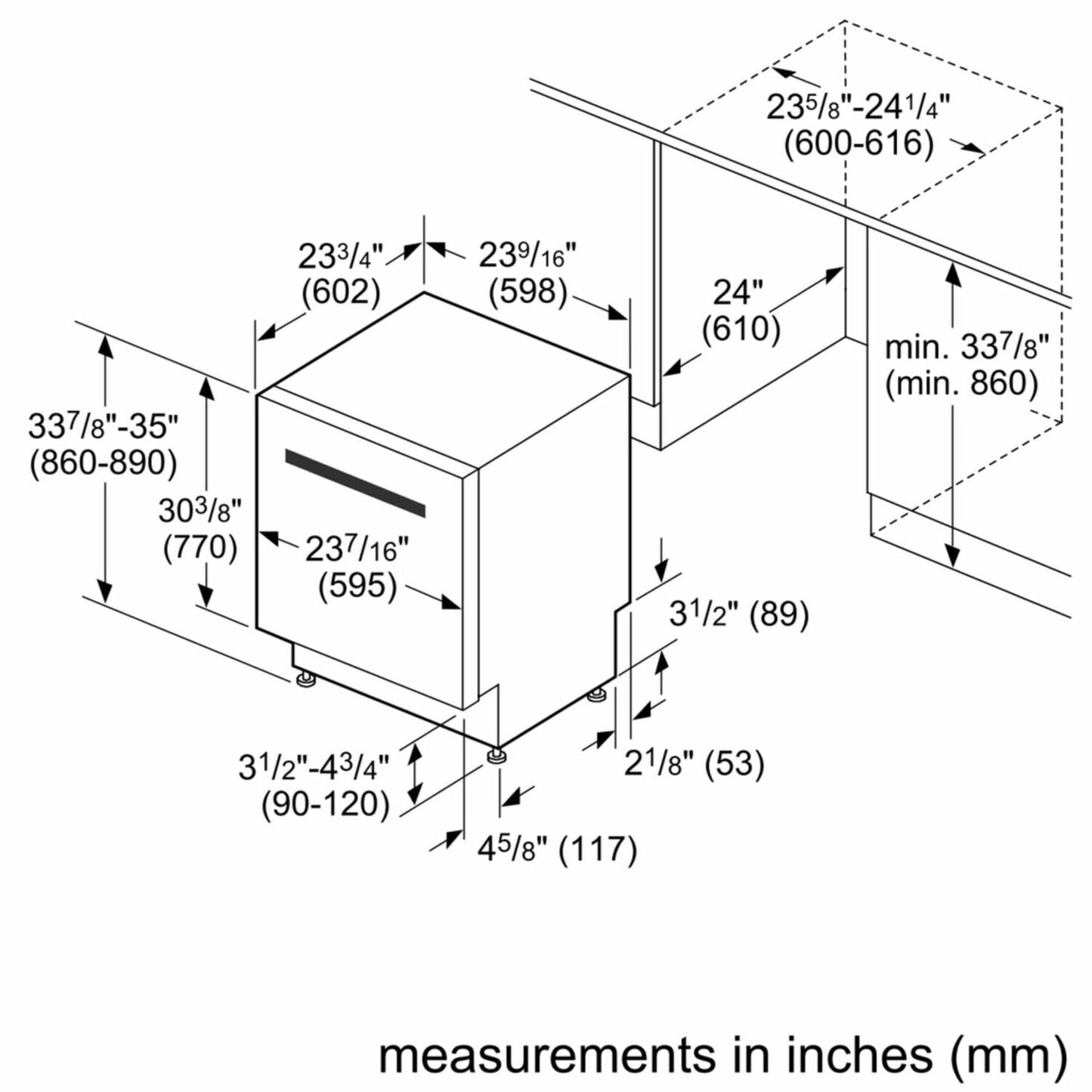

Self-Latching Door Dimensions & Capacity Width: 23 9/16"
Height: 33 7/8"
Depth: 23 3/4”
- 16 Place Settings
- Silent Operation: 42 dBA
- 6 Programs
- 5 Functions
- PrecisionWash®
- AquaStop®
- Rackmatic®
- CrystalDry™
- Five-level wash
- Concealed water heating element
- InfoLight®
- Flexible 3rd Rack
- Stainless steel tub
- ENERGY STAR® Certified
| Technical Specifications | |
| General | |
| Installation Type | Built-under |
| Number of place settings | 16 |
| List of programmes | Economy, Intensive, Pre-Rinse |
| Cycle Options | Chrystal Protect, half load, HygienePlus, Zeo Dry |
| Display | |
| Silence level (dBA) | 42 |
| Third Rack | Flexible Third Rack |
| Interior Light | |
| Removable top | |
| Power Cord Length | 67'' |
| Connectivity | |
| Home Connect | |
| Connectivity type | Not applicable |
| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4'' |
| Adjustable plinth | |
| Net weight (lbs) | 100 lbs |
| Programmes | |
| Status indicator | End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal |
| List of programmes | Economy, Intensive, Pre-Rinse |
| Program 1 | Intensive |
| Program 2 | Auto |
| Program 4 | Economy |
| Program 6 | Pre Rinse |
| Programme duration, programme1 (min.) | 110-135 |
| Programme duration, programme2 (min.) | 105-129 |
| Programme duration, programme3 (min.) | 75-85 |
| Programme duration, programme4 (min.) | 130-135 |
| Programme duration, programme5 (min.) | 65 |
| Programme duration, programme6 (min.) | 9 |
| Reference programme | Eco |
| Temperature program 1 | 151-160 °F |
| Temperature program 2 | 127-140 °F |
| Temperature program 3 | 113-122 °F |
| Temperature program 4 | 113-131 °F |
| Temperature program 5 | 122 °F |
| Safety | |
| Glass protection | |
| Surge-back protect. installed | |
| Leak protection system | Aqua Stop |
| Consumption values | |
| Glass protection | |
| Water consumption program 1 | 4.9-6.4 gal |
| Water consumption program 2 | 3.4-6.4 gal |
| Water consumption program 3 | 2.4-3.9 gal |
| Water consumption program 4 | 2.4-5.5 gal |
| Water consumption program 5 | 3.8 gal |
| Water consumption program 6 | 1.1 gal |
| Total annual water consumption (g) | 624 gallons |
| Maximum temperature for water intake (°C) | 60 °C |
| Connection | |
| Watts (W) | 1,440 W |
| Power Cord Length | 67'' |
| Current (A) | 12 A |
| Plug type | Nema5-15P |
| Construction type | |
| Color / Material housing | Lacquered |
| Color / Control Panel | Black |
| Construction type | Built-in |
| Panel ready | Not possible |
| Concealed heating element | |
| Installation Type | Built-under |
| Tub material | Stainless steel |
| Water Softener | |
