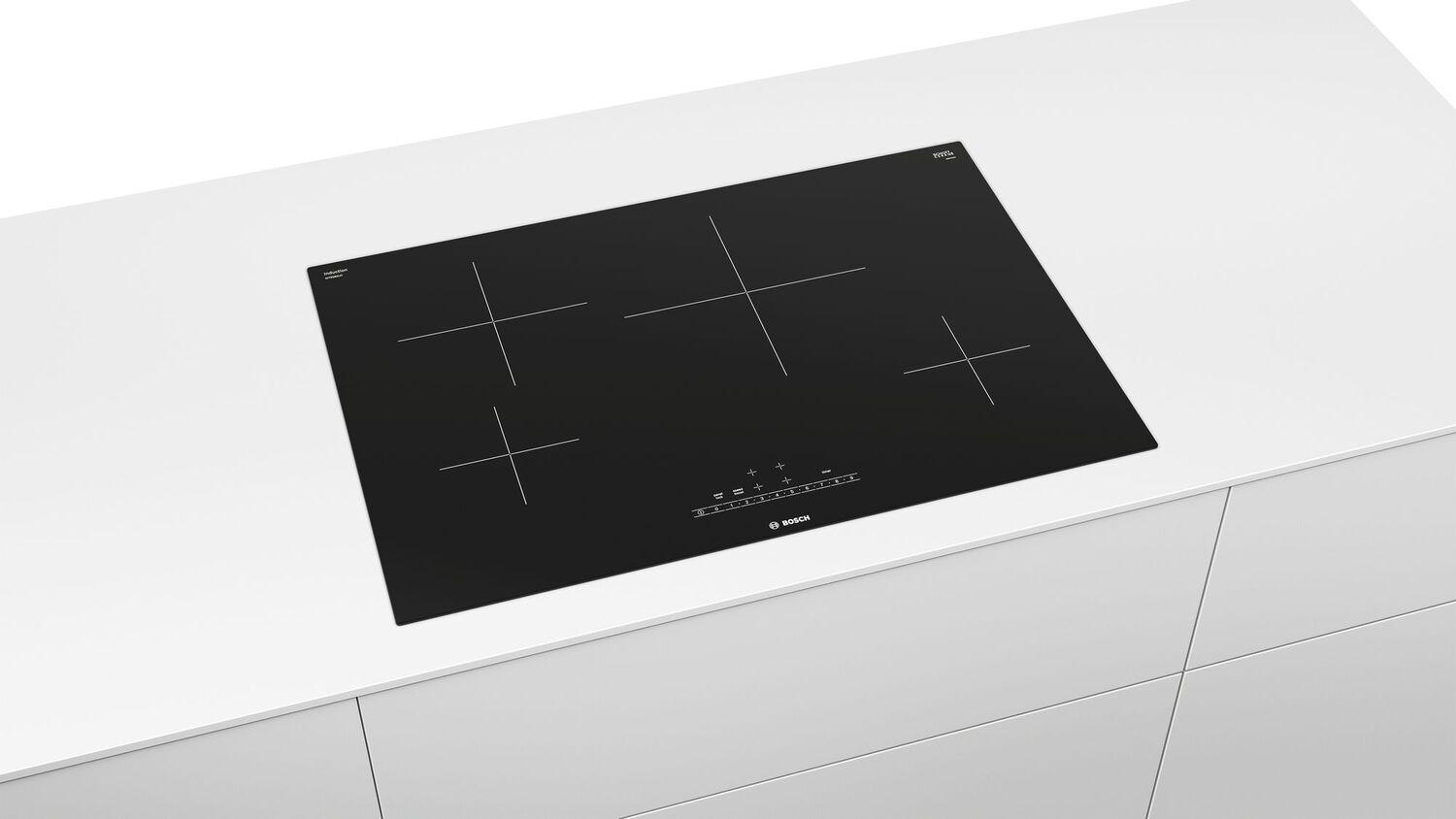

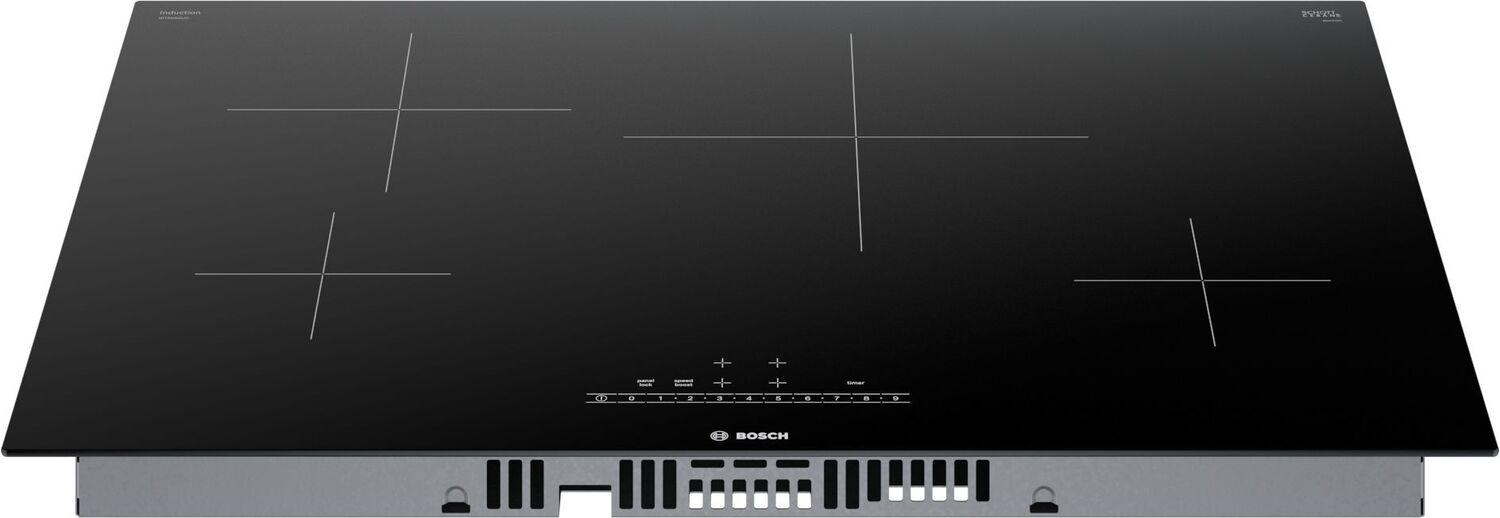

Bosch NIT5060UC 500 Series Induction Cooktop 30'' Black, Surface Mount Without Frame Nit5060Uc
Faster, efficient cooking with induction
Induction technology directly heats your pots and pans instead of the cooktop itself for faster cooking and precise results.
Speed up dinner for more moments to savor
Sometimes you don't want to wait for a pot of water to boil. The SpeedBoost® function on Bosch induction cooktops adds even more power to speed up the cooking process.
The 500 Series induction cooktop is sleek in design and offers quick and even cooking results.
Induction Induction: faster than gas and electric cooktops. Precise cooking, easy cleaning and more efficient. Faster, efficient cooking with induction. Induction technology directly heats your pots and pans instead of the cooktop itself for faster cooking and precise results. 17 power levels 17 power levels for each cooking zone. 11" cooking zone Large 11" cooking zone offers 3,700W of power for precise results. SpeedBoost® SpeedBoost® - adds even more power to speed up the cooking process. Speed up dinner for more moments to savor. Sometimes you don't want to wait for a pot of water to boil. The SpeedBoost® function on Bosch induction cooktops adds even more power to speed up the cooking process. Panel Lock Panel Lock feature locks the control panel to prevent accidental changes in settings. Dimensions & Capacity Width: 31"
Height: 4.25”
Depth: 21.25"
Induction Induction: faster than gas and electric cooktops. Precise cooking, easy cleaning and more efficient. Faster, efficient cooking with induction. Induction technology directly heats your pots and pans instead of the cooktop itself for faster cooking and precise results. 17 power levels 17 power levels for each cooking zone. 11" cooking zone Large 11" cooking zone offers 3,700W of power for precise results. SpeedBoost® SpeedBoost® - adds even more power to speed up the cooking process. Speed up dinner for more moments to savor. Sometimes you don't want to wait for a pot of water to boil. The SpeedBoost® function on Bosch induction cooktops adds even more power to speed up the cooking process. Panel Lock Panel Lock feature locks the control panel to prevent accidental changes in settings. Dimensions & Capacity Width: 31"
Height: 4.25”
Depth: 21.25"

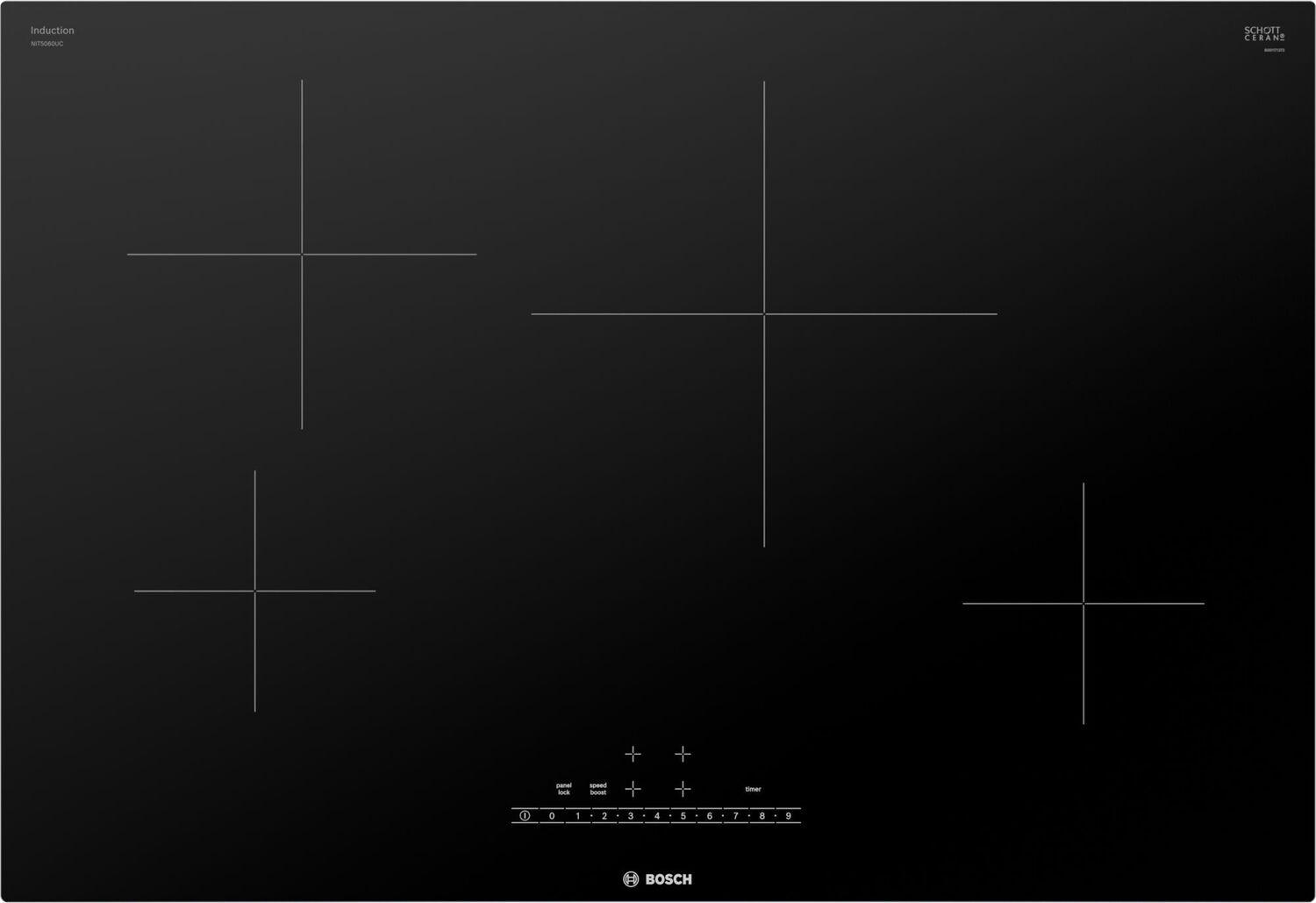

- 4 Induction Cooking Zones

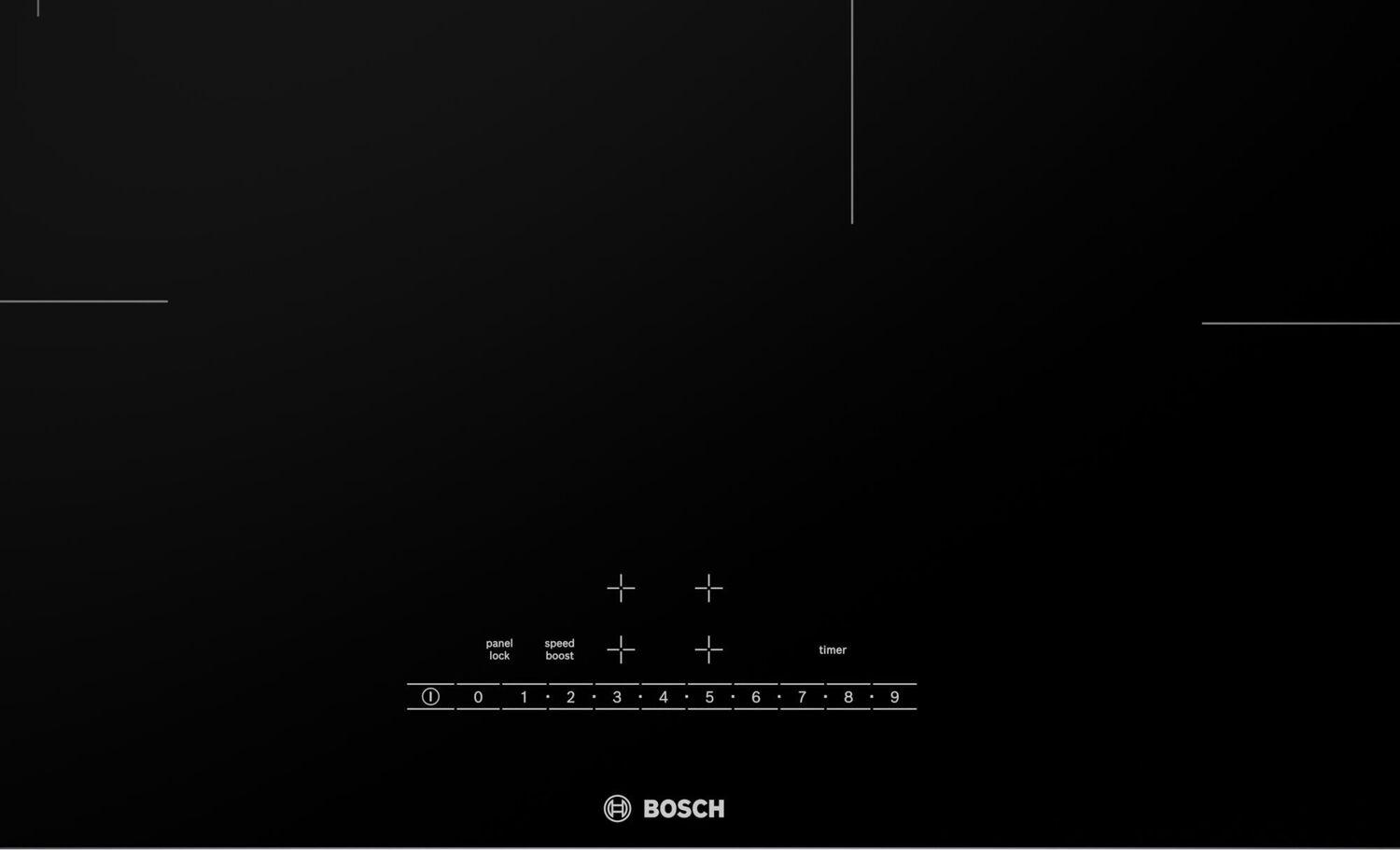

- PreciseSelect® - Direct Cooking Level Selection (17 Settings)
- SpeedBoost® - Adds Even More Power to Speed Up the Cooking Process
- PotSense - Automatically Recognizes Bottom of Pan on Cooking Element
- Use the Kitchen Timer to Measure Cooking Time or as a Reminder
- ChildLock - Prevents the Cooktop from Being Accidentally Switched On, Locks Temperature Settings if in Use
- Digital 2-Stage Residual Heat Indicator for Each Cooking Zone
- Wipe Protection - Quickly Pauses Settings to Clean as You Go
Features and Specifications | |
General | |
Energy source | Electric |
Type of control | EasyTouch (Timer), front |
Safety device | childproof lock, pan recognition, Power management function, Safety time-switch-off |
Features | 17 power levels, powerBoost |
Energy consumption of hob | 175.0 Wh/kg |
Construction type | |
Color of surface | Black |
Construction type | Built-in |

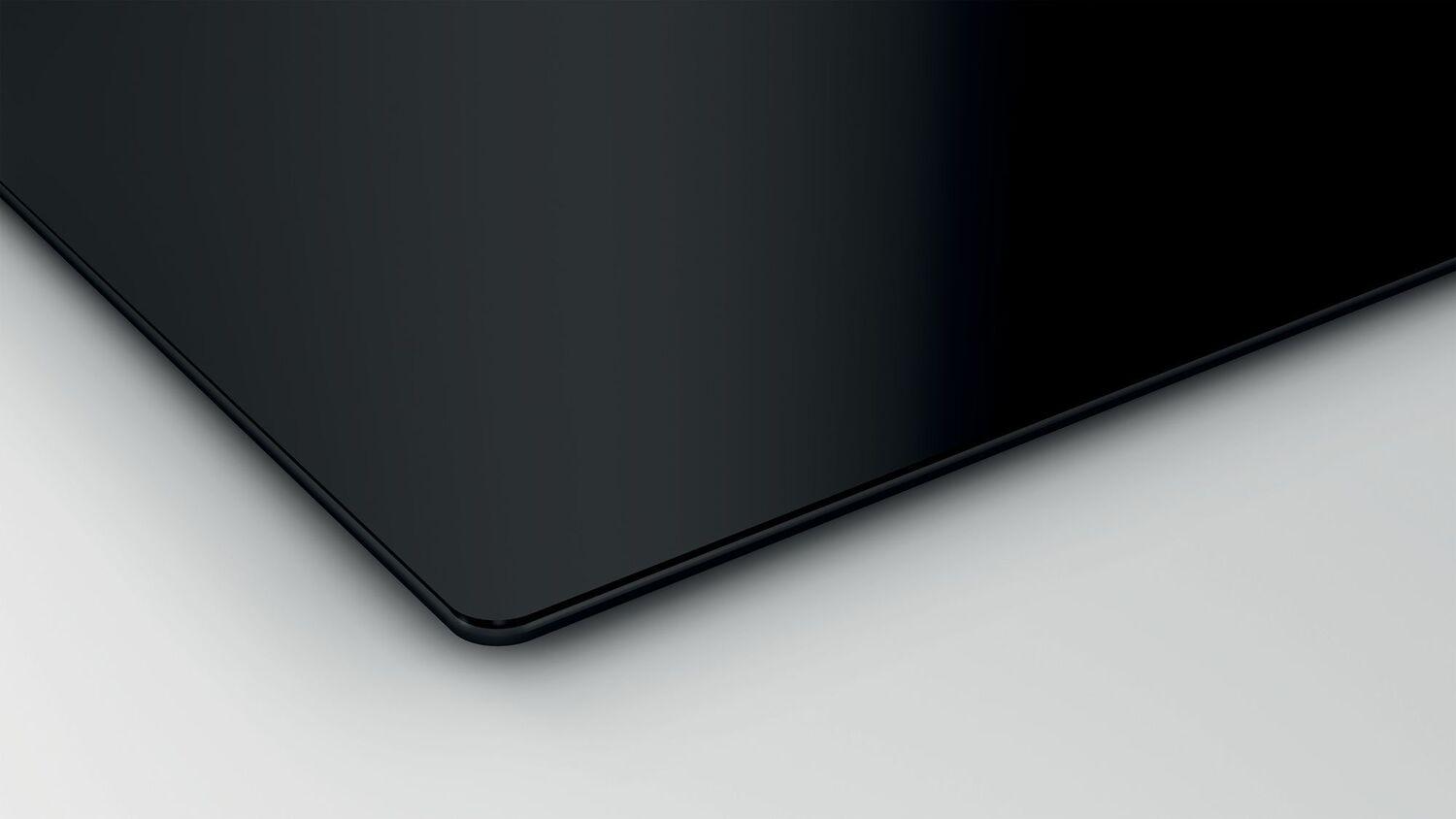

Design - line | Frameless |
Number of electric elements | 0 |
Number of electric cooking zones | 4 |
Type of frame | Frameless |
Number of gas burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total number of cooktop burners | 4 |
Number of radiant elements | 0 |
Number of electric warming zones | 0 |
Size and weight | |

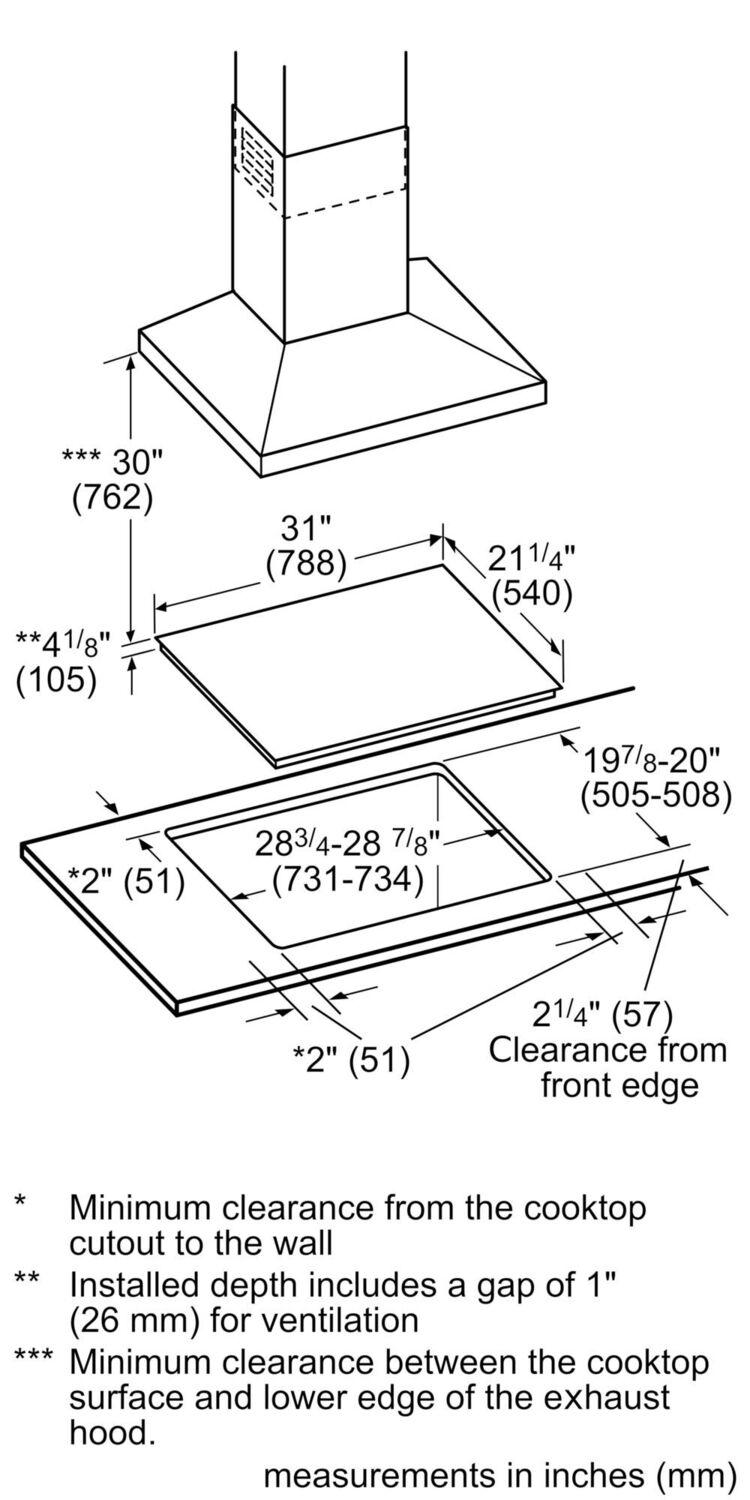

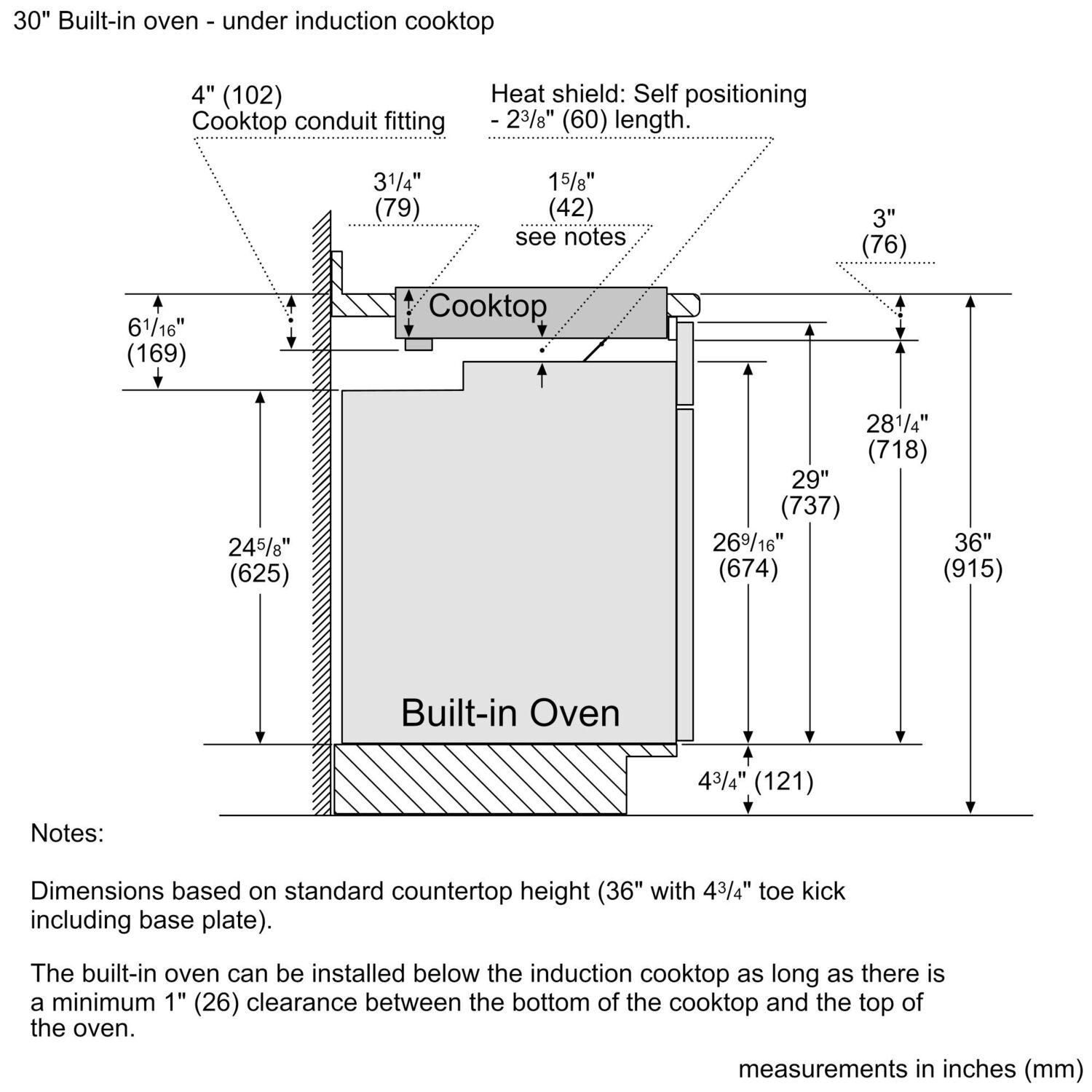

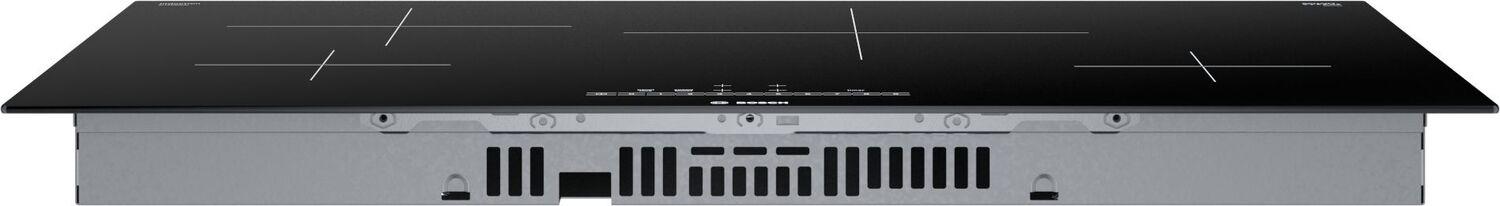

Overall appliance dimensions (HxWxD) (in) | 1/4'' + 3 3/4'' x 31'' x 21 1/4'' |
Net weight | 40.000 lbs |
Minimum distance from counter front (in) | 2 1/4'' |
Minimum distance from rear wall (in) | 2'' |
Cooking zone 1 | |
Dimension of 1st heating element (in) | 6'' |
Location of 1st heating element | front left |
Power of heating element (kW) | 1.4 kW |
Type of heating element | Induction heating |
Energy consumption of heating element | 175.0 Wh/kg |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 3 | |
Dimension of 3rd heating element (in) | 9'' |
Location of 3rd heating element | back left |
Power of 3rd heating element (kW) | 2.2 kW |
Type of 3rd heating element | Induction heating |
Energy consumption of 3rd heating element | 175.0 Wh/kg |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Dimension of 5th heating element (in) | 11'' |
Location of 5th heating element | back right |
Power of 5th heating element (kW) | 2.6 kW |
Type of 5th heating element | Induction heating |
Energy consumption of 5th heating element | 175.0 Wh/kg |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Dimension of 7th heating element (in) | 6'' |
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 1.4 kW |
Type of 7th heating element | Induction heating |
Energy consumption of 7th heating element | 175.0 Wh/kg |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Safety | |
Residual heat indicator | Separate |
Connection | |
Frequency | 60 Hz |
Energy source | Electric |

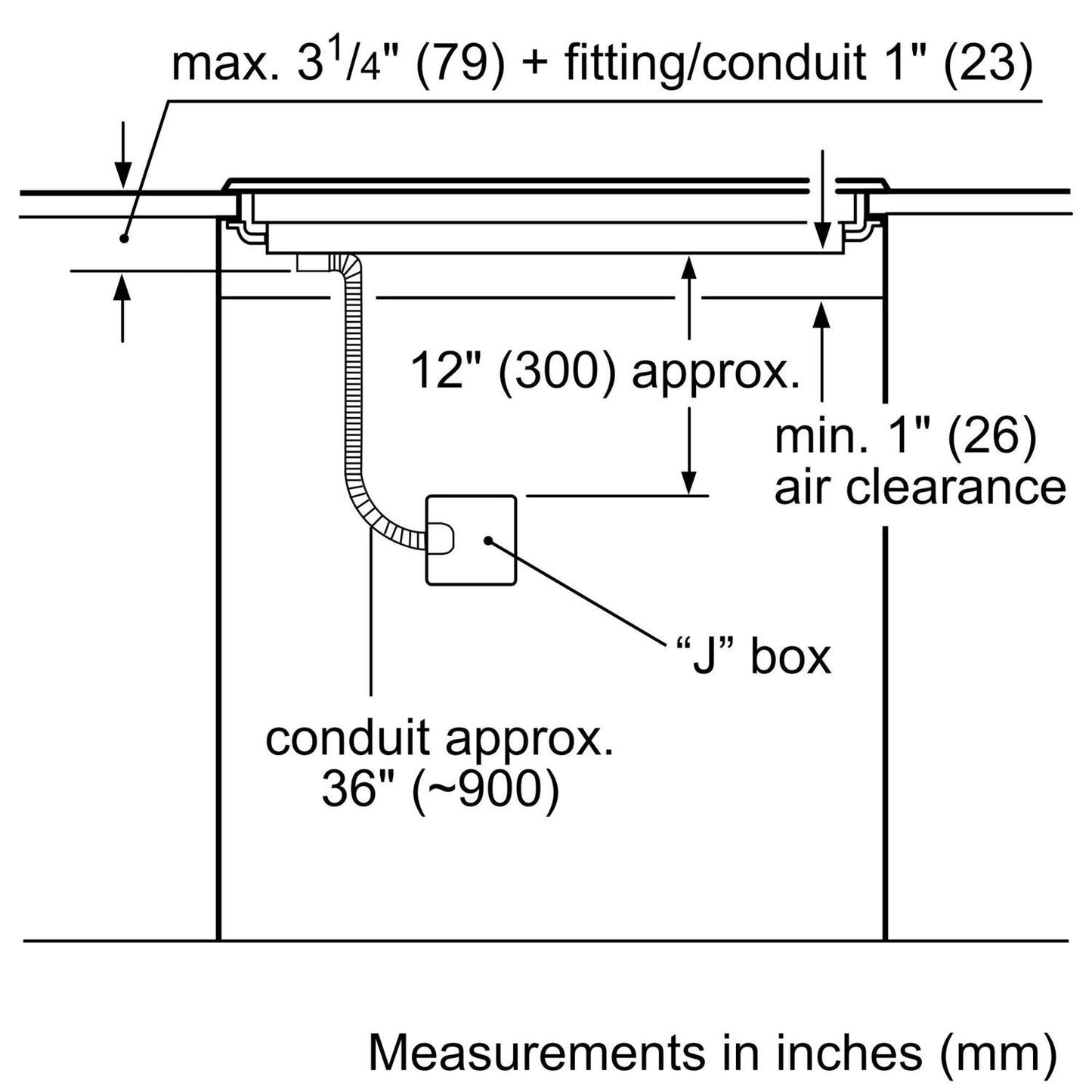

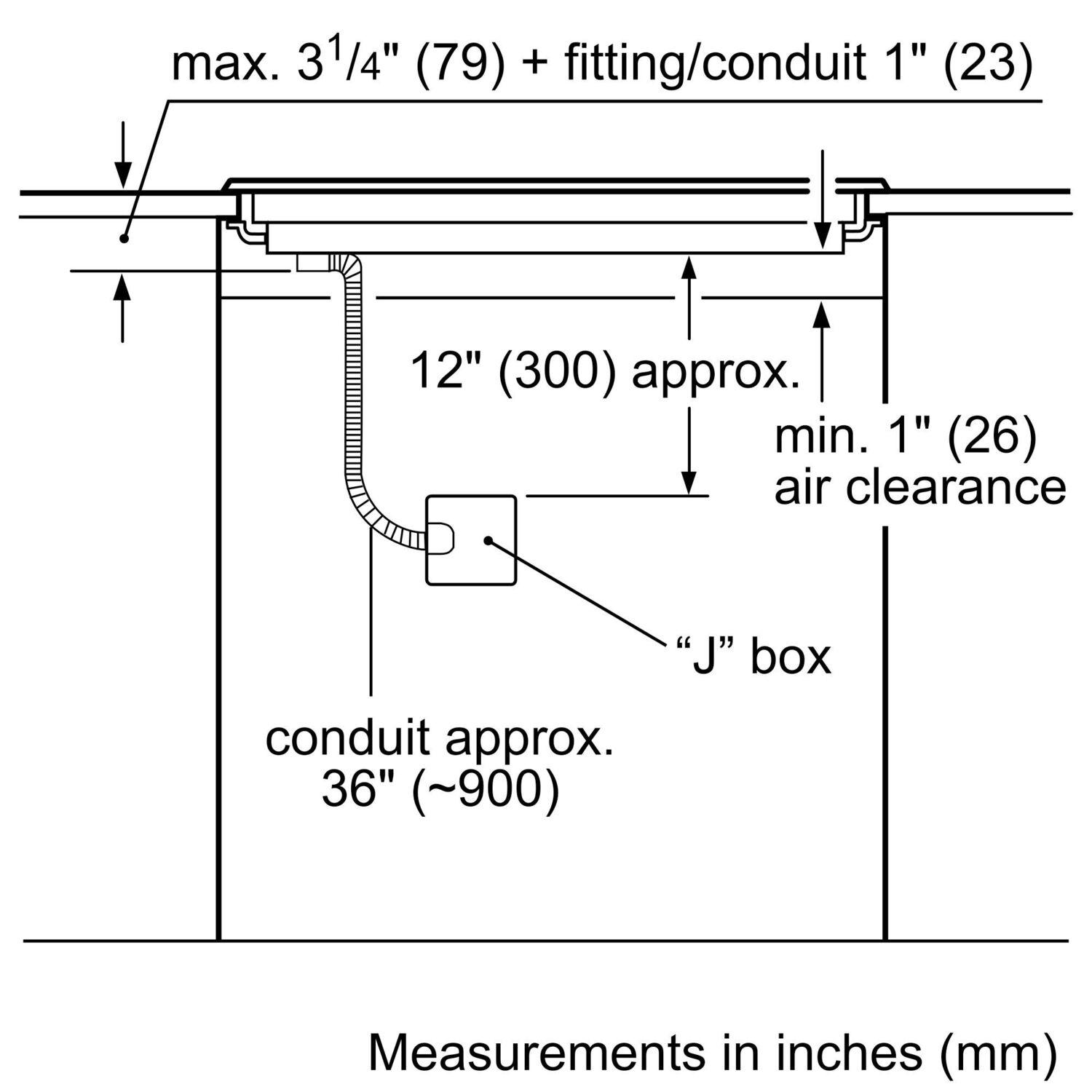

Power Cord Length | 37'' |
Watts | 6,240 W |
