Frigidaire FCFE3062AS Frigidaire 30" Front Control Electric Range
Rebates &
Promotions
Consistent Results with the EvenTemp™ Cooktop Element
With our EvenTemp™ cooktop technology, heat is evenly distributed across the element's surface, which reduces hot spots and cold areas in your pan.

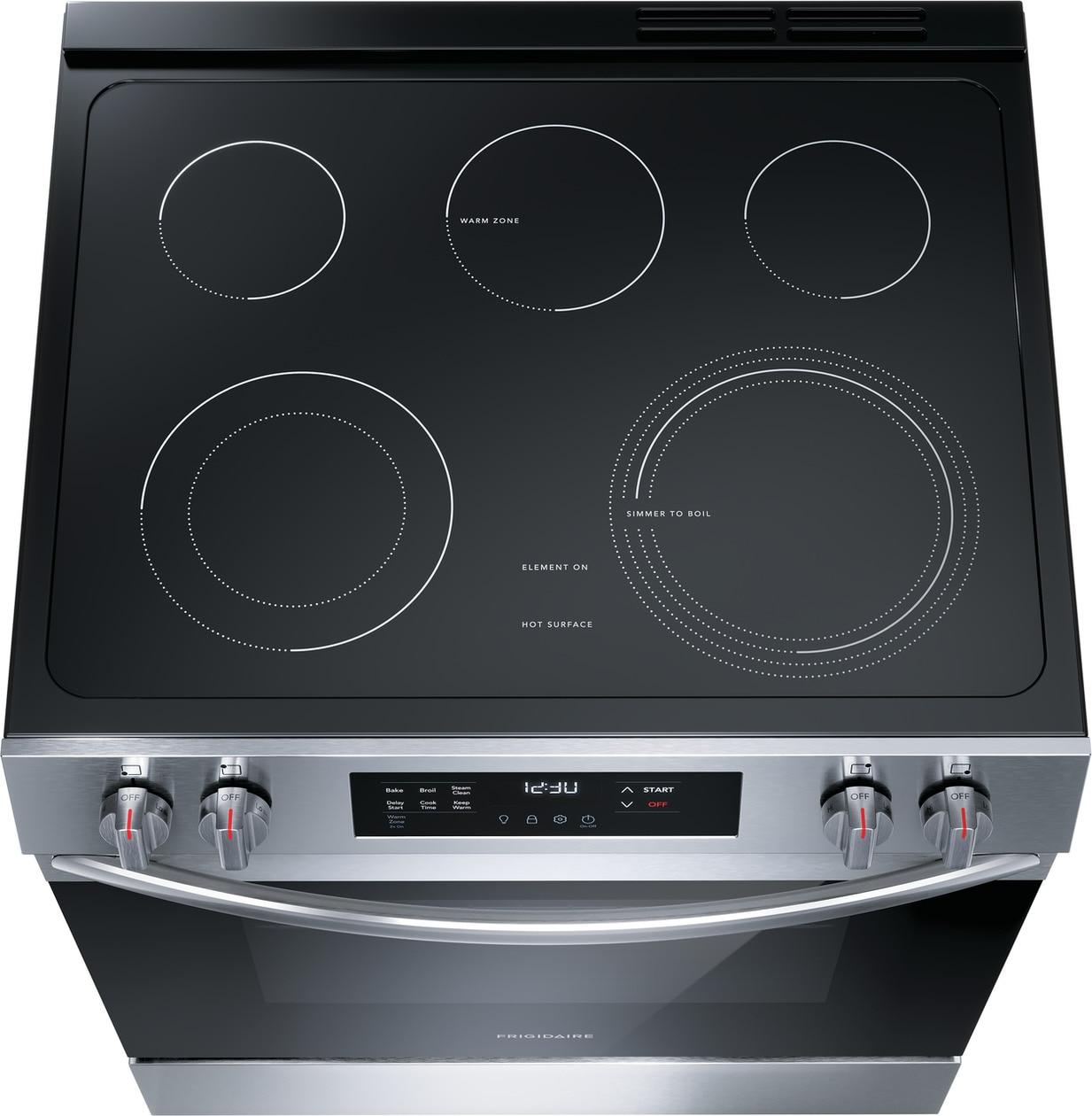

Flexible Five Element Cooktop
With five elements, this cooktop is designed to handle all of your cooking needs, including our powerful 3,200 Watt EvenTemp™ element, a Dual Expandable Element and a convenient Warm Zone.
Even Baking Technology
Designed to deliver even baking results, every time.
Fast Steam Cleaning Option
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
SpaceWise® Dual Expandable Element
Our convenient 2-in-1 element expands from 6" for smaller pots to 9" for larger cookware, providing more cooktop flexibility.
Extra Wide Store-More™ Storage Drawer
Our redesigned Store-More™ Storage drawer is now even wider - allowing you to store any unused oven racks or baking trays.
- Consistent Results with the EvenTemp™ Cooktop Element
- Flexible Five Element Cooktop
- Even Baking Technology
- Fast Steam Cleaning Option
- SpaceWise® Dual Expandable Element
- Extra Wide Store-More™ Storage Drawer
- Extra-Large Oven Capacity

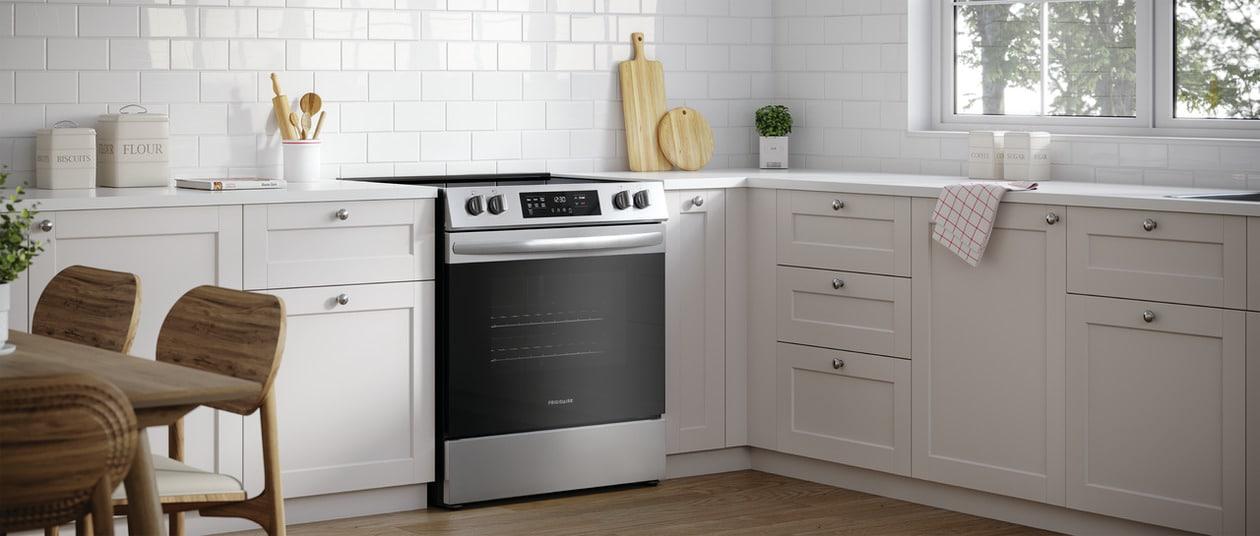

- Upgrade your Kitchen with a Built-in Look
- Peace of Mind with the Frigidaire® Fit Promise
- Cleanup is easier with Hidden Bake
- Cooktop Keep Warm Zone
Product Line | Electric Range |
Power Type | Electric 240v |
Size | 30' |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Smooth |
Element On Indicator Light | Yes |
Hot-Surface Indicator Light | Yes |
Cooktop Performance | |
Right Front Element Burner Size | 9' |
Right Rear Element Burner Size | 6' |
Left Front Element Burner Size (Small) | 6' |
Left Front Element Burner Size (Large) | 9' |
Left Rear Element Burner Size | 6' |
Right Front Element Burner | 3200 Watts |
Right Rear Element Burner | 1200 Watts |
Left Front Element Burner (Small) | 1400 Watts |
Left Front Element Burner (Large) | 3000 Watts |
Left Rear Element Burner | 1200 Watts |
Center Rear Element Burner | 100 Watts |

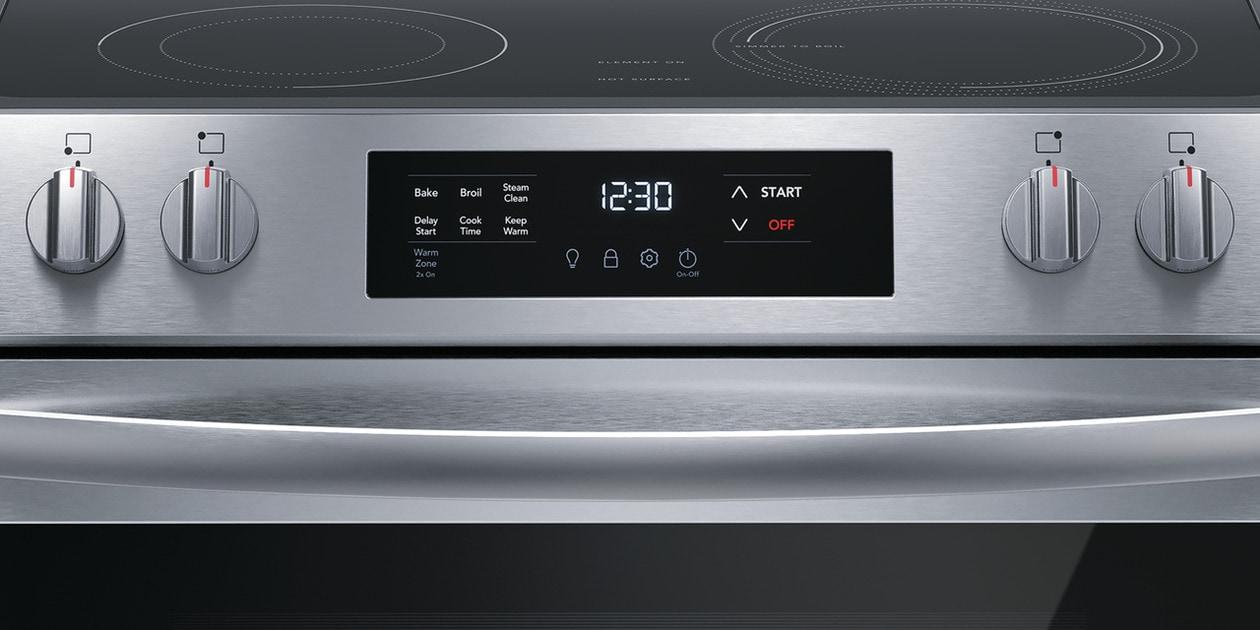

Cooking Controls | |
Bake | Yes |
Broil | Yes |
Cancel | Yes |
Clear Off | Yes |
Clock | Yes |
Cook Time | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Lockout | Yes |
On / Off (for each element) | Yes |
Oven Light | Yes |
Preheat | Yes |
Probe | No |
Steam Clean | Yes |
Temperature Display | Yes |
Timed Bake | Yes |
Timer On / Off | Yes |
Warm Zone | Yes |
Cooking Controls Function | |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 2500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Bake System | Yes |
Broil Element | 3000 Watts |
Broil Element Pass | 4 |
Broil System | Yes |
Cleaning System | Yes |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | No |
Sabbath Mode | No |
Display | |
Control Location | Front |
Display Interface Color | White |
Display Type | Capacitive Touch |
Dimensions and Volume | |
Minimum Height | 35 3/8' |
Maximum Height | 36 3/8' |
Width | 30' |
Depth | 26' |
Depth With Door 90° Open | 47 5/16' |
Depth With Handle | 28 1/2' |
Oven Interior Height | 18 1/8' |
Oven Interior Width | 25 3/16' |
Oven Interior Depth | 19 7/8' |
Oven Capacity | 5.3 Cu. Ft. |
Electrical Specifications | |
Connected Load @ 240V | 12 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 149 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Certifications and Approvals | |
ADA Compliant | Yes |
UL Listed | Yes |
cUL Listed | Yes |
30" Front Control Electric Range Stainless Steel FCFE3062AS
Complete Owner's Guide
Quick Start Guide
Installation Instructions
Guide de démarrage rapide
