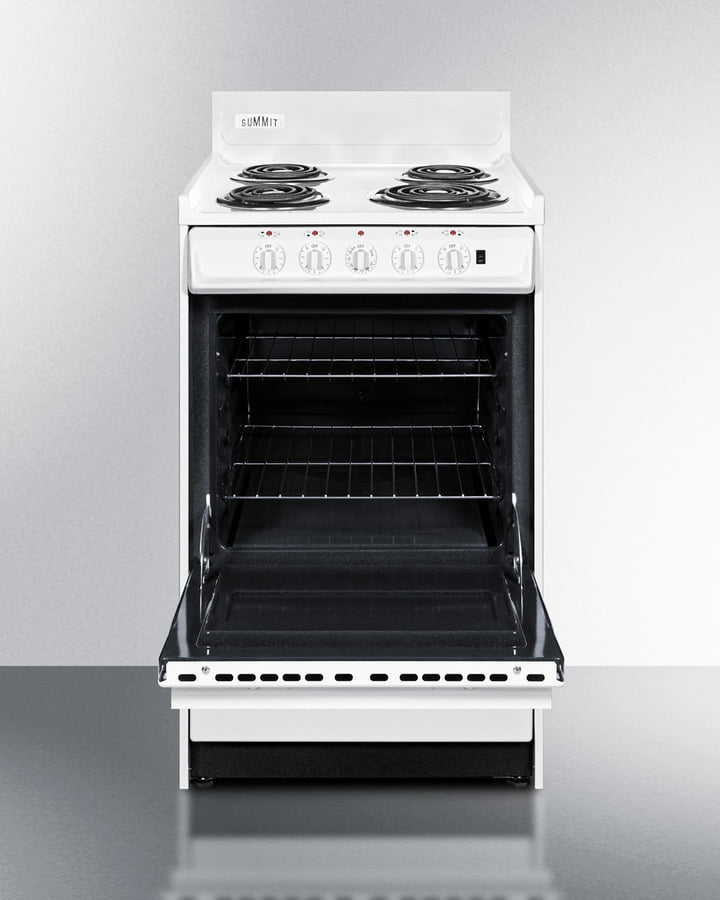

Summit WEM1171Q 20" Wide Electric Coil Top Range
20" Wide Electric Range Made In The Usa For Hud Applications (Bull)Five Indicator Lights (Bull)Three Prong Line Cord Attached (Bull)Oven Light For Added Convenience (Bull)Porcelain Construction On Range Top And Oven For True Durability Summit Offers A Wide Selection Of Household Ranges With High Quality Construction At Superior Value. Our Apartment Sized Line Of Electric Ranges Includes The Popular Wem1171Q. At Just 20" Wide, This Model Is Perfectly Sized To Fit Into A Tight Space But Has A Large Oven For Family Meals. The Complete Porcelain And Steel Construction Offers Long Lasting Quality And With A Three-Prong Line Cord And Indicator Lights For Each Coil And Oven, The Wem1171Q Can Be Used In Hud Applications Or Nursing Homes.
- 20" wide HUD range : Slim fit with special features for HUD friendly use
- 220V electric range : Includes four coil elements
- Safety burners with low wattage outputs : Designed to comply with new UL safety standards, the elements feature a lower wattage output to prevent cooking fires
- Indicator lights : Independent indicator lights for oven and each coil burner
- Three prong line cord : Sturdy cord for added safety
- Recessed oven door : Smart design limits the depth and protects adjacent cabinets
- Lower storage compartment : Keep pots and pans inside the lower compartment for easy storage
- Removable oven door and range top : White porcelain oven door and top can be removed for easier cleaning
- Porcelain construction : Solid porcelain range top and oven
- Oven light : Oven interior can be fully lit
- Broiler tray included : Porcelain broiler tray with grease well
- Anti-tip bracket : Install to prevent accidents from tipping oven over
- ADA compliant design : Upfront controls and easy-to-operate knobs offer easier accessibility
| Overview | |
| Height of Cabinet | 40.0' (102 cm) |
| Width | 20.0' (51 cm) |
| Depth | 24.0' (61 cm) |
| Door | White |
| Cabinet | White |
| US Electrical Safety | CSA |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 140.0 lbs. (64 kg) |
| Shipping Weight | 145.0 lbs. (66 kg) |
| Parts & Labor Warranty | 1 Year |
| Electric Range | |
| Oven Capacity | 2.46 cu.ft. (70 L) |
| Cooktop Surface | Porcelain |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 6.0' (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 6.0' (15 cm) |
| Element #2 Wattage | 675.0 |
| Element #3 Size | 6.0' (15 cm) |
| Element #3 Wattage | 675.0 |
| Element #4 Size | 8.0' (20 cm) |
| Element #4 Wattage | 950.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Oven Light | Yes |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Interior Height | 14.0' (36 cm) |
| Oven Interior Width | 16.0' (41 cm) |
| Oven Interior Depth | 19.0' (48 cm) |
| Individual Indicator Lights | Yes |
| Storage Compartment | Yes |
| Broiler Location | Inside Oven |
| Oven Door | White |
| HUD Qualified | Yes |
| Interior | |
| Heat Sense | - |
| Overview | |
| Height of Cabinet | 40.0' (102 cm) |
| Width | 20.0' (51 cm) |
| Depth | 24.0' (61 cm) |
| Door | White |
| Cabinet | White |
| US Electrical Safety | CSA |
| Voltage/Frequency | 220 V AC/60 Hz |
| Weight | 140.0 lbs. (64 kg) |
| Shipping Weight | 145.0 lbs. (66 kg) |
| Parts & Labor Warranty | 1 Year |
| Electric Range | |
| Oven Capacity | 2.46 cu.ft. (70 L) |
| Cooktop Surface | Porcelain |
| Element Type | Coils |
| Number of Elements | 4 |
| Element #1 Size | 6.0' (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 6.0' (15 cm) |
| Element #2 Wattage | 675.0 |
| Element #3 Size | 6.0' (15 cm) |
| Element #3 Wattage | 675.0 |
| Element #4 Size | 8.0' (20 cm) |
| Element #4 Wattage | 950.0 |
| Burner Controls | Dial |
| Oven Controls | Dial |
| Oven Light | Yes |
| Backguard | Yes |
| Cleaning Type | Manual |
| Oven Interior Height | 14.0' (36 cm) |
| Oven Interior Width | 16.0' (41 cm) |
| Oven Interior Depth | 19.0' (48 cm) |
| Individual Indicator Lights | Yes |
| Storage Compartment | Yes |
| Broiler Location | Inside Oven |
| Oven Door | White |
| HUD Qualified | Yes |
| Interior | |
| Heat Sense | - |
