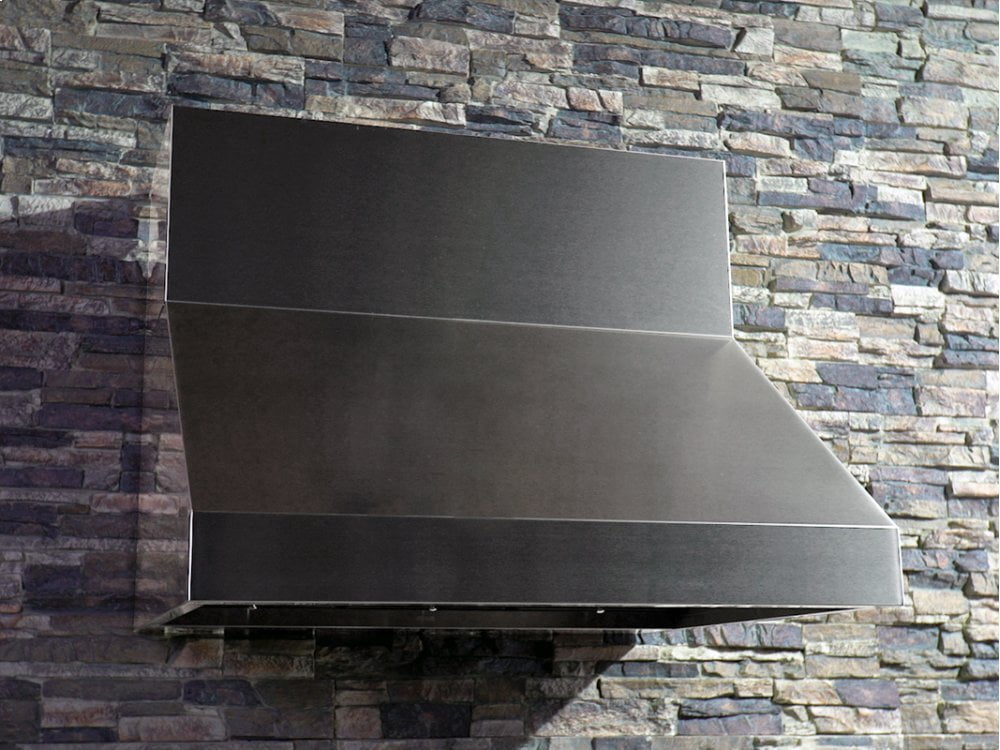

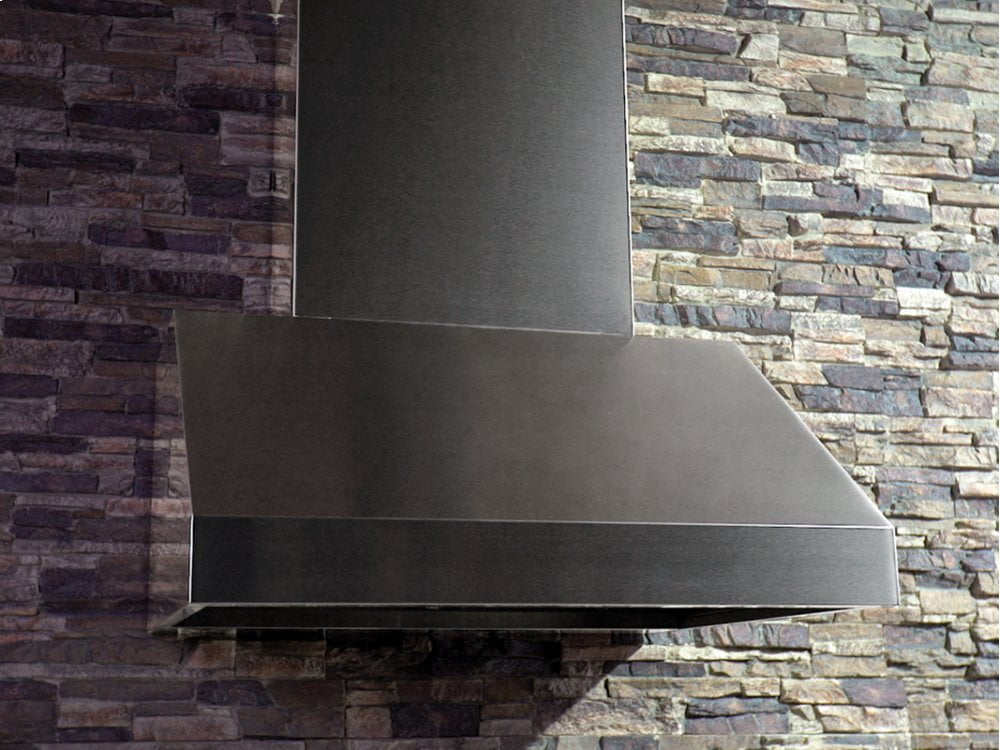

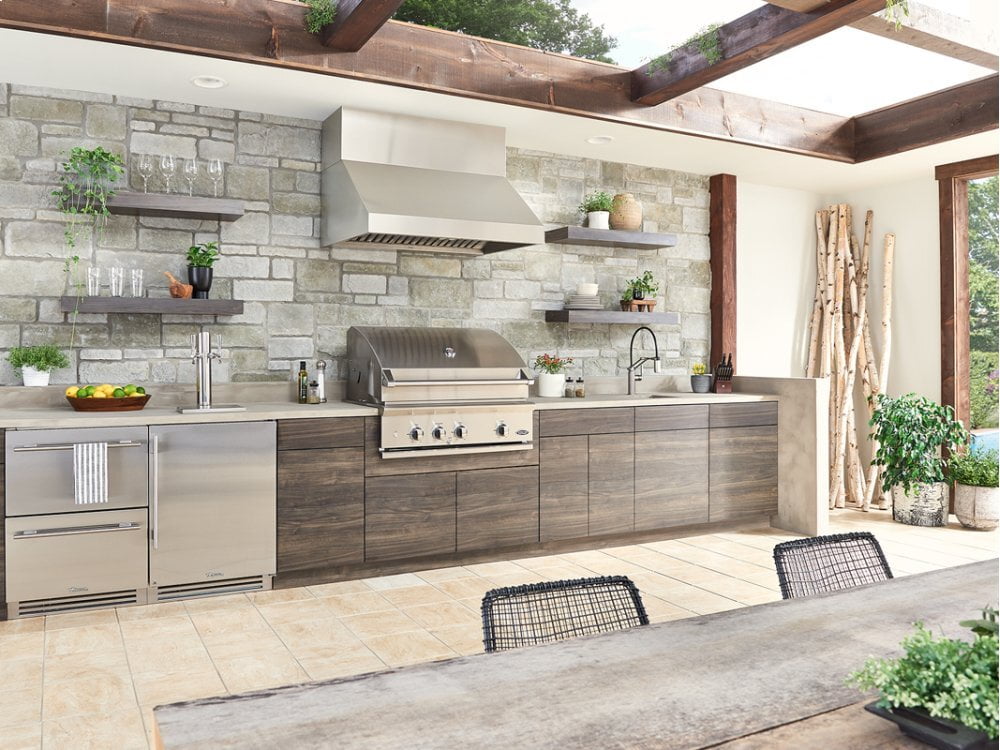

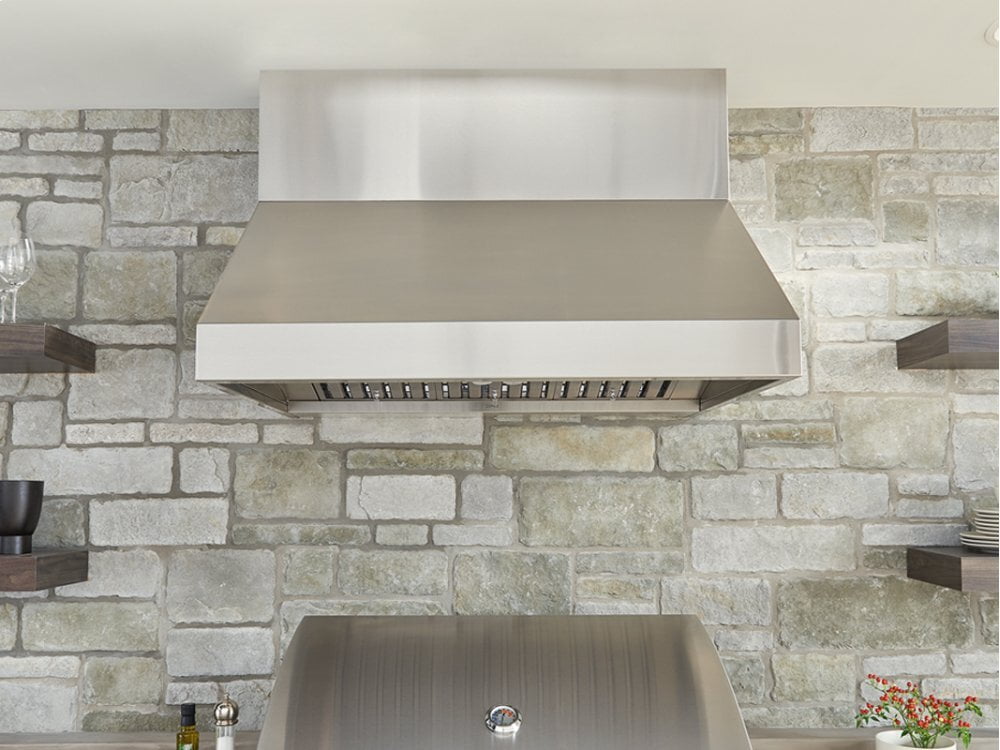

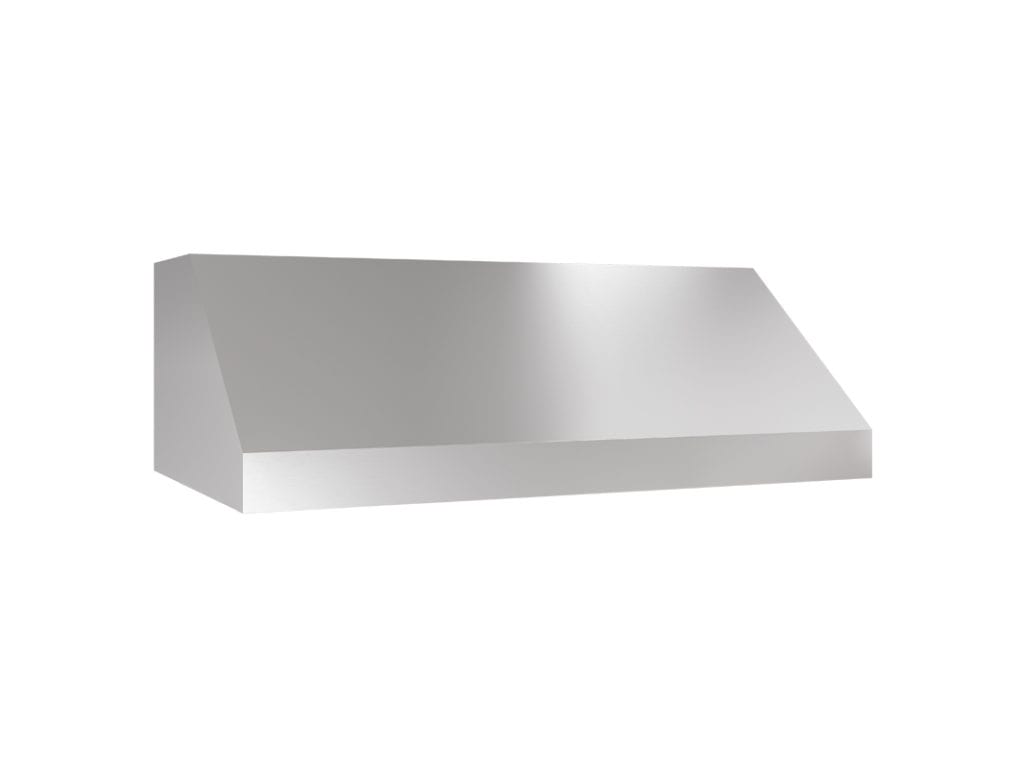

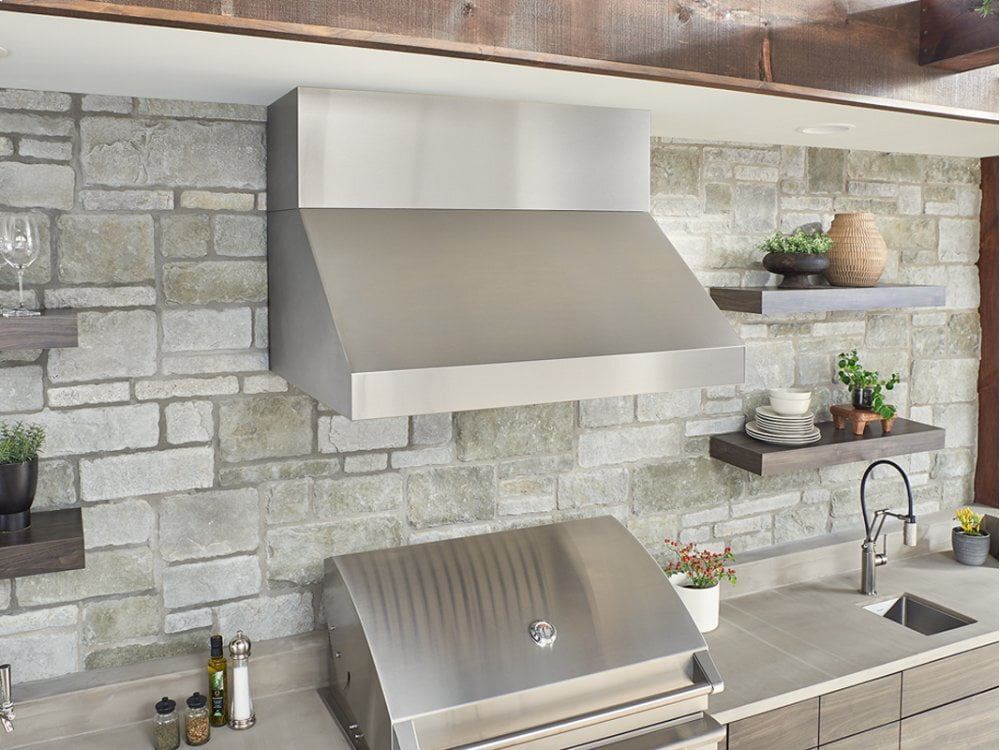

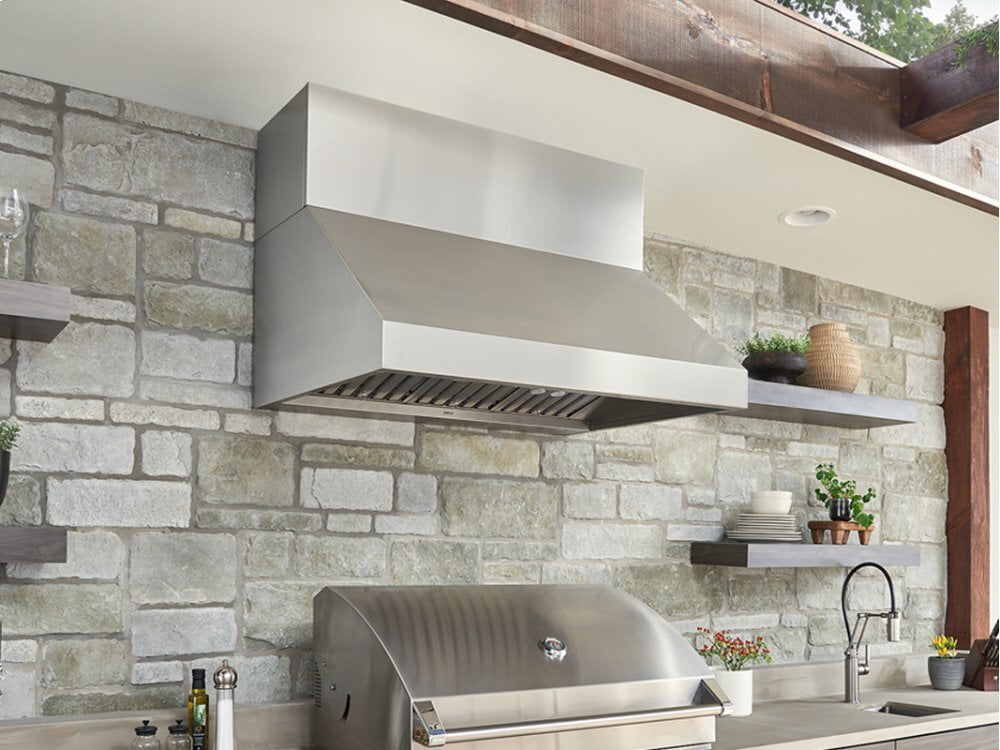

Zephyr AK7854BS 54" Cypress Wall Outdoor
Cypress Features A Seamlessly Contoured, Fully Welded And Polished Exterior, Along With A Corrosion Resistant, 304-Grade Stainless Steel Canopy That Houses High-Performance Professional Stainless Steel Baffle Filters That Enhance Airflow And Are Dishwasher Safe. Three-Speed Metallic Knob Controls Withstand Extreme Heat And Moisture. Available With Dual-Level Halogen Lighting And An Extended 32" Depth For Even More Capture. An Optional 12" Duct Cover And Telescopic Duct Cover For 10' To 12' Ceilings Available.
- 1200 CFM
- Not Recirculating
- Pro Baffle Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- Max Sones 9
- 32" Depth
- Dual-Level Lighting
- Halogen Lighting
- Metallic Knob Controls
- Optional Duct Cover Extension Kit
- Professional Baffle Filters
- Vertical or Horizontal Ducting
UPC | 646328004995 |
BLOWER INCLUDED YES/NO | yes |
INTERNAL BLOWER 1 CFM | 1200 |
INTERNAL BLOWER 1 SONES | 9 |
CONTROLS TYPE | Metallic knob |
BLOWER SPEEDS | 3 |
AUTOMATIC DELAY-OFF | no |
CLEANAIR FUNCTION | no |
LIGHTS TYPE (INCLUDED) | halogen |
LIGHTS QUANTITY | 4 |
WATTS PER BULB | 35 |
LIGHTS LEVELS | 2 |
FILTER TYPE | pro baffle |
DUCT DISCHARGE | vertical or horizontal |
DUCT SIZE, VERTICAL, INCHES | 10 |
DUCT SIZE, HORIZONTAL, INCHES | 10 |
MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 30 - 36 |
INPUT VOLTAGE | 120 |
MAXIMUM AMPERAGE | 8 |
NOMINAL WIDTH, INCHES | 54 |
NET WIDTH, INCHES | 53.875 |
DEPTH, INCHES | 32 |
HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 18 |
WEIGHT, LBS | 105.9 |
SHIPPING HEIGHT, INCHES | 36.02 |
SHIPPING WIDTH, INCHES | 57.87 |
SHIPPING LENGTH, INCHES | 22.44 |
SHIPPING WEIGHT, LBS | 129.3 |
