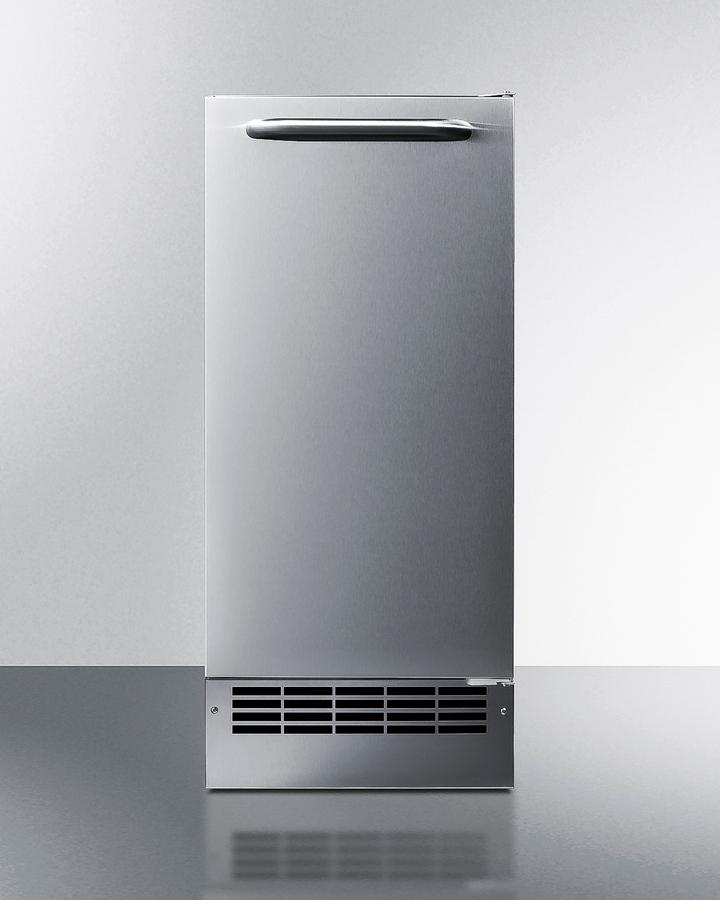

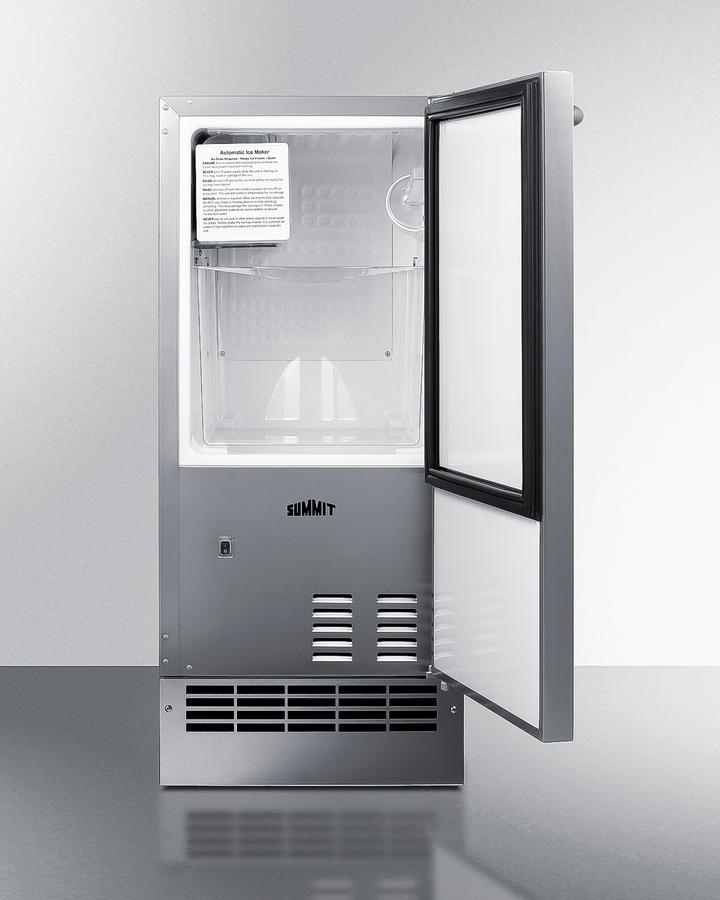

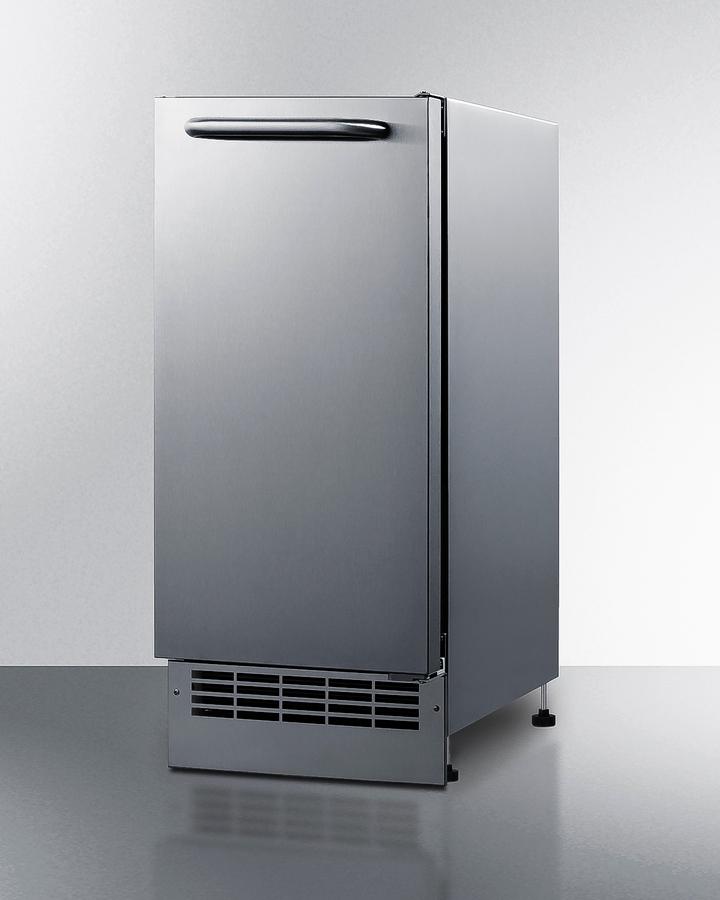

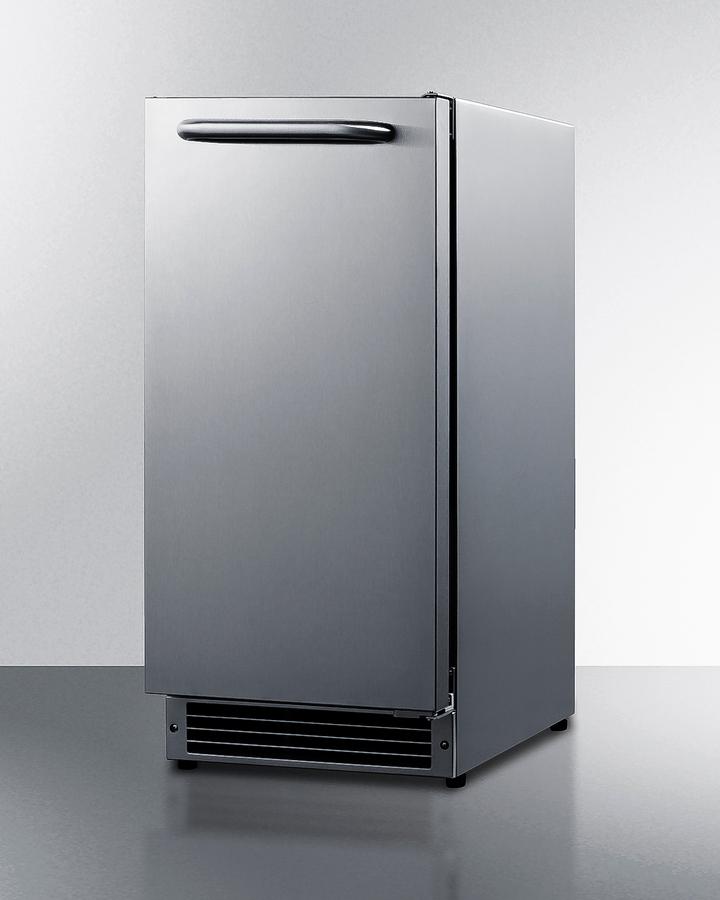

Summit BIM271OS 25 Lb. Drain-Free Outdoor Icemaker
Summit Combines Convenience And Luxury To Craft The Bim271Os - An Undercounter Icemaker Finished In Complete 304-Grade Stainless Steel. Sized At Just Under 15" Wide, The Bim271Os Features A Front-Breathing Design For Built-In Installation But Also Has A Fully Finished Cabinet To Allow Freestanding Use. With A Height Of 34", Summit Designed This Icemaker To Be Compatible With Standard Counters In Outdoor Spaces. This Unit Can Be Lowered Just Under 32" To Fit Ada-Compliant Spaces. A Smaller Kickplate Is Included For A Streamlined And Cohesive Look. The Cabinet And User-Reversible Door Also Feature A Stainless Steel Finish For A Professional Style Built To Last, Paired With A Sleek Handle Mounted Horizontally To Finish The Look. There S A Sealed Back To Allow More Flush Installation. An Optional Water Filter Is Included And Designed To Be Mounted In The Rear. A Look Inside The Bim271Os Shows It Can Produce 25 Lbs Of Crescent-Shaped Ice Daily. The Static Manual Defrost Cooling System Allows Ice To Stay Solid Longer. No Drain Or Pump Is Required, Offering More Placement Flexibility. For Optimal Convenience, Summit Has Pre-Installed The Connection Hose. Plus, This Icemaker Comes With A Removable Ice Bucket, Ice Scoop, And A Holder For The Scoop. With Its Complete Stainless Steel Construction And Low Maintenance Design, The Bim271Os Is A Great Way To Finish Any Outdoor Space And Allows You To Maintain An Entire Supply Of Ice With Less Waste. The Weatherproof Construction Allows Outdoor Use, But This Model Can Also Be Installed Indoors In Any Kitchen Or Wet Bar. Alternative Units Are Also Available In Different Sizes, Colors, And Makes. Browse The Full Summit Product Line To Explore Your Options.
- No drain is required for more flexibility in placing the icemaker indoors or outside
- Durable construction for safe installation in outdoor kitchens
- This unit can be lowered just under 32", with a smaller kickplate included for a seamless aesthetic
- Convenient design allows more flexibility in positioning the unit
- Customizable height allows installation under lower ADA-compliant counters
- Produces and stores more than 20 lbs of ice per day cycle
- Static cooling system helps to keep ice frozen for longer periods of time compared to other systems
- 304-grade stainless steel allows the icemaker to be used freestanding
- Versatile design allows users the ability to place the unit inside or out
- User-reversible door swing for flexible placement
- Space-saving design with easier cleanability
- Operates with a standard 1/4 OD water supply line
- Make the best use of space by installing your ice maker under the counter
- Horizontally mounted towel bar style handle in stainless steel

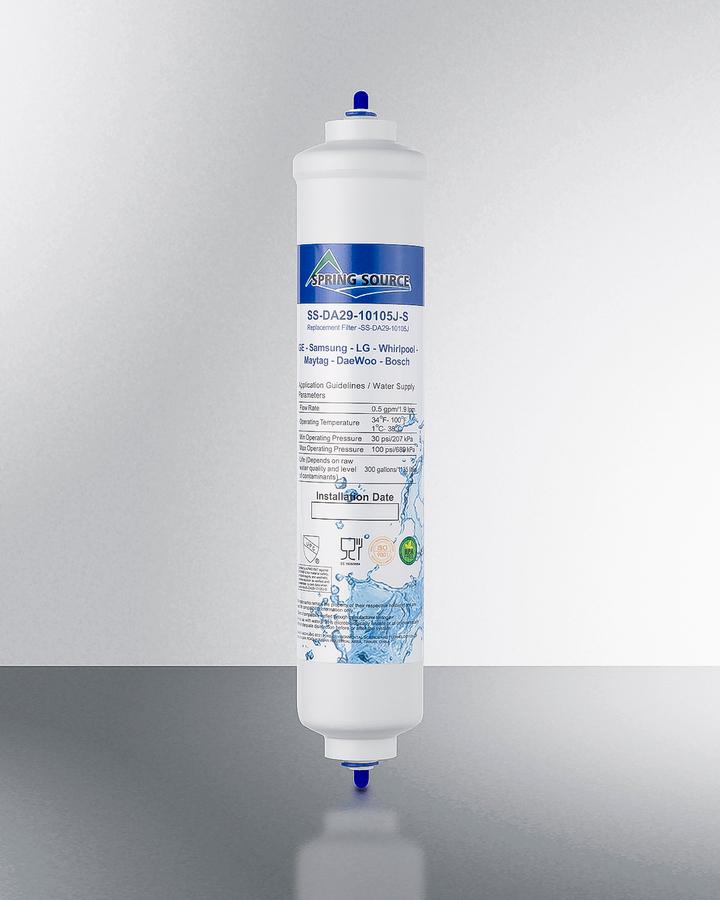

- Water filter is included for optional use
- Large ice scoop and holder included for your convenience
- Crescent-shaped ice provides a harder and longer-lasting ice
- Users can remove the ice bucket for fast and easy cleaning
- Ice stays solid longer in this cold-protected bin
- Environmentally friendly design without ozone-damaging chemicals
- Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for lead free plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard
Overview | |
Height of Cabinet | 34.0' (86 cm) |
Width | 14.88' (38 cm) |
Depth | 19.38' (49 cm) |
Depth with Handle | 21.38' (54 cm) |
Depth with door at 90° | 33.63' (85 cm) |
Defrost Type | Manual |
Door | Stainless Steel |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Amps | 1.9 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 61.0 lbs. (28 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
UPC | 761101103556 |
Icemaker | |
Door Swing | RHD |
Reversible | Yes |
Height Adjustable | Yes |
Daily Ice Production | 25.0 lbs. (11 kg) |
Ice Storage Capacity | 22.0 lbs. (10 kg) |
Ice Shape | Crescent |
Size of Cube | 1/2' x 3/4' x 2 3/8' |
Number of Ice Cube Sizes | 1 |
Refrigerant Type | R600a |
Refrigerant Amount | 1.58 oz. |
High Side PSI | 120.0 |
Low Side PSI | 55.0 |
Interior Height | 15.88' (40 cm) |
Interior Width | 11.88' (30 cm) |
Interior Depth | 12.38' (31 cm) |
Level Legs | 4 |
