Summit BIM68OSPUMP 15" Wide 62 Lb. Built-In Undercounter Commercially Listed Indoor/Outdoor Clear Icemaker With Internal Pump And Complete Stainless Steel Exterior Finish
Summit'S Commercially Listed Bim68Os Series Icemakers Are An Attractive And Durable Solution To Keeping A Continuous Supply Of Clear Ice On Hand In Virtually Any Indoor Or Outdoor Location. Sized At 15" Wide, The Bim68Ospump Features A Complete 304 Grade Stainless Steel Exterior Specially Built To Hold Up To The Elements. The User-Reversible Door Is Designed With A Powerful Magnetic Gasket To Ensure Proper Insulation, With A Stainless Steel Handle Mounted Horizontally For A Modern Look. The Front-Breathing Design Allows Built-In Installation Under Counters, While The Fully Finished Stainless Steel Cabinet Also Allows Freestanding Use. The Internal Pump Allows More Flexibility In Where You Choose To Place The Unit. This Unit Has A Sealed Back To Ensure Added Outdoor Protection And Easier Cleanup. The Bim68Ospump Produces Clear Gourmet Dice-Style Ice Cubes, Perfect For Keeping Any Beverage Cold Without Diluting The Flavor. Under Standard Operating Conditions, This Unit Can Make Up To 62 Lbs. In A Day Cycle, While The Storage Bin Can Hold Up To 26 Lbs At A Time. We Include An Ice Scoop That Can Be Hung Inside For Easy Use. Frost-Free Operation Eliminates The Need To Defrost The Interior. Designed And Manufactured For Us In South Korea, The Bim68Ospump Is Etl-S Listed To Nsf-12 Commercial Standards For Use In Foodservice Settings. The Weatherproof Constructed Allows Outdoor Use, But This Model Can Also Be Installed Indoors In Any Kitchen Or Wet Bar. A Panel-Ready Version (Bim68Ospump) Is Also Available. Note: This Unit Requires Professional Installation. Drain Hose And Other Connection Equipment Is Not Included.
- Indoor/outdoor capable: Versatile design can be installed inside or out
- Commercially approved: ETL-S listed to NSF-12 commercial standards for use in foodservice settings
- Weatherproof design: Durable construction for safe installation in outdoor kitchens
- 62 lb. production capacity: Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
- Built-in pump: Internal pump allows more flexibility in placing the unit
- Built-in capable: Make the best use of space by installing your icemaker under the counter and flush with other cabinets
- Stainless steel wrapped exterior: Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance
- Professional handle: Horizontally mounted towel bar style handle in stainless steel

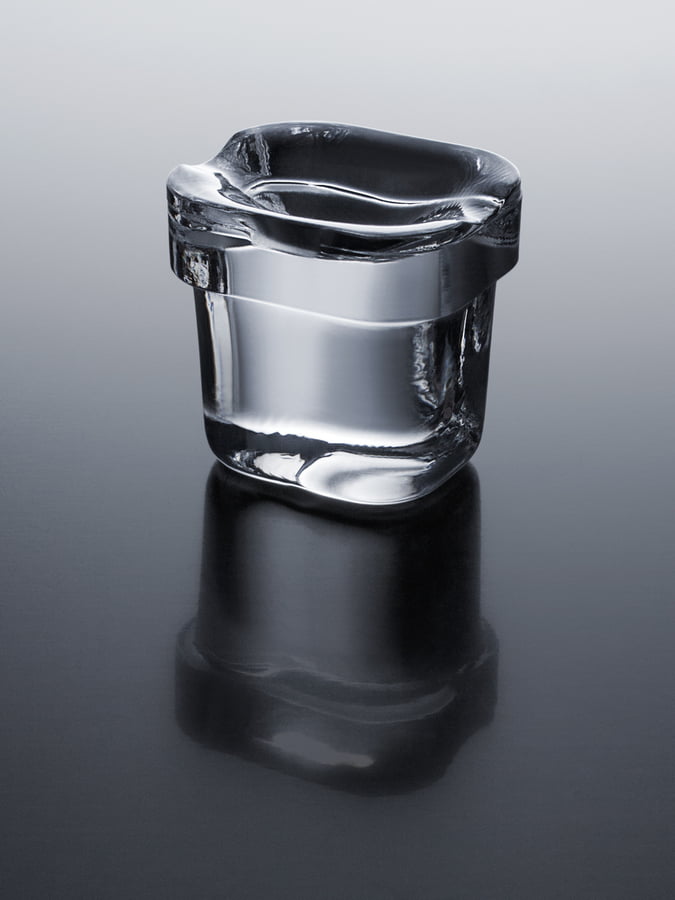

- Clear ice cube production: Gourmet style rounded dice-style ice cubes
- Frost-free operation: No-frost operation for minimum user maintenance
- Reversible door: User-reversible door swing for flexible placement
- Standard water hookup: Operates with a standard 1/4" OD water supply line
- Sealed back: Space-saving design with easier cleanability
- Fully finished cabinet: Allows the unit to be used freestanding
- Ice scoop included: Interior wall includes hook to hang for easy storage
- 100% CFC free: Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 33.5' (85 cm) |
Height to Hinge Cap | 33.63' (85 cm) |
Width | 14.88' (38 cm) |
Depth | 22.63' (57 cm) |
Depth with Handle | 24.5' (62 cm) |
Depth with door at 90° | 37.25' (95 cm) |
Capacity | 0.98 cu.ft. (28 L) |
Defrost Type | Frost-Free |
Door | Stainless Steel |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 4.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 105.0 lbs. (48 kg) |
Shipping Weight | 110.0 lbs. (50 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Icemaker | |
Door Swing | RHD |
Reversible | Yes |
Daily Ice Production | 62.0 lbs. (28 kg) |
Ice Storage Capacity | 26.0 lbs. (12 kg) |
Ice Shape | Dice |
Size of Cube | 1 1/4' H x 1 1/8' W x 1 1/8' D |
Number of Ice Cube Sizes | 1 |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 7.4 oz. |
High Side PSI | 210.0 |
Low Side PSI | 105.0 |
Interior Height | 12.75' (32 cm) |
Interior Width | 12.75' (32 cm) |
Interior Depth | 9.25' (23 cm) |
Level Legs | 4 |
Exterior | |
LHD | Left hand door swing Door reversal to left hand swing |
