Summit BIM68OSPUMPIF 62 Lb. Clear Outdoor/Indoor Icemaker
Produces Up To 62 Lbs. Of Gourmet Style Clear Ice Cubes In A 24 Hour Cycle Slim 15" Width Is Perfect To Complete Any Wet Bar Or Undercounter Kitchen Space Commercially Approved To Nsf-12 Standards Panel-Ready Door Allows You To Blend The Unit Into Cabinetry For A Truly Custom Look Built-In Pump Allows Versatile Installation Weatherproof Construction For Use In The Outdoors Flexible Design Enables Built-In Or Freestanding Use Made In South Korea Summit's Commercially Listed Bim68Os Series Icemakers Are An Attractive And Durable Solution To Keeping A Continuous Supply Of Clear Ice On Hand In Virtually Any Indoor Or Outdoor Location. Sized At 15" Wide, The Bim68Ospumpif Features A Complete 304 Grade Stainless Steel Exterior Specially Built To Hold Up To The Elements. The Door Is Designed With A Powerful Magnetic Gasket To Ensure Proper Insulation. An Integrated Stainless Steel Door Frame Is Designed To Accept Overlay Panels, Allowing You To Create A Custom Look That Blends Into Your Cabinetry Decor (Panel Size: 29 9/16" H X 14 7/8" W At 3/4" Thick). The Front-Breathing Design Allows Built-In Installation Under Counters, While The Fully Finished Stainless Steel Cabinet Lets The Unit Be Used Freestanding. The Internal Pump Allows More Flexibility In Where You Choose To Place The Unit. This Unit Has A Sealed Back To Ensure Added Outdoor Protection And Easier Cleanup. The Bim68Ospumpif Produces Clear Gourmet Dice-Style Ice Cubes, Perfect For Keeping Any Beverage Cold Without Diluting The Flavor. Under Standard Operating Conditions, This Unit Can Make Up To 62 Lbs. In A Day Cycle, While The Storage Bin Can Hold Up To 26 Lbs At A Time. We Include An Ice Scoop That Can Be Hung Inside For Easy Use. Frost-Free Operation Eliminates The Need To Defrost The Interior. Designed And Manufactured For Us In South Korea, The Bim68Ospumpif Is Etl-S Listed To Nsf-12 Commercial Standards For Use In Foodservice Settings. The Weatherproof Constructed Allows Outdoor Use, But This Model Can Also Be Installed Indoors In Any Kitchen Or Wet Bar. Note: This Unit Requires Professional Installation. Drain Hose And Other Connection Equipment Is Not Included.
- Indoor/outdoor capable : Versatile design can be installed inside or out
- Commercially approved : ETL-S listed to NSF-12 commercial standards for use in foodservice settings
- Weatherproof design : Durable construction for safe installation in outdoor kitchens
- 62 lb. production capacity : Can make up to 62 lbs. in a day cycle, producing 24 cubes in a 30 minute span
- Built-in pump : Internal pump allows more flexibility in placing the unit
- Built-in capable : Make the best use of space by installing your icemaker under the counter and flush with other cabinets

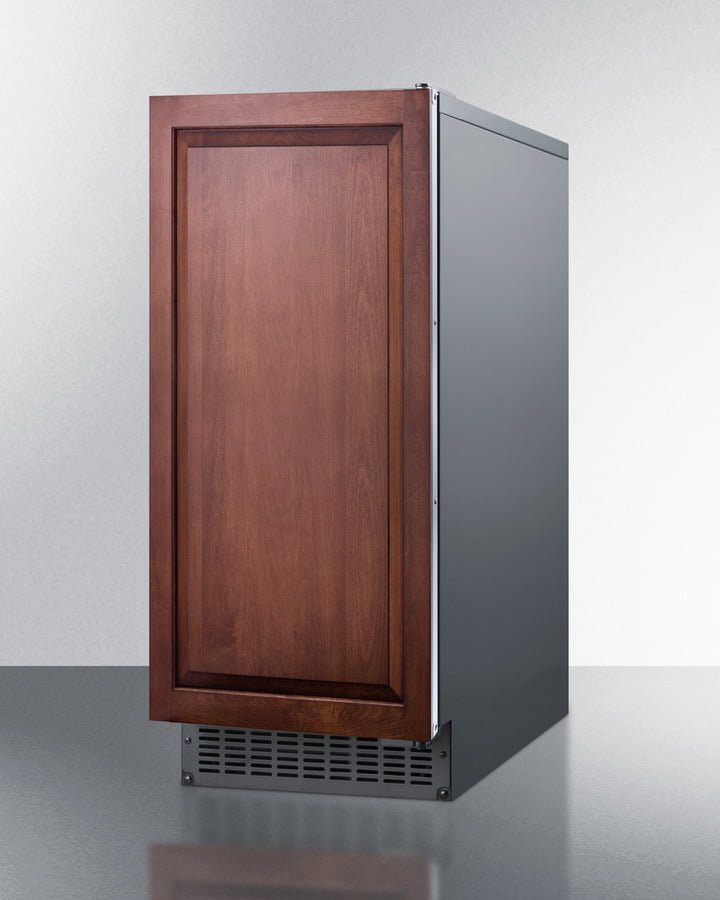

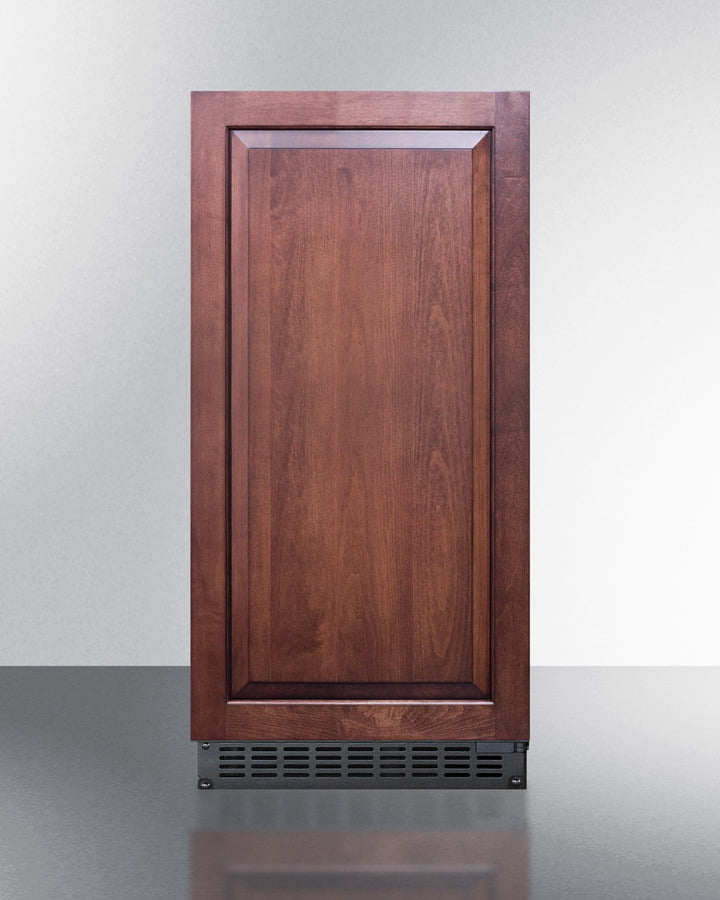

- Panel-ready door : Integrated door frame accepts overlay panels for a customized look (panel size: 29 9/16" H x 14 7/8" W at 3/4" thick)
- Stainless steel wrapped exterior : Door and cabinet are fully wrapped in 304 grade stainless steel for lasting elegance

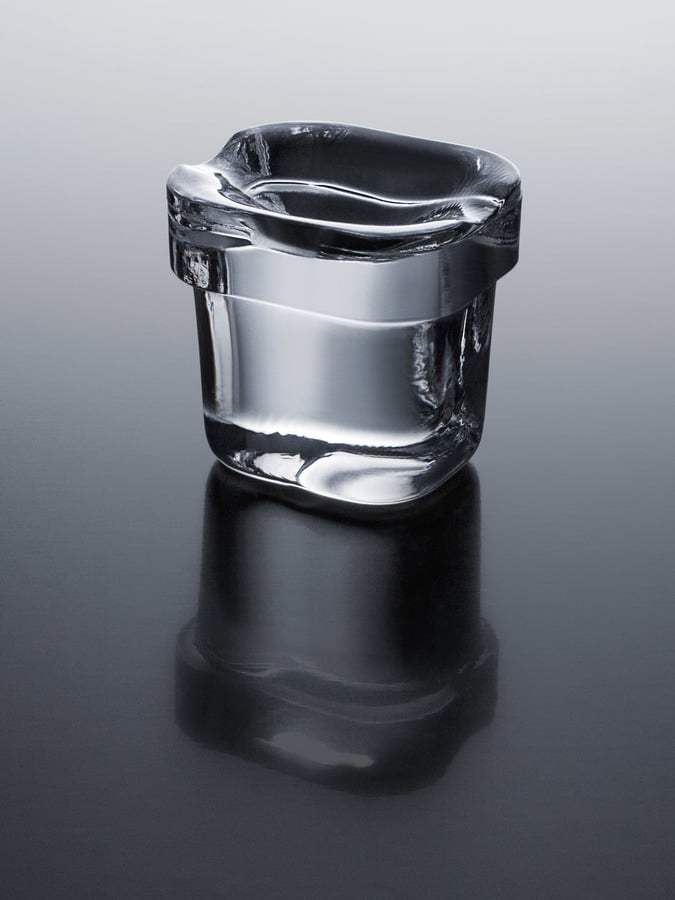

- Clear ice cube production : Gourmet style rounded dice-style ice cubes
- Frost-free operation : No-frost operation for minimum user maintenance
- Factory-reversible door : Unit ships RHD but can be ordered with a left hand door swing (option LHD); not field-reversible
- Standard water hookup : Operates with a standard 1/4" OD water supply line
- Sealed back : Space-saving design with easier cleanability
- Fully finished cabinet : Allows the unit to be used freestanding
- 100% CFC free : Environmentally friendly design without ozone-damaging chemicals
Overview | |
Height of Cabinet | 33.5' (85 cm) |
Height to Hinge Cap | 33.63' (85 cm) |
Width | 14.88' (38 cm) |
Depth | 22.63' (57 cm) |
Depth with door at 90° | 37.25' (95 cm) |
Capacity | 0.98 cu.ft. (28 L) |
Defrost Type | Frost-Free |
Door | Panel-Ready |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 4.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 105.0 lbs. (48 kg) |
Shipping Weight | 110.0 lbs. (50 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Icemaker | |
Door Swing | RHD |
Reversible | Factory Reversible |
Daily Ice Production | 62.0 lbs. (28 kg) |
Ice Storage Capacity | 26.0 lbs. (12 kg) |
Size of Cube | 1 1/4' H x 1 1/8' W x 1 1/8' D |
Number of Ice Cube Sizes | 1 |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 7.4 oz. |
High Side PSI | 210.0 |
Low Side PSI | 105.0 |
Interior Height | 12.75' (32 cm) |
Interior Width | 12.75' (32 cm) |
Interior Depth | 9.25' (23 cm) |
Level Legs | 4 |
Exterior | |
LHD - Left hand door swing | - |
Overview | |
Height of Cabinet | 33.5' (85 cm) |
Height to Hinge Cap | 33.63' (85 cm) |
Width | 14.88' (38 cm) |
Depth | 22.63' (57 cm) |
Depth with door at 90° | 37.25' (95 cm) |
Capacity | 0.98 cu.ft. (28 L) |
Defrost Type | Frost-Free |
Door | Panel-Ready |
Cabinet | Stainless Steel |
US Electrical Safety | ETL |
Canadian Electrical Safety | ETL-C |
Sanitation | ETL-S |
Amps | 4.0 |
Voltage/Frequency | 115 V AC/60 Hz |
Weight | 105.0 lbs. (48 kg) |
Shipping Weight | 110.0 lbs. (50 kg) |
Parts & Labor Warranty | 1 Year |
Compressor Warranty | 5 Years |
Icemaker | |
Door Swing | RHD |
Reversible | Factory Reversible |
Daily Ice Production | 62.0 lbs. (28 kg) |
Ice Storage Capacity | 26.0 lbs. (12 kg) |
Size of Cube | 1 1/4' H x 1 1/8' W x 1 1/8' D |
Number of Ice Cube Sizes | 1 |
Fan Type | Exterior |
Refrigerant Type | R134a |
Refrigerant Amount | 7.4 oz. |
High Side PSI | 210.0 |
Low Side PSI | 105.0 |
Interior Height | 12.75' (32 cm) |
Interior Width | 12.75' (32 cm) |
Interior Depth | 9.25' (23 cm) |
Level Legs | 4 |
Exterior | |
LHD - Left hand door swing | - |
