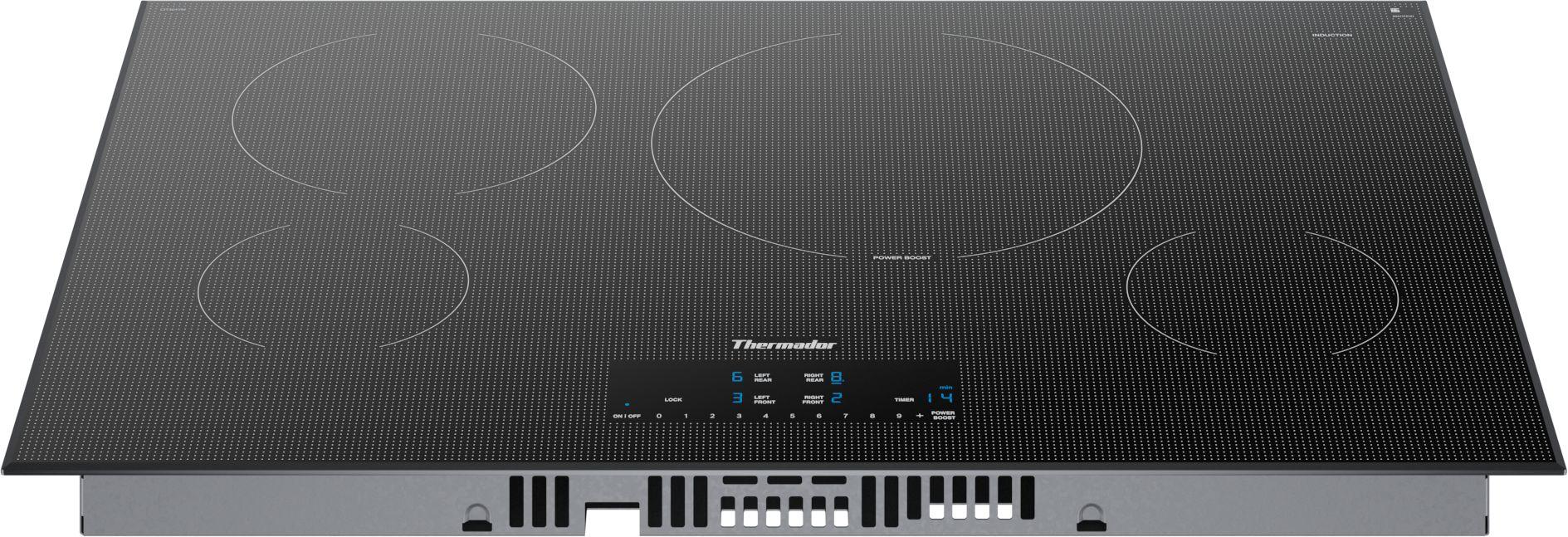

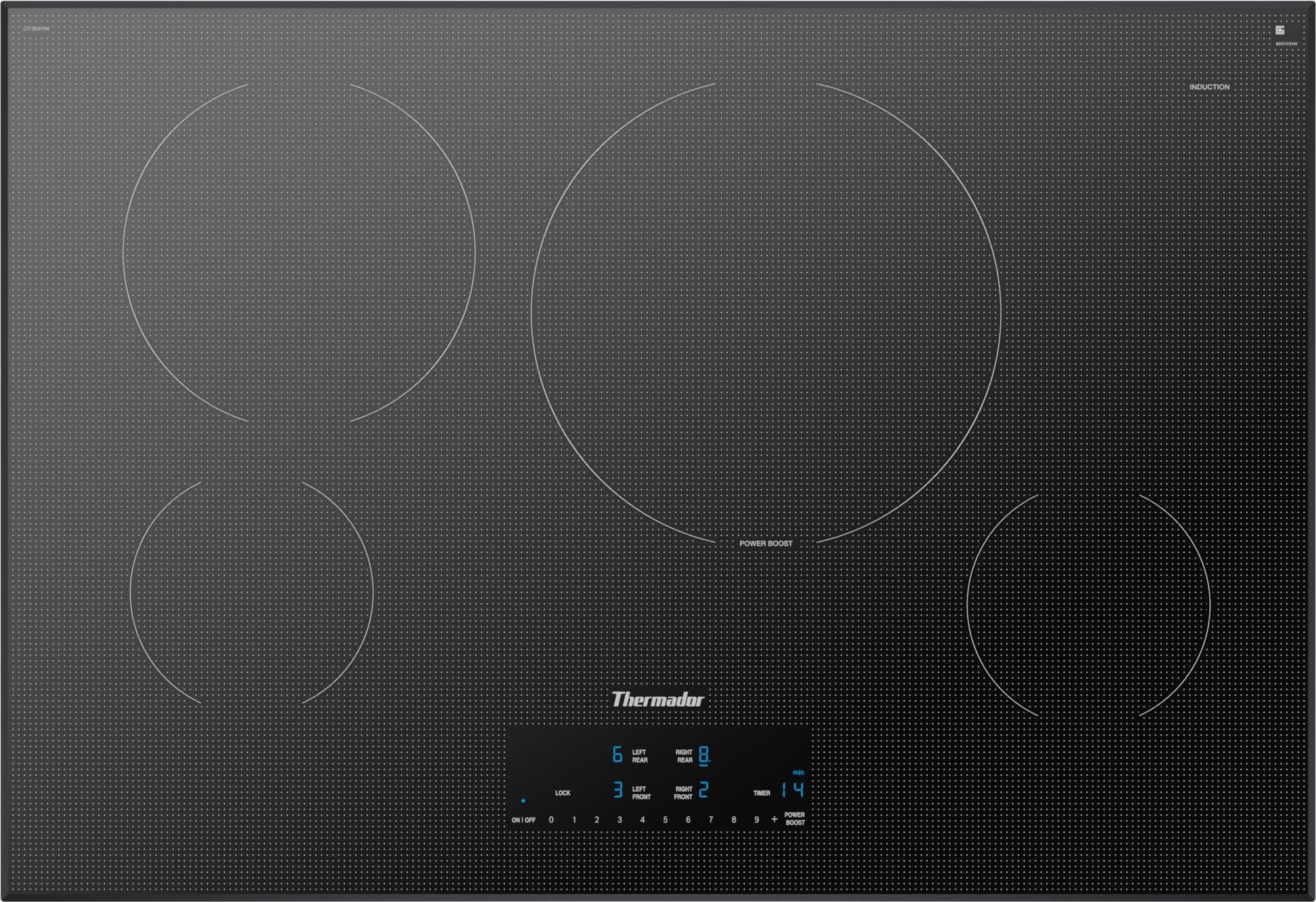

Thermador CIT304YM Induction Cooktop 30'' Silver Mirror, Surface Mount Without Frame Cit304Ym
Rebates &
Promotions
Thermador One Two Free Sales Event - Enjoy exclusive savings with purchase of qualifying Thermador appliances. Download Valid: 01/01/2024-12/31/2024
Thermador's innovative induction technology saves time in cooking and easier to care for and clean than traditional cooking methods
Performance 4 induction cooking elements
17 power levels
Powerful 3,700 W, 11" element for larger pots and pans
PowerBoost setting
Automatic pan recognition
2 stage residual heat indicators
Illuminated touch controls
Child safety lock Design Silver mirrored glass color offers the perfect companion solution for stainless steel products
Frameless design Dimensions & Capacity Width: 31"
Height: 4.25"
Depth: 21.25"
Performance 4 induction cooking elements
17 power levels
Powerful 3,700 W, 11" element for larger pots and pans
PowerBoost setting
Automatic pan recognition
2 stage residual heat indicators
Illuminated touch controls
Child safety lock Design Silver mirrored glass color offers the perfect companion solution for stainless steel products
Frameless design Dimensions & Capacity Width: 31"
Height: 4.25"
Depth: 21.25"

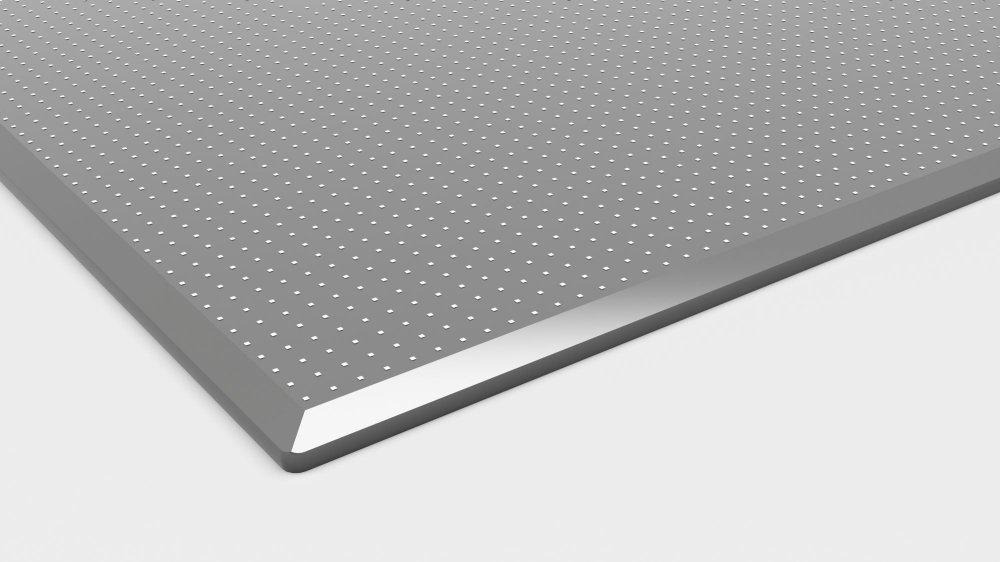

- Silver mirrored finish creates a stunning and unique design statement for the contemporary kitchen
- Powerful 3,700 W, 11" element for larger pots and pans
- PowerBoost® feature increases element power by up to 50%, saving time to heat up pots or cook large quantities
- Residual heat indicator shows what cooking zones are still hot

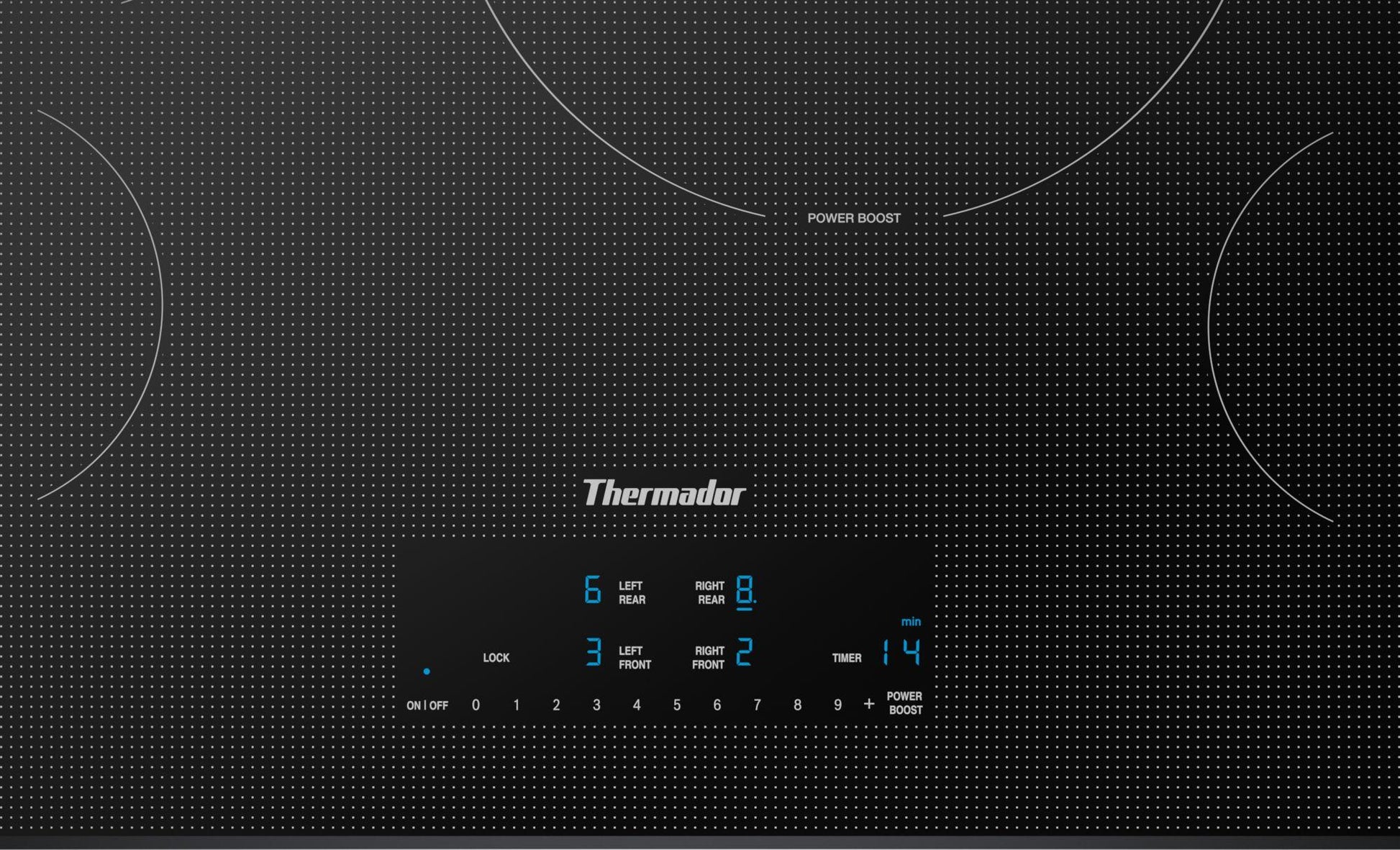

- Illuminated touch controls with 17 power settings is highly precise and allows for easy cleaning
General | |
Energy source | Electric |
Type of control | front |
Safety device | childproof lock, Key Lock, pan recognition, Power management function, Safety time-switch-off |
Highlights | 17 power levels, powerBoost |
Energy consumption of hob | 175.0 Wh/kg |
Construction type | |
Color of surface | Silver Mirror |
Construction type | Built-in |
Number of electric elements | 0 |
Number of electric cooking zones | 4 |
Type of frame | 4 Facettes |
Number of gas burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total number of cooktop burners | 4 |
Number of radiant elements | 0 |
Number of electric warming zones | 0 |
Size and weight | |

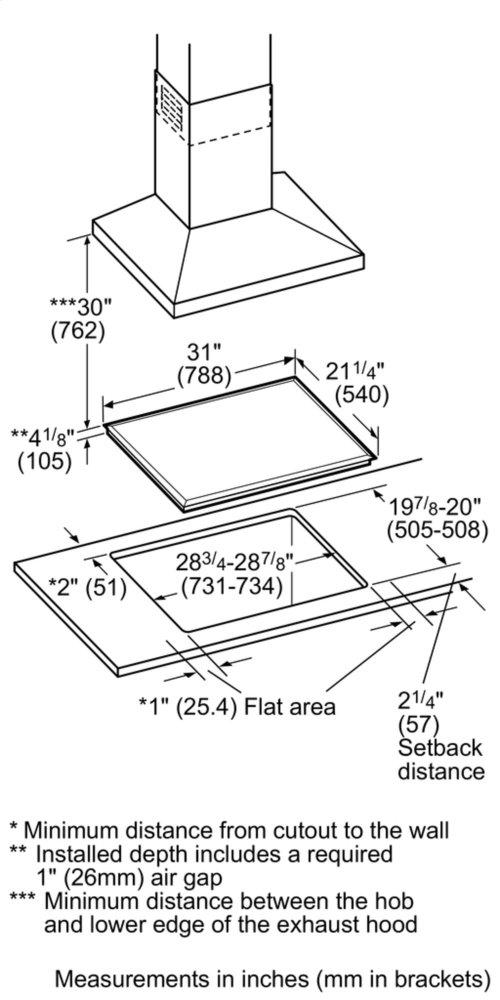

Overall appliance dimensions (HxWxD) (in) | 3/8'' + 3 7/8'' x 31'' x 21 1/4'' |
Net weight | 42.000 lbs |

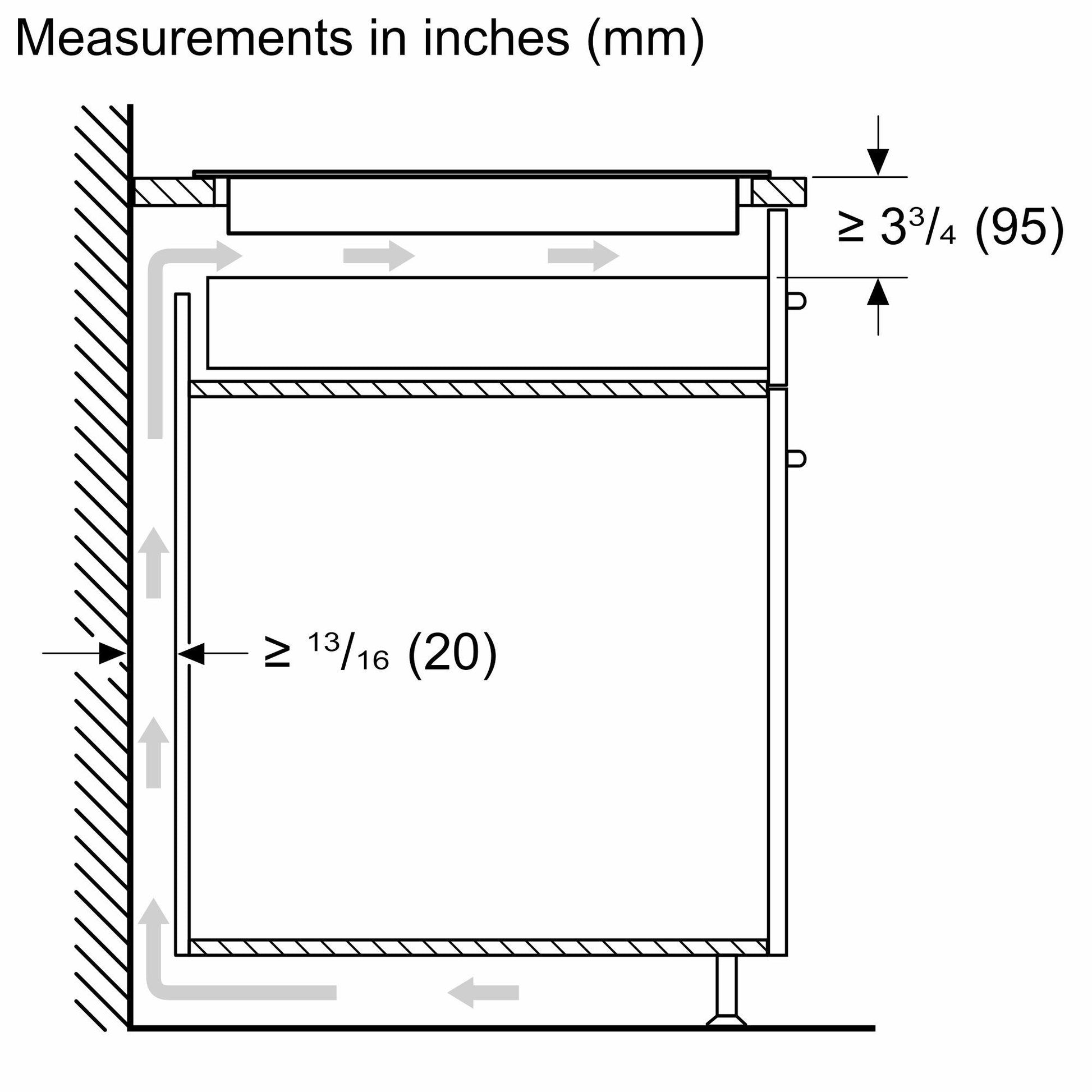

Minimum distance from counter front (in) | 2 1/4'' |
Minimum distance from rear wall (in) | 2'' |
Cooking zone 1 | |
Dimension of 1st heating element (in) | 6'' |
Location of 1st heating element | front left |
Power of heating element (kW) | 1.4 kW |
Type of heating element | Induction heating |
Energy consumption of heating element | 175.0 Wh/kg |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 3 | |
Dimension of 3rd heating element (in) | 9'' |
Location of 3rd heating element | back left |
Power of 3rd heating element (kW) | 2.2 kW |
Type of 3rd heating element | Induction heating |
Energy consumption of 3rd heating element | 175.0 Wh/kg |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Dimension of 5th heating element (in) | 11'' |
Location of 5th heating element | back right |
Power of 5th heating element (kW) | 2.6 kW |
Type of 5th heating element | Induction heating |
Energy consumption of 5th heating element | 175.0 Wh/kg |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Dimension of 7th heating element (in) | 6'' |
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 1.4 kW |
Type of 7th heating element | Induction heating |
Energy consumption of 7th heating element | 175.0 Wh/kg |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Safety | |
Residual heat indicator | Separate |
Connection | |
Frequency | 60 Hz |
Energy source | Electric |
Power Cord Length | 37'' |
Watts | 6,240 W |
