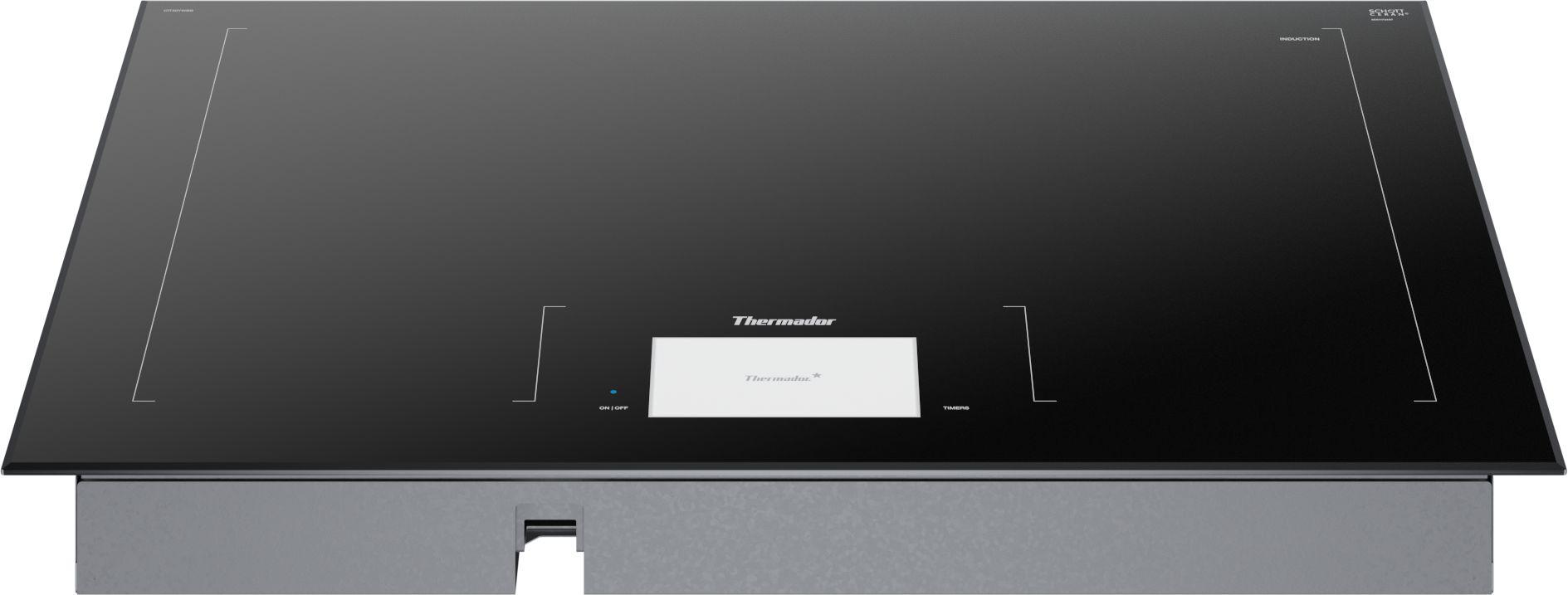

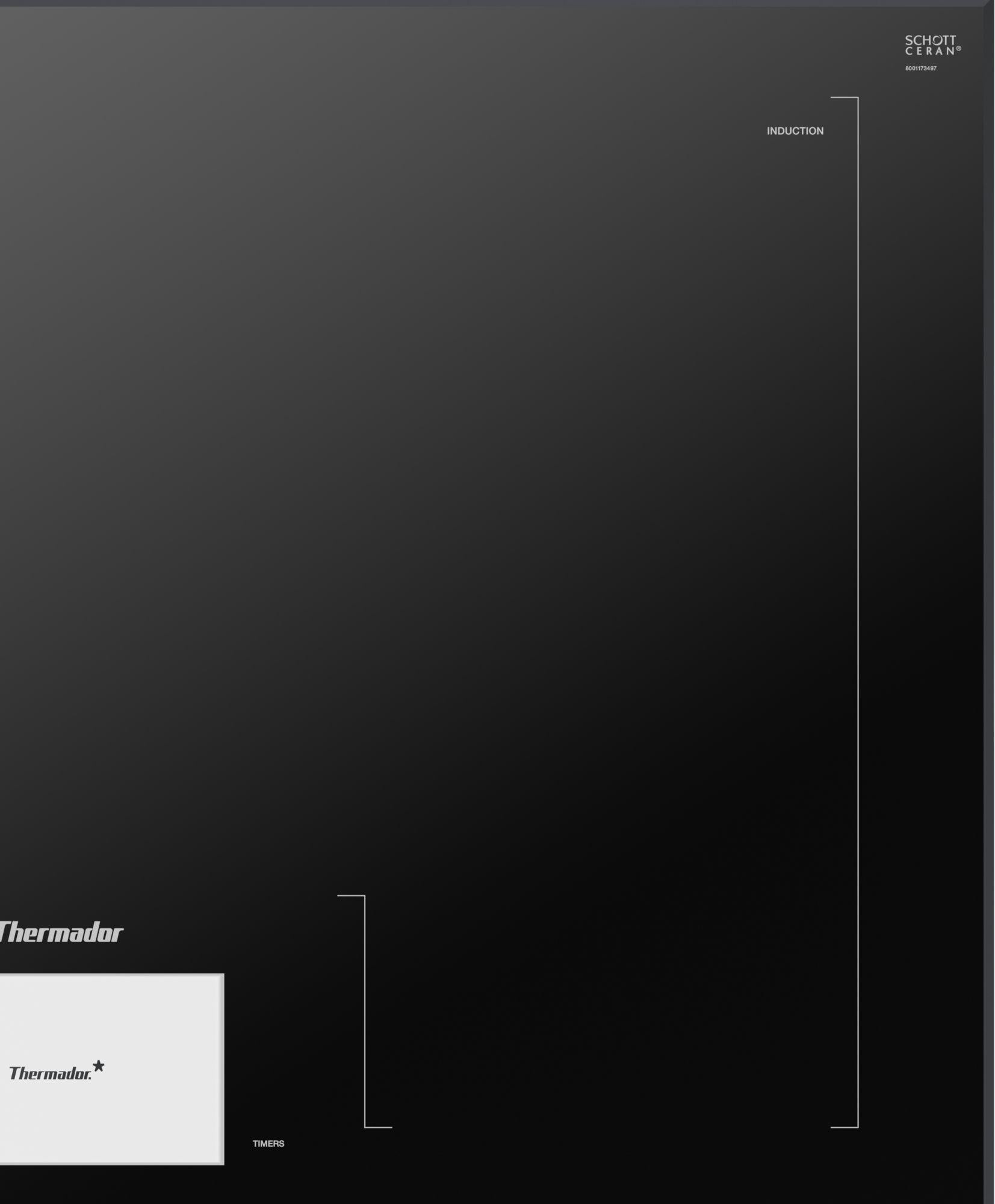

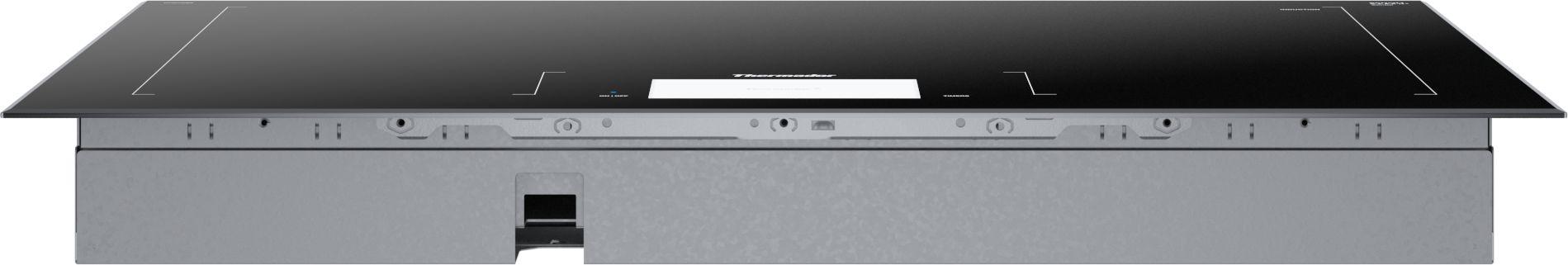

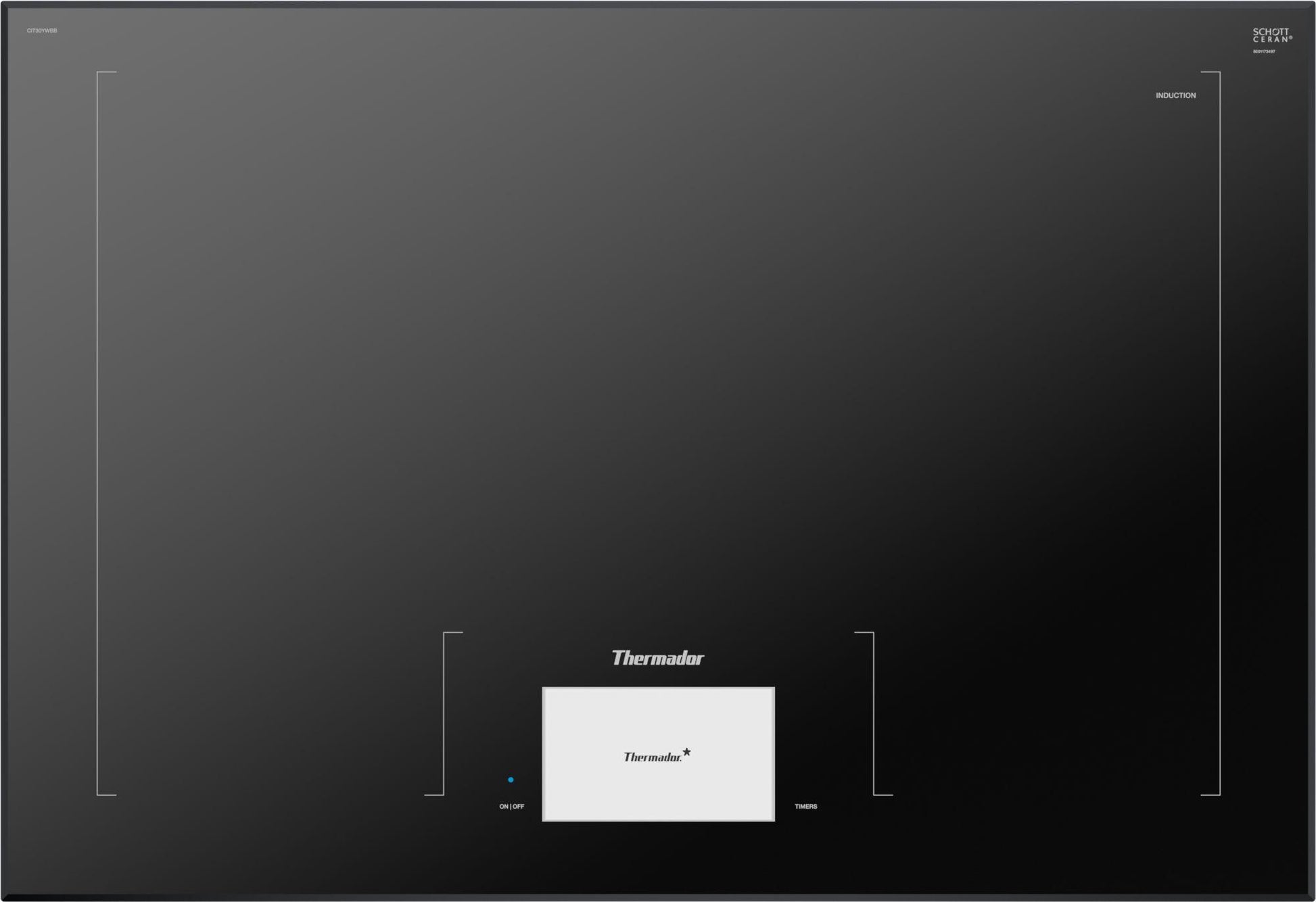

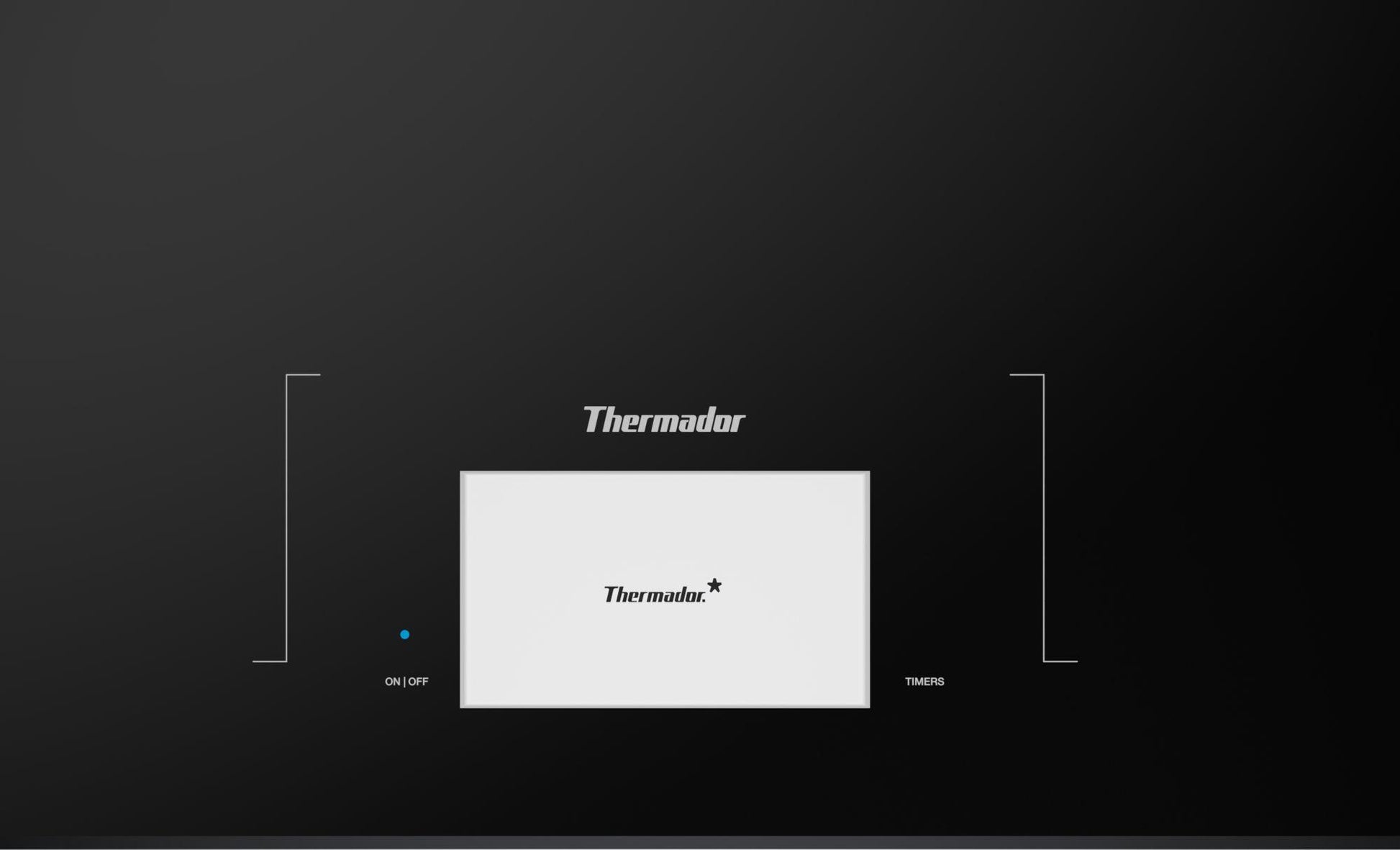

Thermador CIT30YWBB Freedom® Induction Cooktop 30'' Dark Gray, Surface Mount Without Frame Cit30Ywbb
Rebates &
Promotions
Thermador One Two Free Sales Event - Enjoy exclusive savings with purchase of qualifying Thermador appliances. Download Valid: 01/01/2024-12/31/2024
Move ingredients on/off heat with TeppanyakiPro®
TeppanyakiPro® function divides a teppanyaki grill plate into one heated and one non-heated area, so you can quickly move ingredients on and off of the heat.

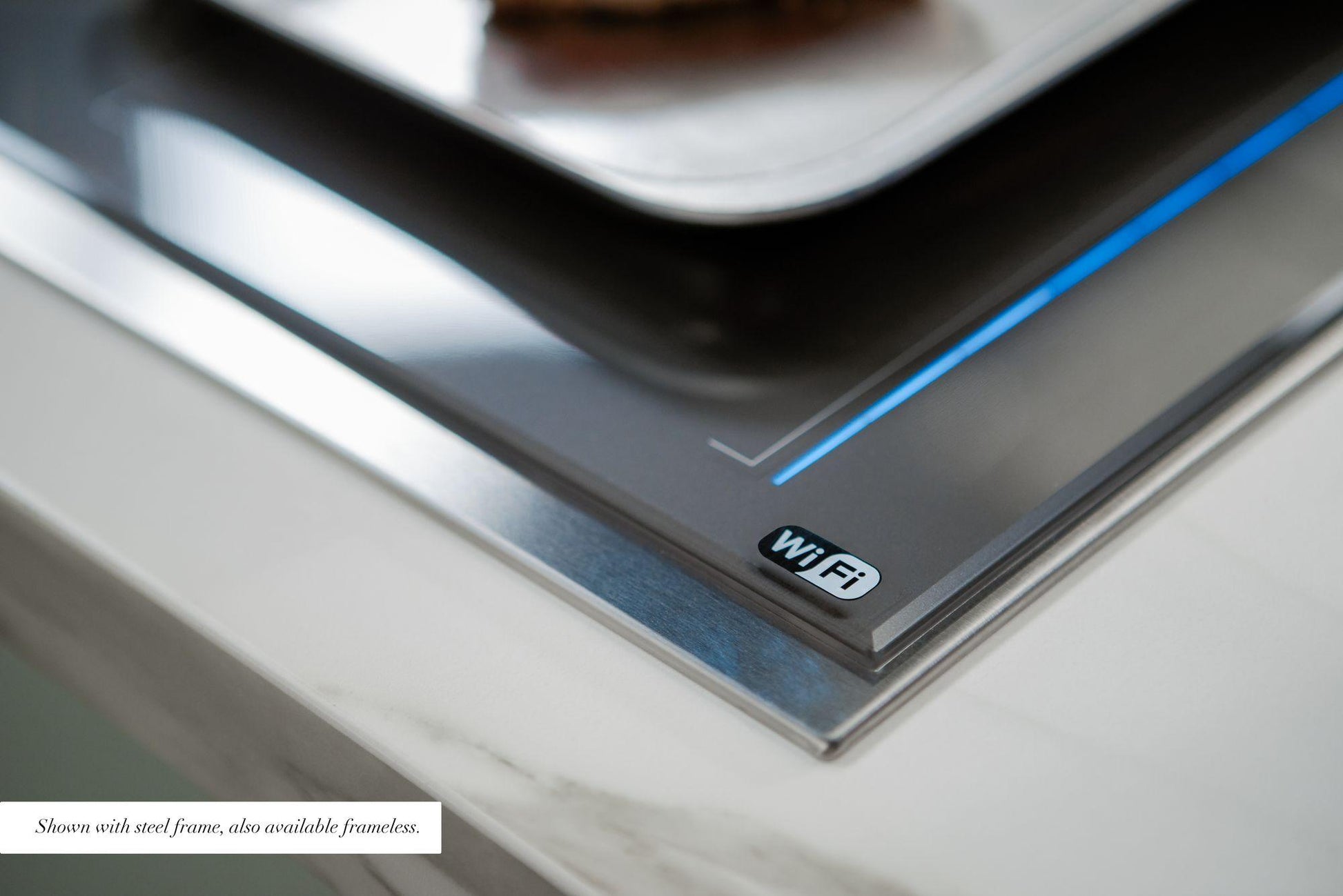

Wi-Fi Enabled for convenient remote monitoring

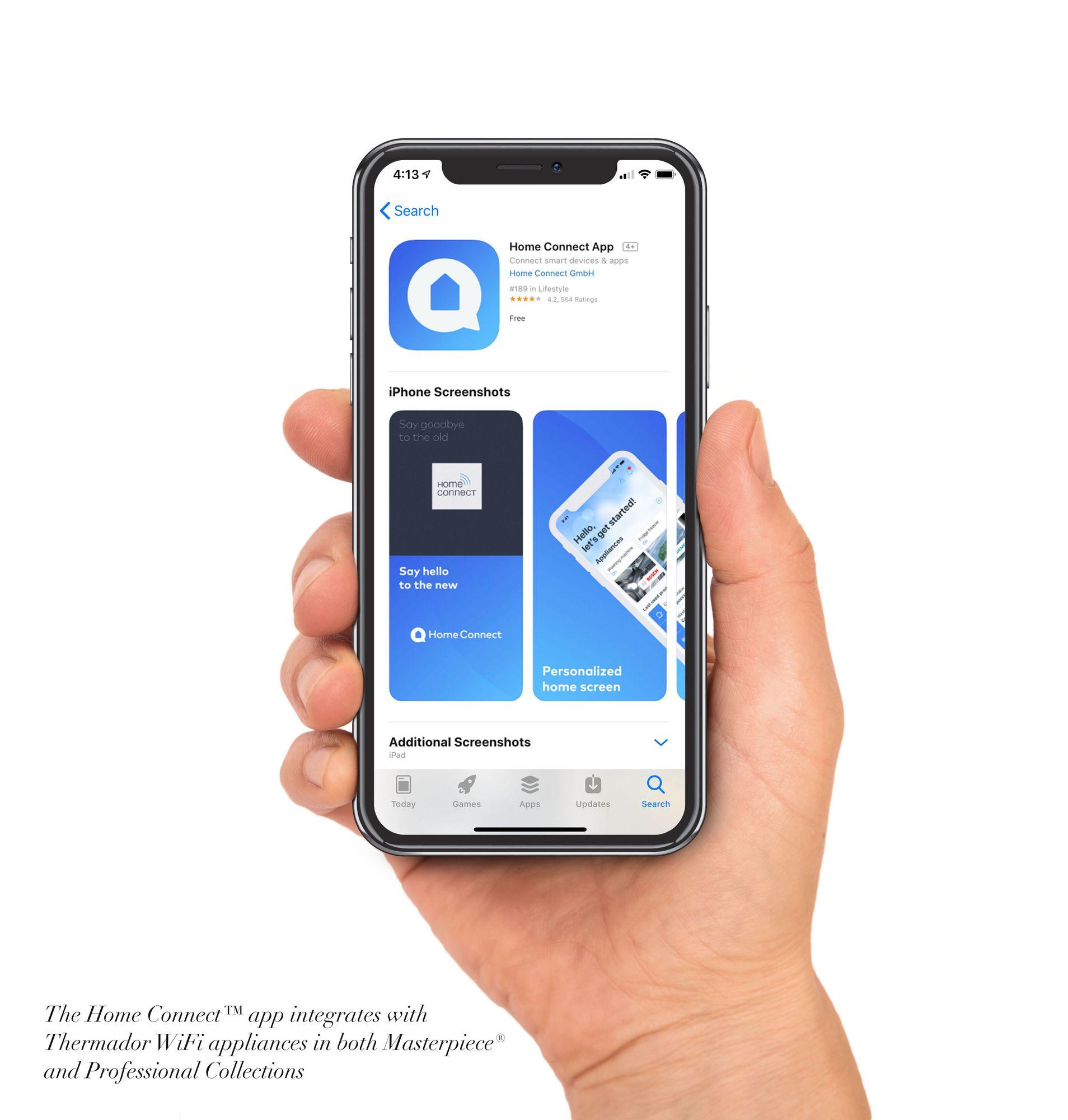

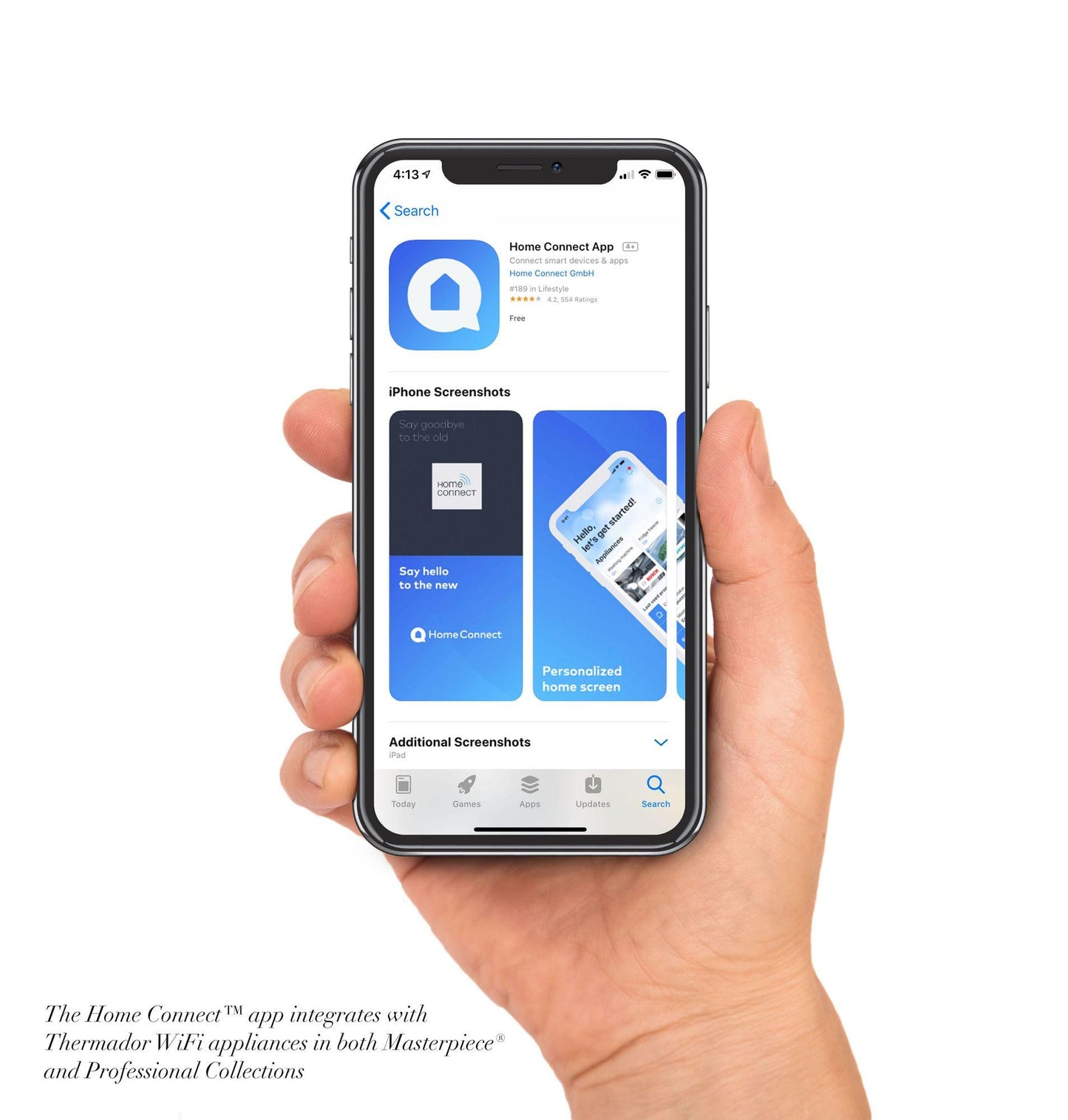

Wi-Fi Enabled cooktop allows for convenient remote monitoring with access to cooktop programs and settings via the Home Connect® app.
With Freedom® induction the entire surface of the cooktop can be used as one large cooking area. Up to 5 pots or pans can be heated simultaneously in any position and controlled using a full color touch screen. The Thermador Connected Experience by Home Connect®, provides added flexibility and personalization.
Innovation
48 inductor elements combined with pot detection automatically recognizes the size, shape and position of your cookware on the cooktop
TeppanyakiPro function divides a teppanyaki grill plate into one heated and one non-heated area
MyZone feature allows you to change a preset power level simply by moving a pot or pan on the cooktop
Wi-Fi connectivity allows the cooktop and matching hood to communicate with one another to synchronize turning on task lighting and ventilation Performance PowerBoost feature increases element power by up to 50%, saving time to heat up pots containing large quantities of water
PanBoost function allows for faster 30 second pan heat-up time and is ideal for cooking with a frying pan
Cookware detection - the position, size and shape of the cookware used is automatically detected by the cooktop
Transfer function allows you to transfer all of the settings of one cooking position to another cooking position
Residual heat indicator for each side of the cooktop indicates any side that is still hot
Stopwatch Timer function displays the time that has elapsed since activation Panel Lock allows you to lock the cooktop and prevent children from changing settings
Cooking Sensor ready - prevents overcooking of food by means of a sensor that accurately measures the temperature inside the pot (optional sensor sold separately) Design Extra large full color interactive touch screen display

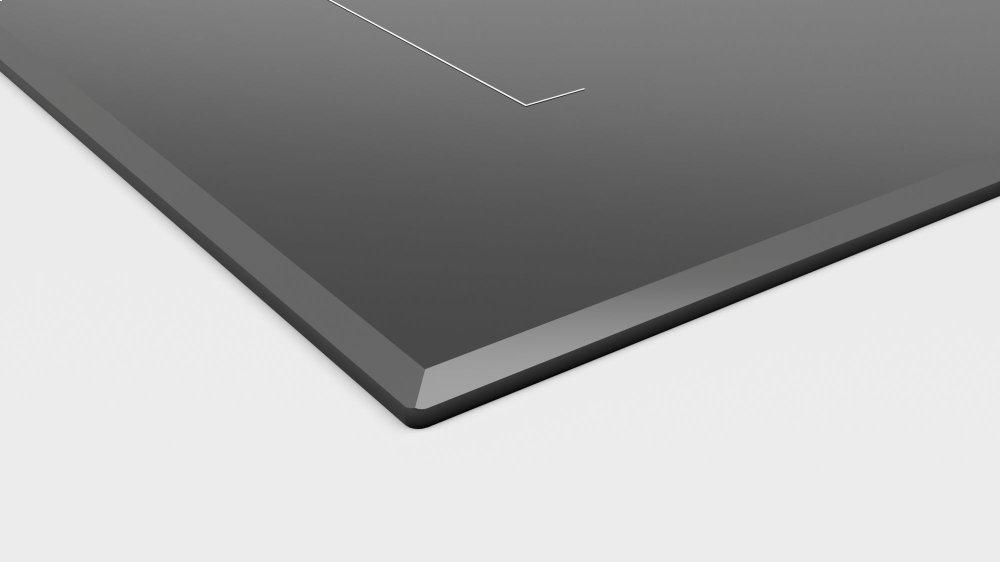

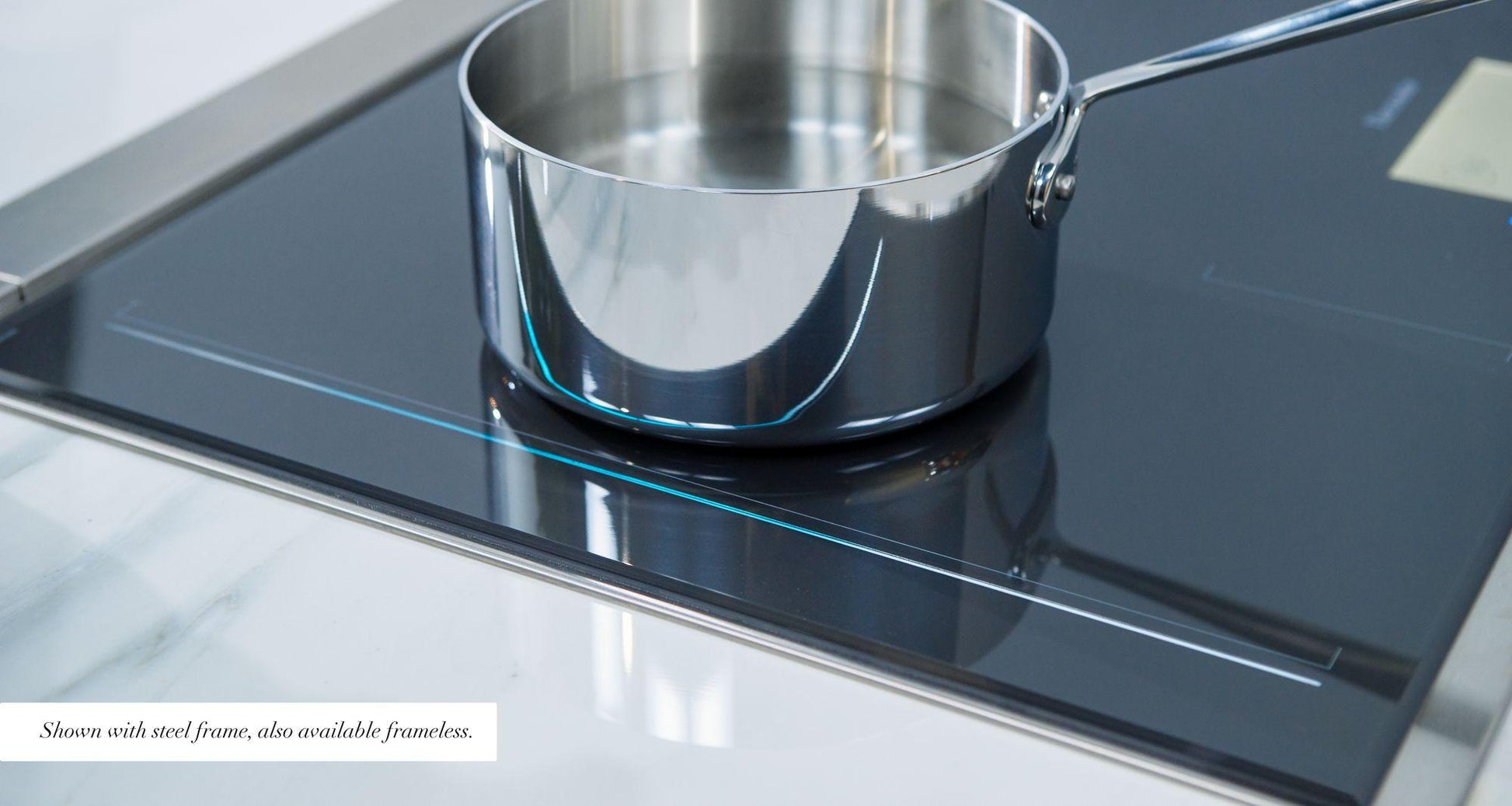

Frameless design
Dark gray glass color
Dimensions & Capacity Width: 31"
Height: 4.37"
Depth: 21.25"
TeppanyakiPro function divides a teppanyaki grill plate into one heated and one non-heated area
MyZone feature allows you to change a preset power level simply by moving a pot or pan on the cooktop
Wi-Fi connectivity allows the cooktop and matching hood to communicate with one another to synchronize turning on task lighting and ventilation Performance PowerBoost feature increases element power by up to 50%, saving time to heat up pots containing large quantities of water
PanBoost function allows for faster 30 second pan heat-up time and is ideal for cooking with a frying pan
Cookware detection - the position, size and shape of the cookware used is automatically detected by the cooktop
Transfer function allows you to transfer all of the settings of one cooking position to another cooking position
Residual heat indicator for each side of the cooktop indicates any side that is still hot
Stopwatch Timer function displays the time that has elapsed since activation Panel Lock allows you to lock the cooktop and prevent children from changing settings
Cooking Sensor ready - prevents overcooking of food by means of a sensor that accurately measures the temperature inside the pot (optional sensor sold separately) Design Extra large full color interactive touch screen display
Frameless design
Dark gray glass color
Dimensions & Capacity Width: 31"
Height: 4.37"
Depth: 21.25"
- Largest 30" fully usable cooking surface on the market within it’s class
- 48 inductor elements combined with pot detection automatically recognizes the size, shape and position of your cookware on the cooktop
- Wi-Fi connectivity allows the cooktop and matching hood to communicate with one another to synchronize turning on task lighting and ventilation
- TeppanyakiPro® function divides a teppanyaki griddle into one heated and one non-heated area
- Optional Cooking Sensor allows you to heat food, simmer, boil, cook with a pressure cooker and deep fry in a pot, all at a controlled temperature (sold separately)
- Home Connect™ (Wi-Fi Enabled)
General | |
Energy source | Electric |
Type of control | front, Touchscreen |
Safety device | childproof lock, Key Lock, pan recognition, pause function, Power management function, Quick pot off, Safety time-switch-off |
Highlights | 17 power levels, freeInduction, Keep warm function, powerBoost |
Energy consumption of hob | 185.0 Wh/kg |
Construction type | |
Color of surface | Dark Gray |
Construction type | Built-in |
Number of electric elements | 0 |
Number of electric cooking zones | 1 |
Type of frame | 4 Facettes |
Number of gas burners | 0 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Total number of cooktop burners | 5 |
Number of radiant elements | 0 |
Number of electric warming zones | 0 |
Size and weight | |

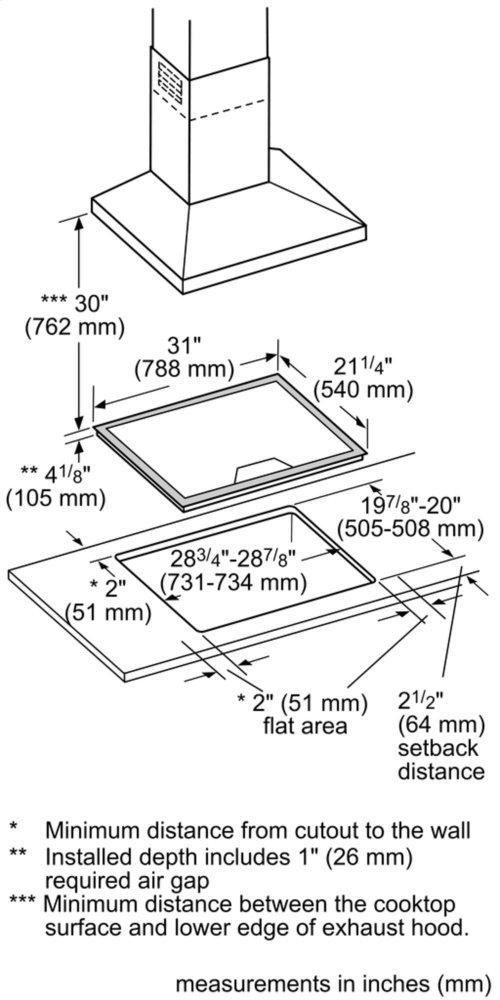

Overall appliance dimensions (HxWxD) (in) | 1/4'' + 4 1/8'' x 31'' x 21 1/4'' |
Net weight | 65.000 lbs |
Minimum distance from counter front (in) | 2 1/4'' |
Minimum distance from rear wall (in) | 2'' |
Cooking zone 1 | |
Location of 1st heating element | Flexible |
Power of heating element (kW) | 3.5 kW |
Energy consumption of heating element | 185.0 Wh/kg |
Safety | |
Residual heat indicator | Separate |
Connection | |
Frequency | 60 Hz |
Energy source | Electric |
Power Cord Length | 37'' |
Watts | 6,240 W |
Accessories | |
Included accessories | 1 x wireless temperature sensor for cooktop |
