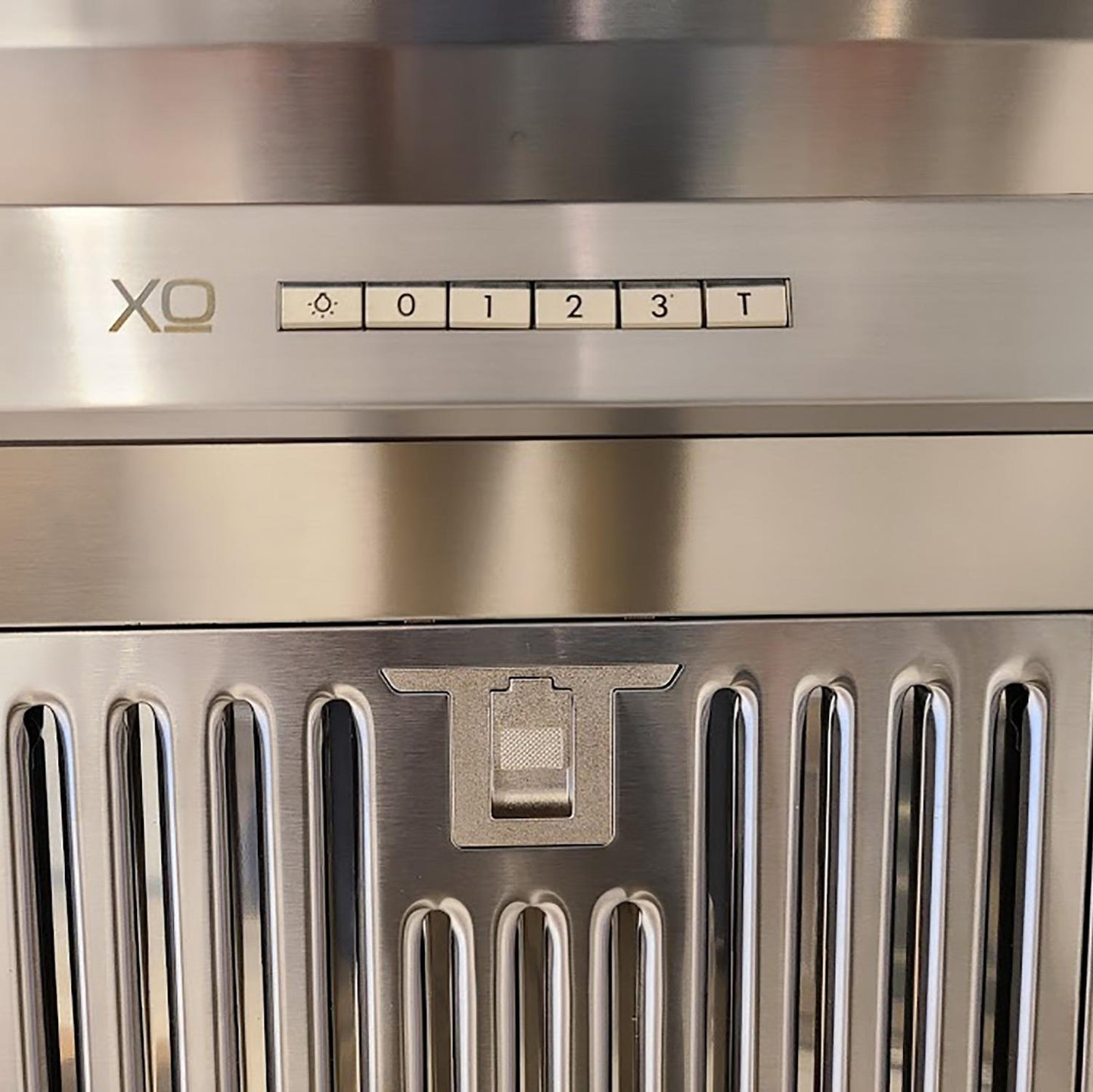

Xo Appliance XOIL4222SC New! 42In Ccc 600/395 Cfm Liner Insert Hood 22In D
The Xoil Series Integrates A Powerful Xo Blower With A Factory Prefabricated Liner For Quick Easy Assembly. Made In Italy, These Units Employ Our Advanced Code Compliance Control, Multi-Level Led Lighting And Have An Optional Remote.
- Backlit Electronic 4 Speed Control with Power Boost
- CCC Code Compliance Control - permanently set blower to 395 or 600 CFM to meet local codes
- High Efficiency 3000K LED lights brightly illuminate the cooktop
- Dishwasher Safe Pro Style Stainless Baffle Filters for efficient filtration
- 5 Minute Delay Shutoff Timer
- Convertible 6" Vertical Duct or Ductless Recirculating (Kit Sold Separately)
- XO quality and performance for your custom built-ins
- Made In Italy
- 2 year limited parts and labor warranty for the original owner
- Combination blower and liner saves time and money
Collection | Fabriano |
Origin | Italy |
UPC | 814830013648 |
Height | 12' |
Width | 40-3/8' |
Depth | 22-1/2' |
Cut-Out Depth (in.) | 22-11/16' |
Cut-Out Height (in.) | 12-1/4' |
Cut-Out Width (in.) | 40-1/2' |
Warranty 1 Explained | 90 Day Love It Or Leave It |
Warranty 2 Explained | 2 Year Limited Material And Workmanship for the original owner |
ADA Compatible | Yes |
Certification | UL |
Prop 65 | Yes |
Amperage | 3.6 Amps |
Electrical | 120V - 60Hz - 3.6 Amps |
Frequency (Hz) | 60 Hz |
Voltage (volts) | 120 VAC |
Wattage (watts) | 430 watts |
Appliance Type | Range Hoods |
CCC Code Compliance Control | Yes |
CFM @ Speed 1 | 160 |
CFM @ Speed 2 | 250 |
CFM @ Speed 3 | 395 |
CFM @ Speed 4 | 600 |
Color/Finish | Stainless |
Commerical/Residential | Residential |
Control Type | Backlit LED |
Cooktop Lights | Twin LED Lights |
Duct Size | 6' Dia. |
Ductless Convertible | Ducted or Convertible |
Filter Type | Dishwasher Safe Pro Stainless Steel Baffles |
Install Type | Insert - Liner combination |
LIght Colors | White |
Light Type | Twin LED Lights |
Lighting Features | 3 Level Lighting |
Maximum Air Flow Capacity CFM) | 600/395 |
Minimum Air Flow Capacity (CFM) | 160 |
Mounting Height Above Cooktop | 27' - 32' |
Number of Light Bulbs | 2 |
Number of Speeds | 4 |
Returnable | No |
Sones @ Speed 1 | 1 |
Sones @ Speed 2 | 2.5 |
Sones @ Speed 3 | 4 |
Sones @ Speed 4 | 6.5 |
Vent Location | Top |
Vent Material | Metal |
Wireless Compatibility | No |
Control Lighting | Blue Backlit |
Controls | Code Compliance Electronic Controls |
Location | Indoor |
Sound Level | 1.0-6.5 Sones |
