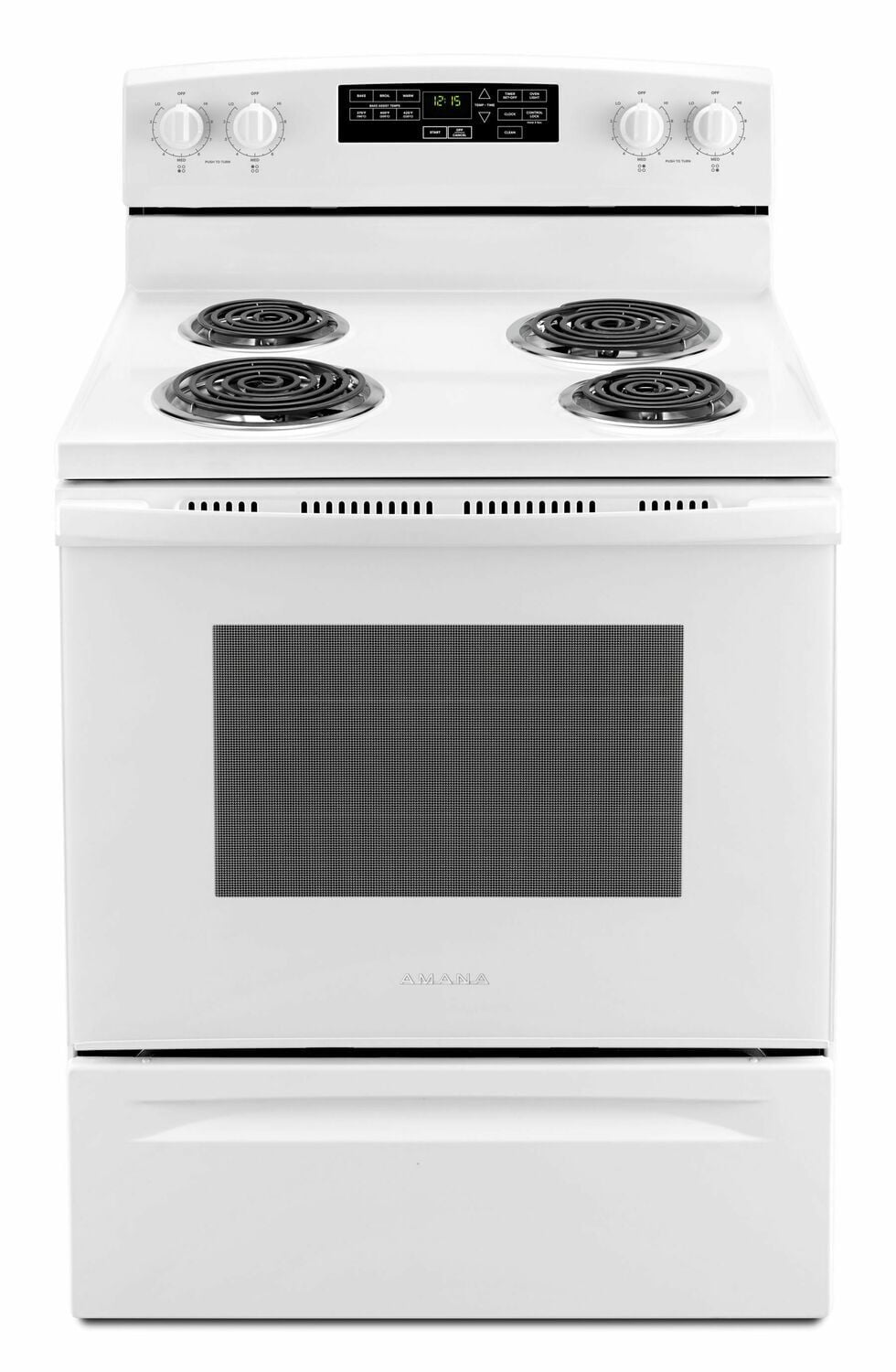

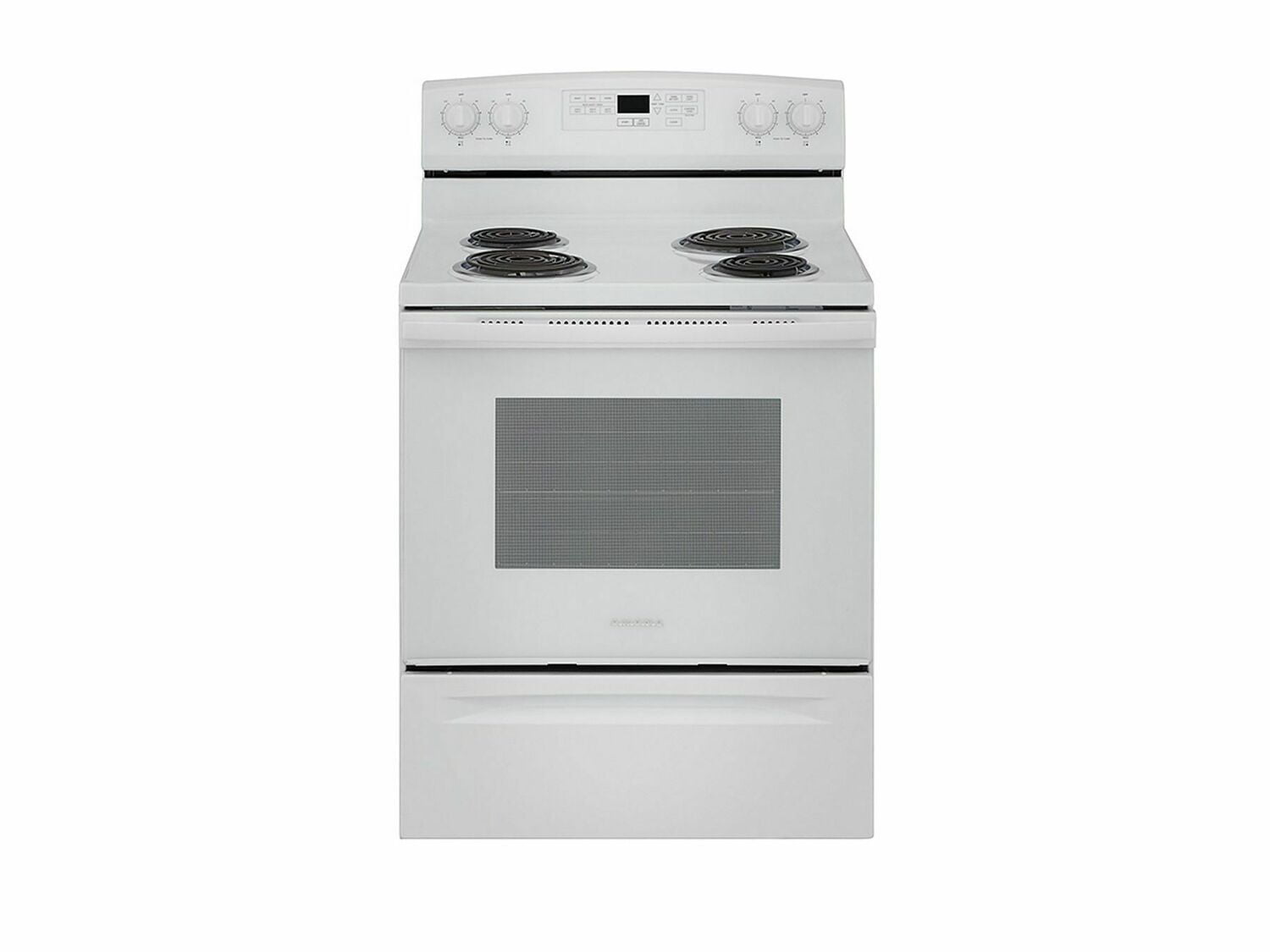

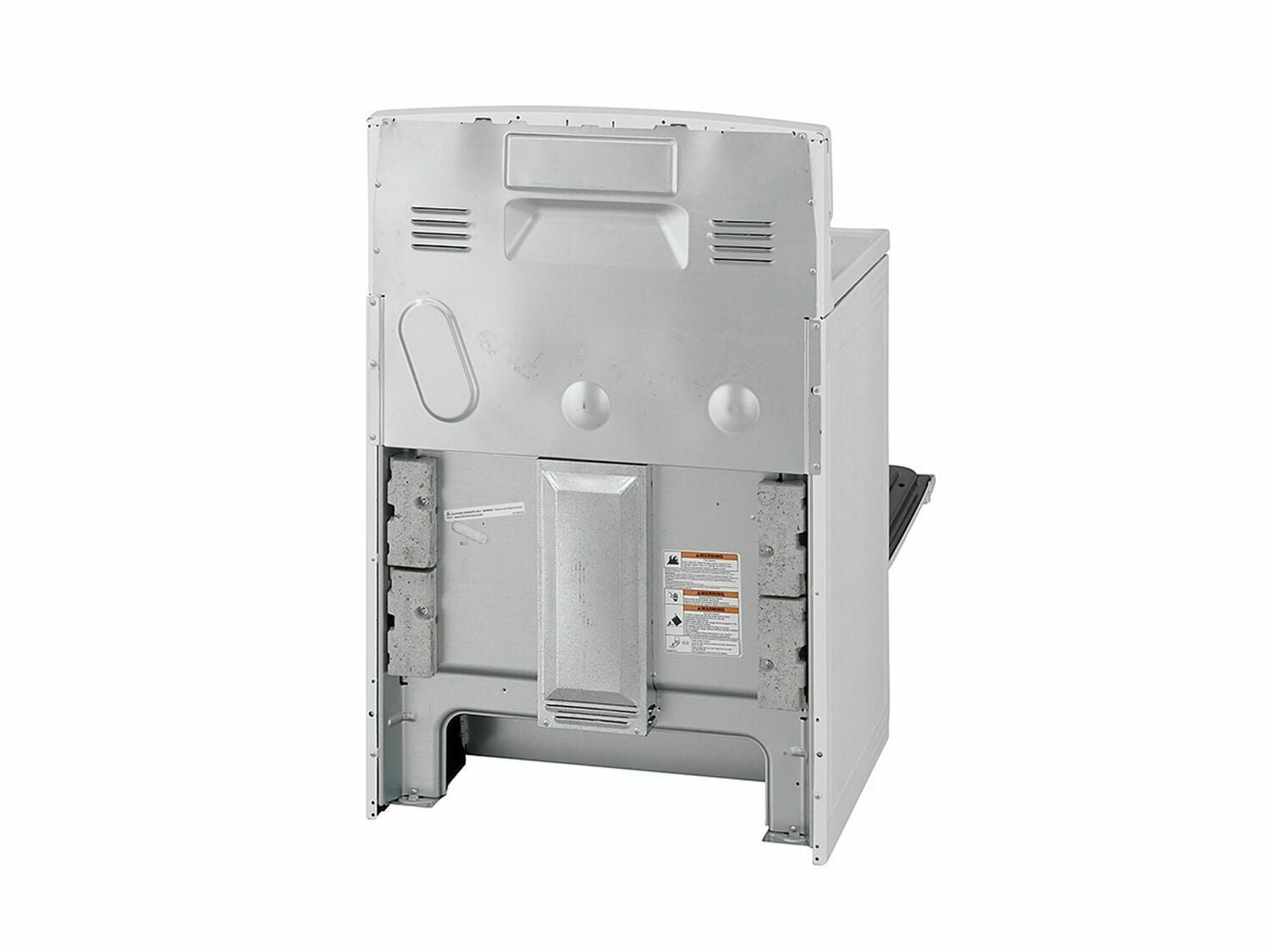

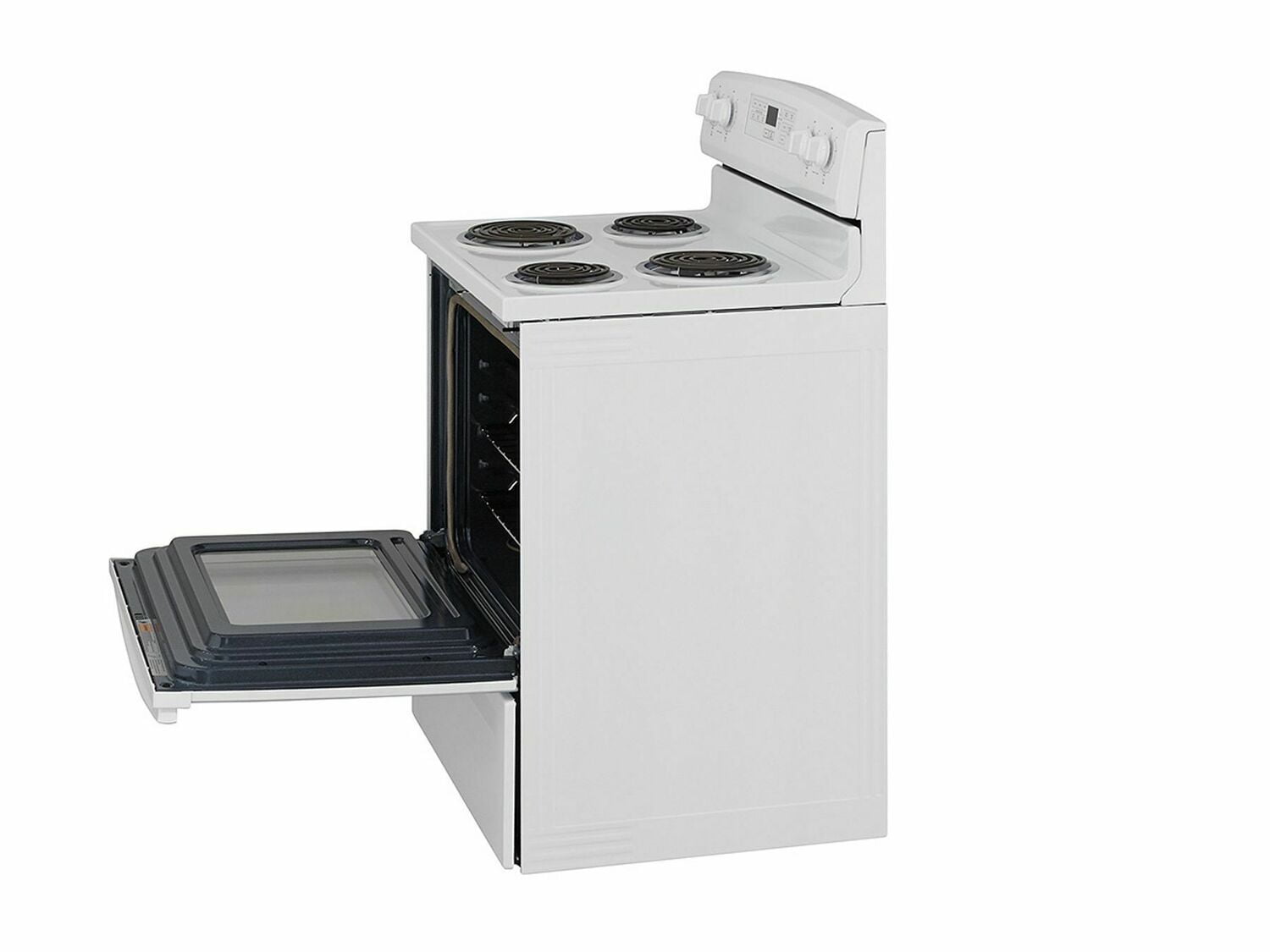

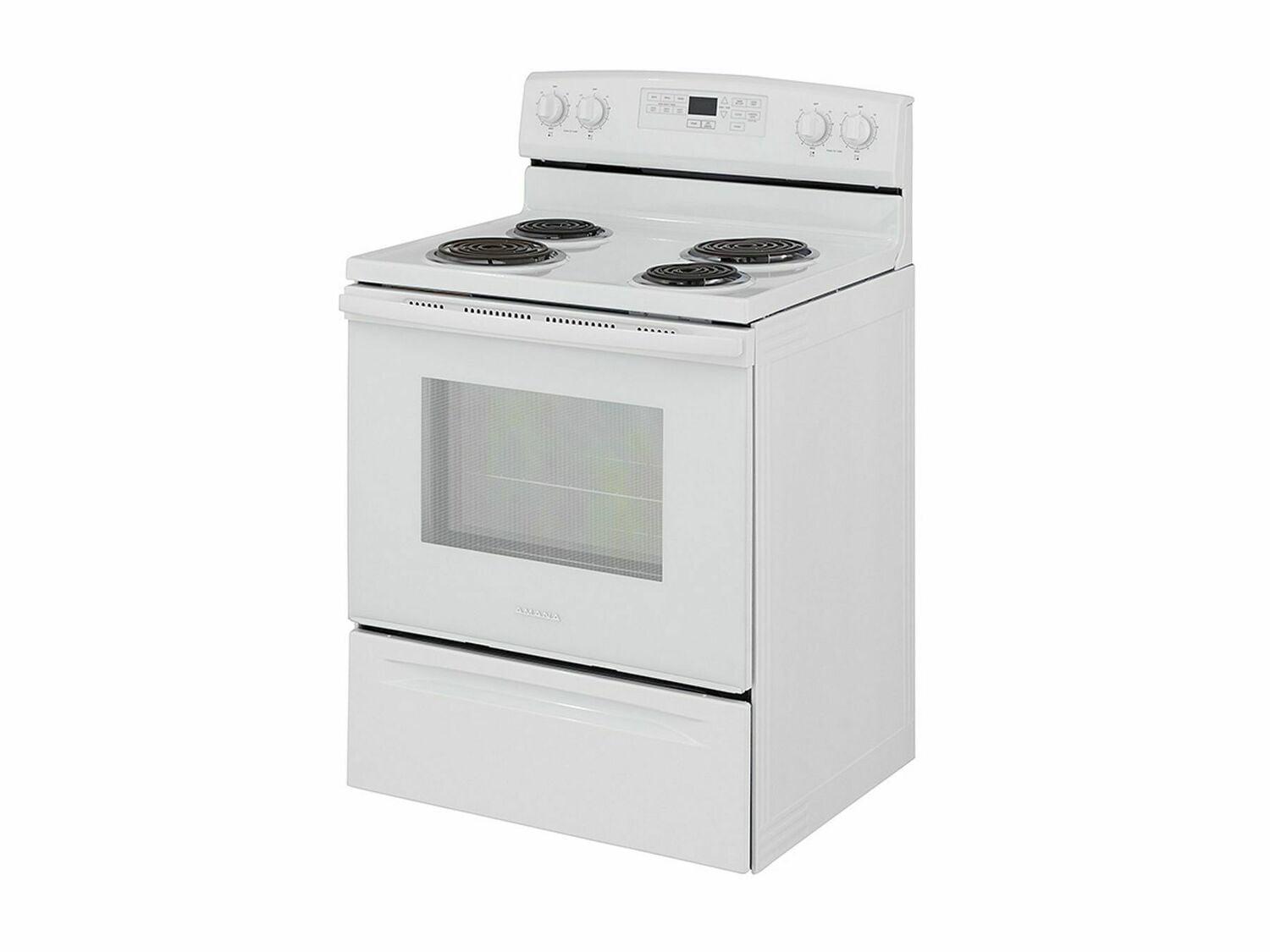

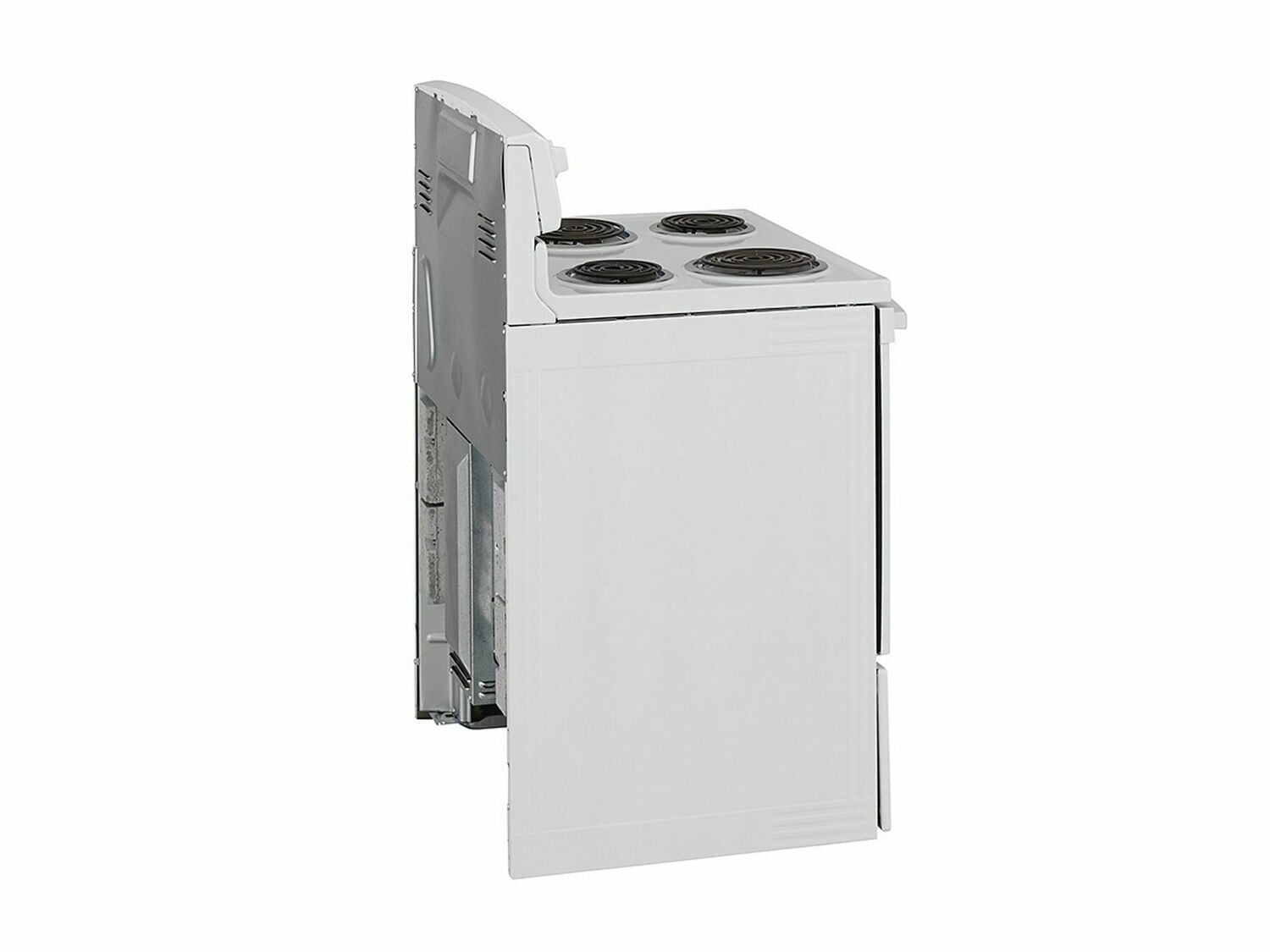

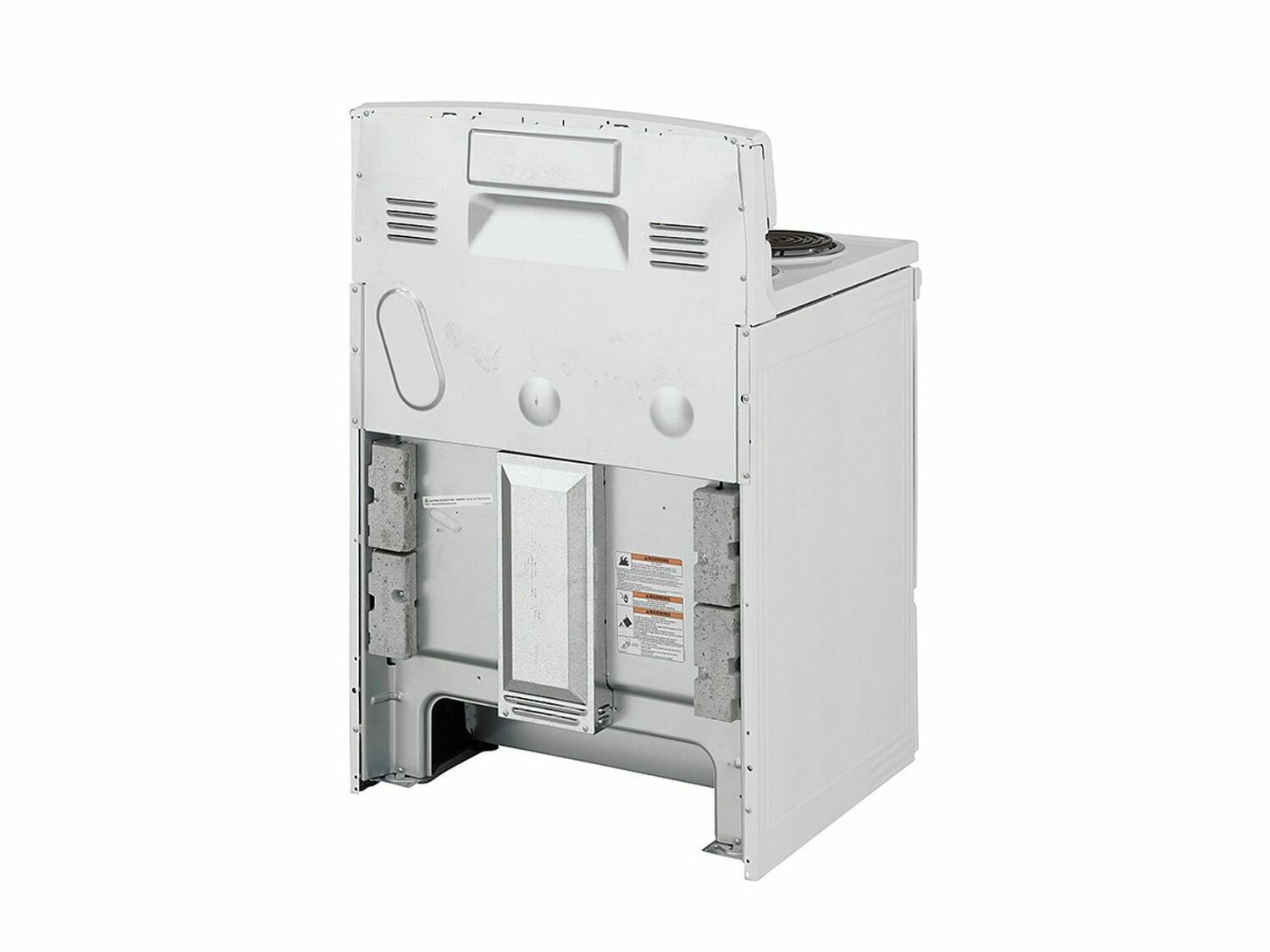

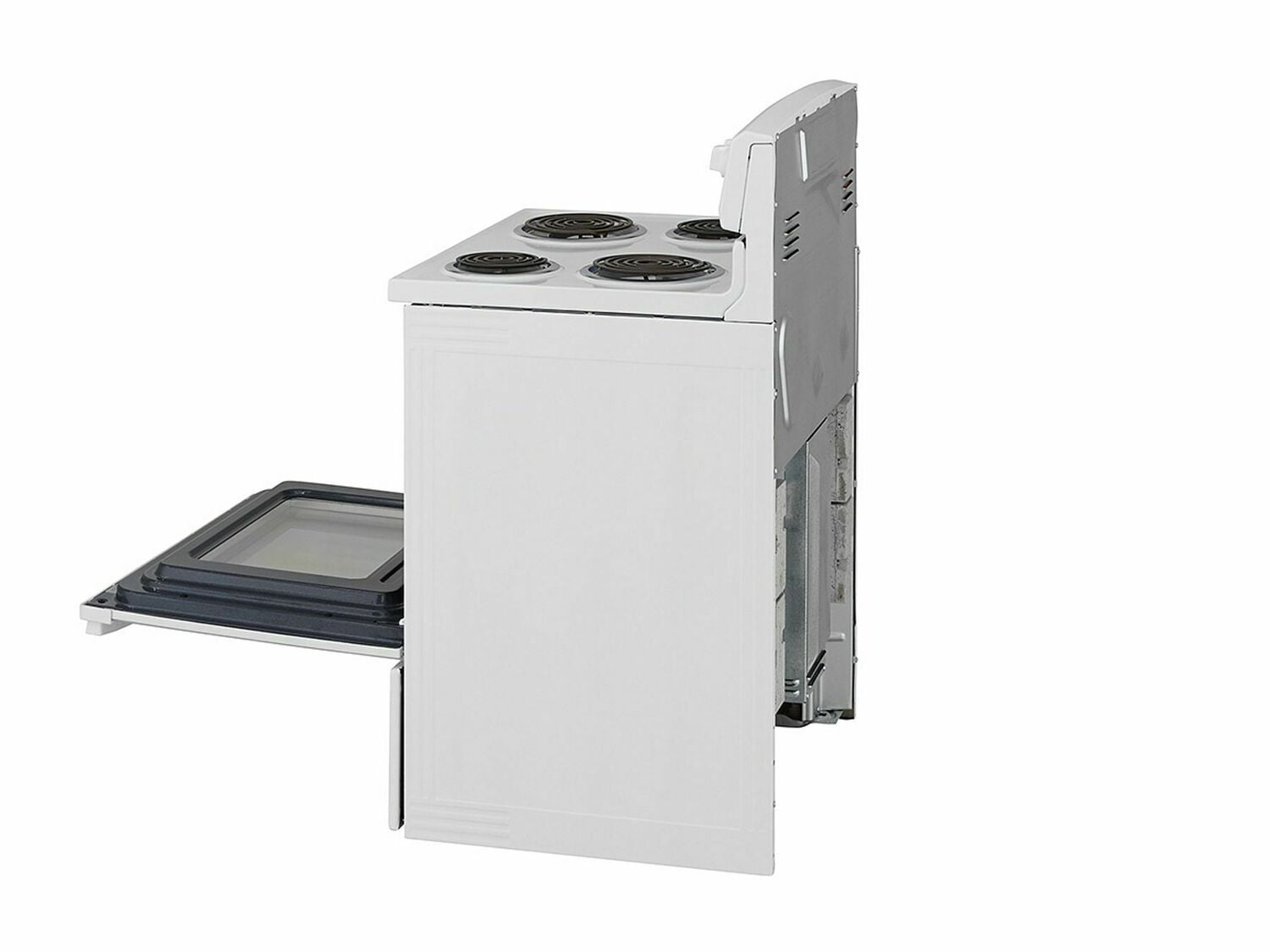

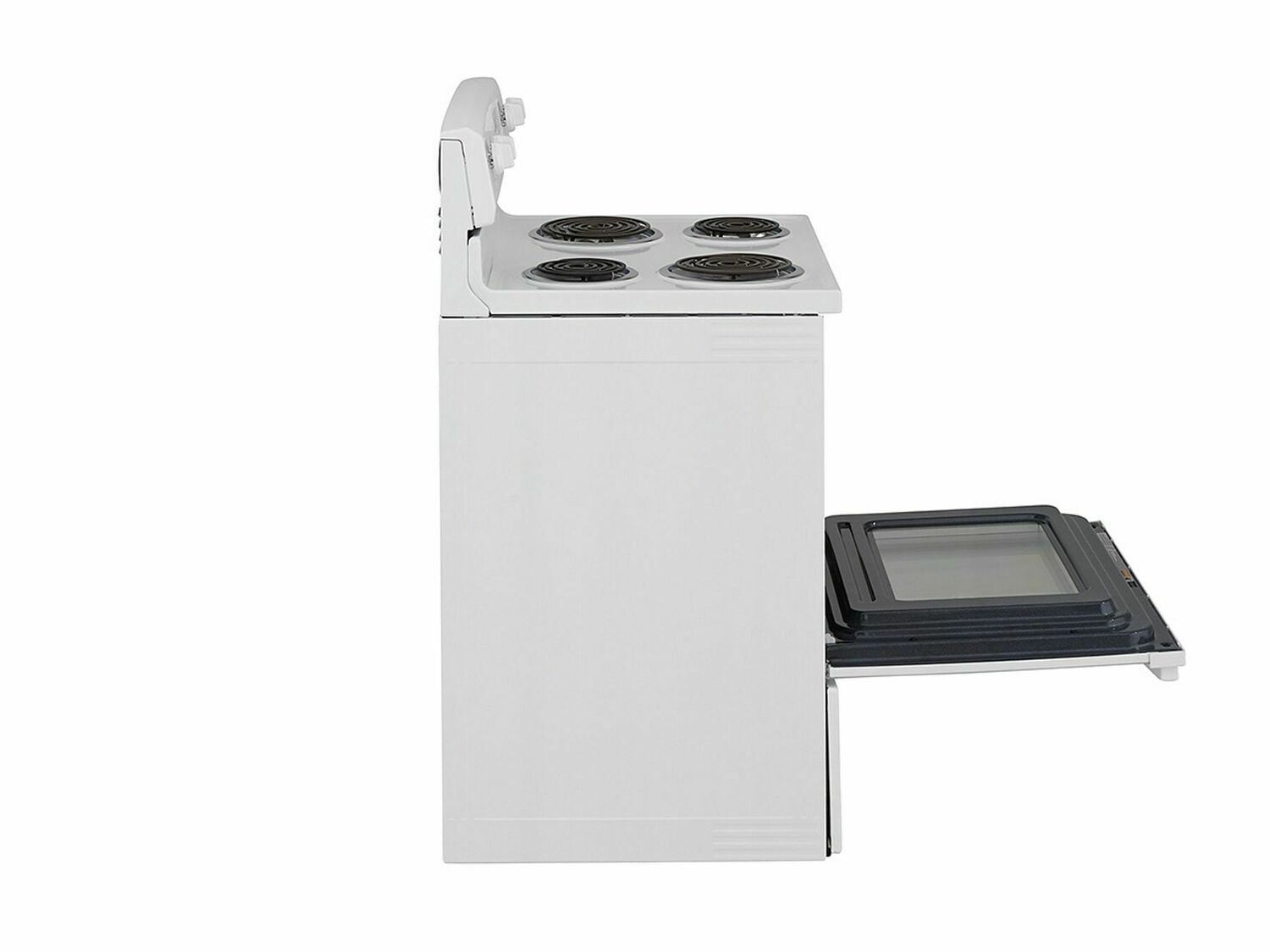

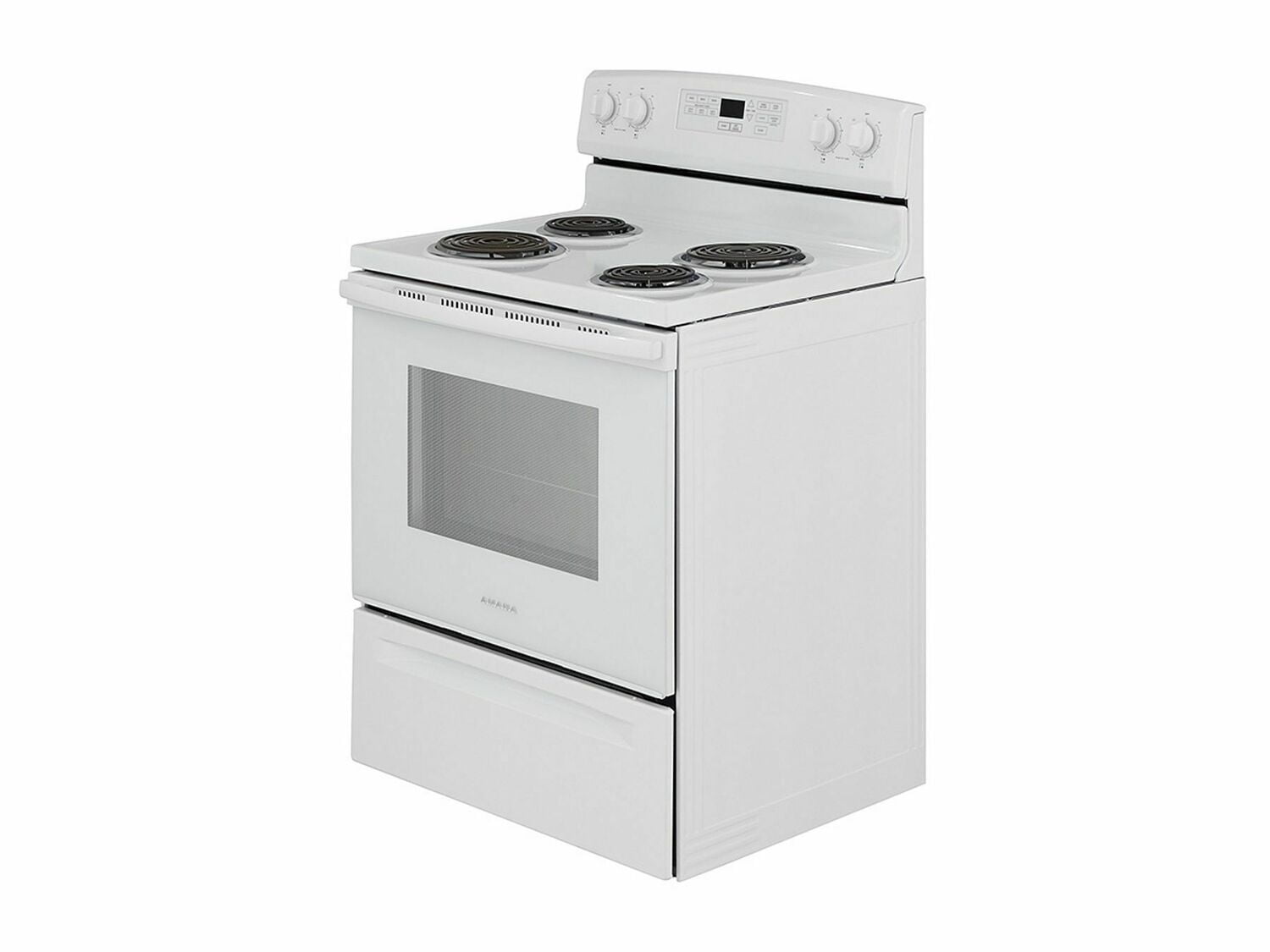

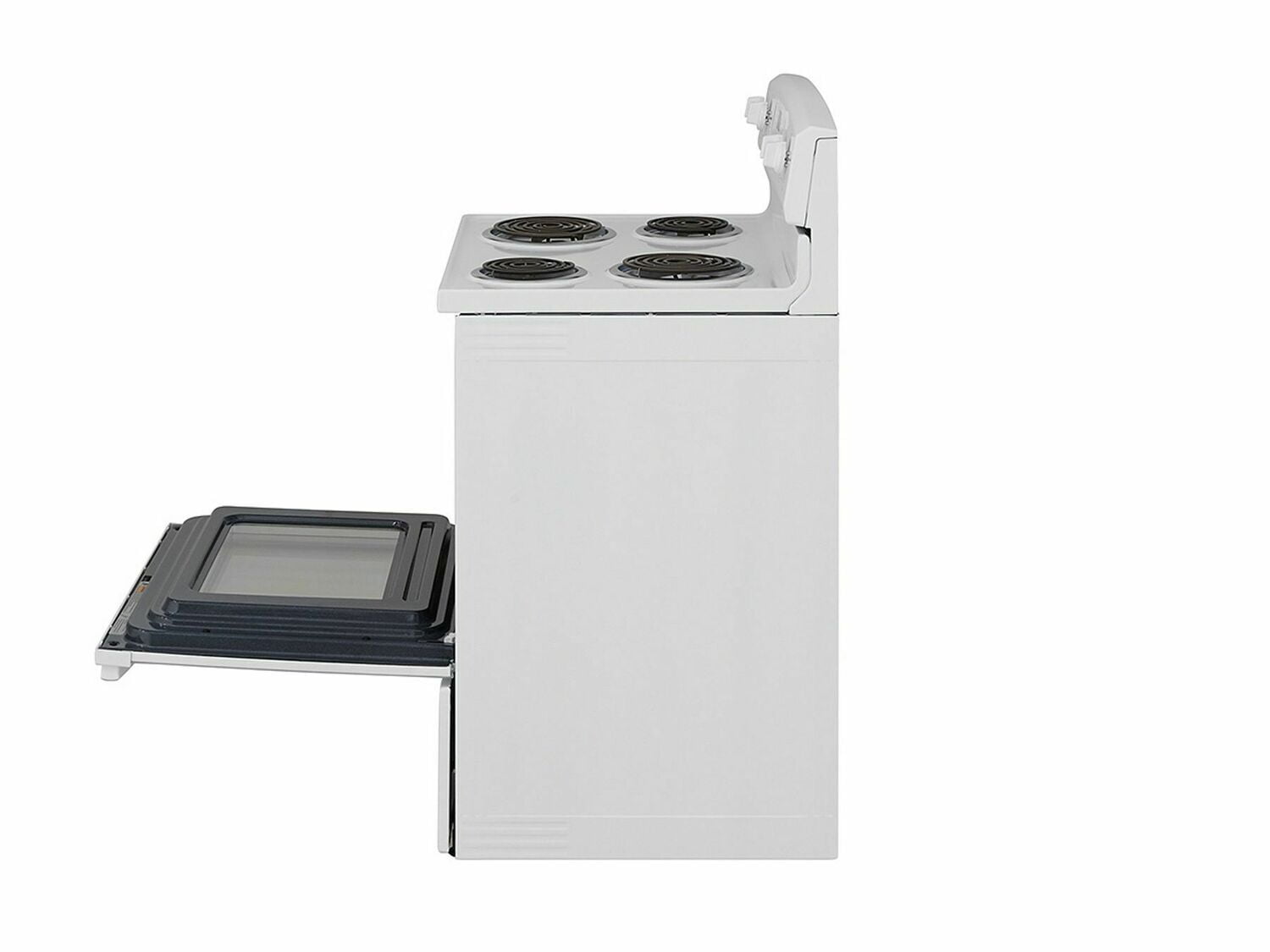

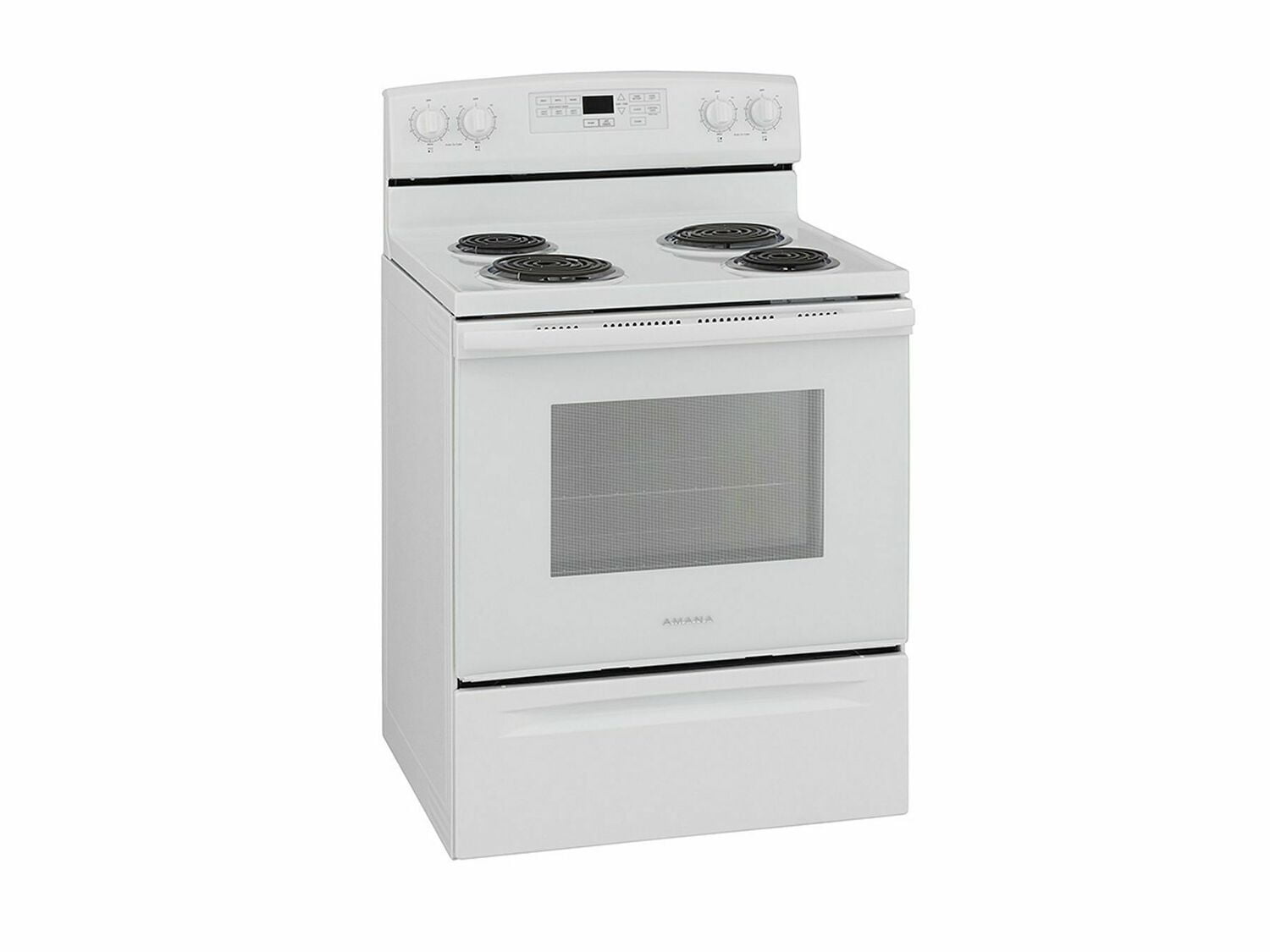

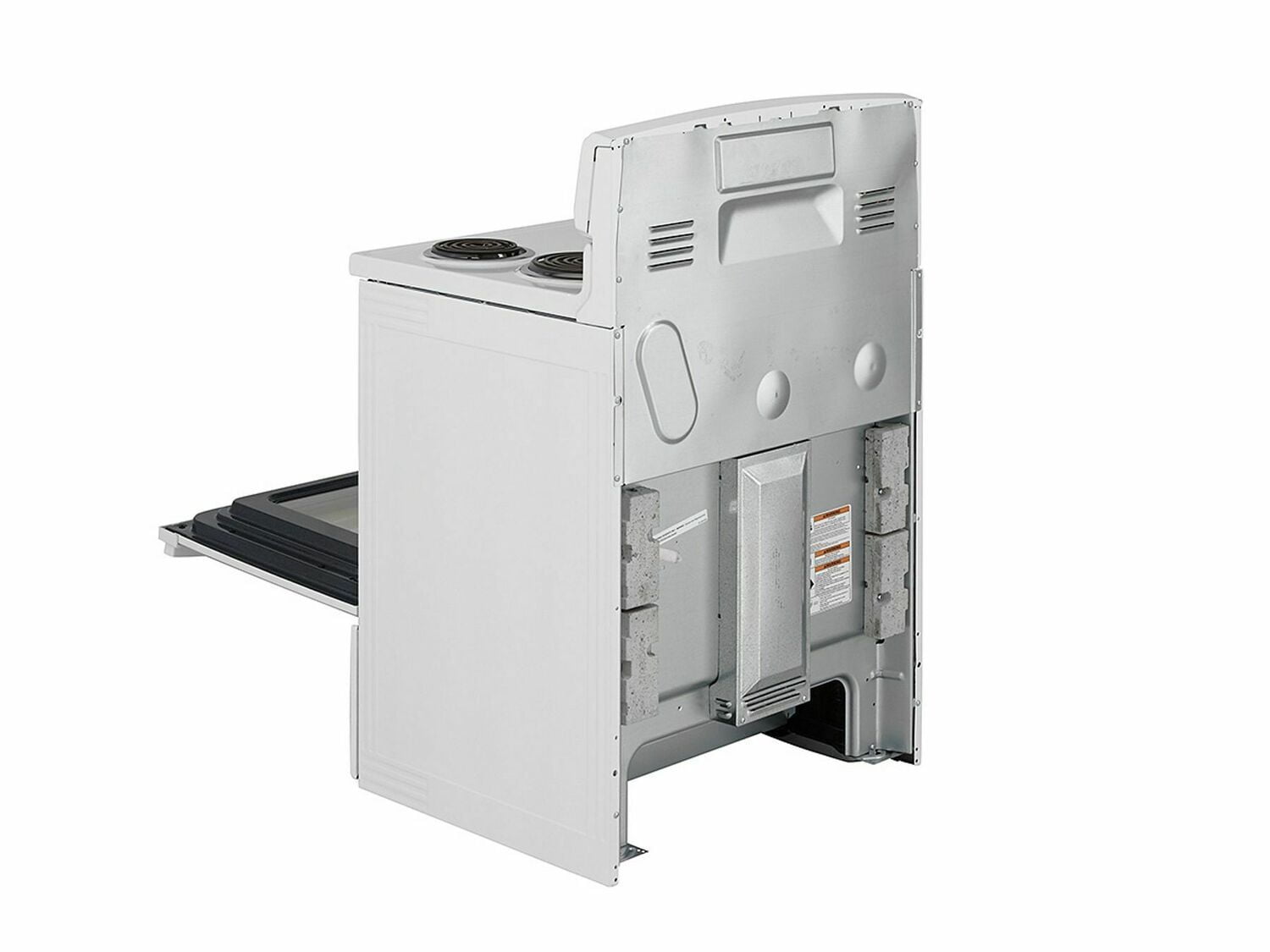

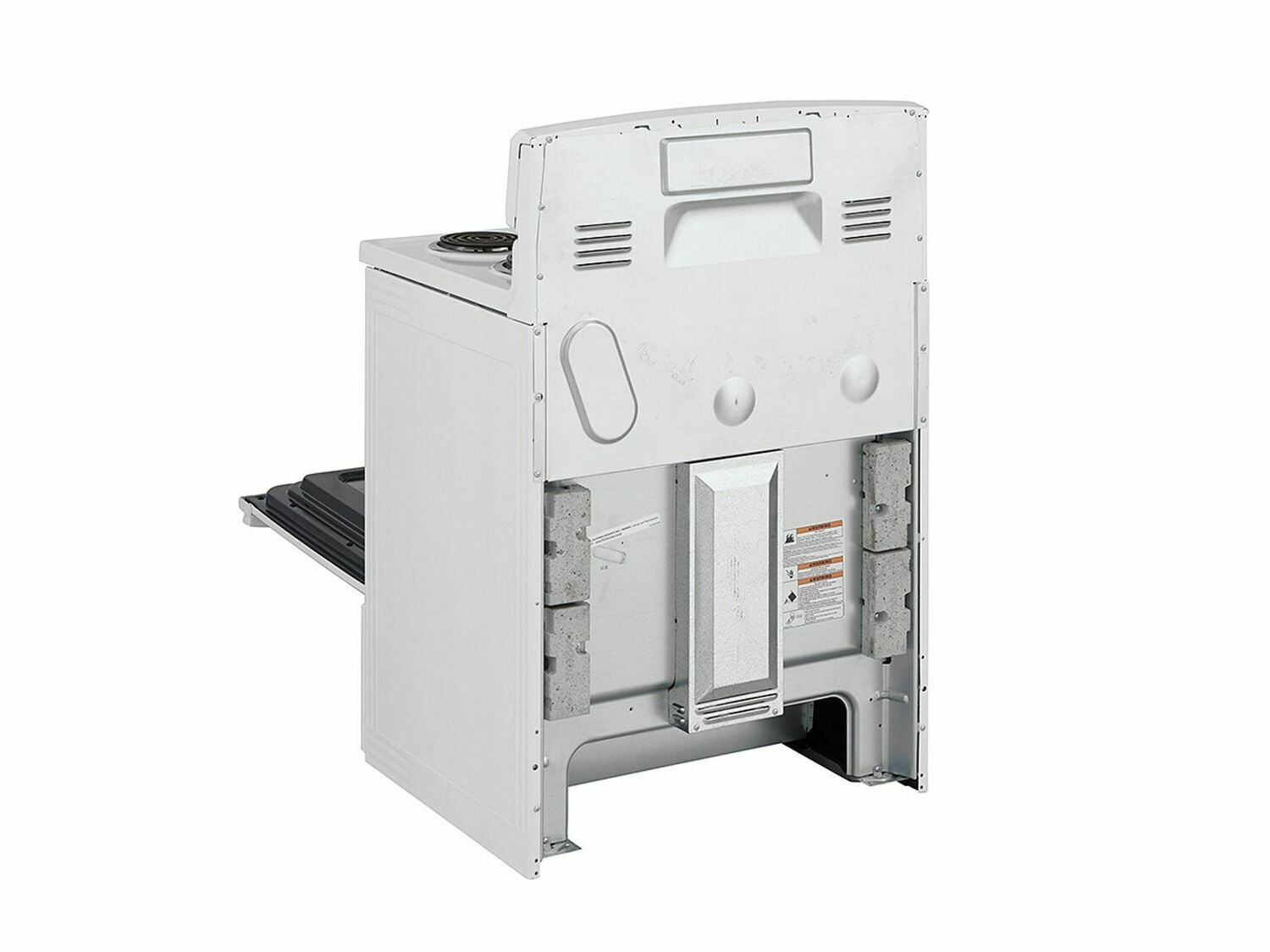

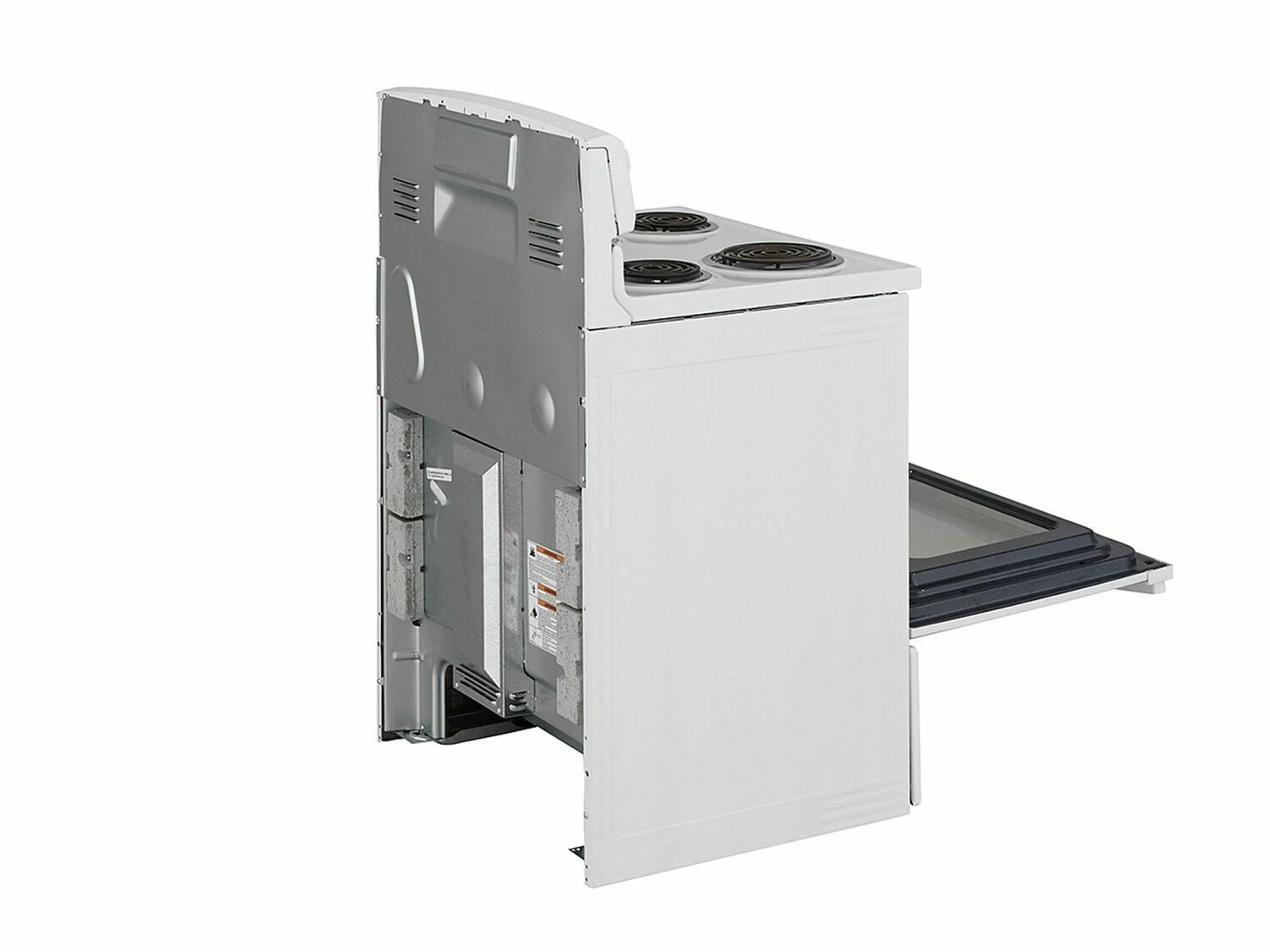

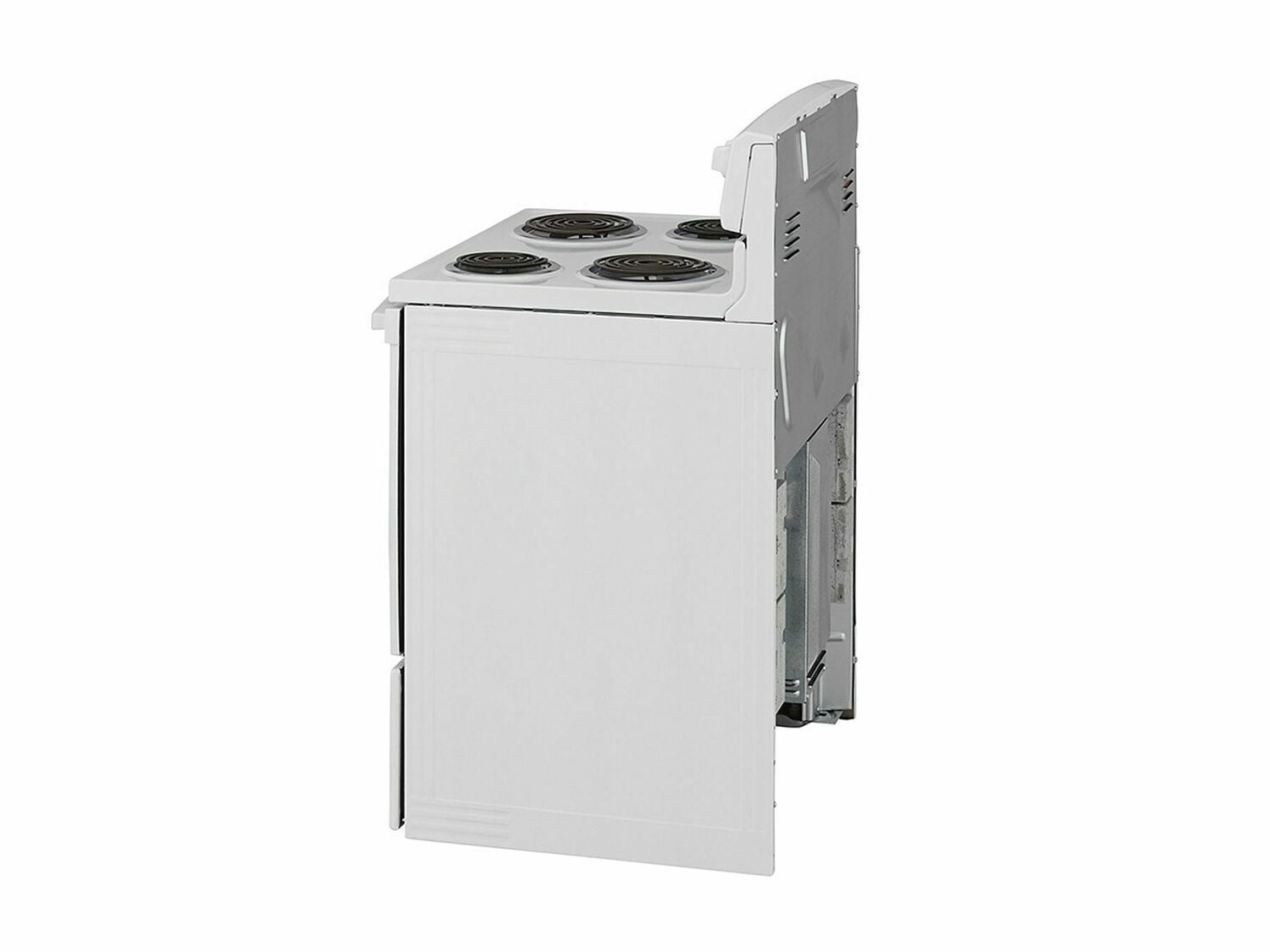

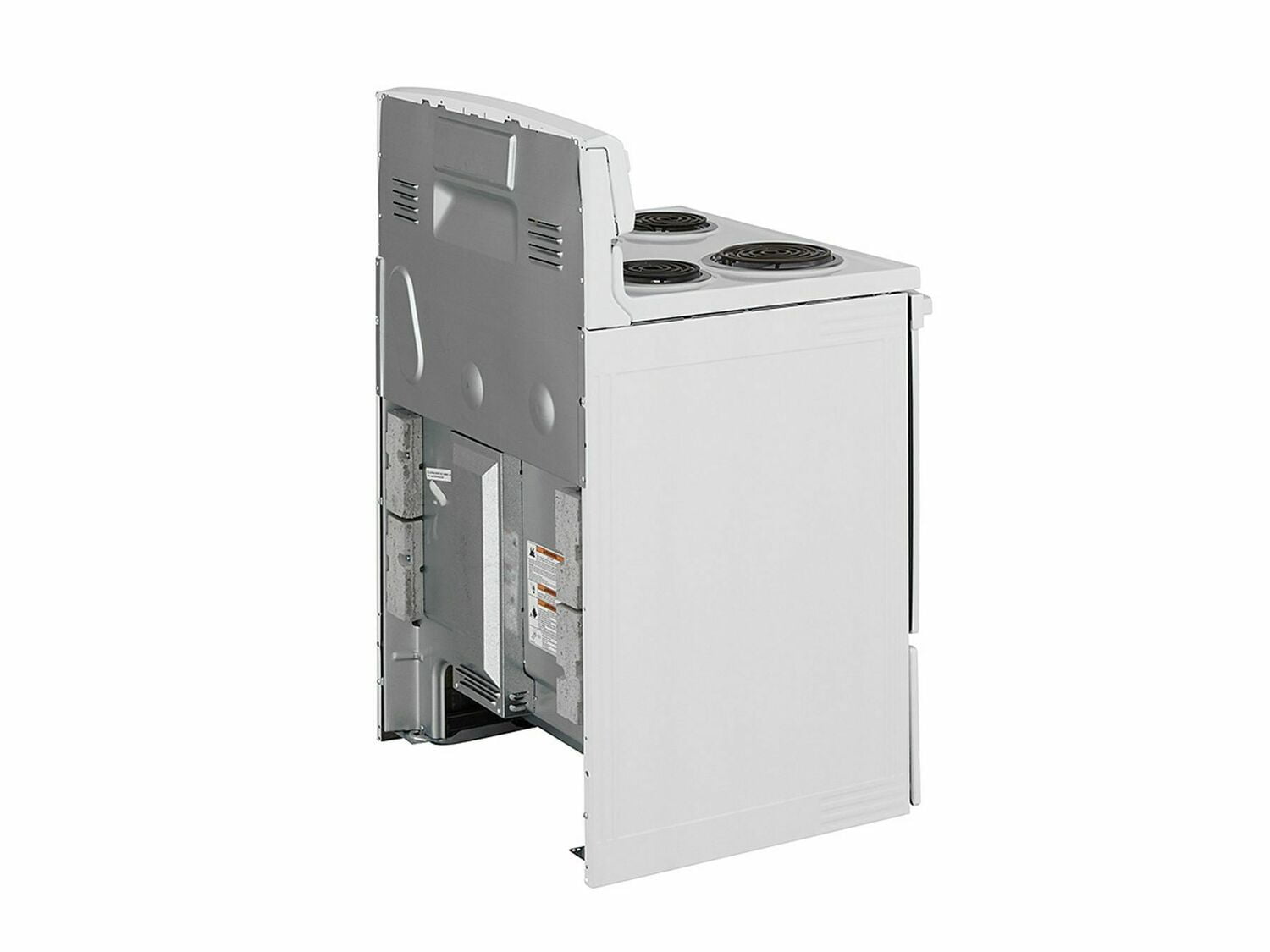

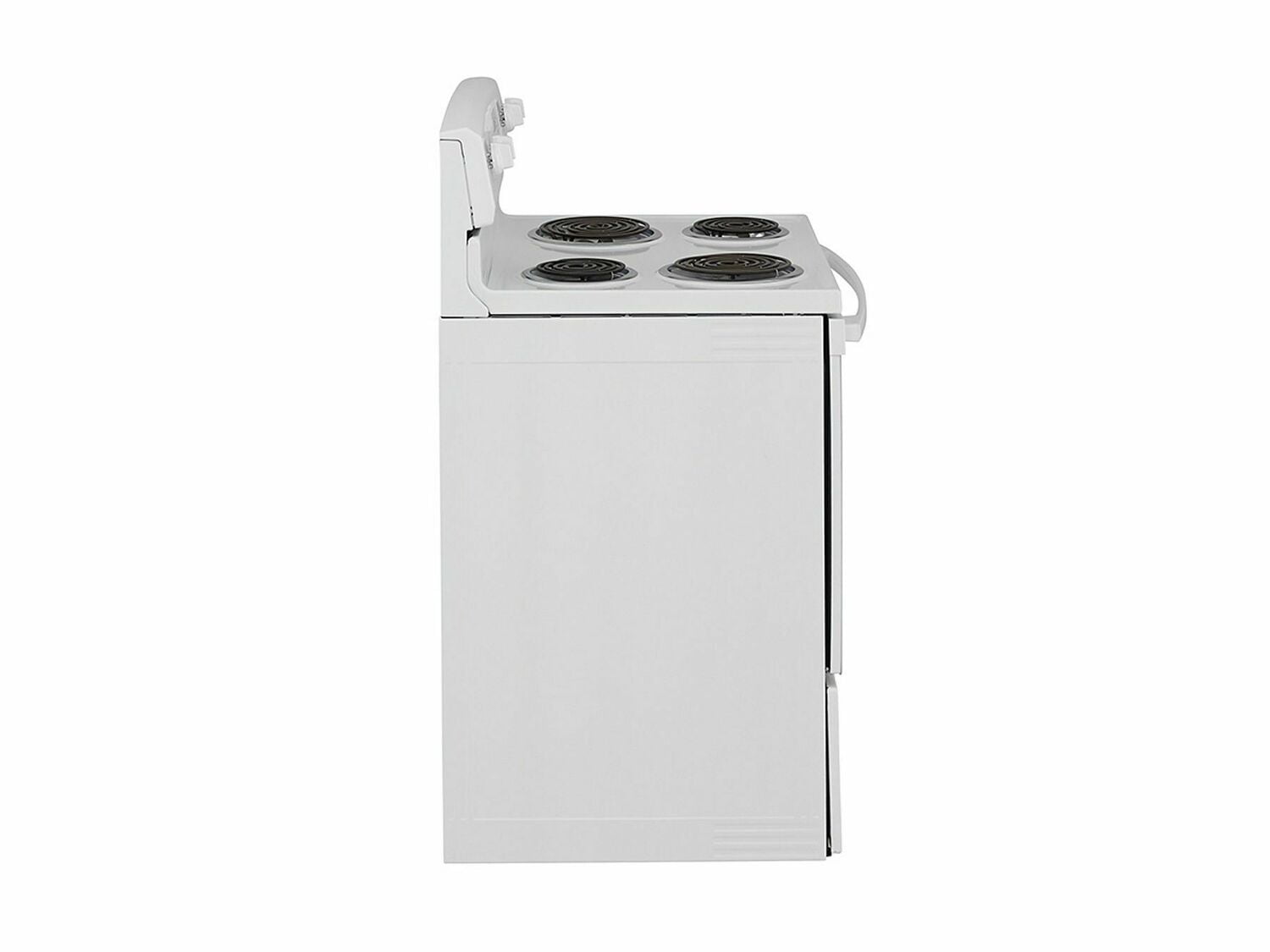

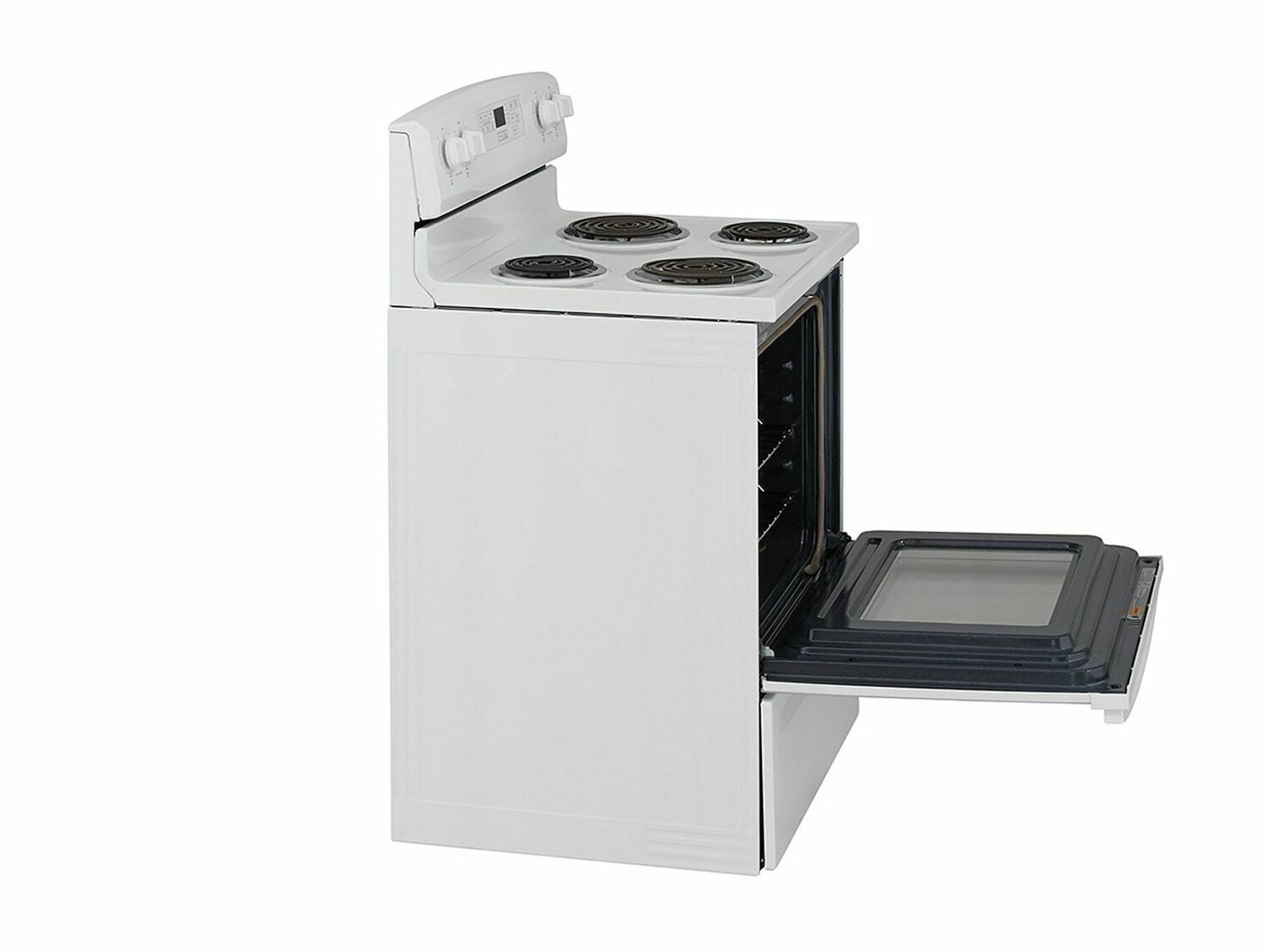

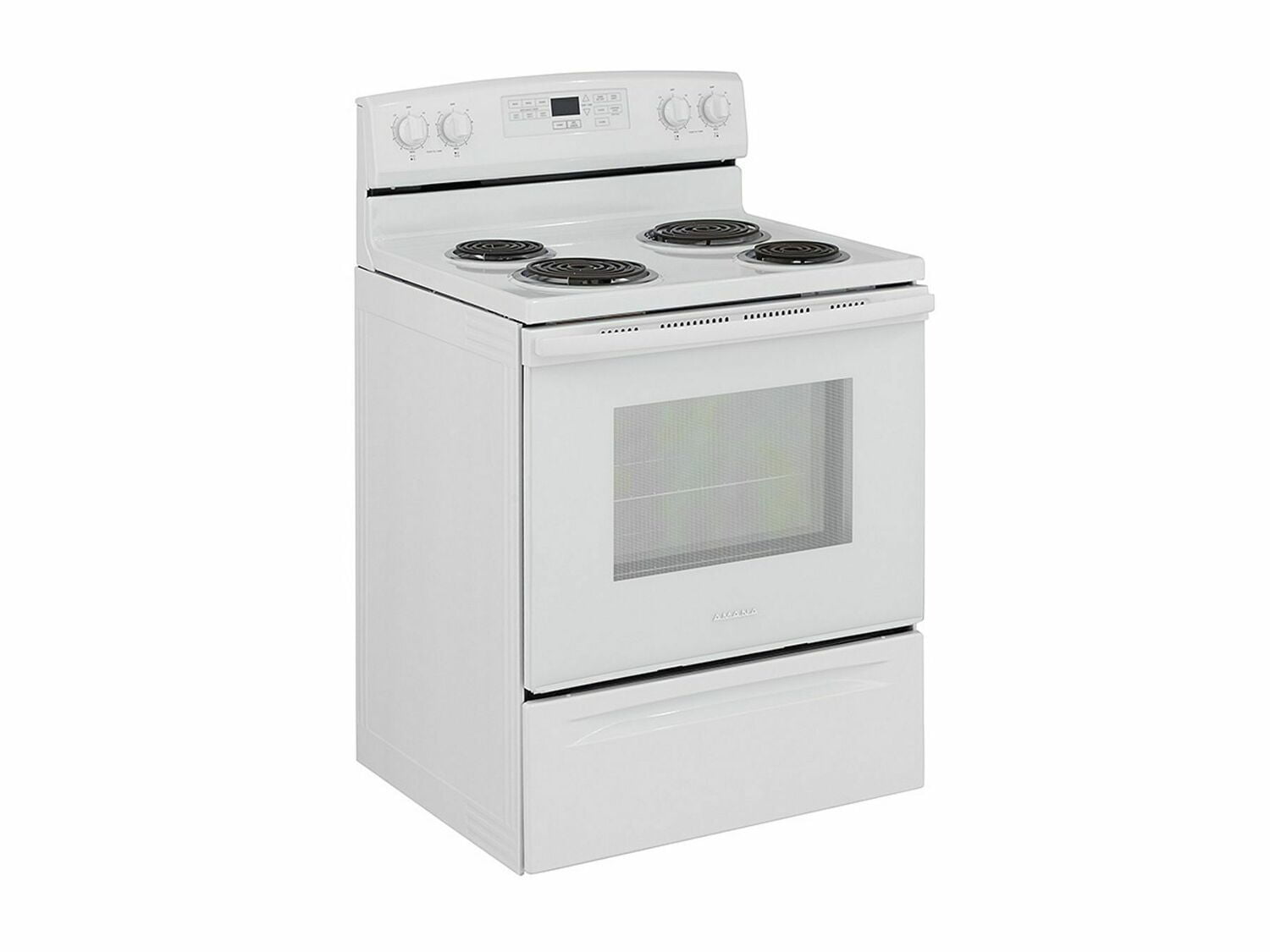

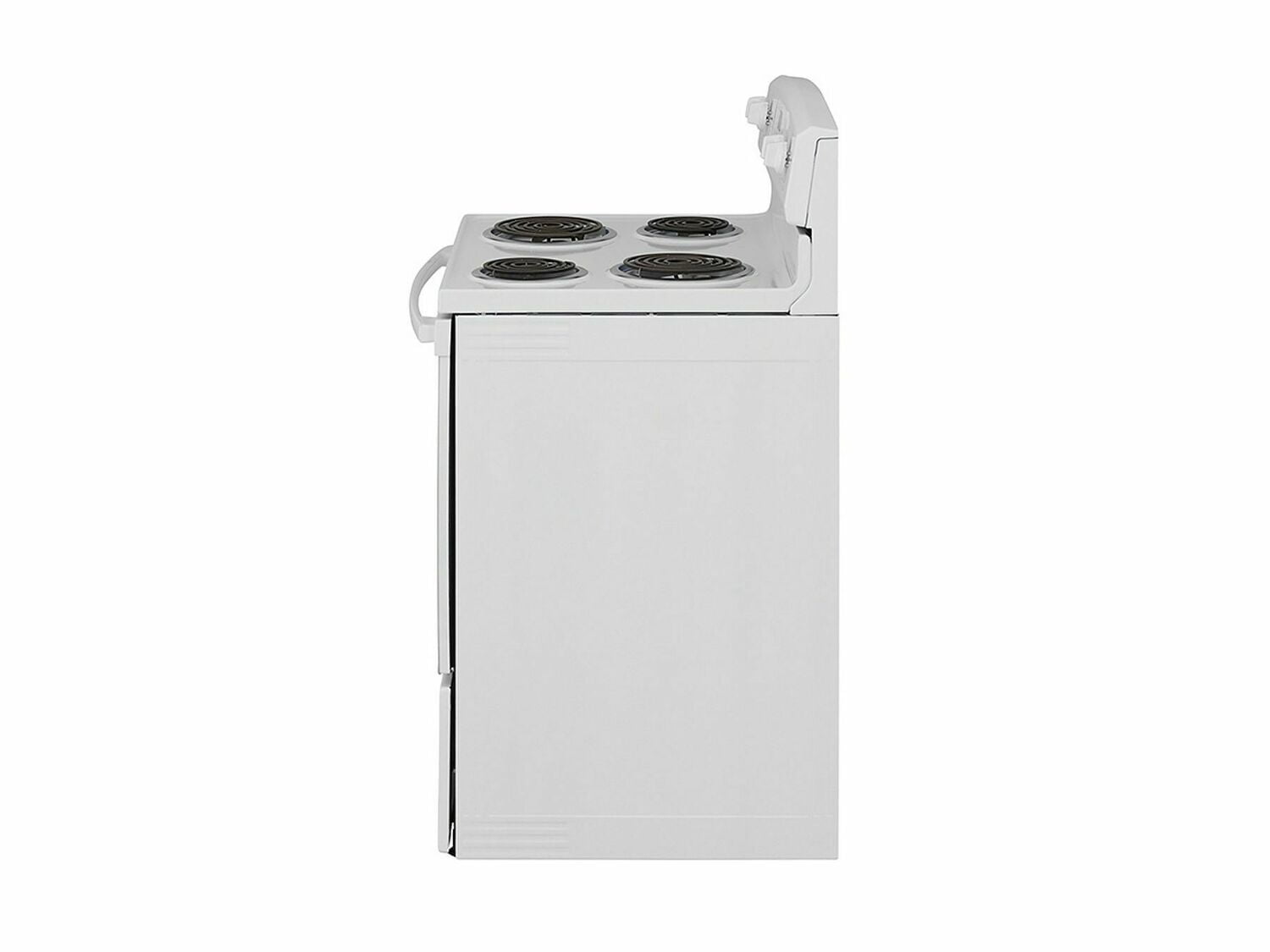

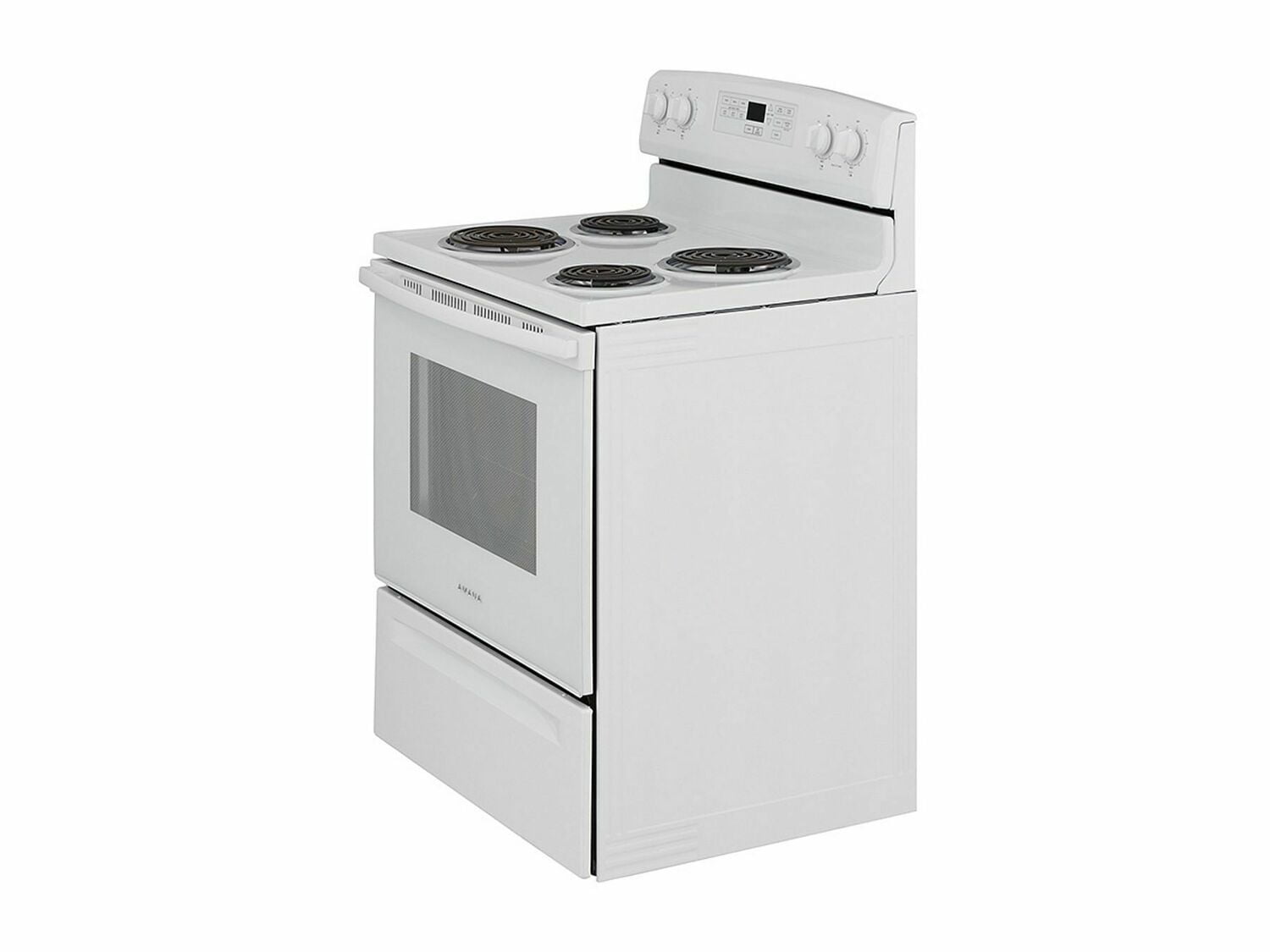

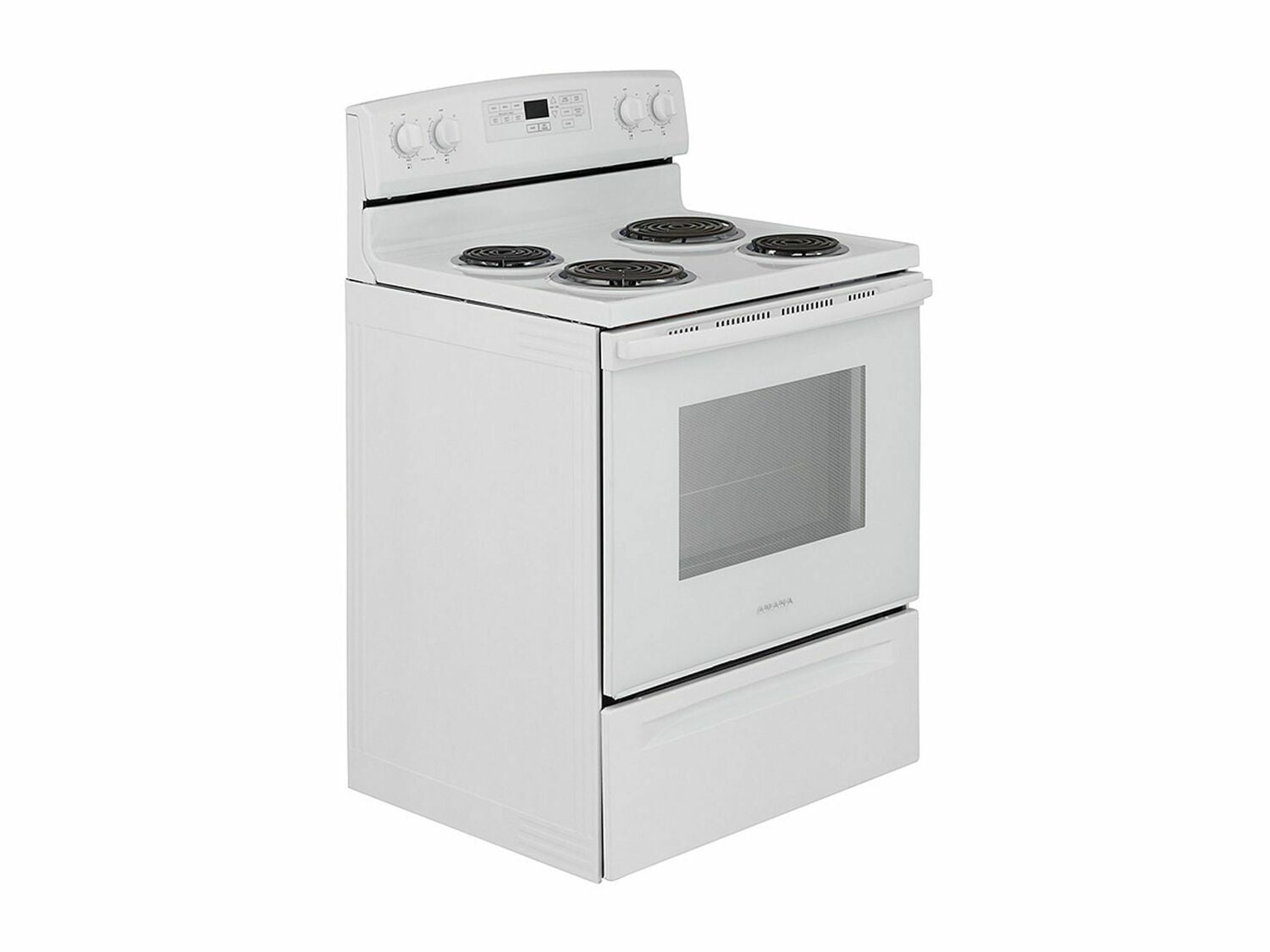

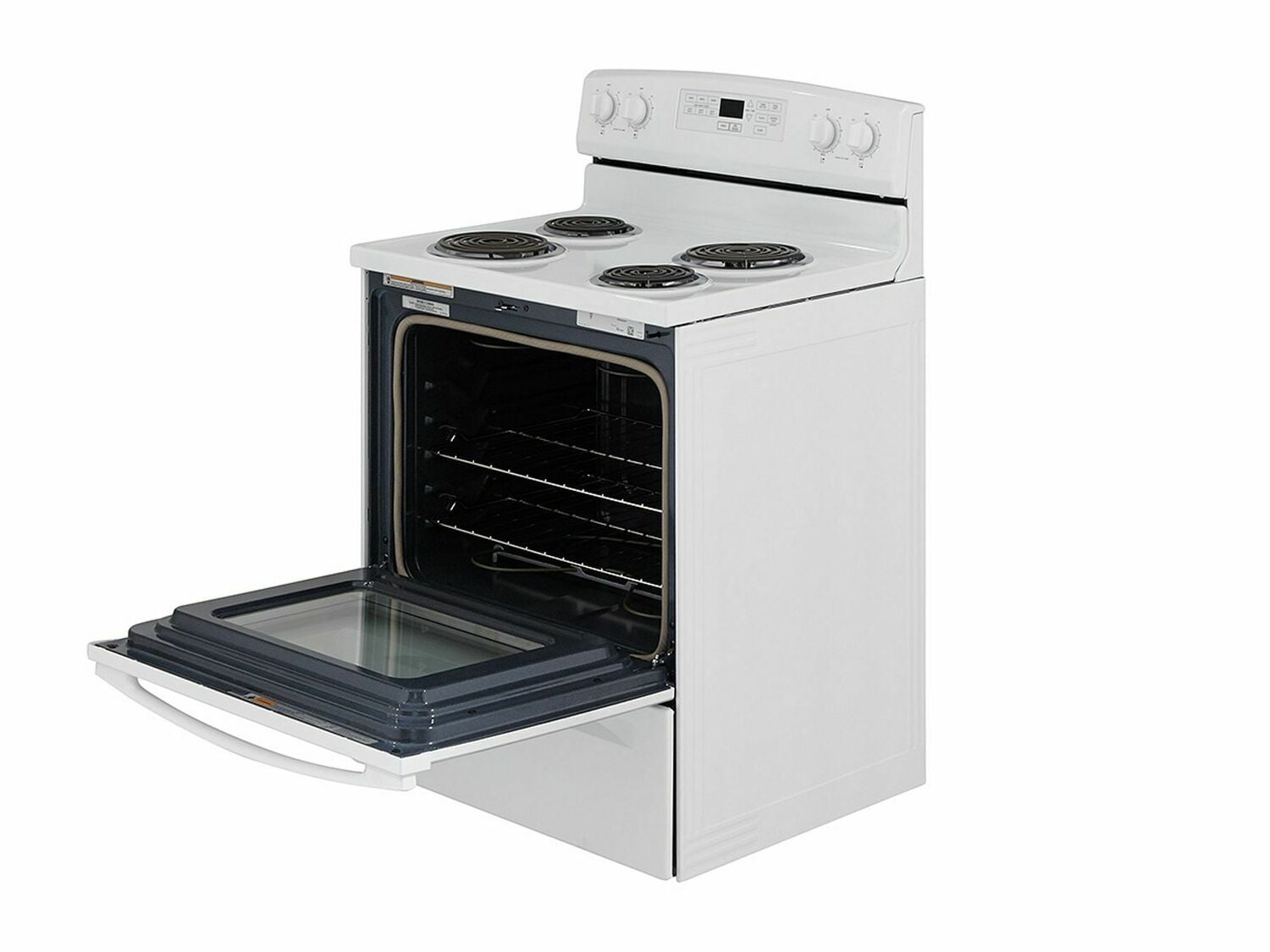

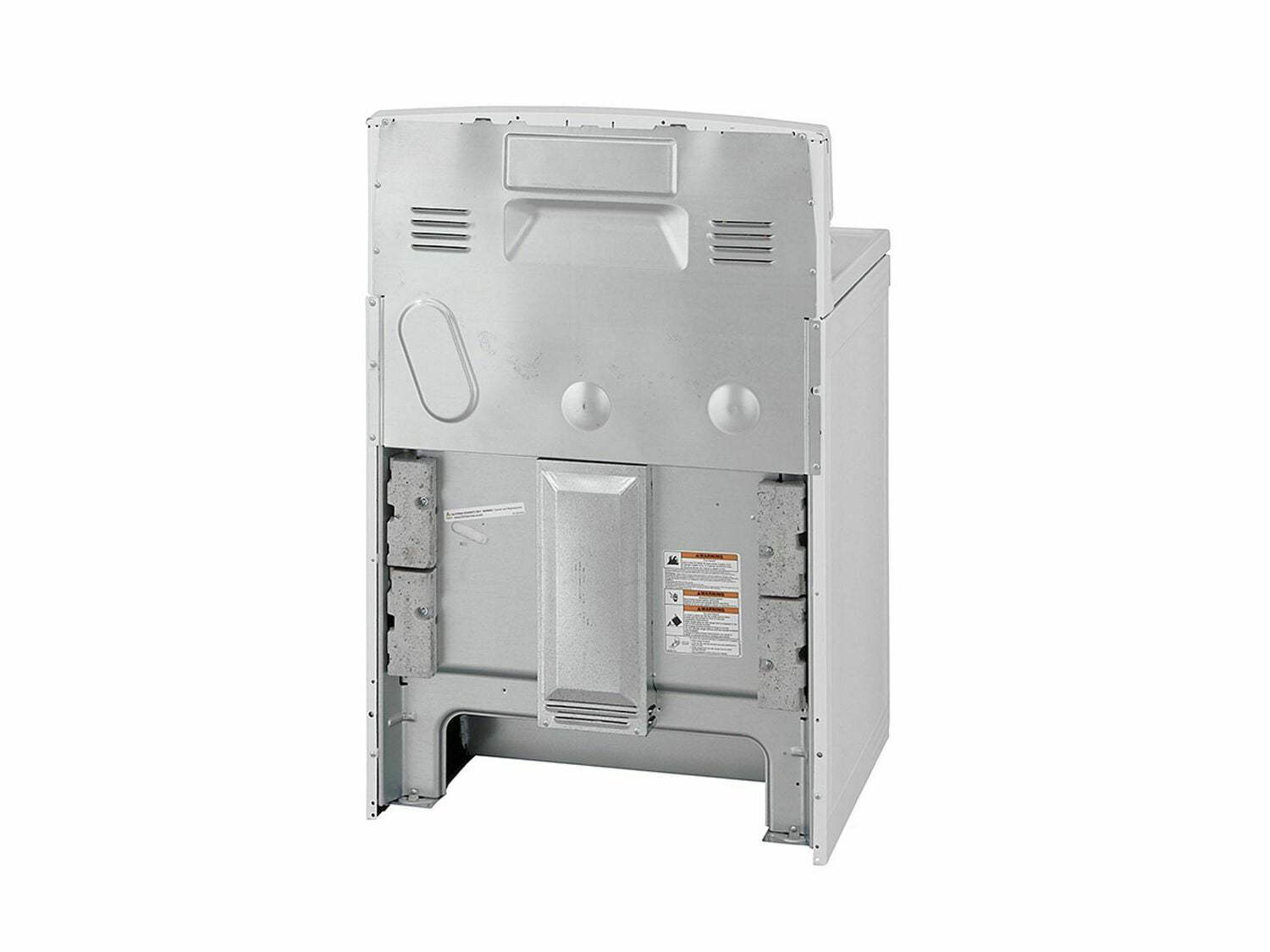

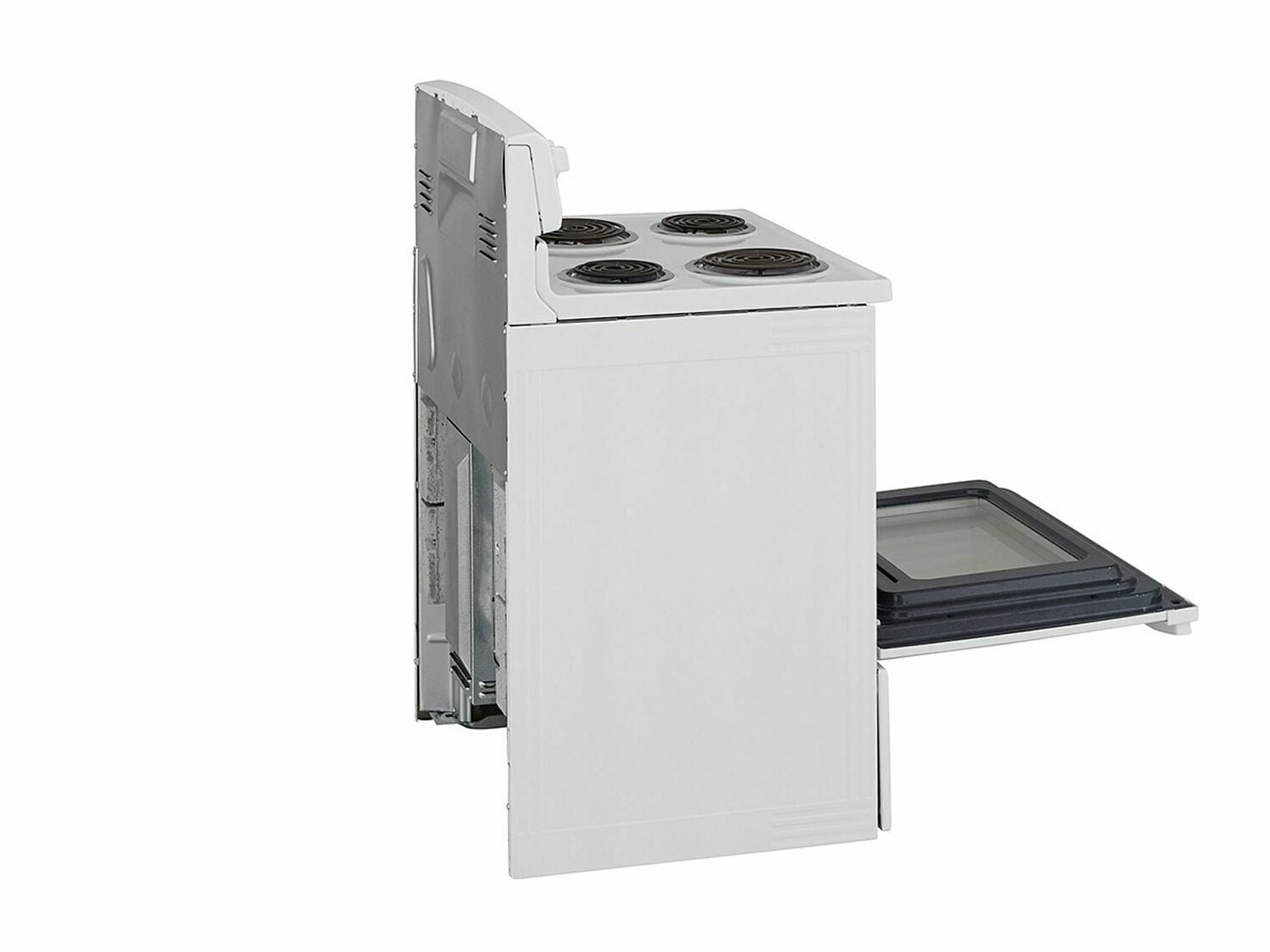

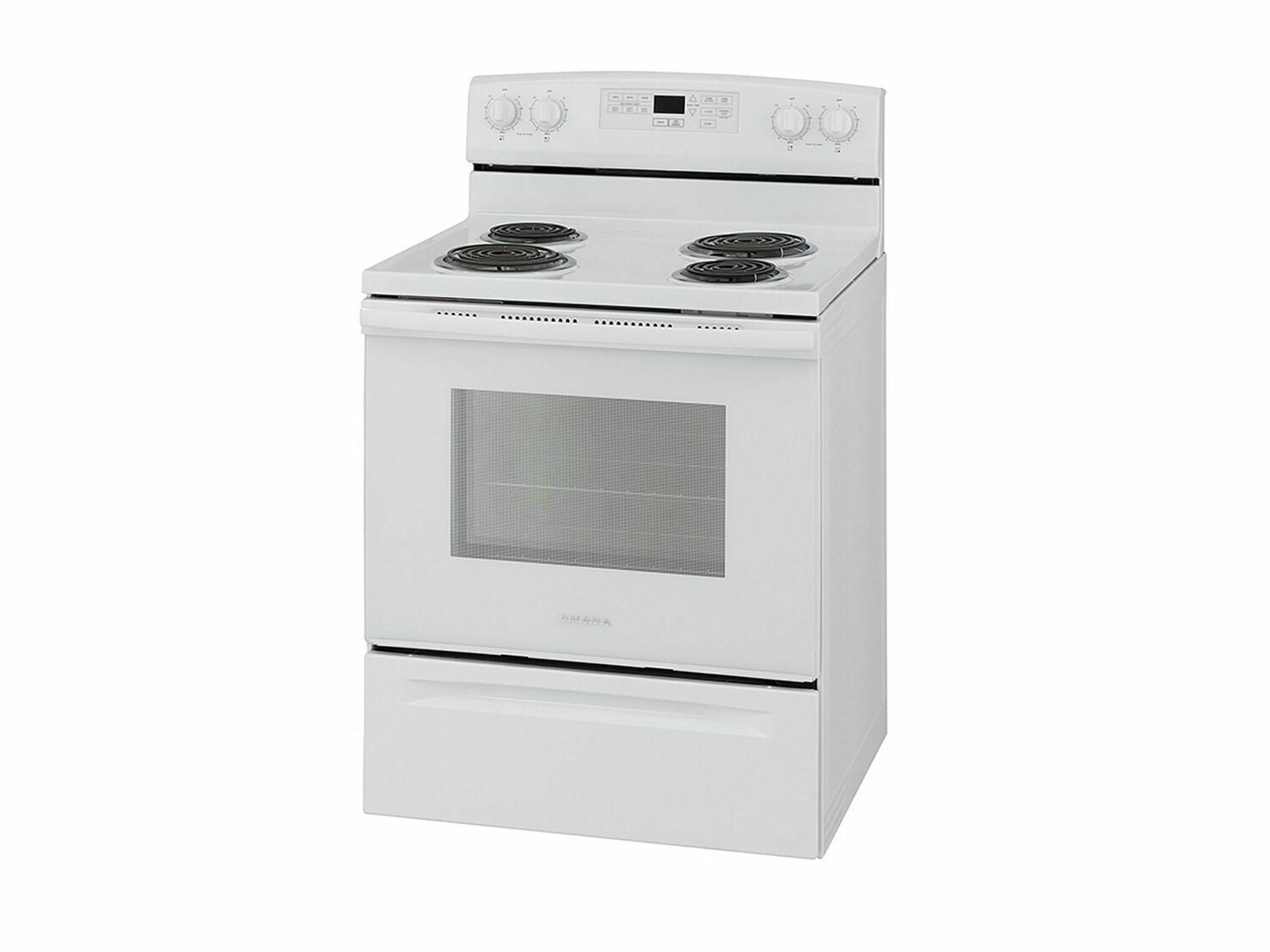

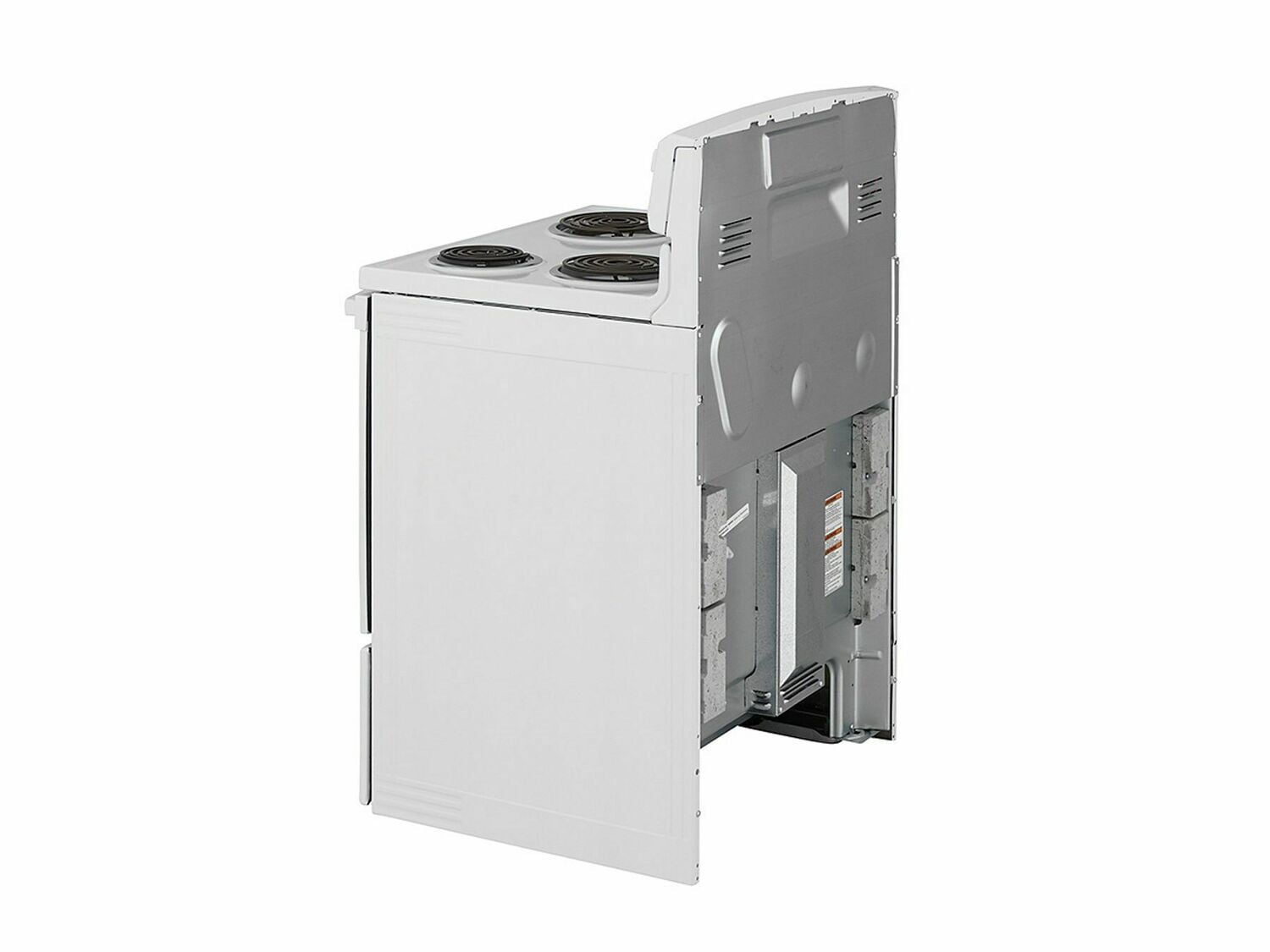

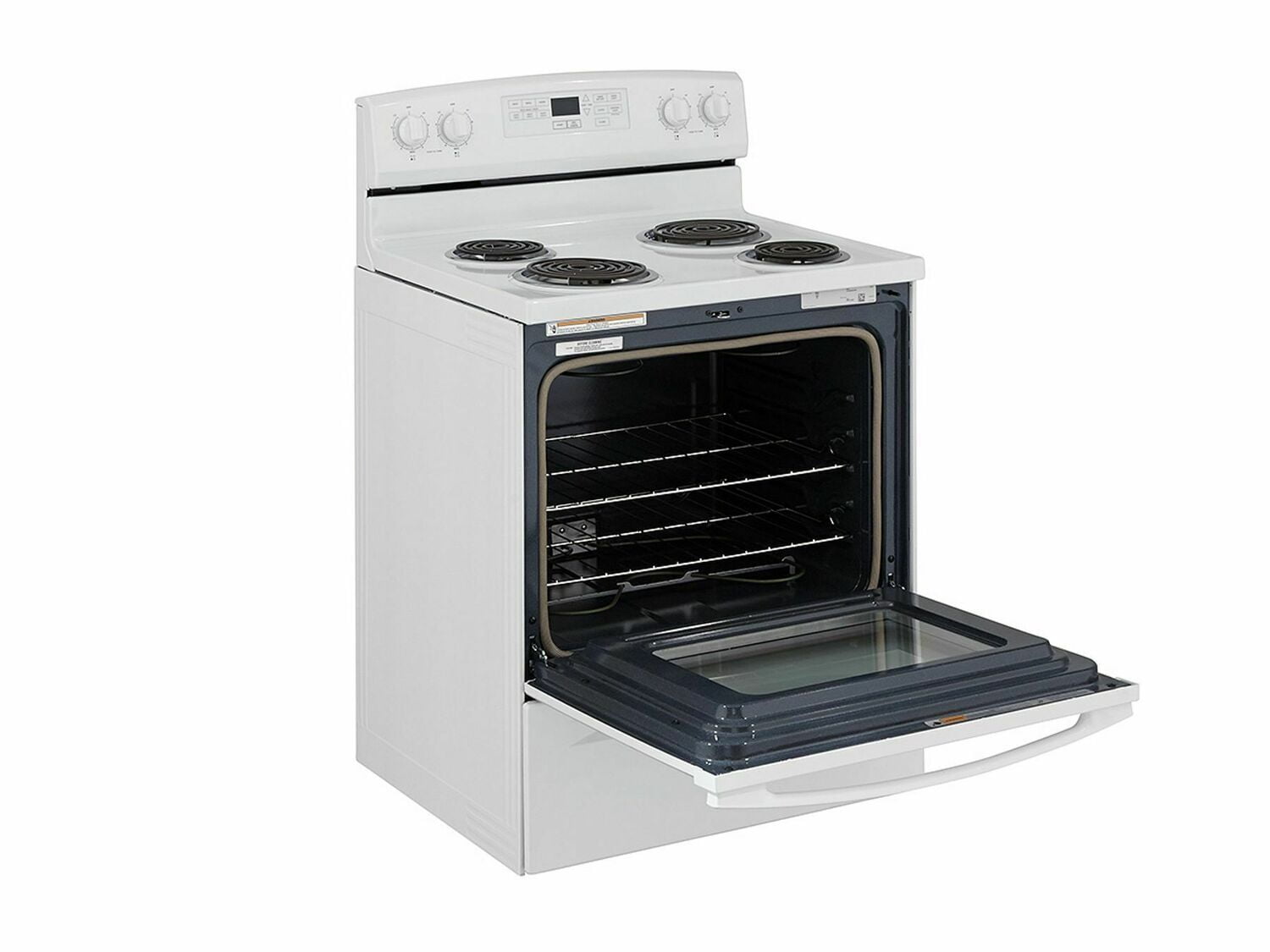

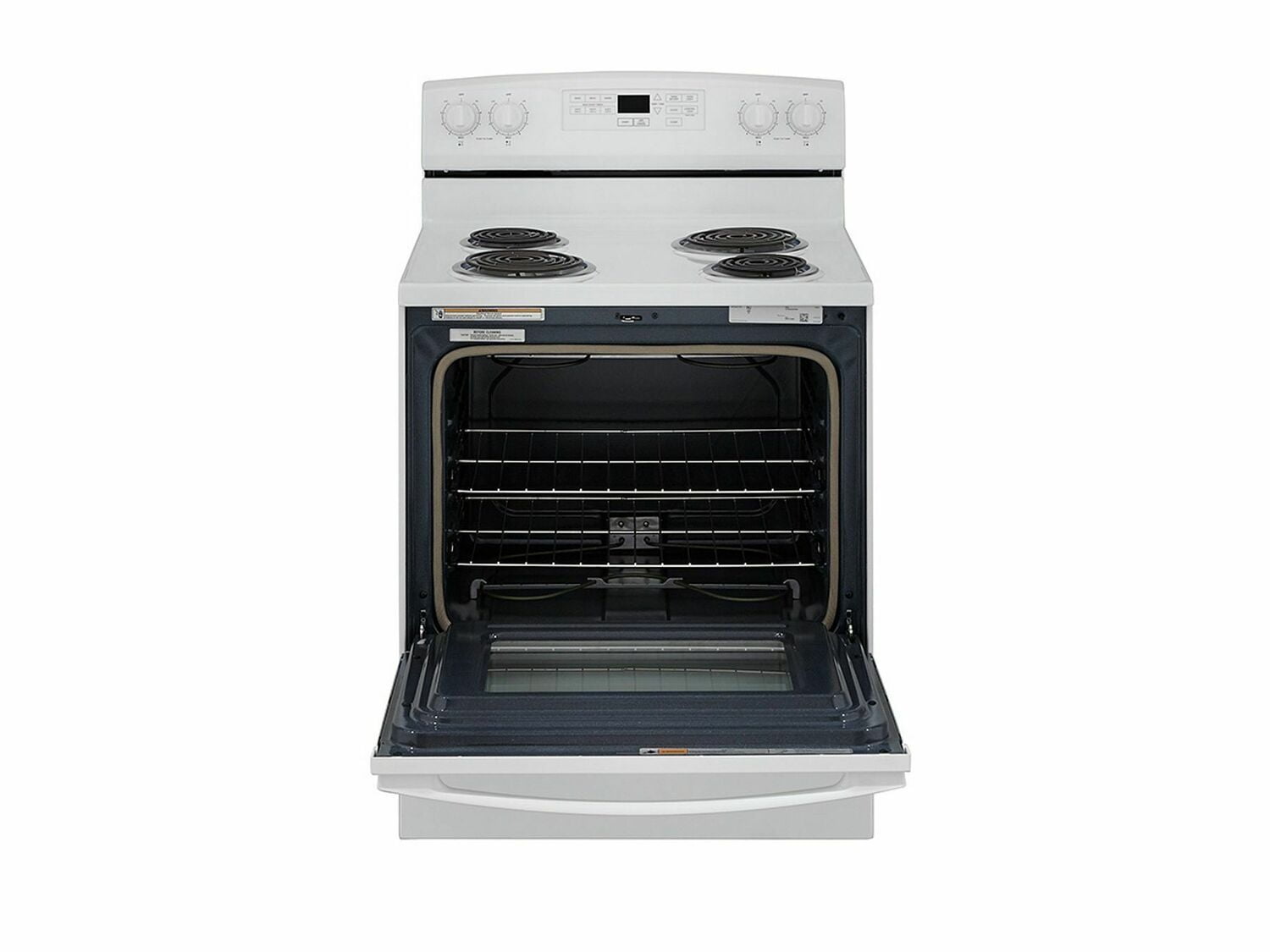

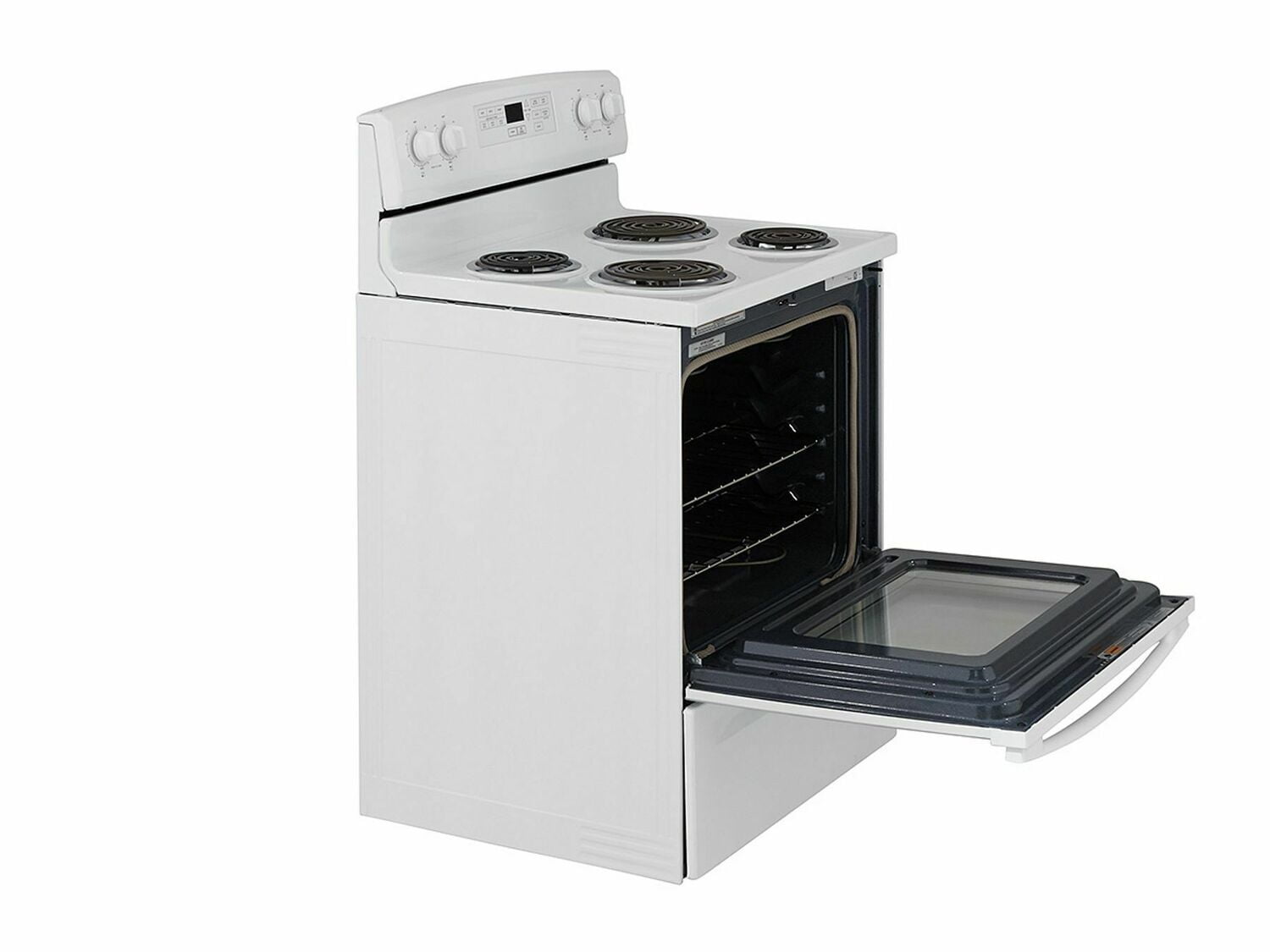

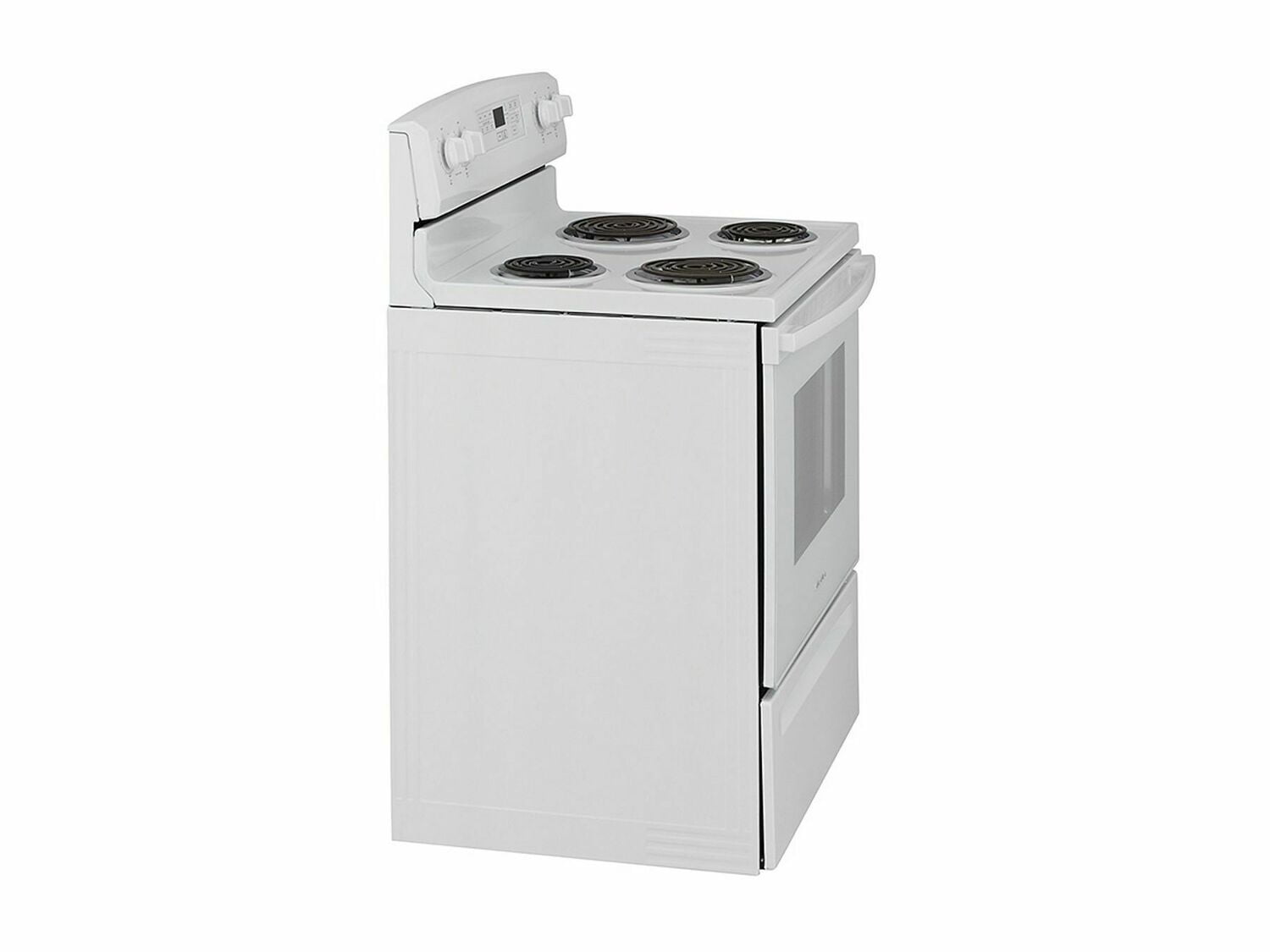

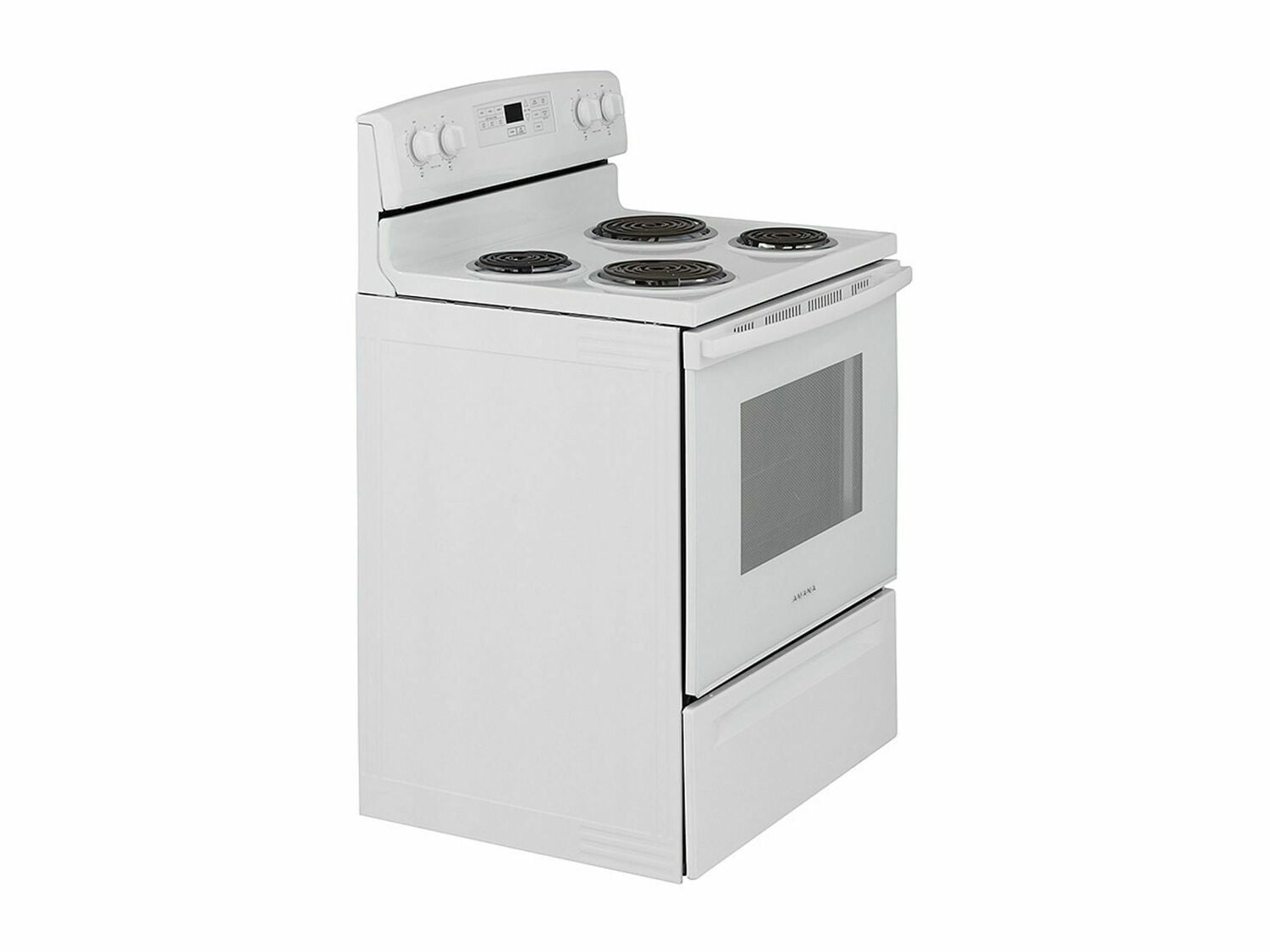

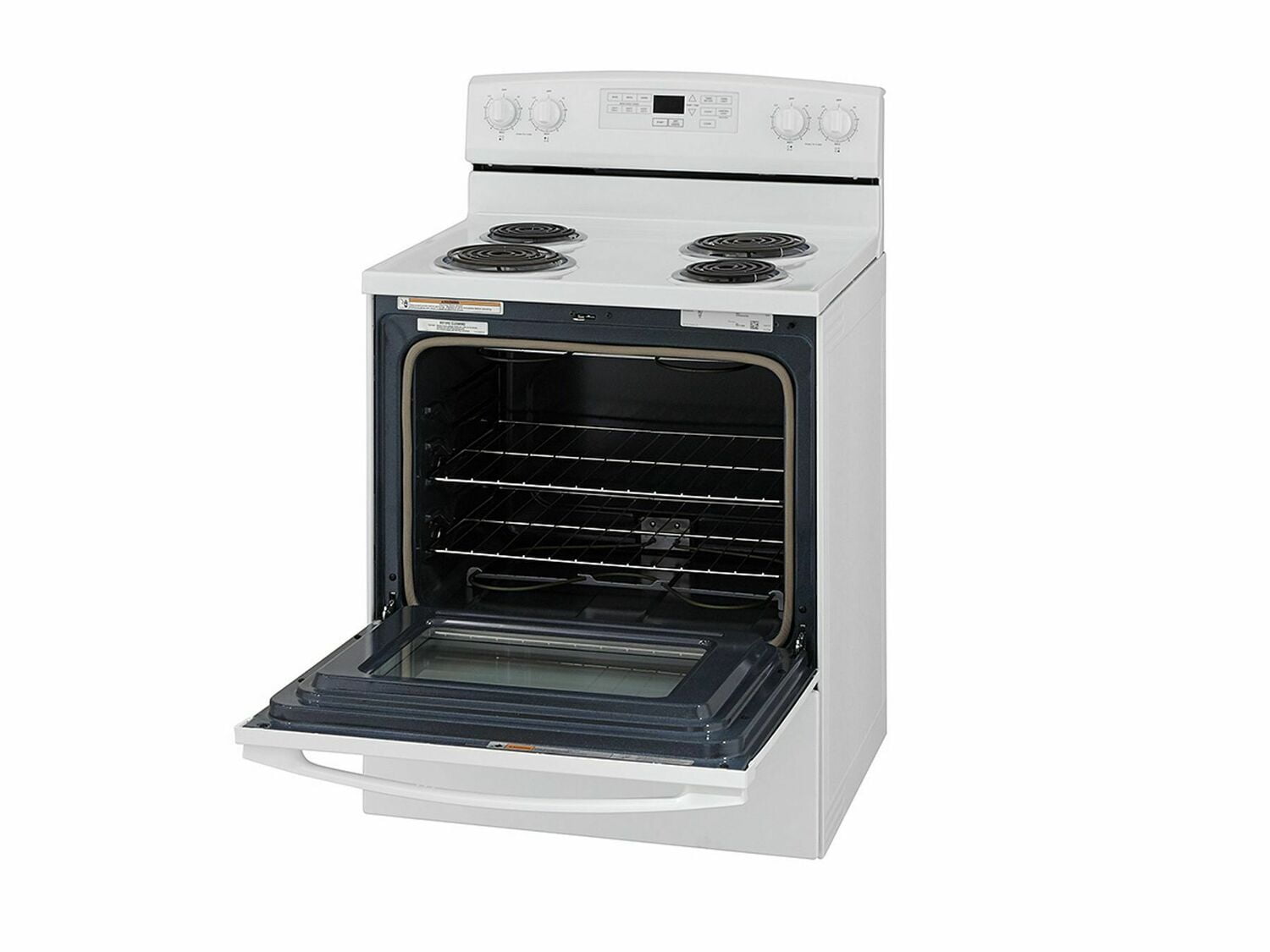

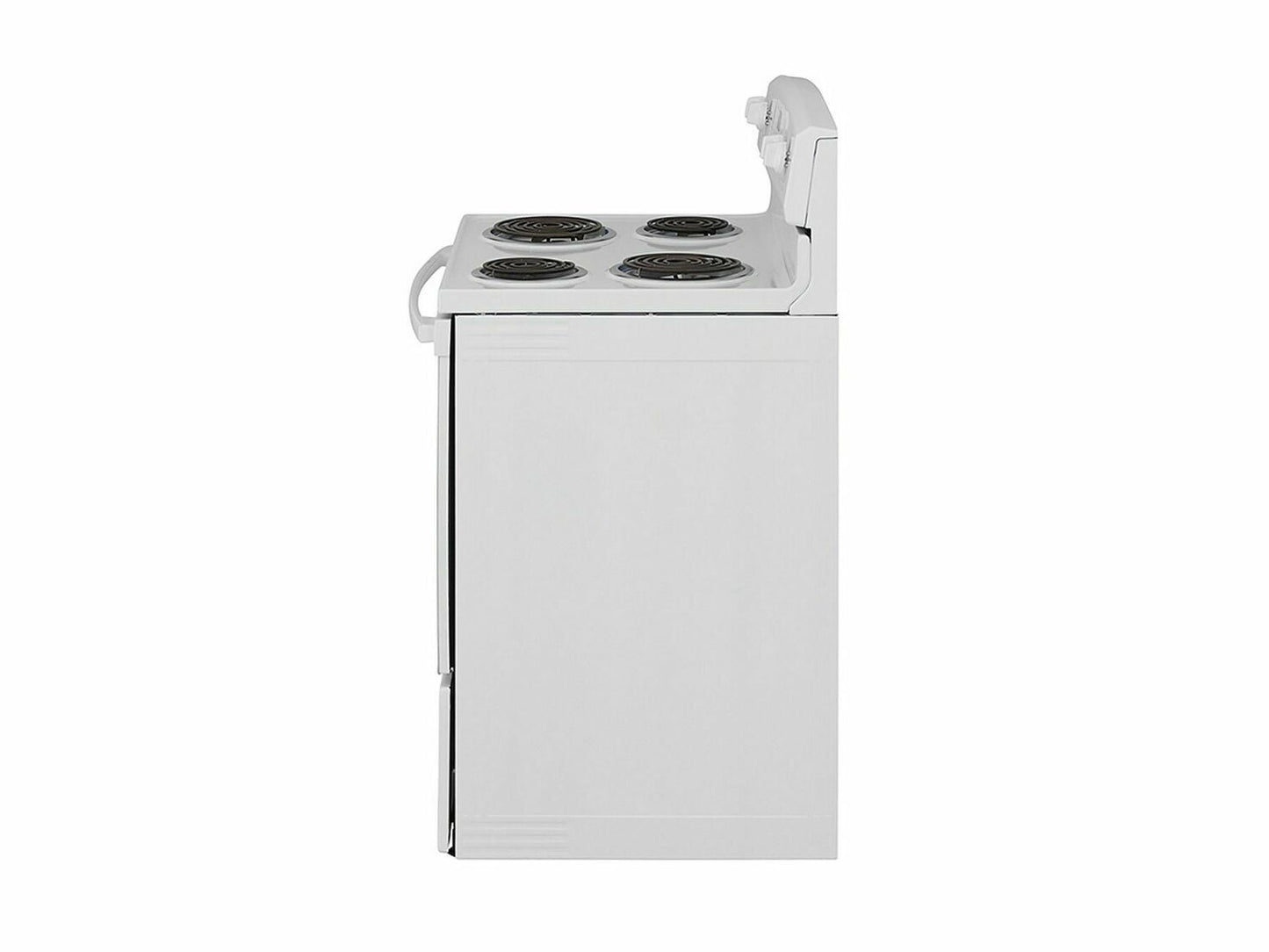

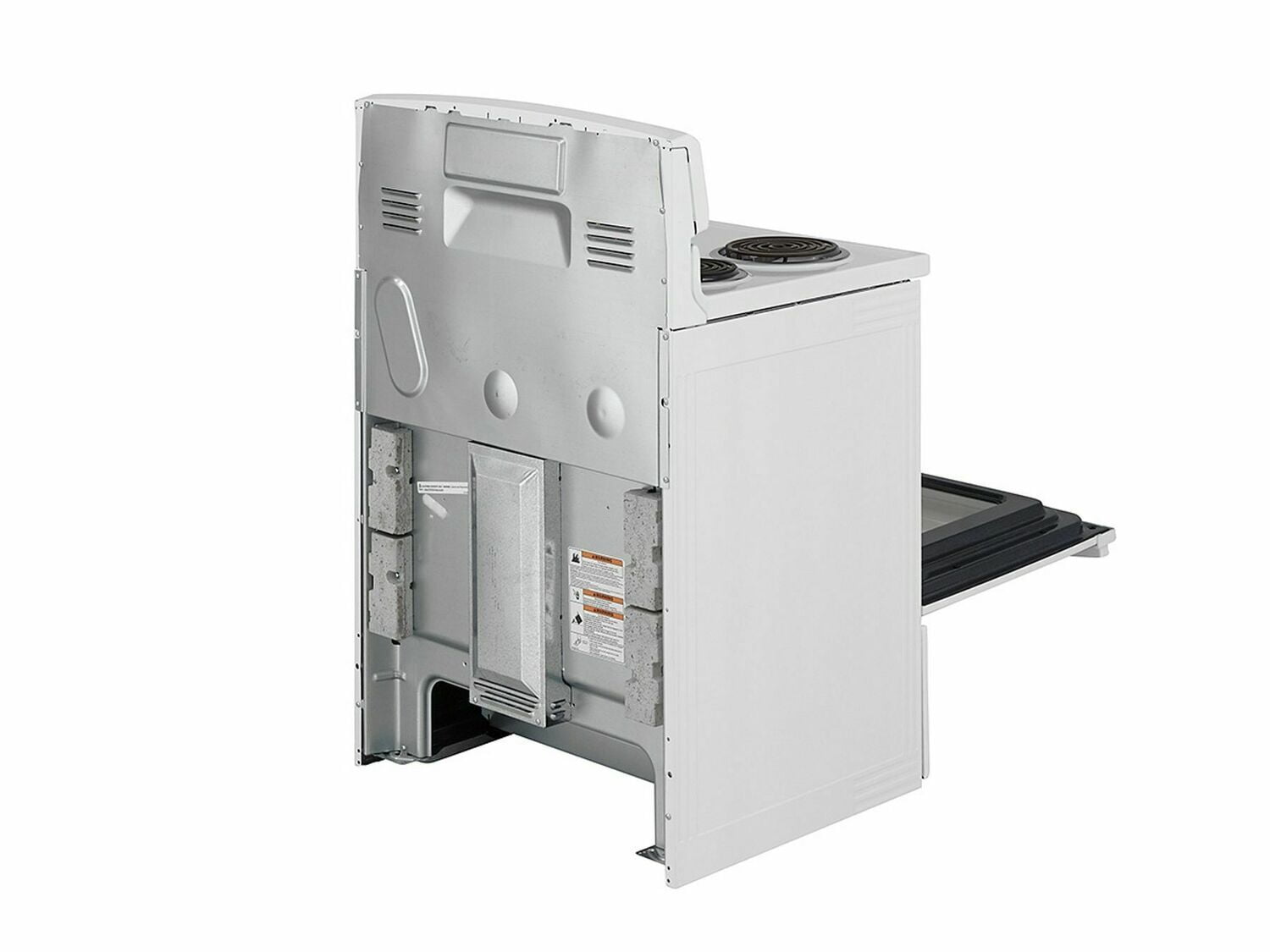

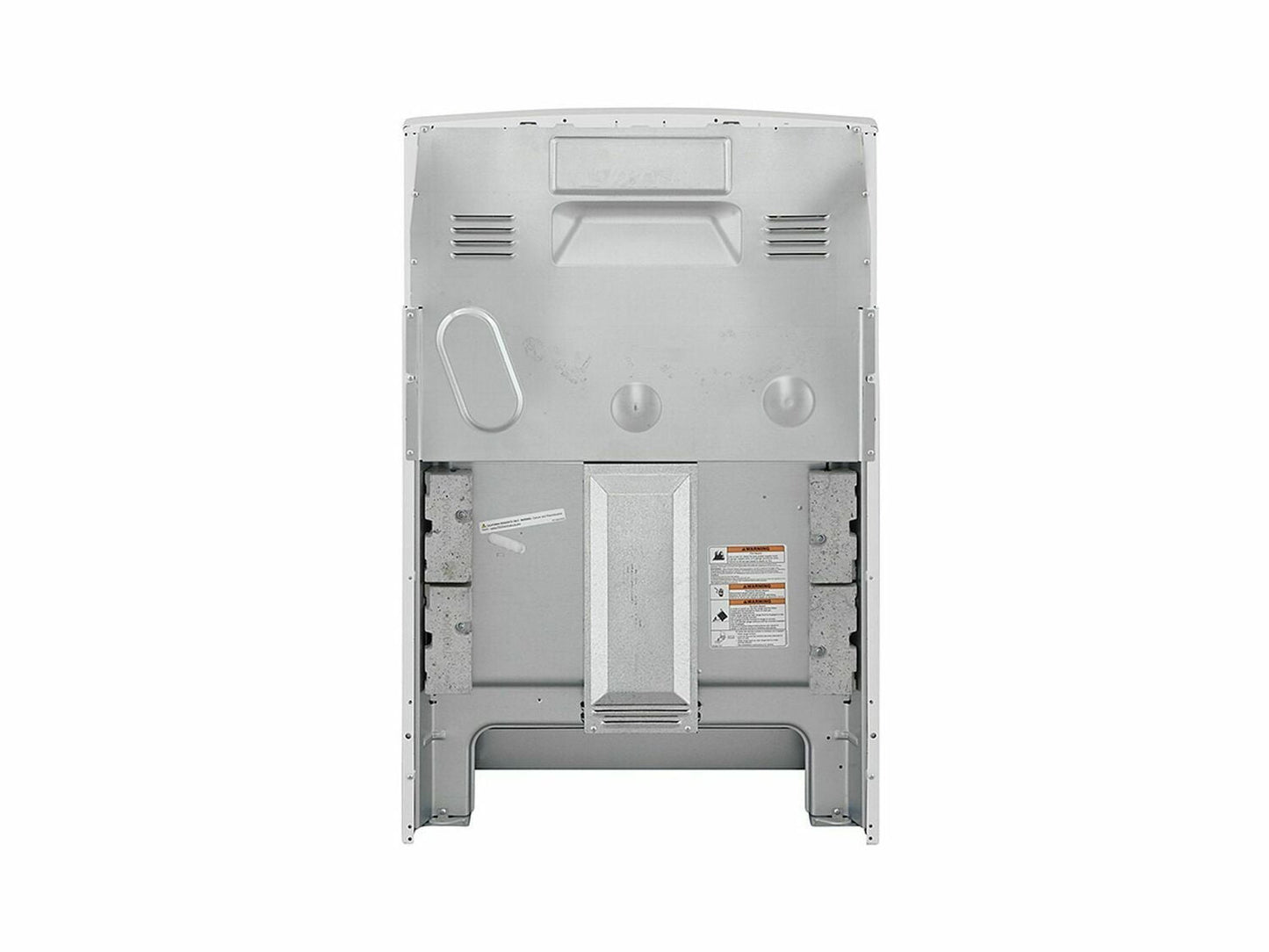

Amana ACR4503SFW 30-Inch Electric Range With Self-Clean Option - White
Boil Your Pasta And Simmer The Sauce All At Once With The Versatile Cooktop On This 30-Inch Amana® Electric Range. Plus, Start Baking Dessert At The Same Time By Using The Extra-Large And Easy-To-Read Easy Touch Electronic Controls Plus. Or Choose A Preset Temperature Setting With Bake Assist Temps. Then When You'Re Ready For Cleanup, Use The Self-Clean Option To Help Take Care Of Leftover Splatters In The Oven.
- Large Oven Capacity (4.8 cu. ft.) - Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
- Indicator Lights - Check your oven's status and settings at a glance with the Indicator Lights.
- Sabbath Mode - Sabbath Mode helps override the features of modern ovens such as automatic shutoff and electrical lights for those who keep a kosher home.
SPECIFICATIONS | |
Dimensions | |
Capacity | 4-4/5 |
Cutout Depth | 24.0 in |
Cutout Height | 36.0 in |
Cutout Width | 30.0 in |
Depth | 27-3/4 in |
Depth Closed Excluding Handles | 25-5/16 in |
Depth With Door Open 90 Degree | 46-11/16 in |
Height | 46-7/8 in |
Maximum Height | 47-7/8 in |
Minimum Height | 46-7/8 in |
Width | 29-7/8 in |
Configuration and Overview | |
Fuel Type | Electric |
LP Convertible | No |
Range Type | Freestanding |
Size | 30 in |
Oven Details | |
Broiler Location | Top of Oven |
Convection Functions | No |
Door Removable | Yes |
Drawer Type | Storage Drawer |
Hidden Bake Element | No |
Interior Color | Grey |
Oven Control Location | Backguard |
Oven Control Type | Electronic Touch |
Oven Cooking System | Thermal |
Oven Interior Depth | 18-1/2 in |
Oven Interior Height | 18-1/8 in |
Oven Interior Width | 24-1/2 in |
Oven Light Switch Location | Oven Control |
Power On Indicator Light | Yes |
Appearance | |
Handle Material | Plastic |
Cooktop Details | |
Cooktop Control Knob Type | Dishwasher Safe Plastic |
Cooktop Control Location | Backguard |
Cooktop Control Type | Knobs |
Cooktop Element Style | Coil |
Cooktop Surface Color | Color Coordinated Black on Stainless |
Heating Element On Indicator Light | Yes |
Hot Surface Indicator Light | Yes |
Left Front Element-Burner Size | 8'' |
Left Rear Element-Burner Size | 6'' |
Left Rear Element-Burner Type | Coil |
Number of Cooking Element-Burners | 4 |
Right Front Element-Burner Size | 6'' |
Right Front Element-Burner Type | Coil |
Right Rear Element-Burner Size | 8'' |
Details | |
Bake Element Power | 2400W |
Broiler Element Power | 3400W |
Cooktop Surface Material | Porcelain Coated Steel |
Number of Oven Racks | 2 |
Number of Rack Guides | 5 |
Oven Cleaning Type | Self-Cleaning |
Oven Light Type | Incandescent |
Oven Rack Type | Standard |
Certifications | |
Prop 65 | CALIFORNIA RESIDENTS ONLY - WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov . |
Electrical | |
Power Cord Included | No |
Features | |
Natural Gas Convertible | No |
Exterior | |
Oven Window Size | Extra Large |
