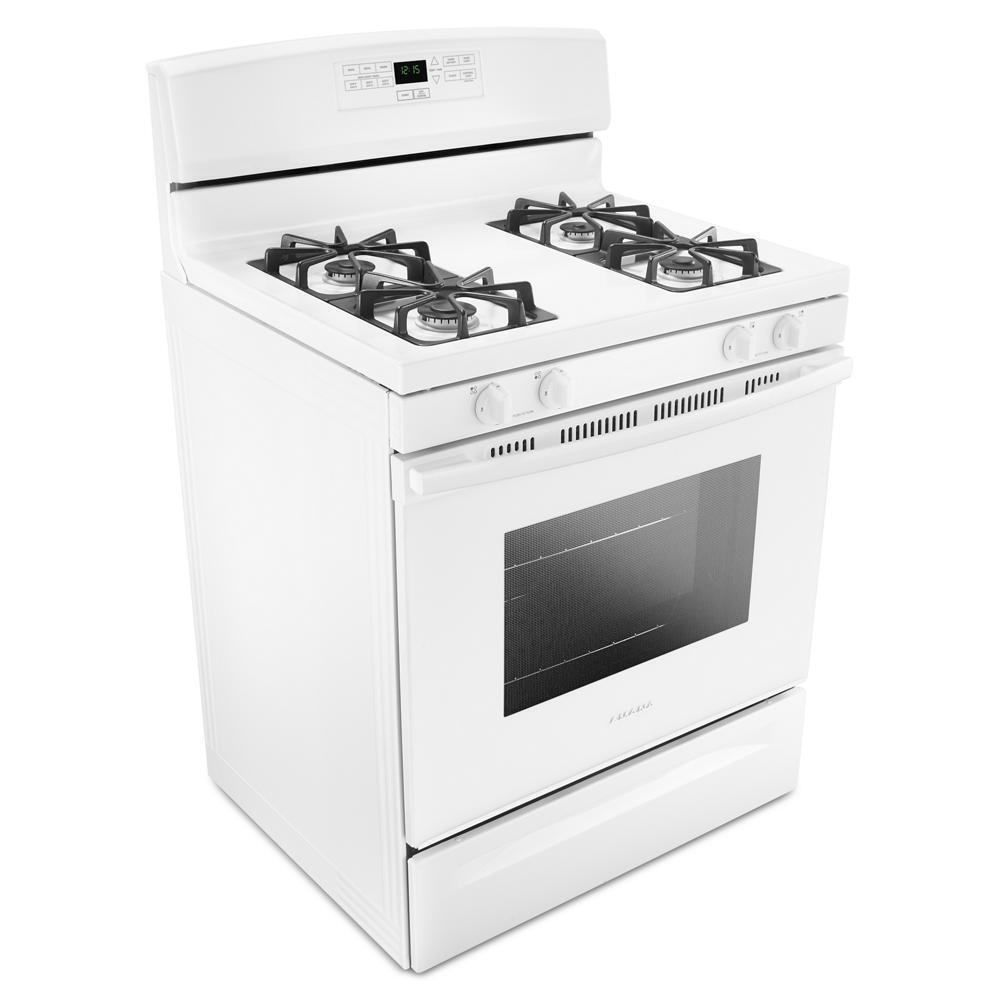

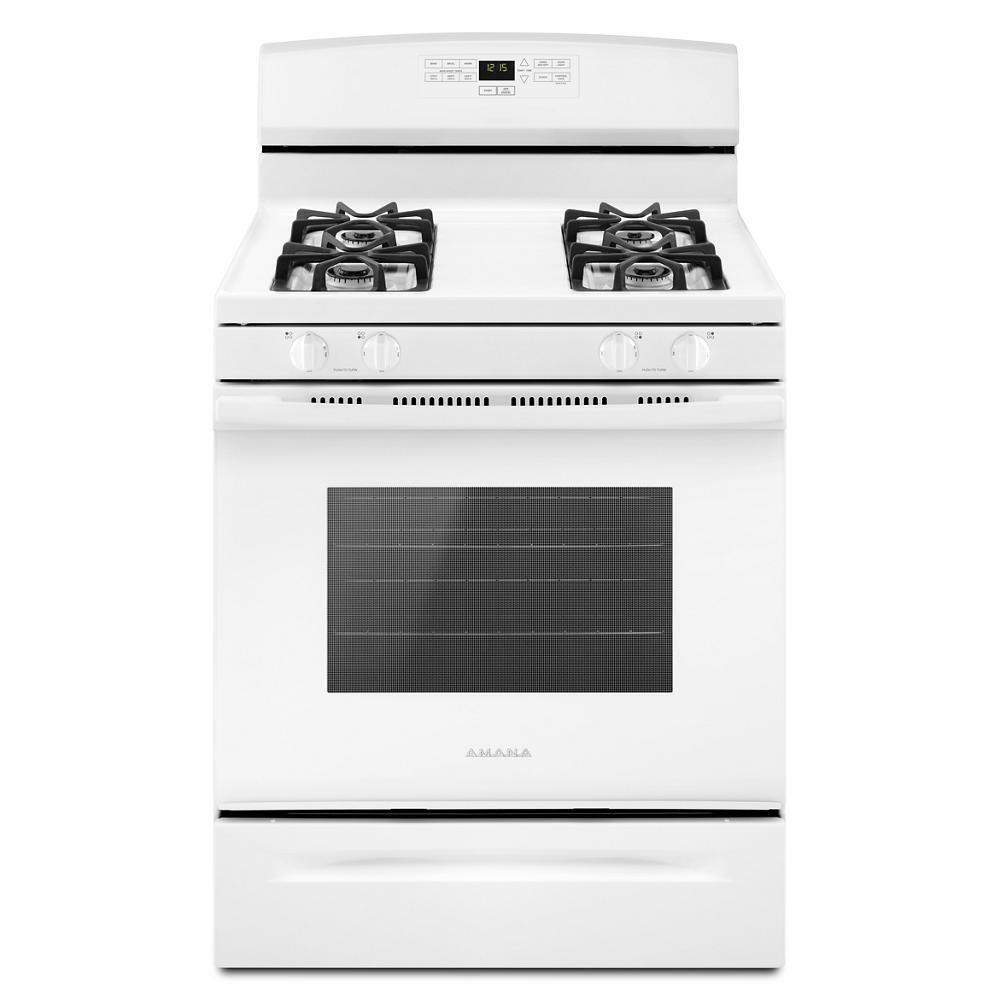

Amana AGR6303MMW 30-Inch Gas Range With Bake Assist Temps

EasyAccess™ Broiler Door
The EasyAccess™ broiler door is easy to reach and can help broil large dinners like steak and roasted vegetables.

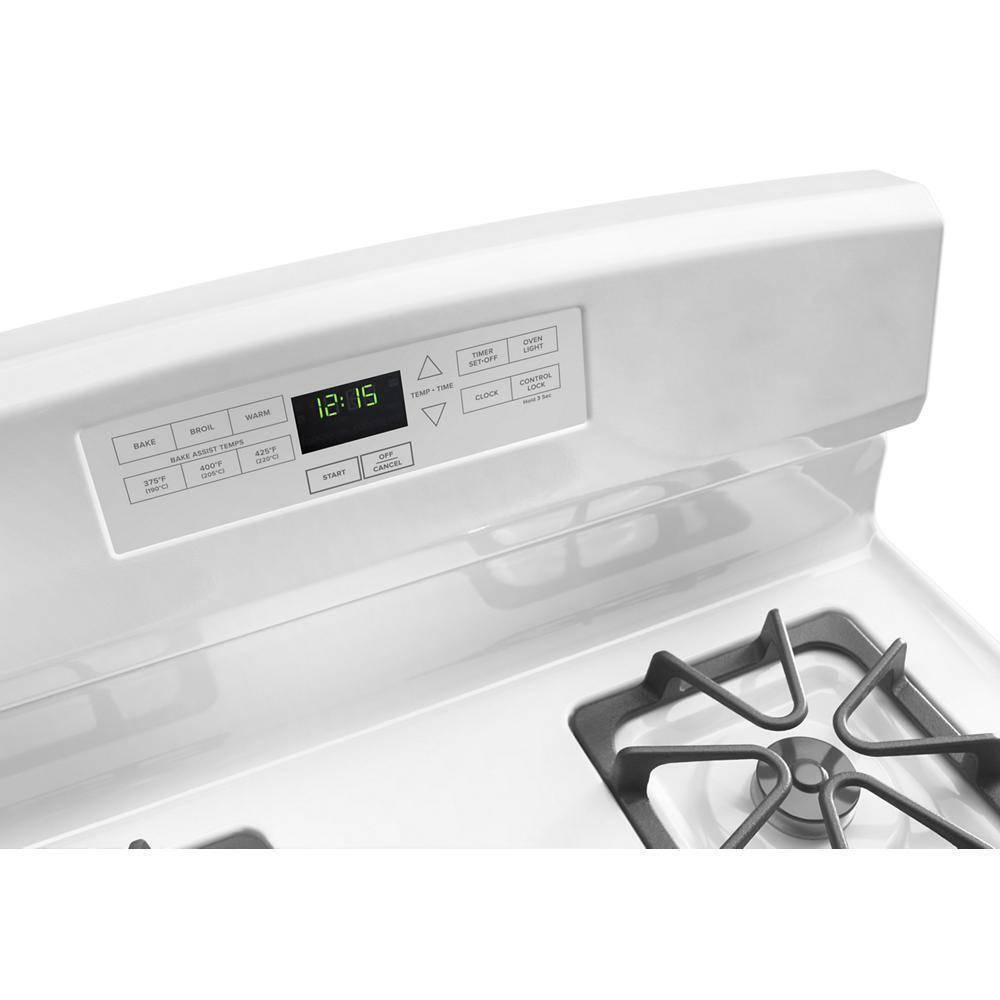

Bake Assist Temps
Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

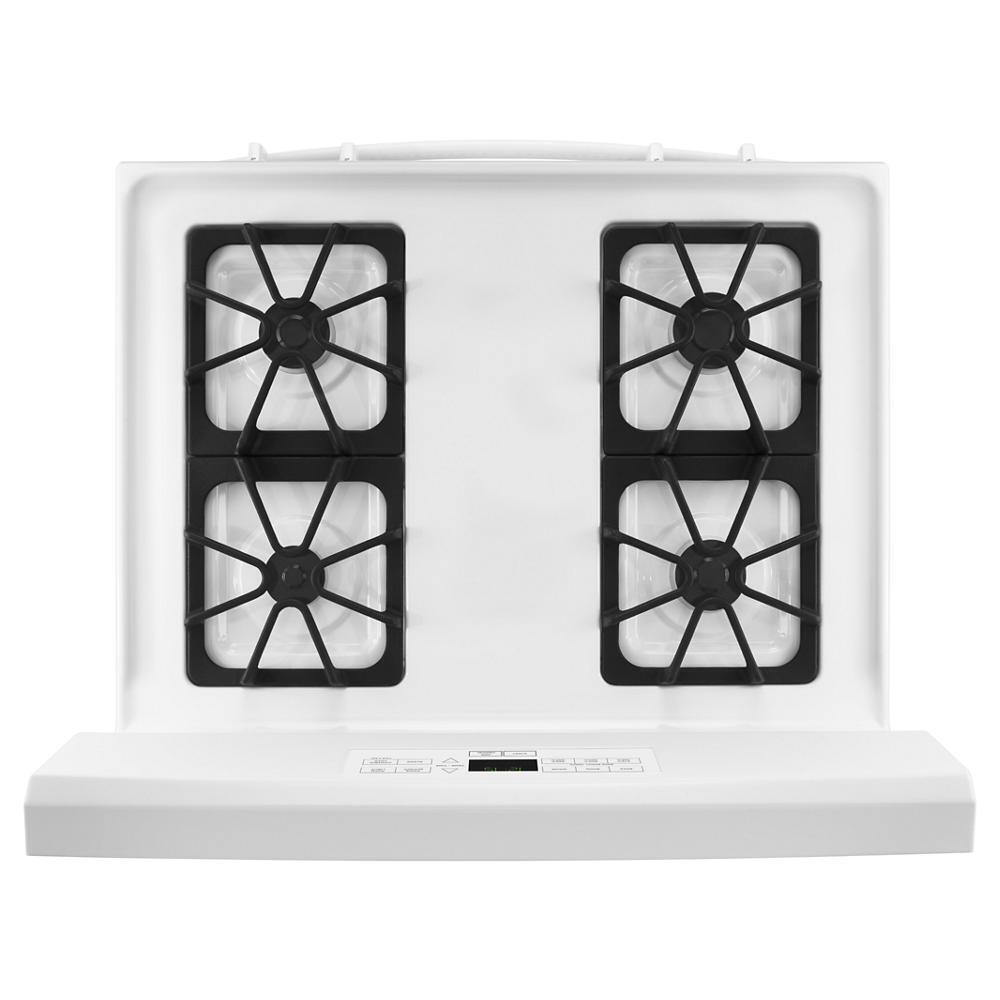

Sealed Burners
Don't sweat the small spills. Sealed burners make cleanup easy by limiting spills from dripping beneath the cooktop.

Warm Hold
Warm Hold delivers low heat to the oven so dishes are ready to serve when you are.
Height: 46 1/4"
Depth: 27.2"
First Oven Size: 5.1 cu. ft.
- Large Oven Capacity
- Versatile Cooktop
- Bake Assist Temps
- Easy Touch Electronic Controls Plus
- Extra-Large Oven Window
Details | |
Broiler Element Power | 16,500 BTU |
Oven Interior Depth(IN,inches) | 19 |
Number of Oven Lights | 1 |
Oven Cleaning Type | Manual Clean |
Interior Color | Grey |
Oven Cooking System | Thermal |
Oven Light Switch Location | Oven Control |
Number of Rack Guides | 5 |
Bake Element Power | 16,500 BTU |
Hidden Bake Element | Yes |
Oven Interior Height(IN,inches) | 18 3/8 |
Oven Control Type | Electronic Touch |
Oven Rack Type | Standard |
Number of Oven Racks | 2 |
Broiler Location | Drawer |
Oven Control Location | Backguard |
Oven Light Type | Incandescent |
Cooktop Surface Material | Porcelain Coated Steel |
Oven Interior Width(IN,inches) | 25 |
Description | |
Size (in.) | 30 |
Fuel Type | Gas |
Range Type | Freestanding |
Certifications | |
ADA Compliant | No |
Prop 65 | Standard |
UL | Yes |
Cooktop Details | |
Left Front Element-Burner Power | 11,500 BTU |
Left Rear Element-Burner Power | 9,500 BTU |
Number of Cooking Element-Burners | 4 |
Left Rear Element-Burner Type | Standard |
Number of Grates | 2 |
Cooktop Configuration | All Burners |
Cooktop Control Location | Front |
Ignition Type | Electronic |
Cooktop Control Knob Color | White |
Right Rear Element-Burner Power | 5,000 BTU |
Auto Re-ignition | No |
Right Rear Element-Burner Type | Simmer |
Cooktop Control Type | Knobs |
Cooktop Surface Color | Black |
Left Front Element-Burner Type | Standard |
Grate Details | Dishwasher Safe,Flower Wire,Gloss Finish,Wire Grates |
Right Front Element-Burner Power | 9,500 BTU |
Cooktop Control Knob Type | Plastic |
Cooktop Element Style | Sealed Burners |
Right Front Element-Burner Type | Standard |
General | |
Accessory Relationships | Yes |
Controls | |
Display Color | Green |
Electronic Display Type | LED |
Dimensions | |
Depth Closed Excluding Handles(IN,inches) | 22.9 |
Cutout Width(IN,inches) | 30 1/8 |
Depth Closed Including Handles(IN,inches) | 25 1/25 |
Depth(IN,inches) | 27.2 |
Cutout Height(IN,inches) | 36 |
Width(IN,inches) | 29 7/8 |
Carton Width(IN,inches) | 32 |
Carton Height(IN,inches) | 48 |
Capacity(FT3,cubic feet) | 5.10 |
Depth With Door Open 90 Degree(IN,inches) | 45.78 |
Height(IN,inches) | 46 1/4 |
Carton Depth(IN,inches) | 28 |
Features | |
Griddle | NA |
Selection | Audible Signal,Bake,Bake Assist Temps,Broil,Cancel/Off,Clock,Control Lock,Keep Warm/Warm Hold,Sabbath Mode,Timer |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
LP Convertible | Yes - Kit Included |
Natural Gas Convertible | Yes |
Power Outage Compatible | Yes |
Automatic Convection Conversion Temperature Adjust | No |
Total Gas BTUs - Cooktop | 54500 |
Total Gas BTUs - Oven(s) | 16500 |
Electrical | |
Volts | 120 |
Amps | 15 |
Hz | 60 |
Power Cord Included | Yes |
Exterior | |
Handle Color | White |
Drawer Type | Broiler Drawer |
Handle Material | Plastic |
Handle Type | Reach Through Handle |
Oven Window Size | Extra Large |
Door Removable | Yes |
Door Type | Glass |
