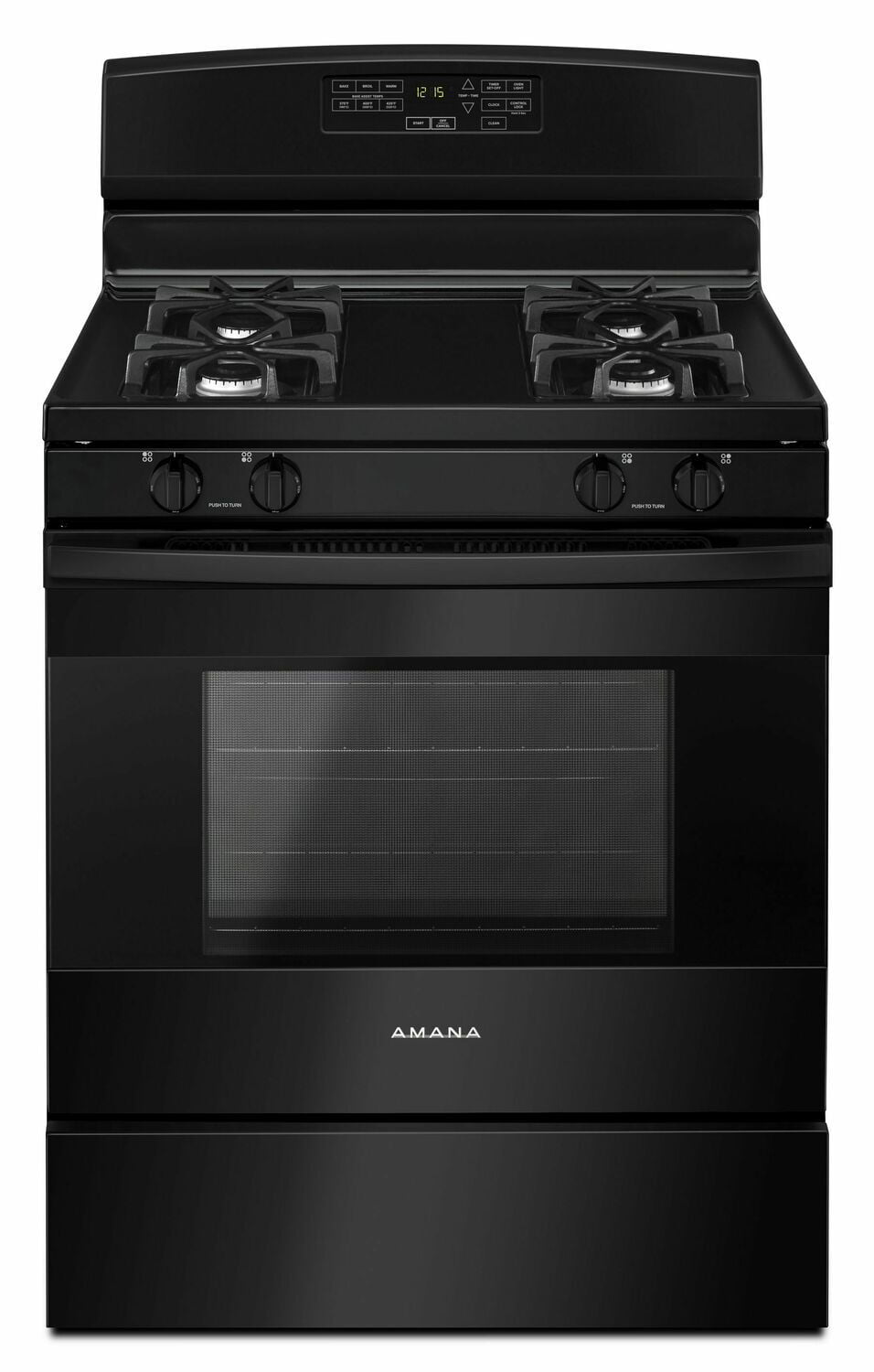

Amana AGR6603SFB 30-Inch Gas Range With Self-Clean Option - Black
This 30-Inch Amana® Gas Range With 5.0 Cu. Ft. Capacity Lets You Melt, Boil And Simmer All At Once With A Versatile Cooktop. Use Bake Assist Temps To Take Care Of Dessert At The Same Time. Simply Pick A Preset Temperature Setting To Get Started. And When It'S Time For Cleanup, Use The Self-Clean Option To Let The Oven Do The Dirty Work For You.
- Bake Assist Temps - Bake Assist Temps offer preset temperature settings to make cooking even more convenient. Just select a temperature, press start and let the oven do the rest.

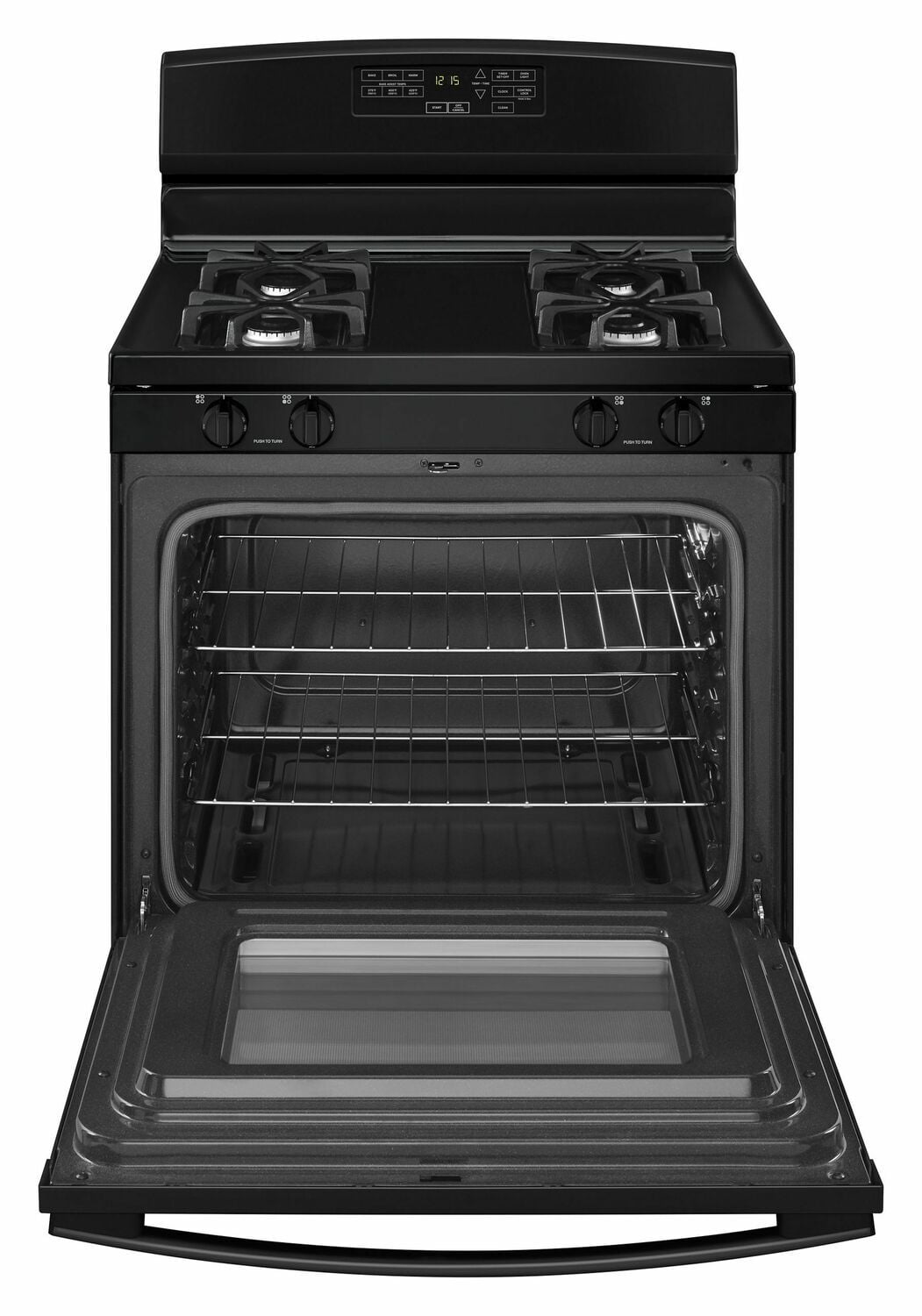

- Large Oven Capacity - Large Oven Capacity gives you the space you need to make dinner and dessert at the same time.
- Versatile Cooktop - Our Versatile Cooktop features multiple burner options that provide up to 15,000 BTUs, helping you cook your favorites all at once.

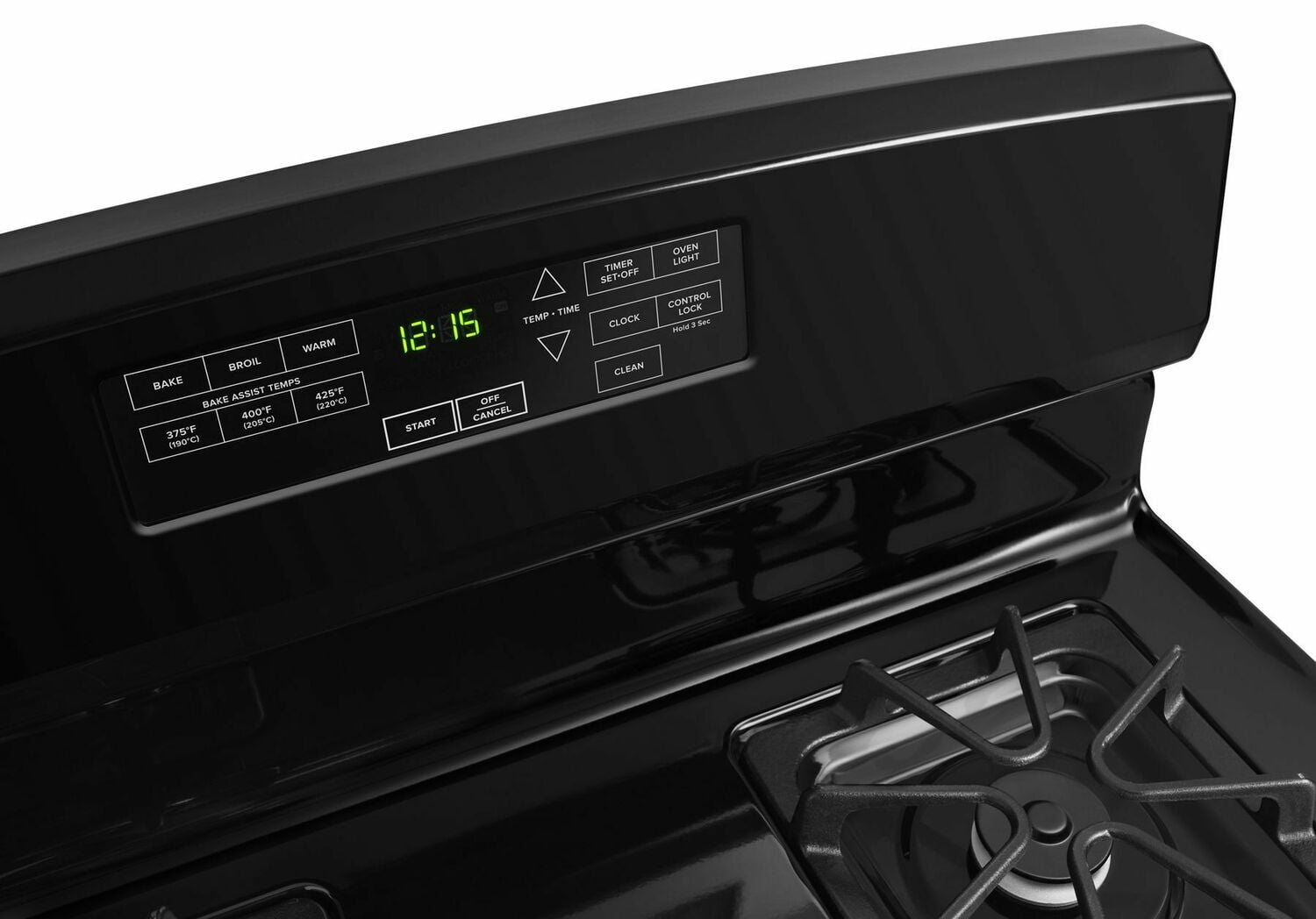

- Easy Touch Electronic Controls Plus - Quickly select bake or broil temperatures with these extra-large and easy-to-read Easy Touch Electronic Controls Plus.
- Temp Assure Cooking System - Temp Assure Cooking System distributes heat throughout the entire oven to deliver delicious results.

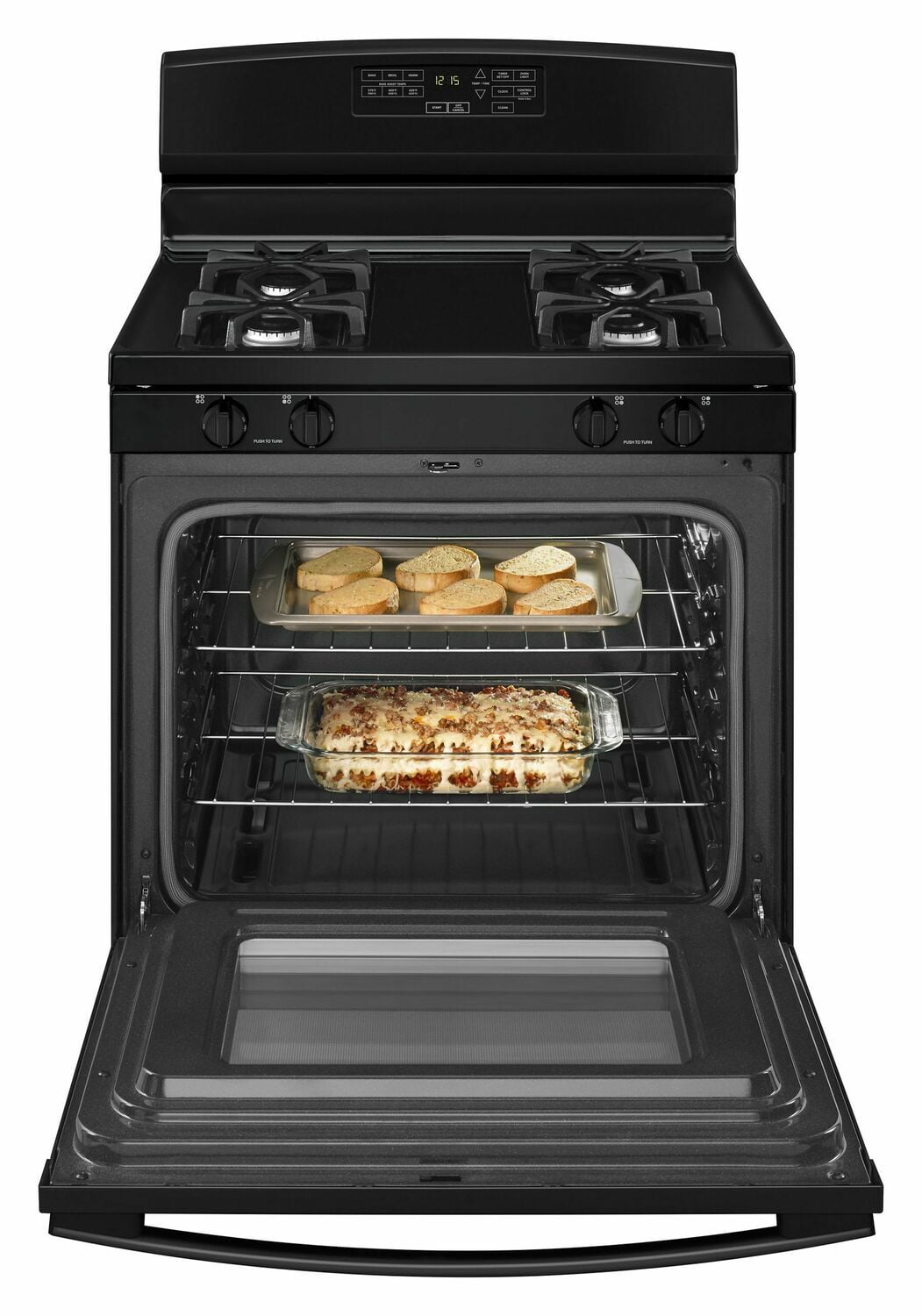

- Extra-Large Oven Window - See and savor. The Extra-Large Oven Window provides a bigger view to let you check on food without having to open the oven door.
- Custom Broil - Use the Custom Broil setting to broil in five-degree increments to melt cheese, sear steak or toast those buns with more precision.
| SPECIFICATIONS | |
| Dimensions | |
| Capacity | 5.00 |
| Cutout Depth | 24.0 in |
| Cutout Height | 36.0 in |
| Cutout Width | 30.0 in |
| Depth | 27-7/8 in |
| Depth Closed Excluding Handles | 25-7/16 in |
| Depth With Door Open 90 Degree | 46-9/16 in |
| Height | 46-7/8 in |
| Width | 29-7/8 in |
| Configuration and Overview | |
| Fuel Type | Gas |
| LP Convertible | Yes - Kit Included |
| Range Type | Freestanding |
| Size | 30 in |
| Oven Details | |
| Broiler Location | Top of Oven |
| Convection Functions | No |
| Door Removable | Yes |
| Drawer Type | Storage Drawer |
| Hidden Bake Element | Yes |
| Interior Color | Grey |
| Oven Control Location | Backguard |
| Oven Control Type | Electronic Touch |
| Oven Cooking System | Thermal |
| Oven Interior Depth | 18-1/2 in |
| Oven Interior Height | 18-1/8 in |
| Oven Interior Width | 24-1/2 in |
| Oven Light Switch Location | Oven Control |
| Power On Indicator Light | Yes |
| Appearance | |
| Handle Material | Plastic |
| Cooktop Details | |
| Cooktop Control Knob Type | Dishwasher Safe Plastic |
| Cooktop Control Location | Front |
| Cooktop Control Type | Knobs |
| Cooktop Element Style | Sealed Burner |
| Cooktop Surface Color | Color Coordinated Black on Stainless |
| Grate Details | Dishwasher Safe, Matte Finish, Porcelain Coated Cast Grates |
| Heating Element On Indicator Light | No |
| Hot Surface Indicator Light | No |
| Ignition Type | Electronic |
| Left Rear Element-Burner Type | Multi Purpose |
| Number of Cooking Element-Burners | 4 |
| Number of Grates | 4 |
| Right Front Element-Burner Type | Sealed Burner |
| Details | |
| Bake Element Power | 16500 BTU |
| Broiler Element Power | 10000 BTU |
| Cooktop Surface Material | Porcelain Coated Steel |
| Number of Oven Racks | 2 |
| Number of Rack Guides | 5 |
| Oven Cleaning Type | Self-Cleaning |
| Oven Light Type | Incandescent |
| Oven Rack Type | Standard |
| Electrical | |
| Power Cord Included | Yes |
| Features | |
| Power Outage Compatible | Yes - Cooktop Only |
| Exterior | |
| Oven Window Size | Extra Large |
