Amana UDT518SAHP Panel-Ready Compact Dishwasher With Stainless Steel Tub
Features
This small dishwasher delivers mealtime cleanup fit for smaller spaces. The cycle memory feature remembers the last cycle you ran and starts it with the push of a button. Add on a dishwasher panel kit to match the look of your compact dishwasher to the rest of your kitchen. This small dishwasher is both ADA compliant and ENERGY STAR® certified.
Small Space Solution

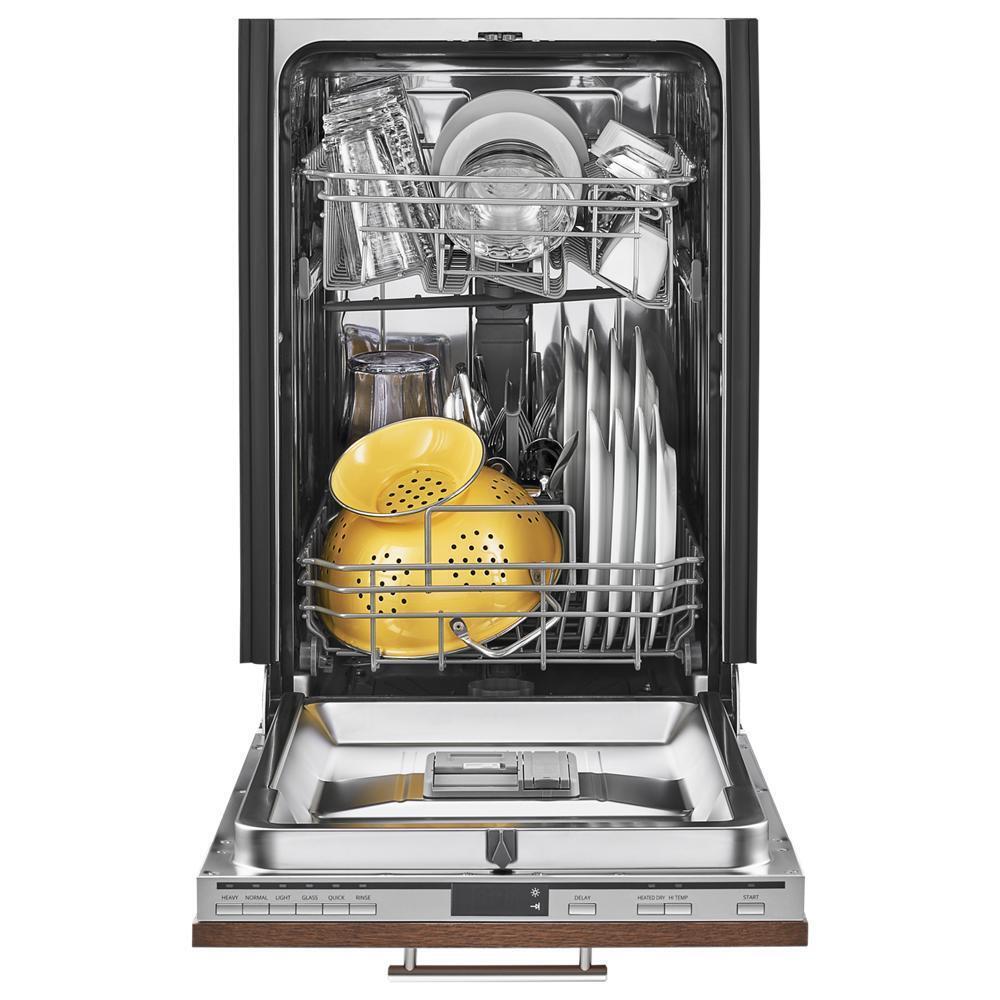

Fit 8 place settings in this compact dishwasher that frees up space in the kitchen.
High Temperature Wash Option
Get a more thorough clean with a high-temperature wash.
Heated Dry Option
Add heat to dry dishes better.
Dual Spray Arm
Get a complete clean with two spray arms: one in the bottom and one in the middle of the dishwasher.
Glass Cycle
Give glassware the right clean with this cycle.
ENERGY STAR® Certified
ENERGY STAR® certified models exceed government standards to help save money on your utility bills.

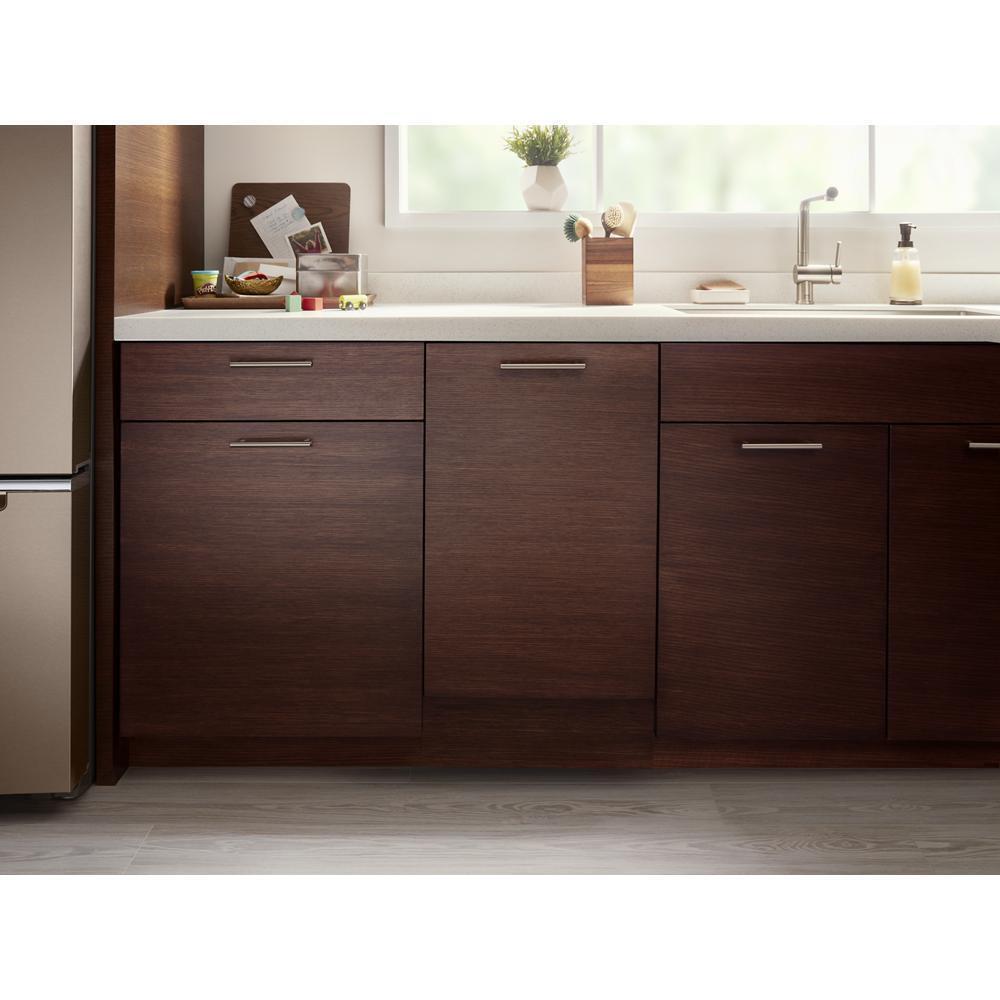

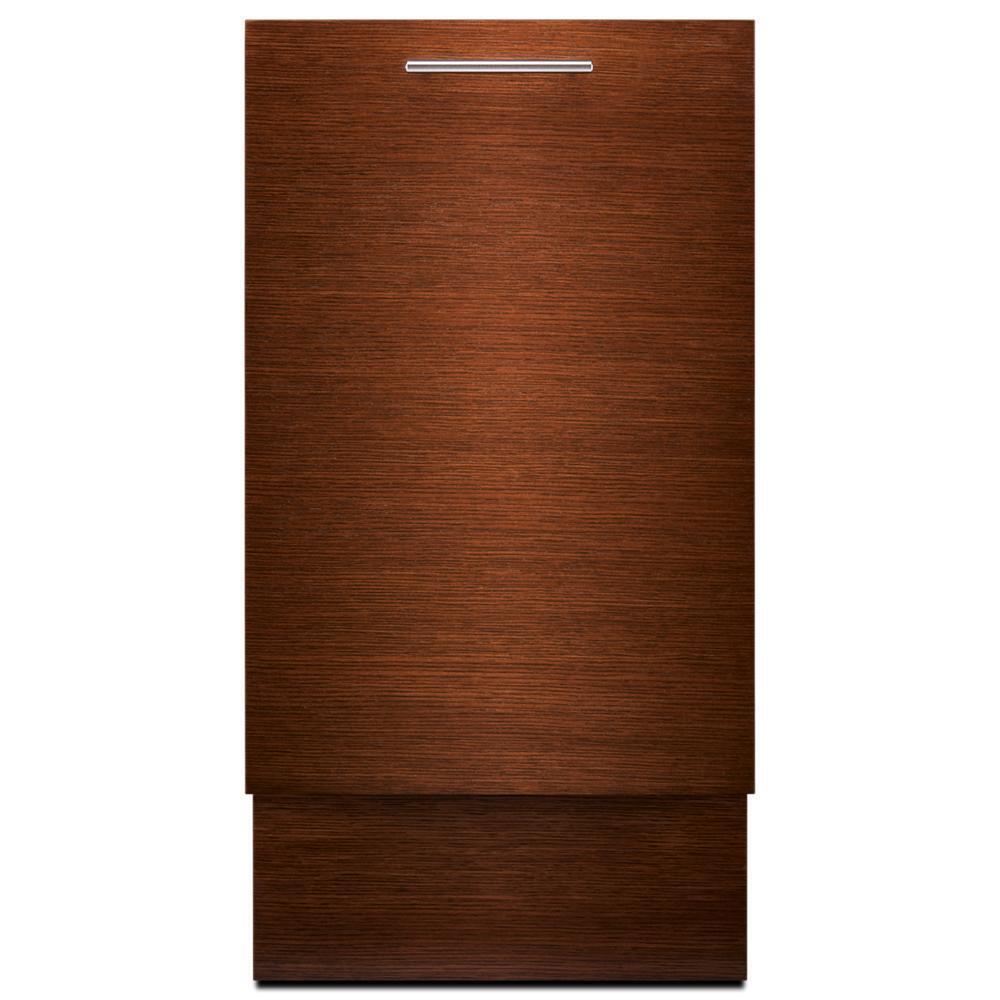

Panel-Ready Design
Match the look of your dishwasher to your kitchen. Choose a Whirlpool®, KitchenAid® or Jenn-Air® panel kit (not included) that coordinates with the rest of your appliances or add a custom front panel and handle for a seamless fit with your cabinetry.
Flush Installation
Get an integrated look with a dishwasher that installs flush with your kitchen cabinetry.
Cycle Memory
This dishwasher remembers the last cycle you picked and automatically chooses it for you the next time.

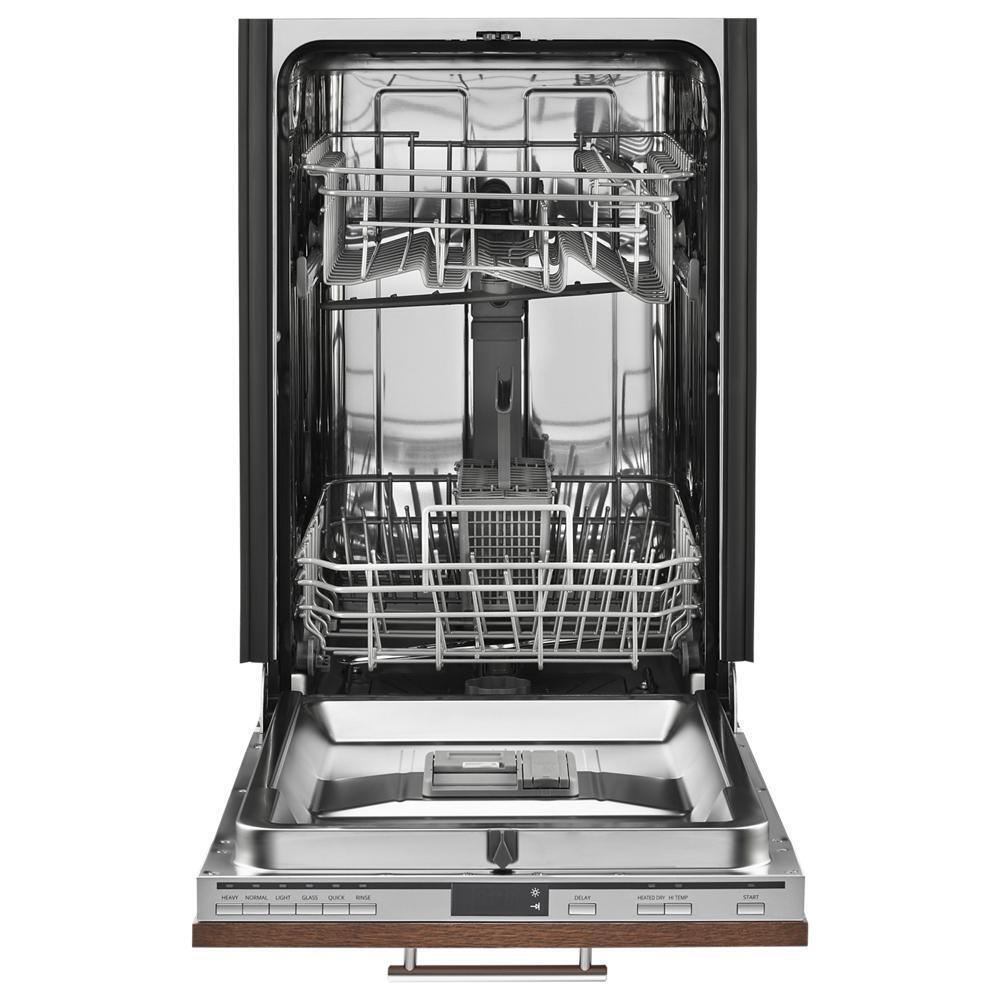

Adjustable Upper Rack
Manually raise or lower the upper rack two inches to better fit tall items.
Quiet Cleaning Performance
Keep your kitchen quiet during cleanup with a dishwasher sound level of just 50 dBA.
Stainless Steel Tub
The stainless steel tub promotes drying by retaining heat from wash and rinse cycles. Plus, it cools faster than the dishes so moisture can condense on the interior walls and not the dishes.
Normal Cycle
Use this cycle for normal amounts of food soil.
Heavy Cycle
Take care of hard-to-clean dishes by adding extra time with the Heavy cycle.
Dimensions & Capacity
Width: 17 5/8"
Height: 34 1/2"
Depth: 22"
Height: 34 1/2"
Depth: 22"
- Small Space Solution
- Panel-Ready Design
- Flush Installation
- Cycle Memory
Options | |
Dishwasher Option Selections | 1-24 Hour Delay,Heated Dry,Hi Temp Wash |
Cycles | |
Number of Wash Cycles | 6 |
Certifications | |
Energy Star® Qualified | ENERGY STAR® Qualified |
Kosher Consumer Friendly | Yes |
ADA Compliant | Yes |
Prop 65 | Standard |
CEE Tier | Tier I |
NSF® Certified | No |
UL | Yes |
Design Type | |
Design Expression | Panel-Ready |
Dimensions | |
Gross Weight(LB,pounds) | 75 |
Carton Width(IN,inches) | 20 1/2 |
Carton Depth(IN,inches) | 26 1/2 |
Carton Height(IN,inches) | 35 |
Depth Closed Excluding Handles(IN,inches) | 22 |
Exterior | |
True Hold Door | Yes |
Window | No |
Door Style | Flat |
Handle Type | Towel Bar |
Toe Panel Color | Black |
2nd Level Rack | |
Extras | 1-Fold Down Wire Cup Shelf |
Adjustable | Yes |
Style | Straight |
Cushion-Tip Tines | Yes |
Details | |
Drying System Type | Recessed Heating Element |
Wash System | Filter |
Wash System Type | Removable Filter |
Number of Racks | 2 |
Number of Washarms | 2 |
Interior Light | No |
Water Filtration | Yes |
Rack Material | Nylon |
Tub Material | Stainless Steel |
Tub Style | Built-in 18in. Tub |
General | |
Accessory Relationships | Yes |
Width Doors Open 90 Degrees | 44.500 |
Controls | |
Status Light | White |
Features | |
Decibel Level (dBA) | 50 |
Number of Wash Levels | 4 |
Rinse Aid Dispenser Level Indicator | Optical Level Indicator |
Sound Package | Quiet Partner™ |
Dispensers | Detergent and Rinse Aid |
Electrical | |
Volts | 120 |
Hz | 60 |
Amps | 6.75 |
Silverware Basket | |
Location | Bottom Rack |
Type | Large In the Rack Basket |
Covers | Yes |
Culinary Basket | No |
Lower Rack | |
Style | Extended |
Cushion-Tip Tines | Yes |
Cycles and Options | |
Dishwasher Cycle Selections | Glass,Heavy,Light/China,Normal,Quick Wash,Rinse |
