Asko DBI564THS Dishwasher
Rebates &
Promotions
Aqua Safe™ system
Do you hesitate to leave the dishwasher on while you are not at home? Aqua Safe™ system is an advanced safety system which ensures a leak-safe dishwasher day and night.
Instant Lift™
Our InstantLift™ height adjustment system, allows for freeing up between 1-1/2" or 2-1/4" in the upper rack,. A simple and flexible way to make room for it all.
Rinse & hold
The Rinse and hold program allows for you to avoid dried leftovers while you wait for the dishwasher to get fully loaded. Saves time and energy over time.
Anti siphon
For our fully integrated dishwashers, the Anti-siphon solution safely keeps the water inside the machine. This is especially important if the dishwasher is placed above floor level.
Power Zone Cutlery™
Power Zone Cutlery™ is a special nozzle spray zone for the cutlery basket that will make your cutlery dazzling clean. And, there is a similar nozzle for the knife basket.
9 Spray™
ASKO s spray system consists of up to 9 effective spray zones to ensure a totally clean load. In the lower rack there are three power zones to take care of the dirtiest parts.
Speed mode
When you need to get things cleaned in a hurry, the Speed mode is useful. It saves up to 50% of the normal time, by using more water and increased heating.
Quick Wash
The Quick Wash program washes lightly soiled glasses, decanters, coffee cups etc. efficiently and leaves your kitchen ware as spotless as you want them to be.
3 Level rack
ASKO s three level rack system allows you to optimize the load. Remove, adjust, fold and move the racks, pin rows and cutlery rack to meet your every need.
XL dishwashers
Our XL dishwashers have a loading height of 21-1/4". Combined with the smart four level rack system the load is 40% more, with countless possibilities to make it all fit in.
Telescopic rails
ASKO uses telescopic guide rails with ball bearings to make the racks glide smoothly and quietly. For easy loading and unloading, you can also take out the whole rack.
Touch Proof™
The ultra-thin, transparent TouchProof™ coating protects your dishwasher stains and grease Easy to clean, scratch resistant it will keep your dishwasher looking brand new year after year.
Kid Safe™
To stop small fingers from starting the dishwasher the Kid Safe™ makes the control panel easy to lock. This also prevents altering any settings by mistake.
Night Mode
Night mode reduces the noise by 2 dB thanks to lower pressure in the spray arm. Perfect at night or in a house with an open plan living area.
3 - Spray arms
The 3 spray-arm technique reaches every corner and with up to 10 highly effective spray zones, no dirt can escape. Not even your lasagne baking dish.
Top cutlery tray
The top tray for cutlery and kitchen utensils is easy to remove for easy unloading. With a width of 12-3/4" the centred tray leaves plenty of room for tall wine glasses in the upper rack on each side of the tray. And with the Instant Lift™ you have the freedom to adjust the upper rack to be 1-1/2" or 2-1/4".
Self Cleaning
ASKO s dishwashers have a Self-cleaning program to ensure that all vital parts are thoroughly cleaned. Use a recommended cleaning agent and the program on a regular basis for best result.
Brushless motor
A brushless motor is not only quieter and more reliable. It also consumes less energy. You want your dishwasher to work forever. So do we.
Focus points
Focus points - a hint of natureOpening the door of our new dishwasher can open your eyes to a few things. The high-grade steel might catch your attention at first. Then it may be one of the machine s many clever features. These are highlighted with a color that mimics the ways in which nature brings focus to things. Closing the door puts the machine back in its place - where it doesn t compete for space or attention - instead, it makes the room.
16 - Loading capacity
The world s biggest load capacity. The latest addition to our rack system is a flexible top cutlery tray with its own spray arm and space for sixteen sets of cutlery, small bowls, or other utensils that can be difficult to load. The width of the top cutlery tray has been optimised to make room for tall glasses in the upper rack and, if more space is needed simply take the top cutlery tray out.
Knife holders
Knives are sensitive things, so too are fingers. That is why we have done everything possible to protect both as best we can. Our knife holder is extra deep so that the blades remain steady throughout the wash cycle. There are knife holders on three levels: in the middle basket, in the upper basket and in the top basket. We guarantee a clean cut.
Status Light™
ASKO s new generation dishwashers have Status Light™ -a small light placed in the bottom right corner to let you know the actual status of the program.
Aqua Detect™ Sensor
The Aqua Detect(TM)Sensor monitors the inlet valves and the water level while the machine operates. For safety reasons, the drain pump s capacity is five times the inlet valve s.
Aqua Level™ Sensor
The Aqua Level™ Sensor ensures an optimized water level, even if a bowl turns over and is filled with water. It also keeps the machine from starting if the water is turned off.
20 years
Dishwashers designed to last for 20 yearsToday, sustainability and responsibility go hand in hand. So when we design our products, it is our responsibility to not only make products that last, but which also make things better - for our customers and for the planet. We develop our dishwashers responsibly and design them to make a difference. To ensure that they can do so for a long time, we test them equivalent to 20 years of lifetime.
Adjustable power zones
Adjustable power zonesTo make an already powerful cleaning system even more powerful, we have created two adjustable power zones with two different spray patterns. The power zones either produce a concentrated highpressure hard jet for extra dishwashing power on tall, narrow objects like bottles and vases, or a wider spray for larger dishes, pots and pans. There s also a bridging function where both power zones are set to the wide spray mode for very large dishes or utensils. The power zones are operated manually, so when you don t need them simply switch them off
Multi position glass rack
The Multi position glass rack is a very practical rack that can be mounted in three different positions - all depending on your needs.
Time program
When you need clean plates in a hurry, just tell the machine how dirty the dishes are and how much time you have. The program then adjusts washing and rinsing to match your needs.

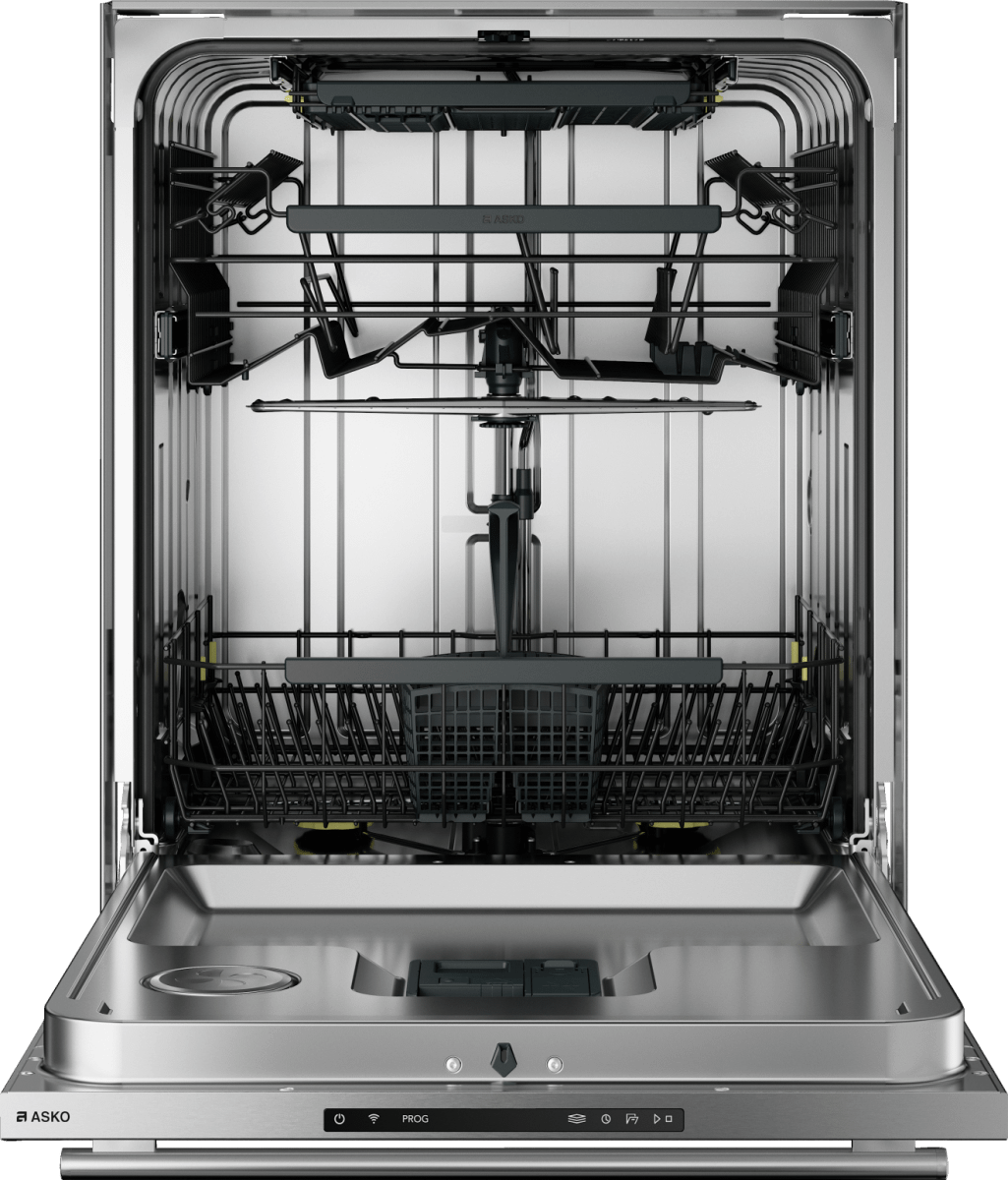

This built-in dishwasher has three basket levels for a better loading flexibility.
Equipped with ASKO's powerful Super Cleaning System+ which is developed to eliminate the need for you to pre-rinse and our useful Hygiene program for baby bottles and other items that need to be perfectly disinfected.
Dimensions & Capacity Width: 23.937"
Height: 32.68"
Depth: 21.81"
- Number of place settings: 16 pcs
- Number of racks: 3
- Upper rack type: Premium, fixed tines and foldable wine shelves
- Size: XL
- Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening
- Yes
- Automatic dosing system: No
- Installation: Built-in
- Series: Logic
| Number of place settings | 16 pcs |
| Number of racks | 3 |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Size | XL |
| Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening | Turbo Combi Drying™ ensures dry dishes with fan assisted evacuation of moisture in combination with Auto Door Opening |
| Yes | Yes |
| Automatic dosing system | No |
| Installation | Built-in |
| Series | Logic |
| Construction and performance | |
| 8 Steel™ - Vital parts of the dishwasher made in stainless steel | Yes |
| No need to rinse the dishes thanks to Super Cleaning System™ | Yes |
| Automatic water-softener for better washing performance | No |
| Number of spray arms | 3 pcs |
| Number of spray zones | 9 |
| Cleaning systems | Cutlery Spray™ - Extra dishwashing power for the cutlery basket No need to rinse the dishes thanks to Super Cleaning System™ Aqua Level™ Sensor Stainless steel spray arms Adjustable power zones that can be set for cleaning Pots & Pans or Bottles & Vases. Can also be turned off. |
| Exterior handle | SZW tubular handle |
| Use and flexibility | |
| Number of place settings | 16 pcs |
| Number of racks | 3 |
| Top tray | Easy height adjustment Handle Removable |
| Upper rack type | Premium, fixed tines and foldable wine shelves |
| Upper rack height adjustable | No |
| Upper basket | Small distance between the basket threads - makes loading easy and prevents small items to fall through Handle with plastic logotype Standard knife stand Foldable wine shelves to left Fixed glass support Fixed pin rows Foldable wine shelves to right |
| Middle basket | Without middle basket |
| Lower rack type | Premium - Basket wiring in steel, fixed pin rows and removable cutlery basket |
| Lower rack | Foldable/divisible rear pin row Cutlery basket Small distance between the basket threads - makes loading easy and prevents small items to fall through. Handle with plastic logotype |
| Automatic dosing system | No |
| Interior light | No |
| Interaction and control | |
| Possible to control via Wi-Fi | No |
| Type of display | LCD display |
| Status Light™ - Visual indication of dishwashing progress | Yes |
| Remaining time indication | Yes |
| Wash end indication | Displayed with sound and light |
| Language settings | Norwegian German Russian Finnish Swedish Portuguese Lithuanian English Latvian Croatian Italian French Chinese traditional Spanish Estonian Czech Ukrainian Japanese Slovak Slovenian Chinese simpified Polish Danish Dutch |
| Functions, programs and modes | |
| Programs | Quick wash Rinse and hold programme Intensive program Sanitize Standard Time program Anti odour Self cleaning Light wash |
| Delayed start | Possible to delay up to 24 hours |
| Options and modes | Time set Heat Boost Mode Enable/disable automatic door opening Speed mode - The program time is shortened. More energy is used. Night mode - Lower noise level. The program time is extended. Super Rinse™ - Two extra rinses |
| Design and integration | |
| From the front adjustable door spring | No |
| From front adjustable rear foot | Yes |
| Installation | Multi fit outlet hose Integrated anti-siphon - Prevents spontaneous in- and outlet of water and simplifies elevated installation Trim kit Steam protection strip |
| Sliding door | No |
| Possible to install elevated | Yes |
| Min. niche width | 24 '' |
| Min. niche height | 32 11/16 '' |
| Depth (incl. wall spacing) | 21 7/8 '' |
| Height setting | 2 1/16 '' |
| Adjustable kick plate | No |
| Safety and maintenance | |
| Aqua Safe™ | Sealing points outside container Extra durable stainless steel container Waterproof bottom plate Detection of water leakage on the bottom plate Aqua Detect™ - Instant recognition of any leakage in the motor compartment Aqua Level™ Sensor - Ensures an optimized water level Stand-by water protecion - Leakage detection when machine is off Extra durable PEX inlet hose Maximum time for water intake Light and sound alarm Anti Block™ - Self cleaning drain pump |
| Aqua Safe™ system | Yes |
| Child safety | Kid Safe™ - Lockable controls |
| Indication of low level of rinse-aid | Notification in display |
| Technical data | |
| Water connection | Hot&cold water |
| Adapter for water connection | No |
| Max. temperature of inflow water | 140 °F |
| Noise level (max) | 42 dB(A) |
| Reference programme | 1 |
| Duration of standard programme | 125 min |
| Estimated yearly energy consumption | 220 kWh |
| Energy consumption - normal program | 1 kWh |
| Estimated annual water consumption | 647.5 gal |
| Water consumption | 3 gal |
| Power consumption in standby mode | 0.5 W |
| Plug type | USA |
| Connected load | 1300 W |
| Voltage (V) | 120 V |
| Number of phases | 1 |
| Fuse | 15 A |
| Frequency | 60 Hz |
| Required inlet water pressure psi | 0,03-1 |
| Net weight | 91.5 lb |
| Dimensions | |
| Width | 23 15/16 '' |
| Height | 32 11/16 '' |
| Depth | 21 13/16 '' |
| Maximum product height | 34 13/16 '' |
| Length of electrical cord | 71 7/16 '' |
| Depth with door open | 46 7/8 '' |
| Length inlet hose | 64 3/16 '' |
| Length outlet hose | 90 9/16 '' |
| Logistic information | |
| Packaging width | 25 3/16 '' |
| Packaging height | 35 1/16 '' |
| Packaging depth | 26 3/4 '' |
| Gross weight | 98.1 lb |
| Product code | 740092 |
| EAN code | 3838782628504 |
