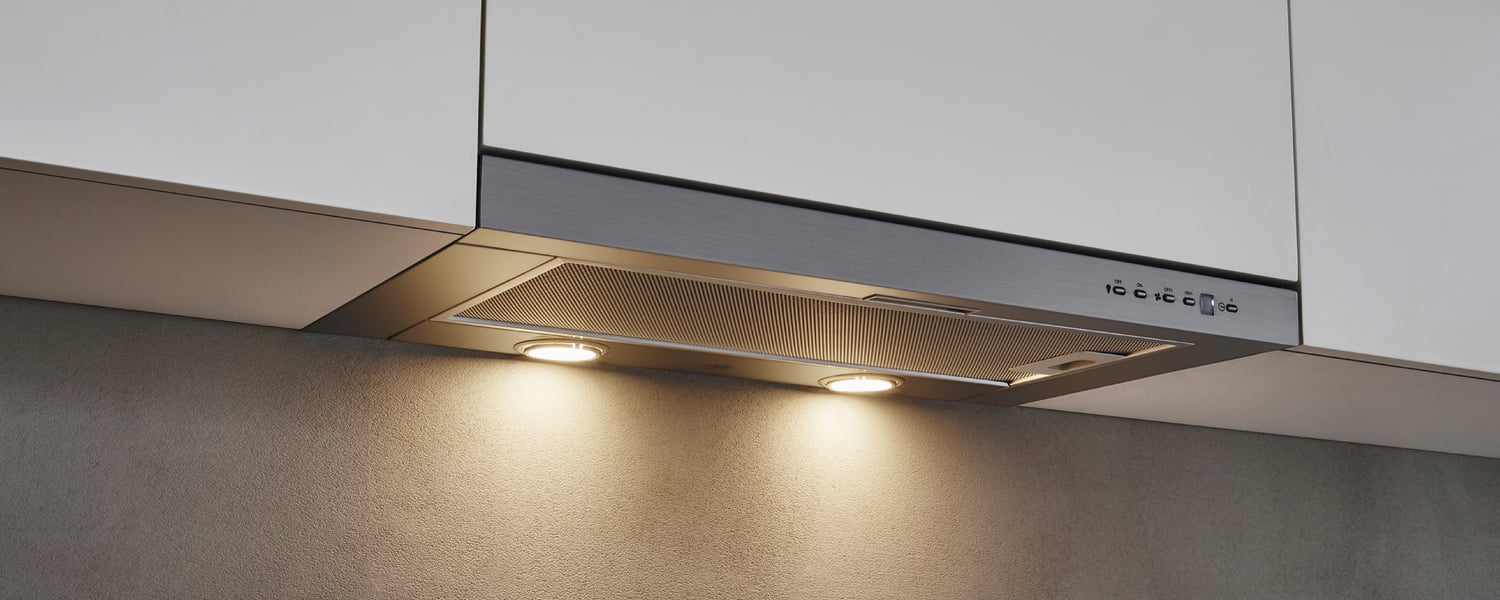

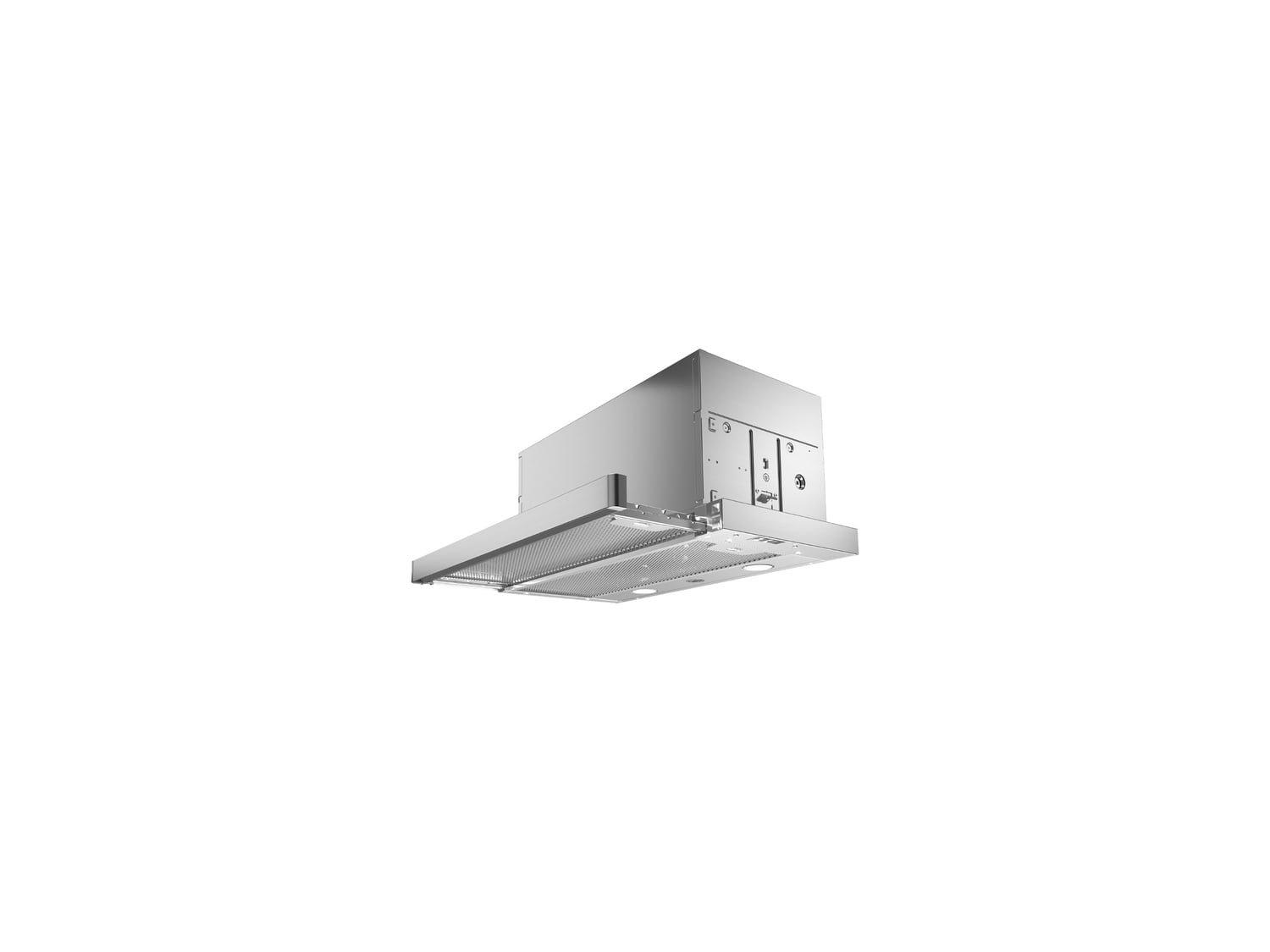

Bertazzoni KTV24XV 24 Telescopic Extension Visor Hood, 1 Motor 300 Cfm Stainless Steel
All Bertazzoni Hoods Are Designed, Engineered And Made In Italy Using The Highest Grade Materials And Components. Every Hood Pairs Perfectly With All Bertazzoni Ranges, Rangetops And Cooktops Of The Same Size And Integrates Seamlessly With All Other Bertazzoni Appliances Into Style-Harmonized Suites For A True, High-Performing Kitchen. Powered By A 300 Cfm Motor With Three Power Settings, This Telescopic Hood Extends Almost 7" From The Cabinet When In Operation. It Comes With Aluminum Mesh Filters, Easily Removable And Dishwasher Safe. Two Led Lights Provide Bright Illumination Of The Cooking Surface Under The Hood. It Is Installed Inside The Upper Cabinet Above The Cooking Surface And Can Be Vented Out Or Recirculated. All Bertazzoni Appliances Are Covered By A 2-Year Warranty.
Size | 24 in |
Hood type | visor |
Motor | 1 |
Max extraction power | 300 CFM |
Filters type | aluminum mesh |
Lights | 2 LED |
Hood | |
Recirculation | yes |
Size | 24 in |
Hood type | visor |
Motor | 1 |
Speed | 3 |
Hood finishing | stainless steel |
Duct size | 6' diameter |
Hood control | slider |
Filters type | aluminum mesh |
Lights | 2 LED |
Max extraction power | 300 CFM |
Technical specifications | |
Electrical supply | 120 V 60 Hz - 152 W / 1.1 Amp |
Power connection | NEMA 5-15P with 59' power cord |
Certification | UL |
KTV24XV Specifications sheet
KTV24XV Installation, Use & Care Manual
KTV24XV Installation drawing
Dimension Diagram
KTV24XV Installation, Use & Care Manual
KTV24XV Installation drawing
Dimension Diagram
