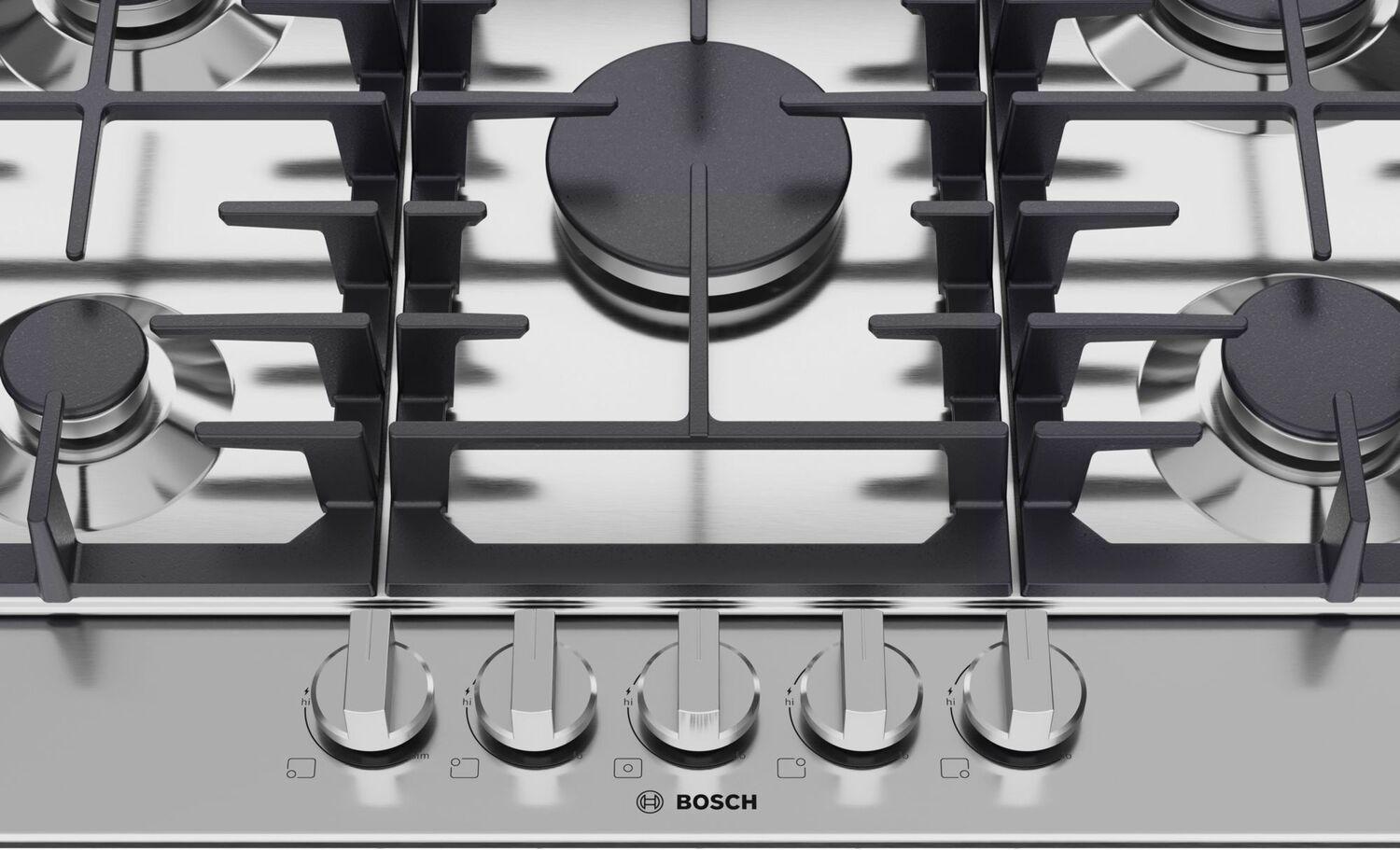

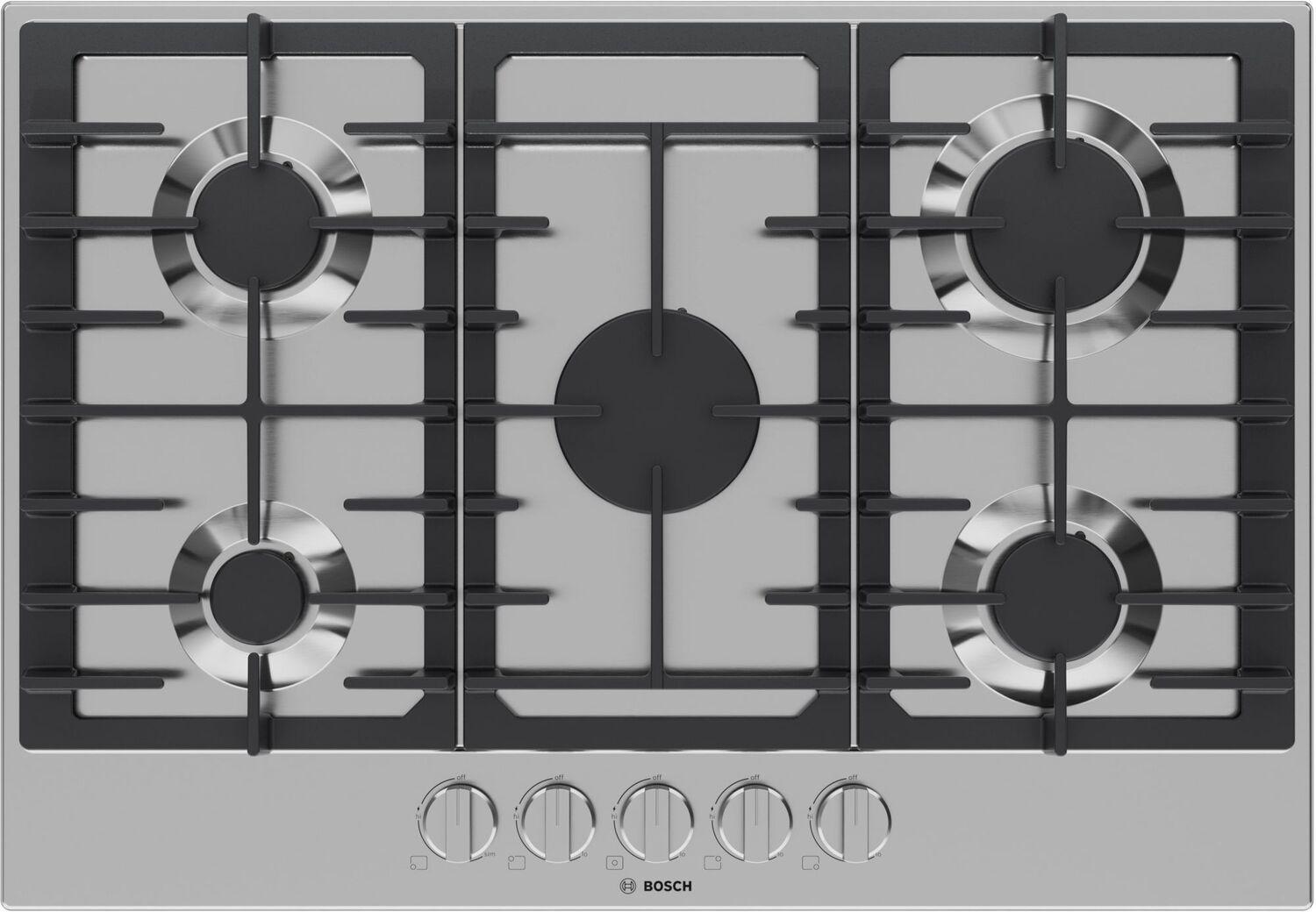

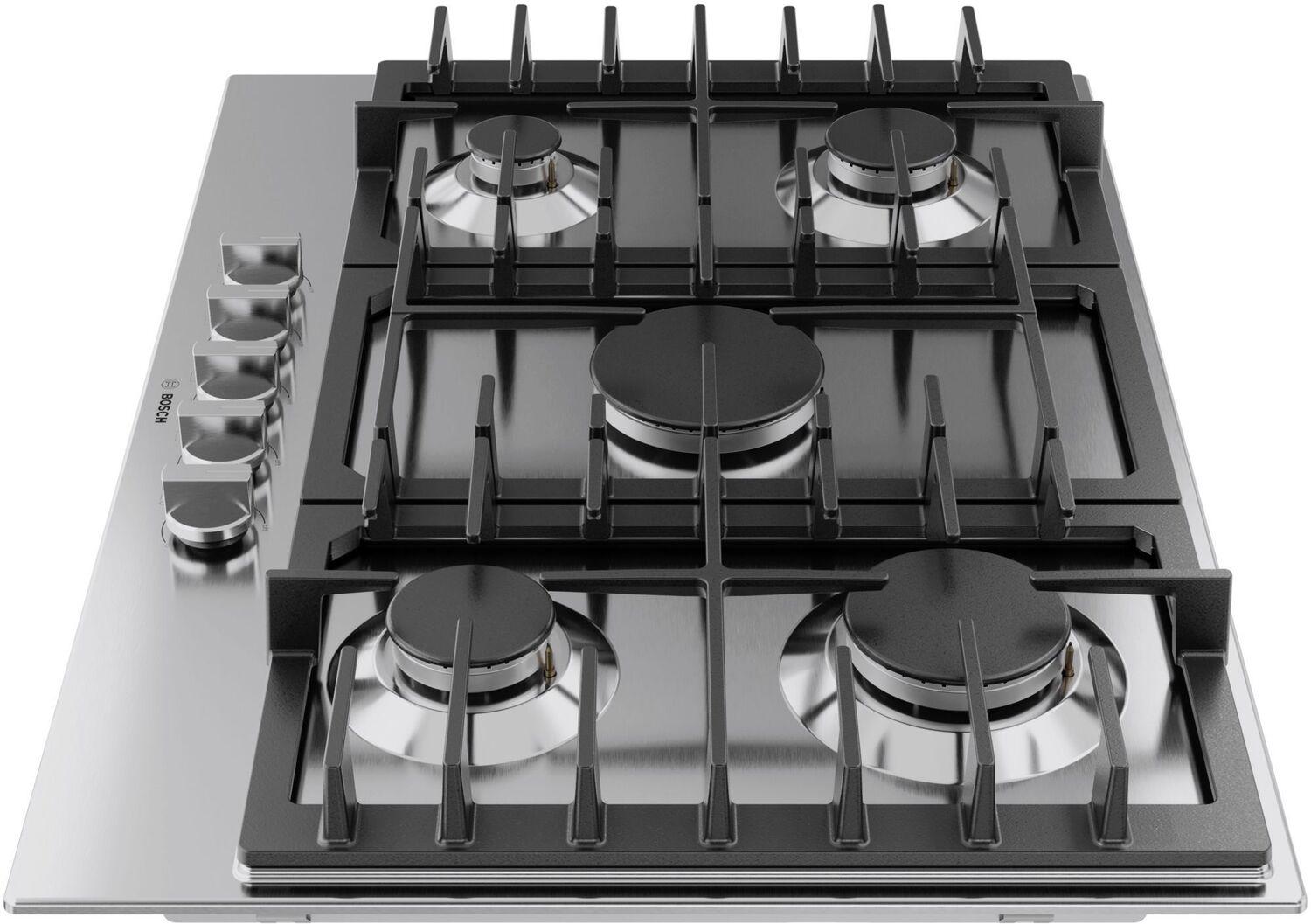

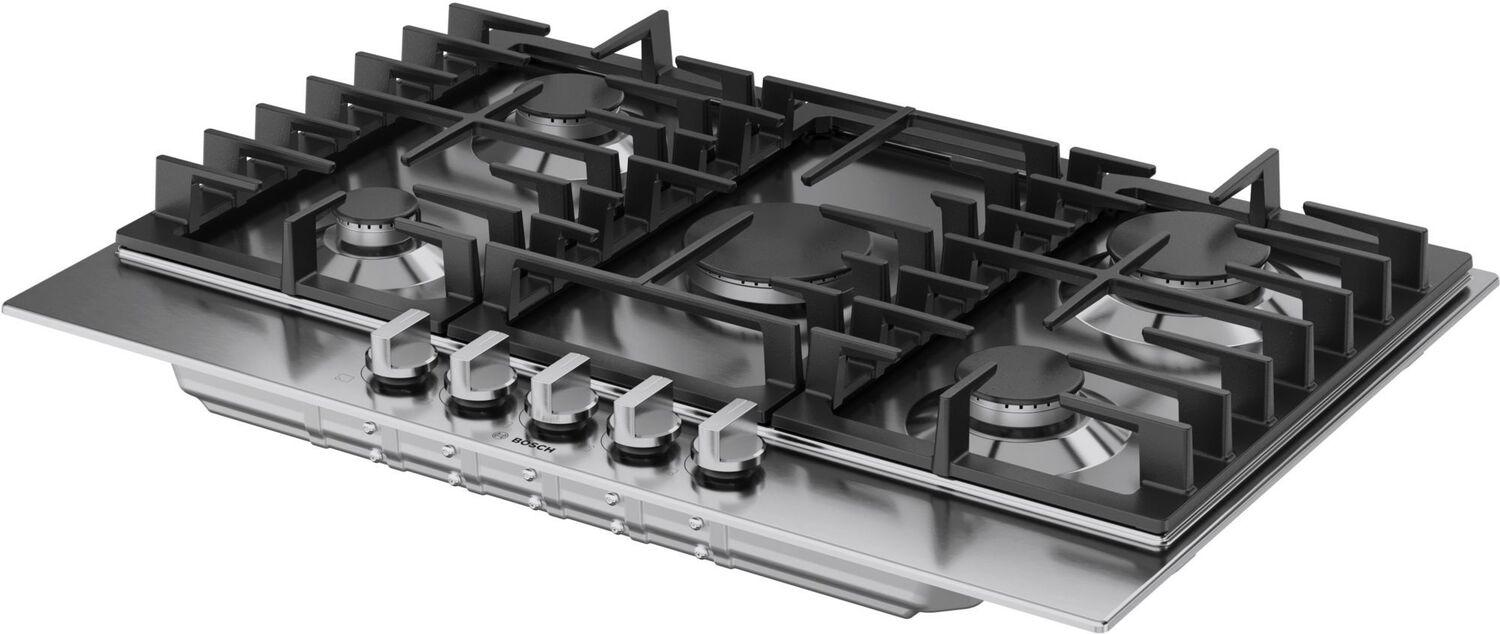

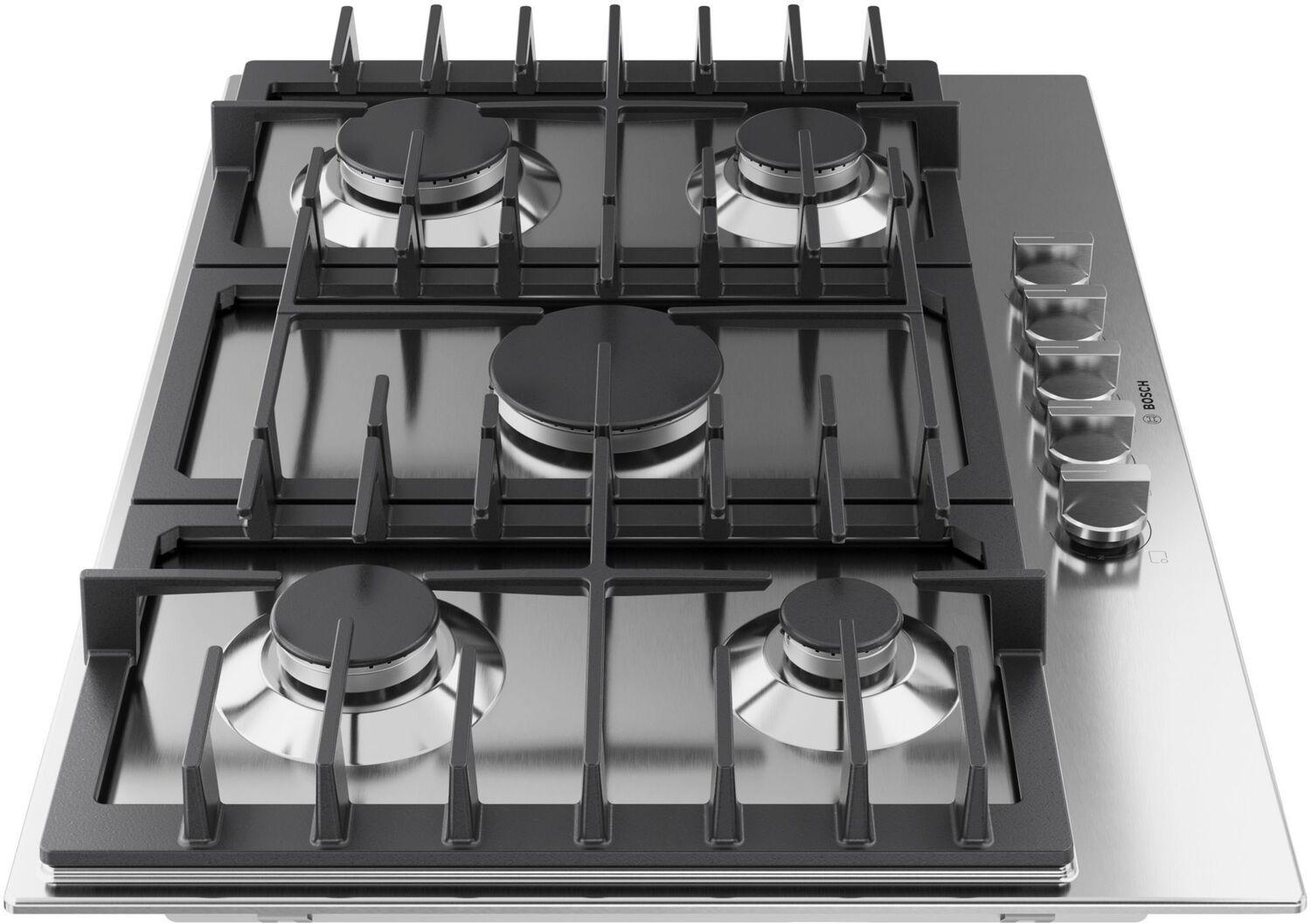

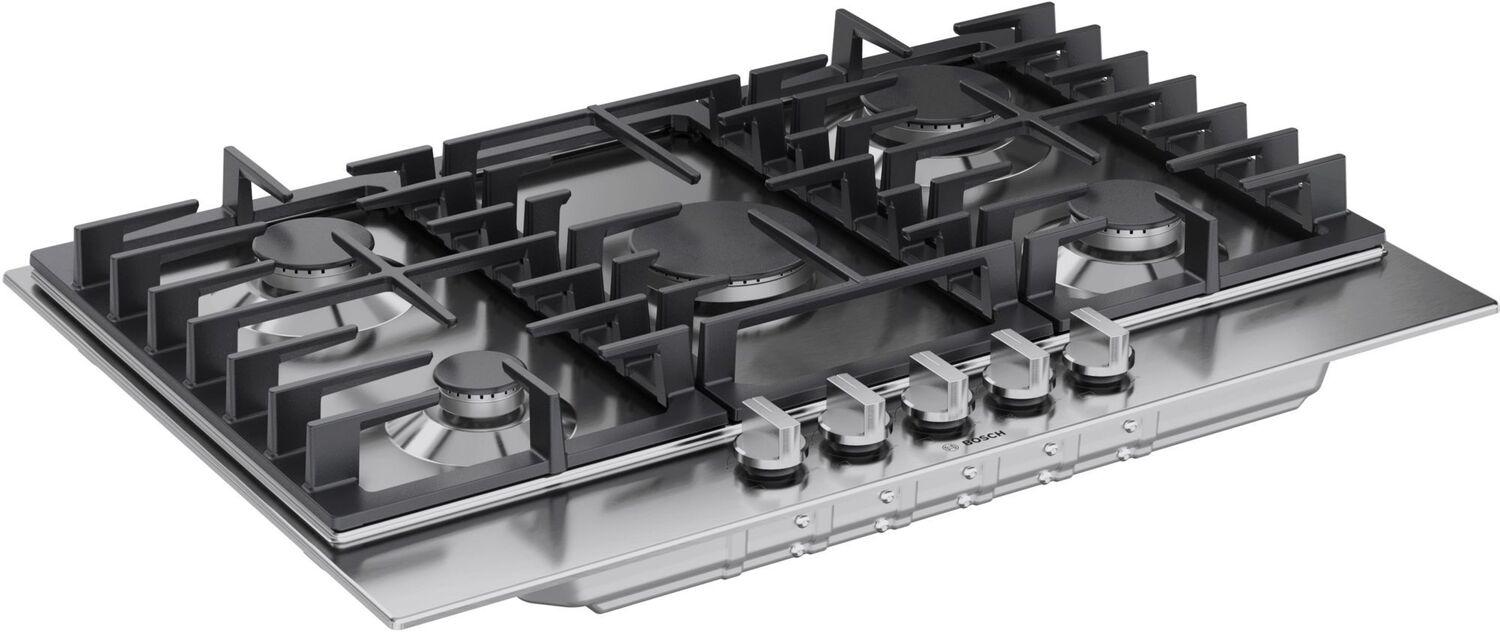

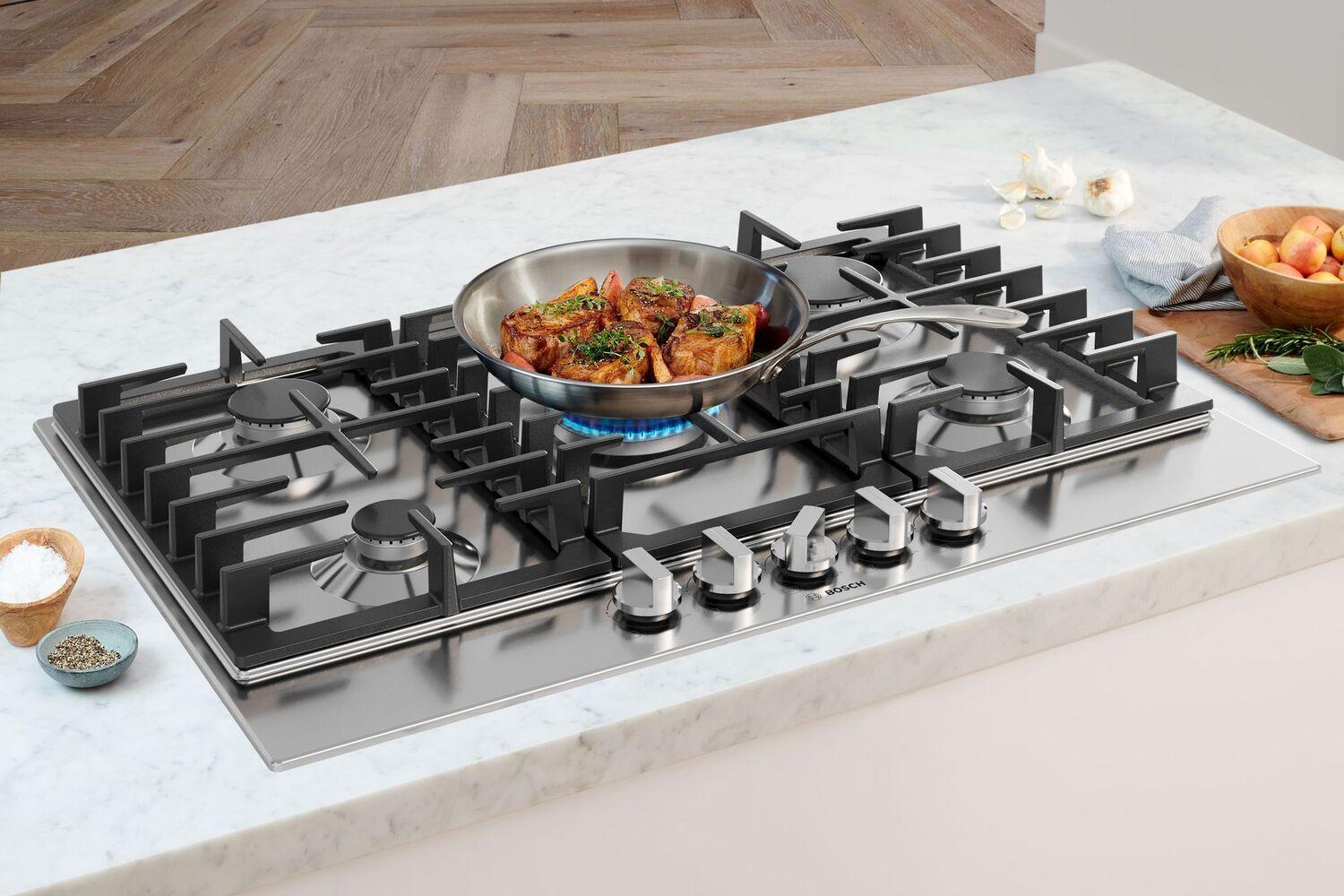

Bosch NGM3050UC 300 Series Gas Cooktop Stainless Steel

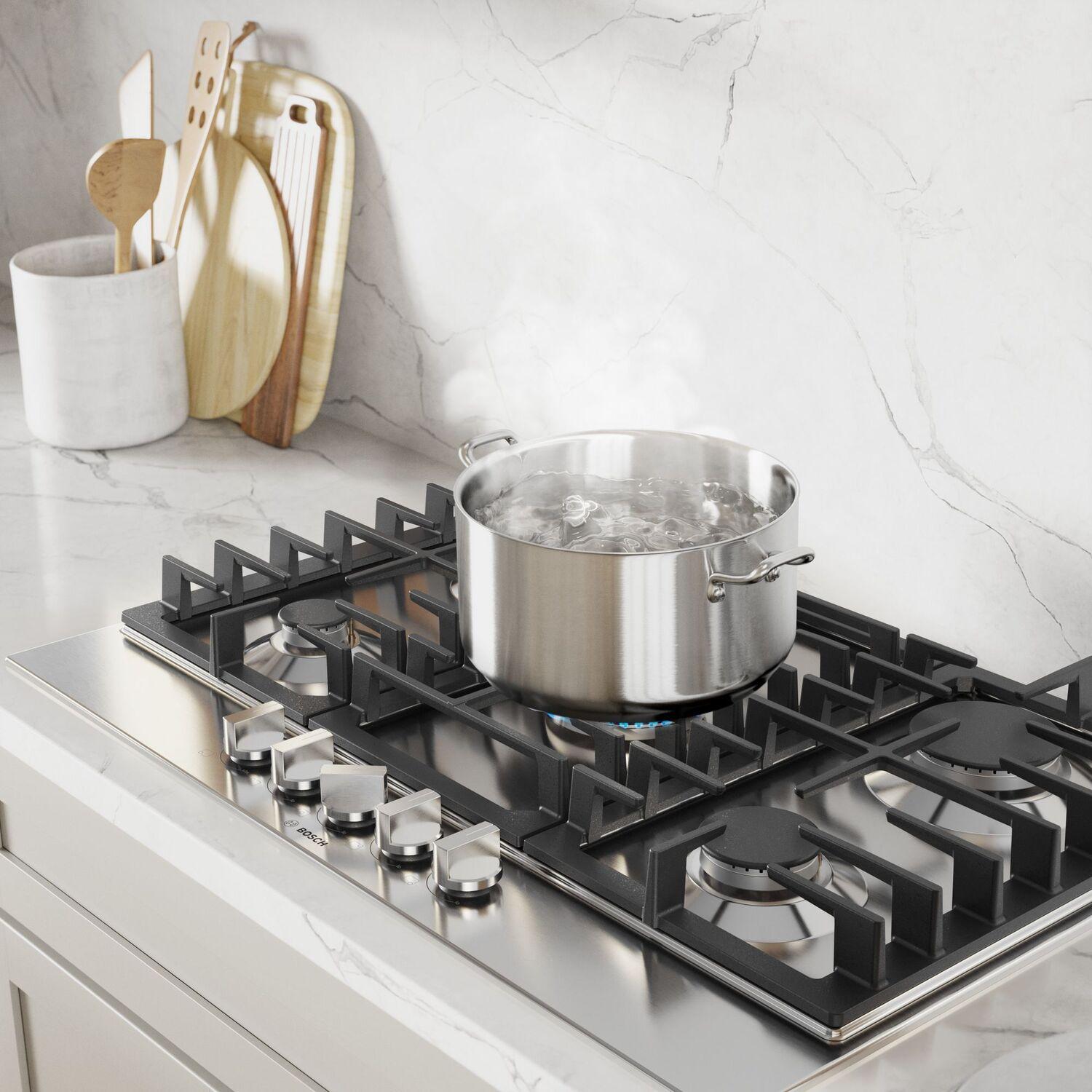

16,000 BTU Burner
Powerful 16,000 BTU burner for boiling, searing and stir-frying.

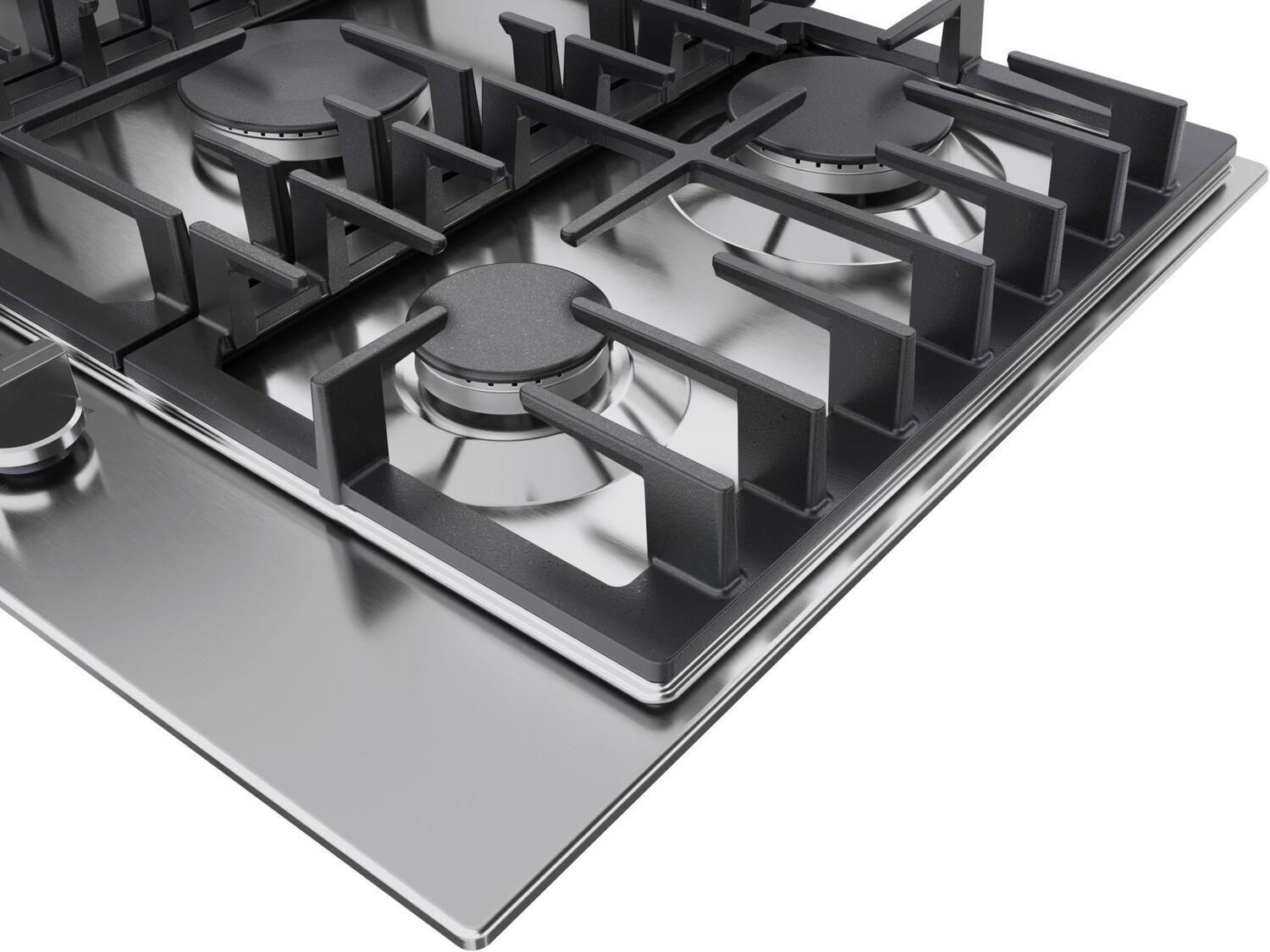

Easy to clean, low-profile design
The low-profile cooking surface provides a timeless, streamlined look while keeping spills contained and makes clean-up easier than ever
Bosch Ngm3050Uc 300 Series Gas Cooktop

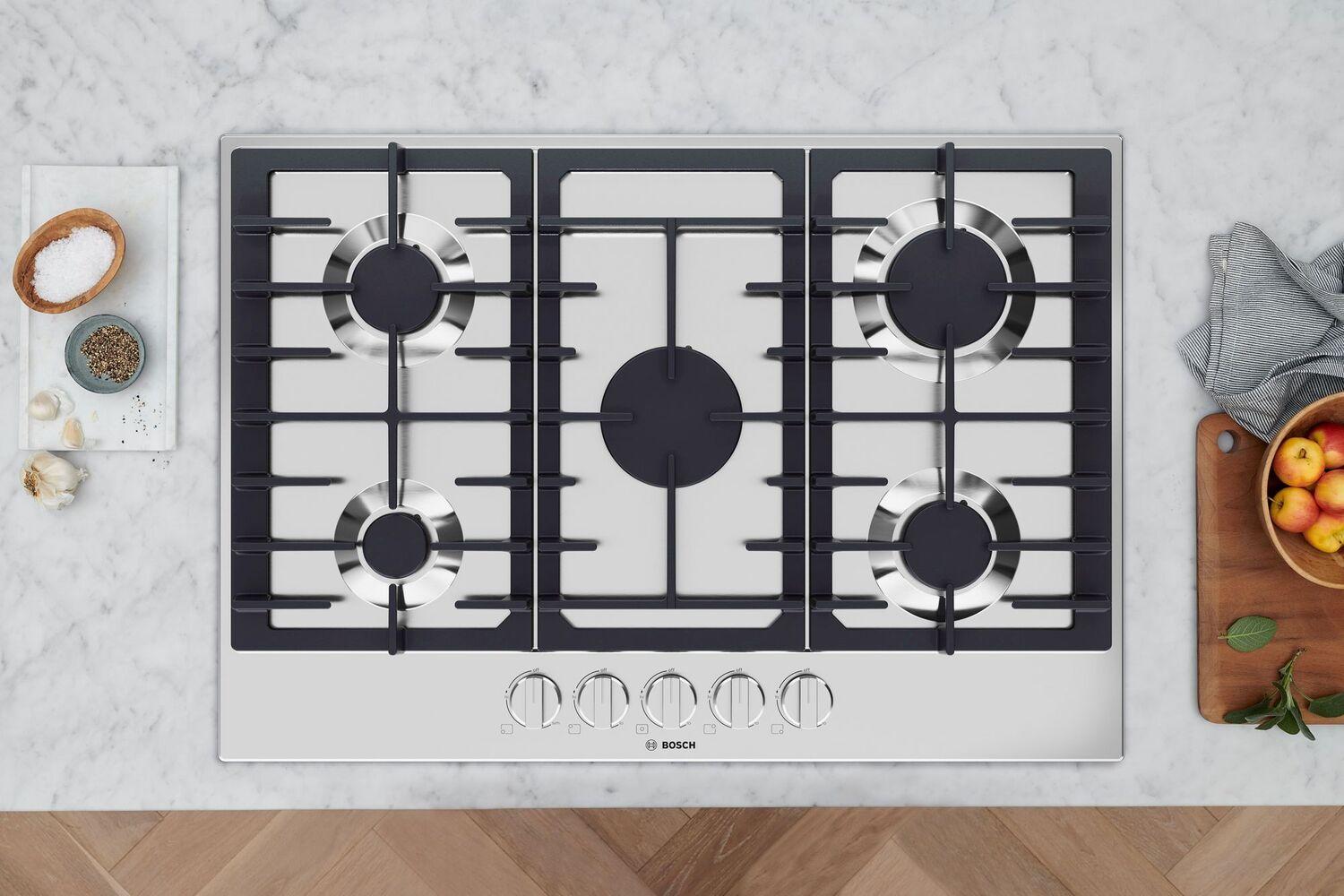

- Fit multiple pans and cook with 5 burners
- 16,000 BTU Burner
- Easy to clean, low-profile design
Features and Specifications | |
General | |
Energy source | Gas |

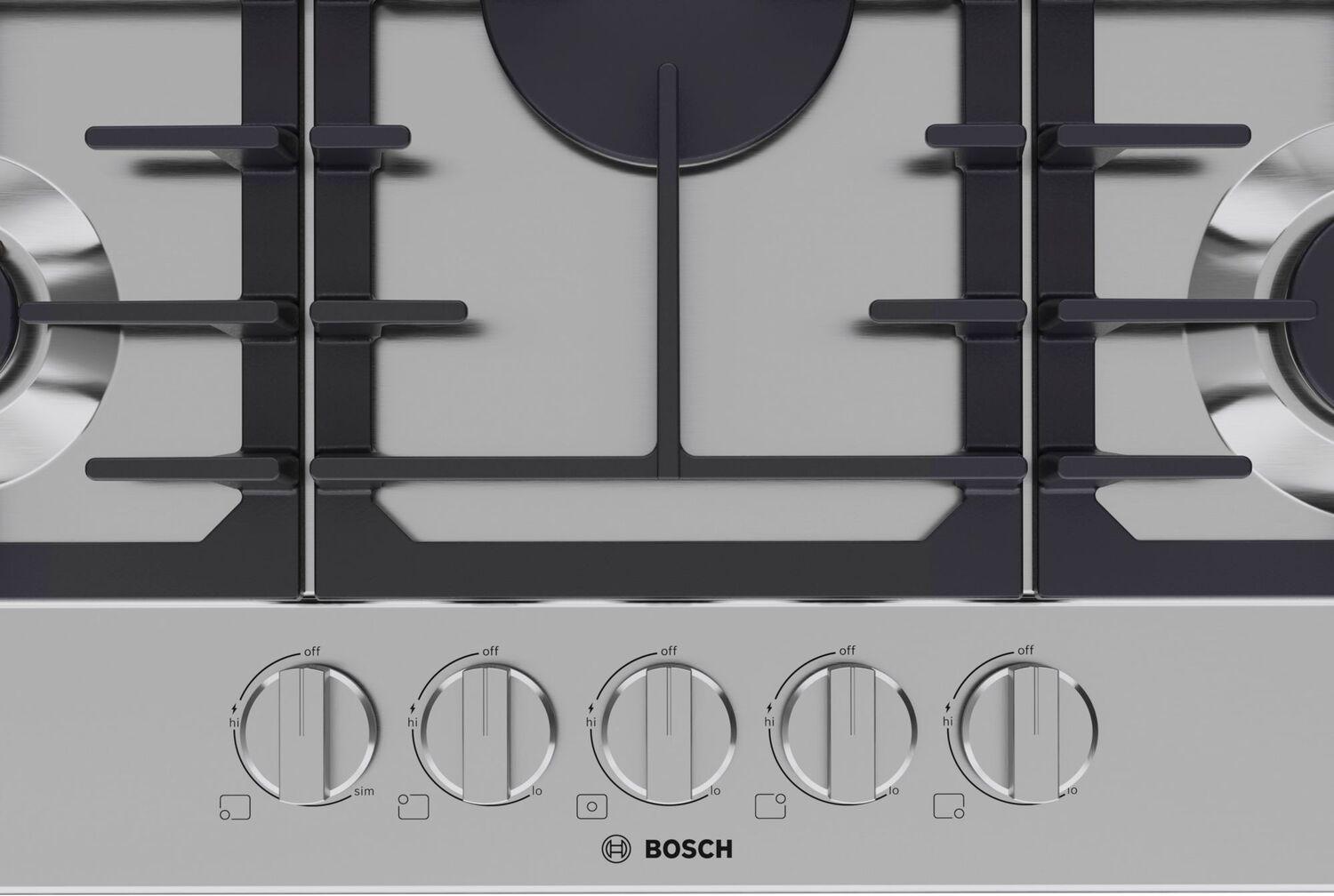

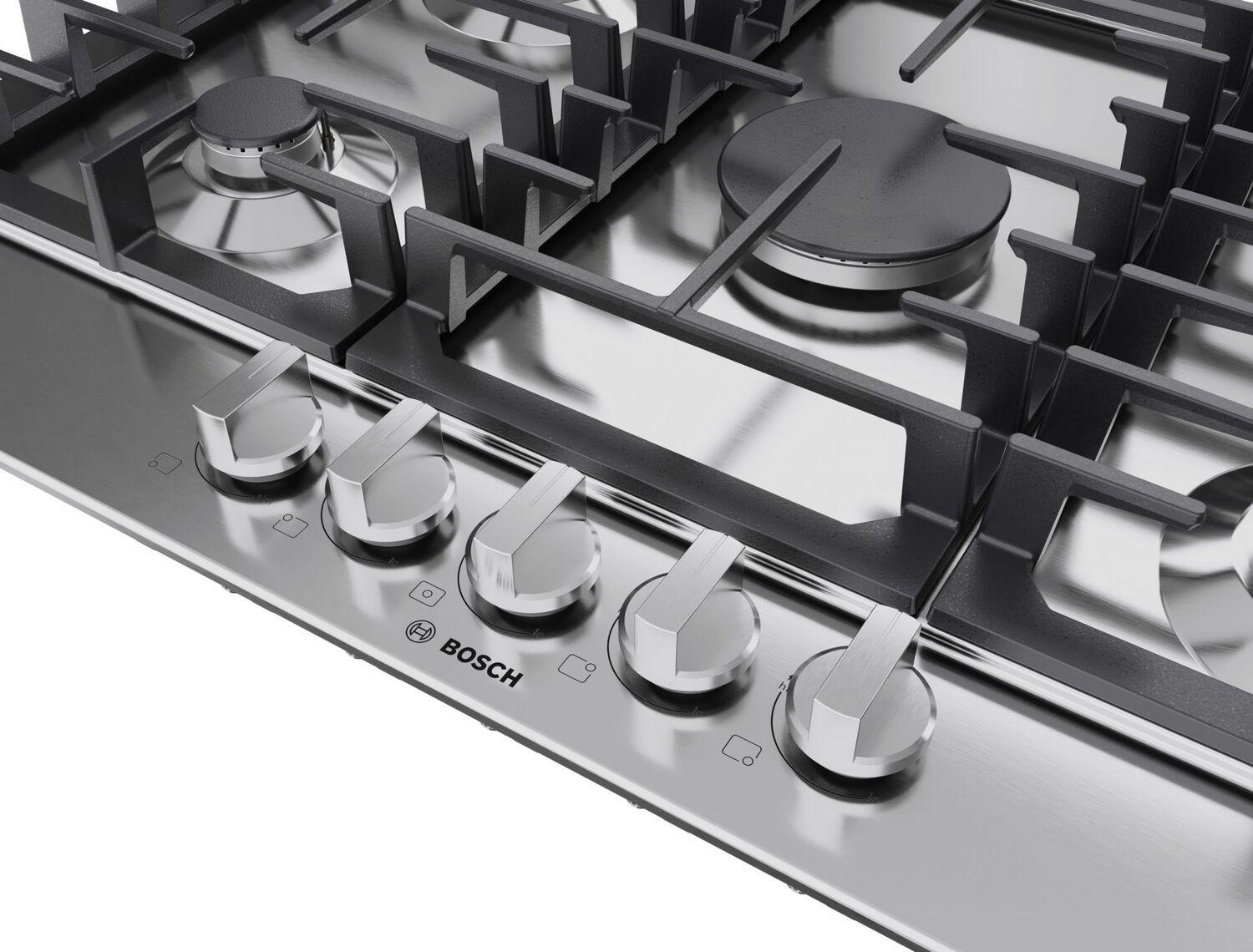

Type of control | sword knobs |
Safety Features | SMARTFLAME |
Construction type | |
Color of frame | Stainless steel |
Color of surface | Stainless steel |
Construction Type | Built-in |
Number of electric elements | 0 |
Number of electric cooking zones | 0 |
Number of gas burners | 5 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Type of grate | Cast iron |
Total number of cooktop burners | 5 |
Number of radiant elements | 0 |
Number of electric warming zones | 0 |

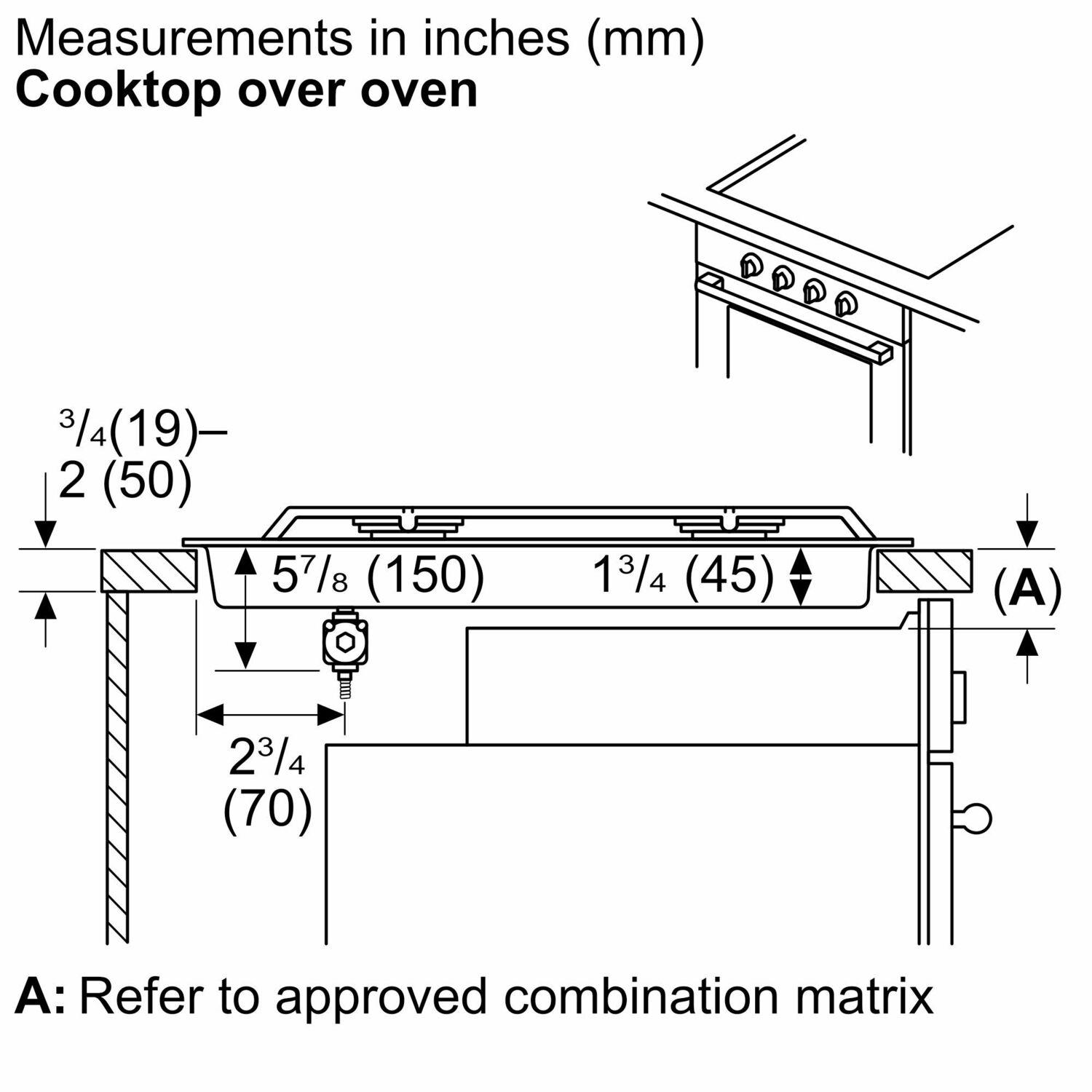

Size and weight | |

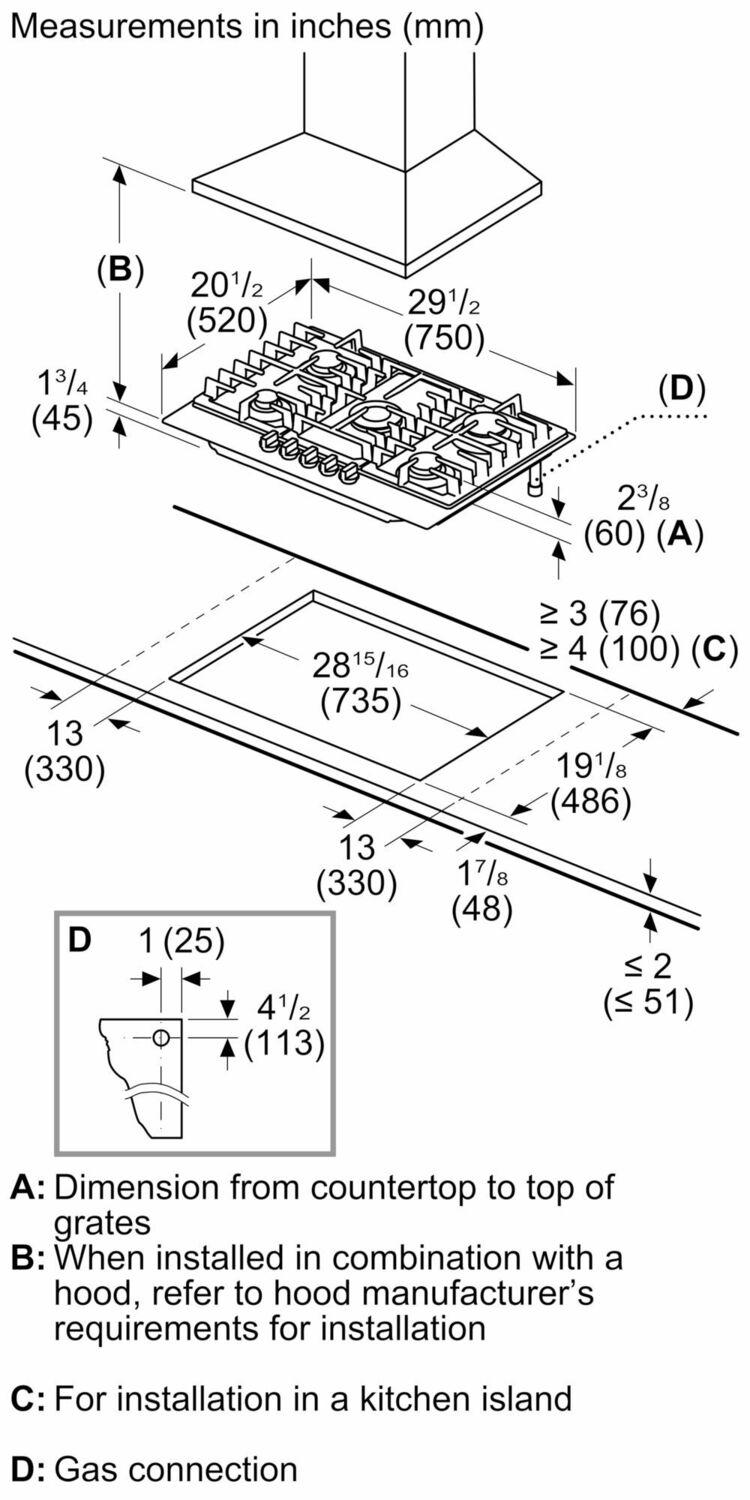

Overall Appliance Dimensions (HxWxD) (in) | 2 13/64' x 29 1/2' x 20 1/2'' |
Net Weight | 35.000 lbs |

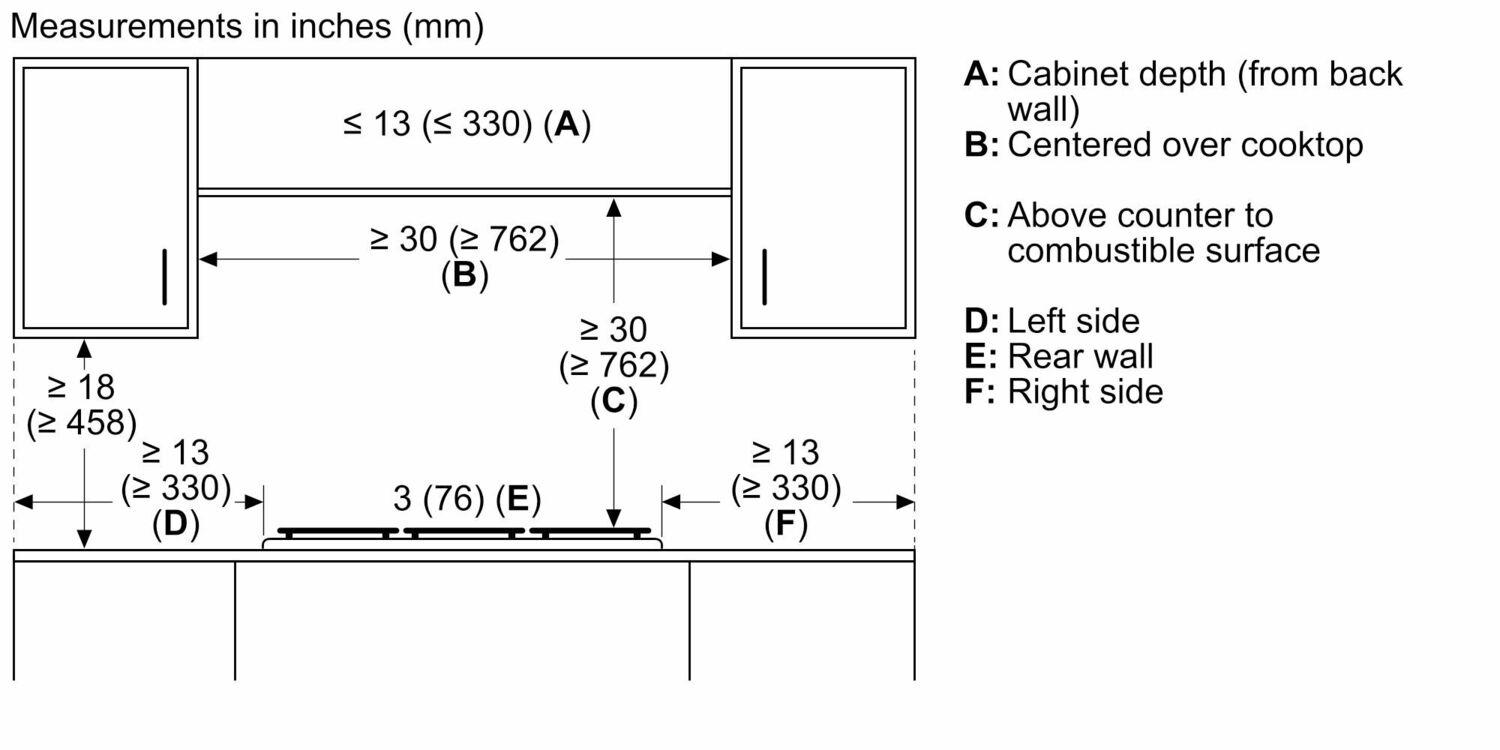

Minimum distance from counter front (in) | 1 7/8'' |
Minimum distance from rear wall (in) | 3'' |
Cooking zone 1 | |
Location of heating element | front left |
Power of heating element (kW) | 1 kW |
Type of heating element | Gas |
Cooking zone 3 | |
Location of 3rd heating element | back left |
Power of 3rd heating element (kW) | 1.75 kW |
Type of 3rd heating element | Gas |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Location of 5th heating element | back right |
Power of 5th heating element (kW) | 2.64 kW |
Type of 5th heating element | Gas |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Location of 7th heating element | front right |
Power of 7th heating element (kW) | 1.75 kW |
Type of 7th heating element | Gas |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Power of 9th heating element (kW) | 4.7 kW |
Safety | |
Residual heat indicator | without |
Type of safety device for gas | Electromagnetic for each burner |
Safety Features | SMARTFLAME |
Connection | |
Total connected gas load | 11,800 W |
Location of gas connection | bottom, rear, right |
Frequency | 60 Hz |
Energy source | Gas |
Power Cord Length | 40' |
Watts | 400 W |
Accessories | |
Included accessories | 1 x nozzle set for liquid gas, 1 x Simmer cap |
