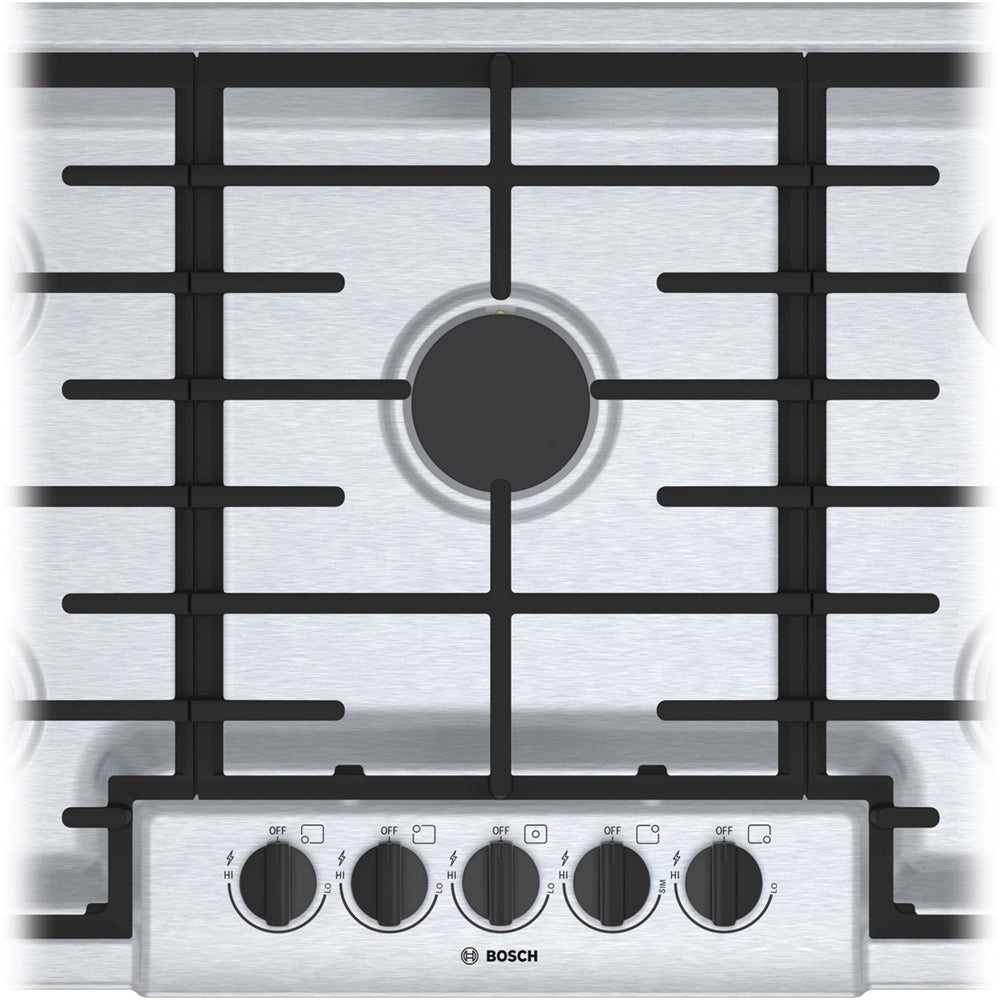

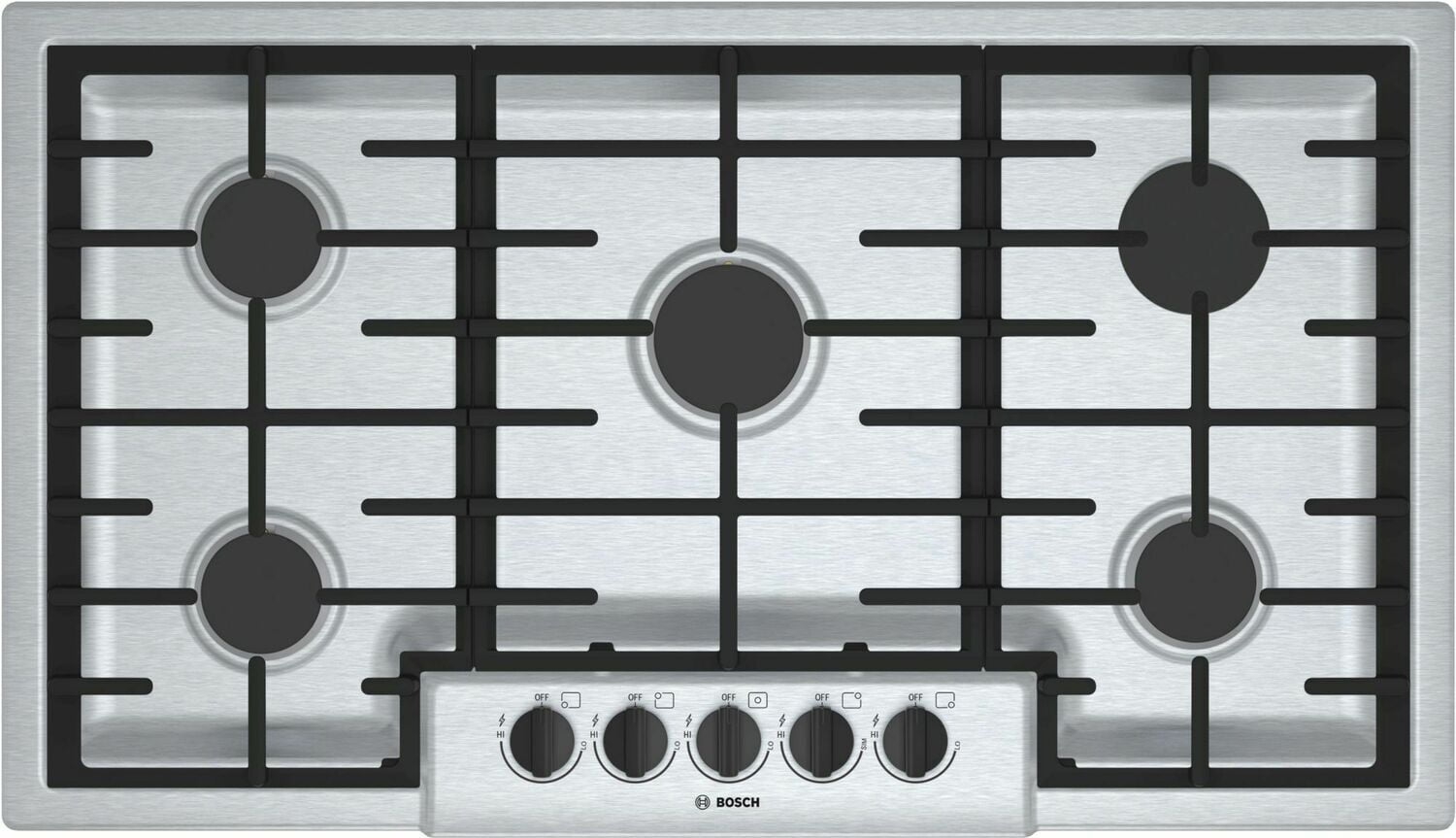

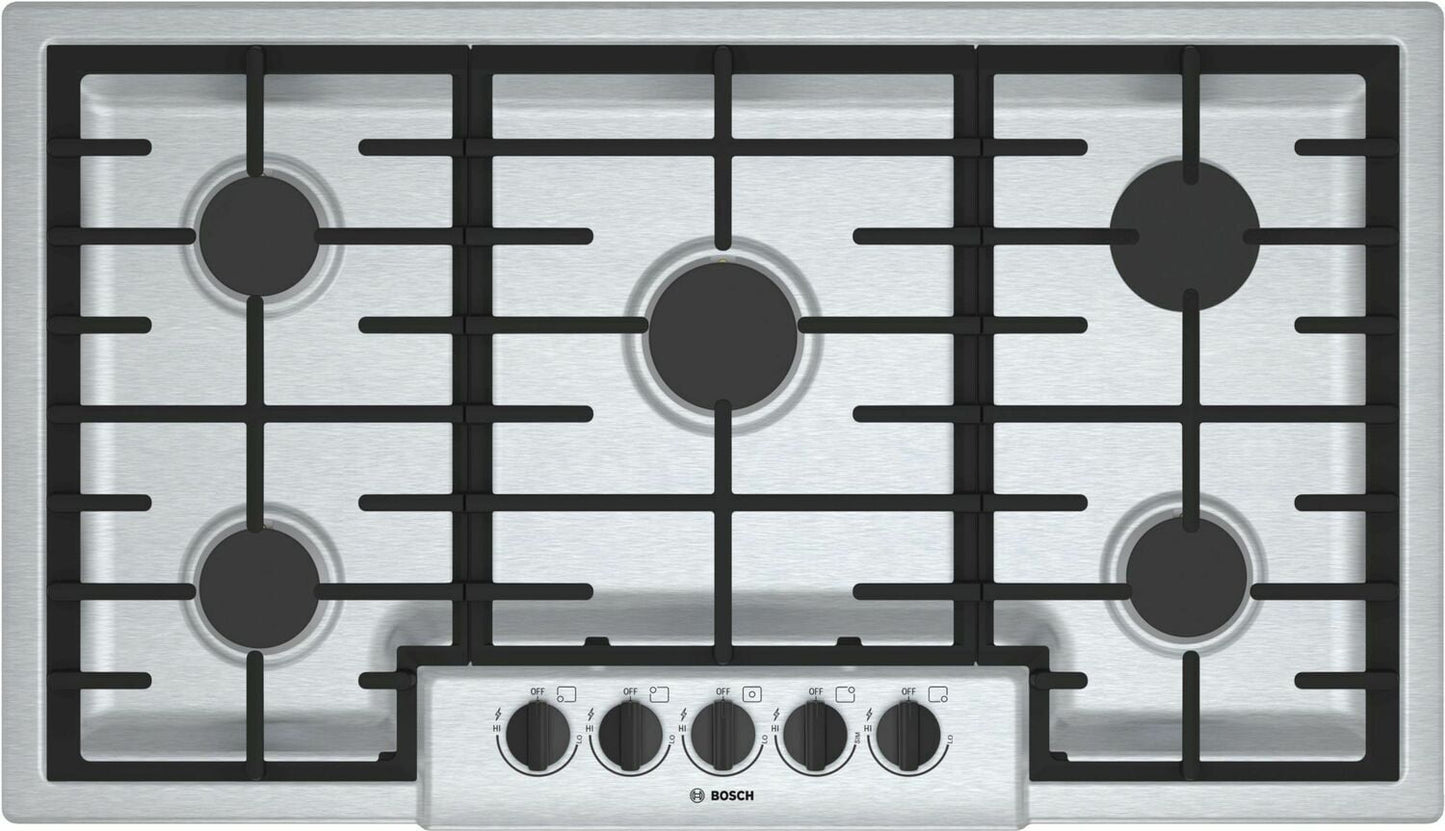

Bosch NGM5656UC 500 Series, 36" Gas Cooktop, 5 Burners, Stainless Steel
Automatic re-ignition
The electronic re-ignition feature will automatically re-ignite the burner in case the flame goes out during use.
Easier cleanup
The seamless one-piece stainless steel design makes clean-up simple while the low profile design offers an integrated look.
Continuous cast iron grate design
The full width continuous cast iron grate design makes sliding heavy pots easier around the cooking surface.
Bosch gas cooktops are engineered to perform precisely, offering high heat and low simmer options for optimal cooking flexibility.
- Powerful: 16,000 BTU burner for boiling, searing and stir-frying.
- OptiSim burner: offers more flame control at the lowest settings for precise simmering and melting.
- Electronic re-ignition: will automatically re-ignite the burner in case the flame goes out.
- Seamless: one-piece stainless steel design makes clean-up simple.
- Continuous grates: make moving heavy pots easier.
Technical Specifications | |
General | |
Energy source | Gas |

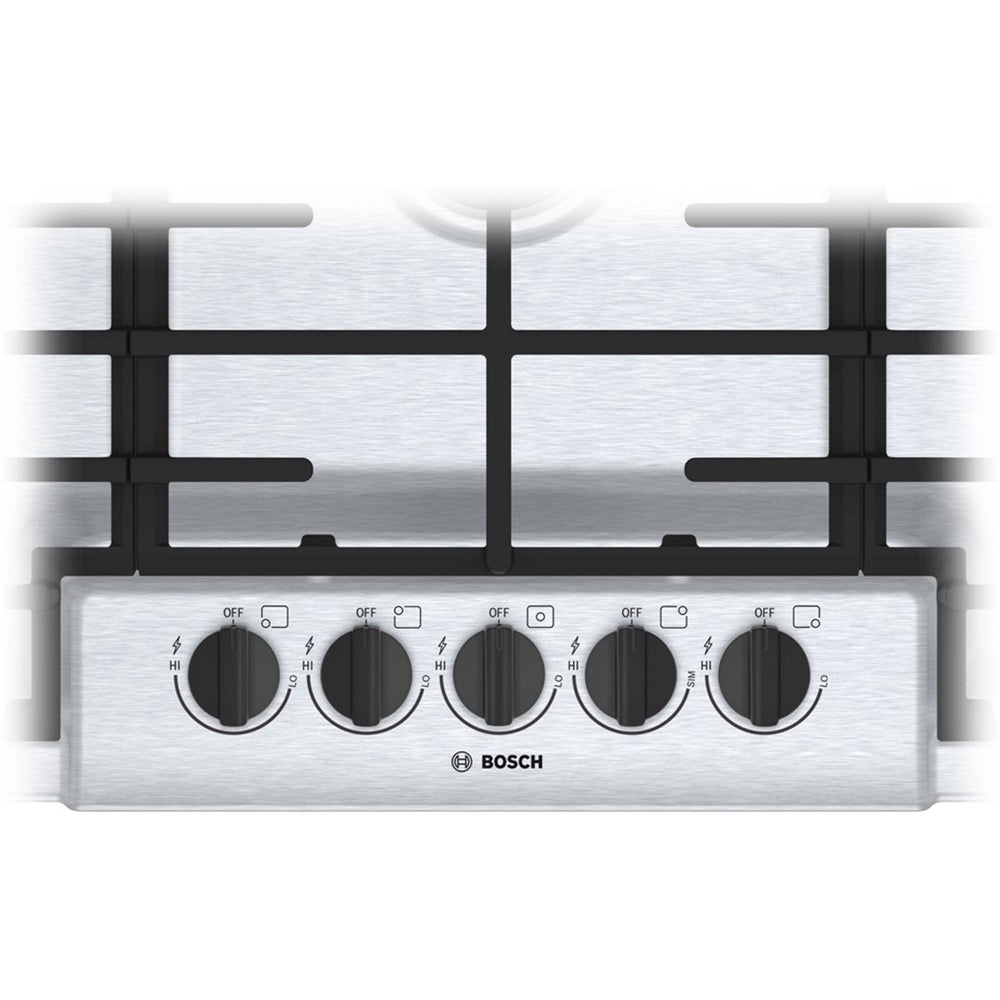

Type of control | sword knobs |
Safety device | automatic reignition |
Construction type | |
Color of frame | Stainless steel |
Color of surface | Stainless steel |
Construction type | Built-in |
Number of electric elements | 0 |
Number of electric cooking zones | 0 |
Number of gas burners | 5 |
Number of halogen elements | 0 |
Installation Type | Built-in |
Type of grate | Cast iron |
Total number of cooktop burners | 5 |
Number of radiant elements | 0 |
Number of electric warming zones | 0 |
Size and weight | |

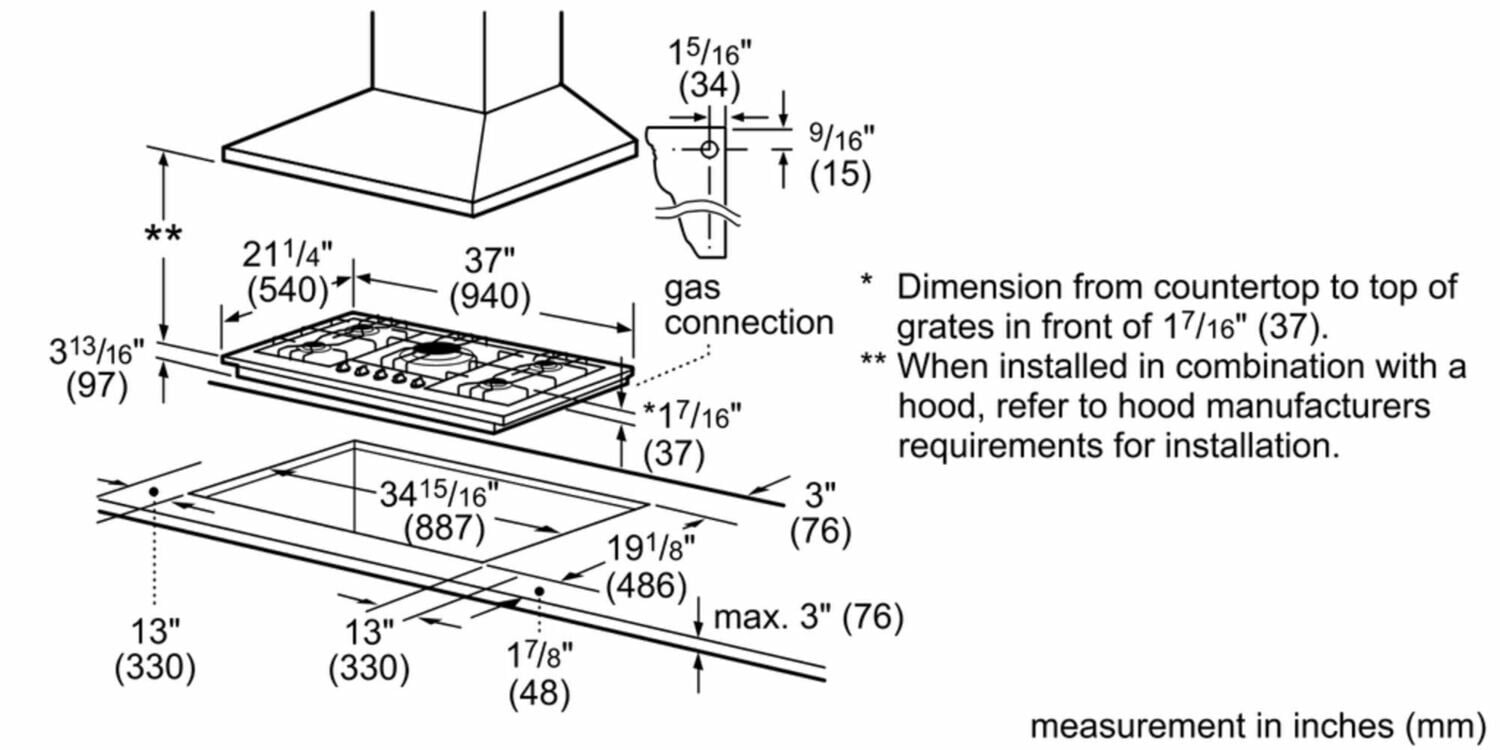

Overall appliance dimensions (HxWxD) (in) | + 3 13/16'' x 37'' x 21 1/4'' |
Net weight (lbs) | 46.000 |
Minimum distance from counter front (in) | 1 7/8'' |
Minimum distance from rear wall (in) | 3'' |
Cooking zone 1 | |
Location of 1st heating element | front left |
Type of heating element | Gas |
Cooking zone 2 | |
Location of 2nd heating element | center left |
Cooking zone 3 | |
Location of 3rd heating element | back left |
Type of 3rd heating element | Gas |
Cooking zone 4 | |
Location of 4th heating element | middle back |
Cooking zone 5 | |
Location of 5th heating element | back right |
Type of 5th heating element | Gas |
Cooking zone 6 | |
Location of 6th heating element | center right |
Cooking zone 7 | |
Location of 7th heating element | front right |
Type of 7th heating element | Gas |
Cooking zone 8 | |
Location of 8th heating element | front middle / central |
Cooking zone 9 | |
Location of 9th heating element | front centre/cent |
Safety | |
Type of safety device for gas | Without |
Power on indicator | |
Residual heat indicator | without |
Safety device | automatic reignition |
Main on/off switch | |
Connection | |
Gas connection rating (W) | 15,100 |
Location of gas connection | bottom, rear, right |
Frequency (Hz) | 60 |
Energy source | Gas |
Power Cord Length | 60'' |
Watts (W) | 360 |
