Bosch NGM8648UC 800 Series Gas Cooktop 36'' Black Ngm8648Uc
Bosch NGM8648UC 800 Series Gas Cooktop 36'' Black Ngm8648Uc
SKU: NGM8648UC
UPC: 825225963417
Colors:
BlackWhen Will I Get My Order?
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
EXTENDED PROTECTION
3 year plan
$188.995 year plan
$359.99Couldn't load pickup availability
When Will I Get My Order?
x
Bosch NGM8648UC 800 Series Gas Cooktop 36'' Black Ngm8648Uc

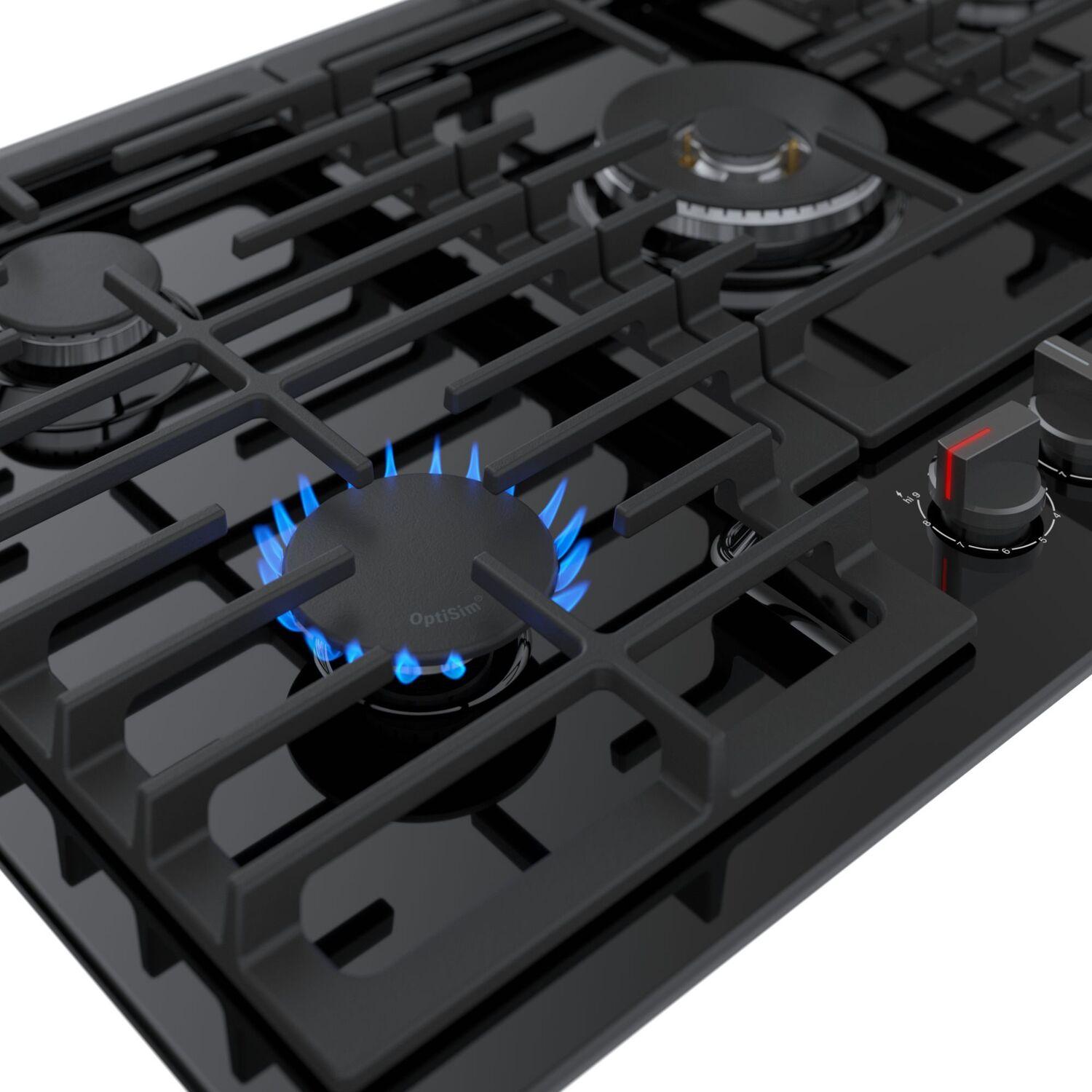

OptiSim Burner for precise simmering
Wider and thicker OptiSim burner design diffuses heat evenly for better flame control when simmering delicate sauces.
Easy clean-up with dishwasher safe grates
With a special enameling process, the heavy-duty continuous surface grates can be easily and quickly cleaned in the dishwasher.

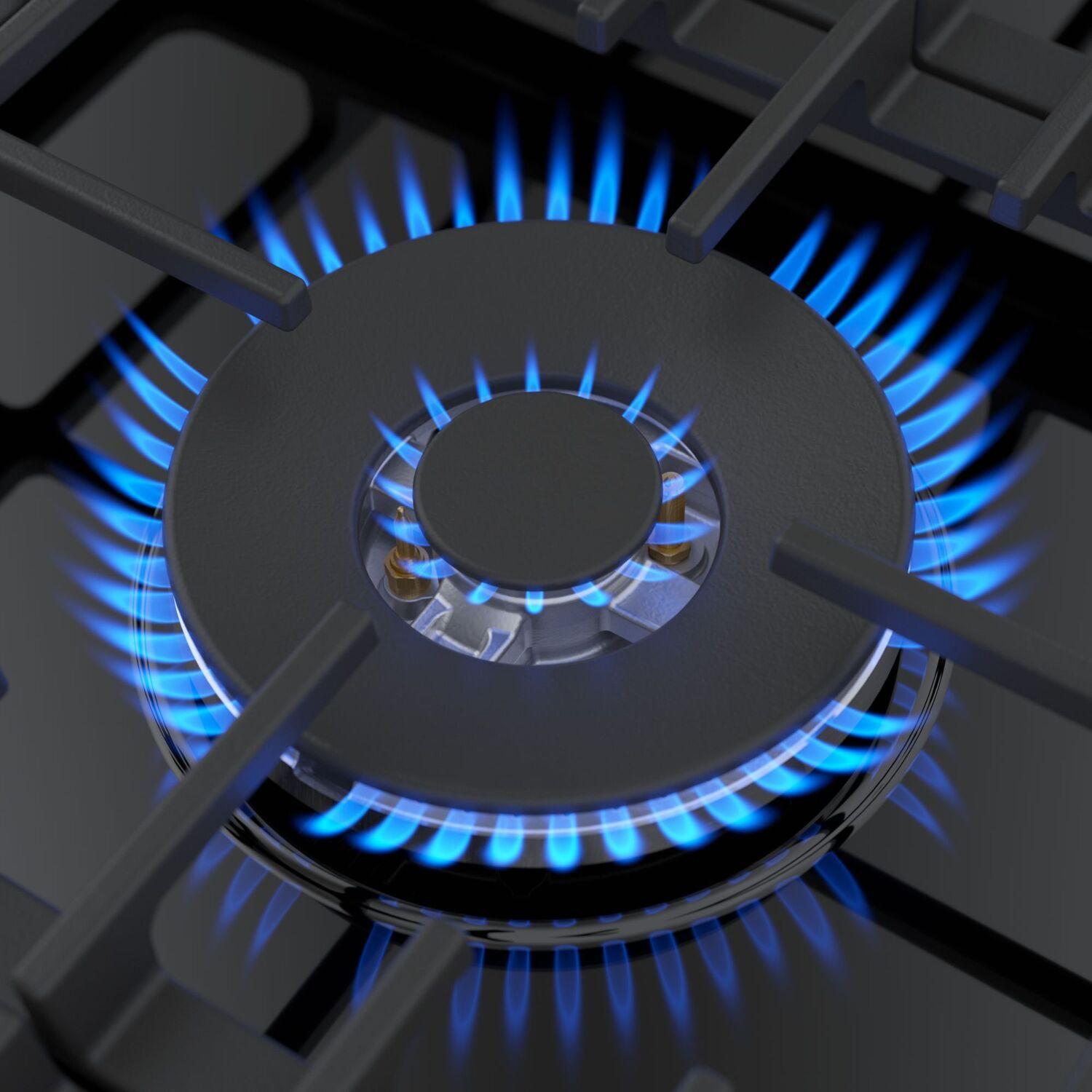

Dual-Flame Power Burner
Dual-flame power burner has two rings for low and high flame settings to go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat.

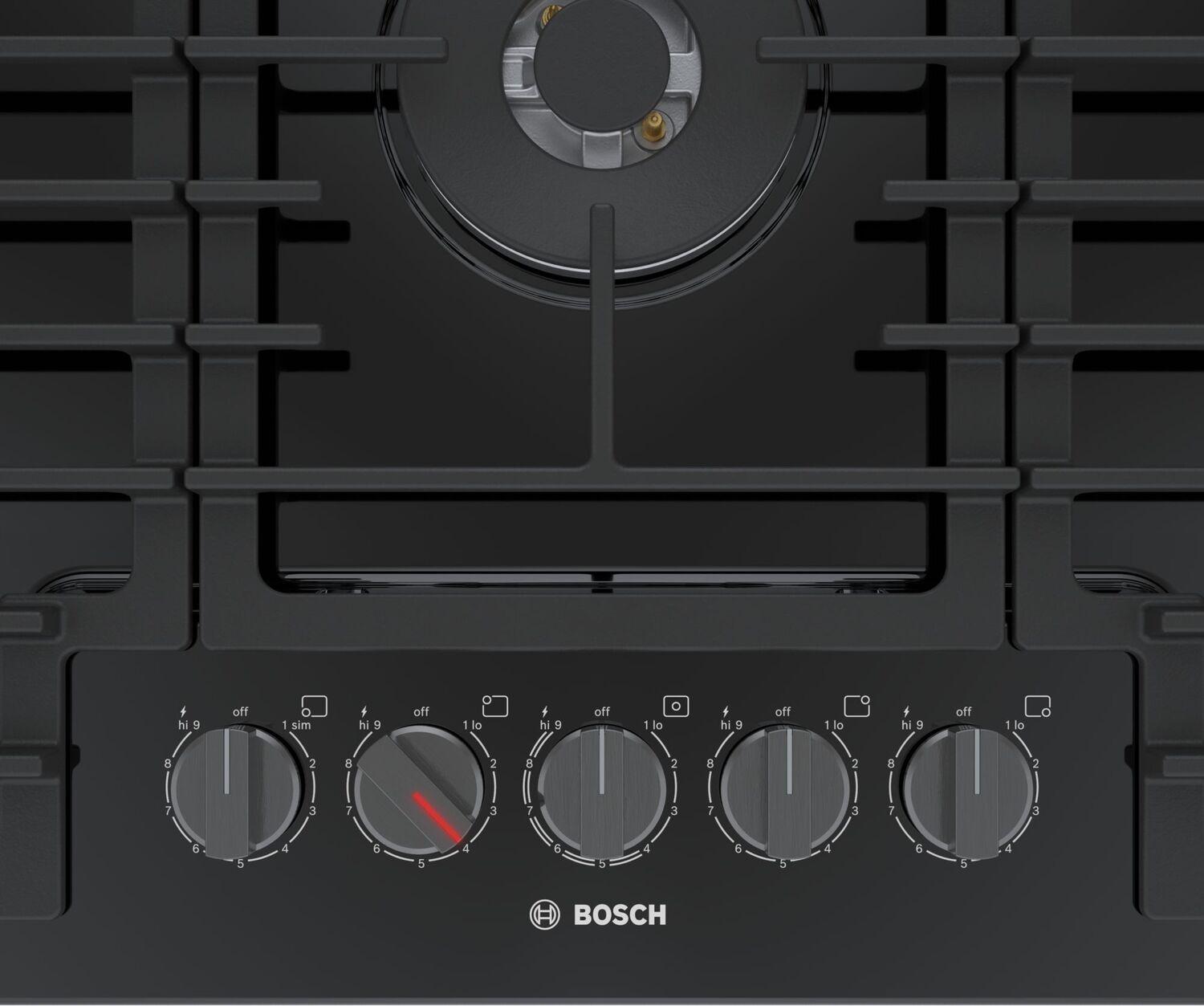

Sleek Knobs with LED Indicators
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat.

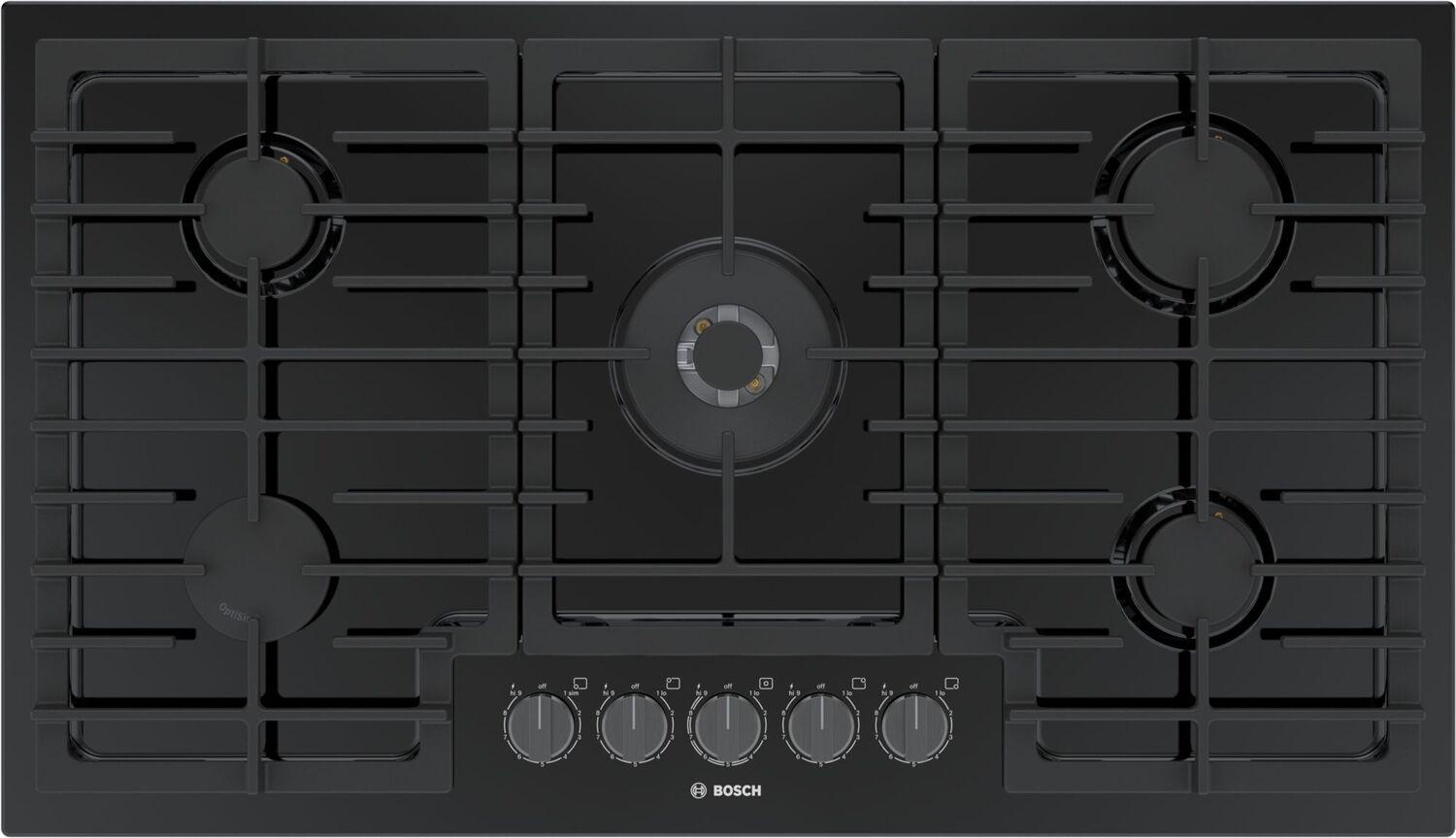

The 800® Series black porcelain gas cooktop with control knob LED light line indicator and adjustable FlameSelect®.
LED Burner Indicator LED Burner Indicator: displays a red light line to indicate if a burner is on and pulses as a safety residual heat indicator
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat. OptiSim® Burner OptiSim® Burner - Simmer delicate sauces and melt chocolate without scorching
OptiSim Burner for precise simmering
Wider and thicker OptiSim burner design diffuses heat evenly for better flame control when simmering delicate sauces. FlameSelect® New FlameSelect® technology delivers a new and better way to cook with gas. 9 pre-defined power levels deliver the ultimate cooking precision and eliminate the guesswork of the heat.
FlameSelect®: Gas cooking with a new level of precision.
Get the exact flame power at each power level, every time, for consistent repeatable results. Love your pancakes or eggs a certain doneness? Simply use the same power level each time to achieve the exact same results, so there's no more guesswork. Dual-flame power burner Dual-flame power burner has two rings for low and high flame settings to go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat. Dimensions & Capacity Width: 37"
Height: 3.75”
Depth: 21.25"
LED Burner Indicator LED Burner Indicator: displays a red light line to indicate if a burner is on and pulses as a safety residual heat indicator
Control knobs with an embedded red LED light line indicate if the burner is on or if there is residual heat. OptiSim® Burner OptiSim® Burner - Simmer delicate sauces and melt chocolate without scorching
OptiSim Burner for precise simmering
Wider and thicker OptiSim burner design diffuses heat evenly for better flame control when simmering delicate sauces. FlameSelect® New FlameSelect® technology delivers a new and better way to cook with gas. 9 pre-defined power levels deliver the ultimate cooking precision and eliminate the guesswork of the heat.
FlameSelect®: Gas cooking with a new level of precision.
Get the exact flame power at each power level, every time, for consistent repeatable results. Love your pancakes or eggs a certain doneness? Simply use the same power level each time to achieve the exact same results, so there's no more guesswork. Dual-flame power burner Dual-flame power burner has two rings for low and high flame settings to go from simmer to sear with ease. Heat level 1-3 uses the inner ring, and 4-9 uses both rings for maximum heat. Dimensions & Capacity Width: 37"
Height: 3.75”
Depth: 21.25"
- Dual-ring power burner has 2 rings for low and high flame settings so you can go from simmer to sear with ease
- Dishwasher safe heavyduty enameled cast iron grates makes cleanup simple and convenient
- Five 9-Level Gas Step Valves
- 5 burners
- LED light indicator
- FlameSelect®
- OptiSim®
| Features and Specifications | |
| General | |
| Energy source | Gas |
| Type of control | sword knobs |
| Safety device | SMARTFLAME |
| Features | Flame select |
| Construction type | |
| Color of frame | Stainless steel |
| Color of surface | Black, Stainless steel |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |

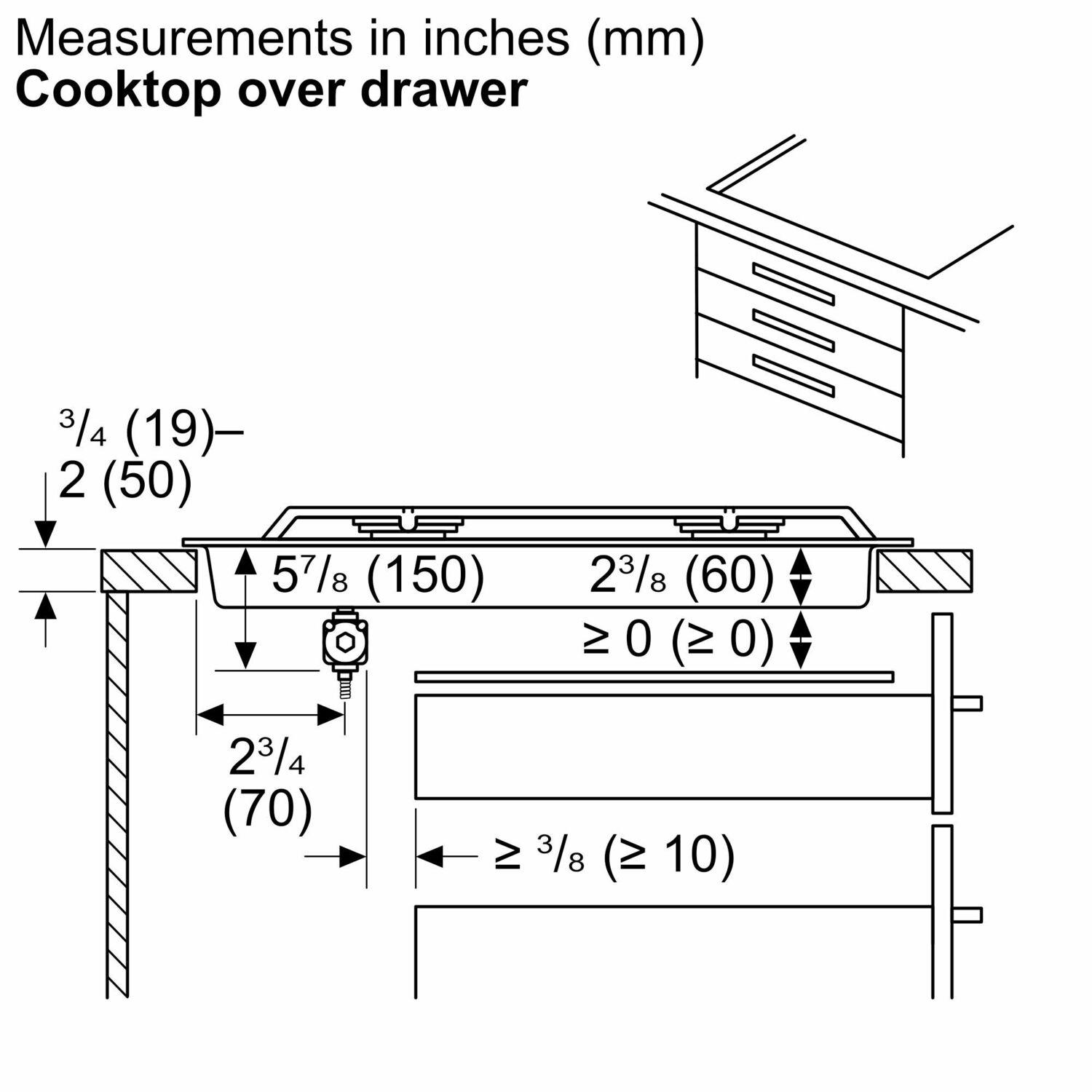

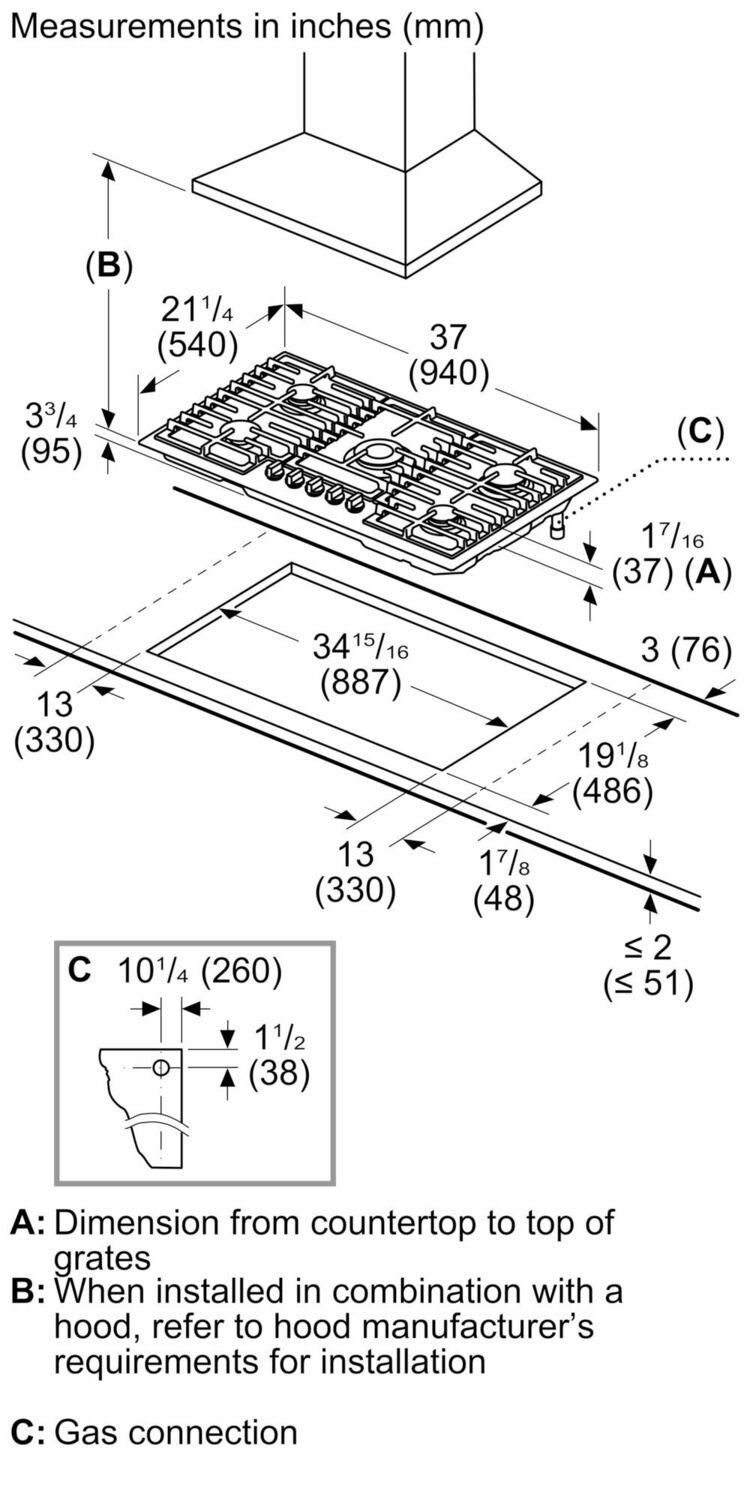

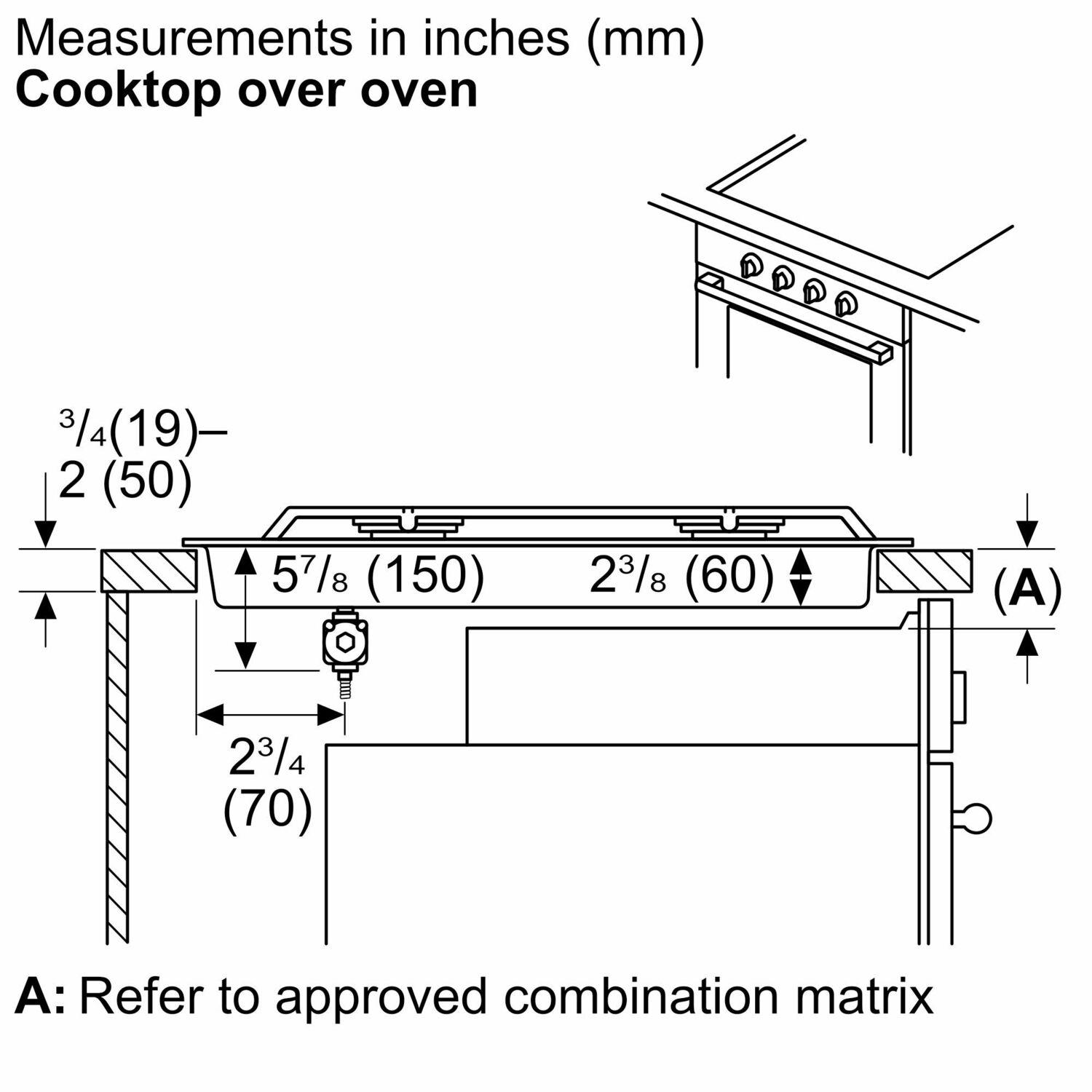

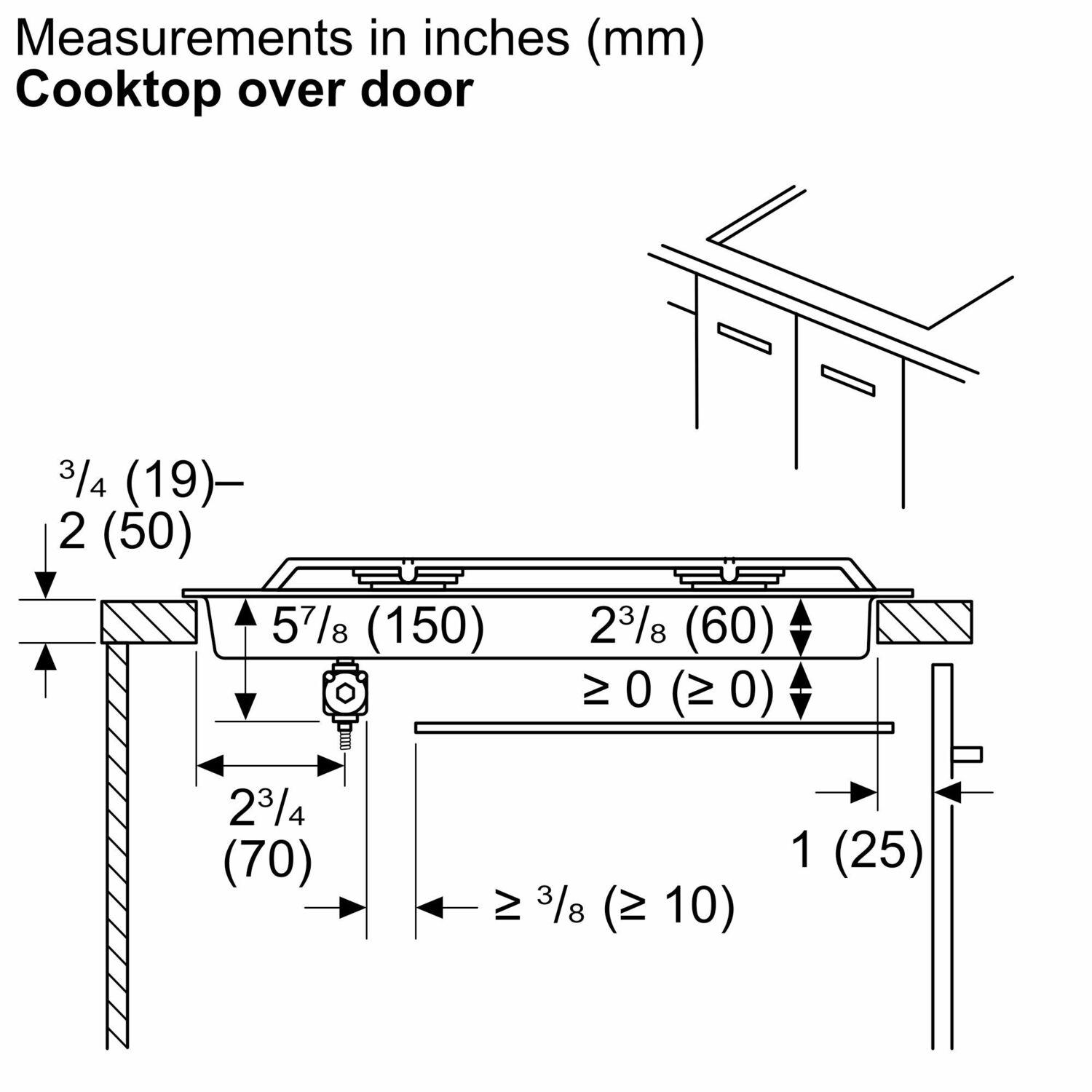

| Overall appliance dimensions (HxWxD) (in) | + 3 13/16'' x 37'' x 21 1/4'' |
| Net weight | 51.000 lbs |
| Minimum distance from counter front (in) | 1 7/8'' |

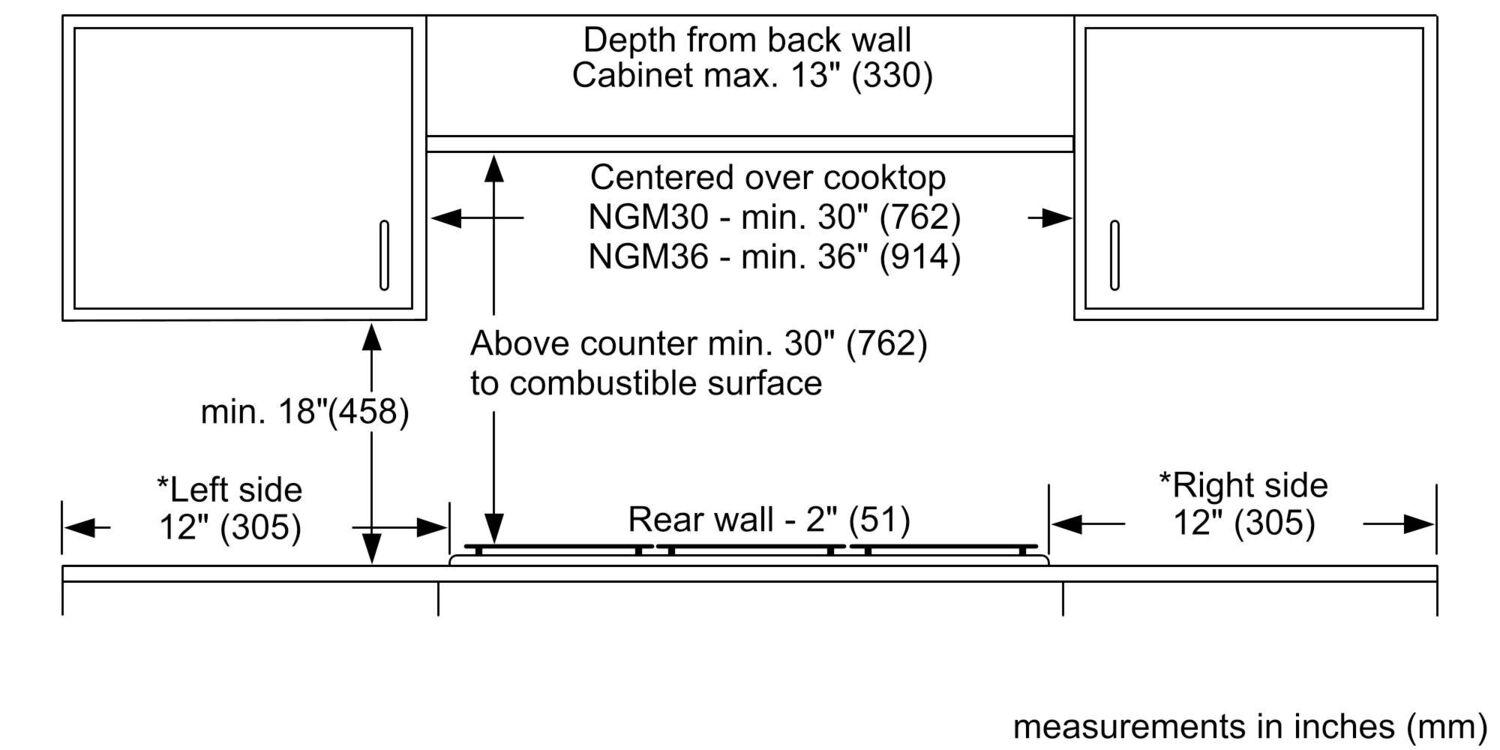

| Minimum distance from rear wall (in) | 3'' |
| Cooking zone 1 | |
| Location of 1st heating element | front left |
| Power of heating element (kW) | 1 kW |
| Type of heating element | Gas |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Location of 3rd heating element | back left |
| Power of 3rd heating element (kW) | 1.75 kW |
| Type of 3rd heating element | Gas |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Power of 5th heating element (kW) | 3 kW |
| Type of 5th heating element | Gas |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Location of 7th heating element | front right |
| Power of 7th heating element (kW) | 1.75 kW |
| Type of 7th heating element | Gas |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Residual heat indicator | Separate |
| Type of safety device for gas | Electromagnetic for each burner |
| Connection | |
| Gas connection rating | 12,500 W |
| Location of gas connection | bottom, rear, right |
| Frequency | 60 Hz |
| Energy source | Gas |
| Power Cord Length | 40'' |
| Watts | 360 W |
| Accessories | |
| Included accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
