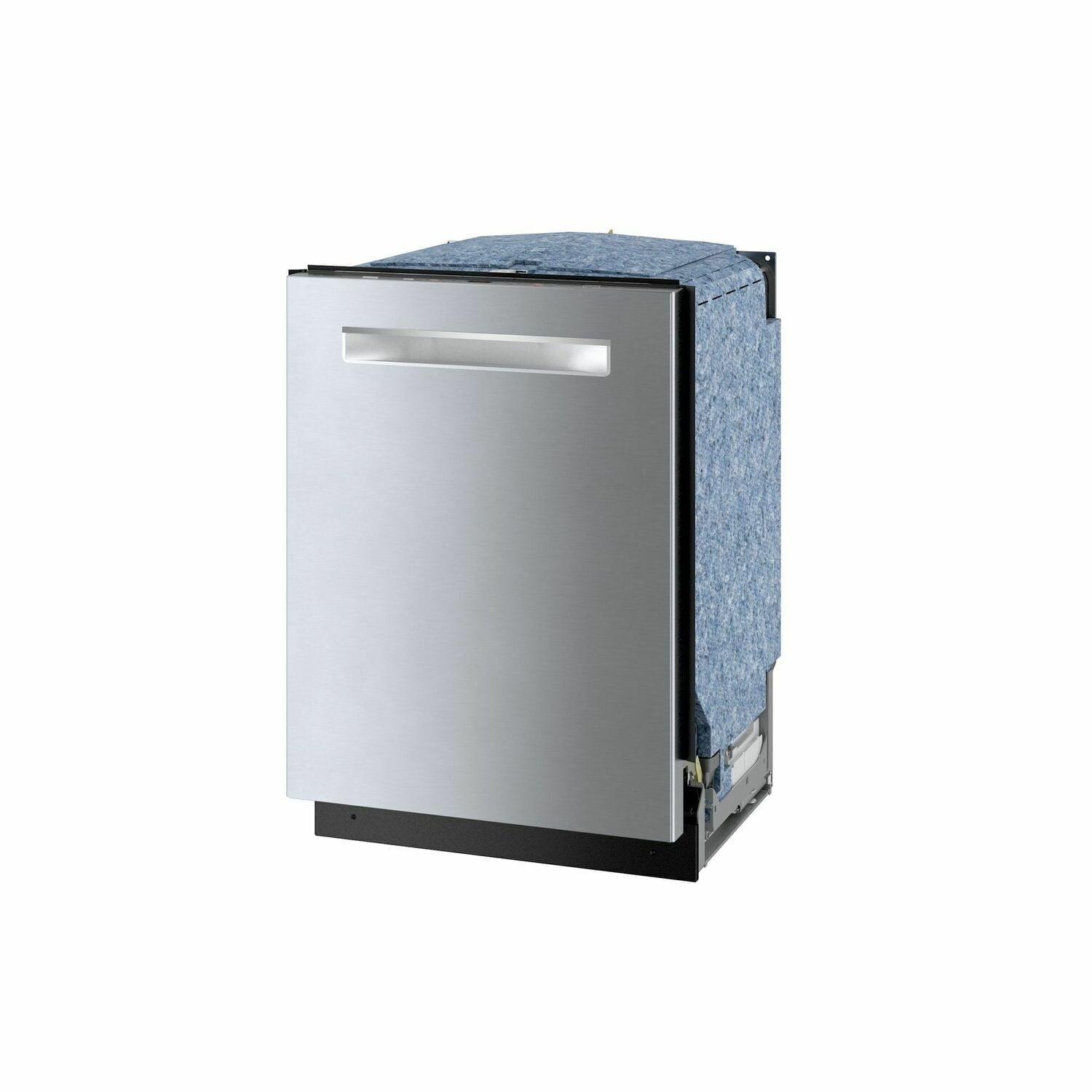

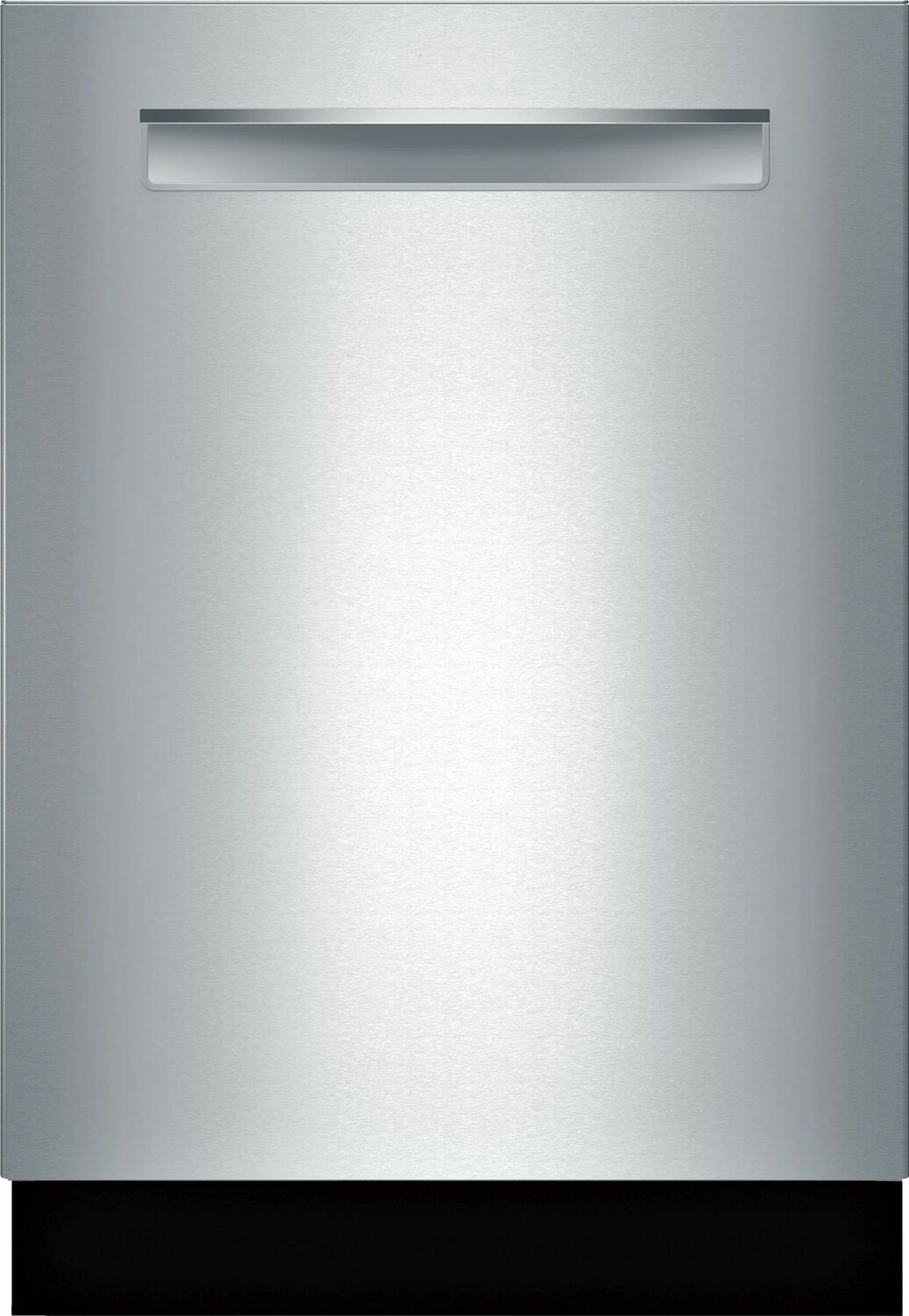

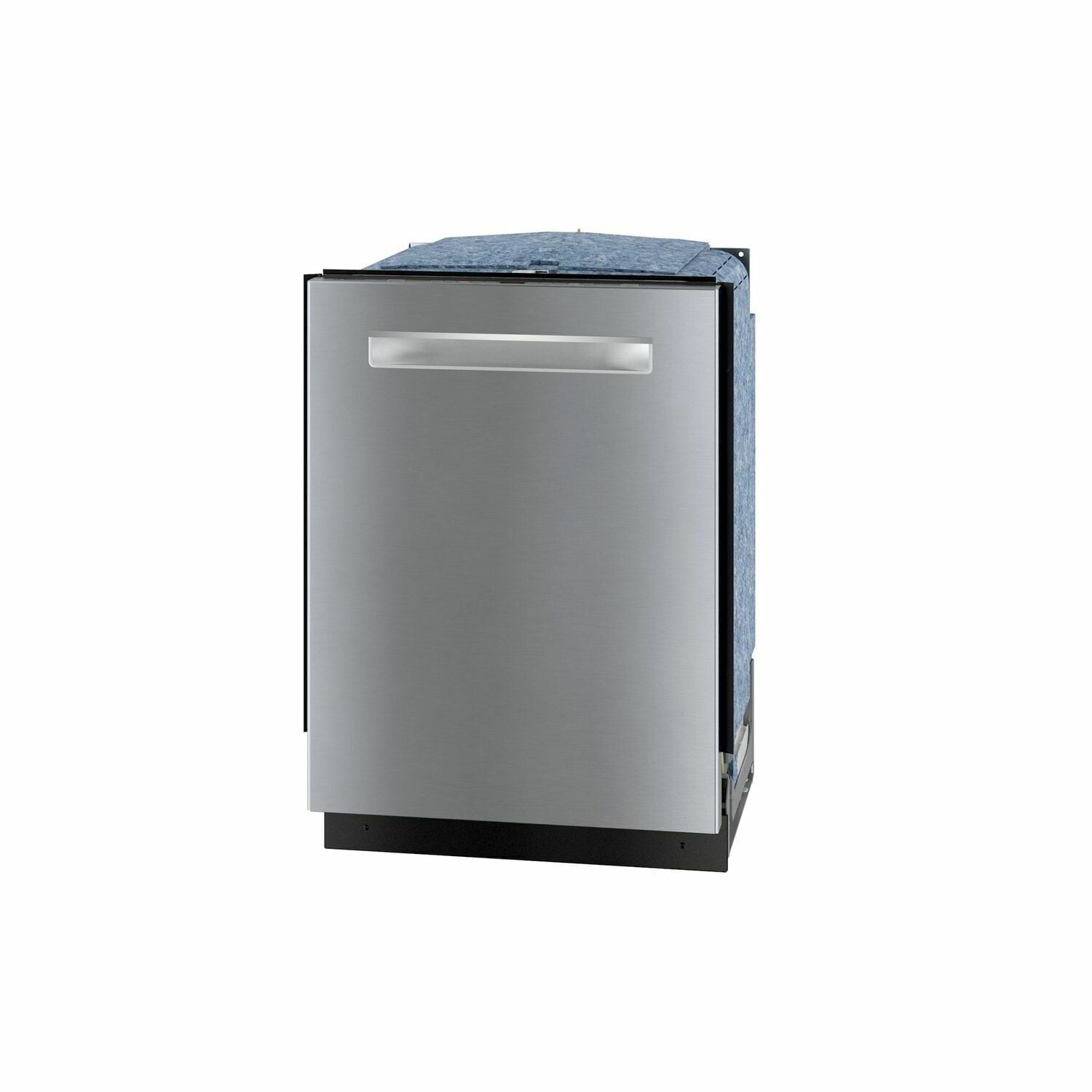

Bosch SHP865ZD5N 500 Series Dishwasher 24'' Stainless Steel Shp865Zd5N
Bosch SHP865ZD5N 500 Series Dishwasher 24'' Stainless Steel Shp865Zd5N
Colors:
Stainless SteelWhen Will I Get My Order?
x
THIS ITEM QUALIFIES FOR FREE DELIVERY!
EXTENDED PROTECTION
3 year plan
$120.995 year plan
$228.99Couldn't load pickup availability
When Will I Get My Order?
x

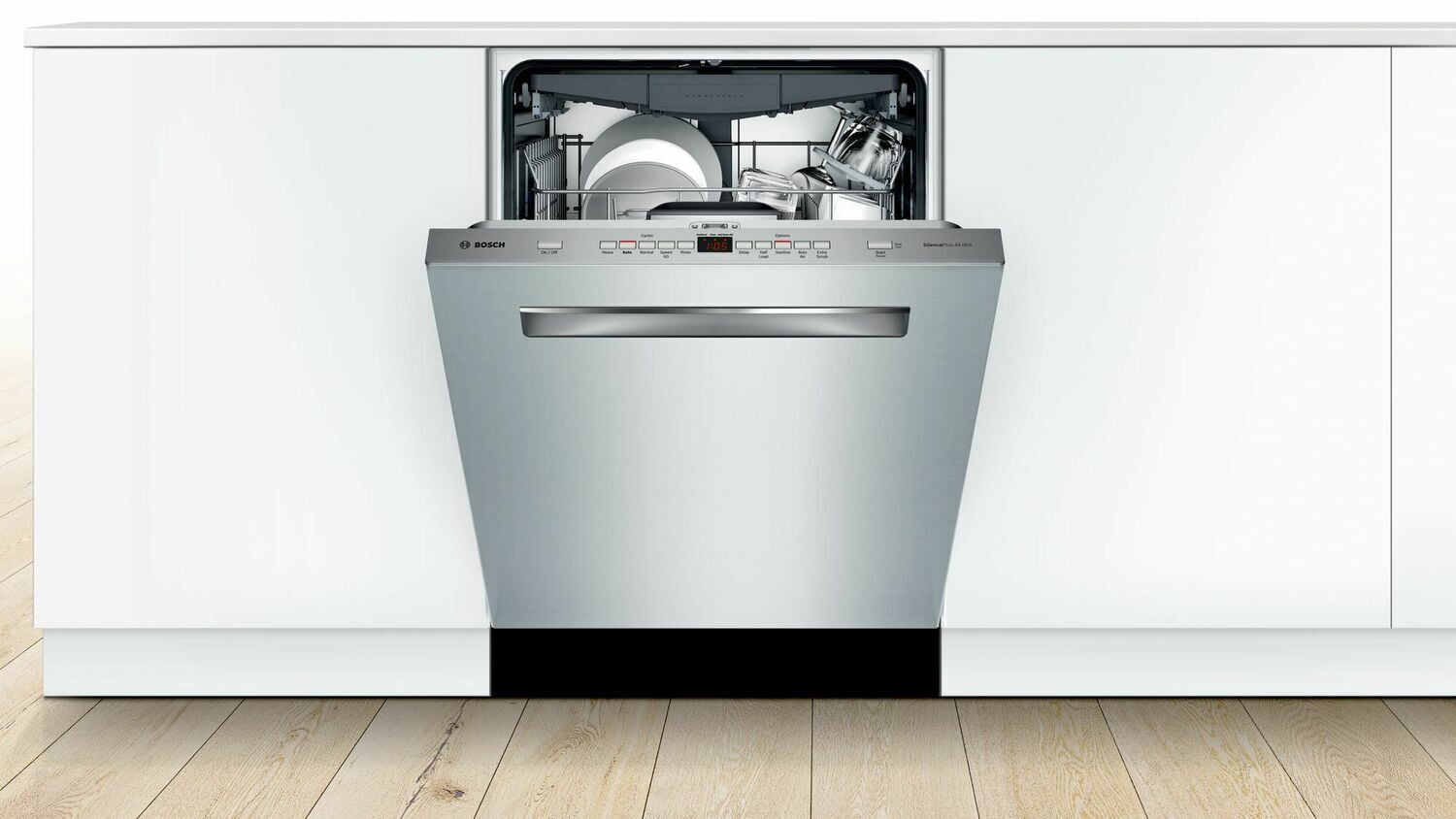

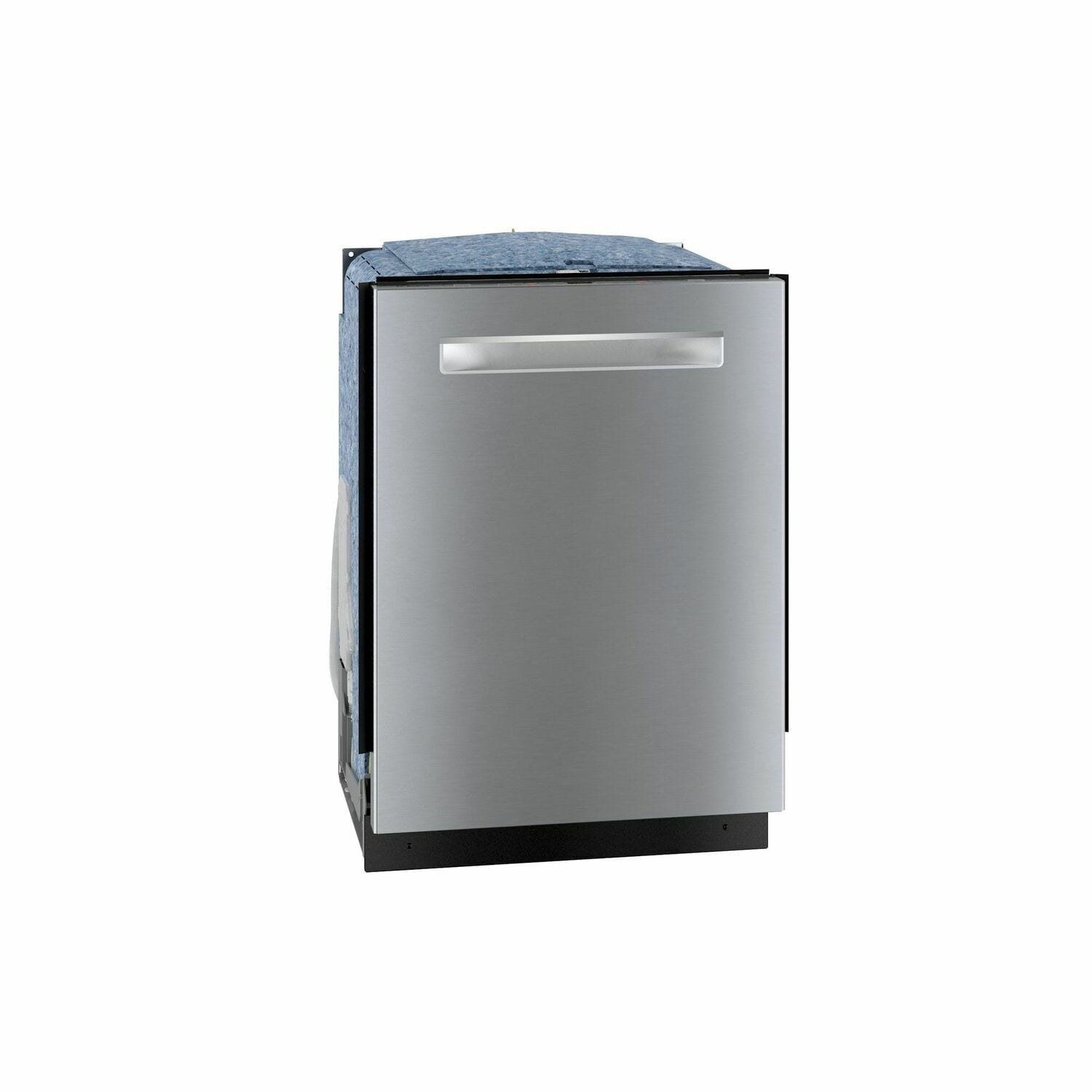

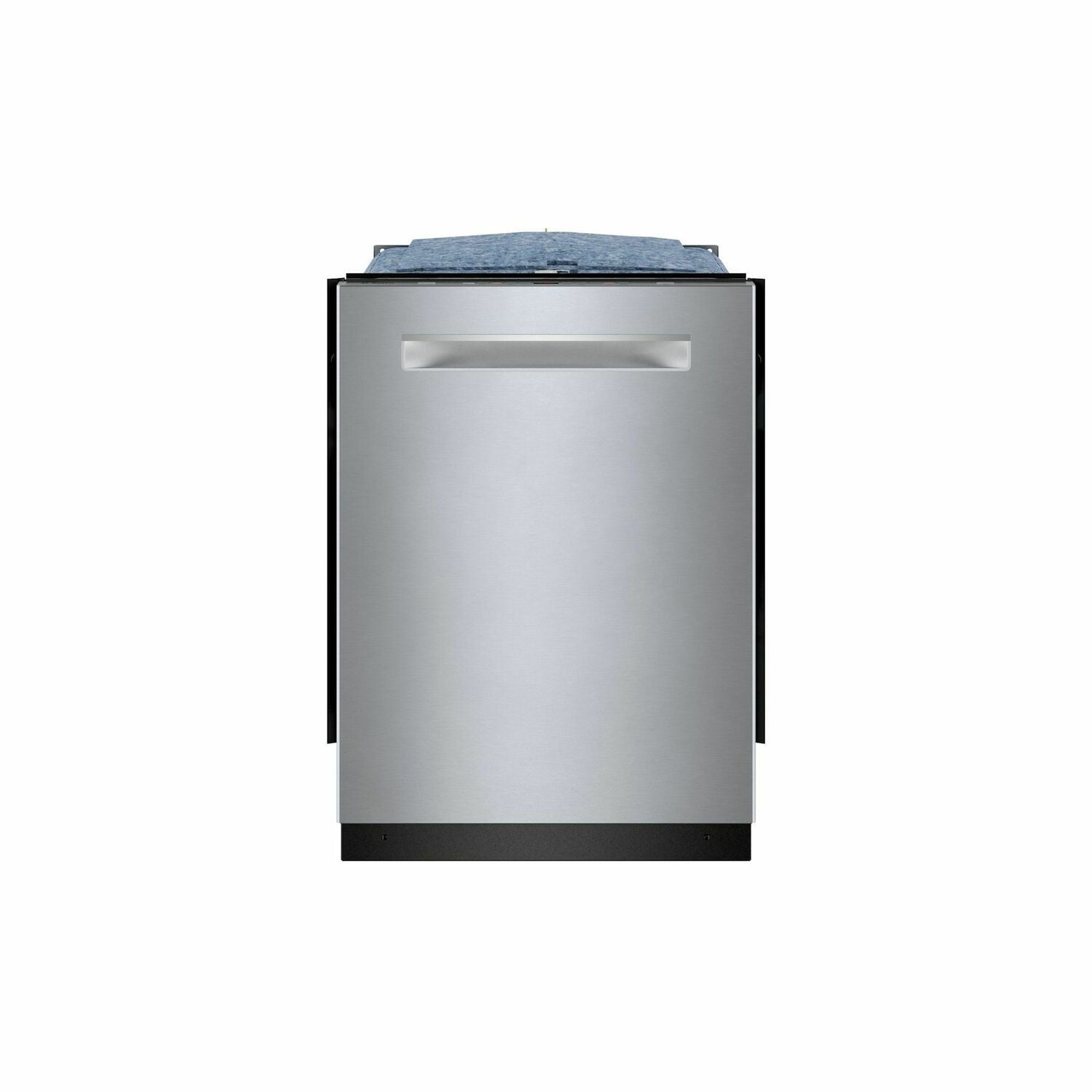

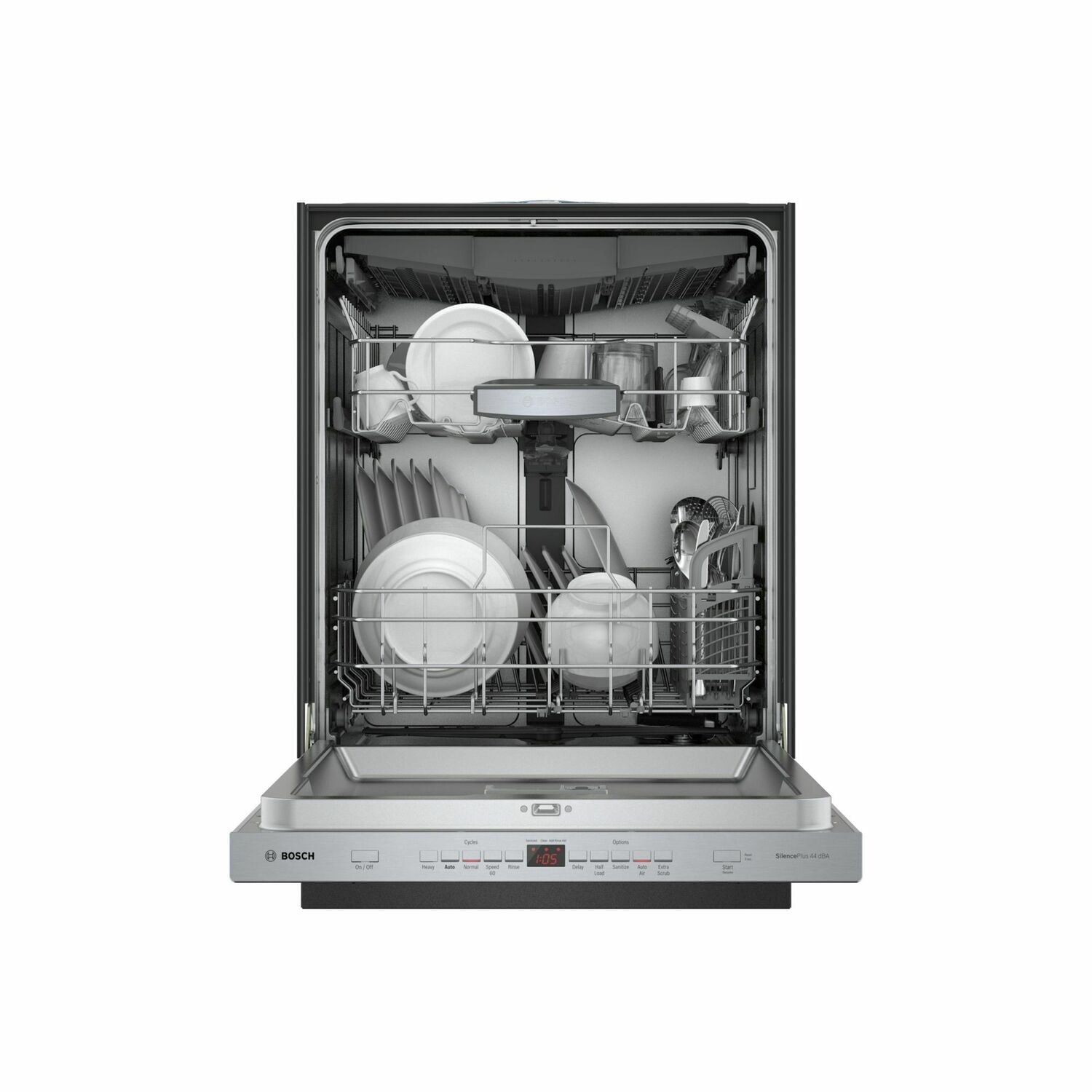

Bosch SHP865ZD5N 500 Series Dishwasher 24'' Stainless Steel Shp865Zd5N

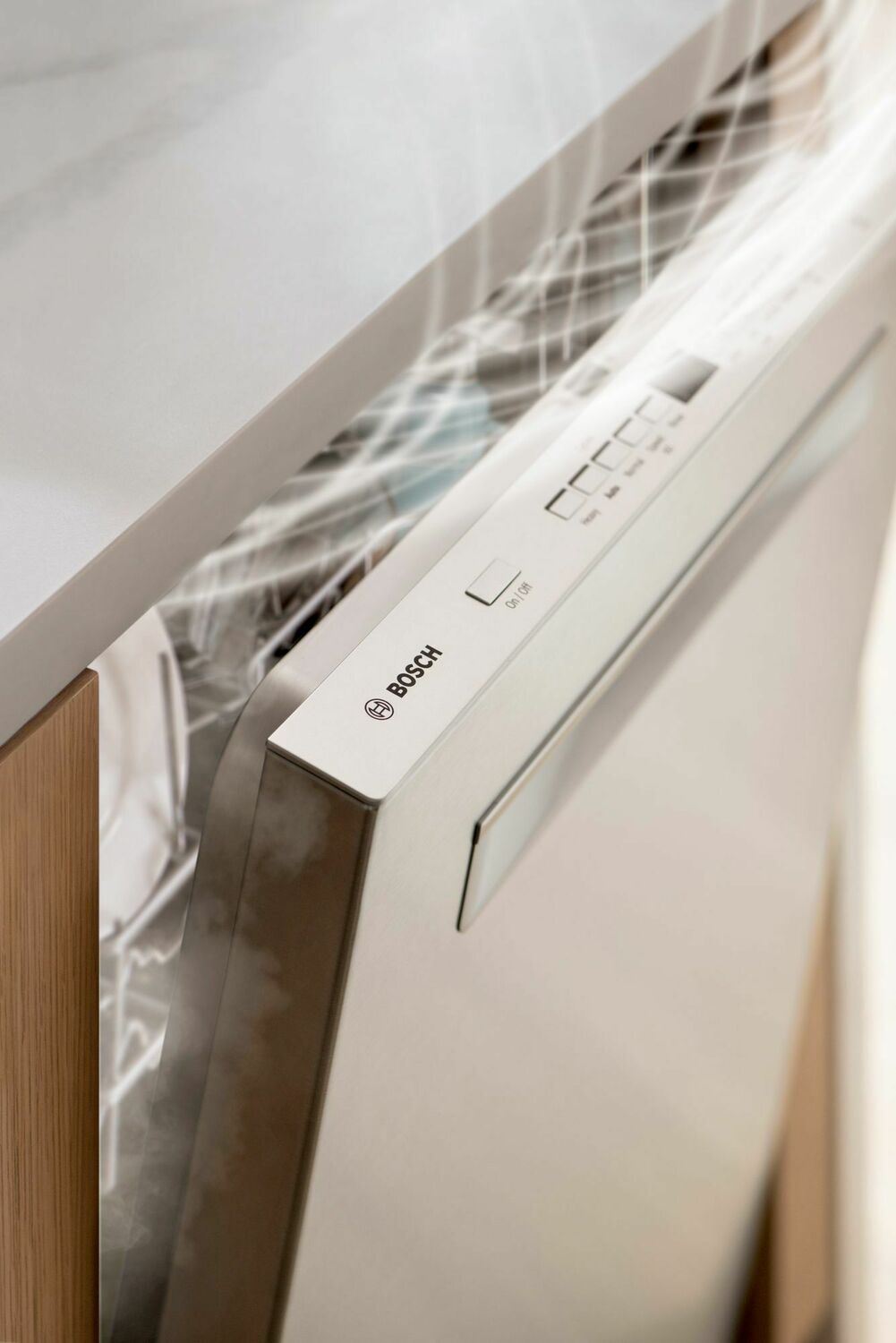

AutoAir™ - a little fresh air equals a lot more dry
AutoAir™ on the Bosch 500 Series dishwashers automatically releases the door at the end of the cycle to let moisture escape and fresh air in for 40% drier dishes.* Now, dry your dishes with a whole new air of confidence. *Based on average drying performance of Bosch Dishwashers with AutoAir™ after seven hours as compared to Bosch Dishwashers with PureDry™.
AquaStop®
Our 24/7 AquaStop® system contains leaks through a precisely engineered tub and a solid molded base. Sensors detect leaks and pump out water, even when the system is off. So you never have to worry about leaks whether you're at home or away.

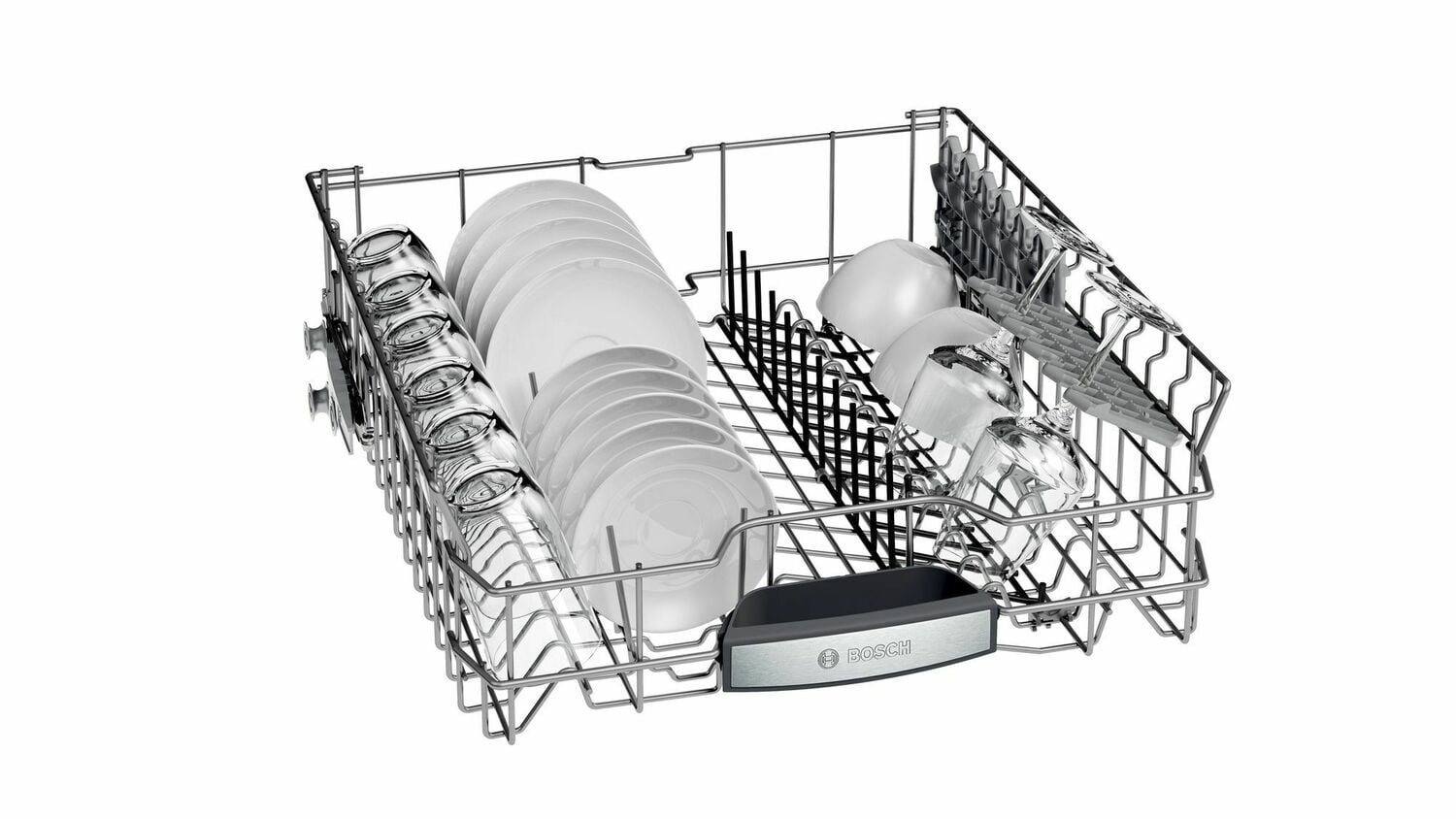

RackMatic®
RackMatic® adjustable upper rack easily adjusts to 9 different positions to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
When your dishes are done, so are you
With Bosch PrecisionWash®, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
Quality is in the details
Bosch dishwashers are engineered to the highest standards. Every Bosch dishwasher undergoes 485 quality checks, so that we can deliver quality that you can count on.
AquaStop® Plus
A leak is the last thing you want to happen to your kitchen floors. AquaStop® Plus features additional sensors to ensure that any potential leaks are quickly detected and contained.
The quietest dishwasher brand in the U.S.*

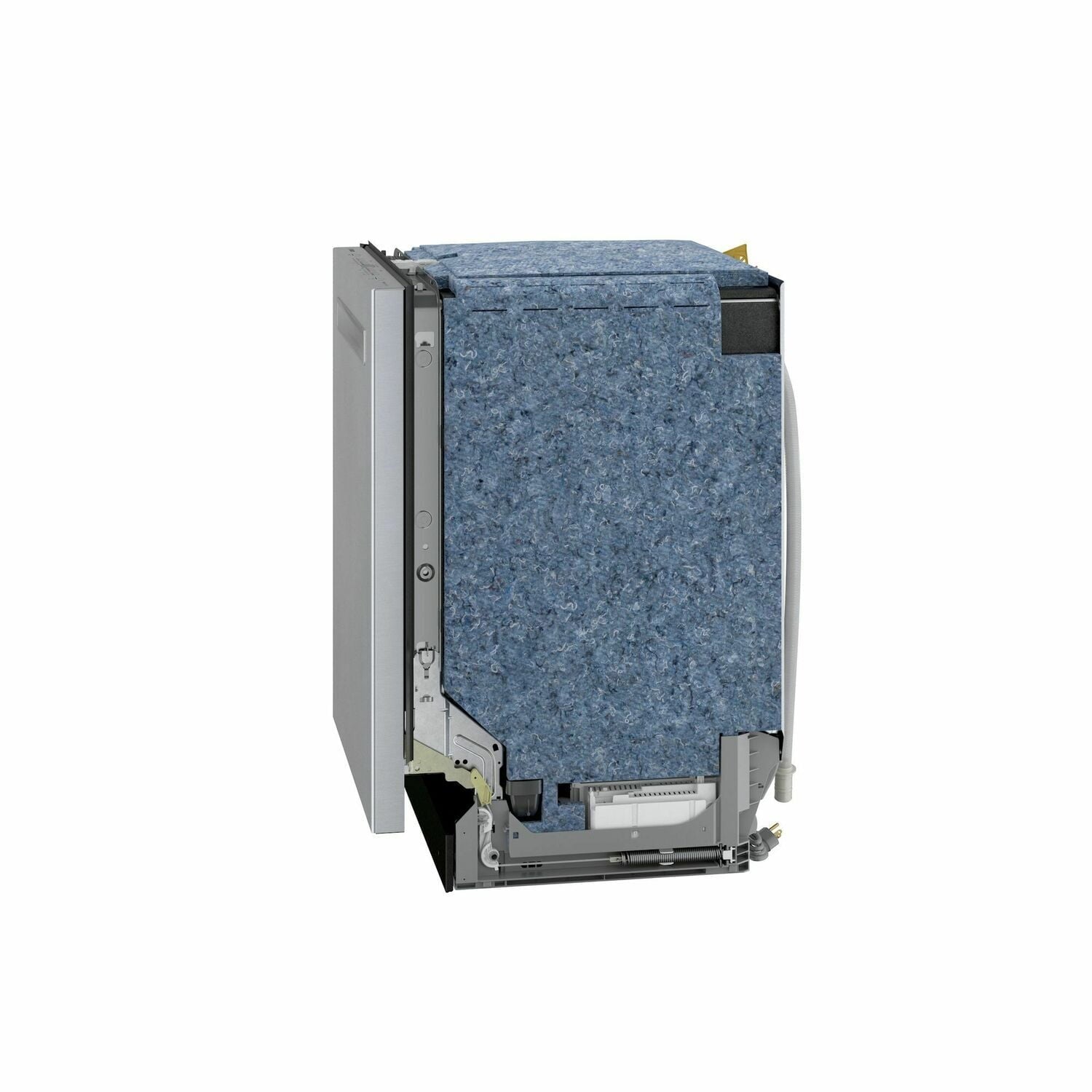

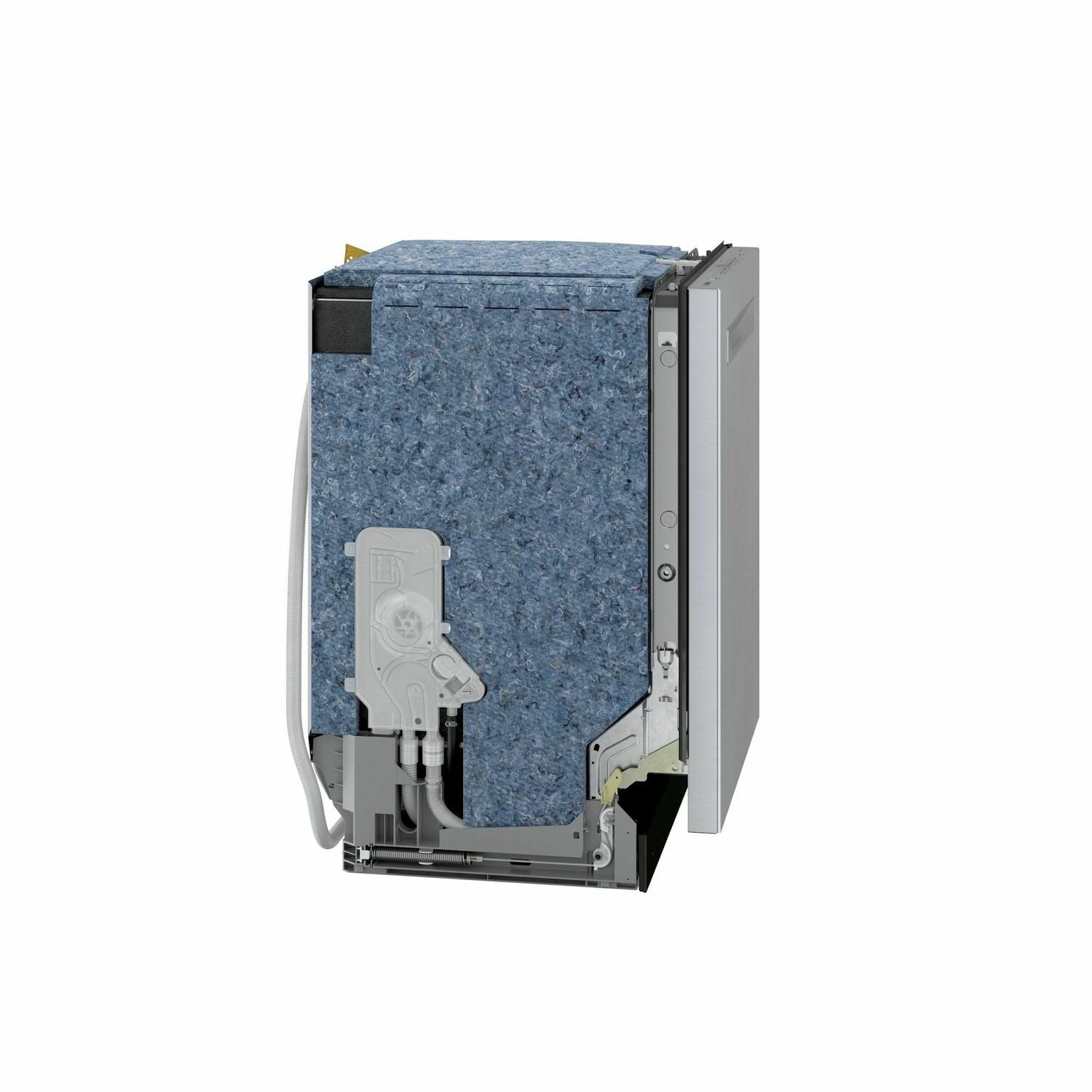

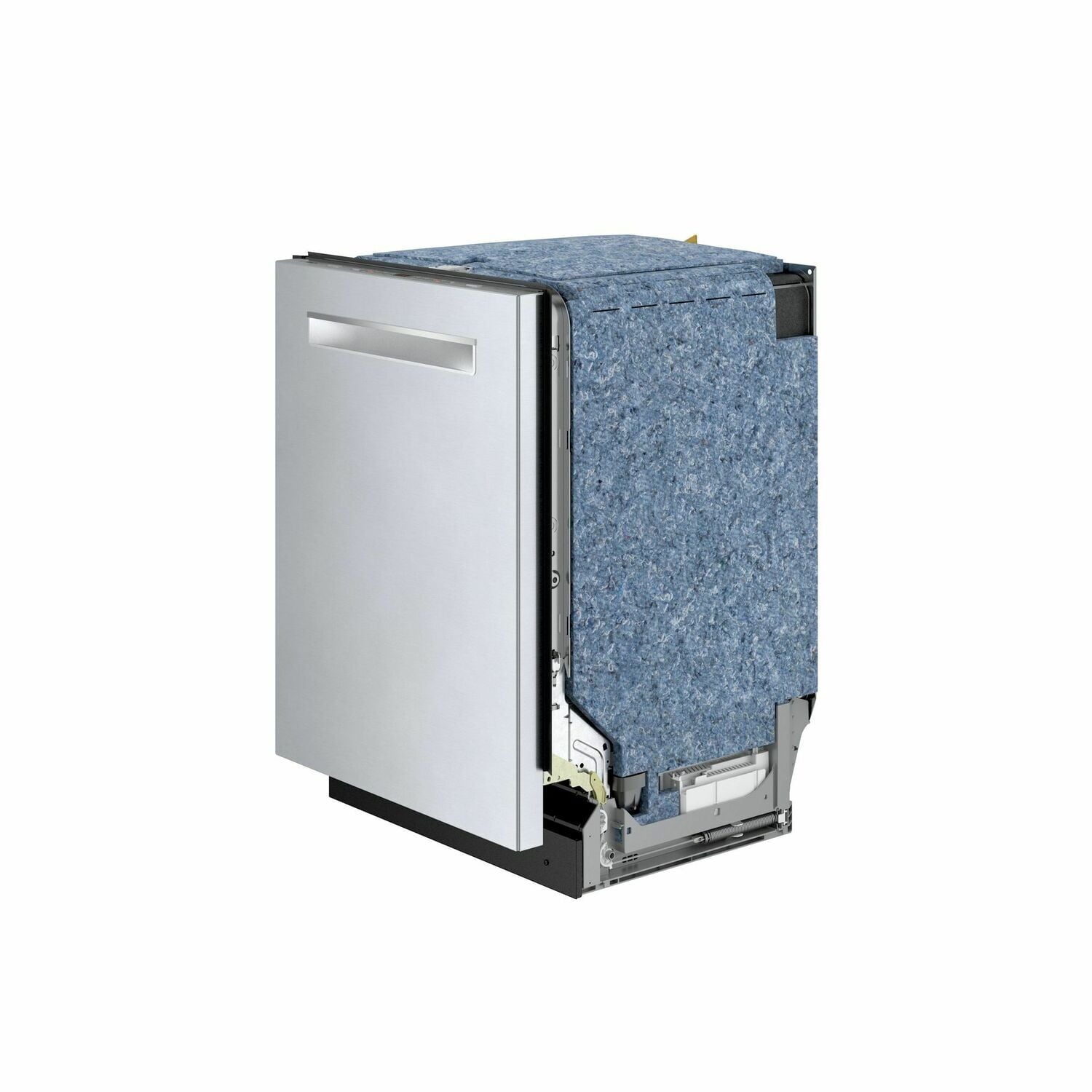

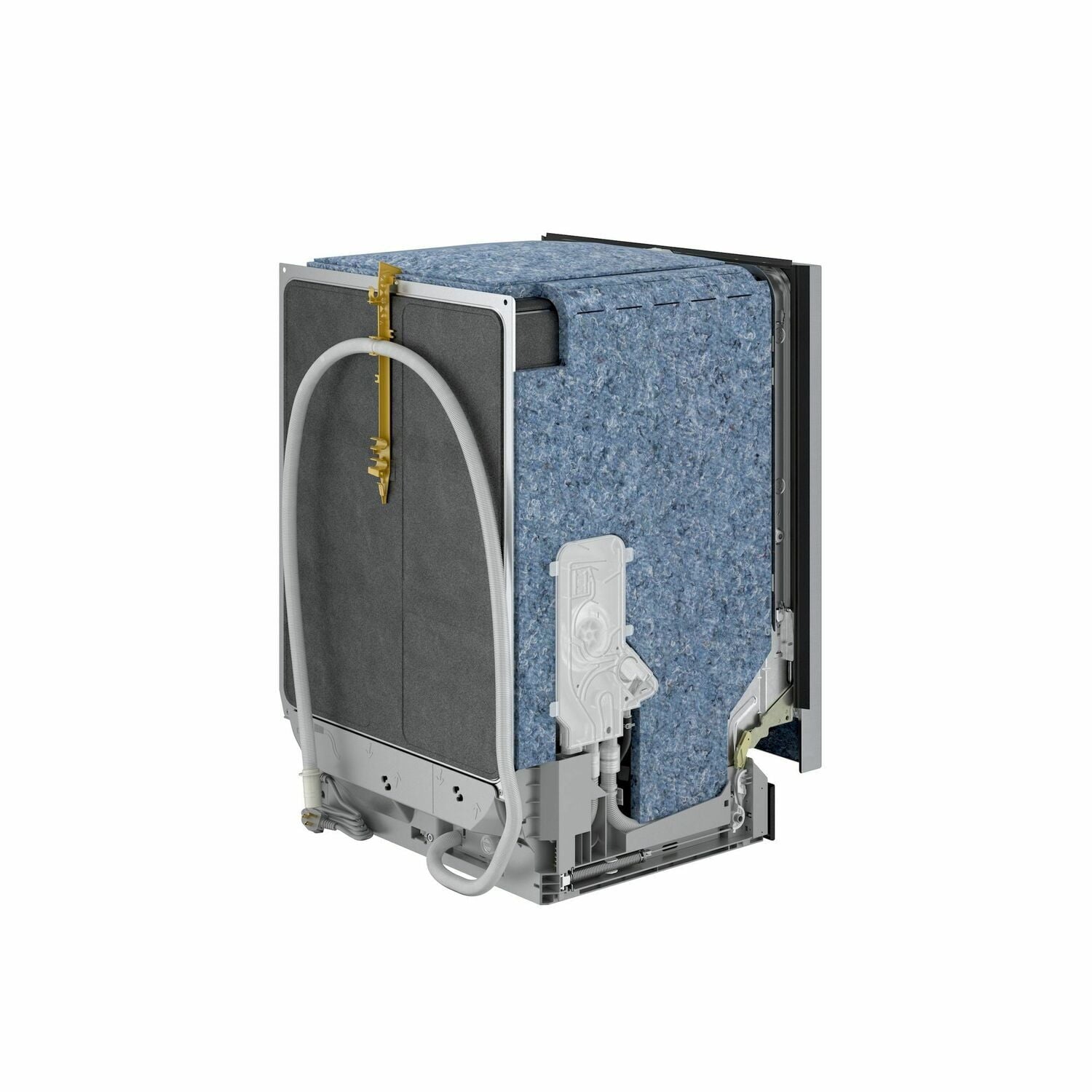

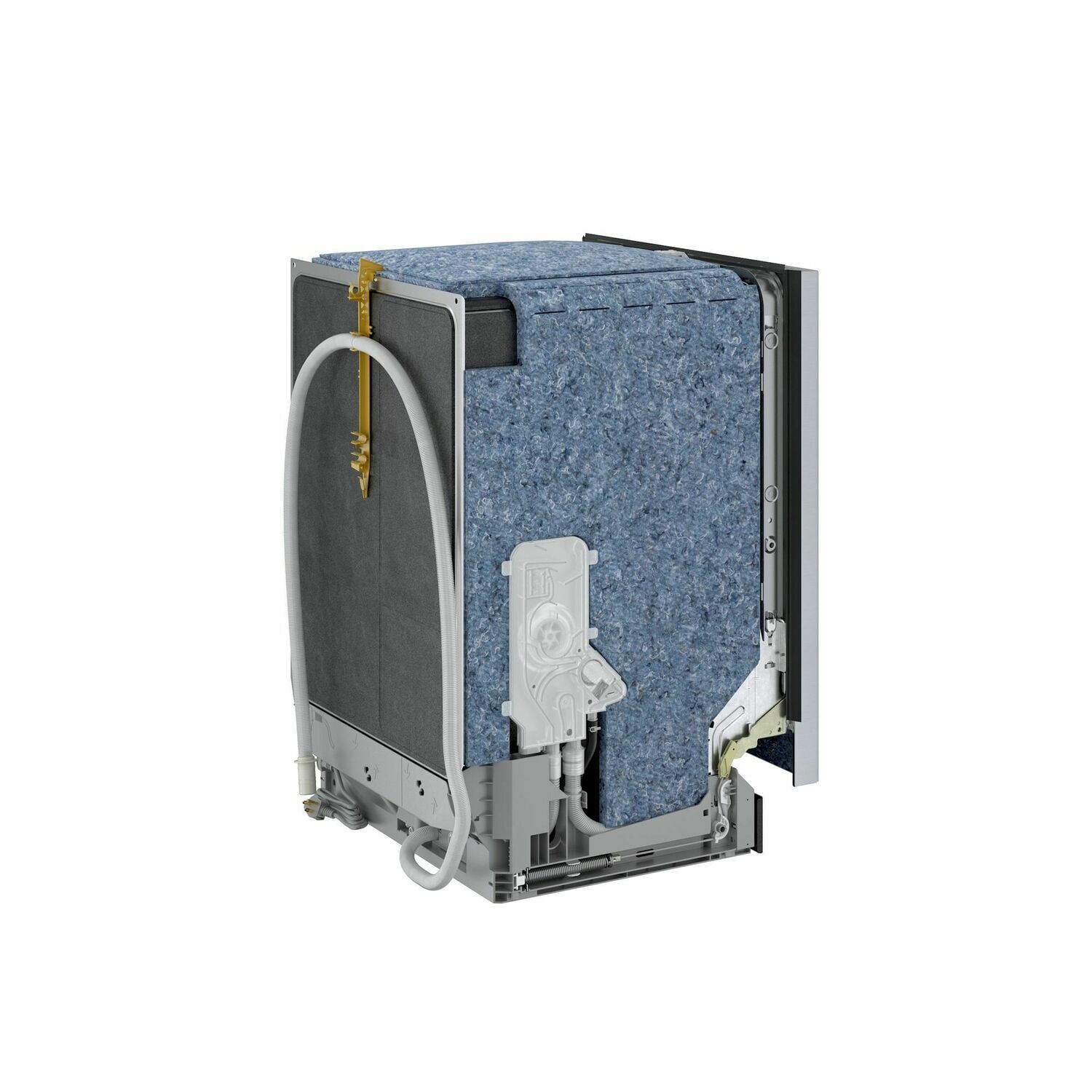

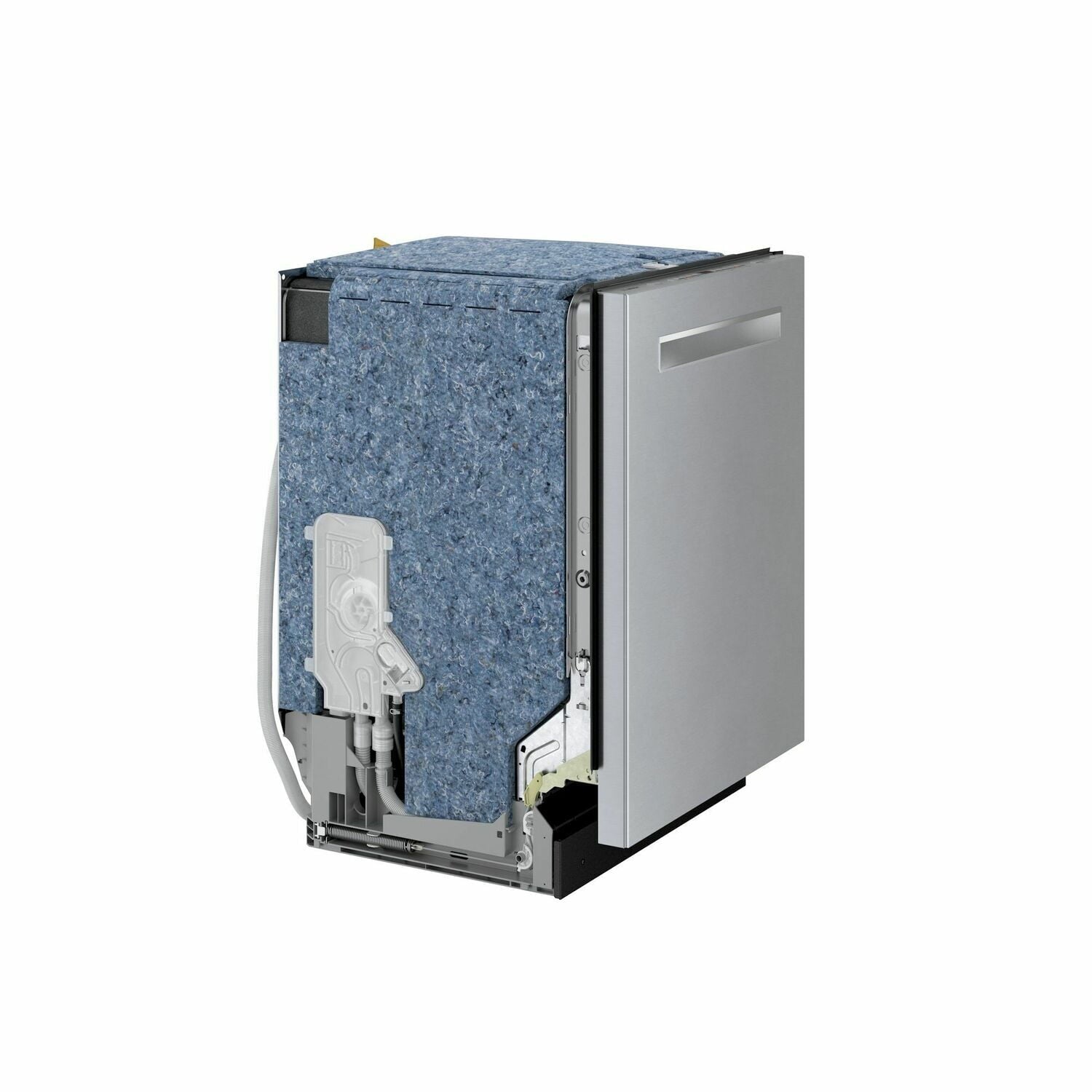

Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.

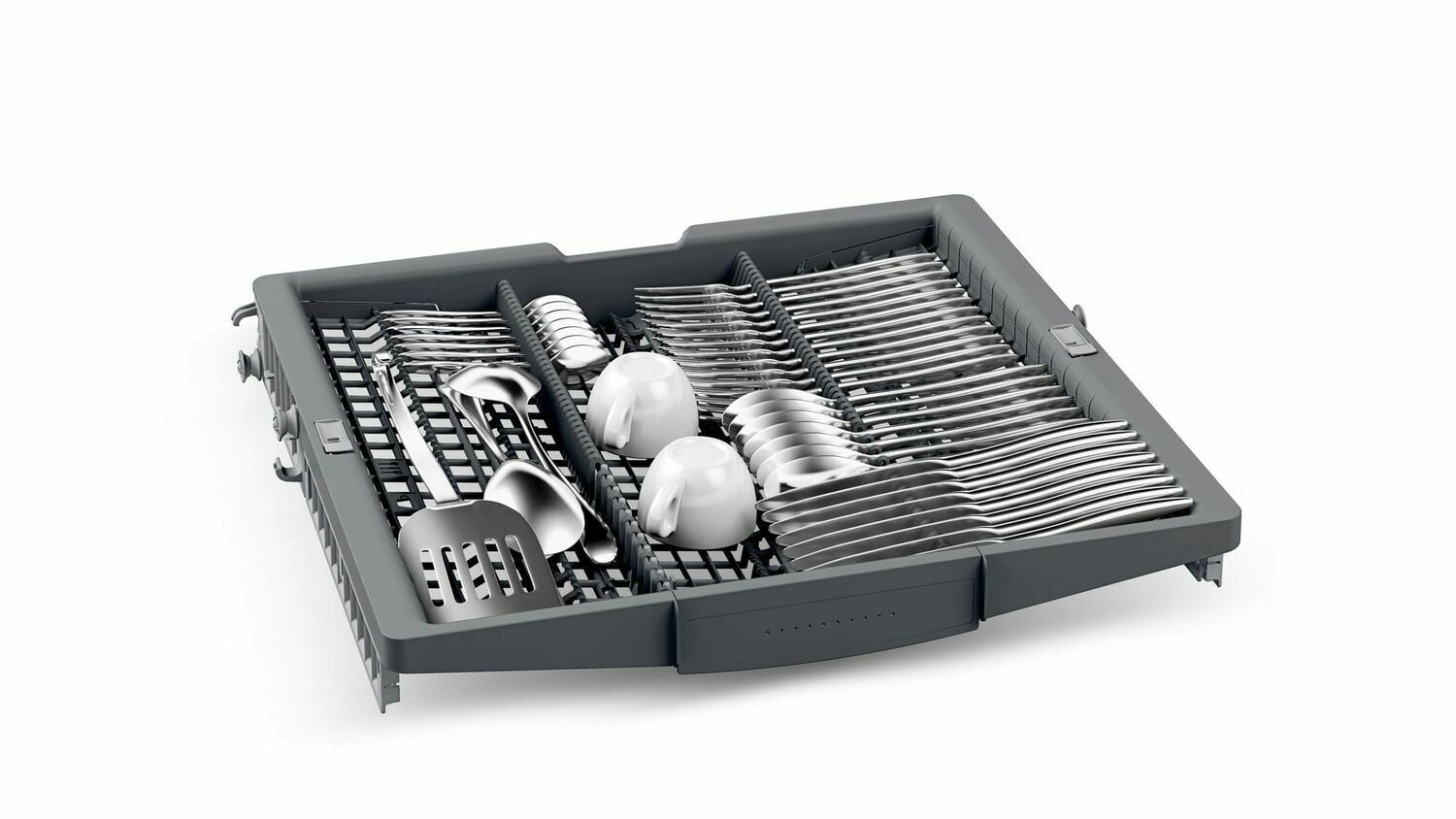

A 3rd rack to meet your loading needs
With 30% more loading area (compared to a Bosch dishwasher with 2 racks) the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items.
24h Delay Start Timer
Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours. 24h Delay Start Timer lets you run your dishwasher at off-peak times.

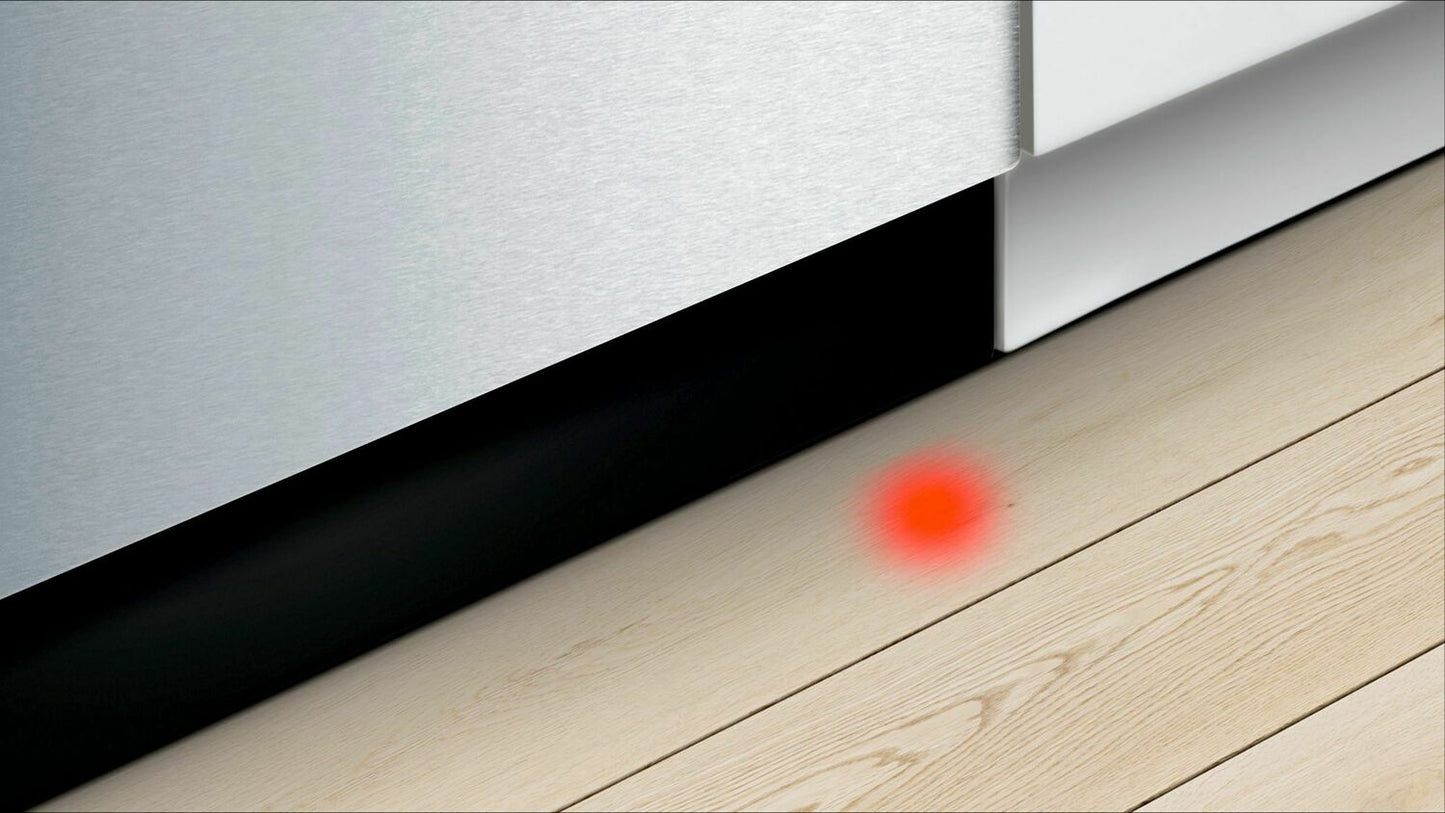

InfoLight®

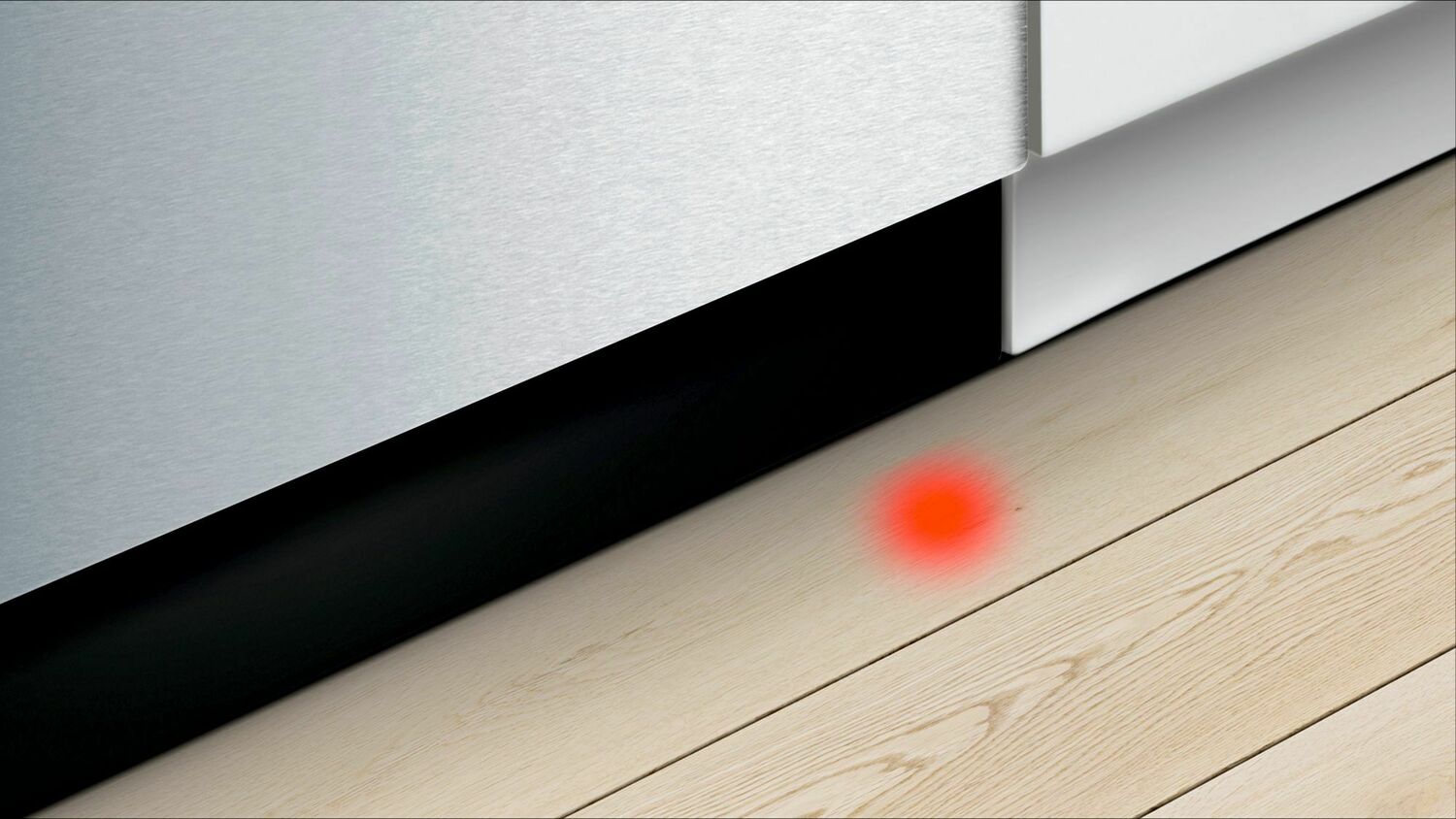

a light that tells you when your dishwasher is running InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.
InfoLight® Beams on Floor to Indicate Dishwasher is Running

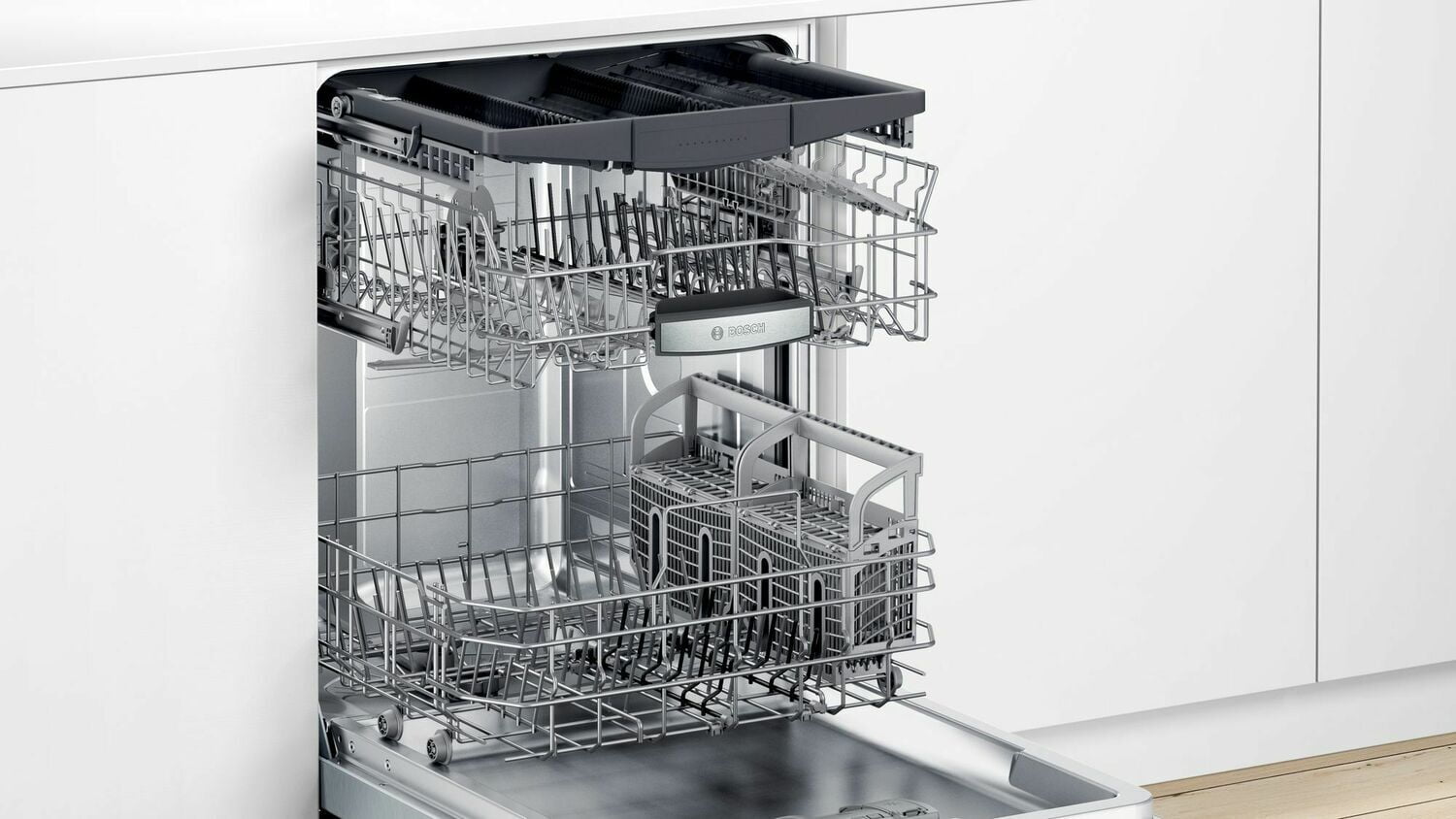

RackMatic® on Upper Rack - 3 Height Adjustments and Up to 9 Possible Rack Positions

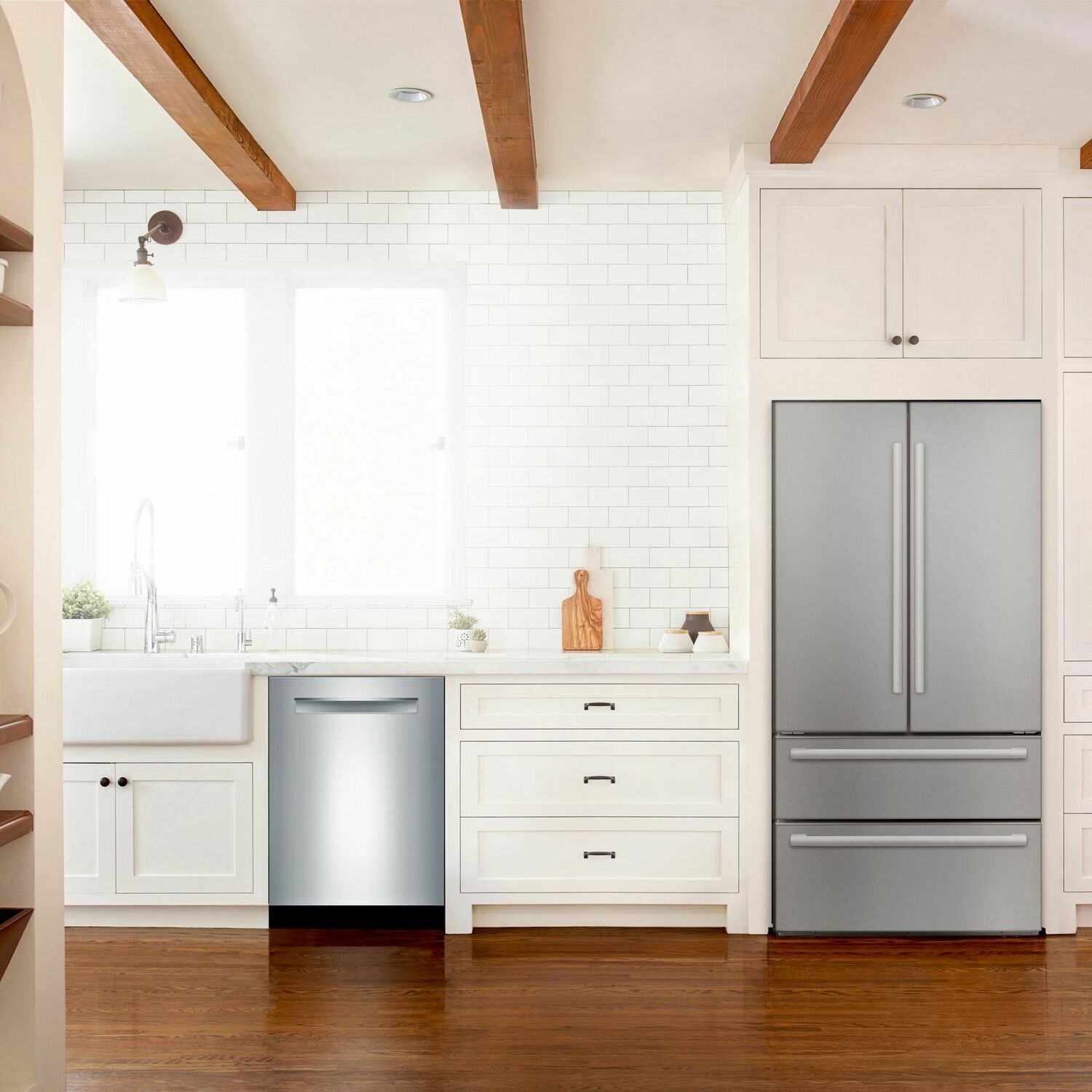

AquaStop® Leak Protection Works 24/7 Design Full Size Stainless Steel Tall Tub Installs Perfectly Flush
16 Place Setting Capacity

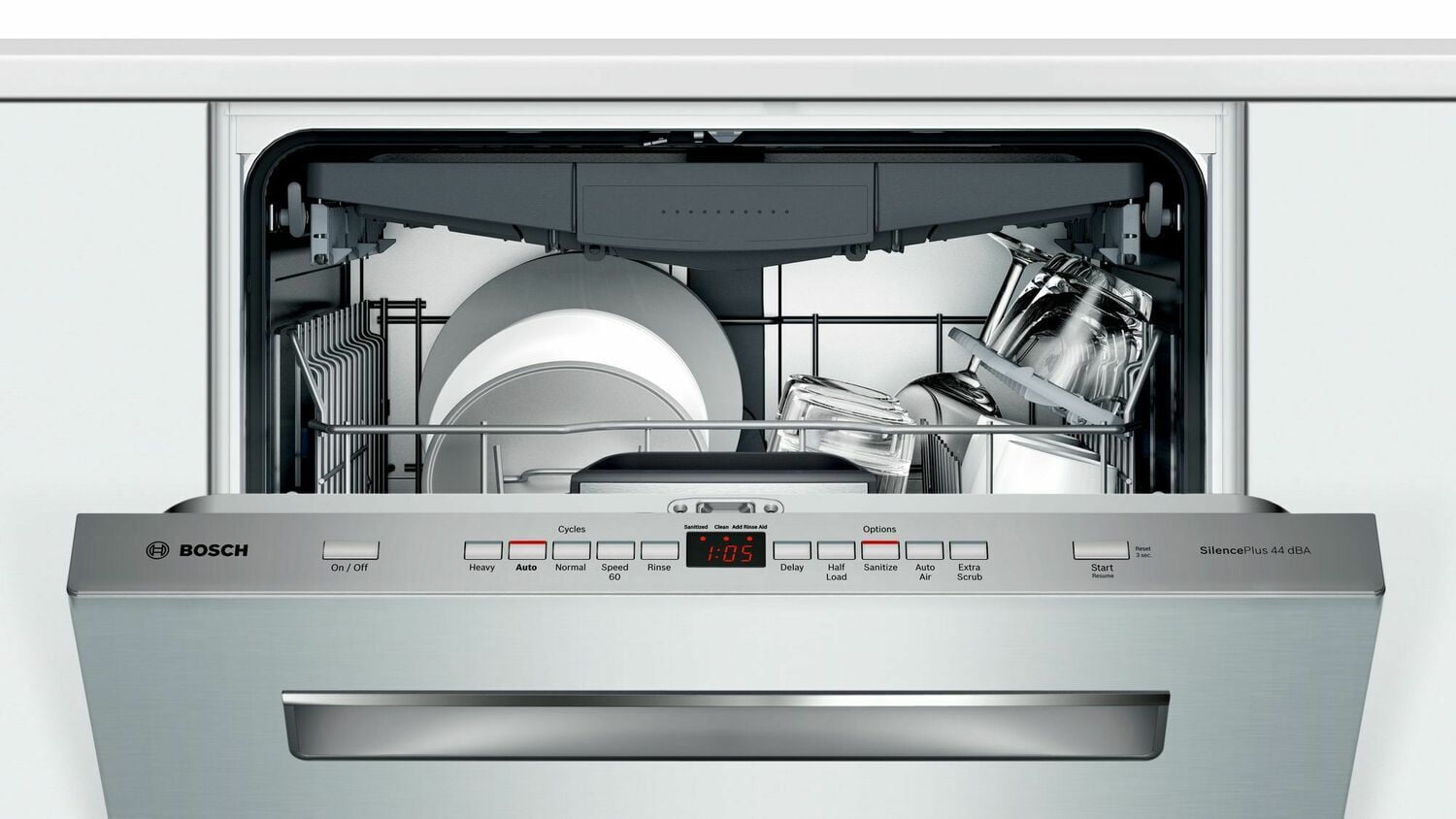

LED Remaining Time Display

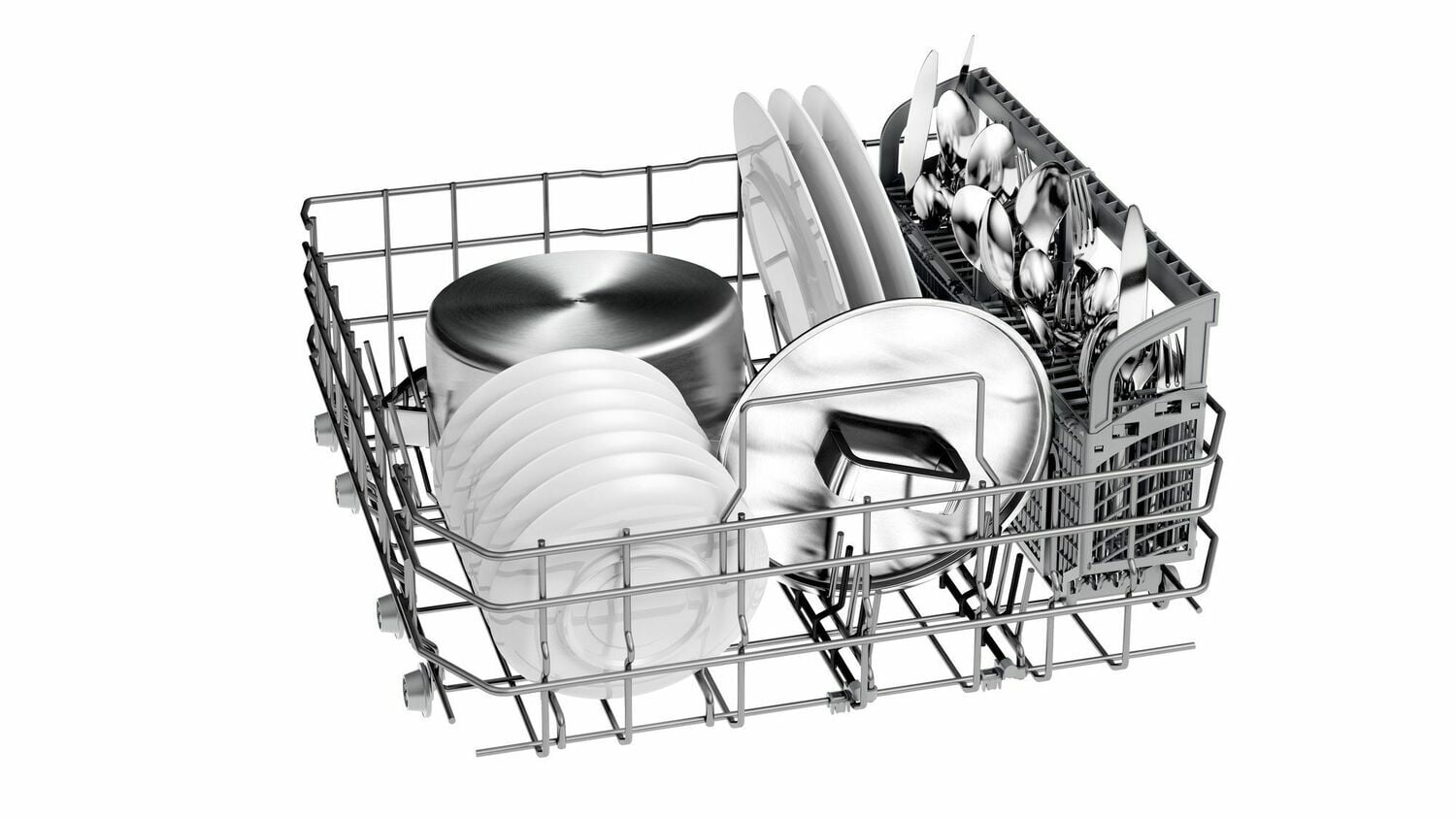

Flexible Silverware Basket Can be Split into Two Pieces and Placed Anywhere for Added Flexibility Performance 5 Wash Cycles and 5 Options
Detergent Tray Optimizes Detergent Dissolving
Speed60® gets your dishes from dirty to dry in about an hour
Extra Dry Option for Better Drying Results
Load Size Sensor Automates Wash Temperature
Sanitize Option Eliminates Bacteria and Enhances Drying Results
ExtraScrub option increases pressure and temperature in the entire lower rack for hard to remove food stains. Efficiency 269 kWh/yr - Energy Star® Convenience 24 h Delay Start Timer

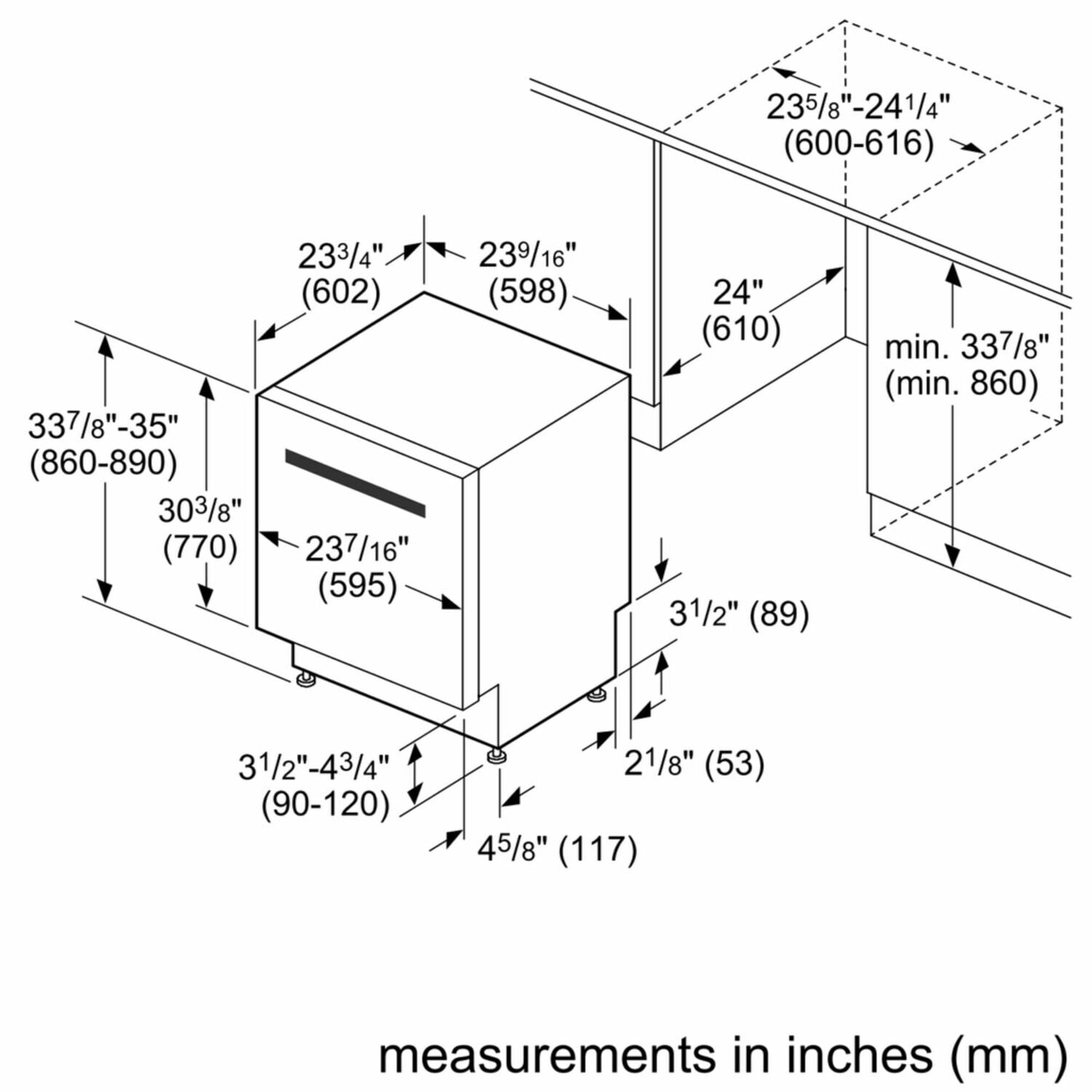

Self-Latching Door Dimensions & Capacity Width: 23 9/16"
Height: 33 7/8"
Depth: 23 3/4
- 16 Place Settings
- Silent Operation: 44 dBA
- 5 Programs
- 5 Functions
- PrecisionWash®
- AquaStop®
- Rackmatic®
- AutoAir™
- Five-level wash
- InfoLight®
- Flexible 3rd Rack
- Stainless steel tub
- ENERGY STAR® Certified
| Technical Specifications | |
| General | |
| Installation Type | Built-under |
| Number of place settings | 16 |
| List of programs | Economy, Heavy, Rinse, Speed 60 |
| Cycle Options | Extra Scrub, half load, Sanitize |
| Display | |
| Silence level (dBA) | 44 |
| Third Rack | Flexible Third Rack |
| Interior Light | |
| Removable top | |
| Power Cord Length | 67'' |
| Connectivity | |
| Home Connect | |
| Connectivity type | Not applicable |
| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4'' |
| Adjustable plinth | |
| Net weight (lbs) | 100.000 |
| Programmes | |
| Status indicator | End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal |
| List of programs | Economy, Heavy, Rinse, Speed 60 |
| Program 1 | Heavy |
| Program 2 | Auto |
| Program 3 | Economy |
| Program 5 | Rinse |
| Programme duration, programme1 (min.) | 110-135 |
| Programme duration, programme2 (min.) | 105-129 |
| Programme duration, programme3 (min.) | 130-135 |
| Programme duration, programme4 (min.) | 65 |
| Programme duration, programme5 (min.) | 9 |
| Reference programme | Eco |
| Temperature program 1 | 151-160 |
| Temperature program 2 | 127-140 |
| Temperature program 3 | 113-131 |
| Temperature program 4 | 122 |
| Safety | |
| Glass protection | |
| Surge-back protect. installed | |
| Leak protection system | Aqua Stop |
| Consumption values | |
| Glass protection | |
| Water consumption program 1 | 4.9-6.4 |
| Water consumption program 2 | 3.4-6.4 |
| Water consumption program 3 | 2.3-5.5 |
| Water consumption program 4 | 3.8 |
| Water consumption program 5 | 1.1 |
| Total annual water consumption (g) | 624 |
| Maximum temperature for water intake (°C) | 60 |
| Connection | |
| Watts (W) | 1,440 |
| Power Cord Length | 67'' |
| Current (A) | 12 |
| Plug type | Nema5-15P |
| Construction type | |
| Color / Material housing | Lacquered |
| Color / Control Panel | Black |
| Construction type | Built-in |
| Panel ready | Not possible |
| Concealed heating element | |
| Installation Type | Built-under |
| Tub material | Stainless steel |
| Water Softener | |
