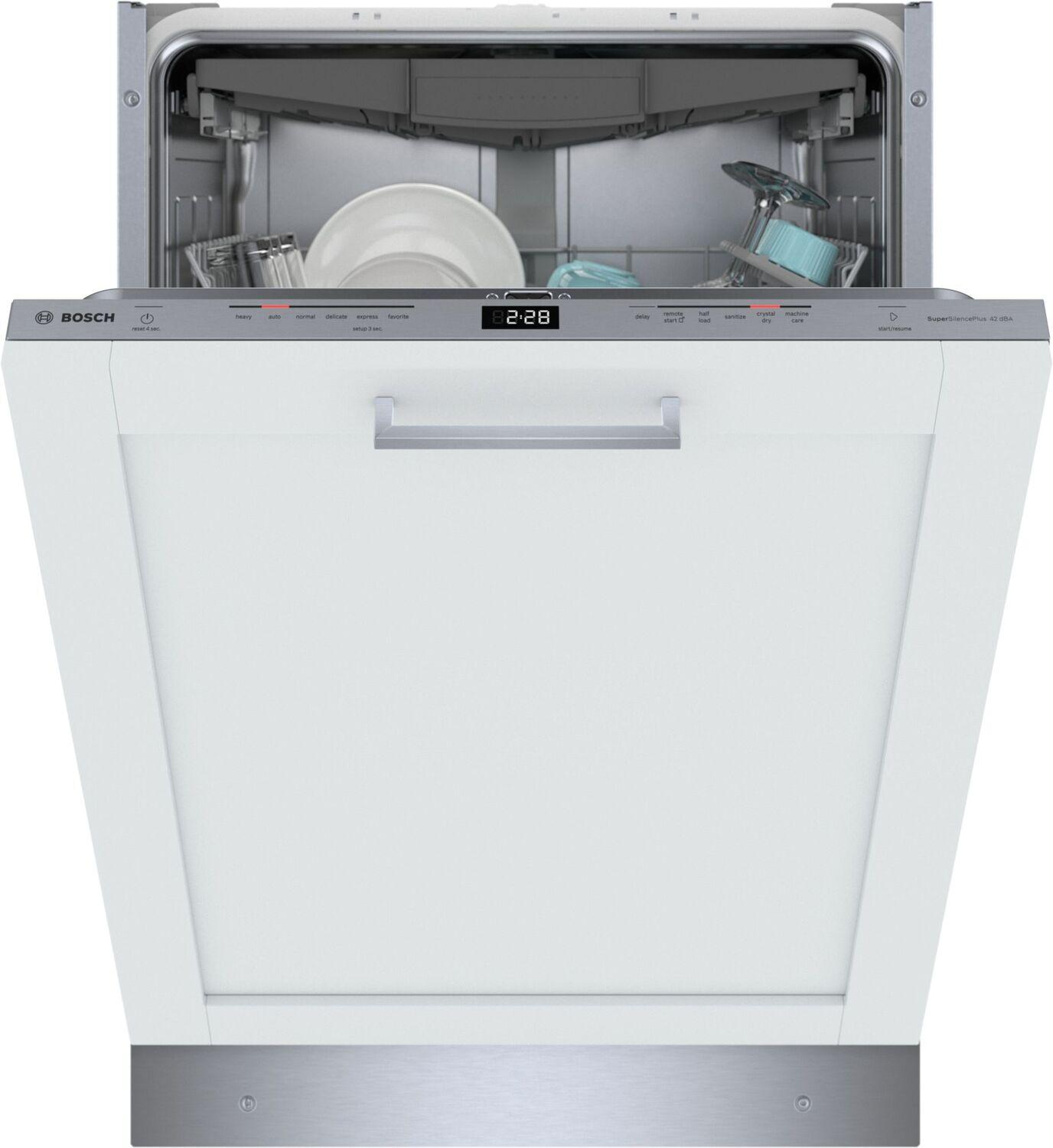

Bosch SHV78B73UC 800 Series Dishwasher 24"
Rebates &
Promotions
Bosch Buy More Save More Rebate - Receive up to a $1500 rebate with purchase of 2 or more qualifying Bosch products plus eligible cooking bonuses. Download Valid: 07/11/2024-12/31/2024

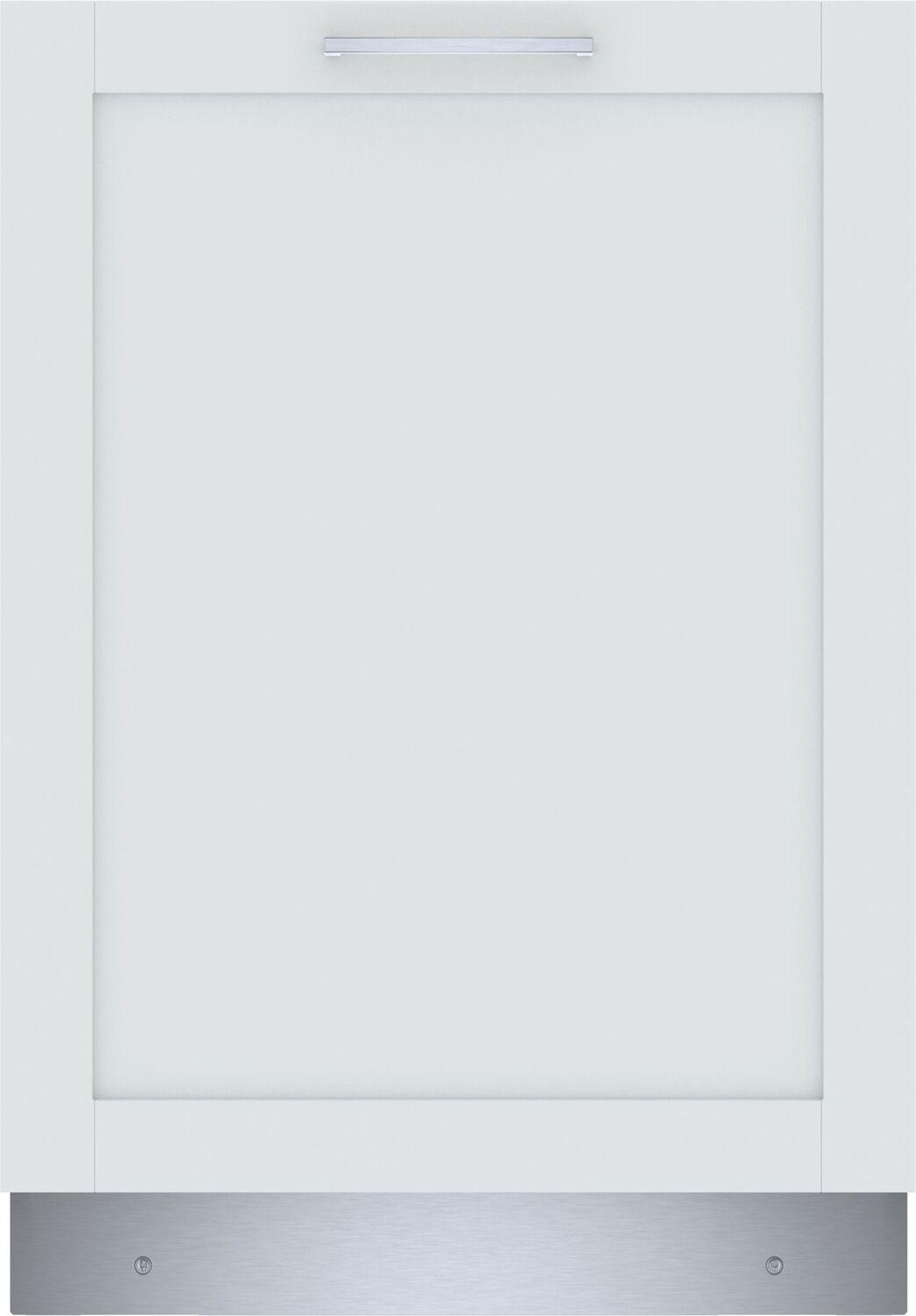

24 Inch Fully Integrated Built-In Panel Ready Smart Dishwasher with 15 Place Setting Capacity
Clean-up becomes easier with this Smart Fully Integrated dishwasher from Bosch.

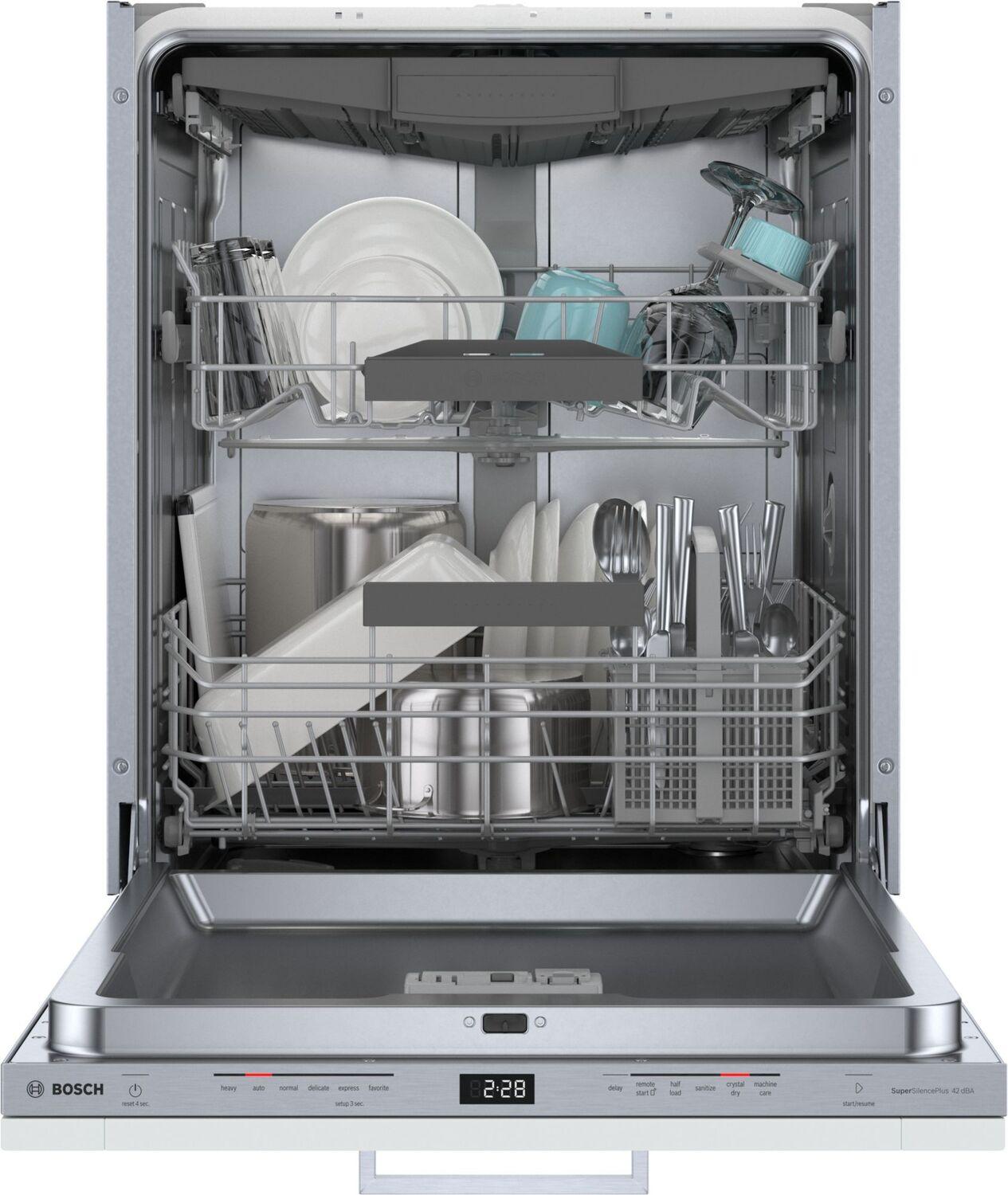

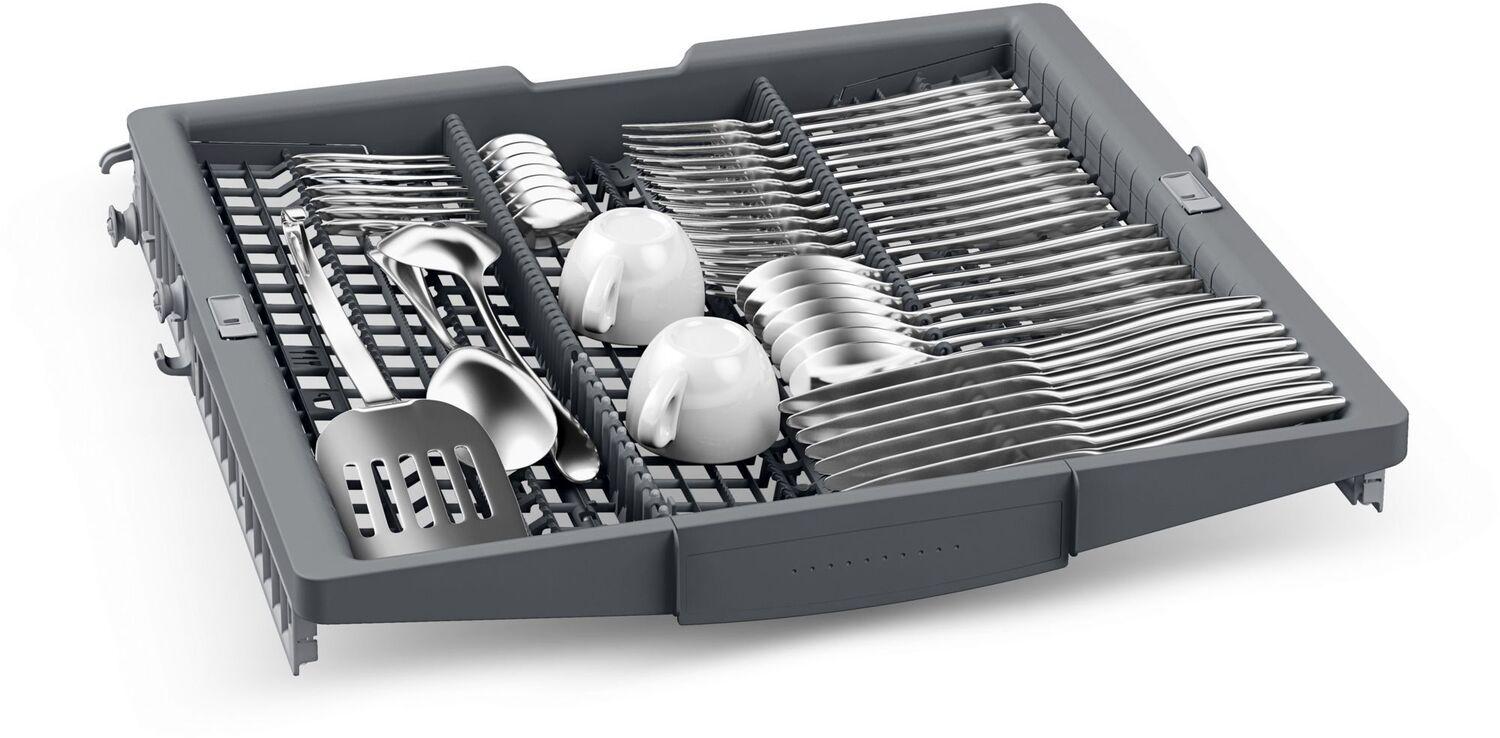

It comes equipped with a 3rd Rack that provides the perfect space for silverware and large utensils, while its V-shape leaves room below for taller items. .
The RackMatic® system adjusts the top rack in just one step, even when loaded. .
It can be adjusted to three different heights and 9 rack positions. .
This unit also comes with Bosch's AquaStop® system which detects leaks and immediately shuts down operation. .
This feature is able to work 24/7 to guarantee a dry kitchen. .
Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder - only with Home Connect®..
With Bosch PrecisionWash®, simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you. .
At Bosch, we believe dishes should receive a powerful clean and then be thoroughly dry. Patented CrystalDry™technology transforms moisture into heat up to 176 F to get dishes 60% drier,* so you can put away your plastic dishes immediately into the cupboard when the dishwasher is finished. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry™ on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry®.Drying performance may vary by dish type. .
A range of technologies makes Bosch the quietest dishwasher brand in the U.S.* with impressively low decibel levels. For you, that means never having to wait until going to bed to run the dishwasher. *Based on an average of sound ratings of 24"" Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as TraQline Top 5 Market Share December 2021. .
With the advanced leak prevention and containment systems of AquaStop®, AquaStop® Plus features an additional hose surrounding the water inlet hose for added protection. .
PureDry® is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere. .

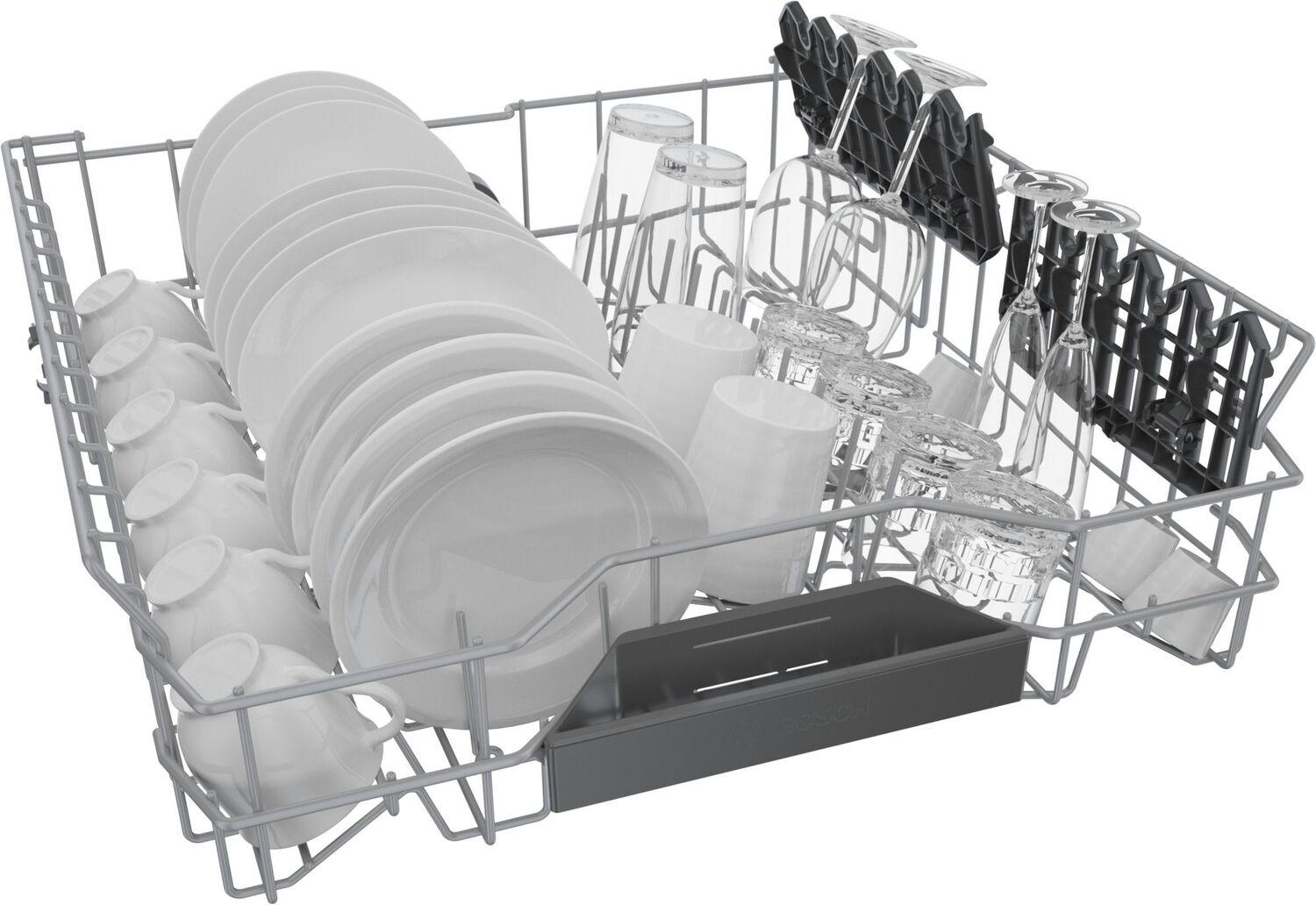

RackMatic® easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below. .
Dimensions & Capacity. Width: 23.56".
Height: 34".
Depth: 21.625"
It comes equipped with a 3rd Rack that provides the perfect space for silverware and large utensils, while its V-shape leaves room below for taller items. .
The RackMatic® system adjusts the top rack in just one step, even when loaded. .
It can be adjusted to three different heights and 9 rack positions. .
This unit also comes with Bosch's AquaStop® system which detects leaks and immediately shuts down operation. .
This feature is able to work 24/7 to guarantee a dry kitchen. .
Smart Cycle takes the guesswork out of cycle selection by quickly helping you identify and save the best program combination for your needs. Now you can clean smarter, not harder - only with Home Connect®..
With Bosch PrecisionWash®, simply start your dishwasher and walk away. Intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load. So when your dishes are done, so are you. .
At Bosch, we believe dishes should receive a powerful clean and then be thoroughly dry. Patented CrystalDry™technology transforms moisture into heat up to 176 F to get dishes 60% drier,* so you can put away your plastic dishes immediately into the cupboard when the dishwasher is finished. *Based on aggregate average drying performance of Bosch Dishwashers with CrystalDry™ on combined household load including plastics, glass, steel, and porcelain as compared to Bosch Dishwashers with PureDry®.Drying performance may vary by dish type. .
A range of technologies makes Bosch the quietest dishwasher brand in the U.S.* with impressively low decibel levels. For you, that means never having to wait until going to bed to run the dishwasher. *Based on an average of sound ratings of 24"" Full Size Stainless Steel Tub dishwashers contained in major brands websites. Major brands defined as TraQline Top 5 Market Share December 2021. .
With the advanced leak prevention and containment systems of AquaStop®, AquaStop® Plus features an additional hose surrounding the water inlet hose for added protection. .
PureDry® is an energy efficient, closed drying system that does not pull in outside air and gently whisks moisture away from dishes as they cool. And with no exposed heating element, you can safely place plastics anywhere. .
RackMatic® easily adjusts to three different heights and up to nine separate rack positions, allowing taller items like stemware to fit in the middle rack while leaving room for pots and pans below. .
Dimensions & Capacity. Width: 23.56".
Height: 34".
Depth: 21.625"
- Adjustable Upper Rack

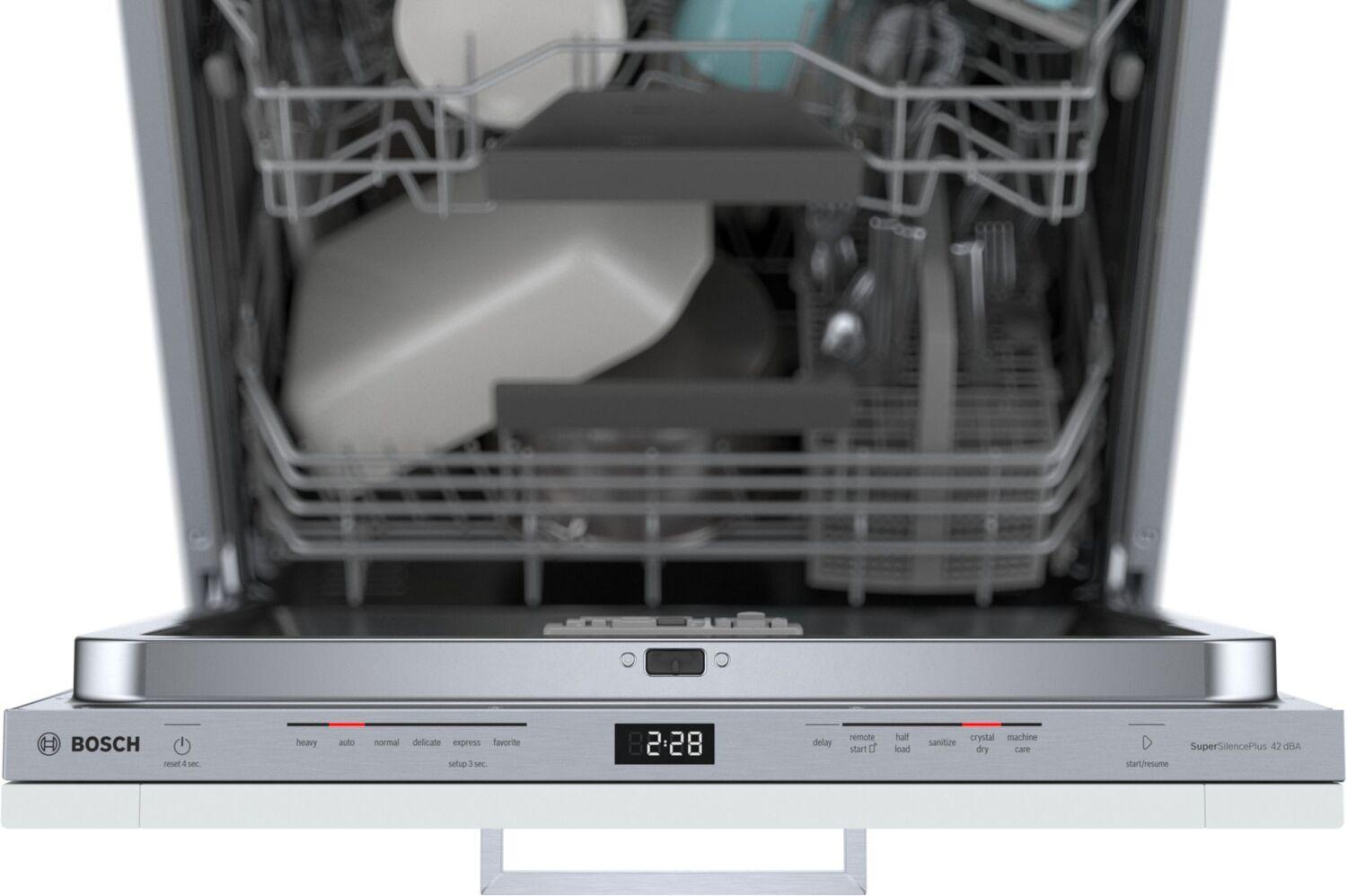

- Electronic Display
- Cutlery Tray
- Cup Shelves
- Stemware Holder
- Rinse Aid Dispenser
- Water Filtration
- Water Heating
- Sanitize Cycle
- Sensor Clean
Features and Specifications | |
General | |
Appliance Width (in) | 23 9/16 |
Height | 34 1/16 |
Installation Type | Full-integrated |
Number of Place Settings | 15 |
List of Programs | Auto, Delicate, Favorite, Heavy, Normal, Quick |
Cycle Options | Crystal Dry, Half Load, Machine Care, Remote Start, Sanitize |
Display | Yes |
Silence Level | 42 dB(A) re 1 pW |
3rd rack | Flexible 3rd rack |
Interior Light | No |
Removable top | No |
Power Cord Length | 67'' |
Connectivity | |
Home Connect™ | Yes |
Home Connect Features | Remote Monitoring and Control |
Power consumption standby/network: Please check the user manual for how to switch off the WiFi module. | 2.0 W |
Time auto-standby/network | 2.0 min |
Size and weight | |

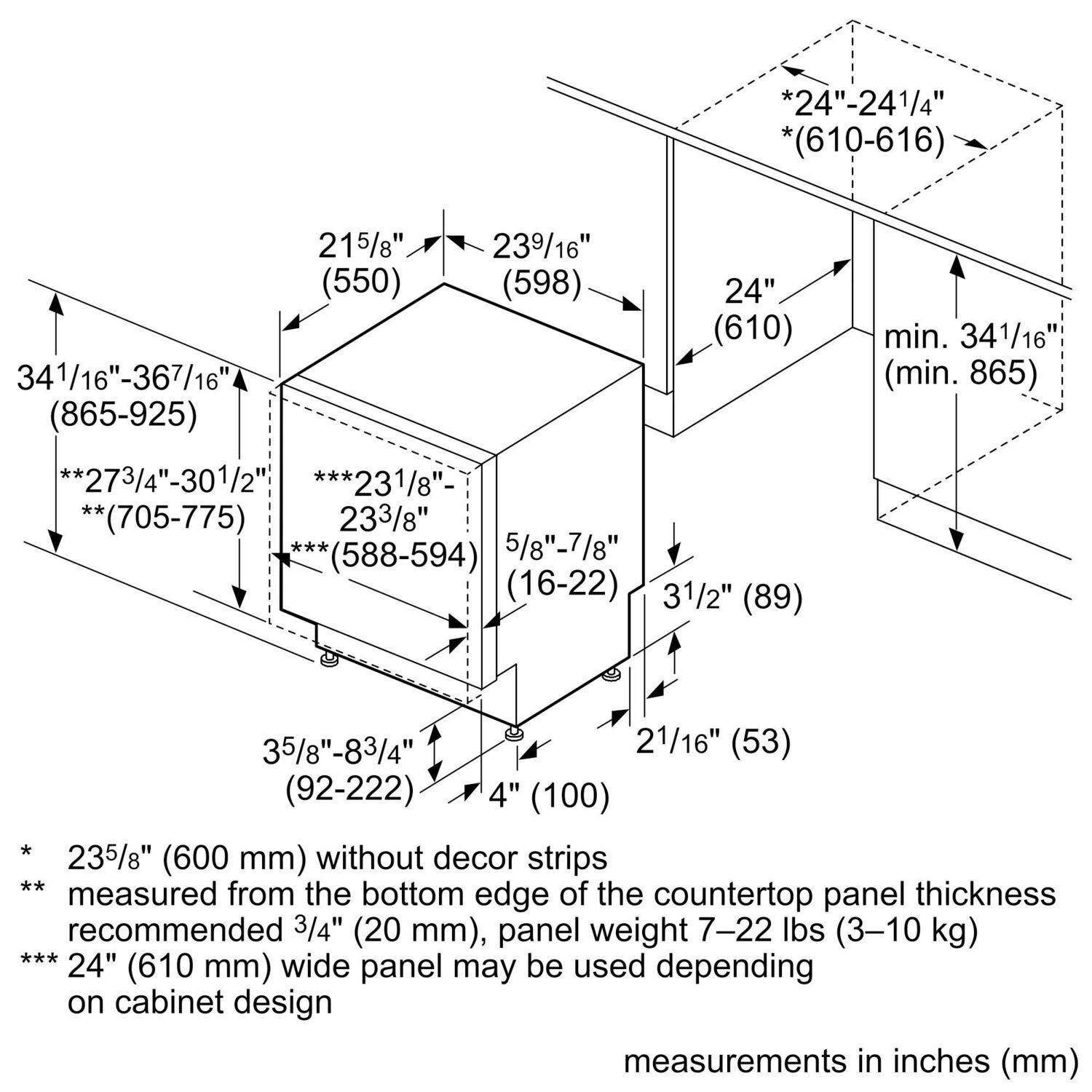

Overall Appliance Dimensions (HxWxD) (in) | 34 1/16' x 23 9/16'' x 21 5/8' |
Adjustable plinth | No |
Net Weight | 106.000 lbs |
Weight furniture front (min - max) | 3 - 10 kg |
Programmes | |
Status indicator | End of program audible, Time remaining indic. internal, Water inlet |
List of Programs | Auto, Delicate, Favorite, Heavy, Normal, Quick |
Program 1 | Heavy |
Program 2 | Auto |
Program 3 | Normal |
Program 4 | Delicate |
Program 5 | Quick |
Program 6 | Favorite |
Programme duration, programme1 (min.) | 120-135 |
Programme duration, programme2 (min.) | 105-135 |
Programme duration, programme3 (min.) | 130-135 |
Programme duration, programme4 (min.) | 85-95 |
Programme duration, programme5 (min.) | 30 |
Programme duration, programme6 (min.) | 9 |
Reference program | Eco |
Number of different wash temperatures | 8 |
Temperature program 1 | 151-160 °F |
Temperature program 2 | 127-140 °F |
Temperature program 3 | 113-136 °F |
Temperature program 4 | 113-122 °F |
Temperature program 5 | 113 °F |
Safety | |
ChildLock | No |
Consumption values | |
Glass protection | Yes |
Energy consumption, programme1 | 1.1-1.2 kWh |
Energy consumption, programme2 (kWh) | 0.72-0.8 |
Energy consumption, programme3 (kWh) | 0.7-0.81 |
Energy consumption, programme4 (kWh) | 0.57-0.58 |
Energy consumption, programme5 (kWh) | 0.4 |
Energy consumption, programme6 (kWh) | 0.05 |
Water consumption program 1 | 4.9-6.4 gal |
Water consumption program 2 | 3.4-5.4 gal |
Water consumption program 3 | 2.6-5.6 gal |
Water consumption program 4 | 2.5-3.9 gal |
Water consumption program 5 | 2.7 gal |
Water consumption program 6 | 1.2 gal |
Maximum temperature for water intake (°C) | 60 °C |
Connection | |
Watts | 1,440 W |
Power Cord Length | 67'' |
Fuse protection | 12 A |

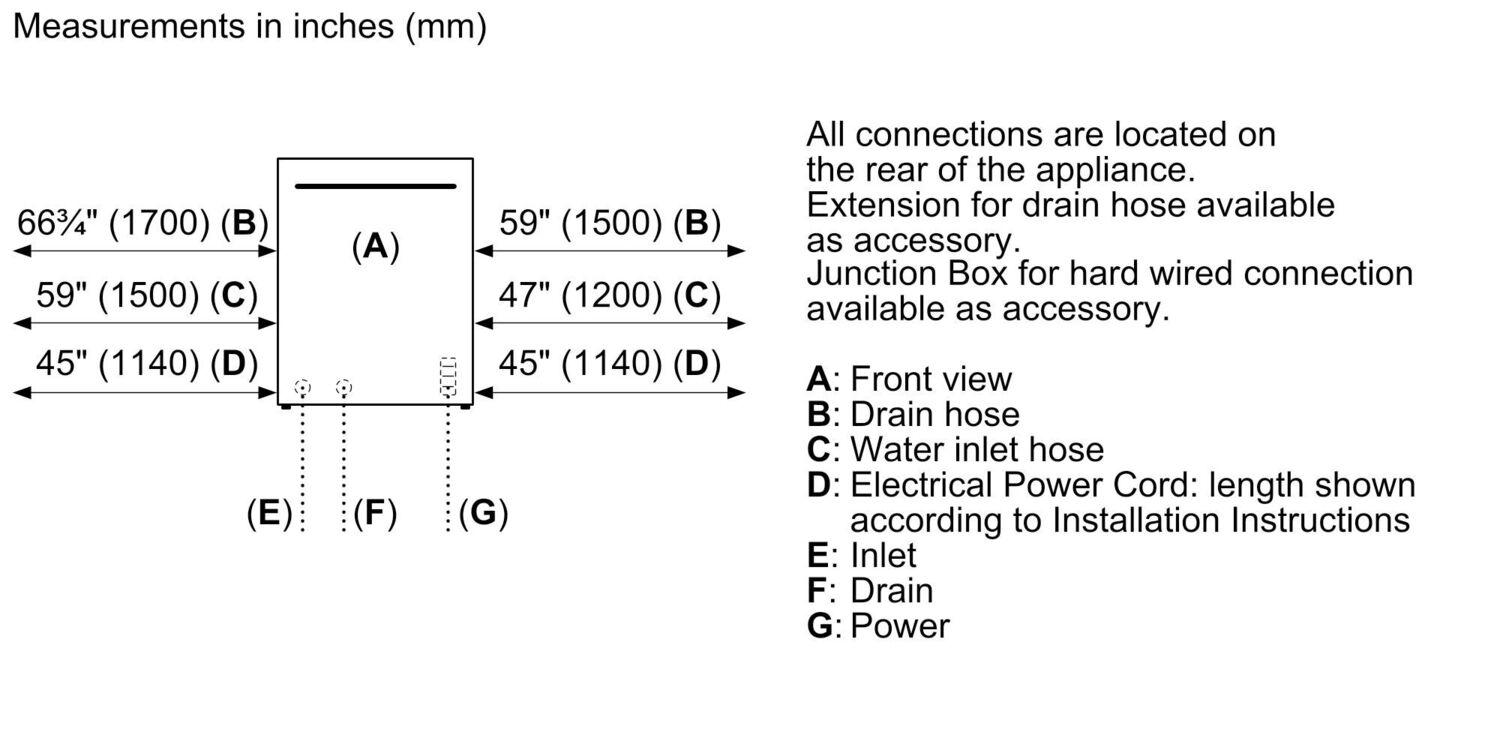

Length inlet hose | 165 cm |
Plug type | Nema5-15P |
Construction type | |
Color / Control Panel | Grey |
Construction Type | Built-in |
Drying System | Inherent heat, Zeolite |
Height | 34 1/16 |
Concealed heating element | Yes |
Installation Type | Full-integrated |
Tub material | Stainless steel |
Water Softener | Yes |
Appliance Width (in) | 23 9/16 |
A smarter clean with PrecisionWash®
The ultimate dry with CrystalDry™
Not just dry, but PureDry®
Enhance your cleaning experience with Wi-Fi enabled Home Connect®
Added leak protection with 24/7 AquaStop® Plus
42 dBA -- the quietest dishwasher brand in the U.S.*
Fit in tall items with RackMatic®
