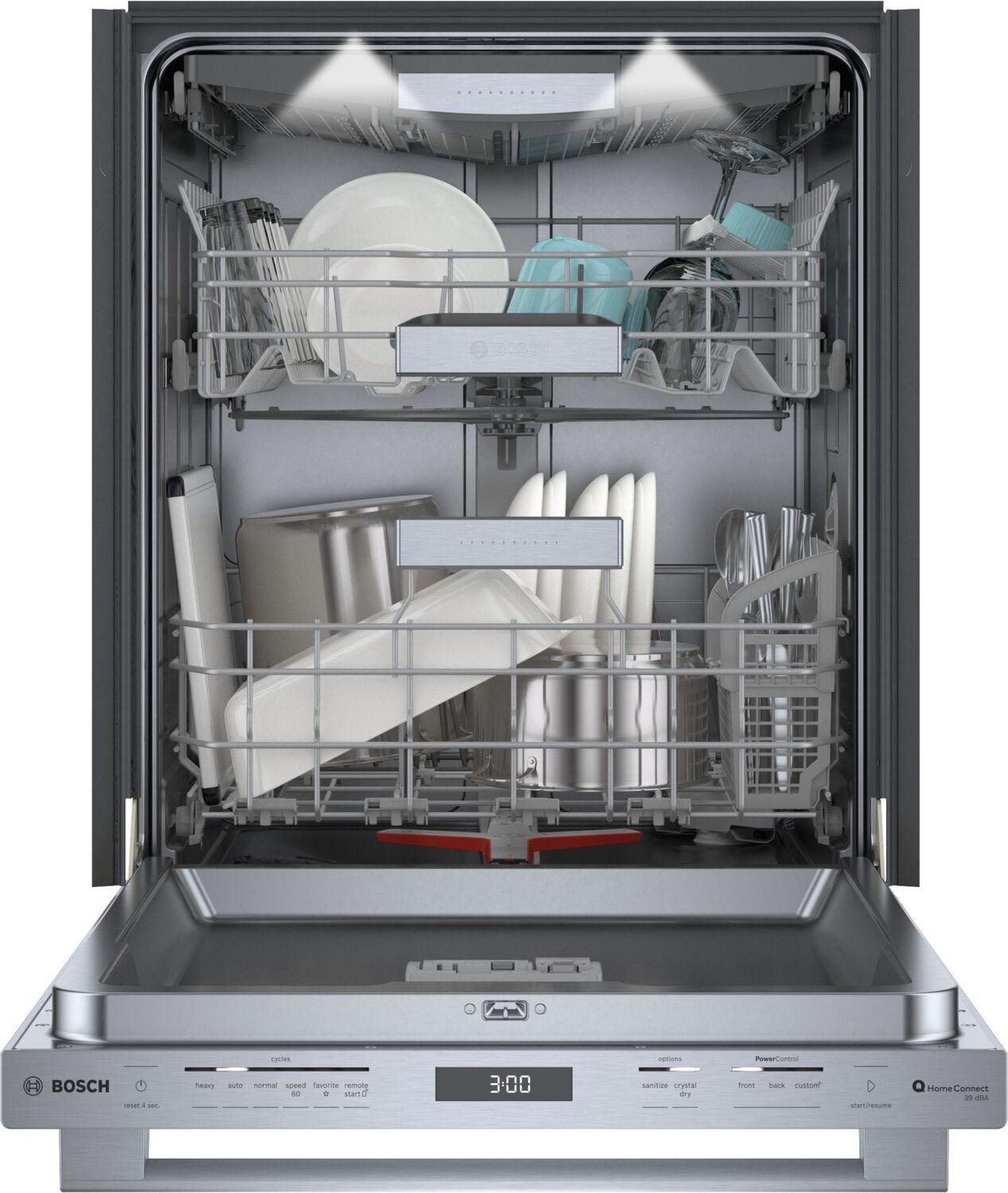

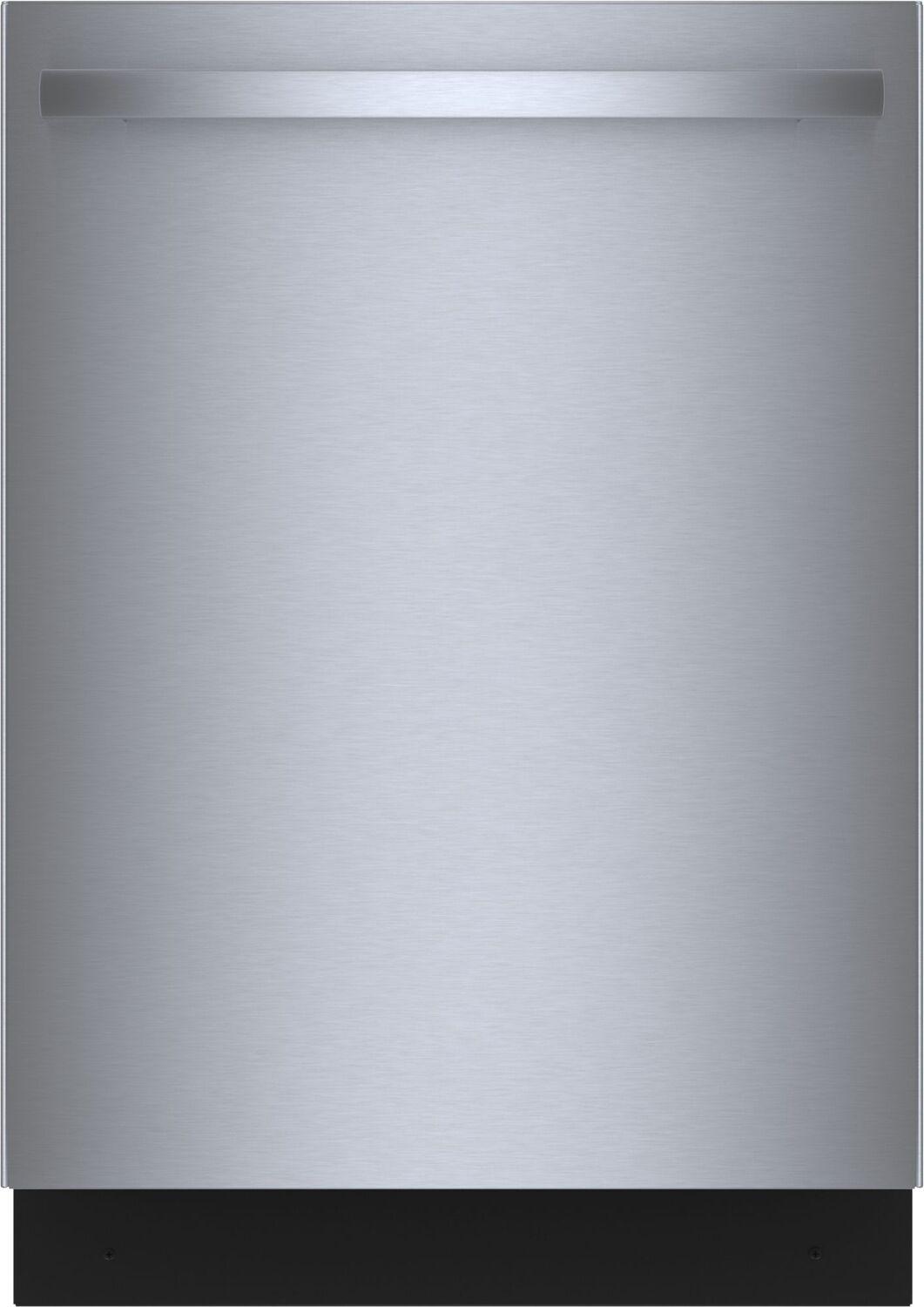

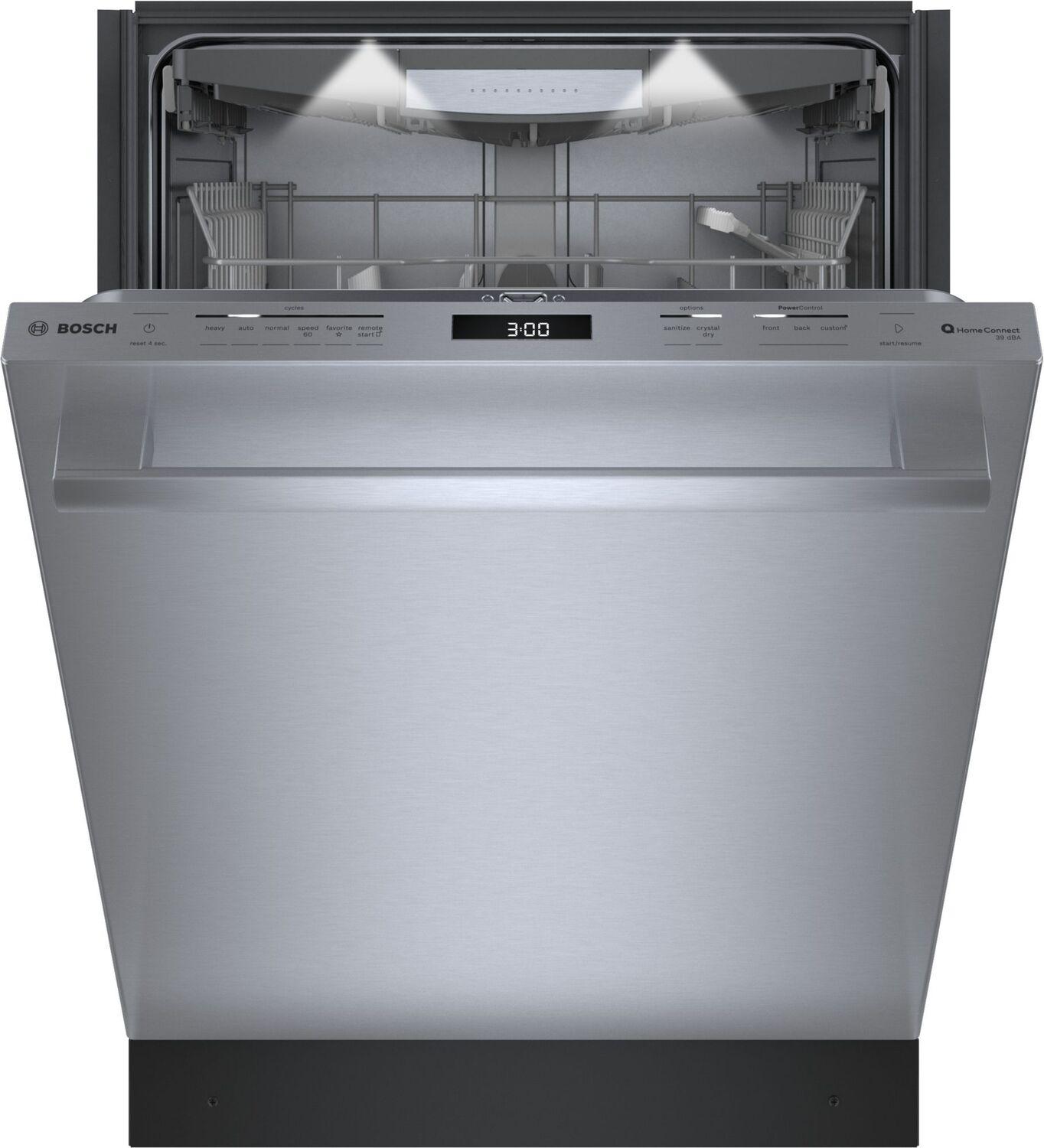

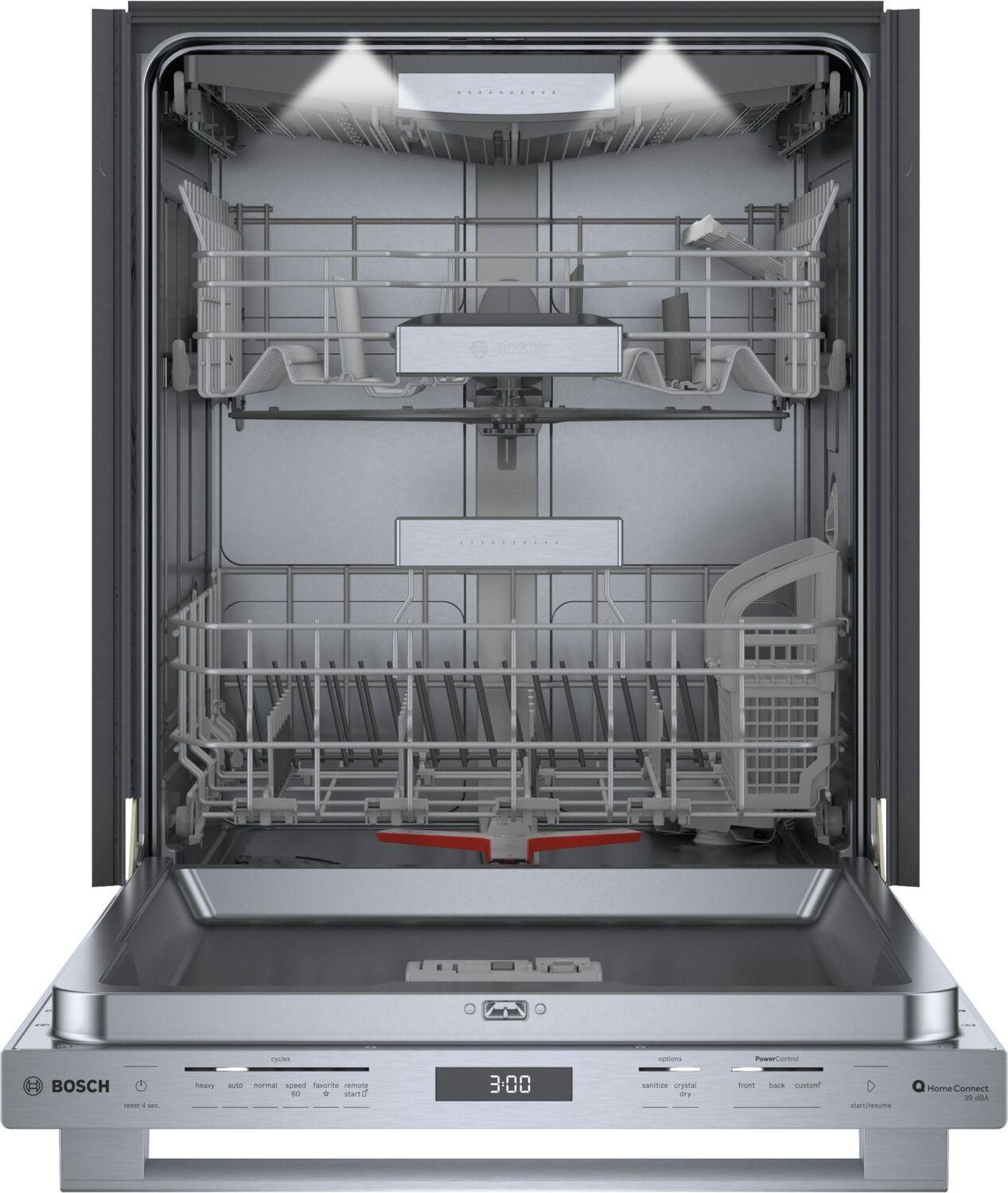

Bosch SHX9PCM5N Benchmark® Dishwasher 24" Stainless Steel
Rebates &
Promotions
Bosch Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Bosch appliances. Download Valid: 03/01/2025-04/30/2025

10-Year Rust-Through Warranty
We take much care of the quality of our dishwashers. The production processes and material used for the interior of our dishwashers allow to provide a special 10-year warranty against the rusting-through of the cavity from the inside (conditions apply).

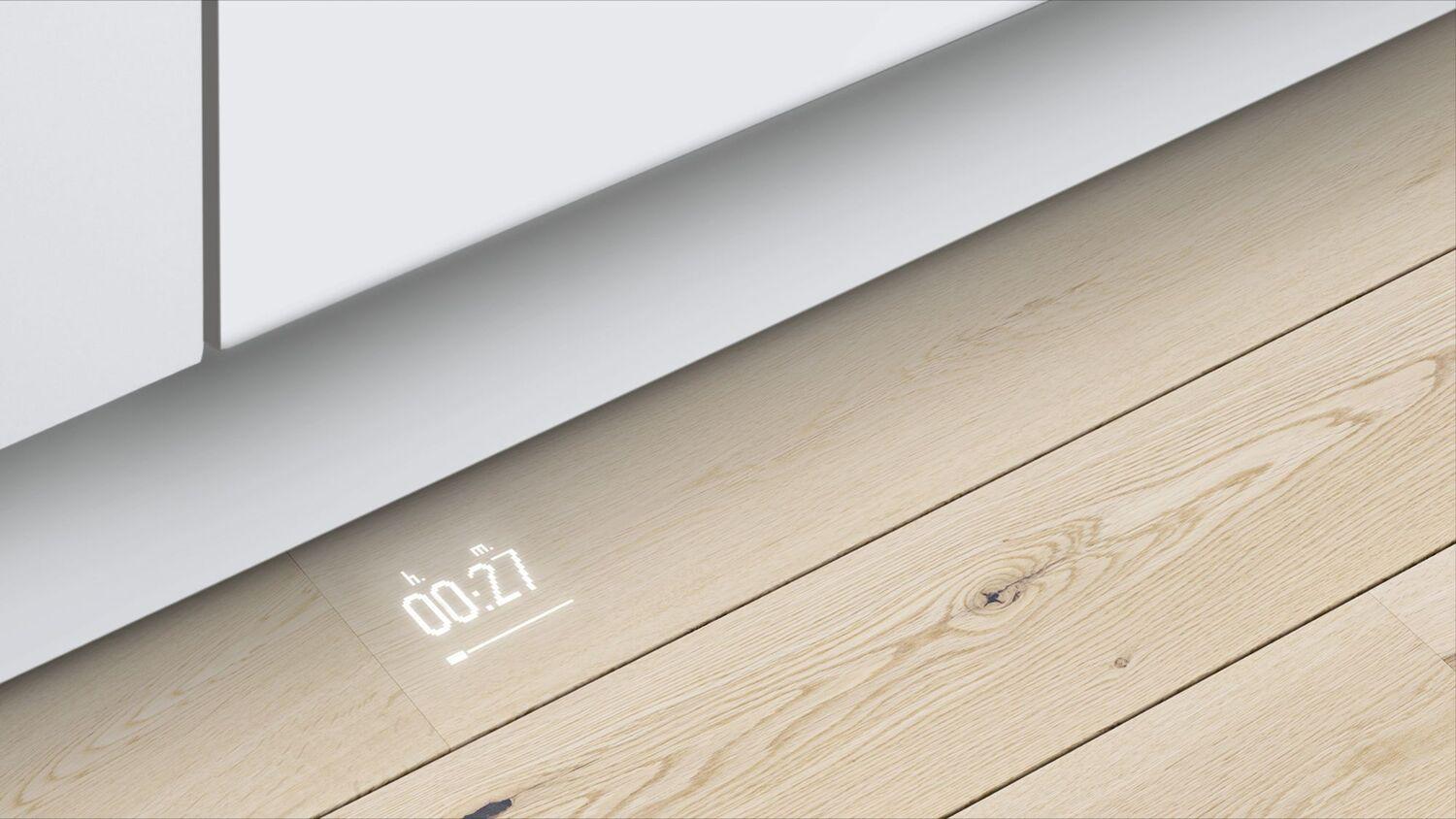

Know how long your dishwasher cycle has left with TimeLight®
Bosch dishwashers are so quiet it can be hard to tell if they're running. TimeLight® shines the amount of time remaining in the cycle right on the floor (or in the pocket handle of your dishwasher on select models) so you know exactly when your dishes will be done.

This Bosch Dishwasher is ENERGY STAR® certified and energy efficient
This Bosch dishwasher is ENERGY STAR® certified and meets or exceeds federal guidelines, for year-round energy savings

Water Softener provides spot-free dishes
A built-in water softener removes hard water spots caused by lime deposits, softening the water to the appropriate level to ensure spot-free, shiny dishes.

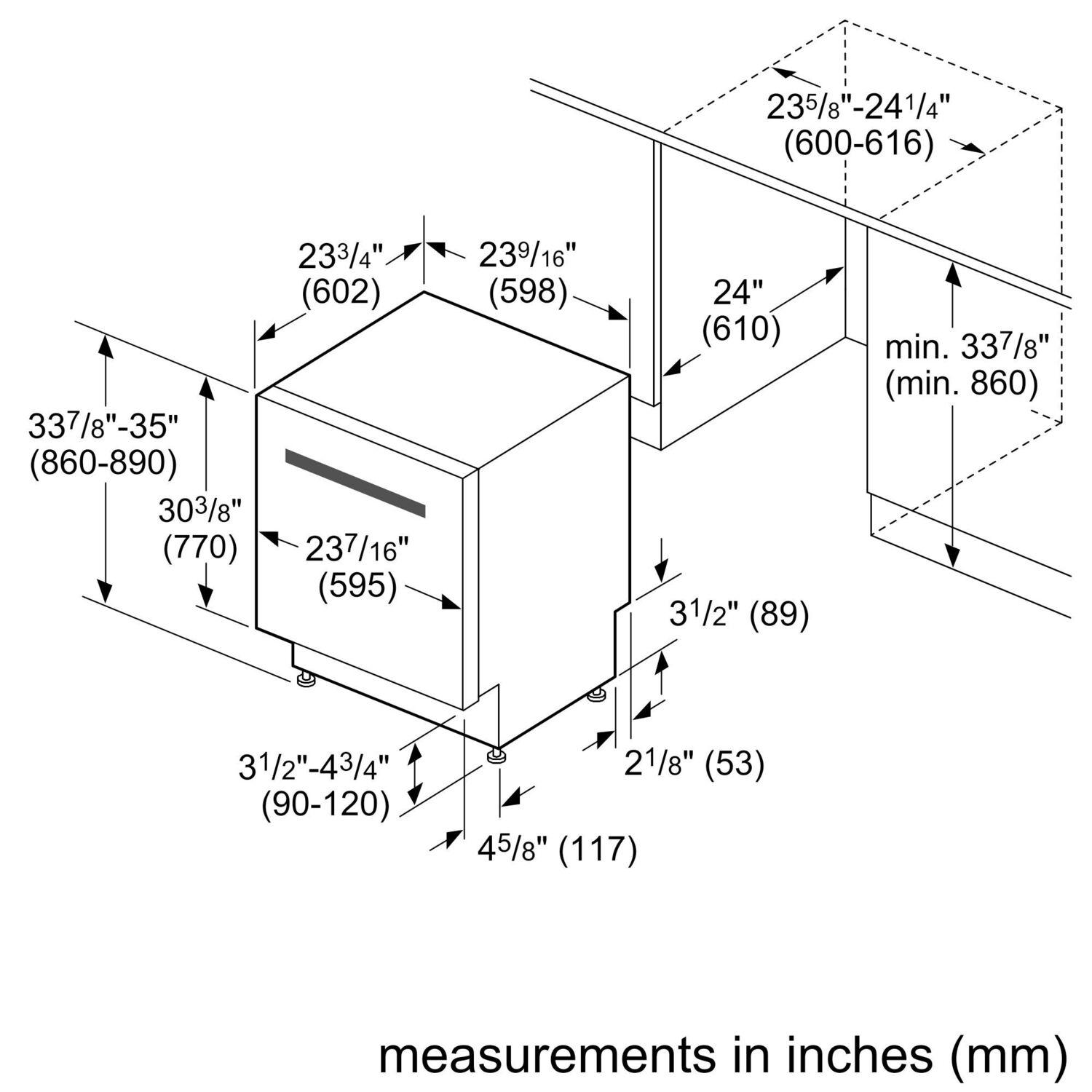

Dimensions & Capacity Width: 23.56"
Height: 33.875"
Depth: 23.75"

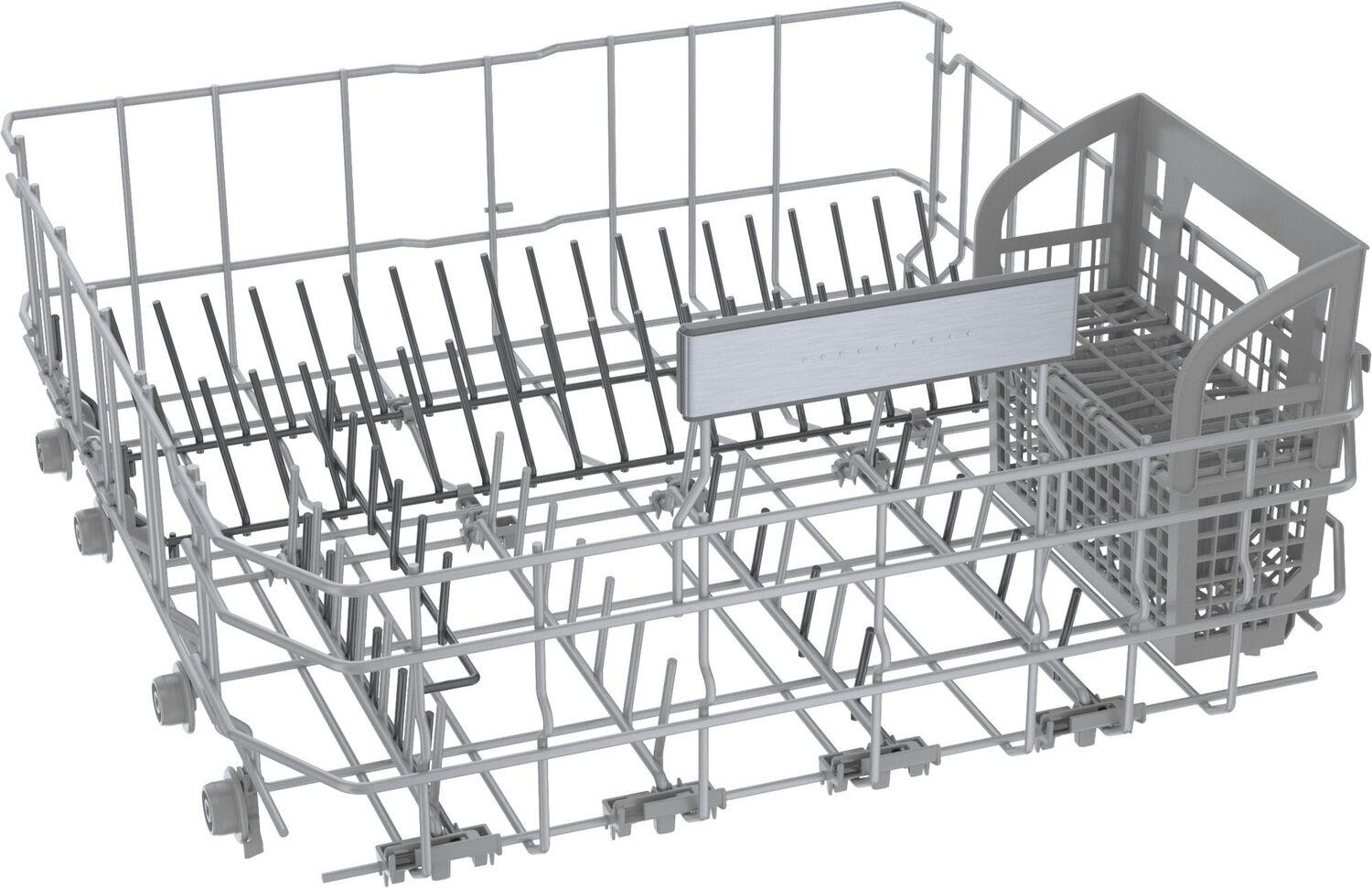

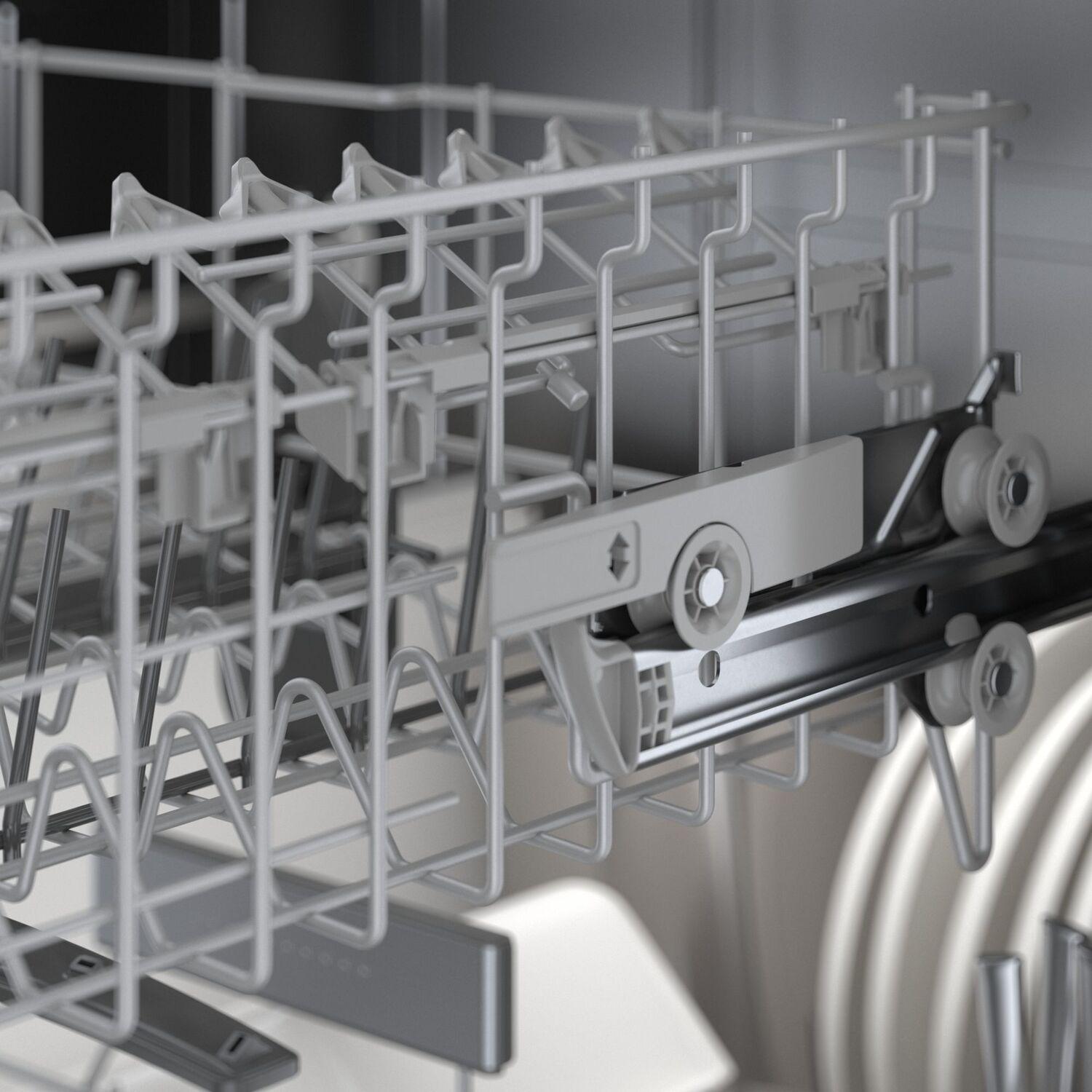

- EasyGlide™ Plus rack system with ball bearing wheels for an even smoother glide
- Enhance your cleaning experience with Wi-Fi enabled Home Connect®
- Know how long your dishwasher cycle has left with TimeLight®

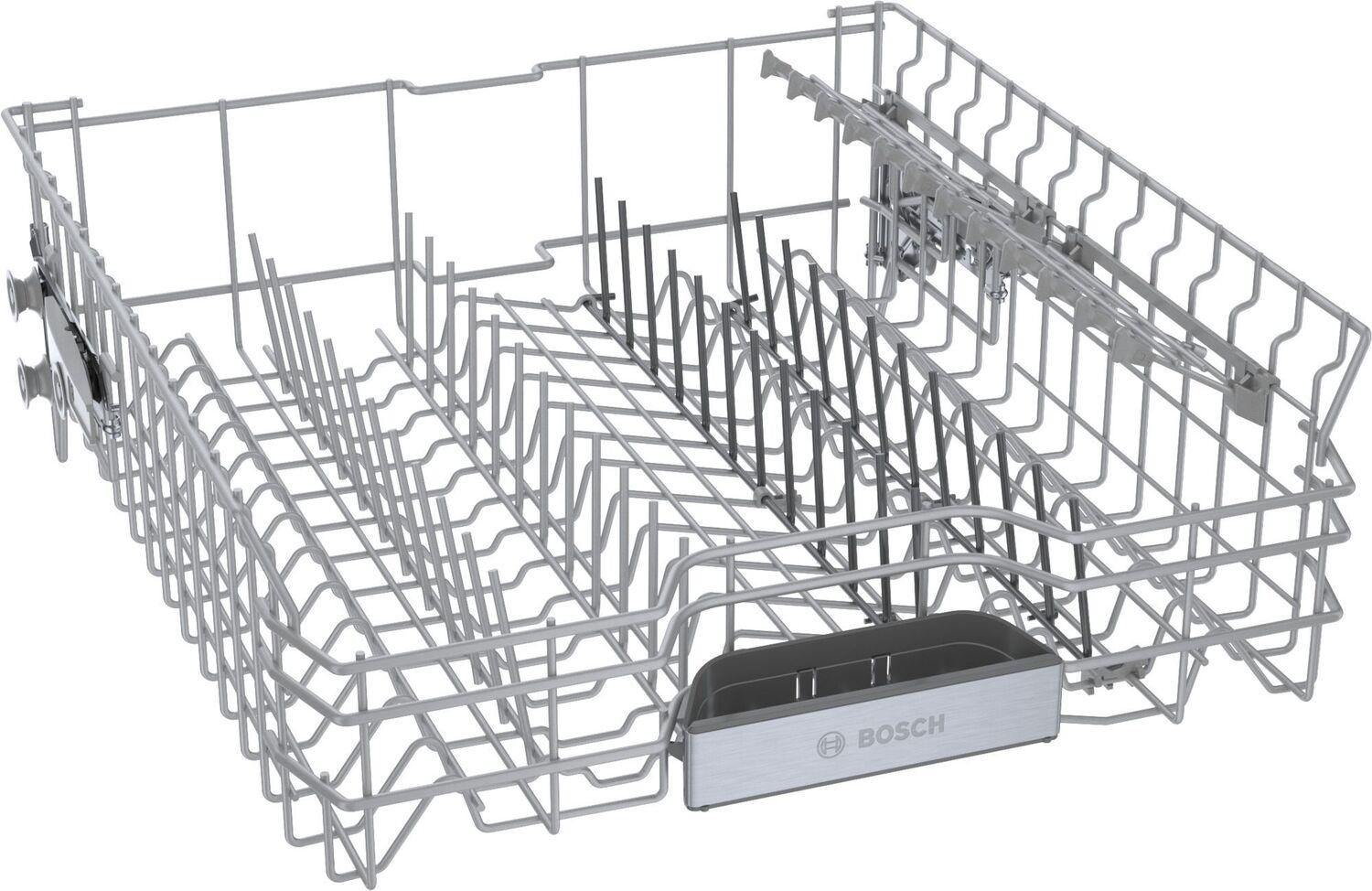

- Fit in tall items with RackMatic®
- 485 quality checks on every dishwasher
- This Bosch Dishwasher is ENERGY STAR® certified and energy efficient.
- Water Softener provides spot-free dishes
- 39 dBA -- the quietest dishwasher brand in the U.S.*
- The ultimate dry with CrystalDry™
- The deepest clean from PrecisionWash® with PowerControl™
Features and Specifications | |
General | |
Appliance Width (in) | 23 9/16 |
Height | 33 7/8 |
Installation Type | Built-under |
Number of Place Settings | 16 |

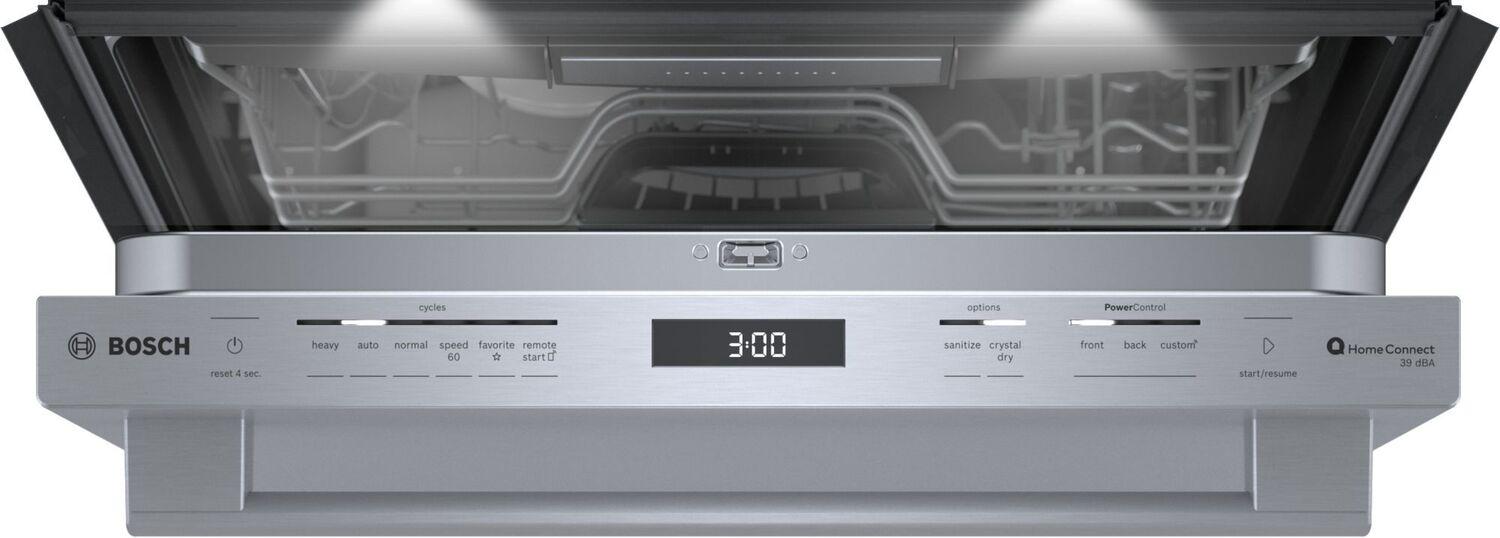

List of Programs | Auto, Favorite, Heavy, Normal, Speed 60 |
Cycle Options | Crystal Dry, Remote Start, Sanitize |
Display | Yes |
Silence Level | 39 dB(A) re 1 pW |

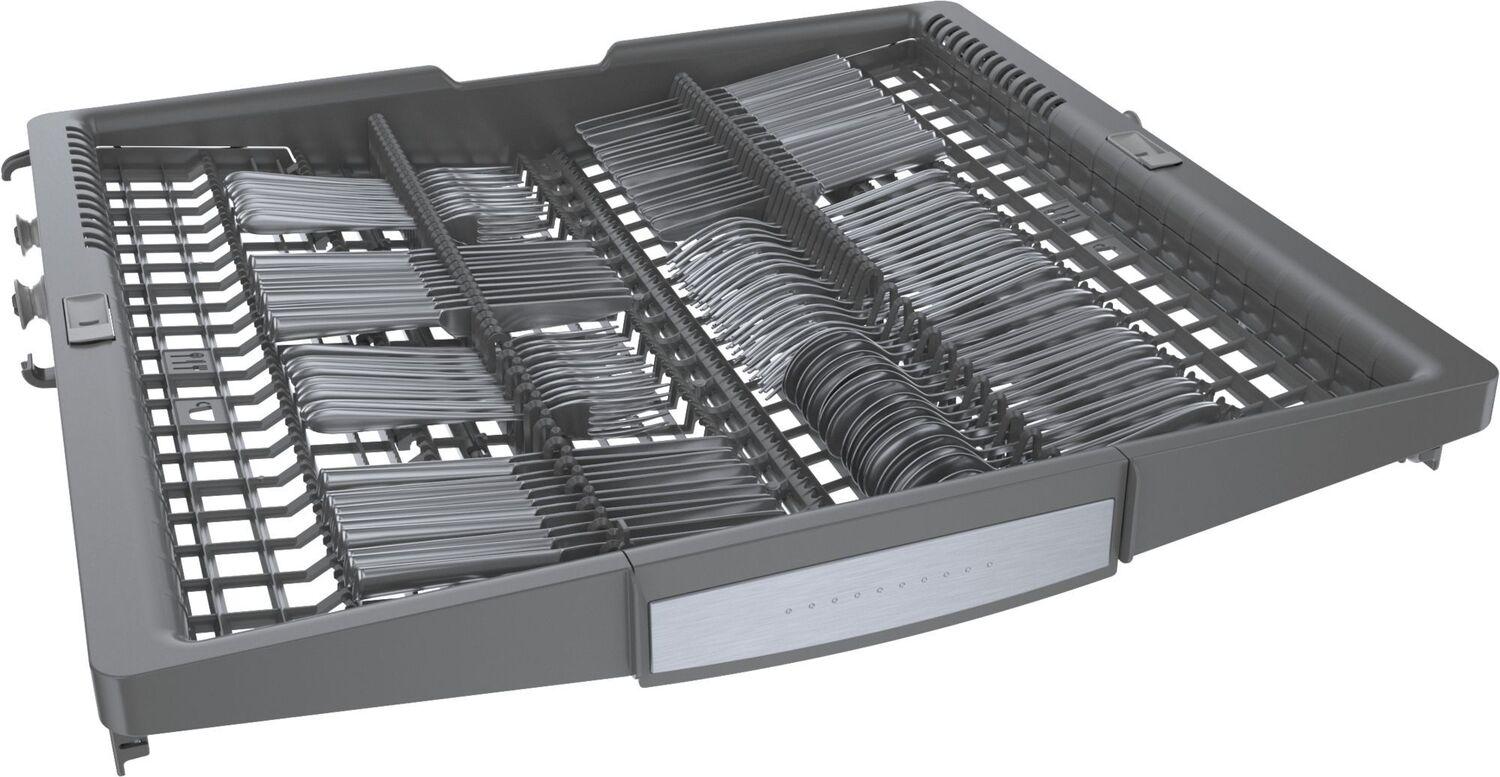

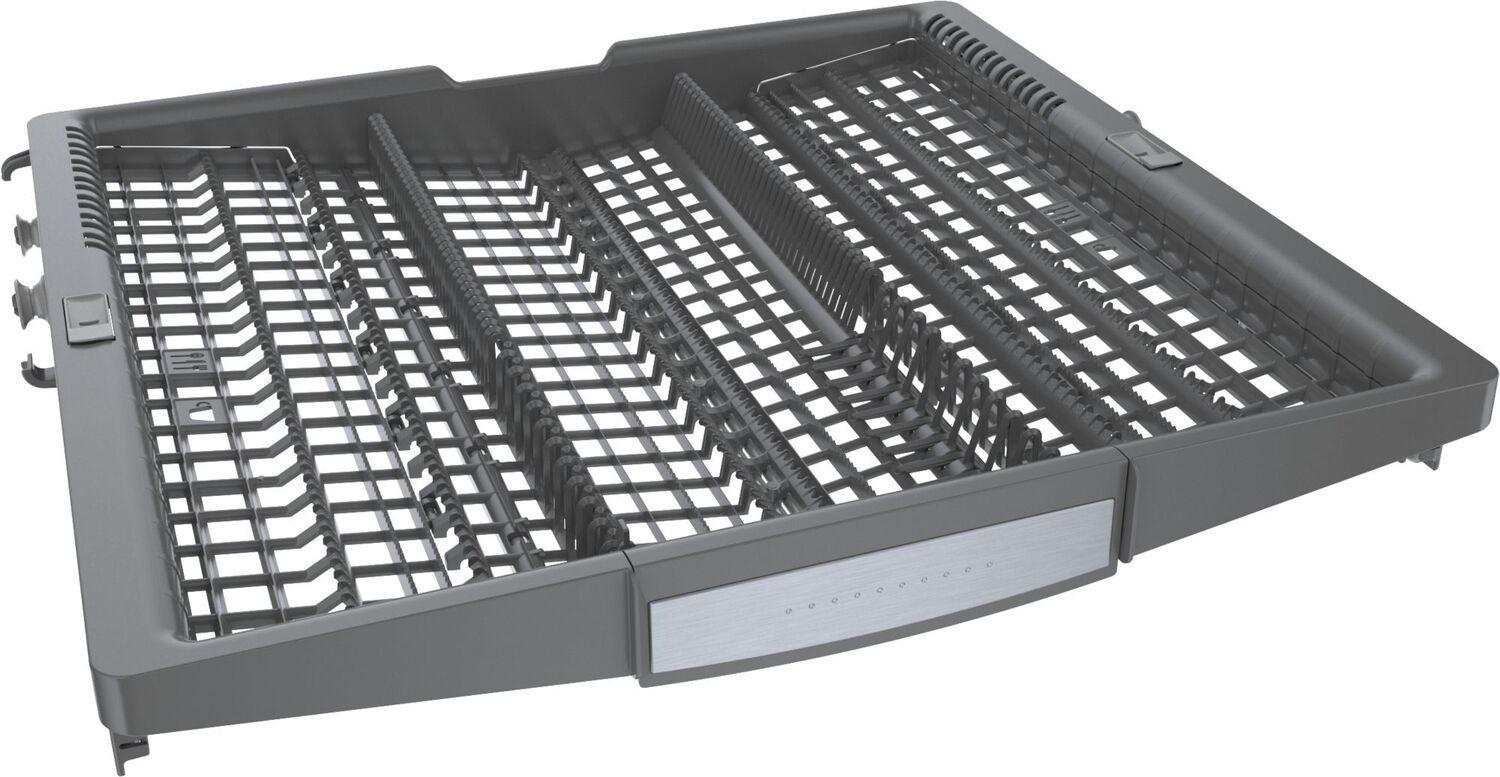

3rd rack | VarioDrawer Pro |
Interior Light | Yes |
Removable top | No |
Power Cord Length | 67'' |
Connectivity | |
Home Connect™ | Yes |
Home Connect Features | Remote Monitoring and Control |
Size and weight | |

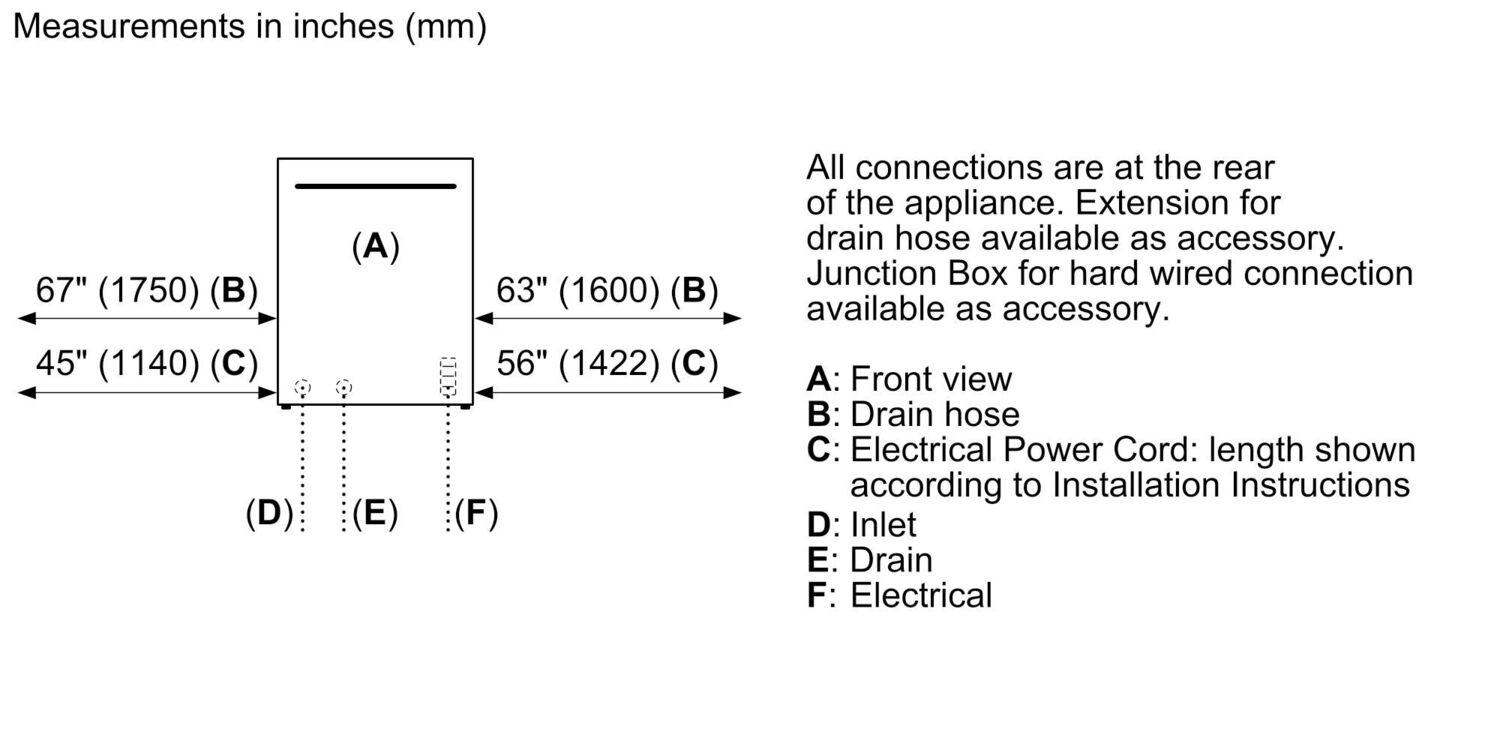

Overall Appliance Dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4'' |
Adjustable plinth | No |
Net Weight | 101.000 lbs |
Programmes | |
Status indicator | End of program audible, Time remaining indic. internal, Water inlet |
List of Programs | Auto, Favorite, Heavy, Normal, Speed 60 |
Program 1 | Heavy |
Program 2 | Auto |
Program 3 | Normal |
Program 4 | Speed 60 |
Program 5 | Favorite |
Reference program | Eco |
Number of different wash temperatures | 6 |
Temperature program 1 | 151-160 °F |
Temperature program 2 | 127-140 °F |
Temperature program 3 | 127-136 °F |
Temperature program 4 | 122 °F |
Temperature program 5 | 127-140 °F |
Safety | |
ChildLock | No |
Consumption values | |
Glass protection | Yes |
Water consumption program 1 | 4.9-6.4 gal |
Water consumption program 2 | 3.4-5.4 gal |
Water consumption program 3 | 2.4-6.4 gal |
Water consumption program 4 | 3.8 gal |
Water consumption program 5 | 3.4-5.4 gal |
Water consumption program 6 | 1.1 gal |
Total Annual Water Consumption | 688 gal |
Maximum temperature for water intake (°C) | 60 °C |
Connection | |
Watts | 1,440 W |
Power Cord Length | 67'' |
Fuse protection | 12 A |
Plug type | Nema5-15P |
Construction type | |
Color / Material housing | Lacquered |
Construction Type | Built-in |
Drying System | Inherent heat, Zeolite |
Height | 33 7/8 |
Concealed heating element | Yes |
Installation Type | Built-under |
Tub material | Stainless steel |
Water Softener | Yes |
Appliance Width (in) | 23 9/16 |
39 dBA the quietest dishwasher brand in the U.S
Fit in tall items with RackMatic®
The ultimate dry with CrystalDry™
Enhance your cleaning experience with Wi-Fi enabled Home Connect®
The deepest clean from PrecisionWash® with PowerControl™
