Bosch SHXM4AY55N 100 Series Dishwasher 24'' Stainless Steel Shxm4Ay55N
When your dishes are done, so are you
With Bosch PrecisionWash®, intelligent sensors continually scan and check the progress of dishes throughout the cycle, and powerful, precision spray arms go to work targeting every item of every load.
RackMatic®
RackMatic® adjustable upper rack easily adjusts to 9 different positions to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below.
Quality in every detail
Every dishwasher must pass 485 quality checks--including running every single one with water-before leaving the factory. So you can rest assured that your dishwasher is built to withstand whatever life throws your way.
The dishwasher that removes more than food
The Sanitize option provides you with a thorough, hygienic clean, wash after wash. It can be selected with many wash programs and increases the final rinse temperature to remove remaining bacteria.
InfoLight®
A light that tells you when your dishwasher is running. InfoLight® projects a red light onto the floor during the wash cycle so you know when your dishwasher is running. The light turns off when dishes are ready.
The quietest dishwasher brand in the U.S.*
Bosch dishwashers are whisper quiet so you never have to wait until bedtime to run the dishwasher. Some of the 18 ways we approach noise reduction includes: multiple insulation layers, grindless food filtration, our EcoSilence motor system, and a sound absorbing base. *Based on an average of sound ratings for 24" full-size stainless steel tub dishwashers contained in major brands' websites. Major brands defined as TraQline Top 5 Market Share, December 2019.
A 3rd rack to meet your loading needs
With 30% more loading area (compared to a Bosch dishwasher with 2 racks) the 3rd rack provides extra space for flatware, large utensils and measuring cups. Its V shape leaves room below for tall items.
24h Delay Start Timer
Have your dishwasher start when you want it to. Delay Start delays the dishwasher's start time by up to 24 hours.
Anti-Fingerprint
Stainless steel fronts with anti-fingerprint coating are permanently surface-sealed by means of a special final treatment. This protective coating makes fingerprints much more difficult to see; the surface stays clean longer, is much more scratch-resistant and is easier to clean.
RackMatic® on Upper Rack - 3 Height Adjustments
24/7 Overflow Protection System® Design Stainless Steel Tall Tub with Polypropylene
15 Place Setting Capacity
LED Remaining Time Display
Long Silverware Basket Can be Placed Anywhere in the Dishwasher, Adding Space for Other Items Performance 5 Cycles and 4 Options
Detergent Tray Optimizes Detergent Dissolving
Load Size Sensor Automates Wash Temperature
Sanitize Option Eliminates Bacteria and Enhances Drying Results
Extra Dry Option for Better Drying Results Efficiency 269 kWh/yr - Energy Star®
Convenience 24 h Delay Start Timer

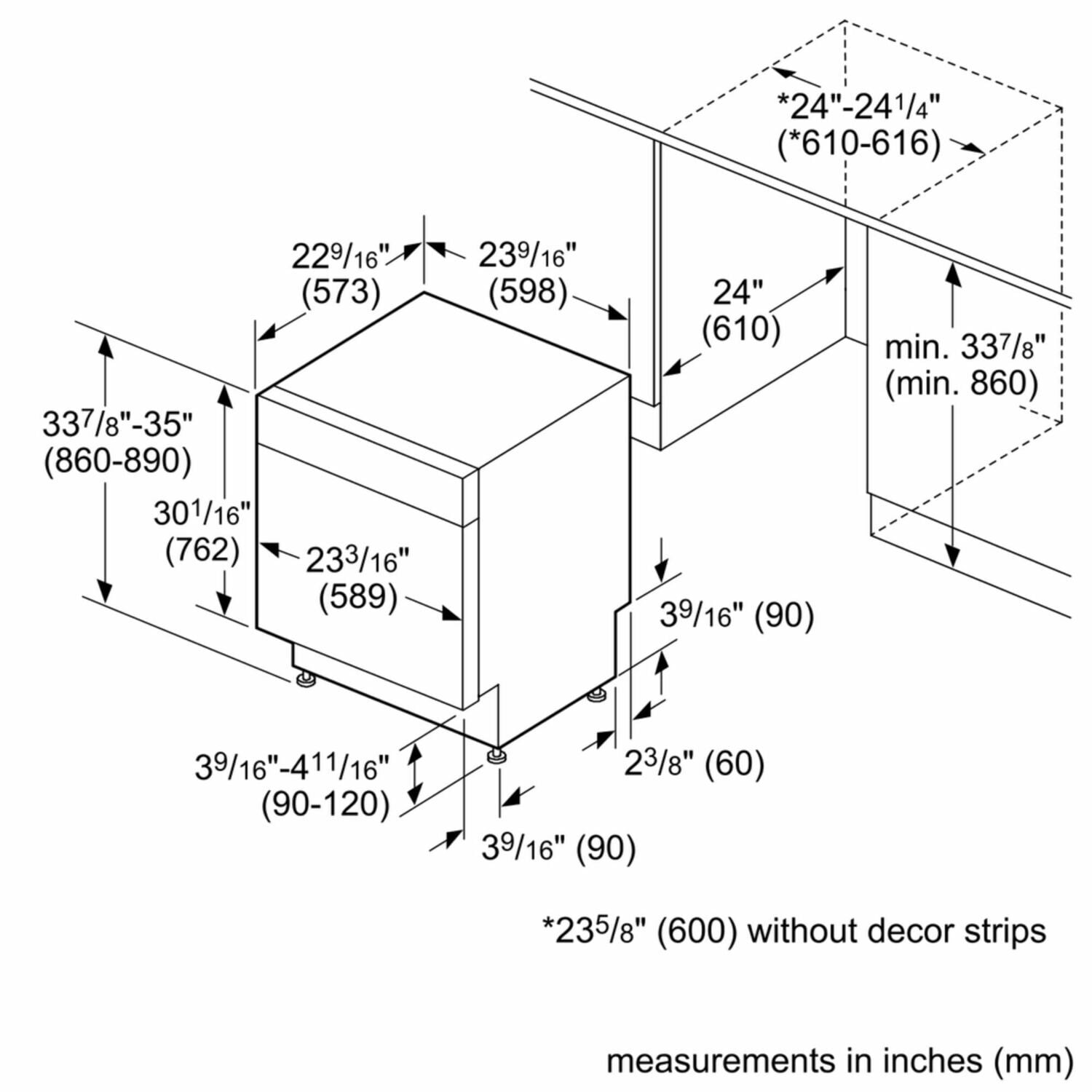

Self-Latching Door Dimensions & Capacity Width: 23.563"
Height: 33.875”
Depth: 22.563"
- 15 Place Settings
- Silent Operation: 48 dBA
- 5 Programs
- 4 Functions
- PrecisionWash®
- RackMatic®
- 24/7 Overflow Protection
- InfoLight®
- Standard Third Rack
- Five-level wash
- NSF®-certified3 sanitize option
- Concealed water heating element
- Stainless steel/ polypropylene tub
- ENERGY STAR® Certified
| Technical Specifications | |
| General | |
| Installation Type | Built-under |
| Number of place settings | 15 |
| List of programs | 1 Hour US, Auto, Power Scrub Plus US, Regular US, Rinse & Hold US |
| Cycle Options | Delicate, Extra dry, Sanitation |
| Display | |
| Silence level (dBA) | 48 |
| Third Rack | Standard Third Rack |
| Interior Light | |
| Removable top | |
| Power Cord Length | 67' |
| Connectivity | |
| Home Connect | |
| Connectivity type | Not applicable |
| Size and weight | |
| Overall appliance dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 22 9/16'' |
| Adjustable plinth | both horizontal and vertical |
| Net weight (lbs) | 77.000 |
| Programmes | |
| Status indicator | End of program audible, InfoLight red, sanitized LED US, Time remaining indic. internal |
| List of programs | 1 Hour US, Auto, Power Scrub Plus US, Regular US, Rinse & Hold US |
| Program 1 | Power Scrub Plus US |
| Program 2 | Auto |
| Program 3 | Regular US |
| Program 5 | Rinse & Hold US |
| Programme duration, programme1 (min.) | 110-130 |
| Programme duration, programme2 (min.) | 105-130 |
| Programme duration, programme3 (min.) | 130-135 |
| Programme duration, programme4 (min.) | 60 |
| Programme duration, programme5 (min.) | 9 |
| Reference programme | Regular US |
| Number of different wash temperatures | 5 |
| Temperature program 1 | 151-160 |
| Temperature program 2 | 127-131 |
| Temperature program 3 | 122-131 |
| Temperature program 4 | 122 |
| Safety | |
| Glass protection | |
| Surge-back protect. installed | |
| Leak protection system | Aqua Stop |
| Consumption values | |
| Glass protection | |
| Water consumption program 1 | 4.9-7.4 |
| Water consumption program 2 | 2.6-5.5 |
| Water consumption program 3 | 2.4-5.5 |
| Water consumption program 4 | 3.8 |
| Water consumption program 5 | 1.1 |
| Total annual water consumption (g) | 688 |
| Maximum temperature for water intake (°C) | 50 |
| Connection | |
| Watts (W) | 1,440 |
| Power Cord Length | 67' |
| Current (A) | 12 |
| Plug type | Nema5-15P |
| Construction type | |
| Color / Material housing | Tin grey |
| Color / Control Panel | Black |
| Construction type | Built-in |
| Panel ready | Not possible |
| Drying system | Inherent heat |
| Concealed heating element | |
| Installation Type | Built-under |
| Tub material | Plastic |
| Water Softener | |
