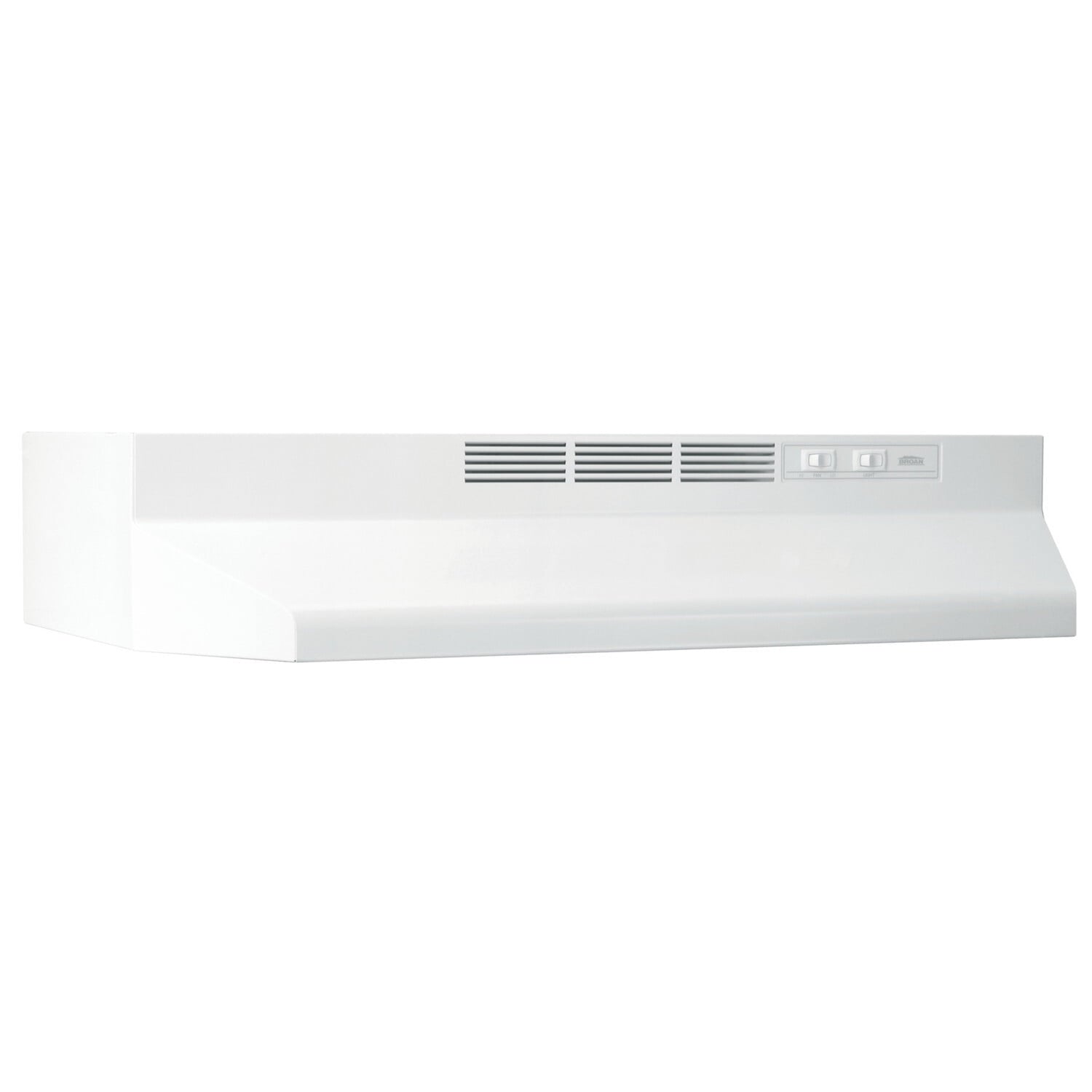

Broan 413001 Broan® 30-Inch Ductless Under-Cabinet Range Hood, White
Broan 41000 Ductless Series
Broan 41000 Ductless Series The 41000 series of ductless range hoods are made to exacting Broan standards, providing effective filtration, high quality and value.
The range hood comes in a variety of appliance matching colors and widths, and includes a removable combination grease-charcoal filter (model 41F) for cleaner non-ducted indoor exhaust recirculation, a fan designed for years of trouble free service, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation.Features & Benefits Installs as ductless only (non-ducted) with charcoal filter (model 41F)A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)

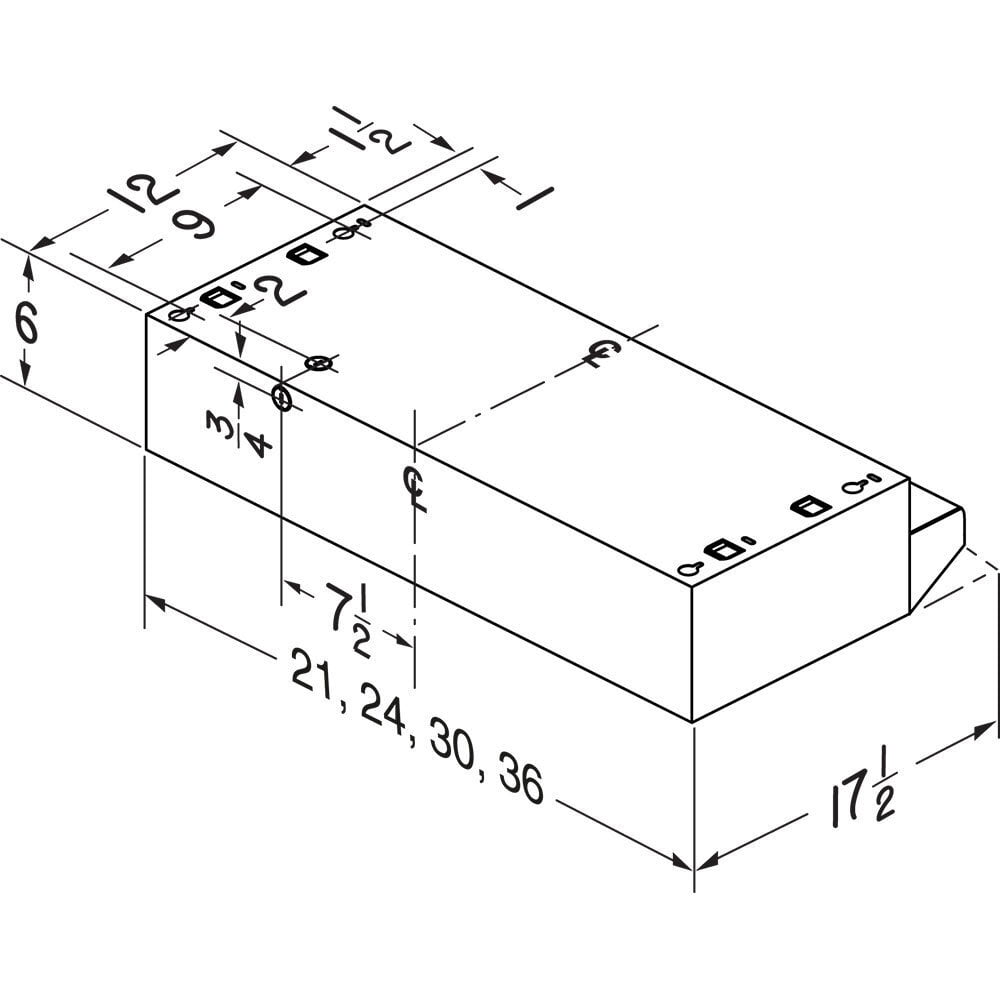

This range hood can work in an ADA-compliant application Dimensions & Capacity Width: 30"
Height: 6"
Depth: 17.5"
The range hood comes in a variety of appliance matching colors and widths, and includes a removable combination grease-charcoal filter (model 41F) for cleaner non-ducted indoor exhaust recirculation, a fan designed for years of trouble free service, a protective lamp lens that distributes light evenly over the cook-top and control switches for fan speed and light activation.Features & Benefits Installs as ductless only (non-ducted) with charcoal filter (model 41F)A protective lamp lens distributes light evenly over the cook-top and accepts up to 75W bulb (bulb not included)
This range hood can work in an ADA-compliant application Dimensions & Capacity Width: 30"
Height: 6"
Depth: 17.5"
- Non-vented design for use without air ducts
- 2-speed rocker fan switch and separate rocker light switch
- Included charcoal filter is replaceable for easy maintenance
- Uses up to a 75-Watt in LED light to brightly illuminate the cooking area (bulb sold separately)
- Mitered sides and hemmed bottom for good looks and your safety
- Limited 1-year warranty
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Filter Type | Charcoal |
Heat Sentry | No |
HVI Certified | No |
Lighting Type | Incandescent |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulbs Included | No |
Light Levels | 1 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | Yes |
Remote Operation Capable | No |
Speed Levels | 2 |
Switch Control Type | Rocker |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | United States |
Color Finish | White |
Rated Amps | 2 |
Product Depth | 17.5 |
Product Height | 6' |
Product Width | 30' |
Built-In Timer | No |
Vent Type | Non-Ducted Only |
Bulb (Recommended Type) | A19 |
Manufacturer Warranty | 1 Year |
Wattage | 240 |
