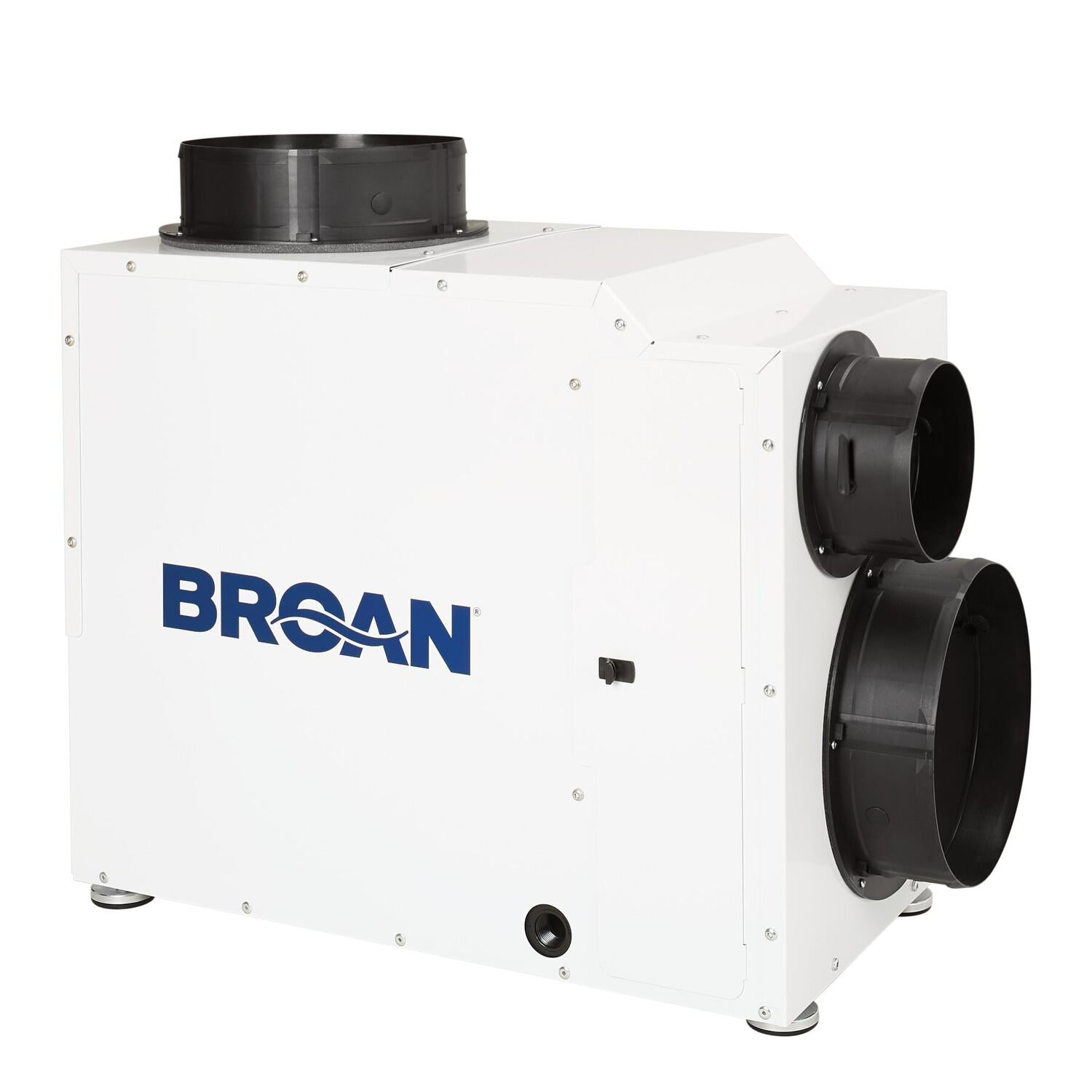

Broan B120DHV Broan® Deh 3000R Digital Control & Remote Sensor
Broan® 120 Pint Dehumidifier The Broan® 120 Pint Dehumidifier Delivers Superior Indoor Air Quality With It'S Merv 13 Filtration And Dedicated Humidity Control. With A 120 Pints Per Day Removal Capacity This Unit Is Well Suited For Medium To Larger Homes. The System Design Provides Excellent Energy Efficiency To Provide Humidity Control For Large Spaces.
- Removes up to 120 pints of water per day
- Provides up to 3,000 sq. ft. of coverage to provide humidity control to larger homes

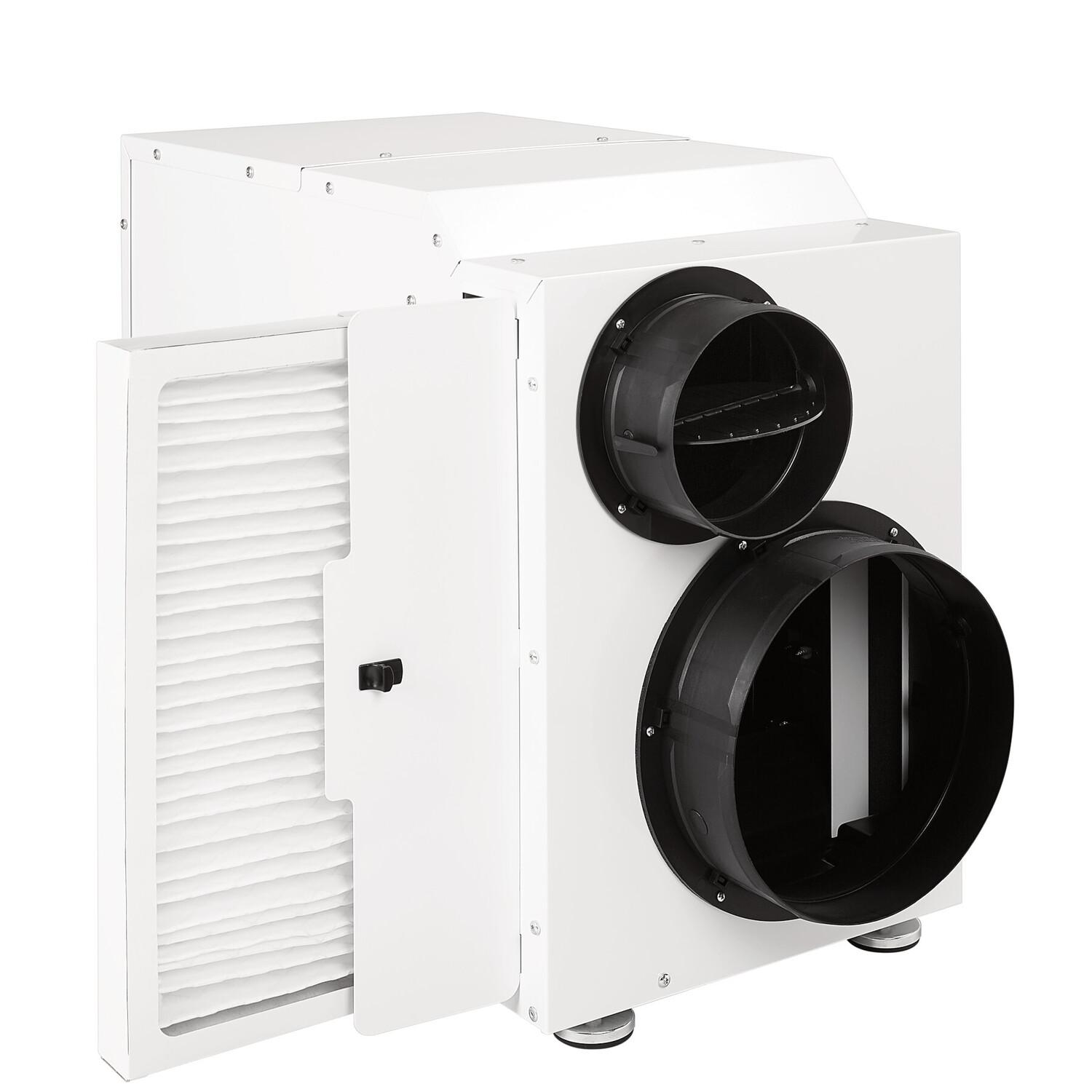

- MERV 13 filtration installed standard to provide superior air filtration
- Discharge duct can be installed in either a horizontal or vertical orientation providing additional install flexibility
- Humidity control be done easily using either our DEH 3000 digital controller that is mounted in the interior space or with the DEH 3000 R digital controller with its remote sensor that is mounted in the interior space where the humidity level needs to be managed
- Included fresh air inlet provides the option for fresh outdoor air to be ducted to the unit
Water Removal Capacity @ 80F & 60% RH (pints/day) | 121 |
Efficiency (pints/kWh) | 6.1 |
Energy Factor (liters/kWh) | 2.9 |
Power (Watts) @ 80°F & 60% RH | 840 |
Airflow (CFM) @ 0.0 in. WG | 350 |
Airflow (CFM) @ 0.2 in. WG | 285 |
Airflow (CFM) @ 0.4 in. WG | 210 |
Filtration | MERV 13 |
Optional Fresh Air Duct | 6' Round |
Inlet Duct Size | 10' Round |
Outlet Duct Size | 10' Round |
Operating Current (Amps) | 7.3 |
Power Cord | 9' Type B Plug |
Integrated Circuit Breaker | Yes |
Refrigerant Type | R410A |
Refrigerant Qty (oz.) | 26 |
Drain Connection | 3/4' Threaded Female NPT |
Coverage (sq. ft) | 3000 |
Product Weight (Lbs) | 91 |
Manufacturer Warranty | 6 Year |

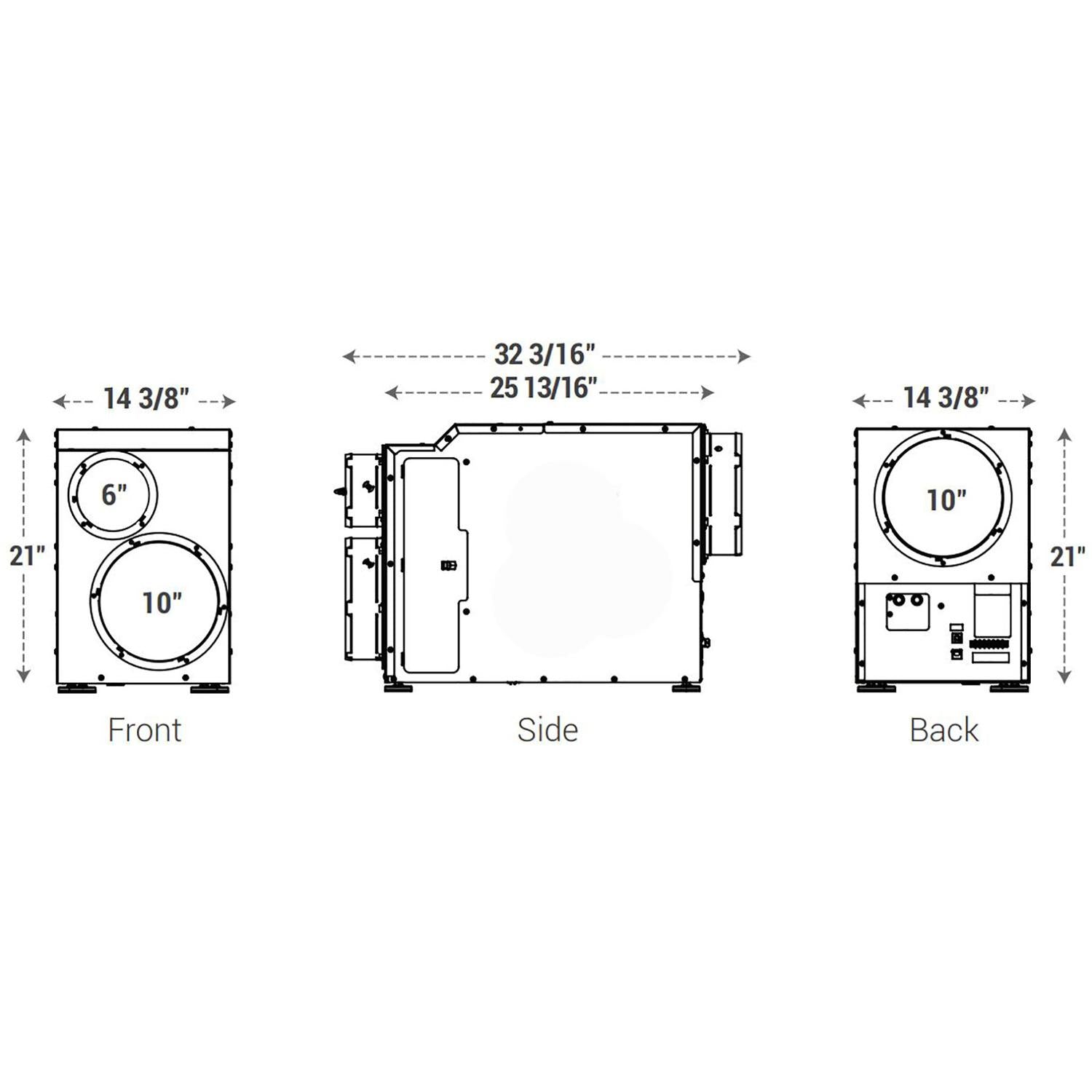

Product Dimensions | 14.375'W x 21'H x 32.1875'D |
Controls | DEH 3000 / DEH 3000R |
