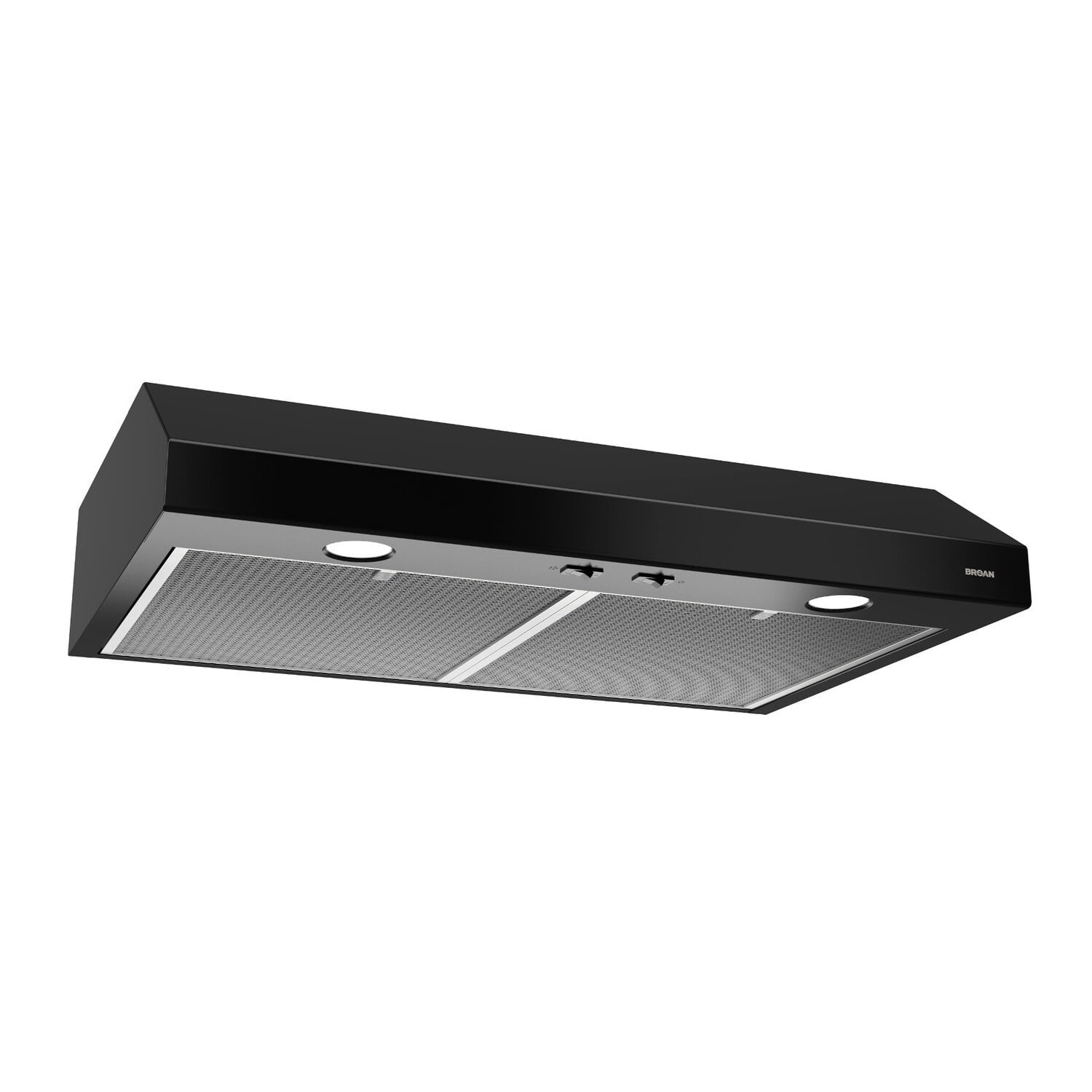

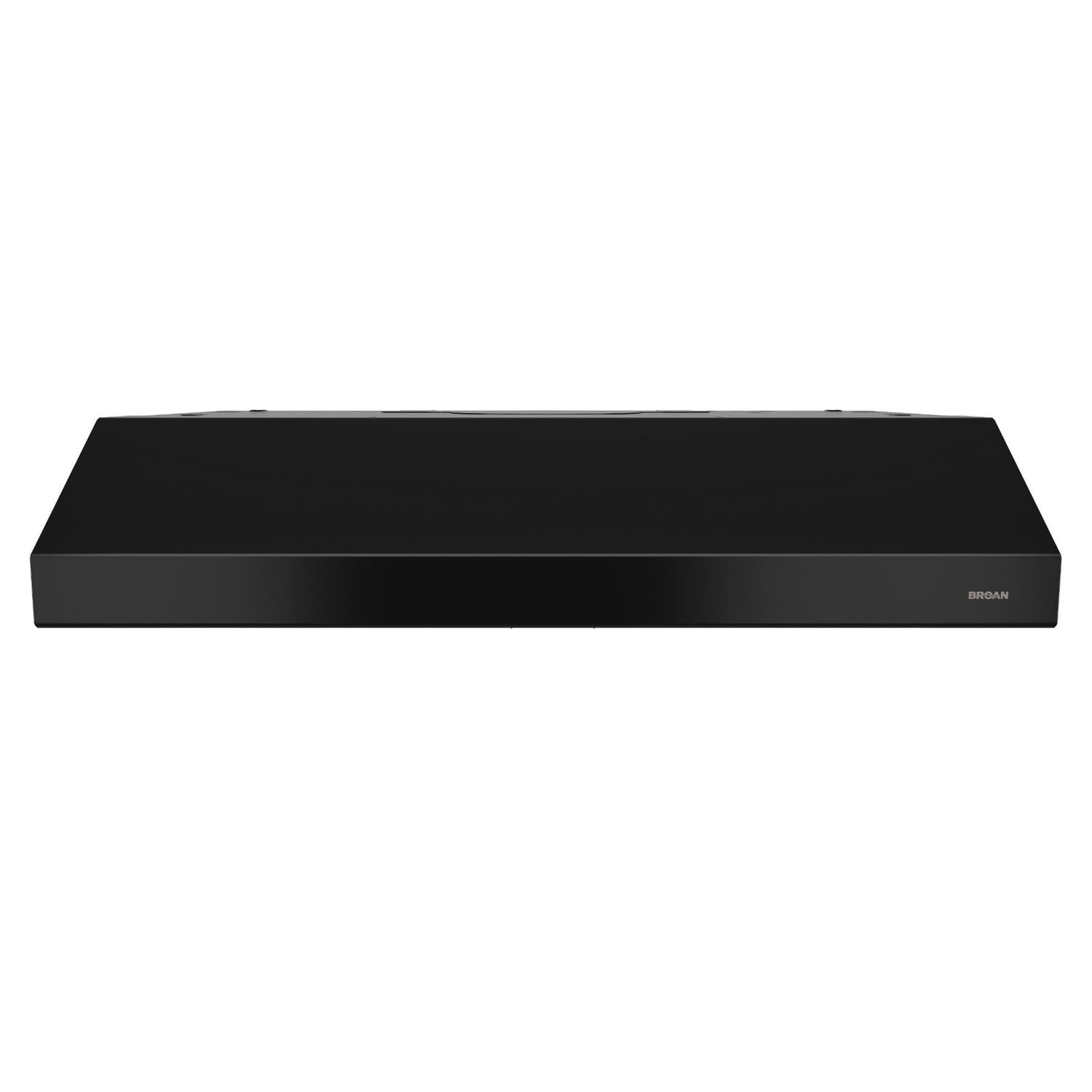

Broan BCSD136BL Broan® 36-Inch Convertible Under-Cabinet Range Hood, Black
Glacier Bcsd1 Is A 36 In. Under-Cabinet Convertible Range Hood In Black Finish That Features A Clean, Contemporary Shape To Complement Nearly Any Kitchen Design. Equipped With The Exclusive Broan Captur System, Which Combines Advanced Blower Design With New Filter Technology, This 250 Cfm-Rated Hood Provides 97.4% Removal Of Smoke And Odor To Protect Your Home And Family From Airborne Pollutants Caused From Cooking. The Quiet-Running Glacier Is Also Designed With Smooth Flow Technology, Which Streamlines The Path Of Air For Improved Efficiency And Noise Reduction. Easy-Flip Rocker Switches Control The 2 Fan Speeds And Halogen Lighting System. Using The Included Ez1 System, Glacier Can Easily Be Installed By One Person In Up To Half The Time Of A Standard Install.
- Clean lines and contemporary style in an under-cabinet convertible range hood that will complement nearly any kitchen
- Hidden rocker switches adjust fan speed and lighting levels
- Captur exhaust system and 250 CFM blower is 97.4% efficient in removal of smoke and odor from cooking
- Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HFP36)

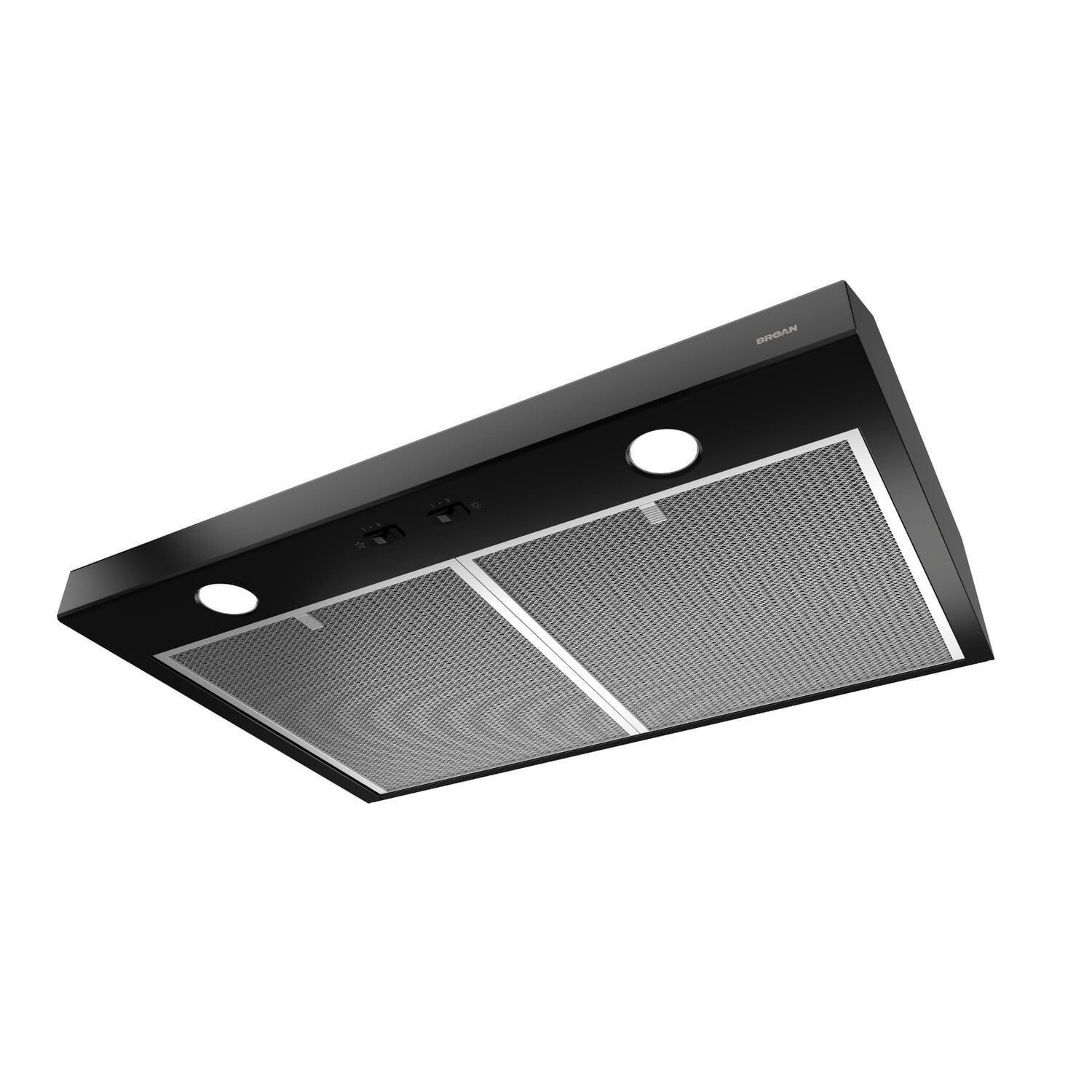

- 2 dishwasher-safe open mesh filters feature advanced high-flow technology to grab more airborne grease
- 2-halogen bulbs (purchase separately) provide warm light over the cooking surface, adjustable to high or low levels
- 1-year limited manufacturer's warranty
- EZ1 system enables easy single-person installation in up to half the time of traditional methods
Filter Type | Open Mesh |
Heat Sentry | No |
HVI Certified | Yes |
Lighting Type | Halogen |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulb Wattage | 50 |
Light Bulbs Included | No |
Light Levels | 2 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | 2 |
Switch Control Type | Rocker |
Rated Voltage | 120 |
Boost Mode | No |
Country of Origin | Mexico |
Color Finish | Black |
Rated Amps | 1.4 |
Product Depth | 19.625 |
Product Height | 6' |
Product Width | 36' |
Built-In Timer | No |
Capture Efficiency | 97.4 |
CFM | 250 |
Diameter | 7' Round |
Vent Type | Convertible Built-In |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | GU10 MR16 |
Manufacturer Warranty | 1 Year |
Wattage | 168 |
