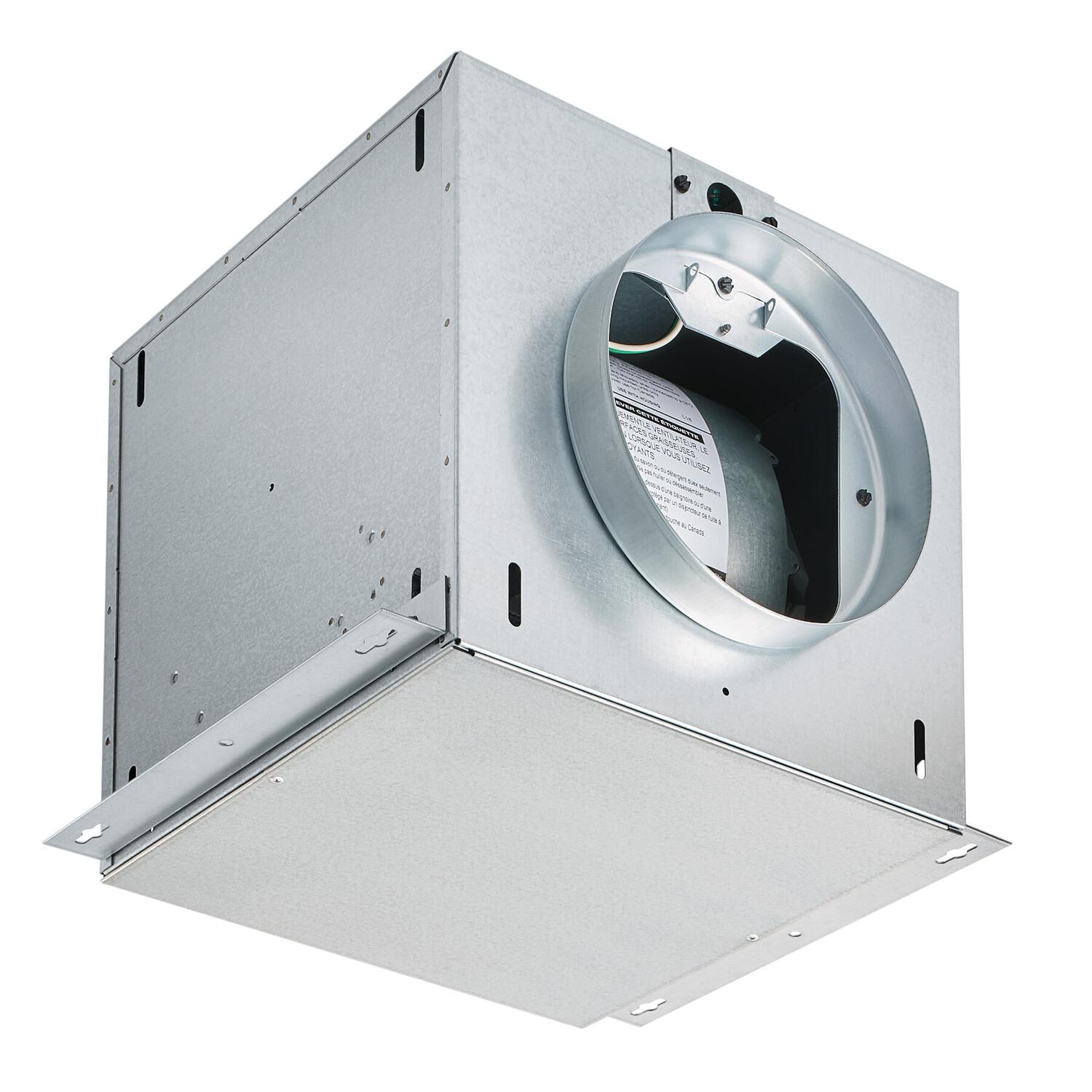

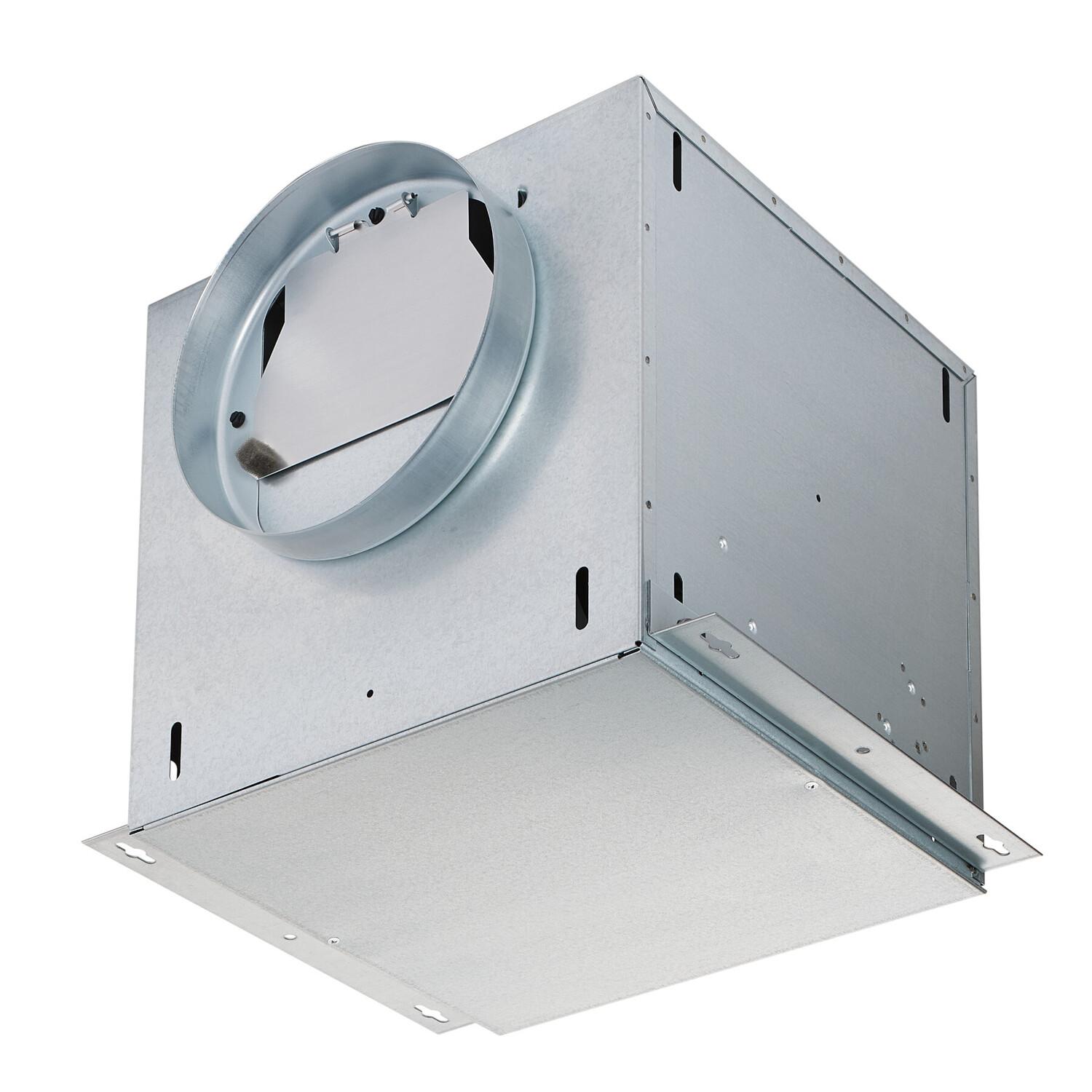

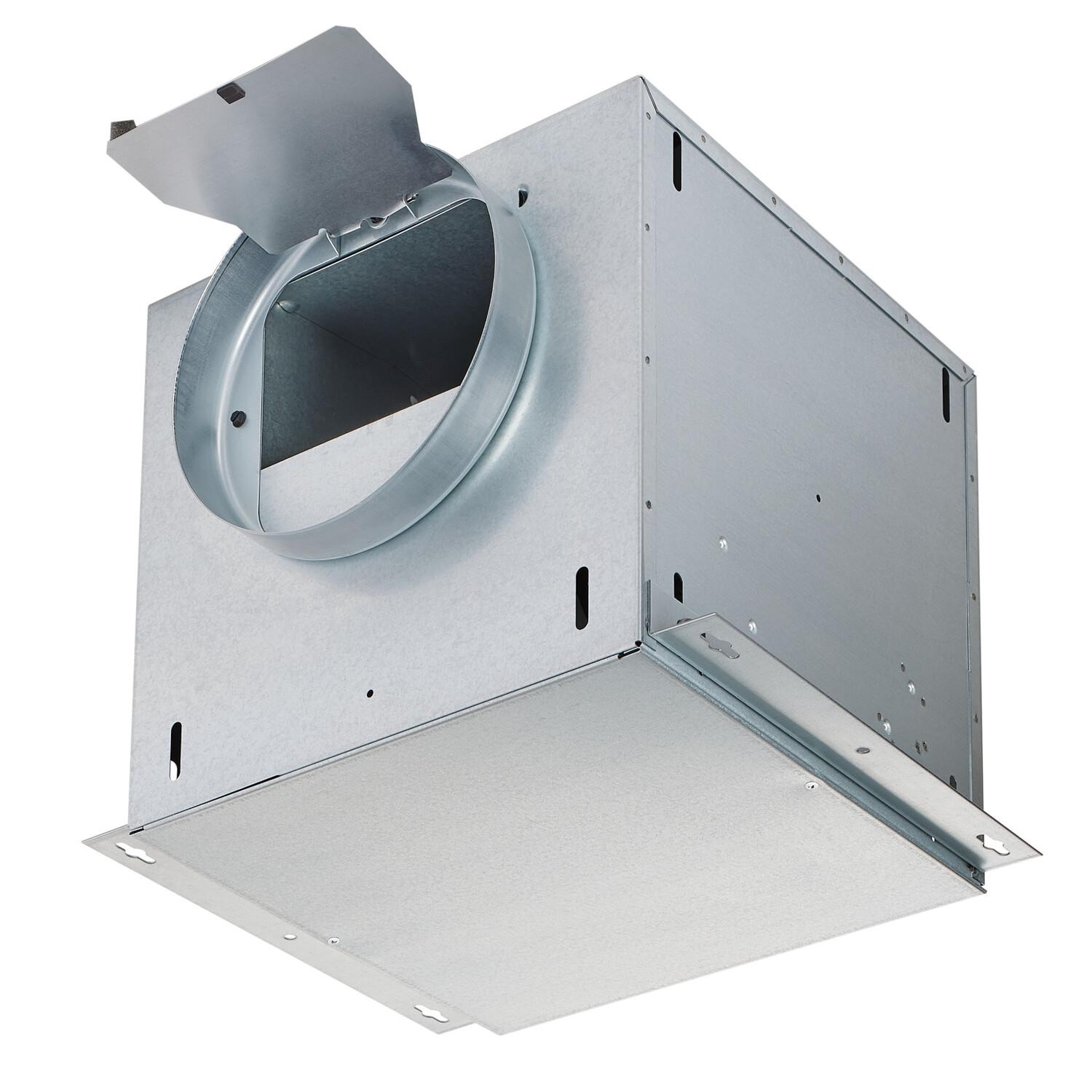

Broan L300EL High-Capacity, Light Commercial 270 Cfm Inline Ventilation Fan, Energy Star® Certified
High-Capacity, Light Commercial 270 CFM InLine Ventilation Fan, ENERGY STAR® certified
Broan® High-Capacity, Light Commercial ENERGY STAR® certified fans are an exceptionally quiet solution to continuous ventilation.
With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation.
These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.
With their heavy-duty motors, high capacity fans are an ideal solution for conference rooms, public restrooms and other areas in commercial buildings that require ongoing ventilation. Low-vibration and lo-profile, they work quietly without getting noticed. 8-way adjustable mounting brackets are included for easy ceiling-mount installation.
These solutions can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021) and are both HVI and AMCA air and sound tested.
- 270 CFM InLine commercial ventilation fan
- Includes 8-way adjustable mounting brackets for easy installation
- Suitable for use in the kitchen
- Standard 8" round ducting for all ENERGY STAR® certified models
- ENERGY STAR® certified
- AMCA and HVI air tested
- Can be used to comply with ASHRAE 90.1 (2019), IECC-C (2021), and IMC (2021)
- Model 80L Variable speed control adjusts blower speed and sound level (available separately)
- cULus Listed for safety and protection
- Pre-Order Now. Product Ships Late 2022
CFM | 270 |
Duct Size | 8 |
ENERGY STAR® certified | Yes |

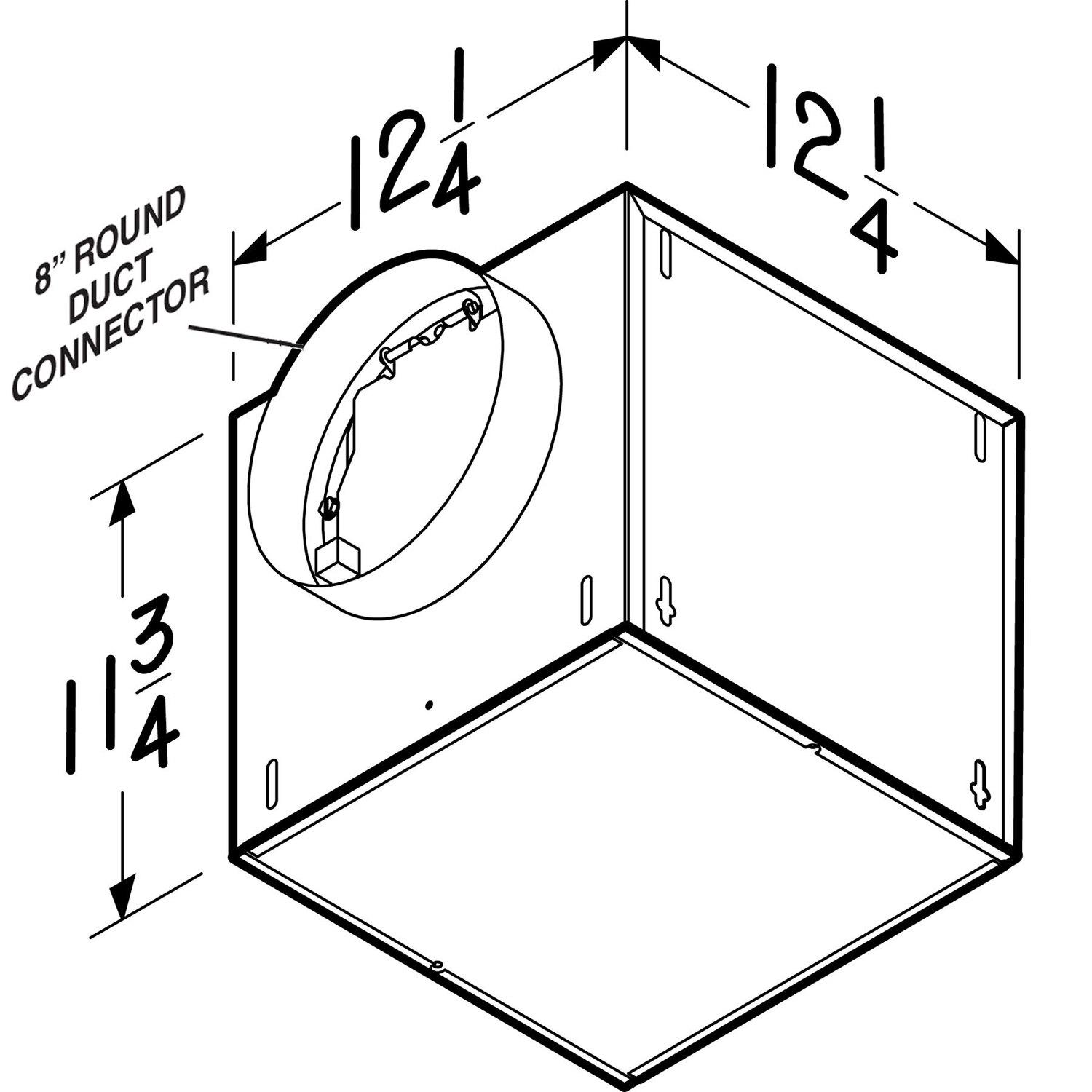

Housing Dimensions | 12.25 x 12.25 x 11.75 |
Sound Level (Sones) | 0 |
UL Listed | Yes |
Humidity Sensing | No |
Motion Sensing | No |
Motor Engineered For Continuous Operation | Yes |
Night Light | No |
Radiation Damper Available | No |
Room Side Installation | No |
UL Listed for use over bathtubs or showers when connected to a GFCI circuit | No |
Rated Amps | 0.7 |
Voltage | 120 |
Can Be Used To Comply With Title 24 | No |
Manufacturer Warranty | 1 Year |
High Efficiency Luminaire | No |
