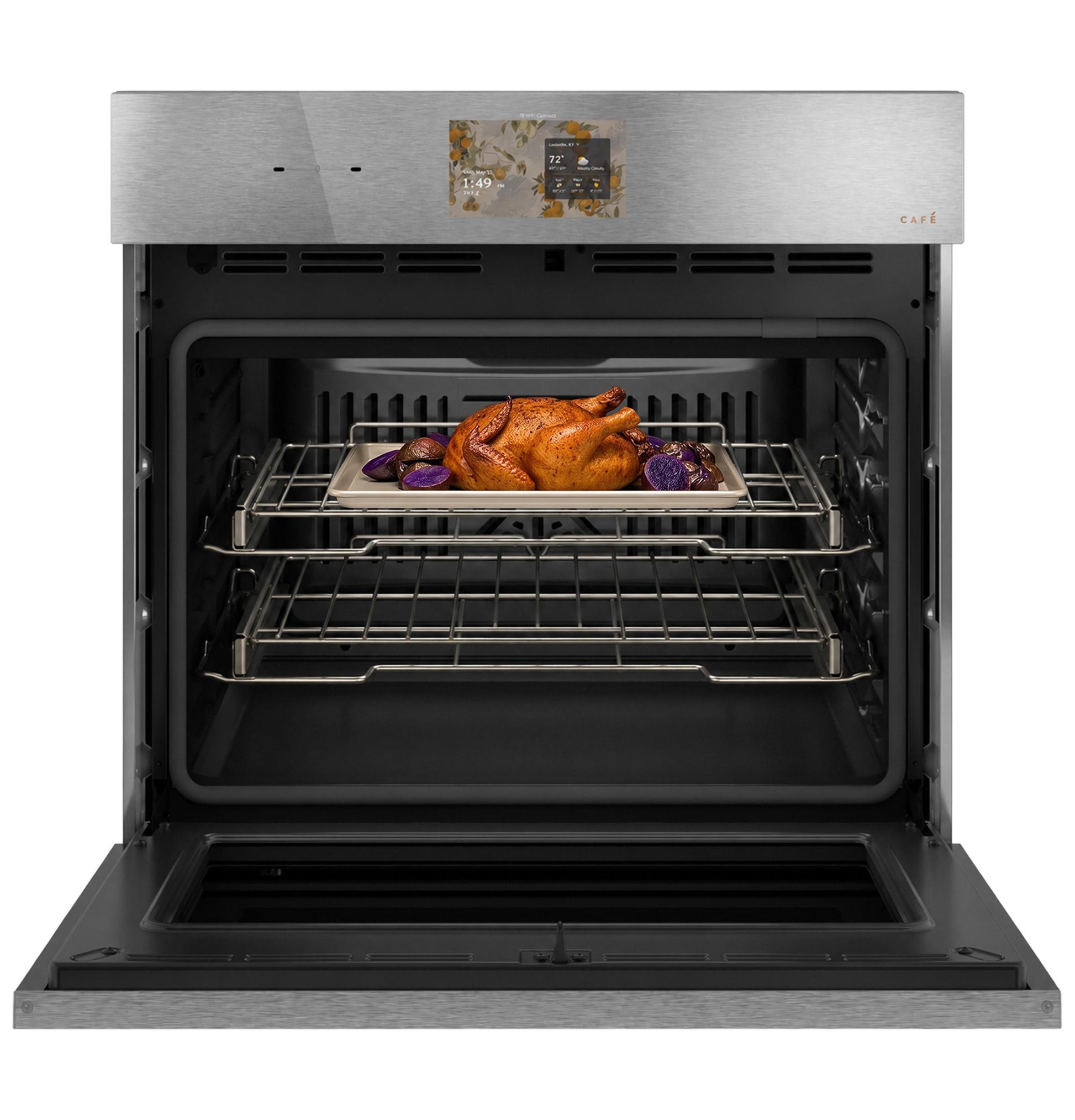

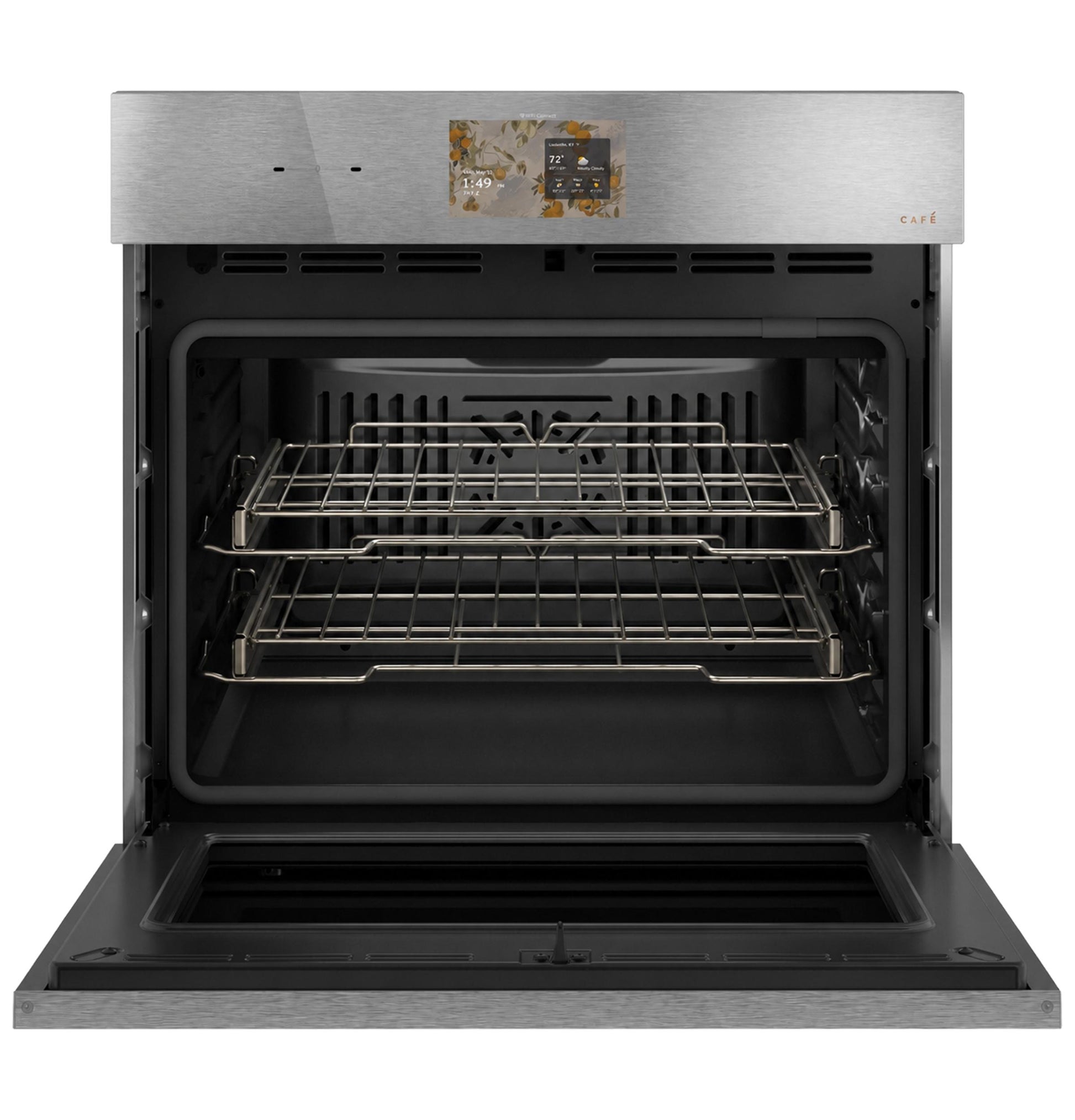

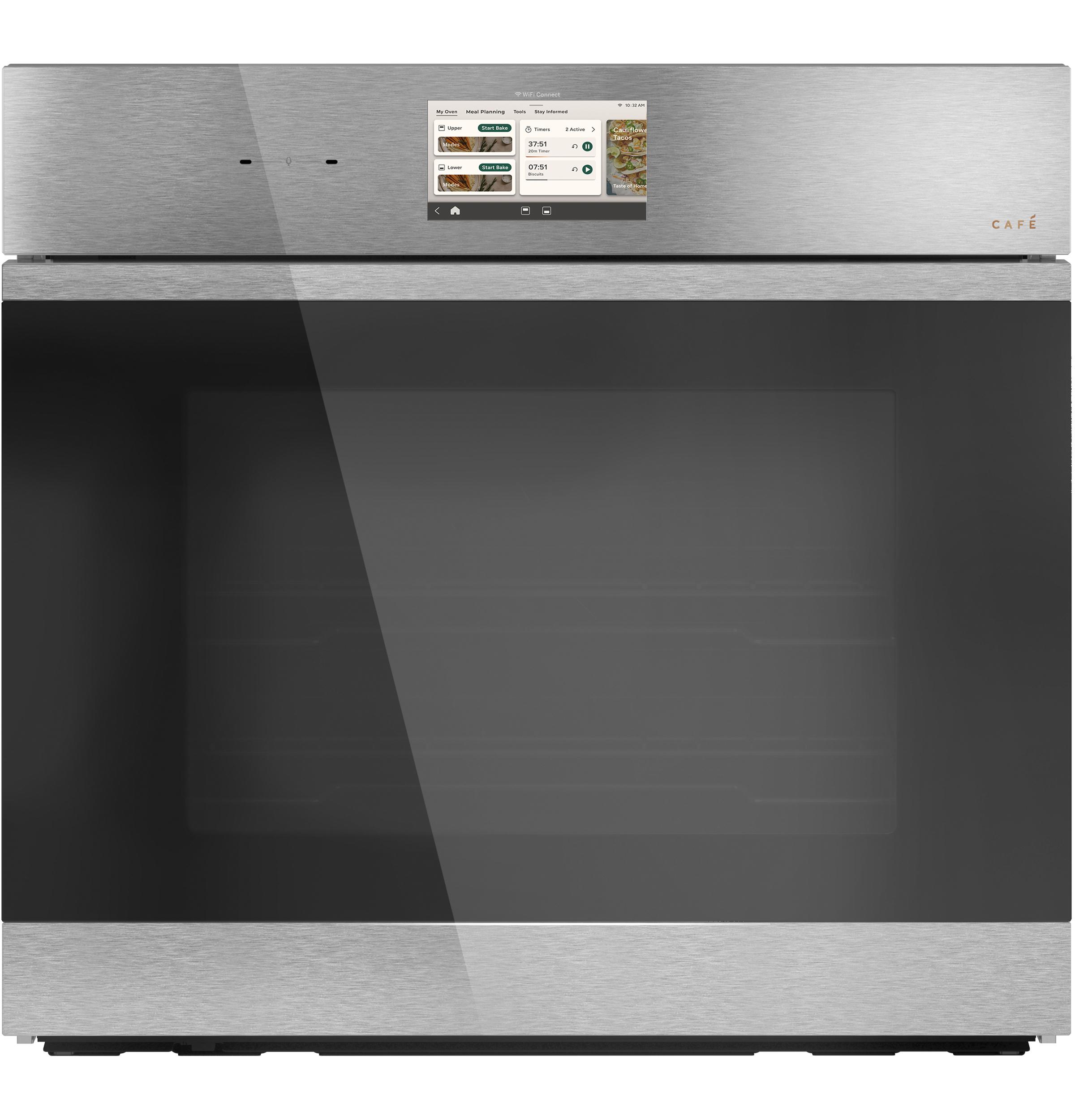

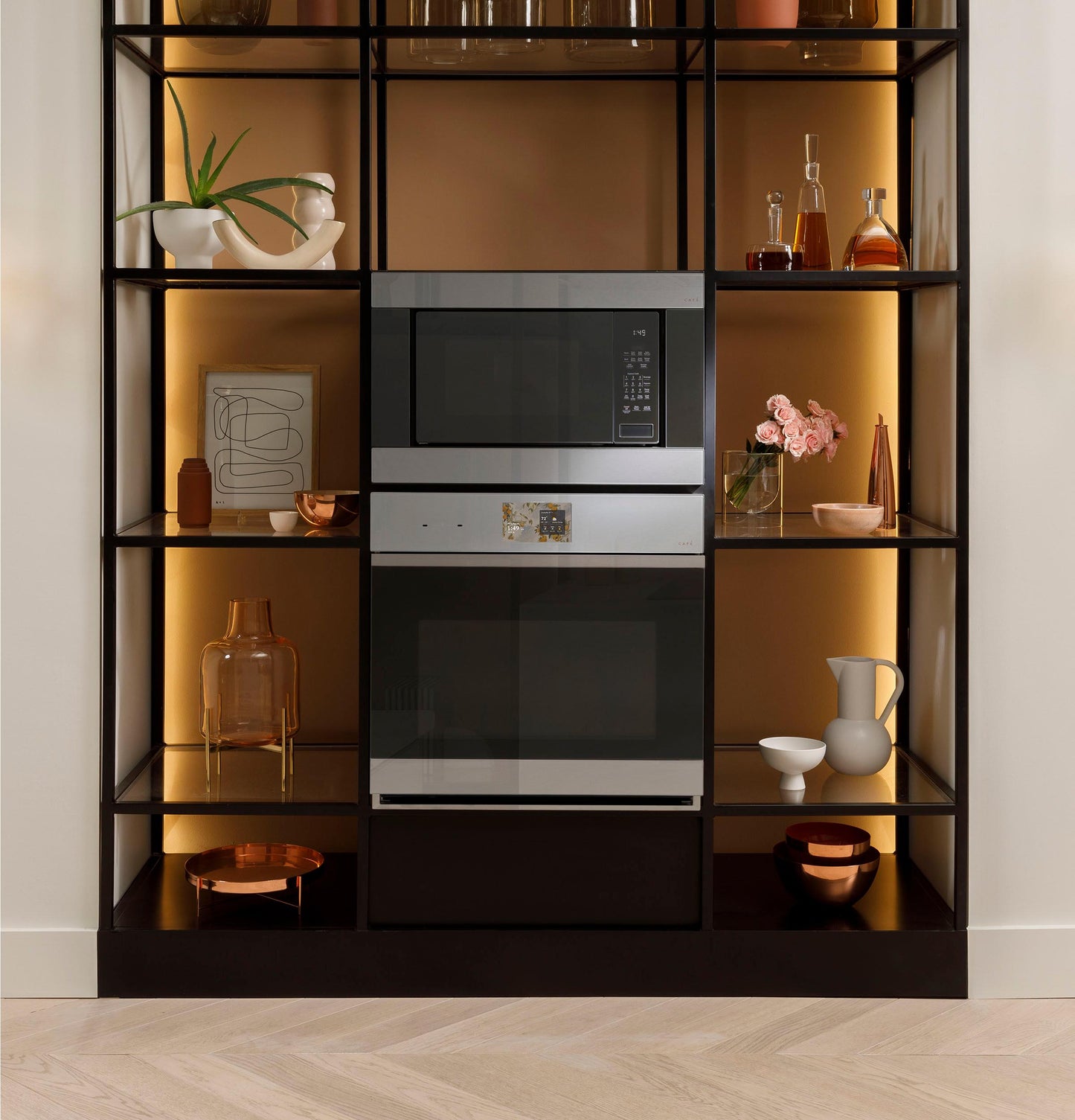

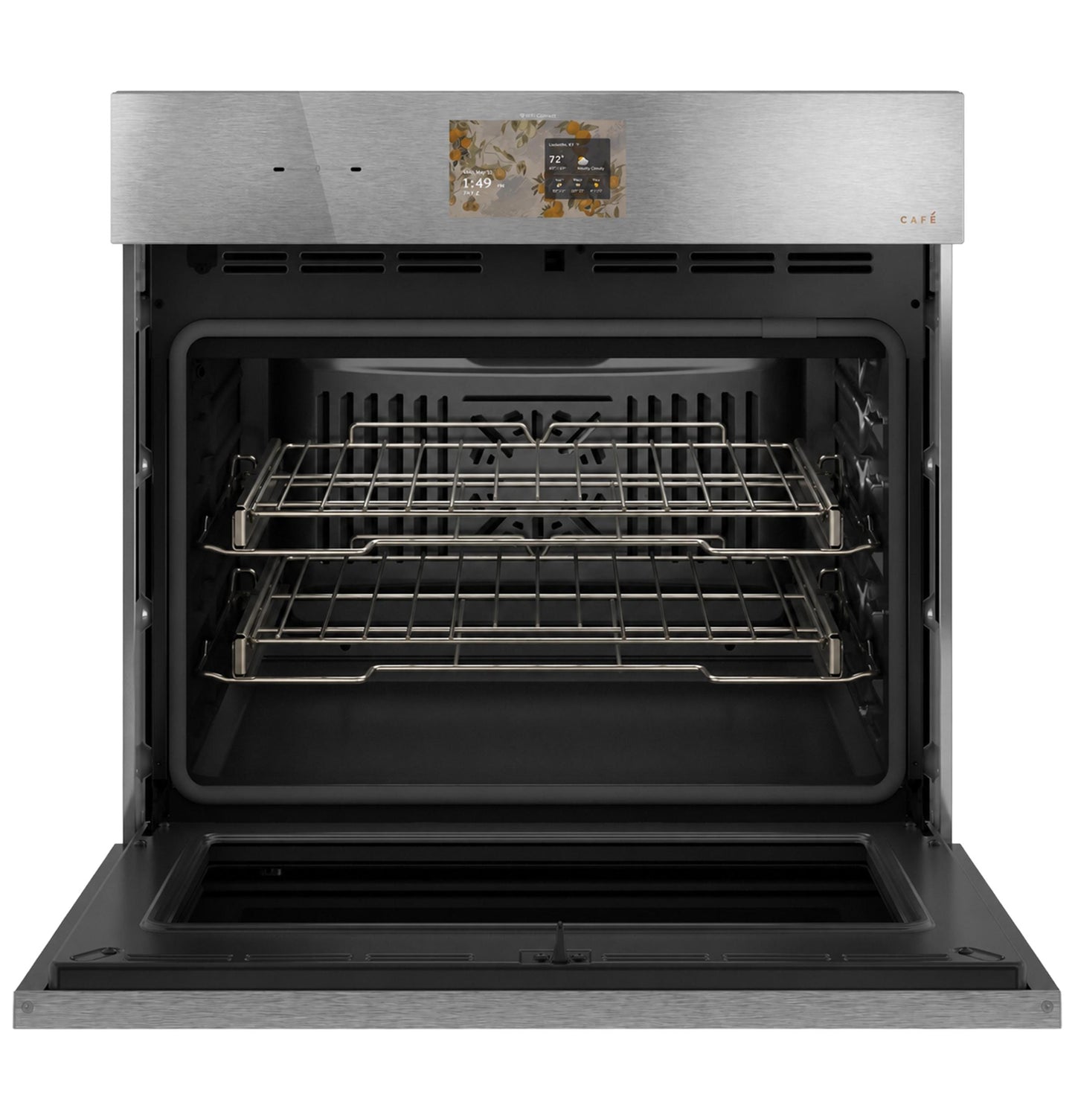

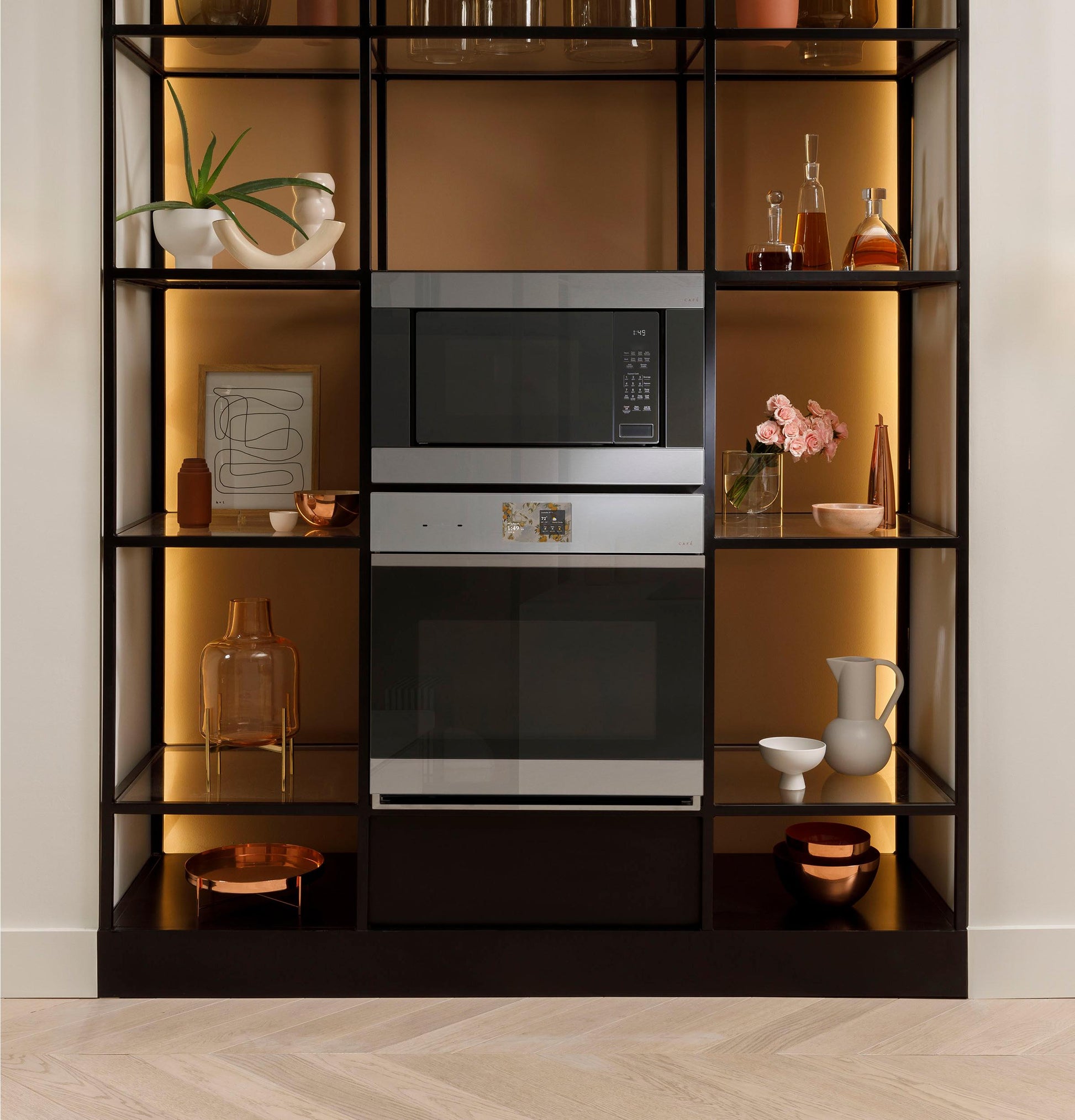

Cafe CTS90DM2ZS5 Café™ 30" Smart Built-In Convection Single Wall Oven In Platinum Glass
Rebates &
Promotions
Cafe Fit Guarantee Rebate - Replace your Cooktop or Wall Oven with a qualifying Cafe Cooktop, Wall Oven, Advantium Oven, or Slide In Range and receive up to a $300 rebate. Download Valid: 07/01/2026-12/31/2026
True European Convection with Direct Air
The perfect bake is now perfectly easy - Achieve unrivaled performance with the only system that delivers top-down true convection for consistent results on special occasion favorites like roasts, chicken, turkey, and more
7" Full-Color Touch LCD Screen
Brighten up life in the kitchen - Easily navigate wall oven settings using a stunning full-color display that adds an unexpected touch of style to your kitchen
Precision Cooking Modes
Confidently try new recipes and perfectly execute your favorites, using a smart system that is powered by algorithms that track the food's progress and dynamically adjusts time and temperature by precisely managing heat and airflow
Air Fry Mode
Fried taste. Crisp texture. Less oil. - Make your favorite "fried" foods healthy, thanks to Air Fry Mode that crisps without using oil for frying
- True European Convection with Direct Air
- 7" Full-Color Touch LCD Screen
- Precision Cooking Modes
- Air Fry Mode
- No Preheat Cooking Modes
- Push-to-Open Door for Seamless, Handle-free Design.
- CookCam with AI Technology
- Oven Control Features
- Premium Bluetooth® Speaker
- SmartHQ App
- Customizable
| CAPACITY | |
| Total Capacity (cubic feet) | 5 cu ft |
| APPEARANCE | |
| Oven Door Features | Big View Oven Window Soft-Open Hinges Voice to Open |
| Handle Color | Gray |
| Color Appearance | Platinum Glass |
| Installation | Above Warming Drawer Flush-Mount Installation Side-by-Side Under Built-In Advantium Under Built-In Microwave Under Built-in Steam Oven Under Cooktop Undercounter |
| Handle | Push to Open |
| POWER / RATINGS | |
| Bake Wattage | 2850W |
| Convection Wattage | 2400W |
| Electrical Requirements | 208/240V ; 60Hz ; 20A |
| KW Rating at 240V | 4.2 |
| Amp Rating at 208V | 20 |
| Broiler Wattage | 4300W |
| Hertz | 60 |
| Amp Rating at 240V | 20 |
| KW Rating at 208V | 3.2 |
| WARRANTY | |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| Optional Accessories | UXWORXR30 - 30' Never Scrub Roller Rack WB48X10057 Extra Large Broiler Pan |
| WEIGHTS & DIMENSIONS | |
| Depth with Door Open | 46.75 in |
| Overall Depth | 24.75 in |
| Oven Interior Dimensions (W x H x D) (in.) | 25 x 17-3/8 x 20 1/4 |
| Cabinet Width | 30 in |
| Cutout Width (in) | 28.625 |
| Net Weight | 161 lb |
| Overall Width | 29.75 in |
| Cutout Dimensions (w x h x d) (in.) | 28-5/8 x 27-5/16 x 23-1/2 |
| Cutout Height (in) | 27.3125 |
| Approximate Shipping Weight | 177 lb |
| Cutout Depth (in) | 23.5 |
| Overall Height | 28.625 in |
| FEATURES | |
| WiFi Connect | Built-In |
| Oven Cooking Modes | Artisan Pizza Convection Bake Convection Bake Multi-Rack Convection Broil Hi/Lo Convection Roast Dehydrate No Preheat Air Fry Precision Cooking Modes Proof Thermal Bake Thermal Broil Hi/Lo Turkey Mode Warming |
| Fuel Type | Electric |
| Product Type | Single Oven |
| Oven Interior | 2 Halogen Interior Oven Lights Black Gloss Finish Hidden Bake Remote View Oven Camera |
| Cooking Technology | Convection |
| Oven Features | 10-Pass Bake Element 10-Pass Dual Broil Element Closed Door Broiling |
| Cleaning Time | Variable |
| Configuration | Single Oven |
| Oven Rack Positions (Single or Upper/Lower) | 6 |
| Connected Features | Audio Entertainment Camera Clock Sync to Cloud Family Calendar (Google) GE Appliance Notifications On Screen Grocery List on LCD Screen Recipe Access Remote Notifications Remote Oven Control SmartHQ Assistant Support Videos |
| Oven Control Features | 12-Hour Shut-Off Capability Audible Preheat Signal Auto Recipe Conversion Control Lock Capability Cook Time C° or F° Programmable Dehydration Delay Time Electronic Clock & Kitchen Timer Mis-Wire Detection Oven Camera Proof Mode Remote Enabled Sabbath Mode Temperature Probe Warm Mode |
| Sabbath Mode | Yes |
| Oven Rack Features | 2 Partial Extension Racks |
| Cooking System | True European Convection with Direct Air |
| Control Type | 7' Full-Color Touch LCD Screen |
| Connected Capabilities | Amazon Alexa Google Home The Google Assistant |
| OU Certified | OU/CRC Enhanced Shabbos Mode, when used with Shabbos Keeper, sold separately |
| Oven Cleaning Type | Self-Clean with Steam Clean Option |
Gray
