Cafe UDT165SIVII 18" Panel-Ready Dishwasher

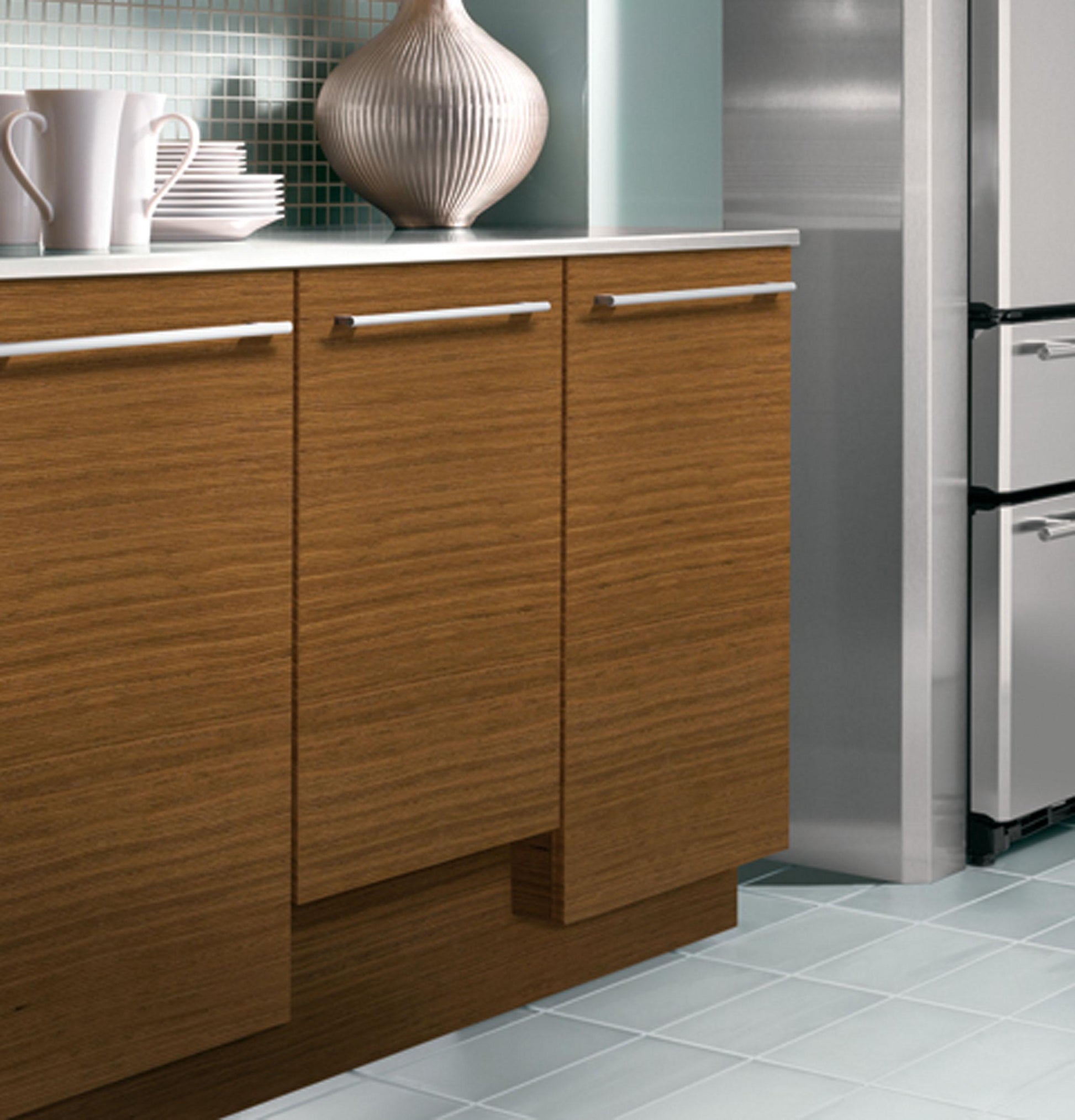

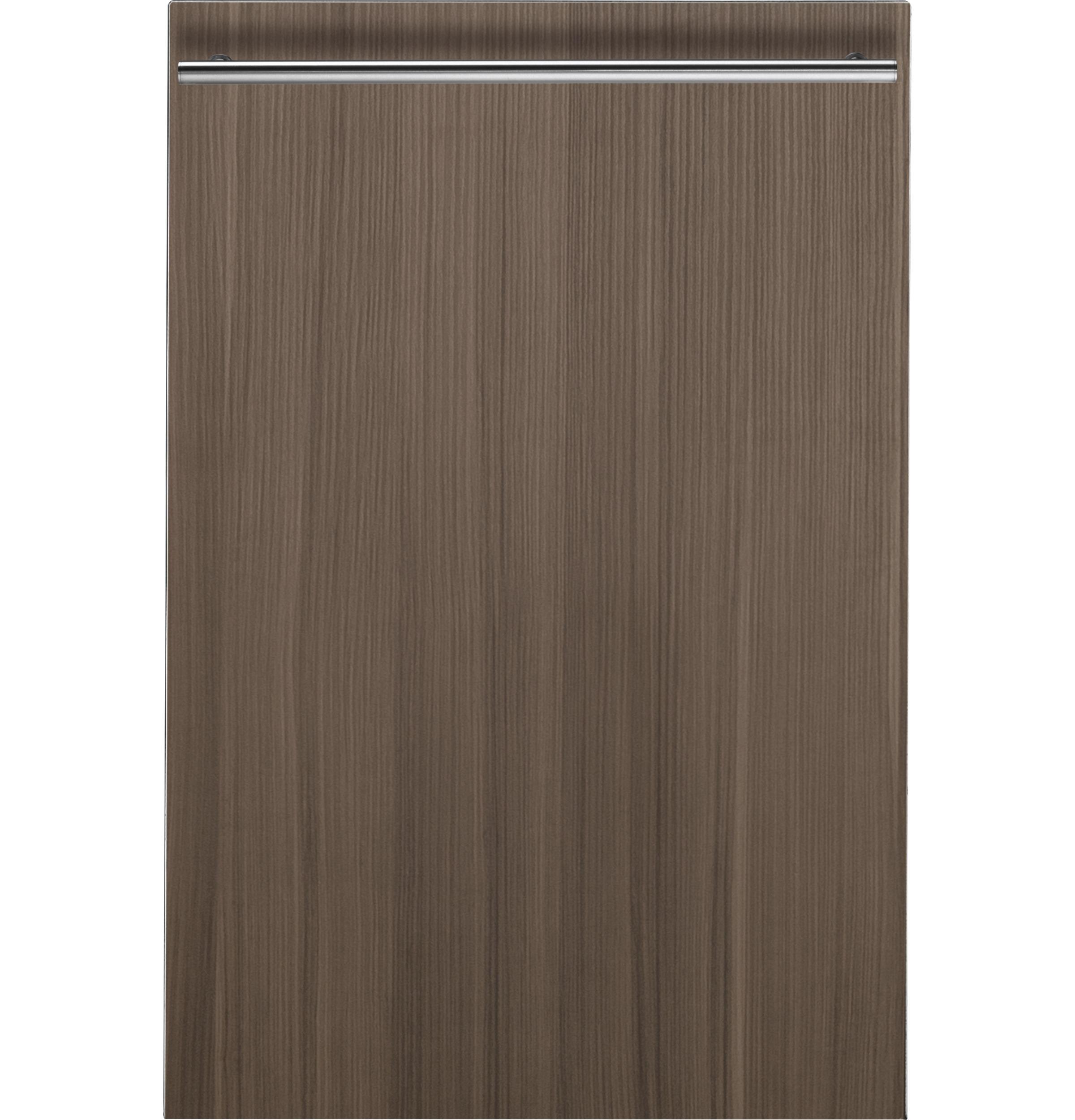

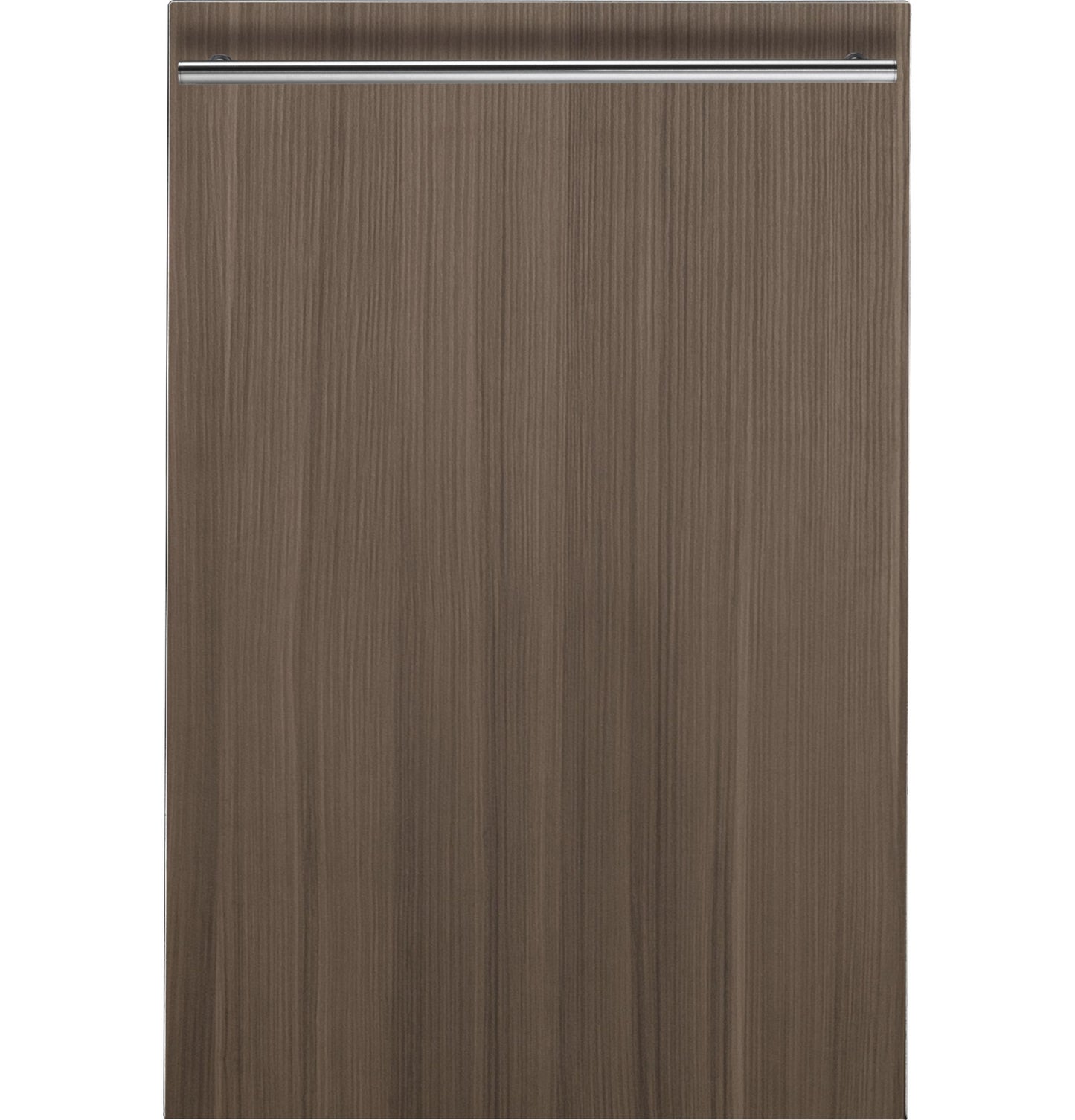

Custom Panel Model
Designed for personalization with customer-supplied cabinet-compatible panel and custom handle
Hidden, Integrated Electronic Controls
Allow easy activation of wash cycles: heavy wash, light wash and Auto Sense

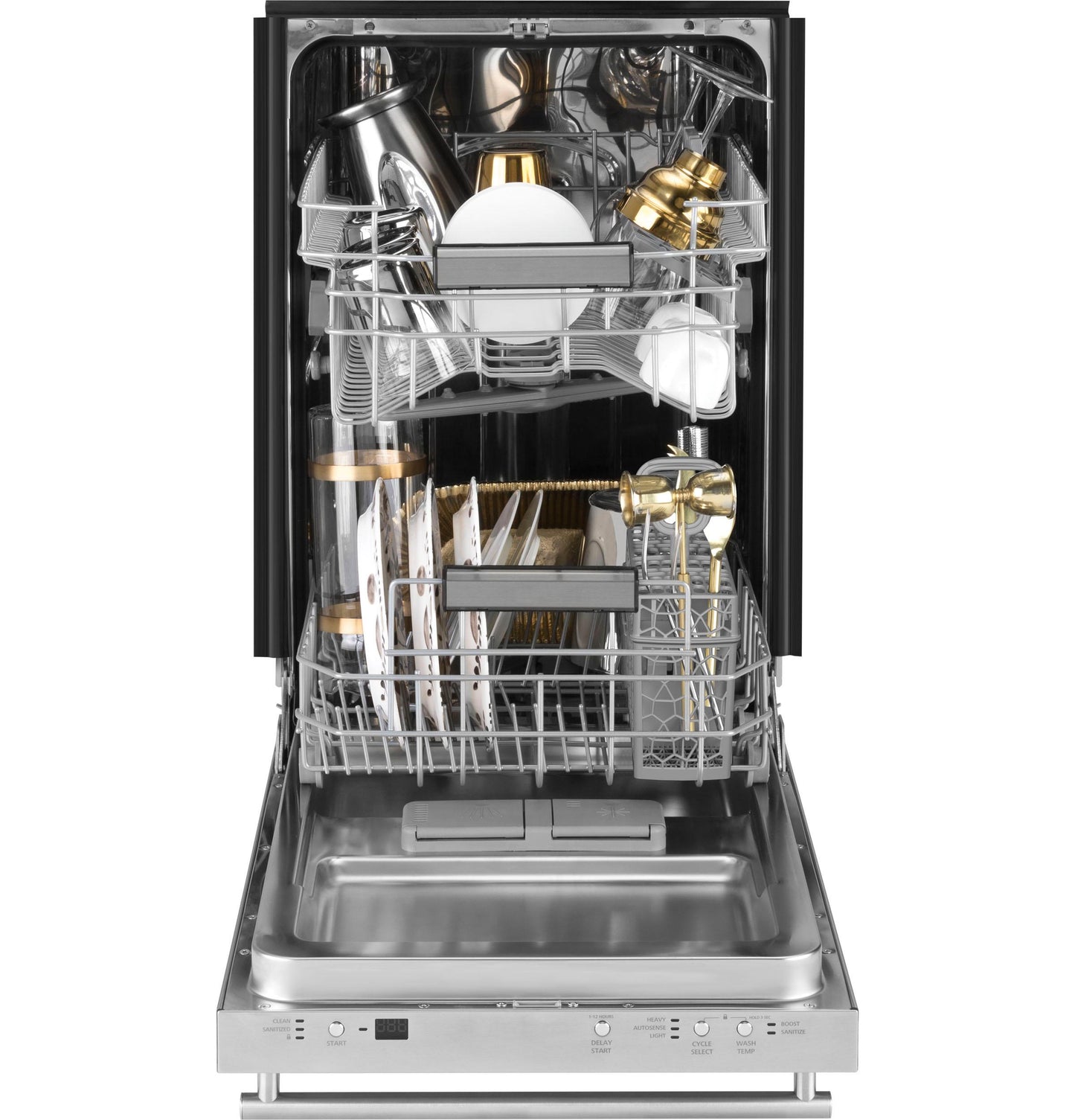

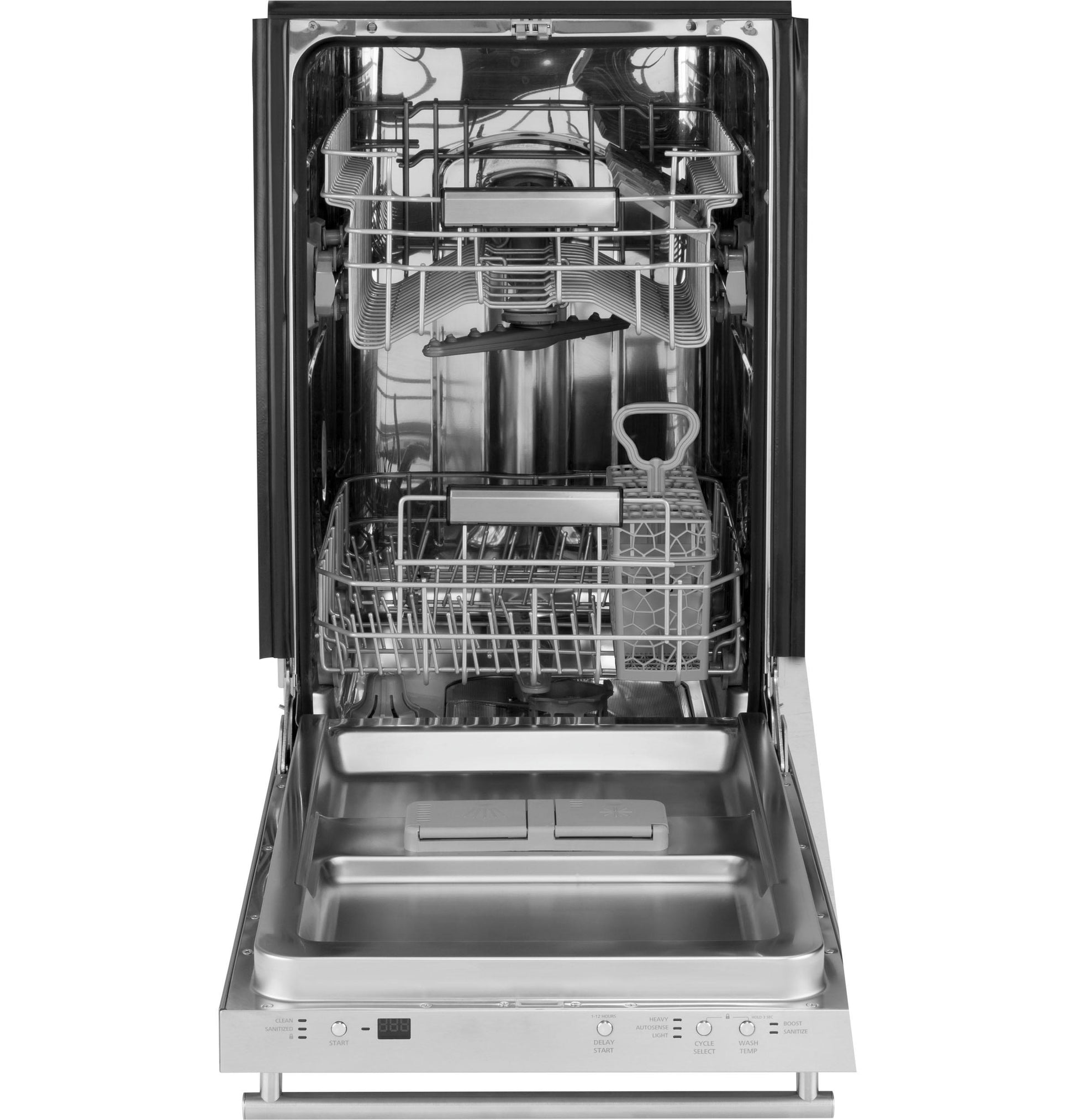

Three-Level Wash System
Provides effective, yet quiet cleaning power

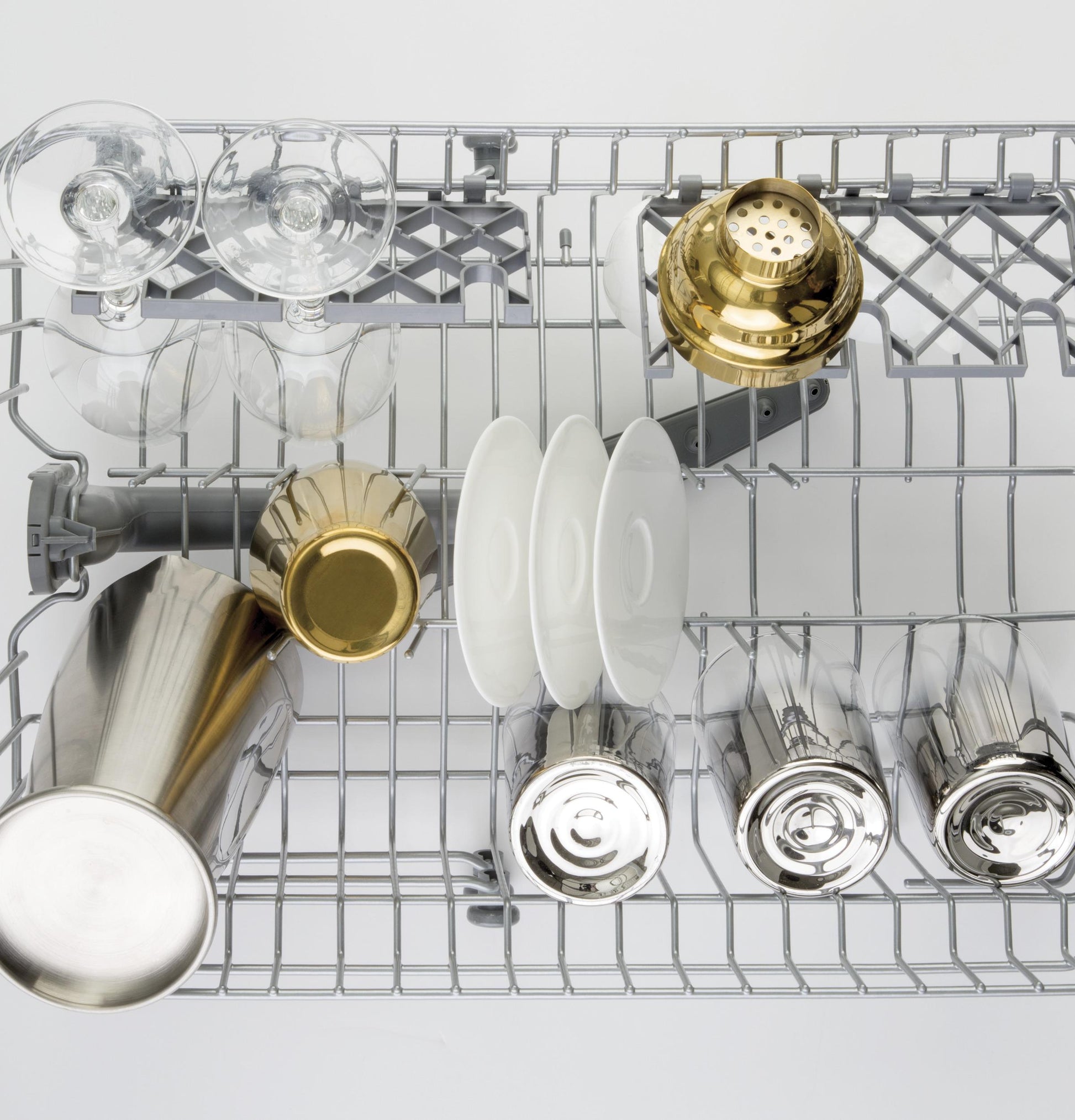

Nylon Gray Racks with Ball-Tipped Tines
Provide plenty of space and loading flexibility
Piranha™ Hard Food Disposer
Grinds food into small particles that are washed away
47 dbA
Ultra-quiet operation creates a peaceful kitchen environment even as it delivers powerful wash performance
- Custom Panel Model
- Hidden, Integrated Electronic Controls
- Three-Level Wash System
- Nylon Gray Racks with Ball-Tipped Tines
- Piranha™ Hard Food Disposer
- 47 dbA
| APPEARANCE | |
| Door Panel Color | Custom Panel Required |
| Panel Capability | Integrated |
| Door Appearance | Fully integrated door for custom panels |
| Color Appearance | Custom Panel and Handle Required |
| Handle Design | Handle required |
| Design Style | European Stainless Steel |
| POWER / RATINGS | |
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Energy Consumption (kWh/year) | 240 |
| Electrical Requirements | 120V ; 60Hz ; 10A |
| Calrod Heater Watts | 1100 |
| WARRANTY | |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| ECONOMICAL / QUIET | |
| Door Insulation | Insulation Mastic |
| Quiet Package | 47 dBA |
| Outer Wrap | U-Blanket |
| Motor Type | Single Speed |
| Quiet Features | Sealed Toe Kick Tub Collar Trim |

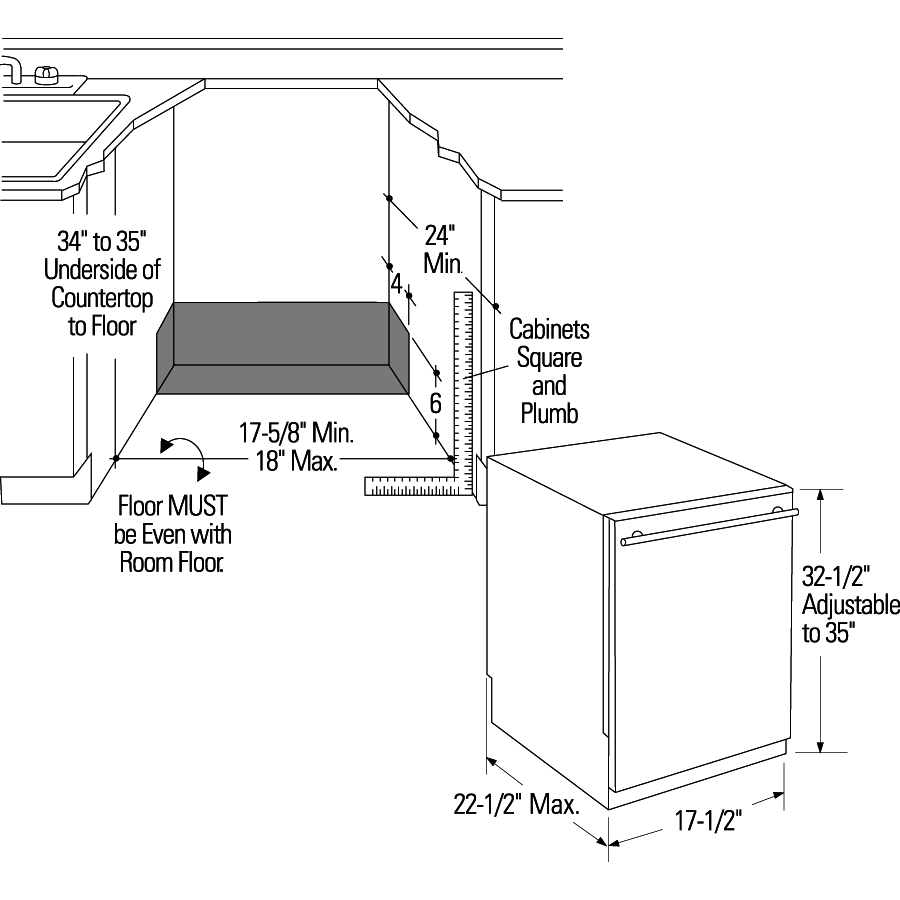

| WEIGHTS & DIMENSIONS | |
| Cabinet Depth | 24 in |
| Height w/ Legs Retracted - Minimum Height | 32.375 in |
| Cutout Height (in) | 32 1/2 in |
| Cutout Width (in) | 17 3/4 in |
| Overall Depth | 23 in |
| Cabinet Width | 18 in |
| Net Weight | 71 lb |
| Overall Width | 18 in |
| Approximate Shipping Weight | 84 lb |
| Overall Height | 32.375 in |
| Cutout Depth (in) | 23.625 in |
| Height w/Legs Extended - Maximum Height | 34.625 in |
| Depth with Door Open | 23.125 in |
| FEATURES | |
| Wash System | 3-Level Standard |
| Sensor | Clean Sensor |
| Lower Rack | 1 Rack handle Nylon |
| Leveling System | Leveling Legs |
| OU Certified | No |
| Number of Place Settings | 8 |
| Custom Panel Ready | Integrated Panels |
| Dishwasher Options | Automatic Hot Start Child Lock Delay Start 1-12 Hr. Sani (Certified to NSF Standard 184) Start/Reset TempBoost |
| Latch | Pull with Handle |
| Number of Options | 5 |
| Style | Built-In Top Control |
| Water Filtration System | 3-Stage Manual Clean Filtration |
| Collection | EcoBalance |
| Rack Features | 1 Piece Mid Silverware Basket w/ 1 Cell Cover 1 Plastic Utility Shelf - Upper Ball-Tipped Tines Fold-Down Tines - Lower |
| Racking Material | Nylon |
| Floor Protection | Yes |
| Dishwasher Cycles | AutoSense Heavy Wash Light Wash |
| Dispenser | Rinse Aid with Indicator and Adjustment |
| Control Type | 4 Pushbuttons Fully Integrated Electronic Top Controls |
| Dishwasher Drying Features | Condensate Dry |
| Wash Arms | 2 with Upper Nozzle |
| Wash System Features | Automatic HotStart Automatic Temperature Control Dual Pump Flood Control System Piranha™ Hard Food Disposer |
| Exterior Style | Custom Panel |
| Product Type | Built-In |
| Upper Rack | 1 Rack handle Adjustable Nylon |
| Dishwasher Control Features | 3 Digit Countdown Display with 1 'Clean' light / 1 'Sanitized' light Cycle Progress Indicators Audible End-of-Cycle Signal Cycle Countdown Last Cycle Memory Start/Reset Pad |
| Number of Cycles | 3 |
| Tub and Door Liner | Stainless Steel |
| Sabbath Mode | Yes |
