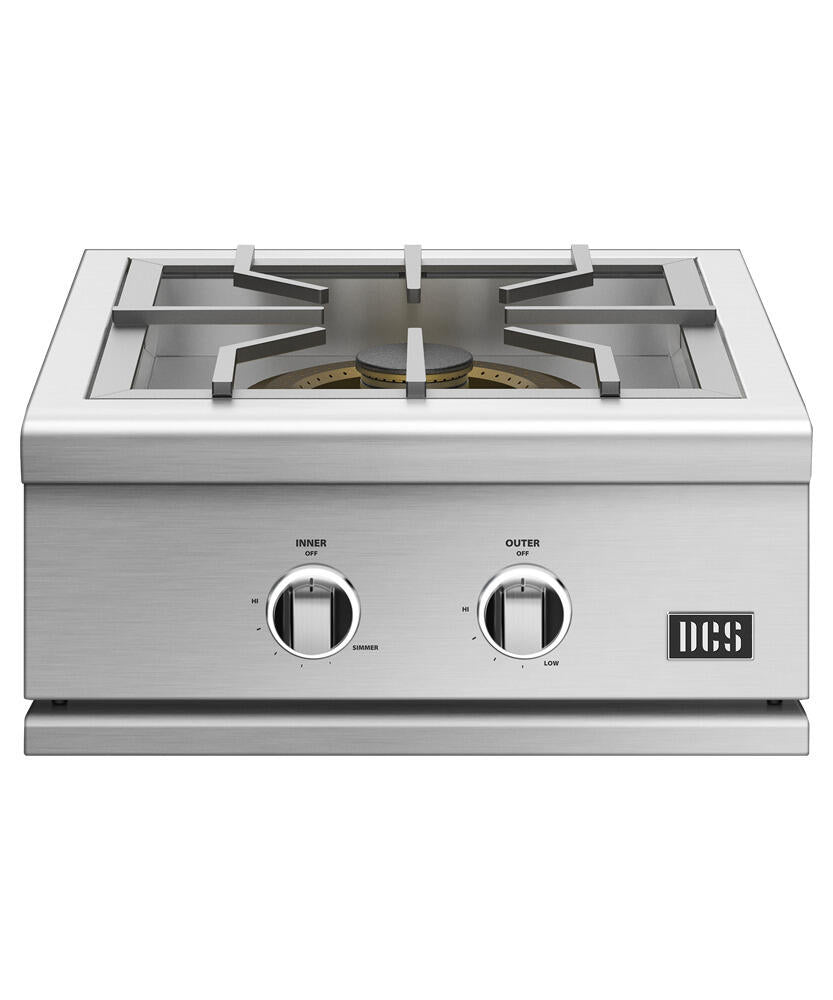

Dcs PBE124L 24" Power Burner, Lp Gas
Rebates &
Promotions
DCS 10% Rebate - Spend $4,999 or more on qualifying DCS Products and receive a 10% rebate. Download Valid: 04/01/2024-12/31/2024
Easily Cook For A Crowd On The Impressive Dcs Power Burner. Designed To Support Different Sized Pots And Woks, It Combines Powerful Heat With Precise Temperature Control From 70,000 To 1,300 Btu.
- Grates are specially designed to provide stability for pots and woks of all sizes
- Combines powerful heat with precise temperature control from 70,000 to 1,300 BTU giving you flexibility for everything from a rapid boil down to a gentle simmer
- Cast brass burners accentuate the high-end aesthetics as well as ensuring the Power Burner will withstand the extremes of mother nature
- Interconnected illuminated dials to match the suite of DCS Series 9 products
Features | |
Ignition system | Surface |
Finish | |
Material | 304 grade stainless steel |
Weather resistant | |
Gas Requirements | |
1/2' NPT male with 3/8' in flare adapter | |
Gas type | LPG |
LP hose with regulator and Type 1 connector | |
Operational pressure | 11 ' W.C. |
Supply Pressure | 12 ' to 14' W.C. |
Installation Dimensions | |
Cutout depth (proud) | 22 3 4 ' |
Cutout height (proud) | 10 1 8 ' |
Cutout width (proud) | 22 1 2 ' |
Power requirements | |
Supply frequency | 60Hz |
Supply voltage | 120V |
Product dimensions | |
Depth | 26 7 8 ' |
Height | 10 1 2 ' |
Width | 24 ' |
Warranty | |
Parts and labor | 2 years |
Service & Warranty Booklet 24", Series 9, Power Burner, LP Gas
User Guide 24", Series 9, Power Burner, LP Gas
Installation Guide 24", Series 9, Power Burner, LP Gas
User Guide 24", Series 9, Power Burner, LP Gas
Installation Guide 24", Series 9, Power Burner, LP Gas
