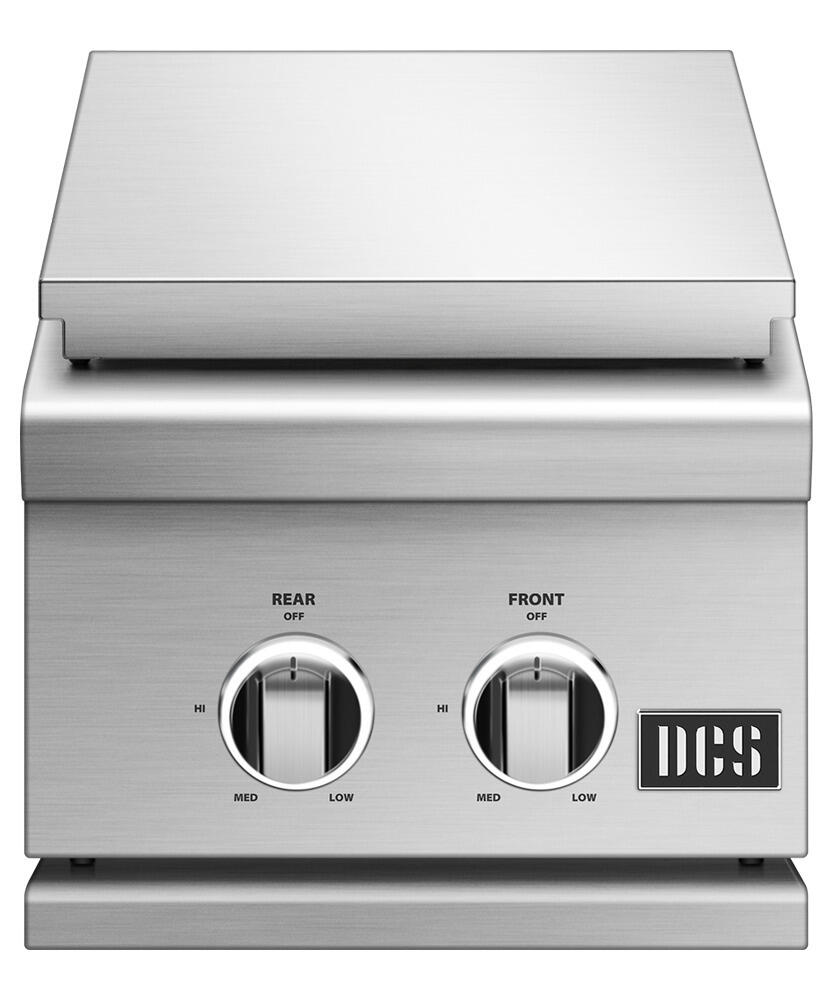

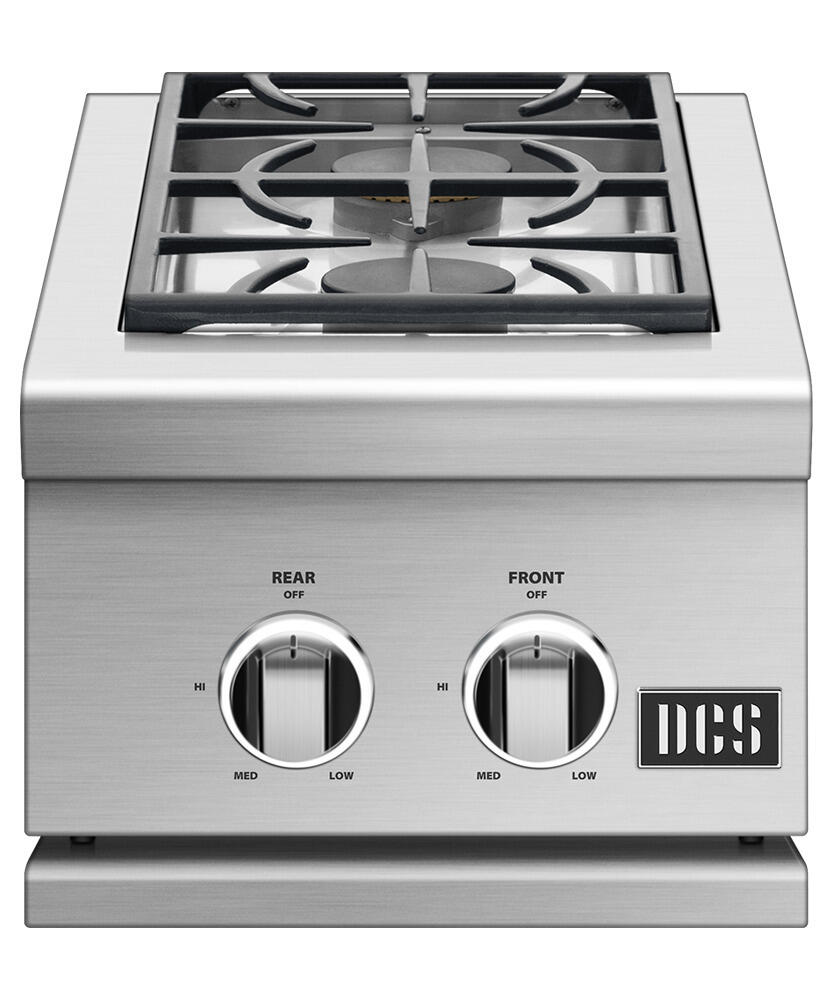

Dcs SBE1142N 14" Double Side Burner, Natural Gas
Rebates &
Promotions
DCS 10% Rebate - Spend $4,999 or more on qualifying DCS Products and receive a 10% rebate. Download Valid: 04/01/2024-12/31/2024
Bringing The Precise Control Of Your Indoor Cooktop To Your Outdoor Cooking Area, The Dedicated Double Side Burner Lets You Simmer Your Famous Bbq Sauce While The Ribs Are Grilling.
- 17,000 BTU per burner designed for precise temperature adjustments
- Built-in to create the complete outdoor kitchen for your backyard
- Seamless installation and interconnectivity between products allows for unified operation, from ignition to dial illumination
- Constructed from 304-grade stainless steel
Burners | |
Number of side burners | 2 |
Features | |
Ignition system | Surface |
Finish | |
Material | 304 grade stainless steel |
Weather resistant | |
Gas Requirements | |
1/2' NPT male with 3/8' in flare adapter | |
Gas type | NG |
Operational pressure | 4 ' W.C. |
Supply Pressure | 6 ' to 9' W.C. |
Installation Dimensions | |
Cutout depth (proud) | 22 3 4 ' |
Cutout height (proud) | 10 1 8 ' |
Cutout width (proud) | 12 1 8 ' |
Performance | |
Side burner power | 17000 BTU |
Power requirements | |
Supply frequency | 60Hz |
Supply voltage | 120V |
Product dimensions | |
Depth | 26 7 8 ' |
Height | 10 5 8 ' |
Width | 14 2 3 ' |
Warranty | |
Parts and labor | 2 years |
Service & Warranty Booklet 14", Series 9, Double Side Burner, Natural Gas
User Guide 14", Series 9, Double Side Burner, Natural Gas
Installation Guide 14", Series 9, Double Side Burner, Natural Gas
User Guide 14", Series 9, Double Side Burner, Natural Gas
Installation Guide 14", Series 9, Double Side Burner, Natural Gas
