Elica ENT432BL Nikolatesla One Hp

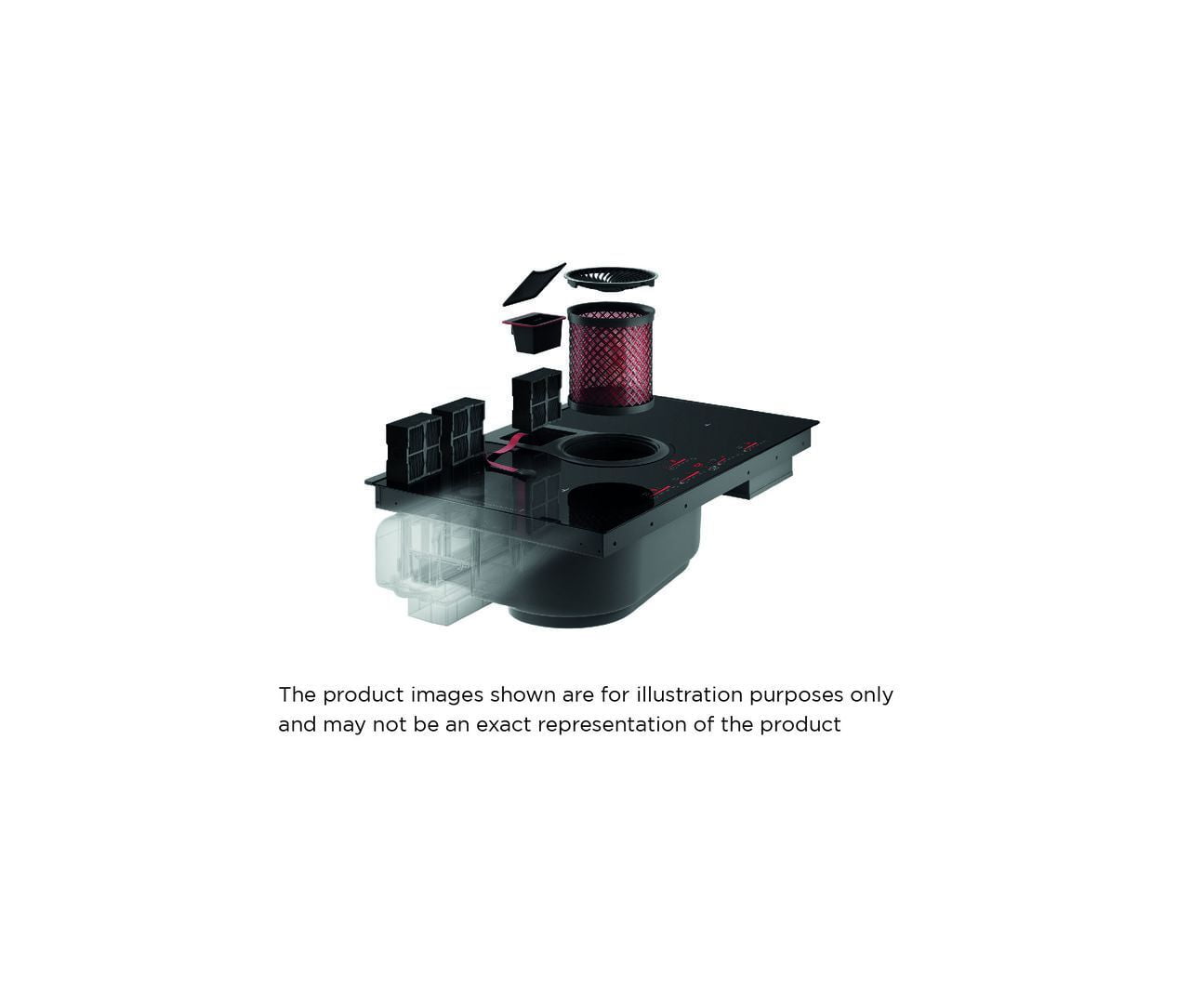

Nikolatesla Is Elica's First Aspirating Induction Cooktop Equipped With The Most Advanced Technologies With Distinctive Design, Characterized By Strong Lines And High Quality Material, Combining The Functions Of Two Appliances Into One Single Product. It Has All The Advantages Of Induction Cooktops, Such As Rapid Cooking And Easy Cleaning. However, Elica Added Specific Technologies, Like The Double Bridge Function That Allows For Two Adjacent Cooking Zones To Combine, So That Large Sized Pots Can Be Used. Notes/Other Included Parts / Components Main Cooktop Body Qty 1 - 8 Layer Anodized Aluminum Mesh Grease Filter (Pre-Installed)Qty 1 - Ducted Out Cartridge (Pre-Installed) Qty 1 - Recirculation Cartridge(/Li)(Li)Qty 4 - Ceramic Carbon Filters And Removal Ribbon Qty 1 - Reducer Joint Qty 1 - 3 1/4" X 10" Short Metal Duct Transition Qty 1 - 3 1/4" X 10" Long Metal Duct Transition Qty 1 - Joint Tape Qty 1 - Hardware Pack (Contains Mounting Clips, Seam Tape, Installation Instructions) Induction Cooktop Total Power Consumption: 7,4 Kw Ventilation System: 160 W Stainless Steel Trim Kit To Expand Cooktop Width To 36" Available Technical Features The Aspirating System, Positioned In The Central Zone, Reaches High Performance Levels, In Terms Of Fume Extraction, Noise Level And Energy Efficiency. Thanks To The Direct Communication With The Cooktop, It Is Able To Receive Information From The Cooking Zones, And Automatically Calibrates The Ideal Aspiration Level, So That The User Only Needs To Worry About Cooking, While At The Same Time Reducing Energy Consumption. The Command Is 9 Speed + Booster Touch Control, That Allows You To Adjust Both The Cooktop And The Aspirating Zone. Available In Both Aspirating And Recirculating, The Cooktop Was Thought Up For Any Type Of Space, And Thanks To A Series Of Accessories, It Can Meet Any Installation Need. In The Filtering Version, The High Performing New Generation Ceramic Odor Filters Are Accessible From The Top Part Of The Cooktop, Making Cleaning And Maintenance A Cinch. The Grease Filter Grid And The Filter Itself, Are Characterized By Exclusive Design, With Attention To Every Detail.
Technical features | |
Size | 83x51x21 cm 80.7x49.2 cm |
Version | Duct Out / Recycling |
Finishes | Black Glass |
Controls | 9P+B slider touch control direct |
Booster airflow | 647 m /h Duct Out - 536 m /h Recycling |
Noise level | 59 db(A) Duct out - 65 db(A) Recycling |
Total absorption Aspiration System | 160 W |
Duct size | 150 mm |
Total absorption - Induction Hob | 7,4 kW |
Frequency | 50 - 60 Hz |
Voltage | 220 - 240 V |
Bridge Zone | 2 (ONE HP) - 1 (ONE) |
Energy Class | A+ (Duct-out version) |
Cooking areas | 4 (2,1-3,7 KW) - 180X200 mm (ONE HP) 1 (2,1 - 3 kW) - 180x200 mm; 1 (1,6 - 1,85 kW) - 180x200 mm; 1 (2,3 - 3 kW) - 200 mm; 1 (1,4 kW) - 160 mm (ONE) |
