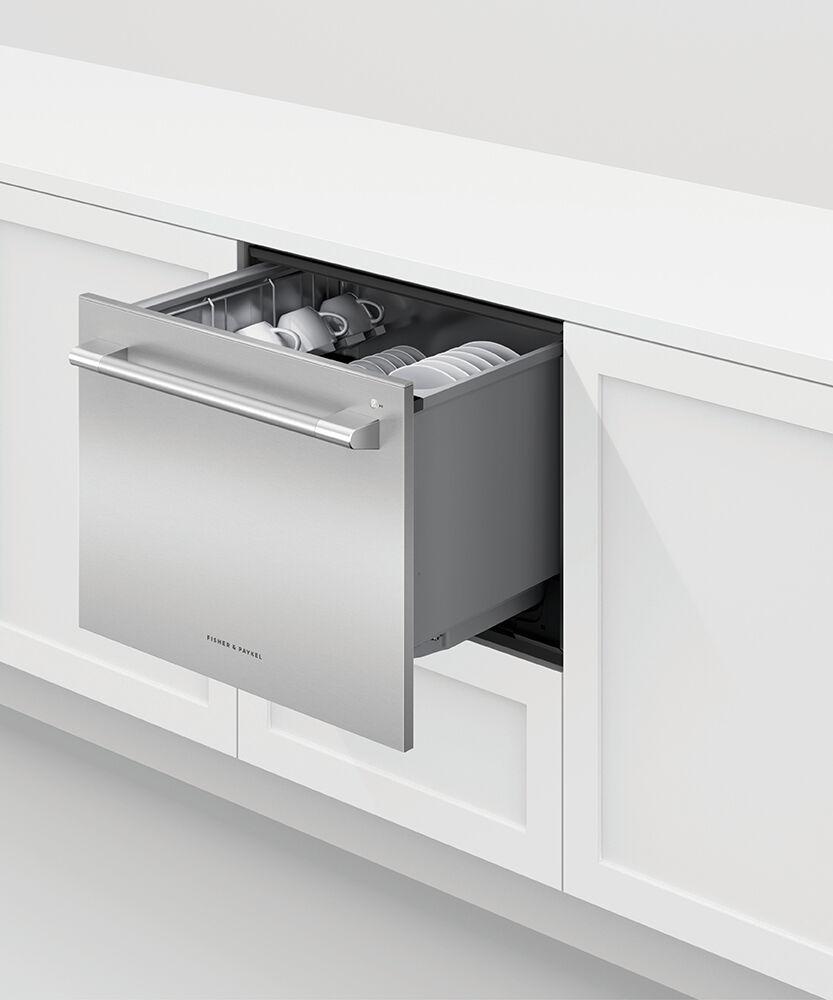

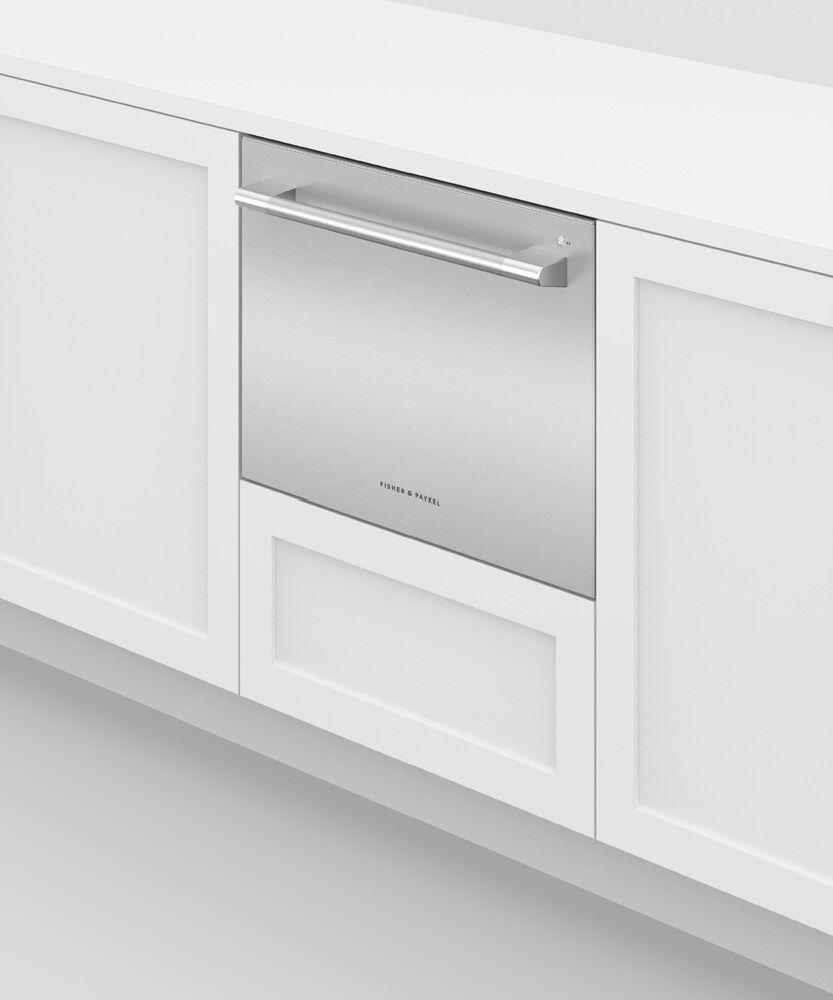

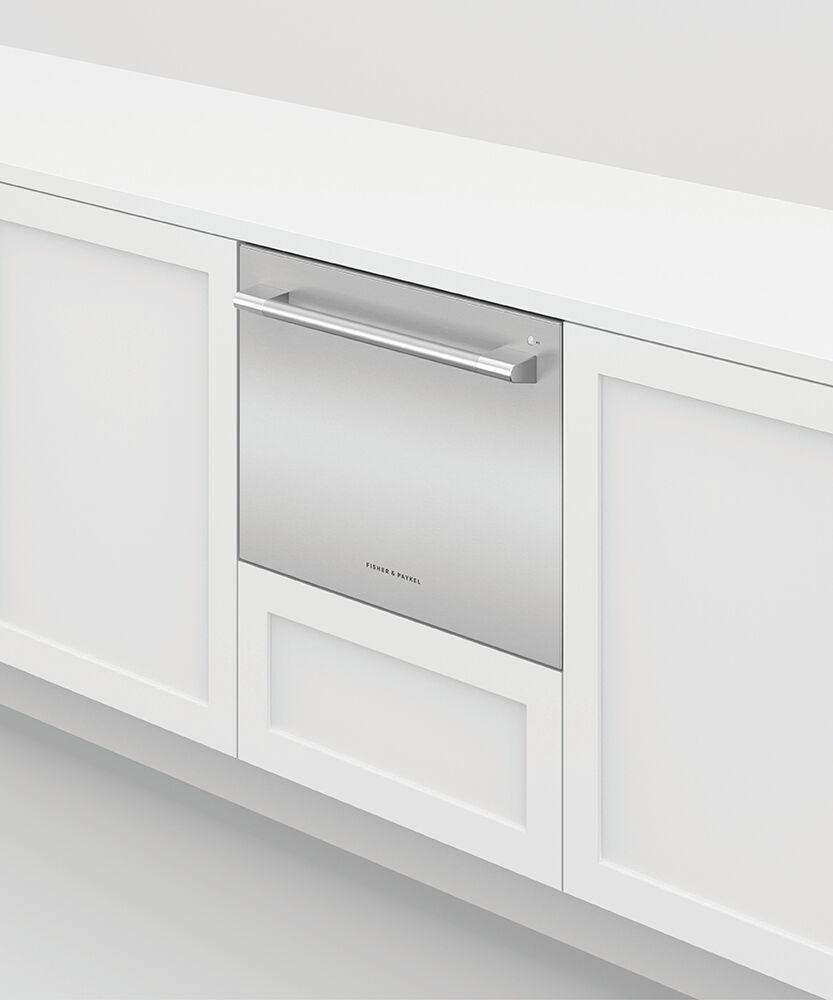

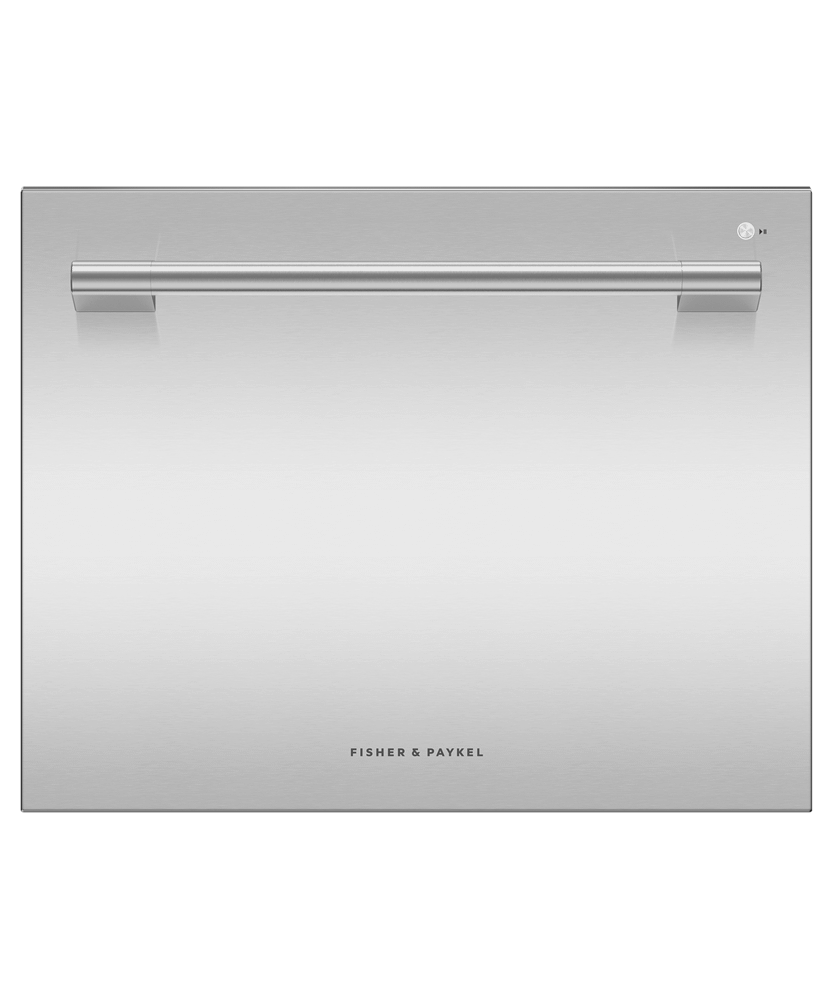

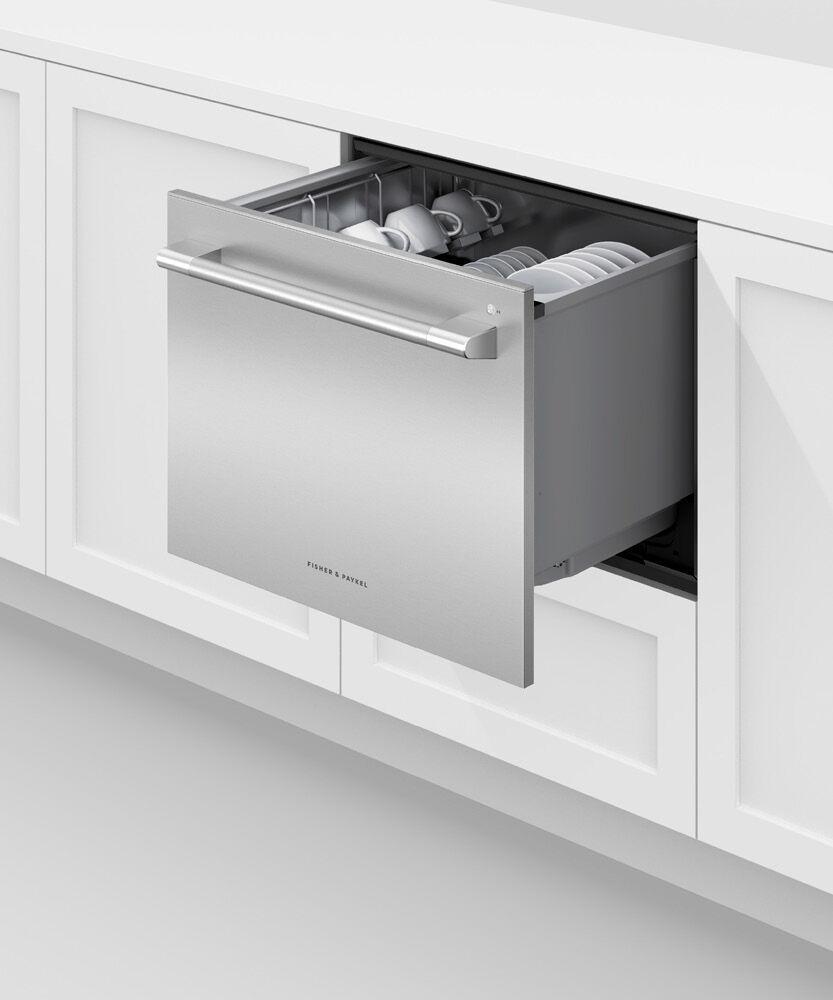

Fisher & Paykel DD24STX6PX1 Dishdrawer™ Dishwasher, Tall, Sanitize
Rebates &
Promotions
KNOCK TO PAUSE
BEAUTIFUL TO USE KNOCK TO PAUSE
For ease-of-use, these DishDrawer™ Dishwashers have a knock to pause function. A knock on the front panel will pause the dishwasher, which can be restarted by using the start button.
DESIGN QUALITY
BUILT TO LAST DESIGN QUALITY
Every detail has been carefully crafted using quality materials, from the easy-to-clean stainless steel interior to the spray arm sensor that detects jams for increased wash confidence.
COMPLEMENTARY DESIGN
DESIGNED TO FIT COMPLEMENTARY DESIGN
With distinctive, bold styling, this DishDrawer™ Dishwasher is designed to match the Fisher & Paykel Professional style family of appliances.
QUIET PERFORMER
BEAUTIFUL TO USE
Running at a low decibel rating of 43dBA, these DishDrawer™ Dishwashers do their job without making a fuss. The combination of intelligent technology and simple mechanics means greater reliability and excellent wash performance.
PERFECT RESULTS
FLEXIBLE WASH OPTIONS
Eight wash programs including Auto, 60min and Glassware, while modifiers such as Sanitize, Dry+ and Quiet provide added wash flexibility. The Quiet wash modifier reduces the noise on some cycles while maintaining performance – perfect for late night washing.
EFFICIENT PERFORMANCE
RESPECT FOR THE PLANET EFFICIENT PERFORMANCE
Our Energy Star rated DishDrawer™ Dishwashers use the energy they need without compromising on wash performance.
Fits full-size dinner plates up to 12 1/4 inches, with flexible racking for large cookware
With soft-close drawers, and knock to pause convenience
Wi-Fi capability and a SmartHQ™ app for remote control and notifications
American Disabilities Act (ADA) compliant, this can be installed at an accessible height for loading and unloading. Dimensions & Capacity Width: 23.56"
Height: 18.81"
Depth: 22.56"
- 7 Place settings
- Fold down tines
- Pitch adjustable tines
- Wine glass supports with
- 8 Wash programs
- 3 Wash modifiers
- Child lock
- Internal wash selector
- SmartDrive™ technology
- Quiet operation
Accessories | |
Capacity and loading | |
Accommodates round plates up to | 12.25 ' |
Place settings | 7 |
Consumption | |
Energy rating | Energy star |
Energy usage | 155kWh/year |
Water usage (per wash cycle) | 1.65 gal |
Controls | |
Features | |
Internal tub material | Stainless steel |
Performance | |
Noise on standard cycle top drawer | 43dBA |
Power requirements | |
Amperage | 5A |
Electric circuit | 3 wire |
Rated current | 15A |
Supply frequency | 60Hz |
Supply voltage | 120V |
Product dimensions | |
Depth | 22 9 / 16 ' |
Height | 18 13 / 16 ' |
Width | 23 9 / 16 ' |
Warranty | |
Parts and labor | Limited 2 years |
Wash Program Modifiers | |
Wash modifiers | 3 |
Wash Programs | |
Wash programs | 8 |
Water connection | |
Inlet water temperature | 140°F |
Water pressure | 0.03 Mpa - 1 Mpa (4.3-145 psi) |
