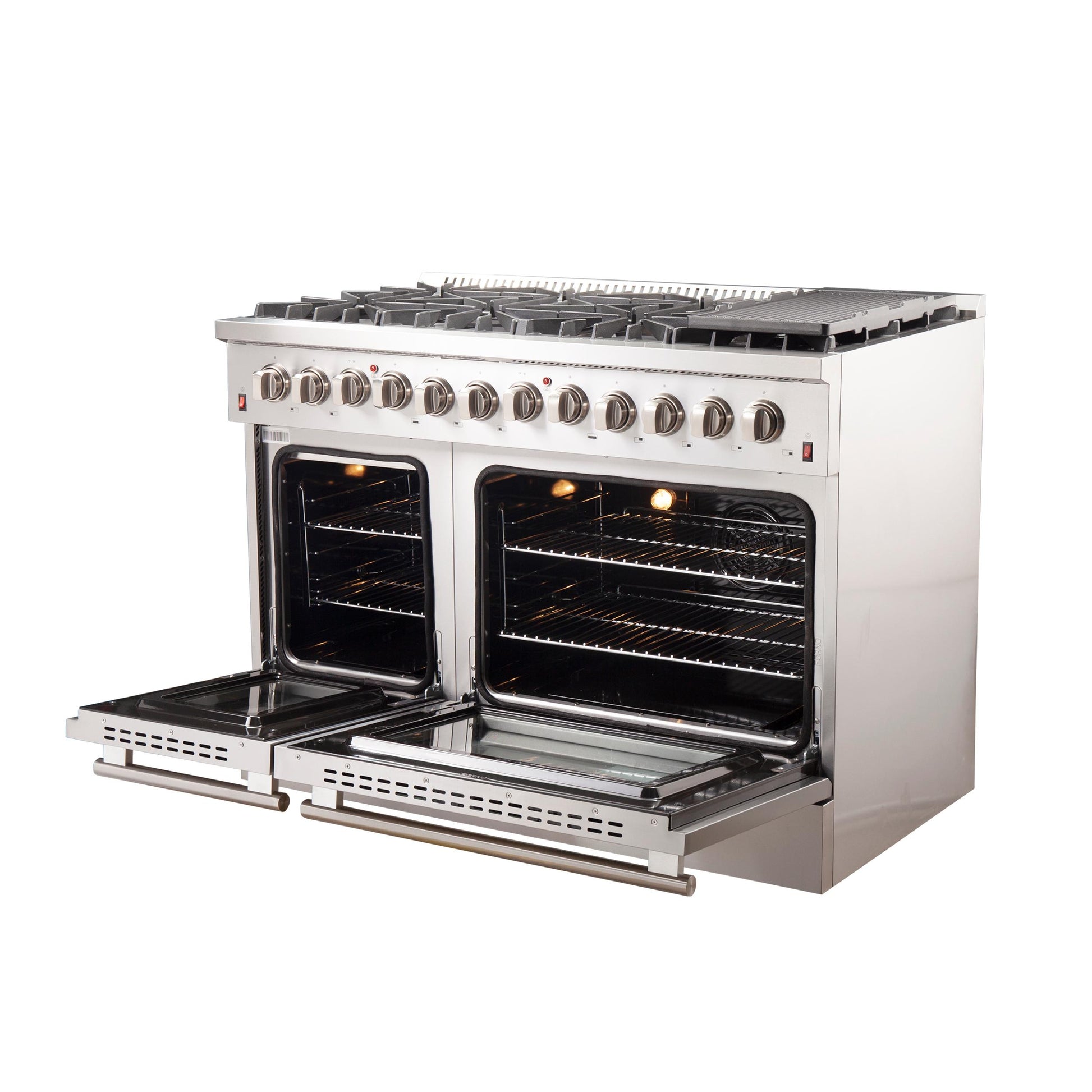

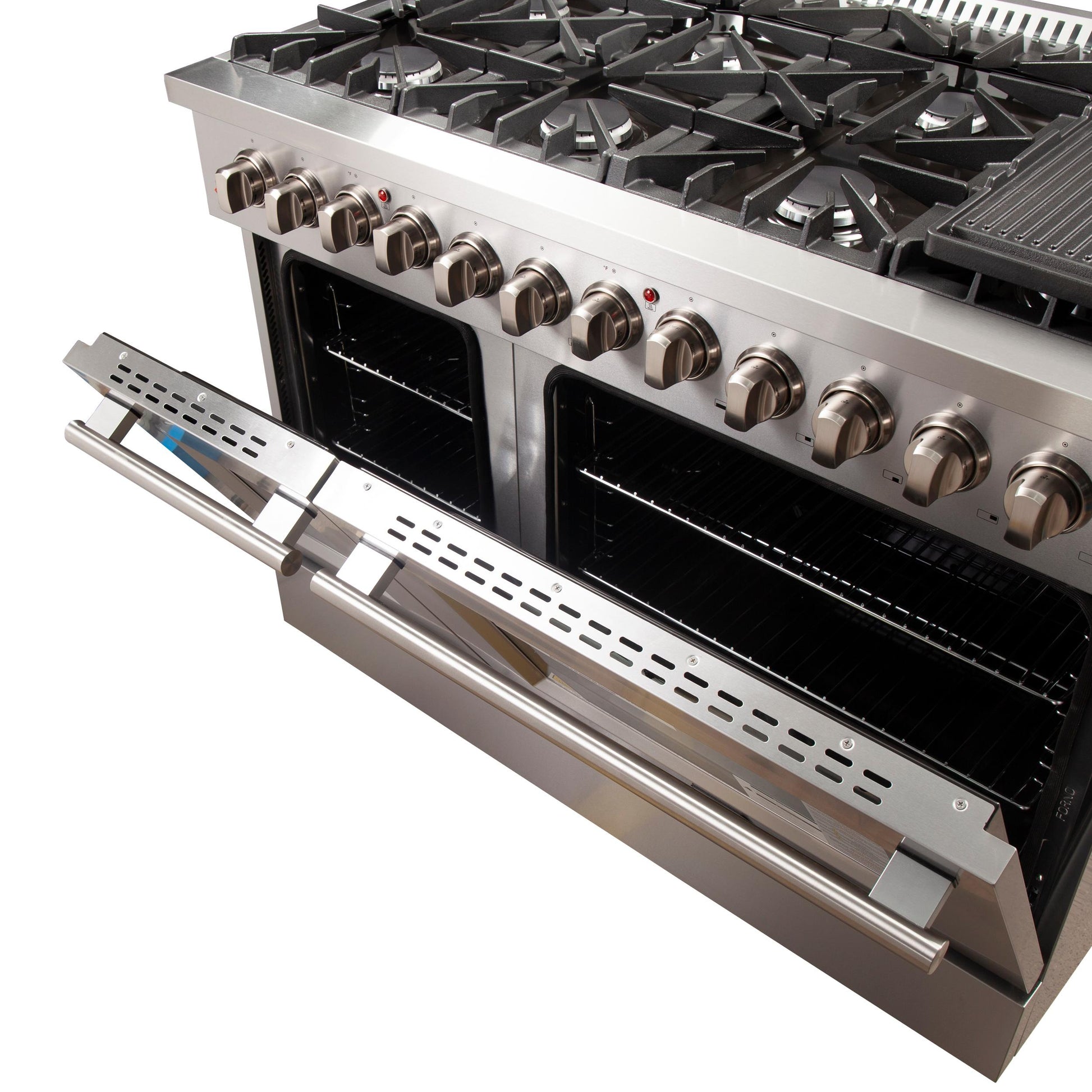

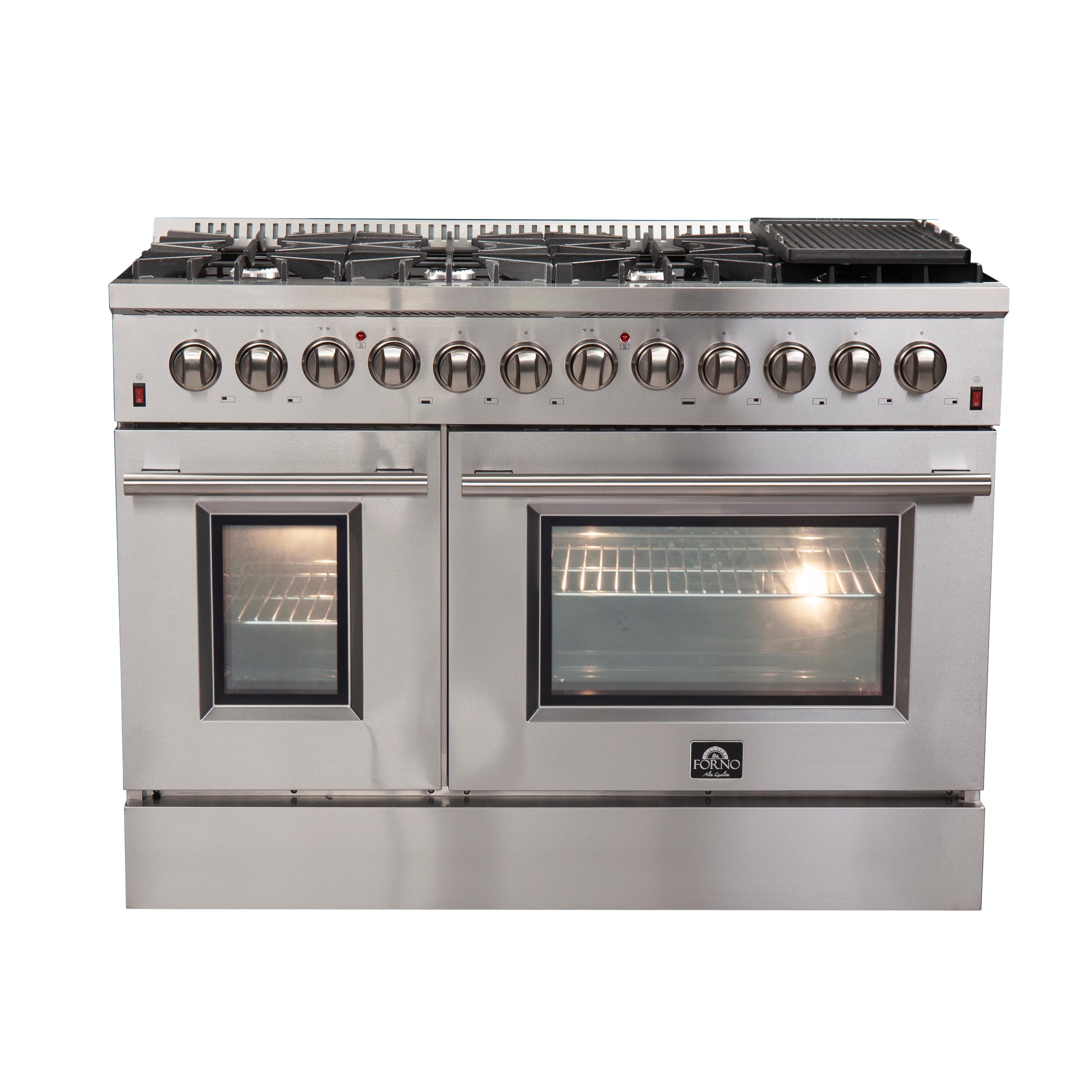

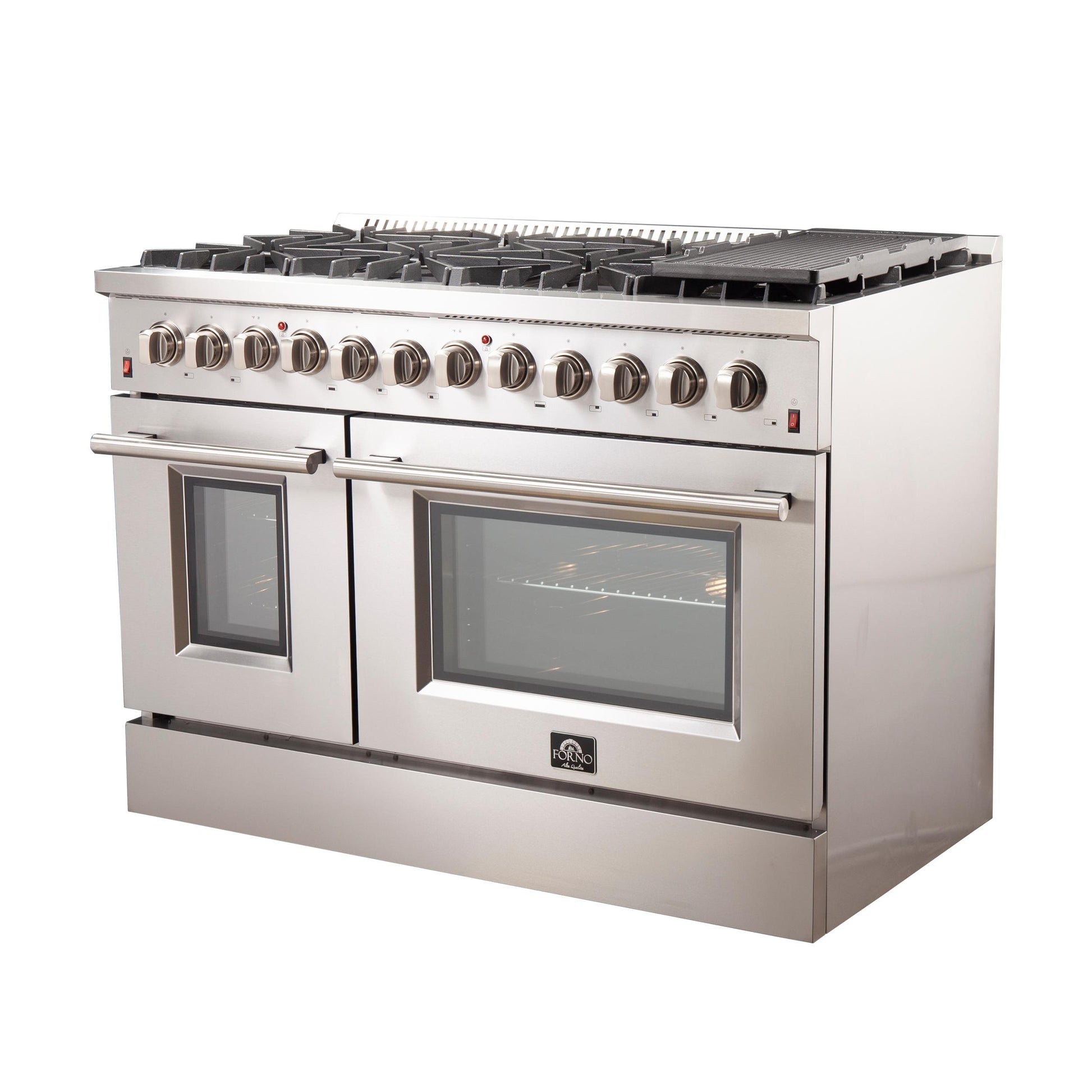

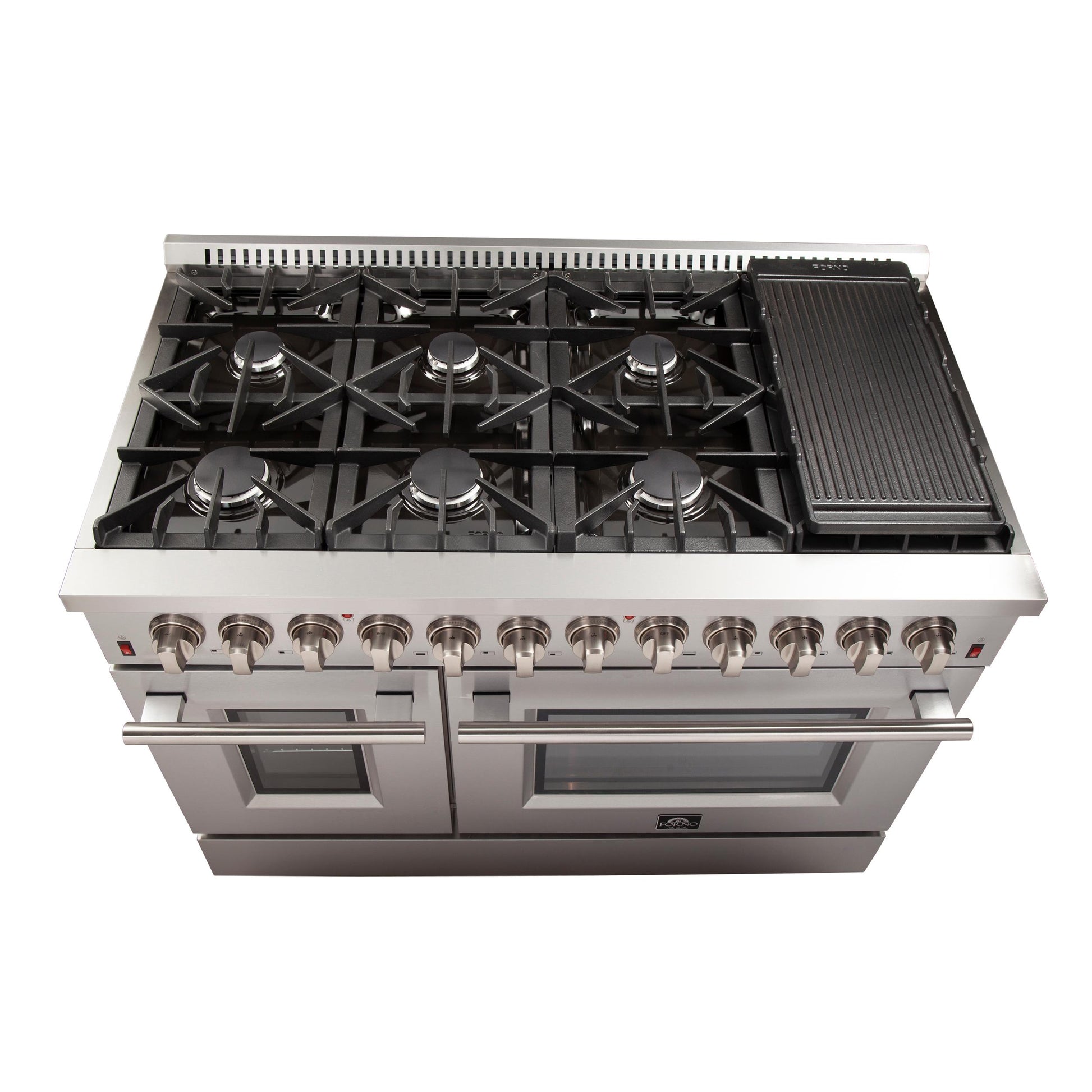

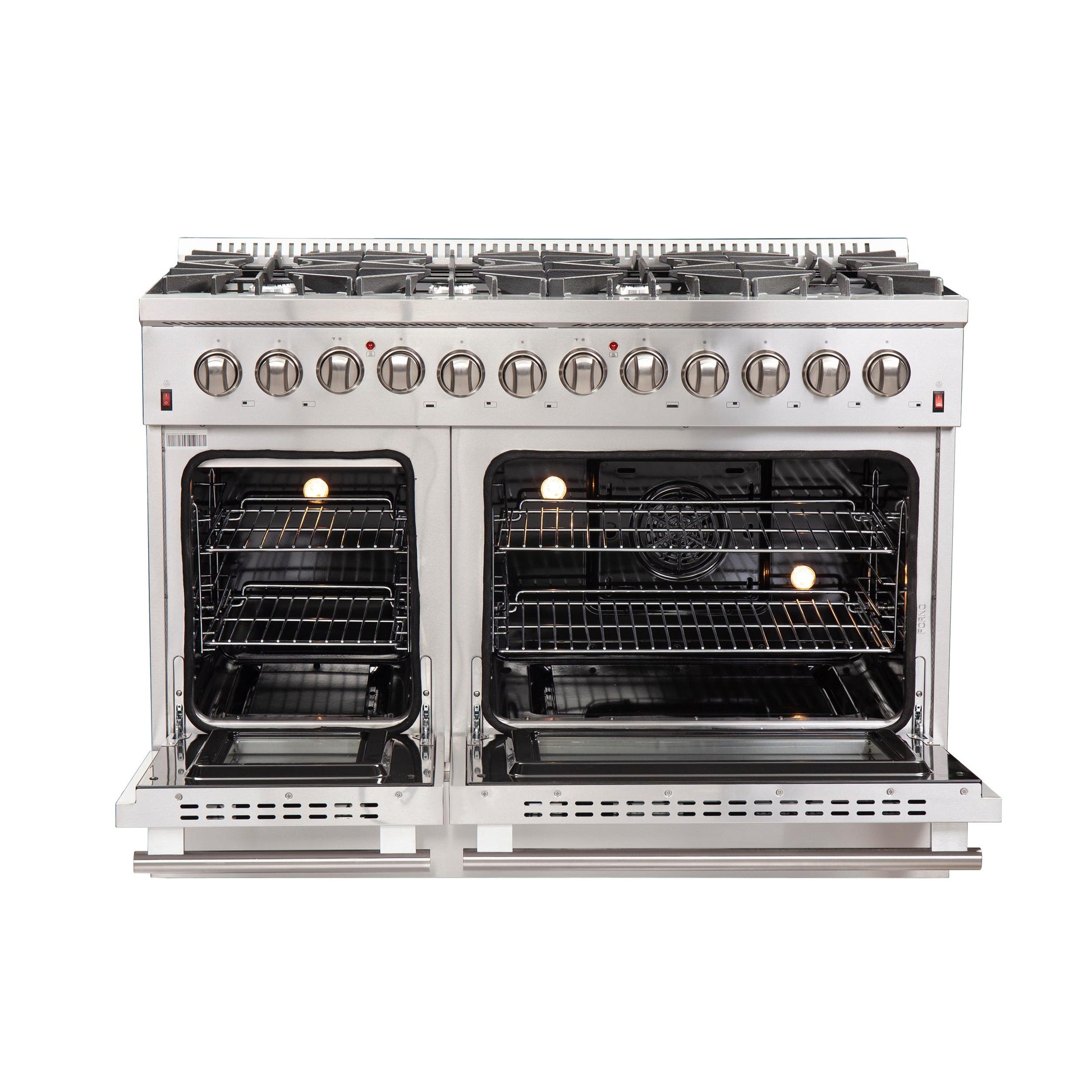

Forno FFSGS615648 Forno Galiano 48" Freestanding Dual Fuel Range
The 48 Galiano Dual Fuel Range Brings Professional Styling And Performance Into Your Home Kitchen With Its Durable Stainless-Steel Design. Cooking Surface Has 8 Sealed Burners With A Total Output Of 107,000 Btu. Included Is 1 Powerful 20K Dual-Ring Burner For Boiling Or Searing And Is Able To Perform Simmering Like Melting Chocolate Or Sauces, The Continuous Cast Iron Grates Allow Maximum Stability Of Cookware And Allow The Ease Of Sliding Pan Off A Hot Burner. The 5.26 Cu. Ft. Gas Oven Has A Total Broil And Bake Output Of 44,000 Btu And The Option Of Using True Convection Bake, Broil Or Roasting. Included Are 2 Oven Racks And Lp Conversion Kit. Additionally, Zinc Coated Metal Knobs With Bezel Rings Will Maintain Their Beauty For Years. All Forno Products Come With A 2 Year Warranty.
- 8 Sealed Burners
- 1 20K Sealed Dual-Ring Burner
- Continuous Cast Iron Grates
- Black Enamel Cooktop
- 4.32 Cu.Ft True Convection Oven, additional 2.26 Cu.Ft. Oven
- Smooth Friction Hinges
- 8 Sealed Burners combine a total stove-top output of 107,000 BTU
- Includes 1 Sealed Dual-Ring Burner to achieve high heat searing or delicate simmering control
- Continuous Cast Iron Grates provide even heat distribution and stable cookware mobility
- Recessed Black Enamel Cooktop Cavity contains spills for quick clean-ups
- 4.32 Cu.Ft True Convection Fan Oven with 6,300 Watt Total Broil and Bake output, additional 2.26 Cu.Ft. Oven with a 3,400 Watt Total Broil and Bake output.
- Insulated Oven Doors with 3-Layer Glass Windows and Smooth Friction Hinges
- Black Enamel Oven Interior with 3 Halogen Lights
- 4 Electro-Plated Oven Racks with 7.5mm frame and 4mm grid construction.
- Pro-Style Handle and Zinc Coated Metal Control Knobs and Bezel Rings
- Sleek, Durable Design Stainless-Steel Body
- Adjustable Stainless Steel Legs Accommodate Counter Heights between 35.5 to 36.5
- Includes Cast Iron Wok-Ring, Reversible Grill/Griddle, LP conversion kit and 4-Prong Plug
Product Name | GALIANO |
Product UPC | 686136 961370 |
Product Type | Freestanding |
Color/Finish | Stainless Steel |
Fuel Type | Gas & Electric |
Gas Type | Natural Gas |
LP Gas Convertible | Yes |
LP Kit Included | Yes |
Gas Heat Configuration | Sealed Burner |
Number of Burners | 8 |
Cooktop Surface | Continuous Cast Iron Grates |
Cooktop Cavity | Recessed Enamel |
Number of Ovens | 2 |
Oven Interior Finish | Black Enamel |
Number of Racks | 2 |
Number of Rack Positions | 2 x 6 |
Broiler | Electric |
Bake Element | Electric |
Cooking Process | True Convection |
Cleaning Type | Manual |
Interior Light | 2 |
Control Type | Knob |
Control Location | Front |
Temperature Gauge | No |
Timer | No |
Clock | No |
Primary Material | Metal |
Door Panel Material | Stainless Steel |
Control Panel Material | Stainless Steel |
Kick Plate Material | Stainless Steel |
Side Panel Material | Stainless Steel |
Wok-Ring | No |
Reversible Grill/Griddle | Yes |
Air Fryer Kit | No |
Rotisserie Kit | No |
Supplier Intended and Approved Use | Residential Use |
Country of Origin | China |
Total Stovetop BTU / Watts | 107,000 BTU |
Middle Burner | Does Not Apply |
Front Right | 1000 BTU to 20,000 BTU |
Front Right Center | 15,000 BTU |
Front Center | Does Not Apply |
Front Left Center | 15,000 BTU |
Front Left | 15,000 BTU |
Rear Right | 15,000 BTU |
Rear Right Center | 9,000 BTU |
Rear Center | Does Not Apply |
Rear Left Center | 9,000 BTU |
Rear Left | 9,000 BTU |
Number of Knob | 12 |
Switches | 1 + 1 |
Overall Oven Capacity | 6.58 Cubic Feet |
Overall Broil Top | Does Not Apply |
Overall Bottom | Does Not Apply |
Right Oven Capacity | 4.32 Cubic Feet |
Right Broil Top | Does Not Apply |
Right Bottom | Does Not Apply |
Left Oven Capacity | 2.26 Cubic Feet |
Left Broil Top | Does Not Apply |
Left Bottom | Does Not Apply |
Convection Fan | Yes |
Amperage | 30 |
Volts | 240 |
Wattage | 9700 |
Oven 1 inside Broil Wattage | 1000 |
Oven 1 Outside Broil Wattage | 1800 |
Oven 1 Bake Wattage | 2000 |
Oven 1 True Convection Wattage | 1500 |
Oven 2 inside Broil Wattage | Does Not Apply |
Oven 2 Outside Broil Wattage | 1700 |
Oven 2 Bake Wattage | 1700 |
Oven 2 Convection Heater Wattage | Does Not Apply |
Power Cord Length | 5 feet |
Receptacle Type | 4-Prong Grounded |
Overall Weight (LBS) | 388 |
Overall Weight (KG) | 175.9968 |
Overall WxDxH (IN) | 48 x 28 x 38 |
Overall WxDxH (CM) | 121.92 x 71.12 x 96.52 |
Product Width (I) | 48 |
Product Width (CM) | 121.92 |
Product Depth (I) | 28 |
Product Depth (CM) | 71.12 |
Product Height (I) | 38 |
Product Height (CM) | 96.52 |
Minimum Counter Height (IN) | 35.5 |
Minimum Counter Height (CM) | 90.17 |
Maximum Counter Height (IN) | 36.5 |
Maximum Counter Height (CM) | 92.71 |
Depth with Oven Door Open 90 (IN) | 44.25 |
Depth with Oven Door Open 90 (CM) | 112.395 |

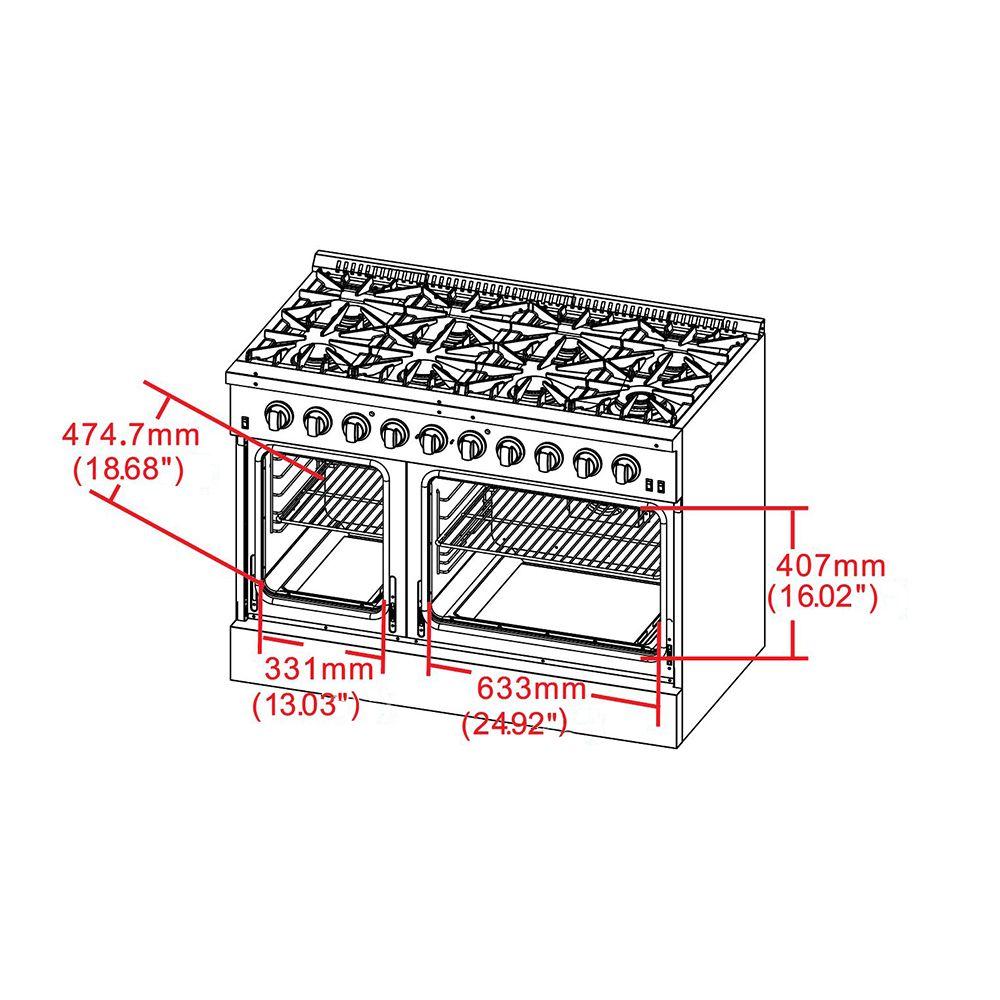

Oven Interior Width (IN) | 24.92 |
Oven Interior Depth (CM) | 63.2968 |
Oven Interior Depth (IN) | 18.7 |
Oven Interior Depth (CM) | 63.2968 |
Oven Interior Height (IN) | 16 |
Oven Interior Height (CM) | 40.64 |
Left Oven Interior Width (IN) | 13.03 |
Left Oven Interior Depth (CM) | 33.0962 |
Left Oven Interior Depth (IN) | 18.7 |
Left Oven Interior Depth (CM) | 33.0962 |
Left Oven Interior Height (IN) | 17 |
Left Oven Interior Height (CM) | 43.18 |
CSA Certified | Does Not Apply |
ETL Listed | Yes |
UL Listed | Does Not Apply |
Title 20 - California Regulation | Does Not Apply |
ADA Compliant | Does Not Apply |
Star-K Certified | Does Not Apply |
