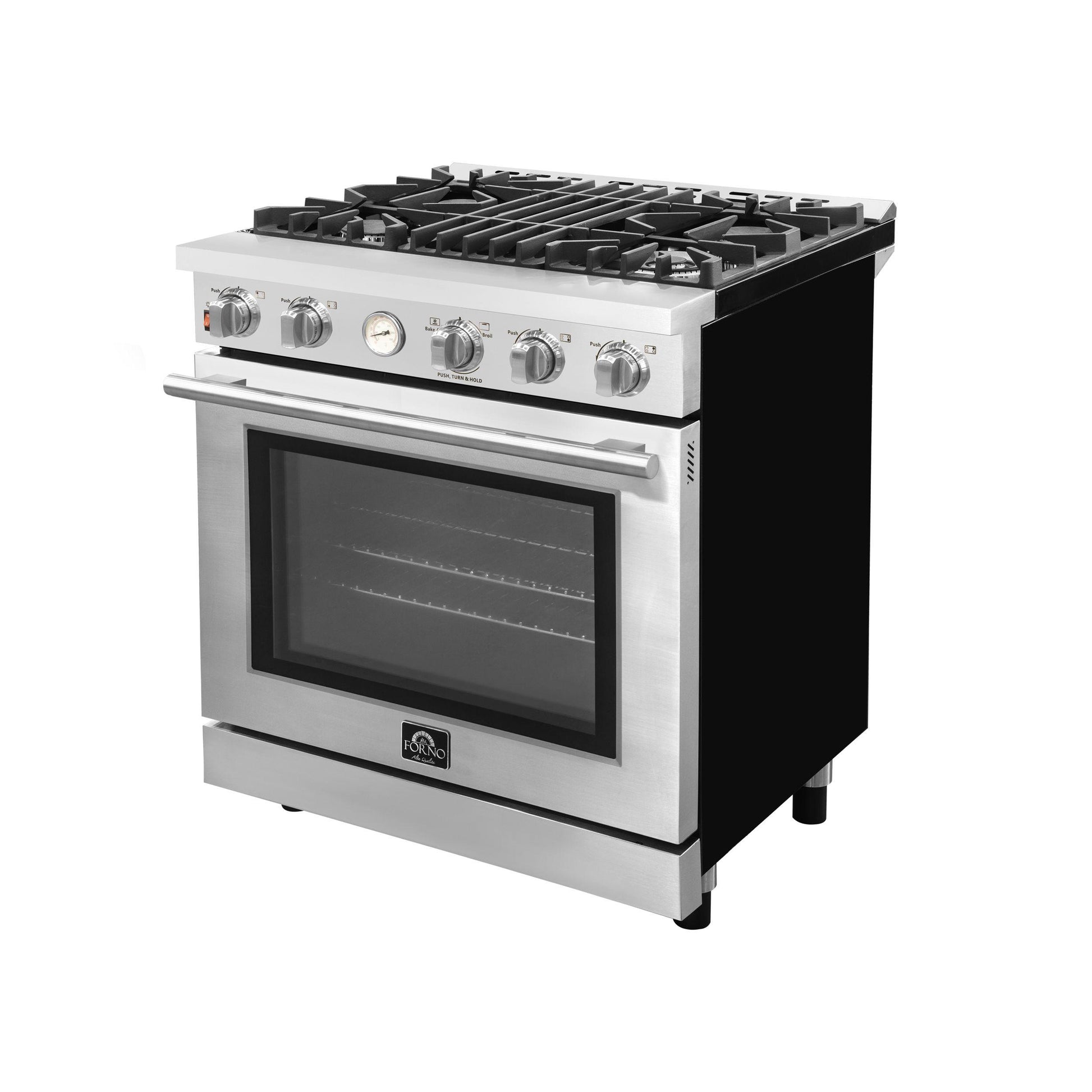

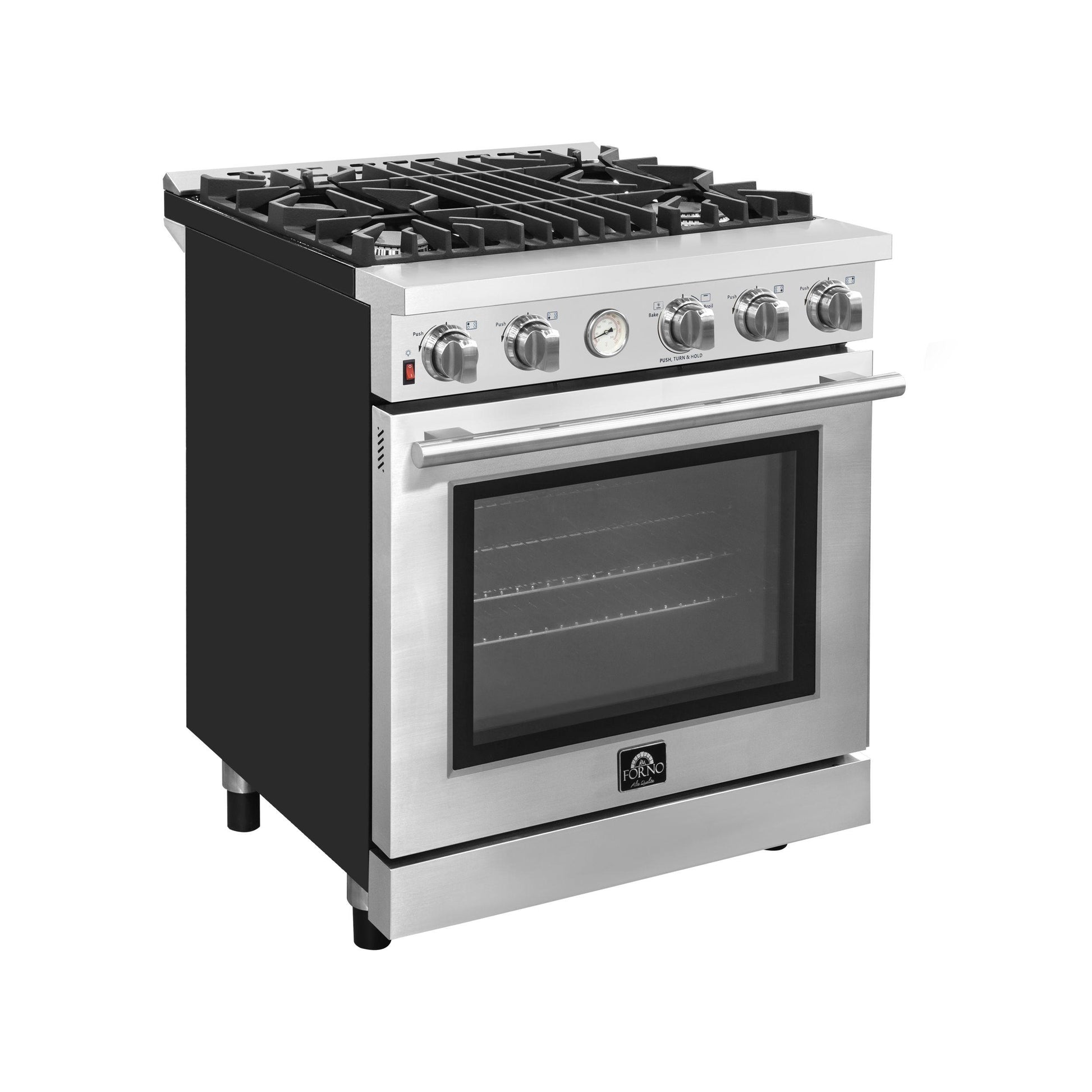

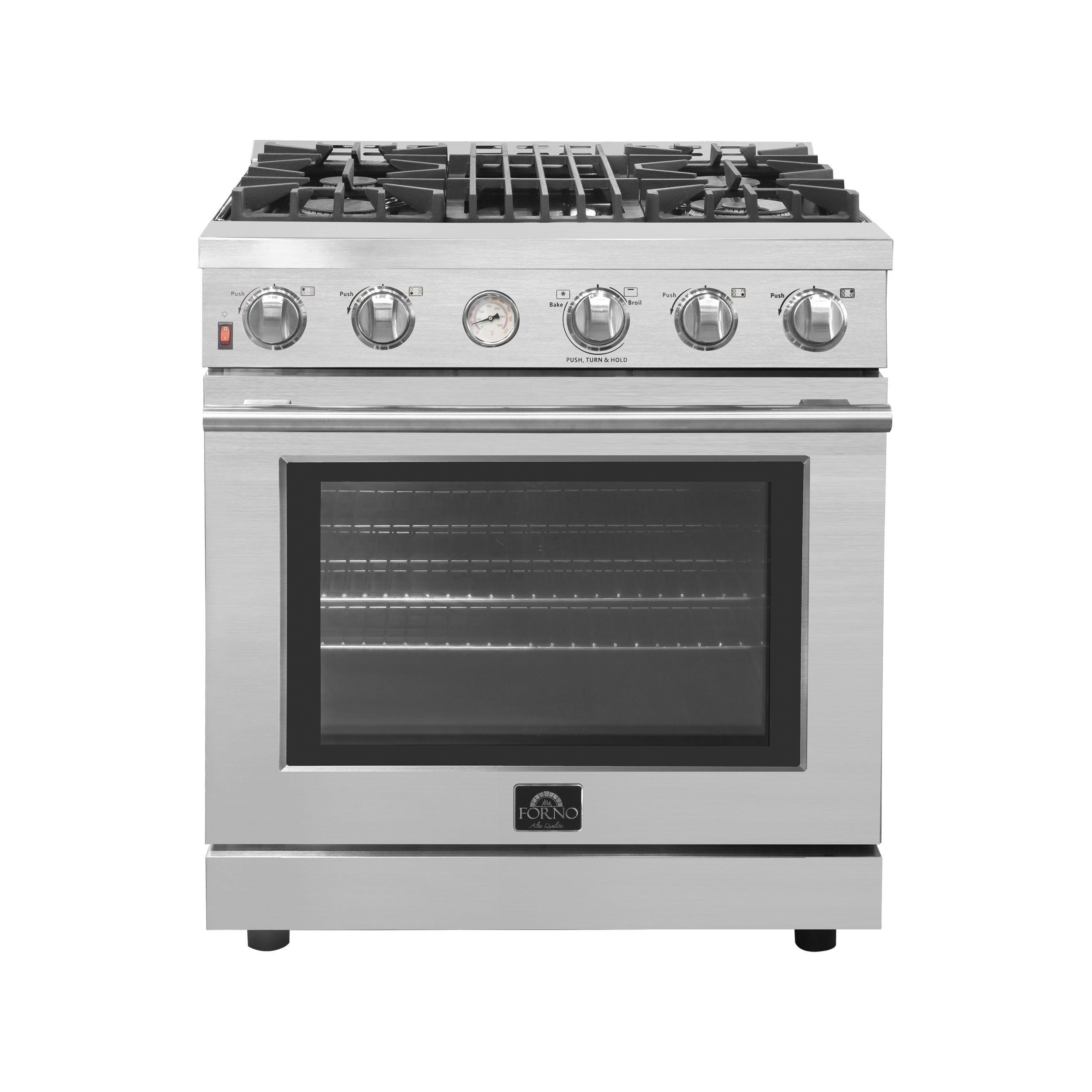

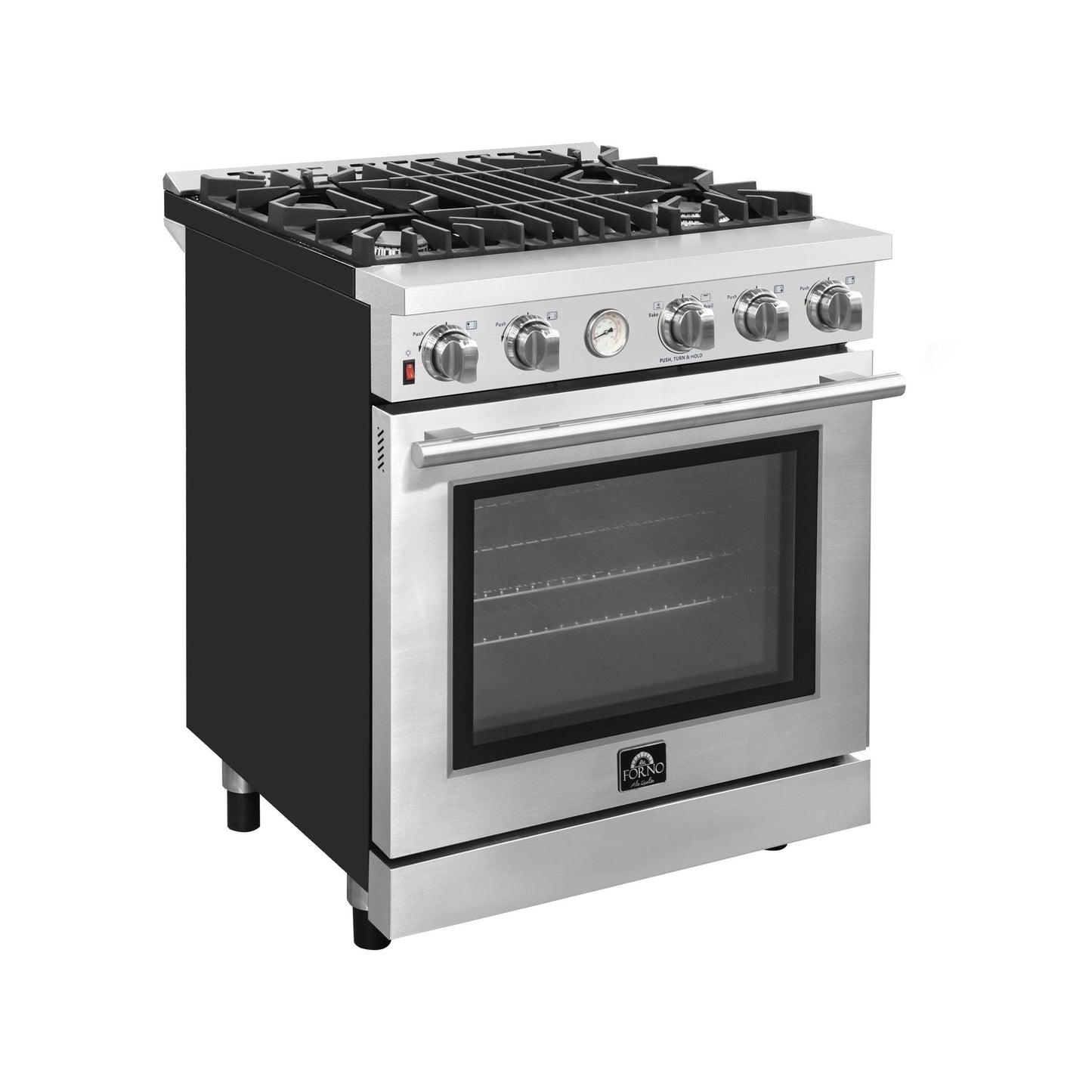

Forno FFSGS622830S Livorno 30" Freestanding Gas Range
The Forno 30" Alta Qualita Freestanding Gas Range Brings Professional Styling And Performance Into Your Kitchen. A Durable Stainless-Steel Design Has 4 Sealed Burners With A Total Output Of 41,000 Btu Including 1 Powerful Sealed Dual-Ring Burner For Boiling Or Searing And Is Able To Perform Simmering Like Melting Chocolate Or Sauces, The Continuous Cast Iron Grates Allow Maximum Stability Of Cookware And Allow Ease Of Sliding Pan Off A Hot Burner. The Recessed Enamel Cooking Surface Cavity Keeps Spills And Splashes Contained And Easy To Clean. The 30 Convection Oven Has A Capacity Of 4.62 Cu. Ft. With A Combined Broil And Oven Output Of 25,500 Btu. Included Are 2 Oven Racks And Lp Conversion Kit. Additionally, Zinc Coated Metal Knobs With Bezel Rings Will Maintain Their Beauty For Years. All Forno Products Come With A 2 Year Warranty.
- 4 Sealed Burners
- Includes 1 Sealed Dual-Ring Burner to achieve high heat searing or delicate simmering control

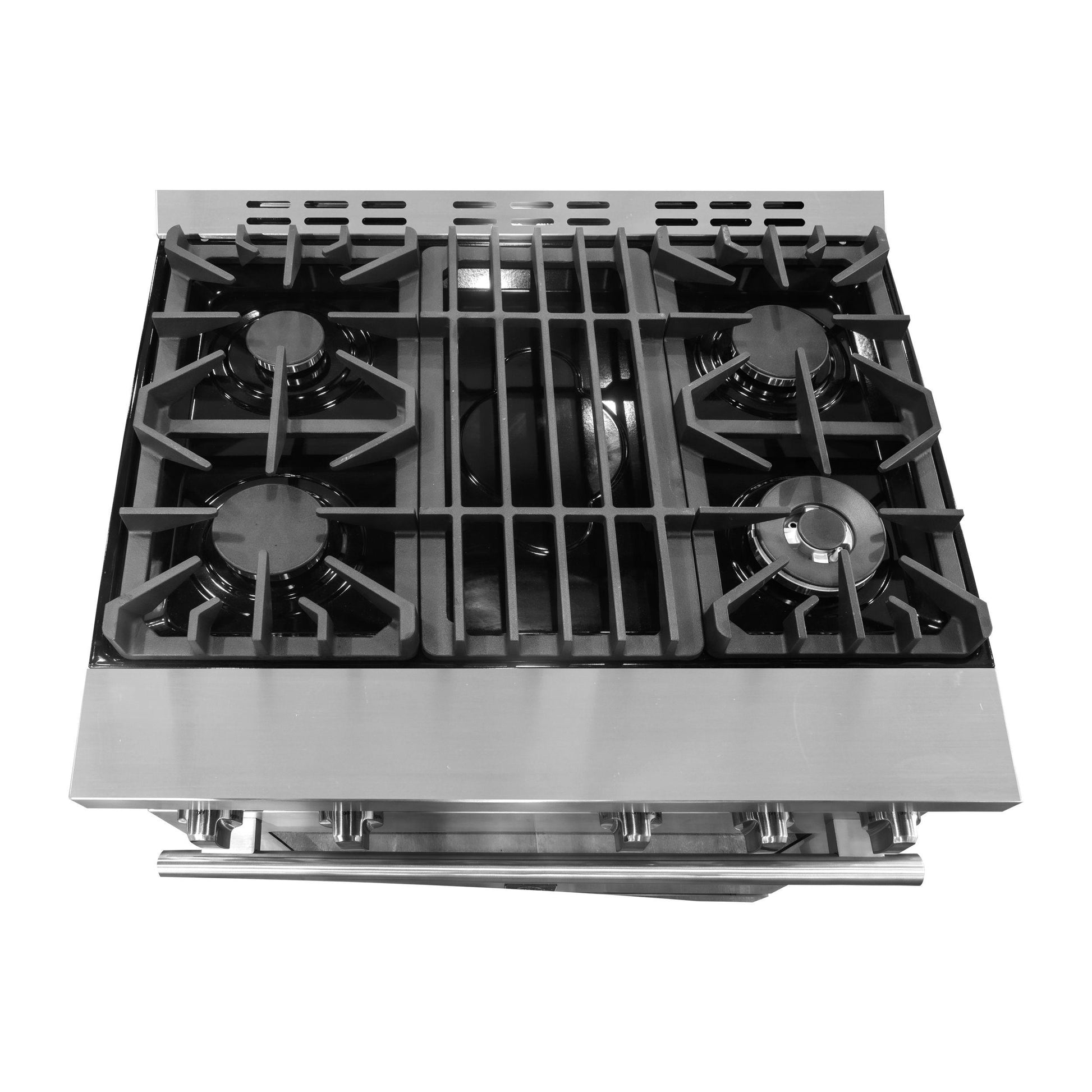

- Continuous Cast Iron Grates
- Black Enamel Cooktop
- 4.62 Cu.Ft Convection Fan Oven
- Smooth Friction Hinges
- 4 Sealed Burners combine a total stove-top output of 41,000 BTU
- Includes 1 Sealed Dual-Ring Burner to achieve high heat searing or delicate simmering control
- Continuous Cast Iron Grates provide even heat distribution and stable cookware mobility
- Recessed Black Enamel Cooktop Cavity contains spills for quick clean-ups

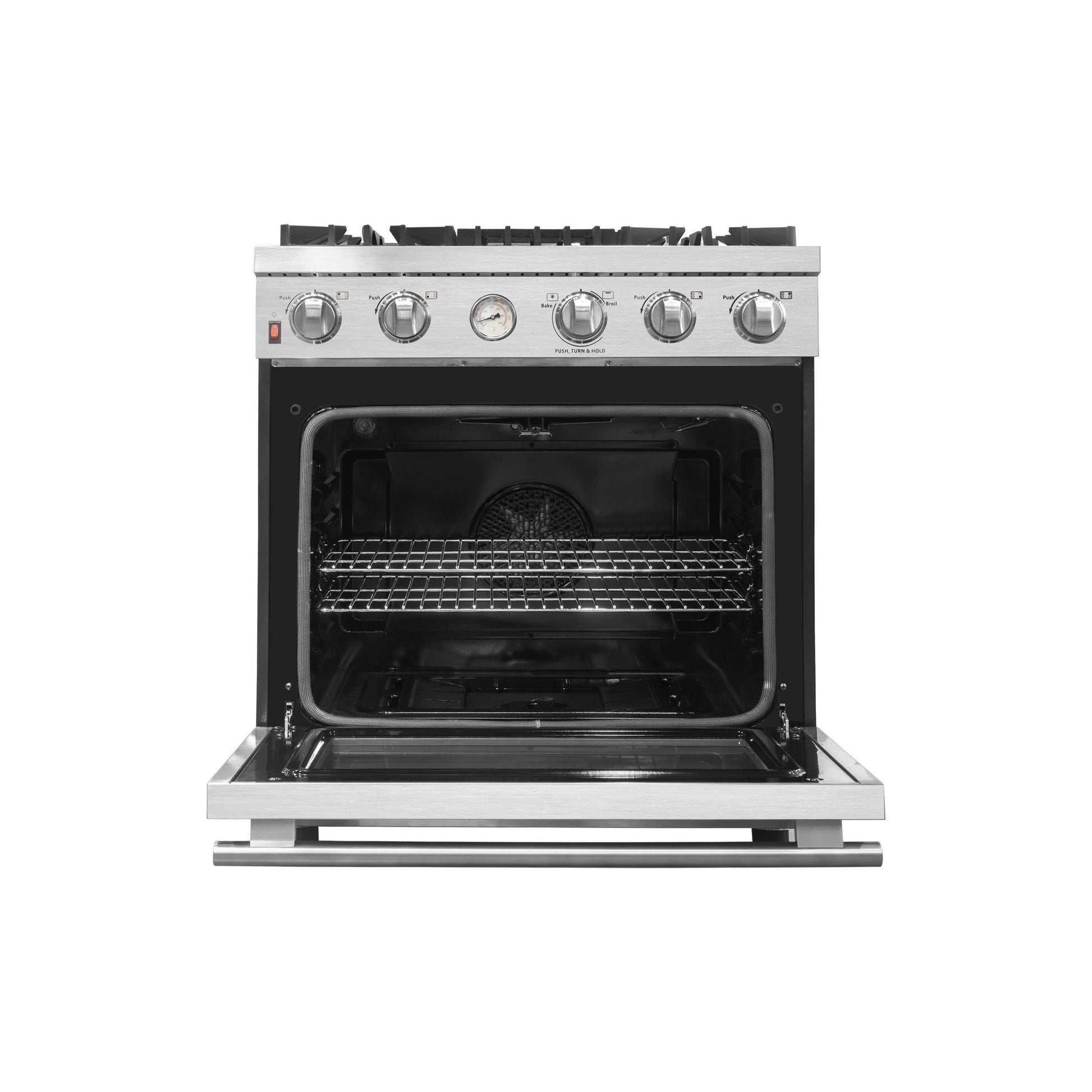

- 4.62 Cu.Ft Convection Fan Oven with 25,500 BTU Total Broil and Bake output
- Insulated Oven Door with a 3-Layer Glass Window and Smooth Friction Hinges

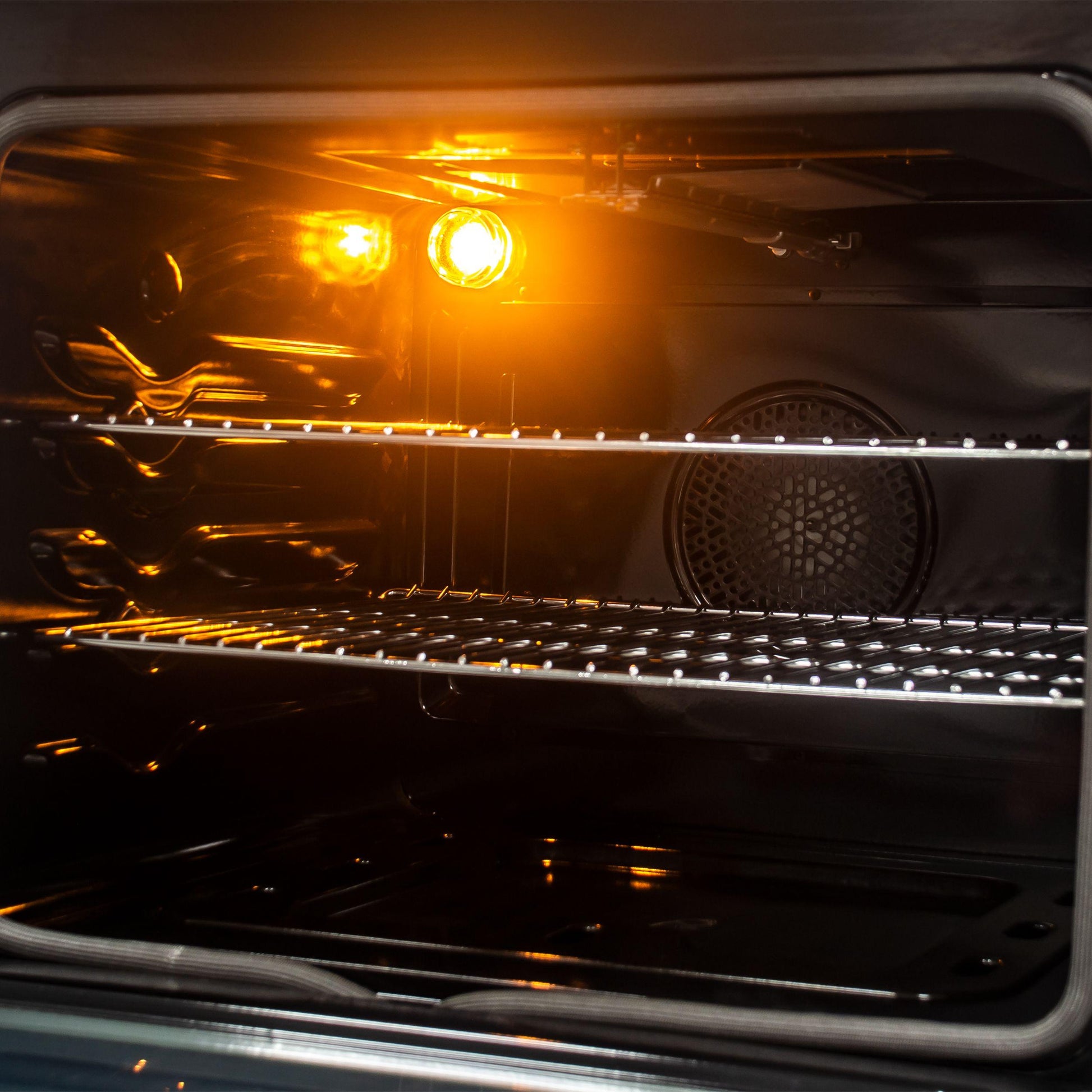

- Black Enamel Oven Interior with 1 Halogen Lights
- 2 Electro-Plated Oven Racks with 6.6mm frame and 4mm grid

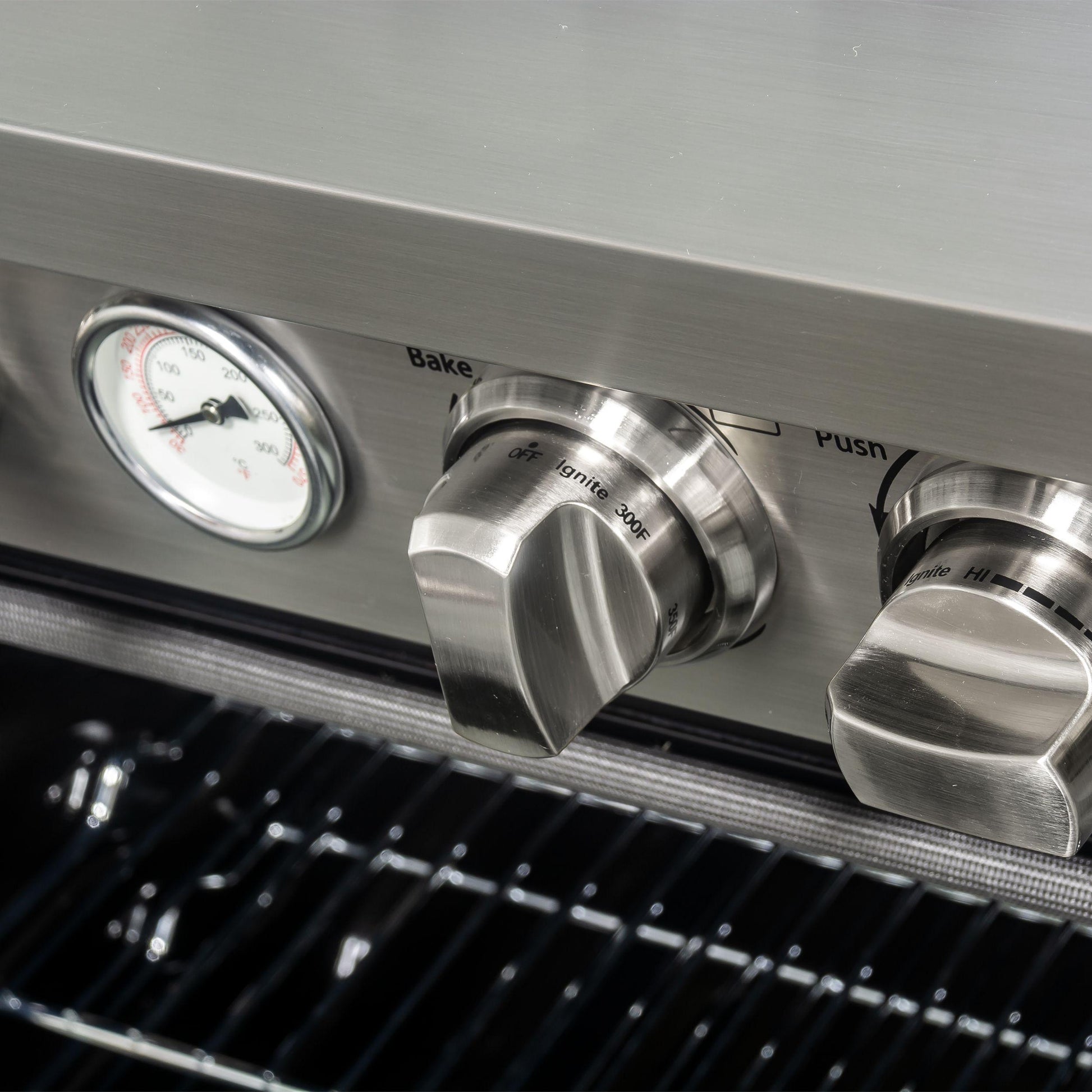

- Pro-Style Handle and Zinc Coated Metal Control Knobs and Bezel Rings
- Sleek, Durable Design Stainless-Steel Body
- Adjustable Stainless Steel Legs Accommodate ADA Counter Heights between 33.5 to 34.5
- Includes LP conversion kit and 3-Prong Plug
Product Name | Livorno |
Product UPC | 686136 962728 |
Product Type | Freestanding |
Color/Finish | Stainless Steel |
Fuel Type | Gas |
Gas Type | Natural Gas |
LP Gas Convertible | Yes |
LP Kit Included | Yes |
Gas Heat Configuration | Sealed Burner |
Number of Burners | 4 |
Cooktop Surface | Continuous Cast Iron Grates |
Cooktop Cavity | Recessed Enamel |
Number of Ovens | 1 |
Oven Interior Finish | Black Enamel |
Number of Racks | 2 |
Number of Rack Positions | 5 |
Broiler | Gas |
Bake Element | Gas |
Cooking Process | Convection |

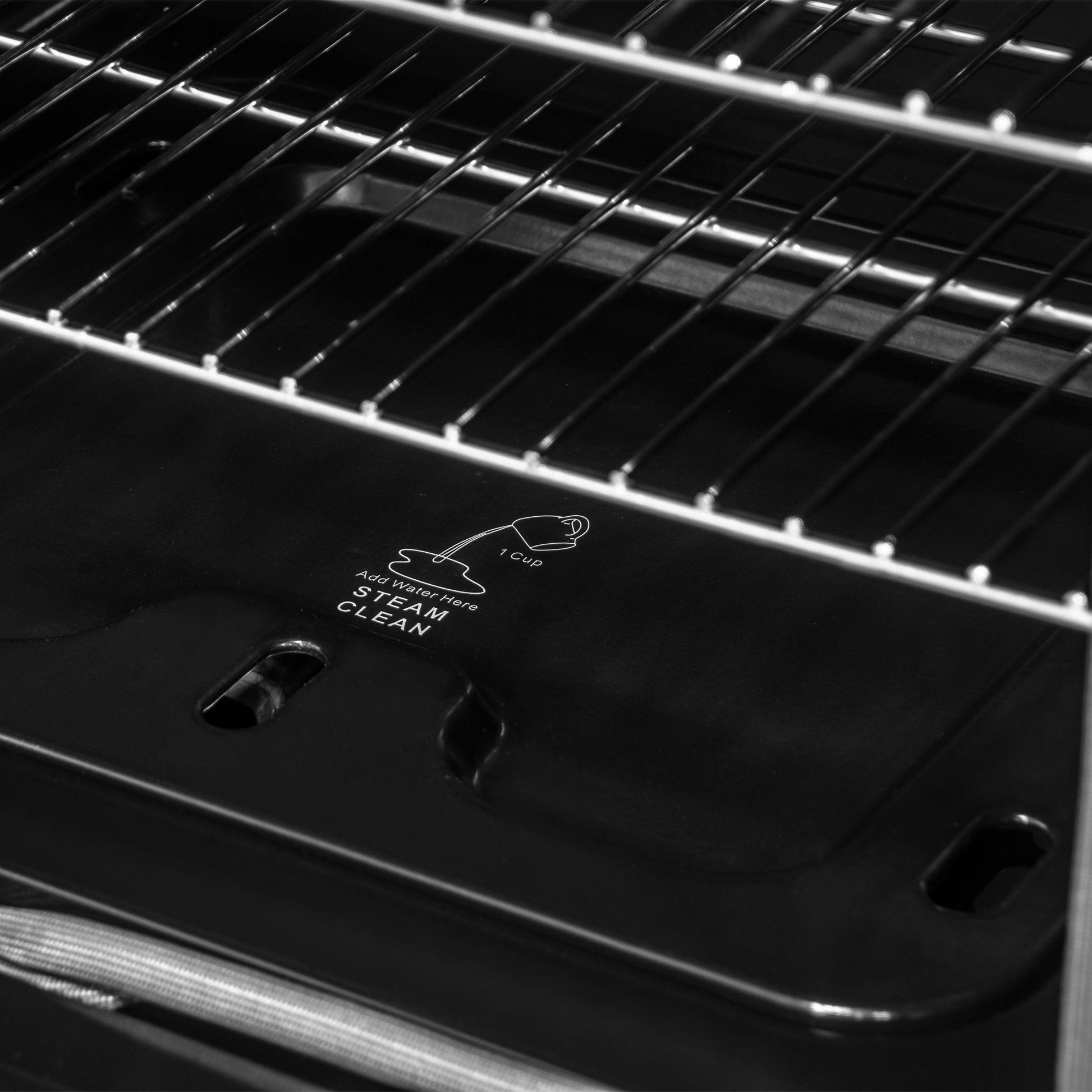

Cleaning Type | Steam |
Interior Light | 1 |
Control Type | Knob |
Control Location | Front |
Temperature Gauge | Yes |
Timer | No |
Clock | No |
Primary Material | Metal |
Door Panel Material | Stainless Steel |
Control Panel Material | Stainless Steel |
Kick Plate Material | Stainless Steel |
Side Panel Material | Stainless Steel |
Wok-Ring | No |
Reversible Grill/Griddle | No |
Air Fryer Kit | No |
Rotisserie Kit | No |
Supplier Intended and Approved Use | Residential Use |
Country of Origin | China |
Total Stovetop BTU / Watts | 41,000 BTU |
Middle Burner | Does Not Apply |
Front Right | 1,400 BTU to 18,000 BTU |
Front Right Center | Does Not Apply |
Front Center | Does Not Apply |
Front Left Center | Does Not Apply |
Front Left | Does Not Apply |
Rear Right | 3,300 BTU to 9,000 BTU |
Rear Right Center | Does Not Apply |
Rear Center | Does Not Apply |
Rear Left Center | Does Not Apply |
Rear Left | Does Not Apply |
Number of Knob | 5 |
Switches | 1 + 0 |
Overall Oven Capacity | 4.62 Cubic Feet |
Overall Broil Top | 10,500 BTU |
Overall Bottom | 15,000 BTU |
Right Oven Capacity | Does Not Apply |
Right Broil Top | Does Not Apply |
Right Bottom | Does Not Apply |
Left Oven Capacity | Does Not Apply |
Left Broil Top | Does Not Apply |
Left Bottom | Does Not Apply |
Convection Fan | Yes |
Amperage | 15 |
Volts | 120 |
Wattage | Does Not Apply |
Oven 1 inside Broil Wattage | Does Not Apply |
Oven 1 Outside Broil Wattage | Does Not Apply |
Oven 1 Bake Wattage | Does Not Apply |
Oven 1 True Convection Wattage | Does Not Apply |
Oven 2 inside Broil Wattage | Does Not Apply |
Oven 2 Outside Broil Wattage | Does Not Apply |
Oven 2 Bake Wattage | Does Not Apply |
Oven 2 Convection Heater Wattage | Does Not Apply |
Power Cord Length | 5 feet |
Receptacle Type | 3-Prong Grounded |
Overall Weight (LBS) | 150 |
Overall Weight (KG) | 68.04 |
Overall WxDxH (IN) | 30 x 27.3 x 36 |
Overall WxDxH (CM) | 76.2 x 69.34 x 91.44 |
Product Width (I) | 30 |
Product Width (CM) | 76.2 |
Product Depth (I) | 27.3 |
Product Depth (CM) | 69.342 |
Product Height (I) | 36 |
Product Height (CM) | 91.44 |
Minimum Counter Height (IN) | 34 |
Minimum Counter Height (CM) | 86.36 |
Maximum Counter Height (IN) | 36 |
Maximum Counter Height (CM) | 91.44 |
Depth with Oven Door Open 90 (IN) | 46.88 |
Depth with Oven Door Open 90 (CM) | 119.0752 |
Oven Interior Width (IN) | 24 |
Oven Interior Depth (CM) | 60.96 |
Oven Interior Depth (IN) | 19 |
Oven Interior Depth (CM) | 60.96 |
Oven Interior Height (IN) | 17 |
Oven Interior Height (CM) | 43.18 |
Left Oven Interior Width (IN) | Does Not Apply |
Left Oven Interior Depth (CM) | Does Not Apply |
Left Oven Interior Depth (IN) | Does Not Apply |
Left Oven Interior Depth (CM) | Does Not Apply |
Left Oven Interior Height (IN) | Does Not Apply |
Left Oven Interior Height (CM) | Does Not Apply |
CSA Certified | Does Not Apply |
ETL Listed | Yes |
UL Listed | Does Not Apply |
Title 20 - California Regulation | Does Not Apply |
ADA Compliant | Does Not Apply |
Star-K Certified | Does Not Apply |
