Frigidaire FCFG3083AS Frigidaire 30" Front Control Gas Range With Convection Bake
Rebates &
Promotions

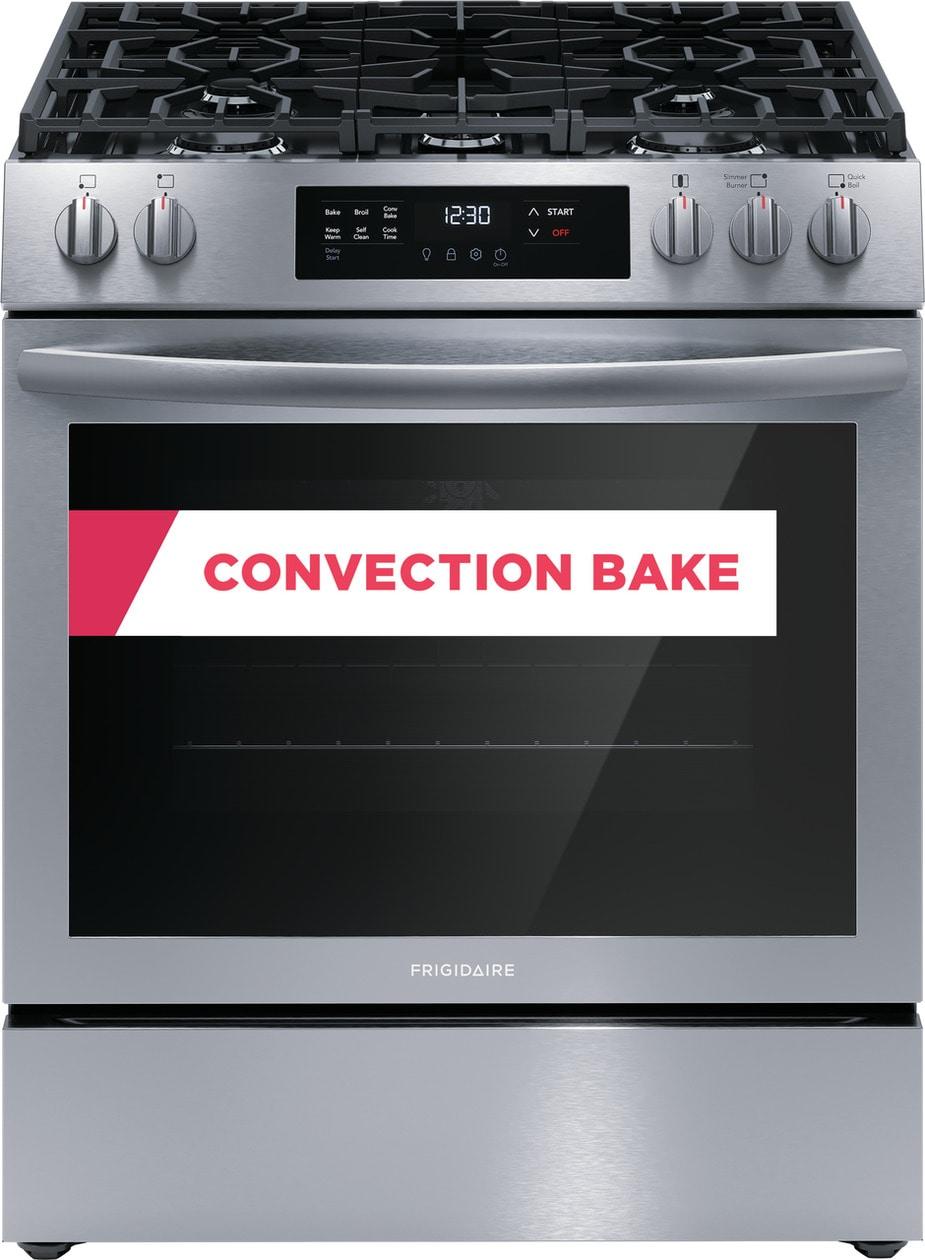

Achieve better baking results with Convection Bake
Get faster, more even baking results with our fan convection baking system.

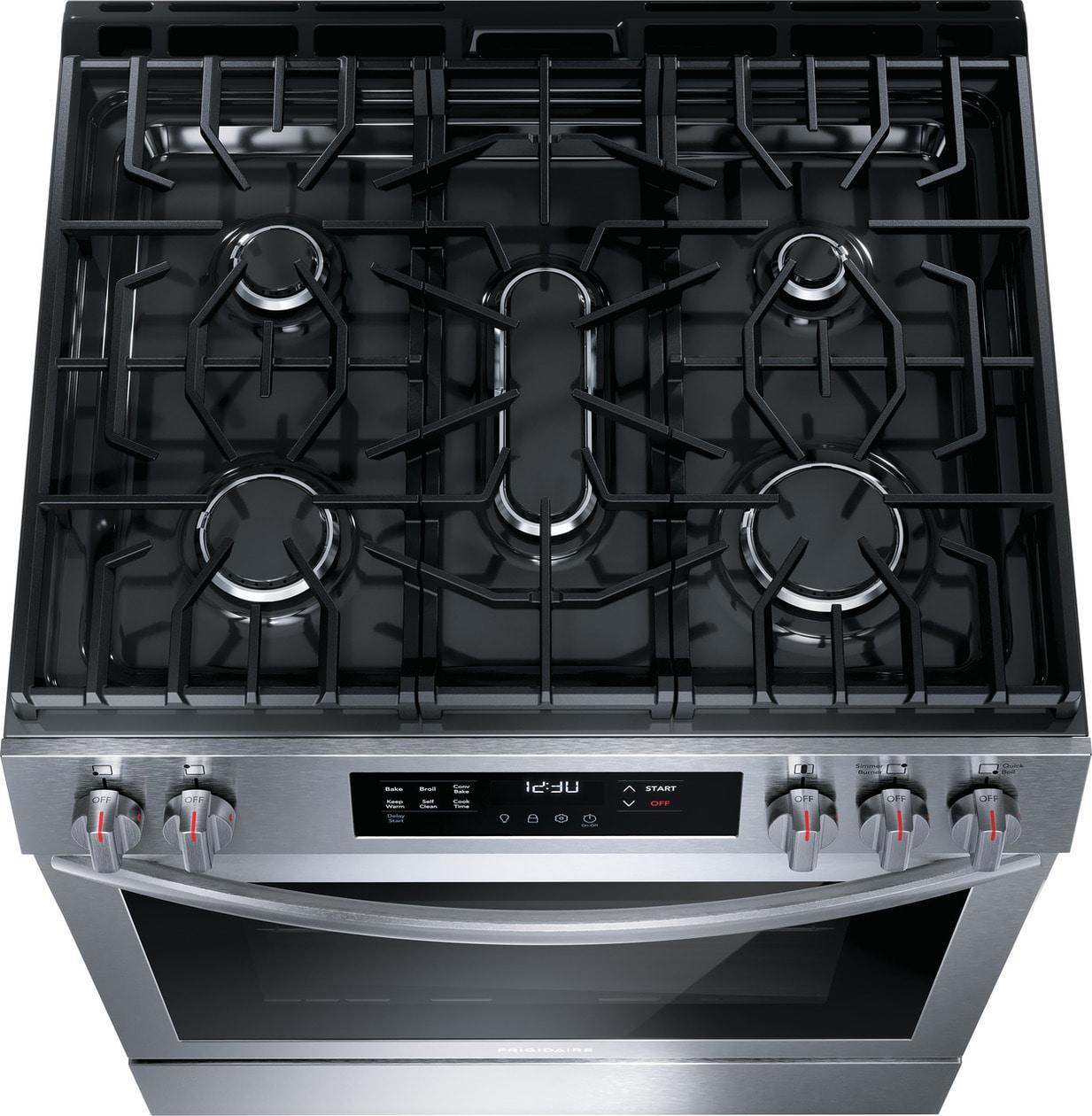

Flexible Five Burner Cooktop
This cooktop features five burners designed to fit all of your cooking needs, including a 5,000-BTU simmer burner for delicate foods, a 10,000-BTU center oval burner perfect for griddles or larger pans, and our powerful 18K BTU Quick Boil Burner so you can get meals on the table, faster.
Self-Clean Oven
Features a convenient 3-hour self-clean cycle which reduces the need for scrubbing, making it easier to keep your oven clean.
Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.

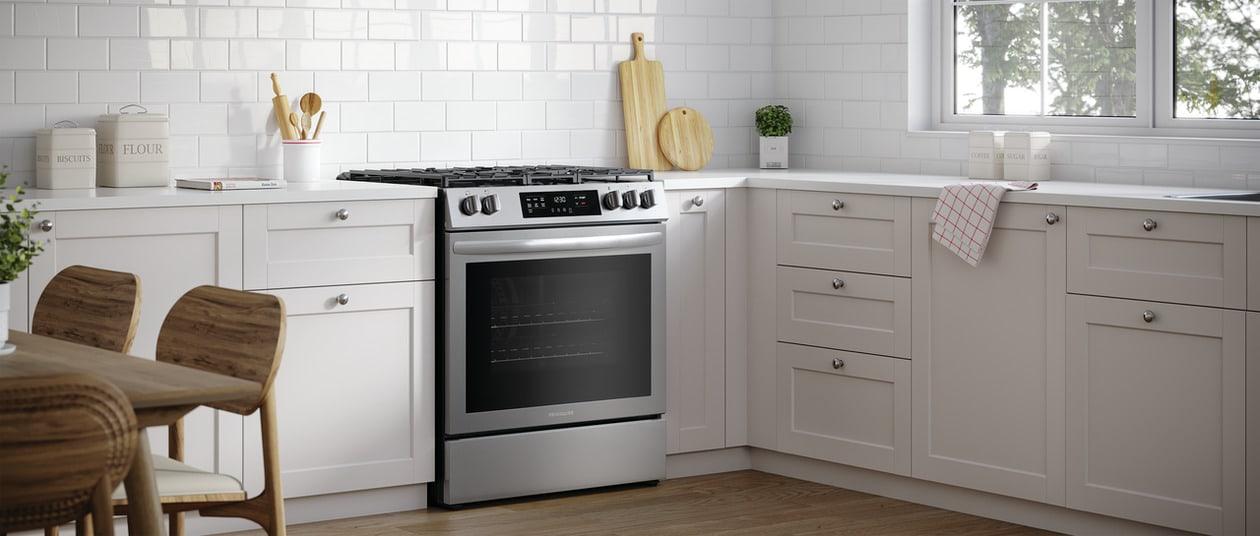

Upgrade your Kitchen with a Built-in Look
Get the look of a built-in range, without the remodel. This Front Control Range easily fits the space of your existing 30" range.
- Achieve better baking results with Convection Bake
- Flexible Five Burner Cooktop
- Self-Clean Oven
- Get to mealtime faster with the Quick Boil Burner
- Continuous Edge-to-Edge Grates
- Upgrade your Kitchen with a Built-in Look
- Peace of Mind with the Frigidaire® Fit Promise
- Extra Wide Store-More™ Storage Drawer

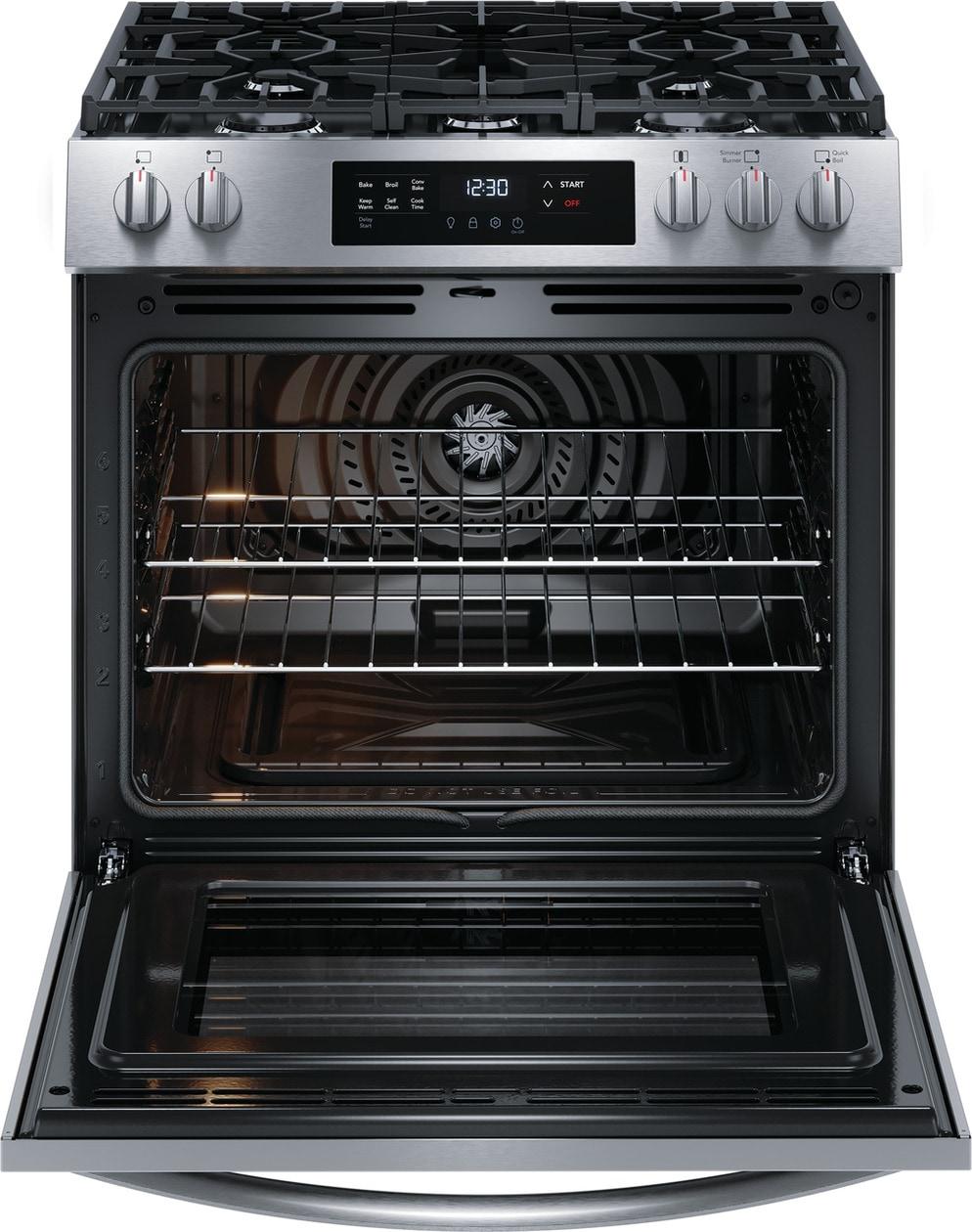

- Cook more at once with our large oven capacity
- Dishwasher Safe Burner Caps
- Cleanup is easier with Hidden Bake
Product Line | Gas Range |
Power Type | NG |
Size | 30' |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 3 |
Grate Style | Continuous |
Sealed Burners | Yes |
Cooktop Performance | |
Right Front Element Burner | 18000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 14000 BTU |
Left Rear Element Burner | 10000 BTU |
Center Rear Element Burner | 10000 BTU |
Cooking Controls | |
Bake | Yes |
Bake Time | Yes |
Broil | Yes |
Child Lock | Yes |
Clock | Yes |
Convection Bake | Yes |
Convection Roast | Yes |
Cook Time | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Off | Yes |
Oven Light | Yes |
Preheat | Yes |
Self Clean | Yes |
Start | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
Up / Down Arrow | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 17000 BTU |
Broil Element | 1400 Watts |
Cleaning System | Yes |
Convection | Yes |
Convection Type | Fan |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Type | Storage |
Display | |
Control Location | Front |
Display Interface Color | White |
Display Type | Capacitive Touch |
Dimensions and Volume | |
Minimum Height | 35 5/8' |
Maximum Height | 36 3/8' |
Width | 30' |
Depth | 26' |
Depth With Door 90° Open | 47 1/4' |
Depth With Handle | 28 1/2' |
Oven Interior Height | 17 5/8' |
Oven Interior Width | 25 3/16' |
Oven Interior Depth | 19 7/8' |
Oven Capacity | 5.1 Cu. Ft. |
Electrical Specifications | |
Minimum Circuit Required | 12 Amps |
Voltage Rating | 120 V |
Installation | |
Adjustable Leveling Legs | Yes |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 180 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Certifications and Approvals | |
ADA Compliant | Yes |
CSA Listed | Yes |
