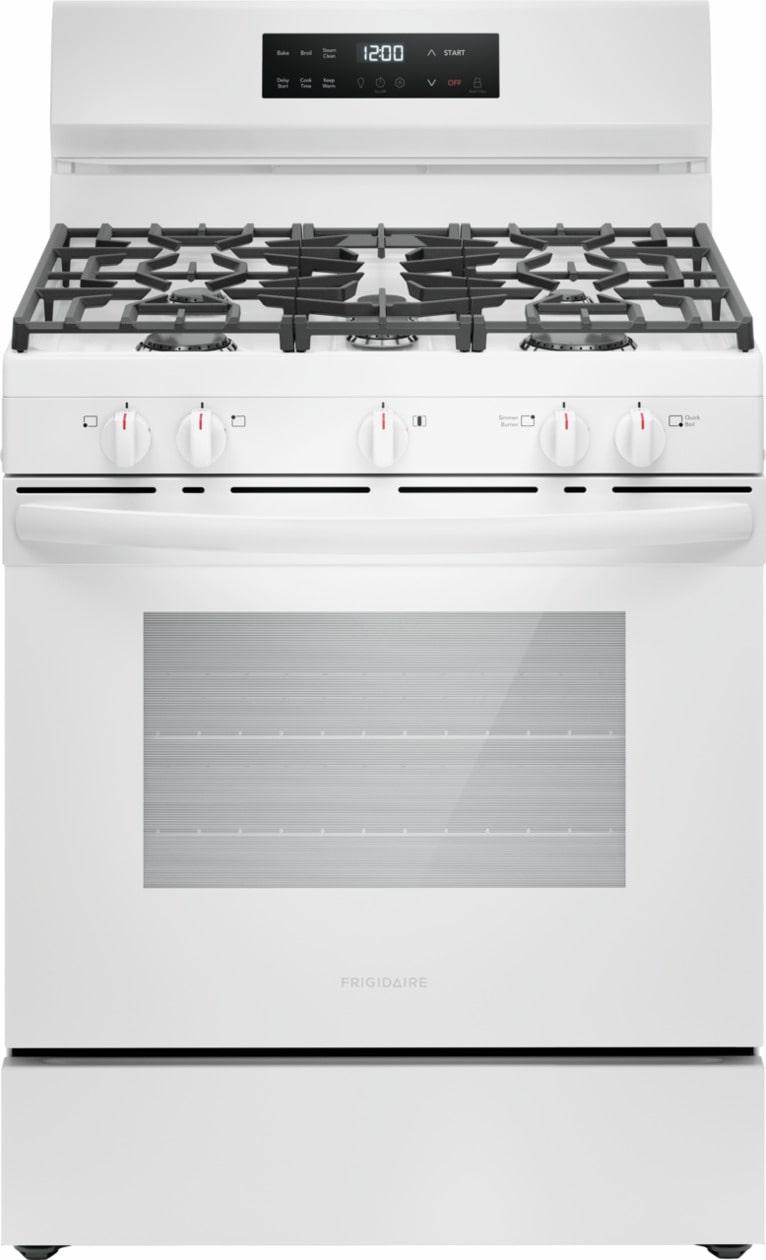

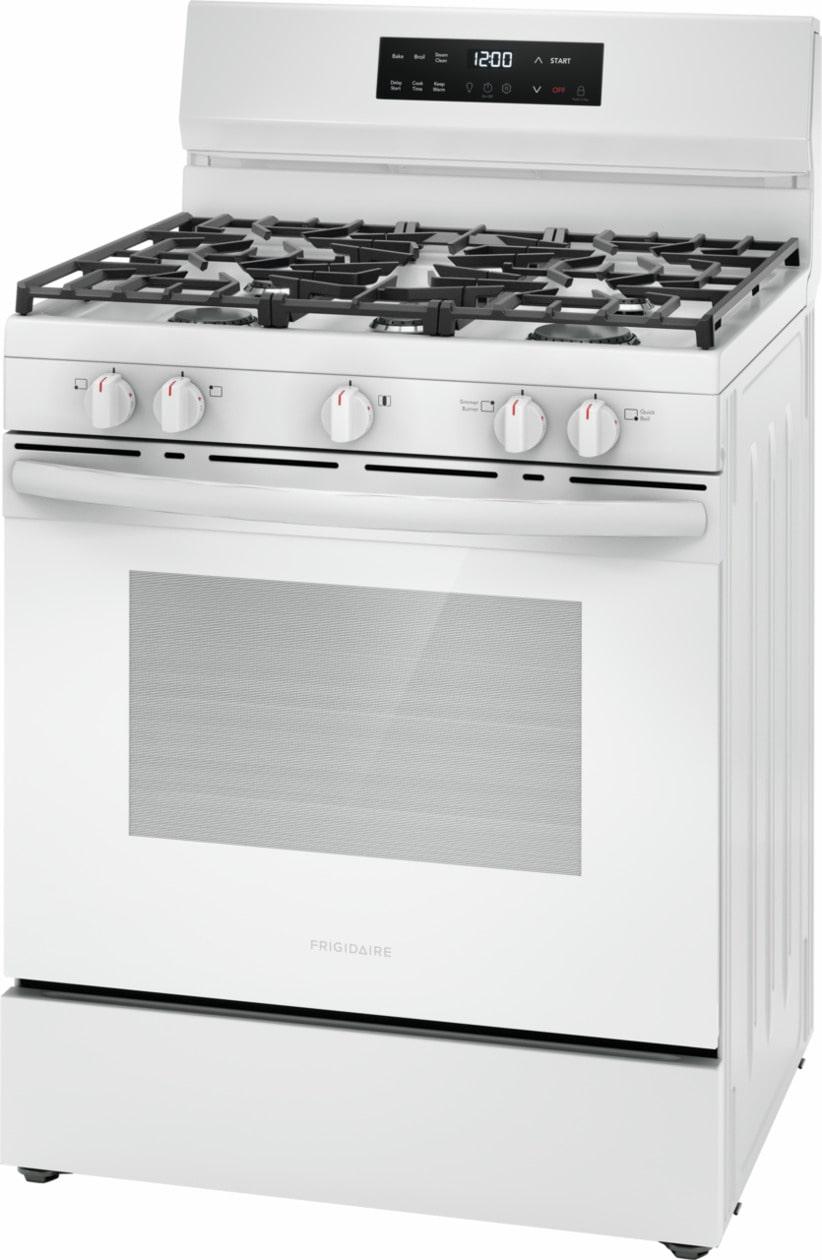

Frigidaire FCRG3062AW Frigidaire 30" Gas Range With Quick Boil

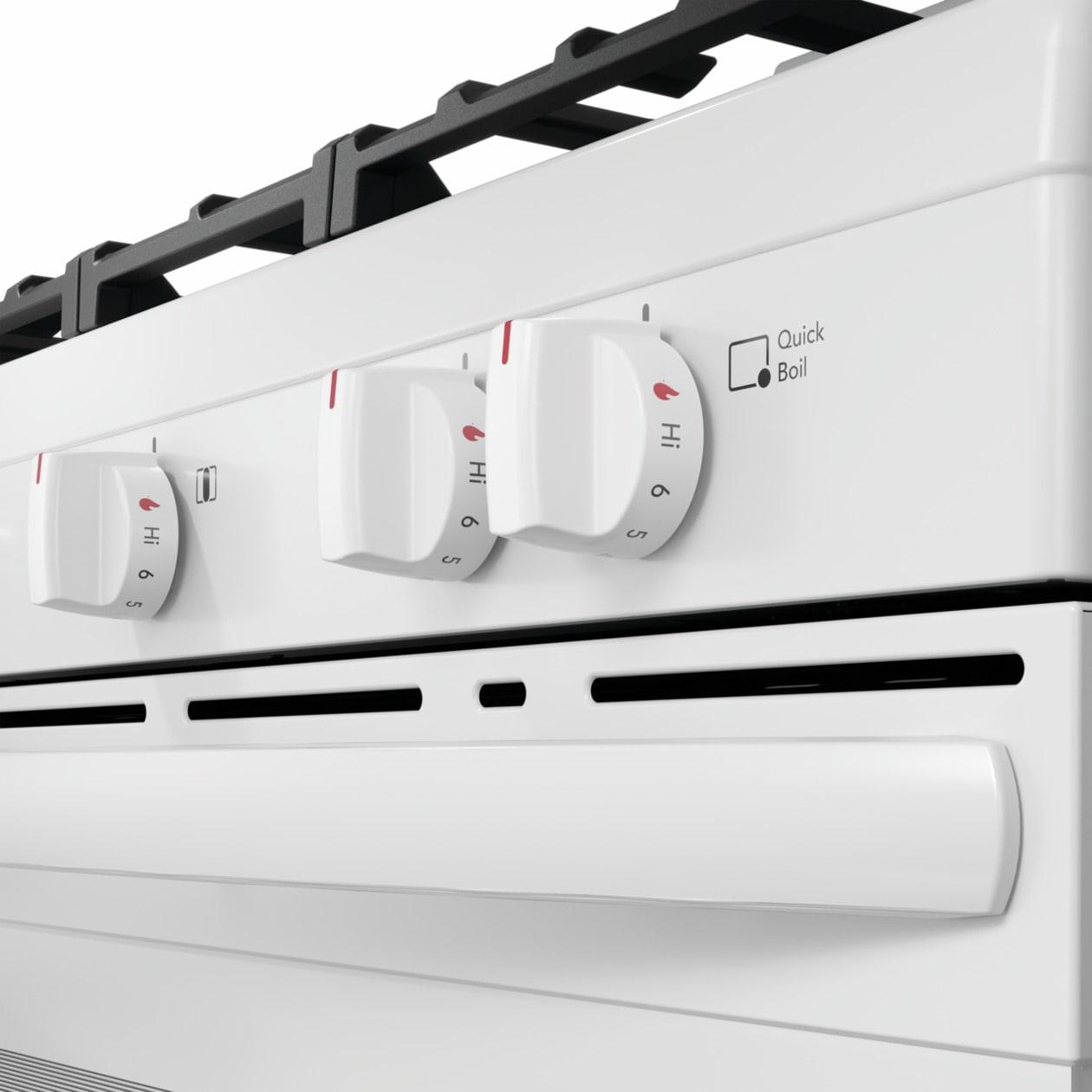

Get to mealtime faster with the Quick Boil Burner
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.

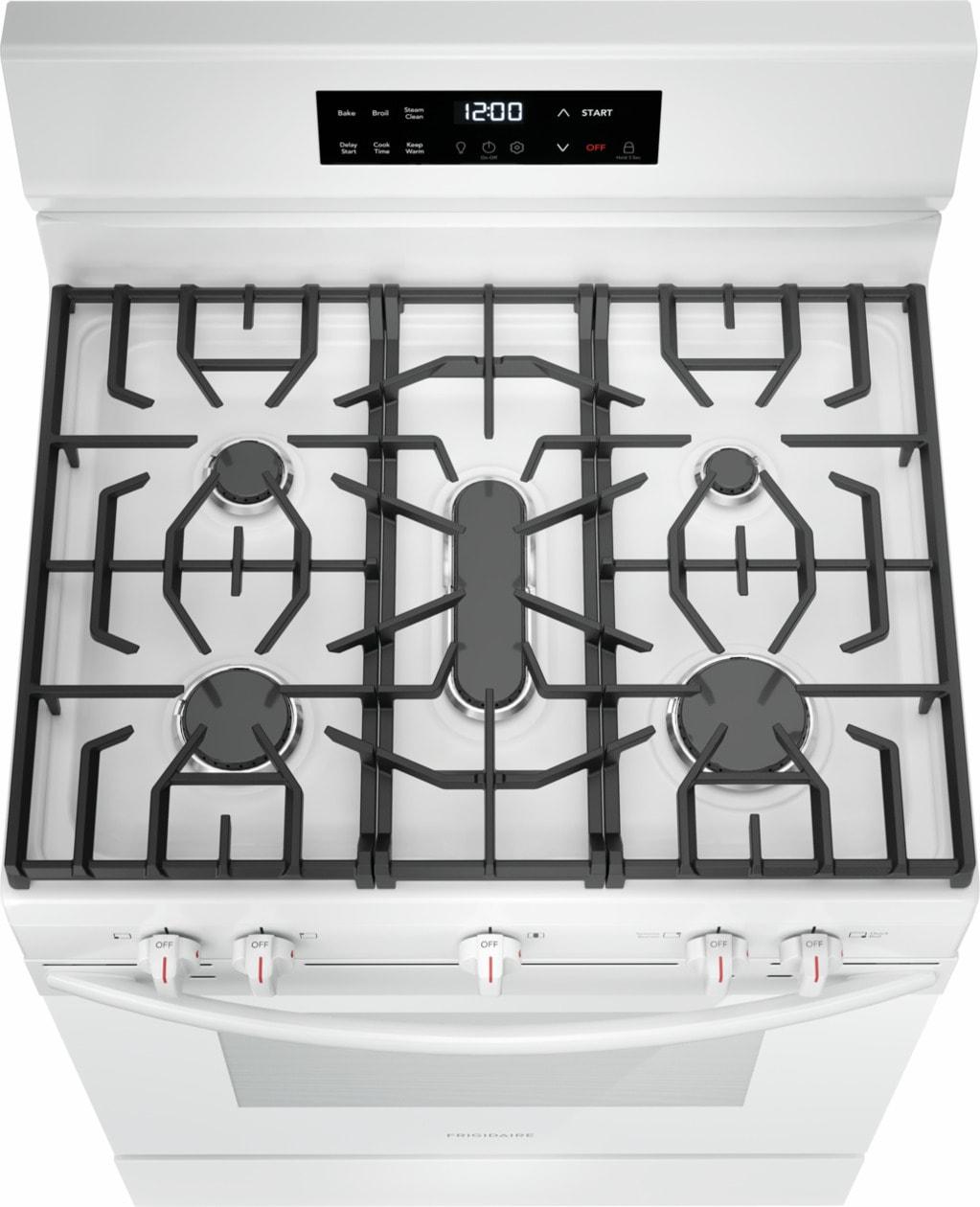

Flexible Five Burner Cooktop
This cooktop features five burners designed to fit all of your cooking needs, including a 5,000-BTU simmer burner for delicate foods, a 10,000-BTU center oval burner perfect for griddles or larger pans, and our powerful 18,000-BTU Quick Boil Burner so you can get meals on the table, faster.
Even Baking Technology
Designed to deliver even baking results, every time.
Fast Steam Cleaning Option
A light, 30-minute oven cleaning that's chemical-free, odor-free and fast.
Continuous Edge-to-Edge Grates
Moving heavy pots and pans across the cooktop is easier with continuous edge-to-edge grates.
Extra Wide Store-More™ Storage Drawer
Our redesigned Store-More™ Storage drawer is now even wider - allowing you to store any unused oven racks, baking trays and more!
- Get to mealtime faster with the Quick Boil Burner
- Flexible Five Burner Cooktop
- Even Baking Technology
- Fast Steam Cleaning Option
- Continuous Edge-to-Edge Grates
- Extra Wide Store-More™ Storage Drawer

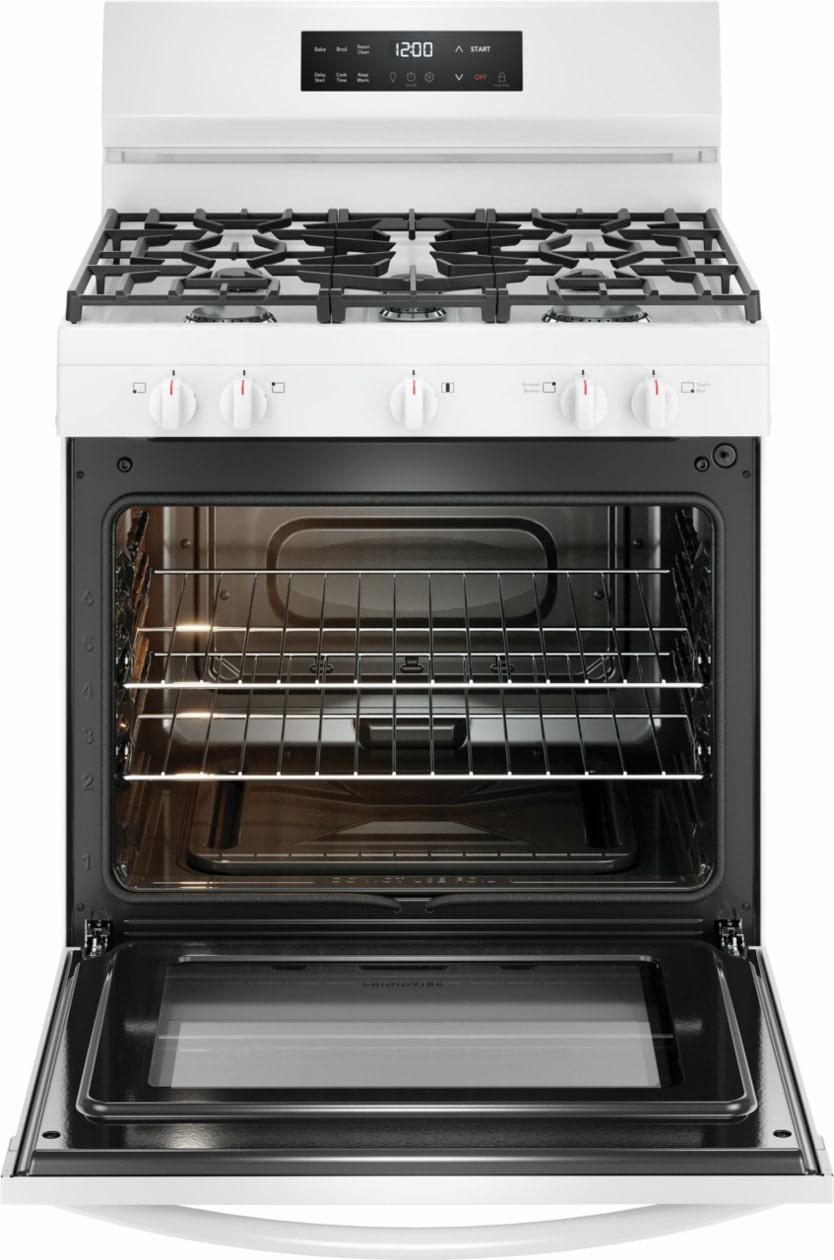

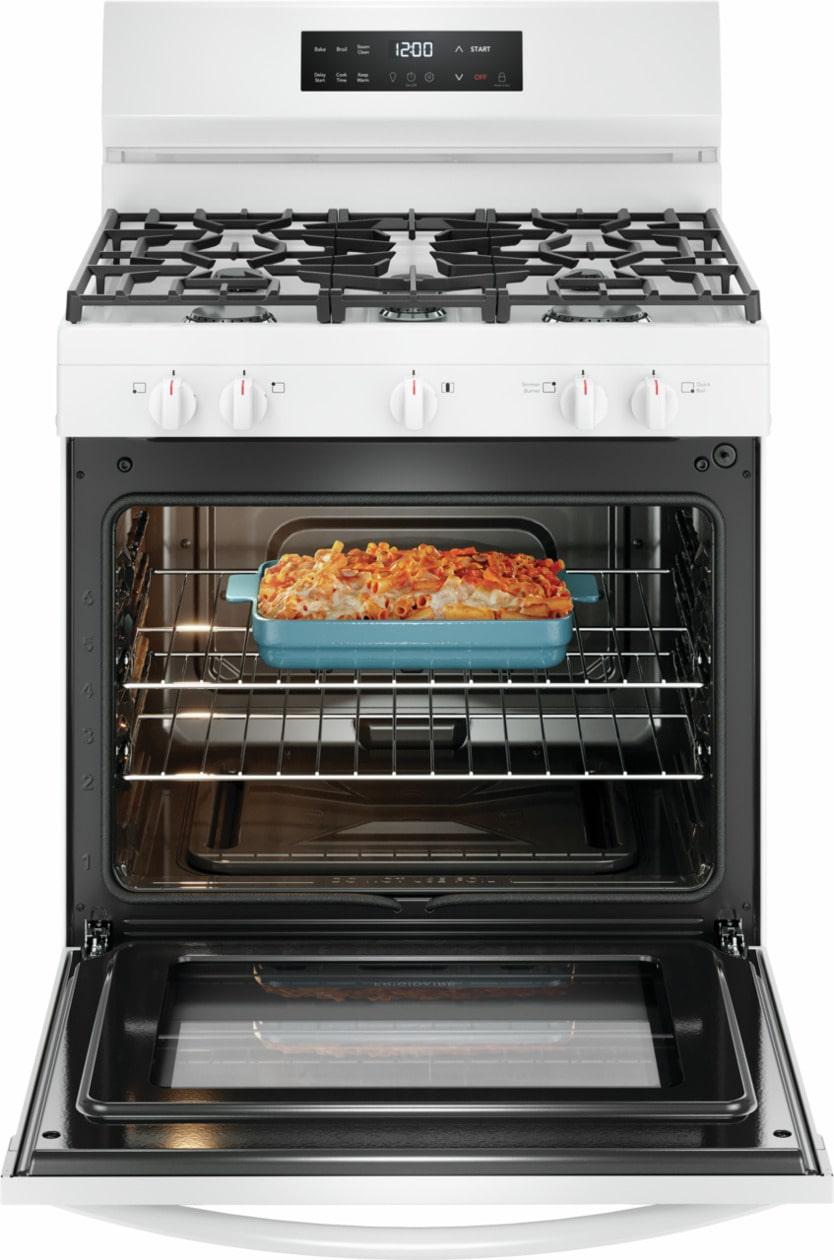

- Cook more at once with our large oven capacity
- Dishwasher Safe Burner Caps
- Cleanup is easier with Hidden Bake
- Proudly Assembled in the USA
Product Line | Gas Range |
Power Type | NG |
Size | 30' |
Installation Type | Free-Standing |
Factory | Springfield |
Color | White |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 3 |
Grate Style | Continuous |
Cooktop Performance | |
Right Front Element Burner | 18000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 14000 BTU |
Left Rear Element Burner | 10000 BTU |
Center Rear Element Burner | 10000 BTU |

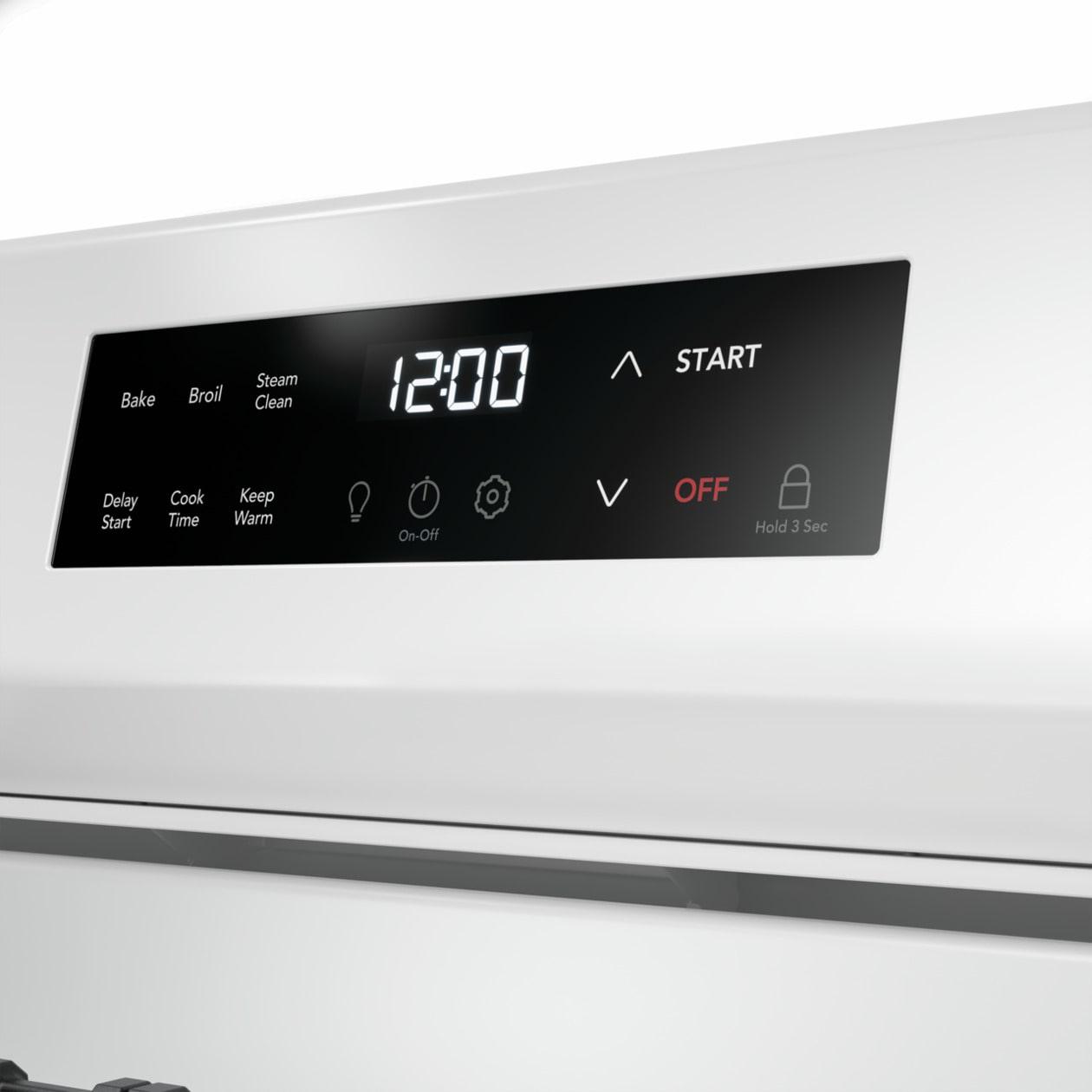

Cooking Controls | |
Bake | Yes |
Broil | Yes |
Clock | Yes |
Cook Time | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Lockout | Yes |
Off | Yes |
Oven Light | Yes |
Set Clock | Yes |
Start | Yes |
Steam Clean | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
Up / Down Arrow | Yes |
User Preferences | Yes |
Cooking Controls Function | |
Adjustable Volume Feedback | Yes |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Oven | |
Bake Element | 17000 BTU |
Broil Element | 1400 Watts |
Broil Element Pass | 6 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | Yes |
Display | |
Control Location | Rear |
Display Interface Color | White |
Display Type | Membrane |
Dimensions and Volume | |
Minimum Height | 46 3/4' |
Maximum Height | 47 3/4' |
Width | 30' |
Depth | 26' |
Depth With Door 90° Open | 47 5/16' |
Depth With Handle | 28 1/2' |
Oven Interior Height | 17 5/8' |
Oven Interior Width | 25 3/16' |
Oven Interior Depth | 19 7/8' |
Oven Capacity | 5.1 Cu. Ft. |
Electrical Specifications | |
Minimum Circuit Required | 12 Amps |
Voltage Rating | 120 V |
Installation | |
Adjustable Leveling Legs | Yes |
Power Cord Included | Yes |
General Specifications | |
Product Weight | 170 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Safety Certifications and Approvals | |
CSA Listed | Yes |
30" Gas Range with Quick Boil White FCRG3062AW
