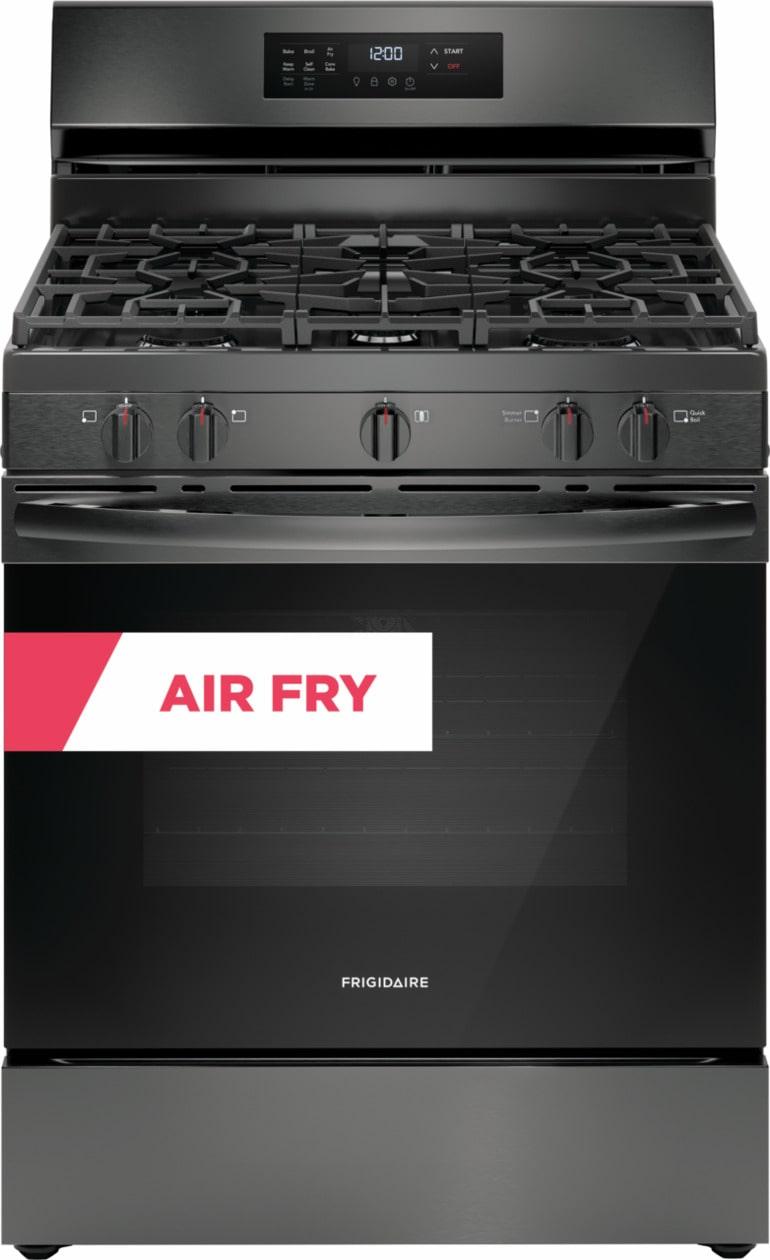

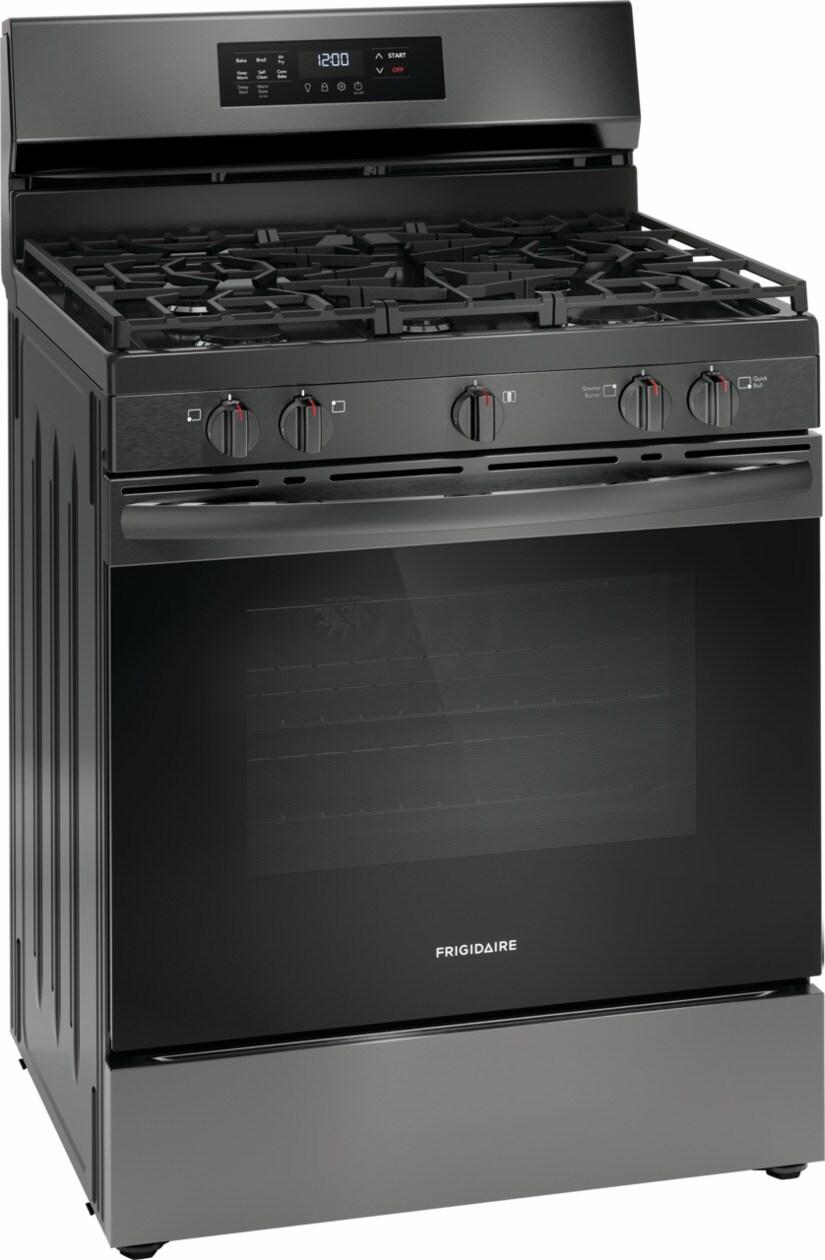

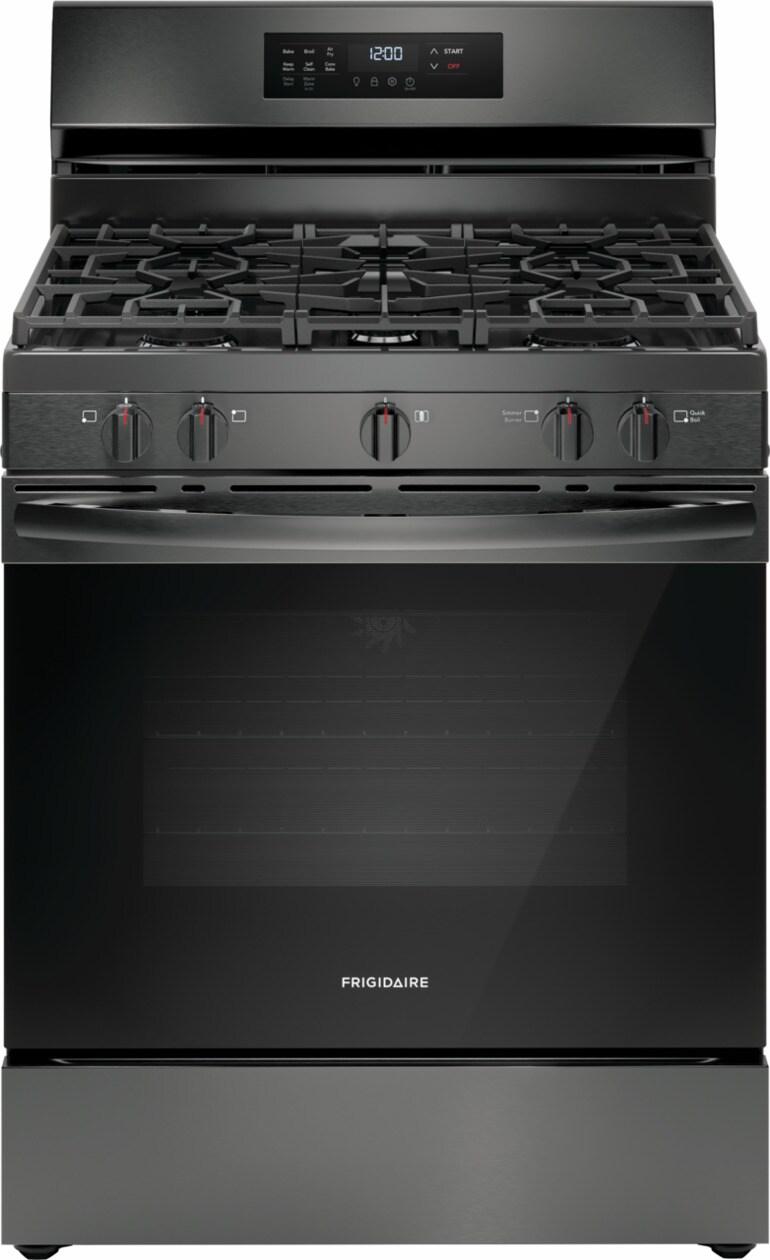

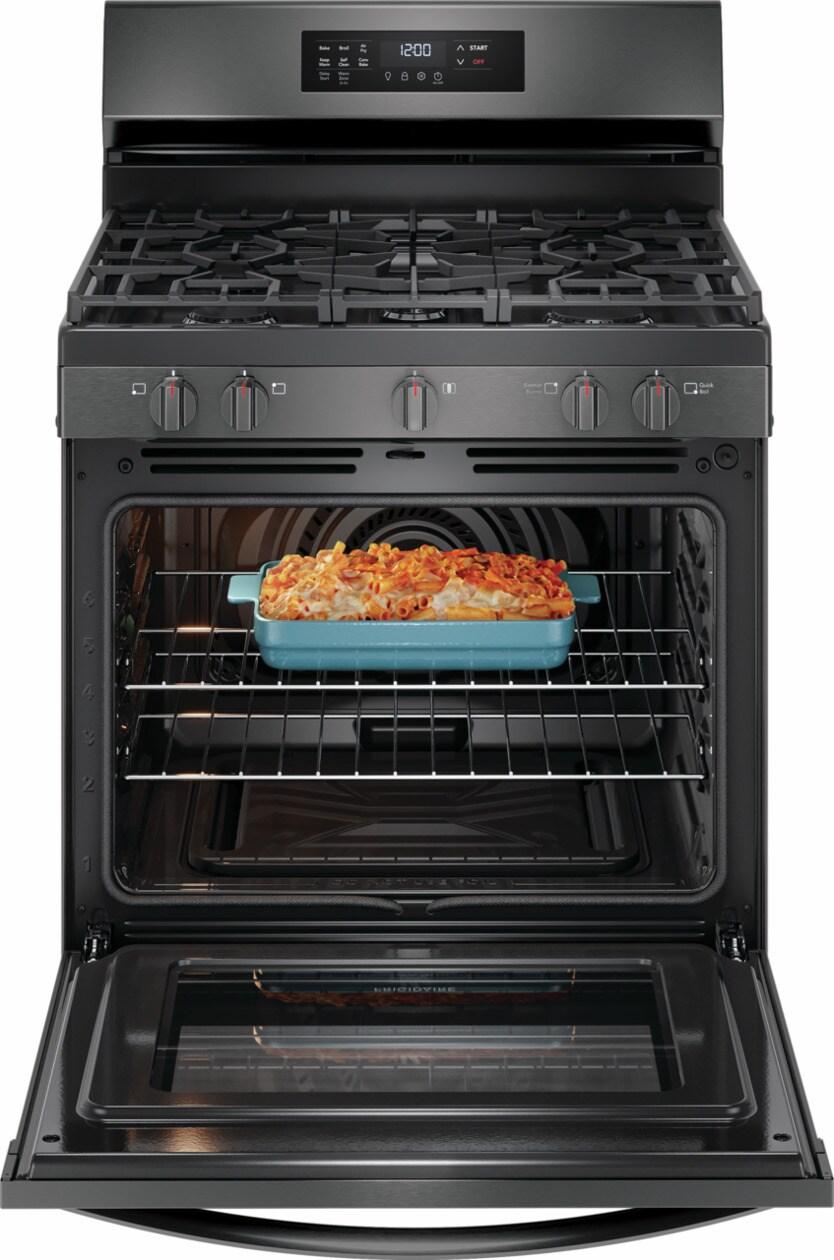

Frigidaire FCRG3083AD Frigidaire 30" Gas Range With Air Fry
Air Fry
Make healthier and delicious meals for your entire family - right in your oven.

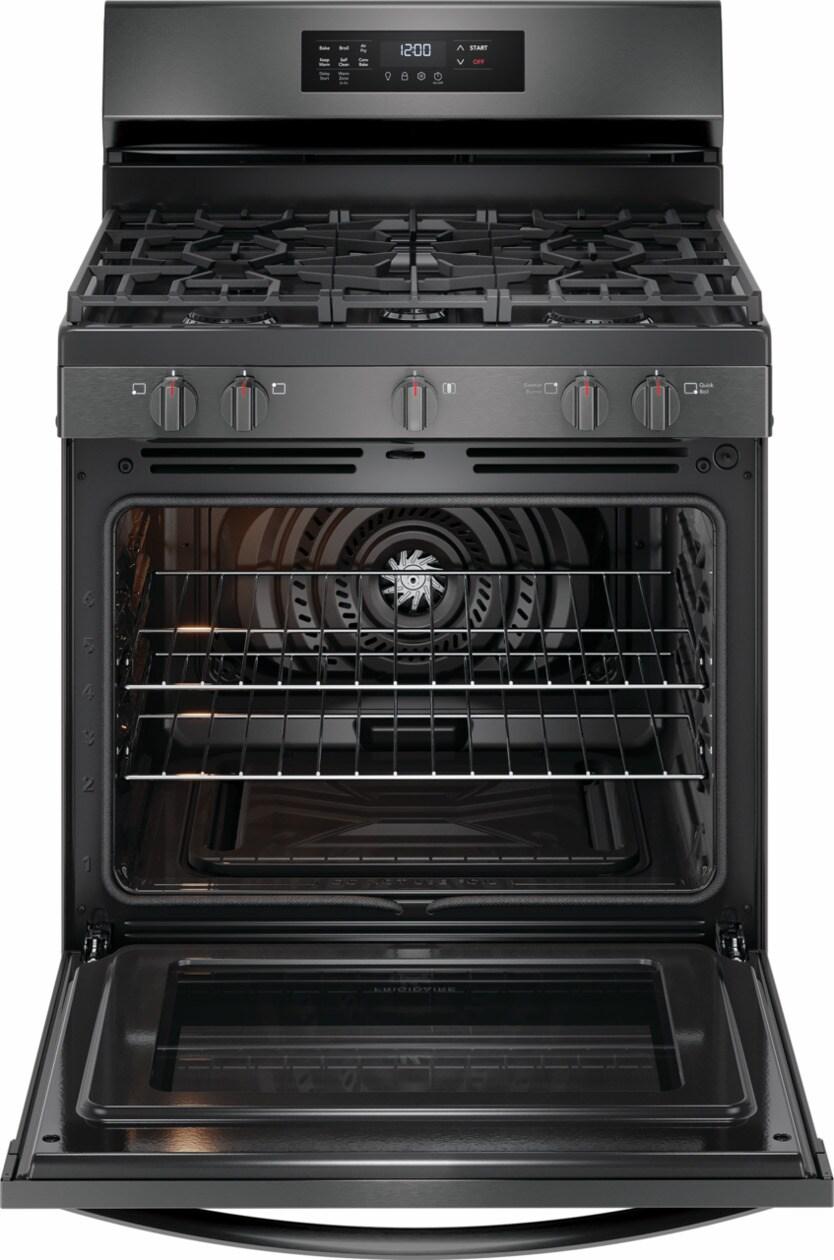

Convection Bake
Get faster, more even baking results with our fan convection baking system.

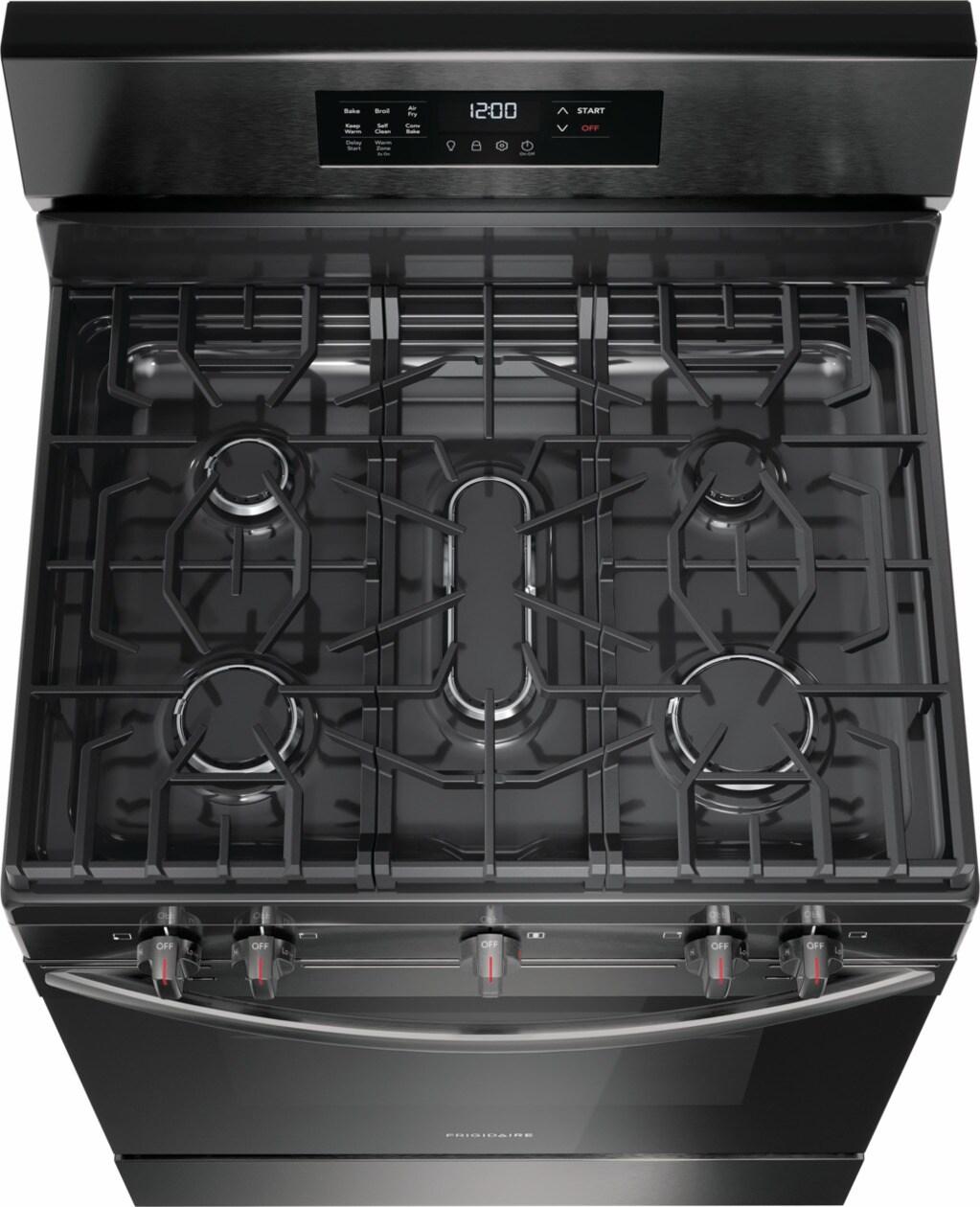

Five Burner Cooktop
Designed to meet all of your cooking needs with a 5,000-BTU simmer burner, 10,000-BTU center oval burner, and 18,000-BTU Quick Boil Burner.

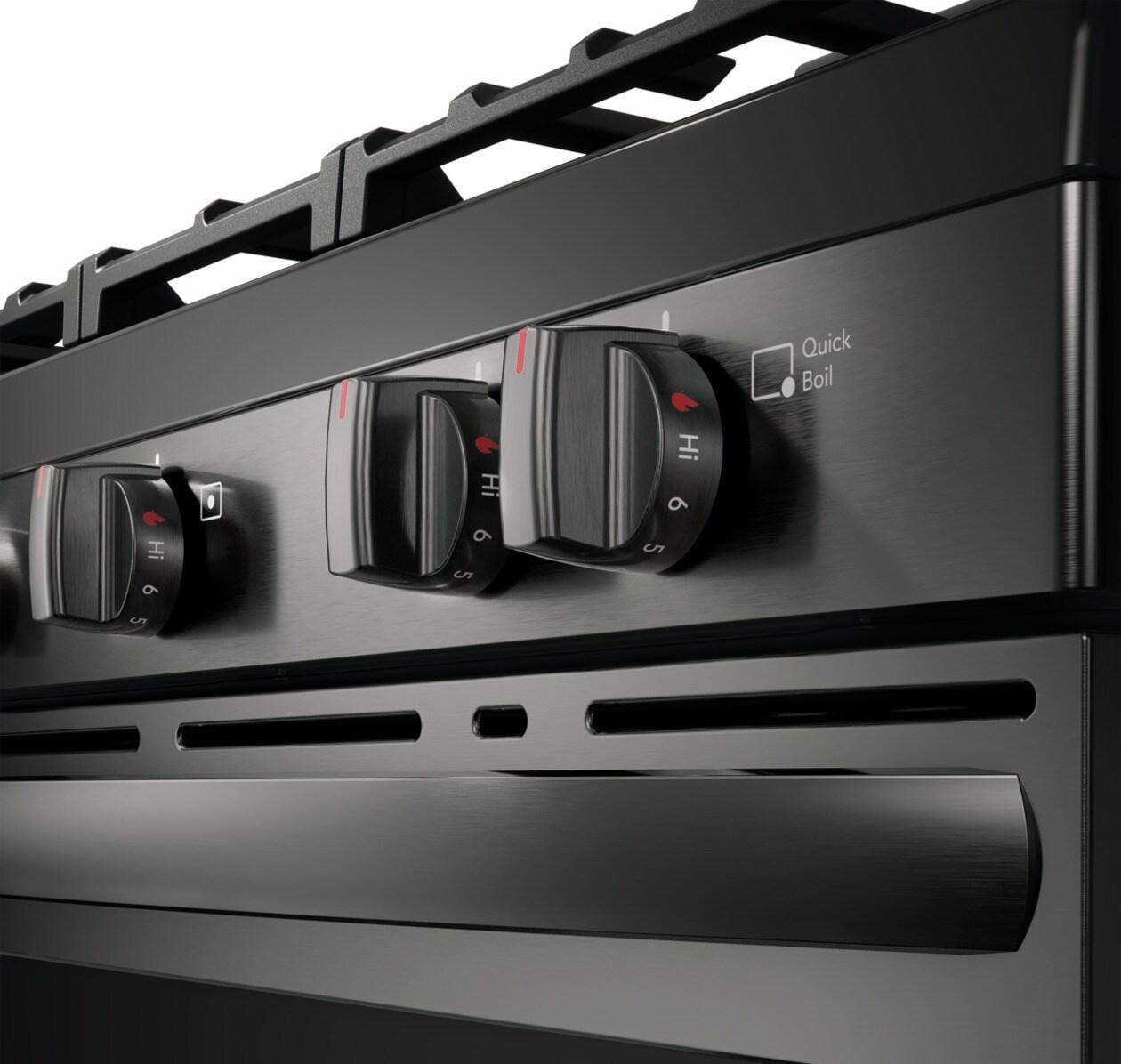

Quick Preheat
Experience faster boil times and more powerful cooking with the 18,000 BTU burner.
One-Touch Self Clean
A convenient 3 hour self clean cycle cleans your oven, so you don't have to.
Dishwasher Safe Burner Caps
Cleaning your cooktop is easier with removable, dishwasher safe burner caps.
- Air Fry
- Convection Bake
- Five Burner Cooktop
- Quick Preheat
- One-Touch Self Clean
- Dishwasher Safe Burner Caps
- Continuous Edge-to-Edge Grates
- Extra Wide Store-More™ Storage Drawer

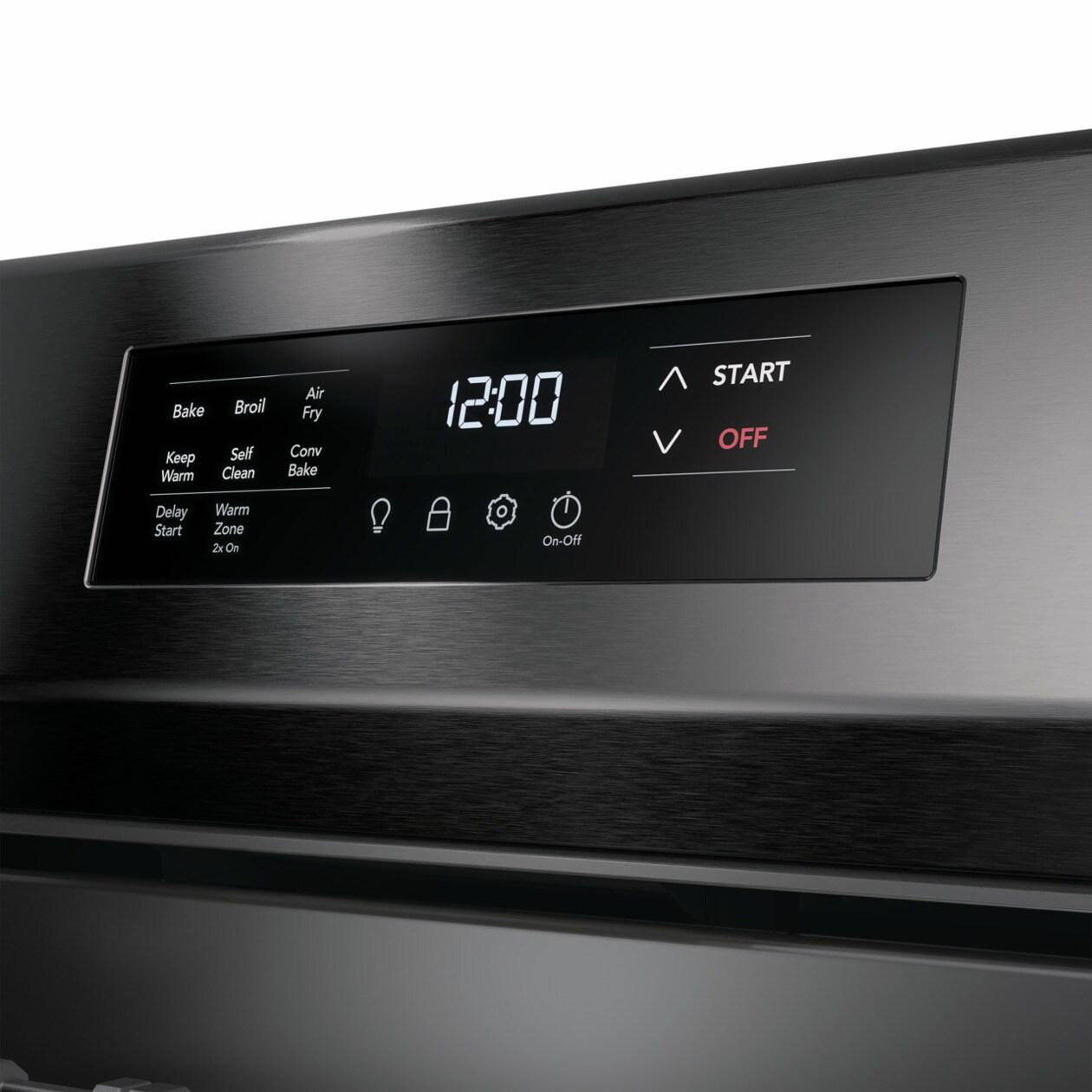

- Capacitive Touch Control Panel
- Large Oven Capacity
- Hidden Bake Element
Product Line | Gas Range |
Power Type | NG |
Size | 30' |
Installation Type | Free-Standing |
Factory | Springfield |
Color | Black Stainless Steel |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 3 |
Grate Style | Continuous |
Sealed Burners | Yes |
Cooktop Performance | |
Right Front Element Burner | 18000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 14000 BTU |
Left Rear Element Burner | 10000 BTU |
Center Rear Element Burner | 10000 BTU |
Cooking Controls | |
Air Fry | Yes |
Bake | Yes |
Broil | Yes |
Child Lock | Yes |
Clock | Yes |
Convection Bake | Yes |
Delay Clean | Yes |
Delay Start | Yes |
Door Lock | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Off | Yes |
Oven Light | Yes |
Oven Lock | Yes |
Preheat | Yes |
Self Clean | Yes |
Set Clock | Yes |
Start | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
Up / Down Arrow | Yes |
User Preferences | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Delayed Bake | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 17000 BTU |
Broil Element | 1400 Watts |
Broil Element Pass | 6 |
Cleaning System | Yes |
Convection | Yes |
Convection Type | Fan |
Number of Convection Fans | 1 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Drawer | |
Drawer Handle Style | Integrated |
Drawer Type | Storage |
Controls | |
Control Lock | Yes |
Display | |
Control Location | Rear |
Display Interface Color | White |
Display Type | Capacitive Touch |
Dimensions and Volume | |
Minimum Height | 46 3/4' |
Maximum Height | 47 3/4' |
Width | 30' |
Depth | 26' |
Depth With Door 90° Open | 47 5/16' |
Depth With Handle | 28 1/2' |
Oven Interior Height | 17 5/8' |
Oven Interior Width | 25 3/16' |
Oven Interior Depth | 19 7/8' |
Oven Capacity | 5.1 Cu. Ft. |
Electrical Specifications | |
Amps @ 120 Volts | 12 Amps |
Voltage Rating | 120 V |
Installation | |
Adjustable Leveling Legs | Yes |
Power Cord Included | Yes |
General Specifications | |
Product Weight | 184 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
