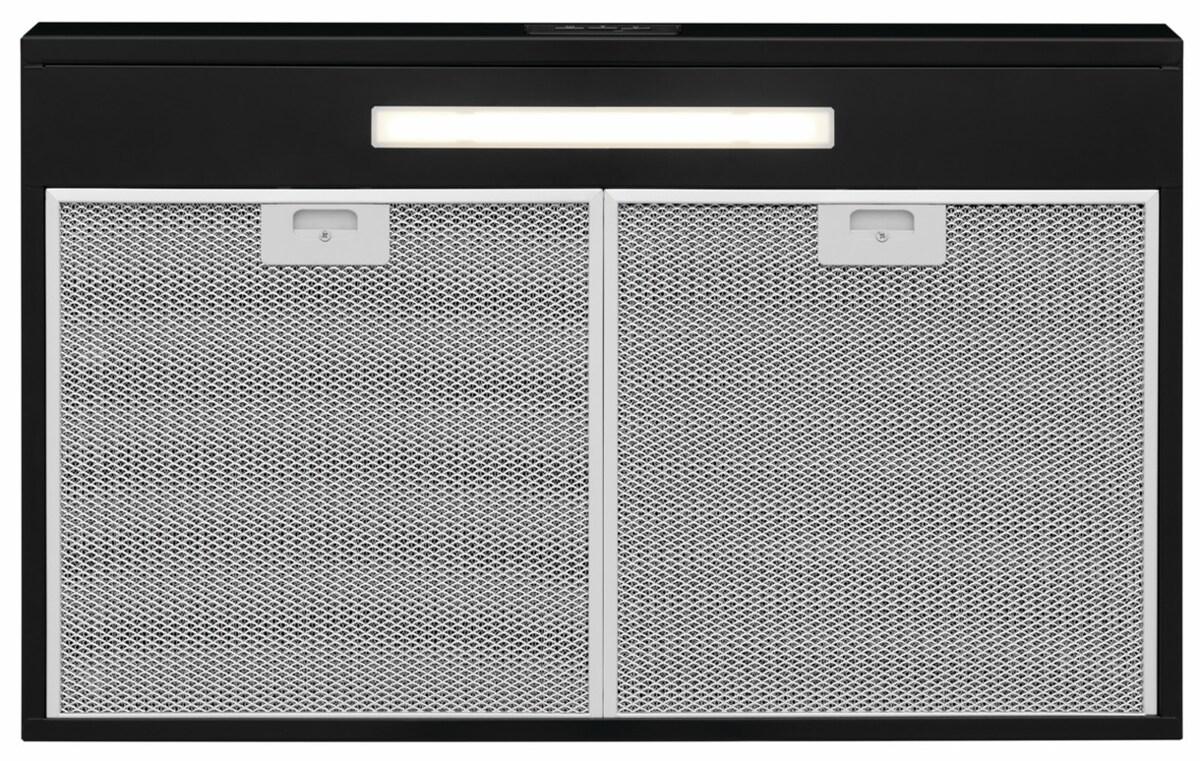

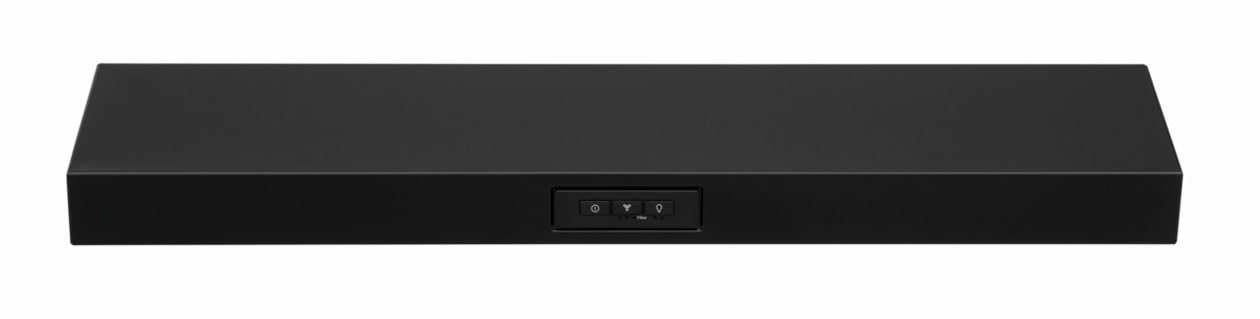

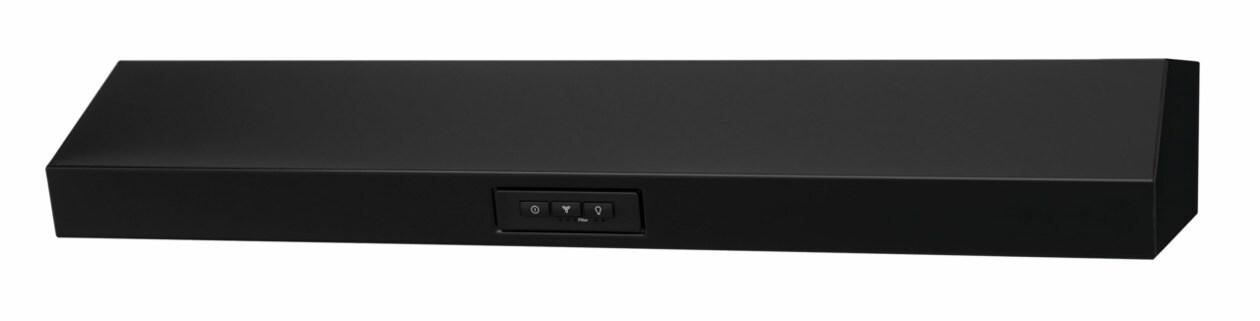

Frigidaire FCVW3052AB Frigidaire Undercabinet 30" Ventilation Hood
The Frigidaire Undercabinet 30" Ventilation Hood Features A Filter Indicator Light That Reminds You When It'S Time To Replace Your Carbon Charcoal Filter To Continue Capturing Odors And Circulating Fresher Air. Also Offers Led Lighting That Illuminates The Cooktop, Soft Touch Controls That Make Selecting Fan And Lighting Options Easier, And The Dual Speed Fan That Recirculates Air At 220 Cfm.
- Filter Indicator Light
- Carbon Charcoal Filter Included
- Refresh Air with Two Speed Fan
- Bright LED Lighting
- Dishwasher Safe Grease Filter

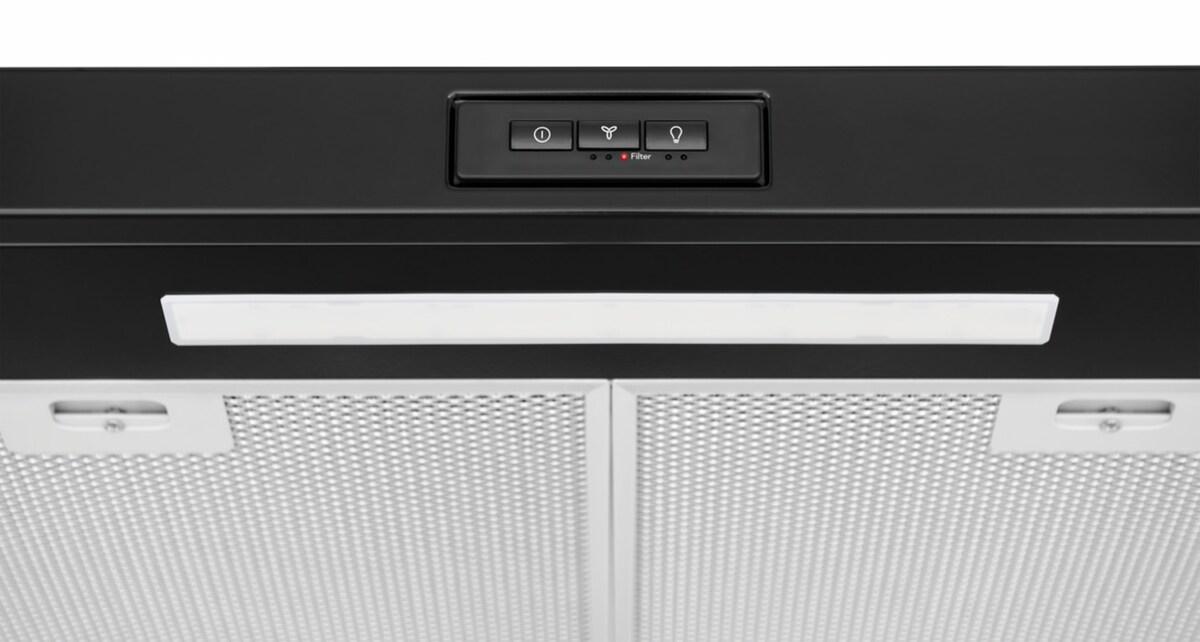

- Electronic Touch Controls
- Convertible Design for Installation
- Power Button
- Stylish Built-in Look
- AHAM Certified
Product Line | Ventilation |
Power Type | Electric 120v |
Size | 30' |
Installation Type | Downdraft Vent |
Factory | Sourced |
Color | Black |
Ventilation System | |
Ventilation Options | Convertible |
Ducted Vent | Optional (See Manual) |
Ductless Vent | Yes - Out of the Box |
Exhaust Fan Speeds | 2 |
Maximum Air Flow Capacity | 220 CFM |
Minimum Air Flow Capacity | 100 CFM |
Maximum Sones Rating | 5.8 sone |
Minimum Sones Rating | 2.7 sone |
Grease Filter Included | Yes |
Grease Filter Quantity | 2 |
Grease Filter Type | Aluminum Mesh |
Grease Filter Dishwasher Safe | Yes |
Charcoal Filter Included | Yes |
Charcoal Filter Quantity | 2 |
Controls | |
Control Type | Electronic |
Filter Change Indicator | Yes |
Surface Light System | |
Lighting Type | LED Strip |
Number of Lights | 1 |
Number of Light Settings | 2 |
Dimensions and Volume | |
Height | 4 15/16' |
Width | 30' |
Depth | 19 3/4' |
Electrical Specifications | |
Voltage Rating | 120 V |
Watts @ 120 Volts | 42 Watts |
Installation | |
Duct Exit Location | Top |
Hardwired | Yes |
Power Supply Connection Type | Hard Wired |
General Specifications | |
Product Weight | 13 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Certifications and Approvals | |
HVI Listed | Yes |
UL Listed | Yes |
cUL Listed | Yes |
