Frigidaire FCVW3062AS Frigidaire Undercabinet 30" Ventilation Hood
The Frigidaire Undercabinet 30" Ventilation Hood Feature A Filter Indicator Light That Reminds You When It'S Time To Replace Your Carbon Charcoal Filter To Continue Capturing Odors And Circulating Fresher Air. Also Offers Led Lighting That Illuminates The Cooktop, Capacitive Touch Controls That Make Selecting Fan And Lighting Options Easier, And A Three Speed Fan That Recirculates Air At 330 Cfm.
- Filter Indicator Light

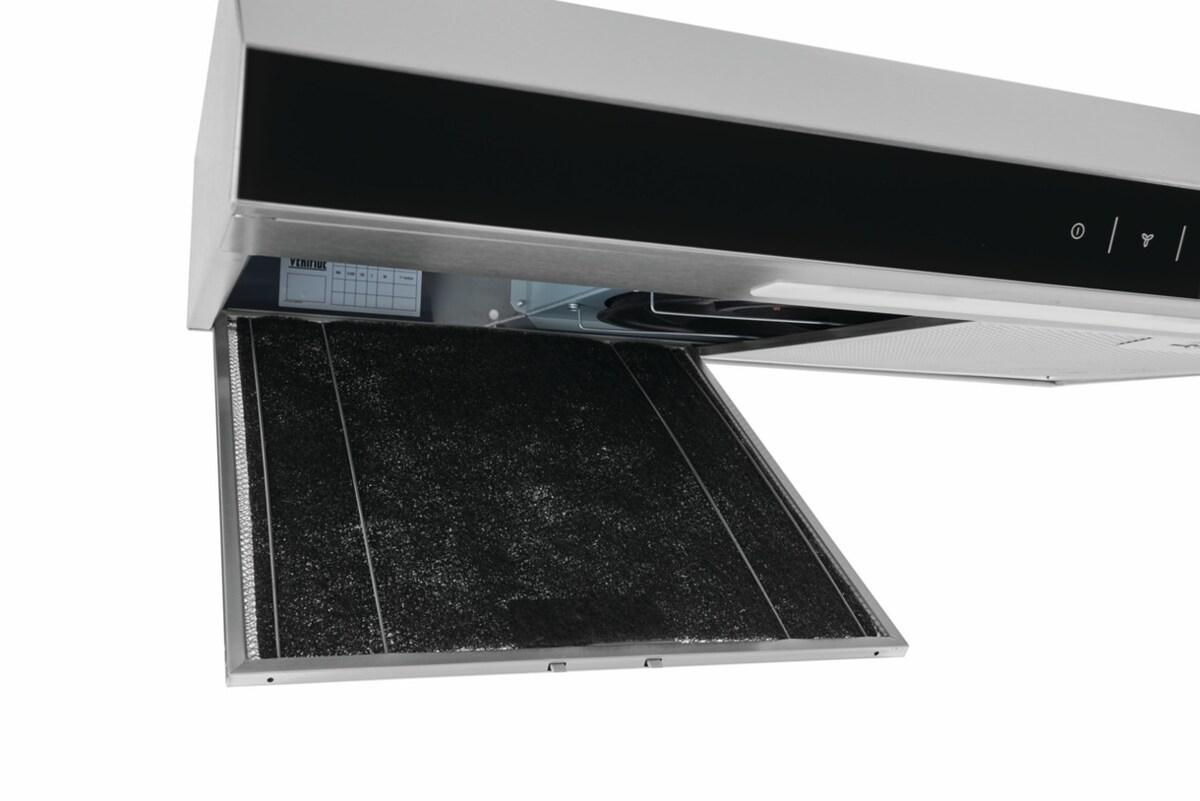

- Carbon Charcoal Filter Included
- Powerful Three Speed Ventilation Fan
- Bright LED Lighting
- Dishwasher Safe Grease Filter

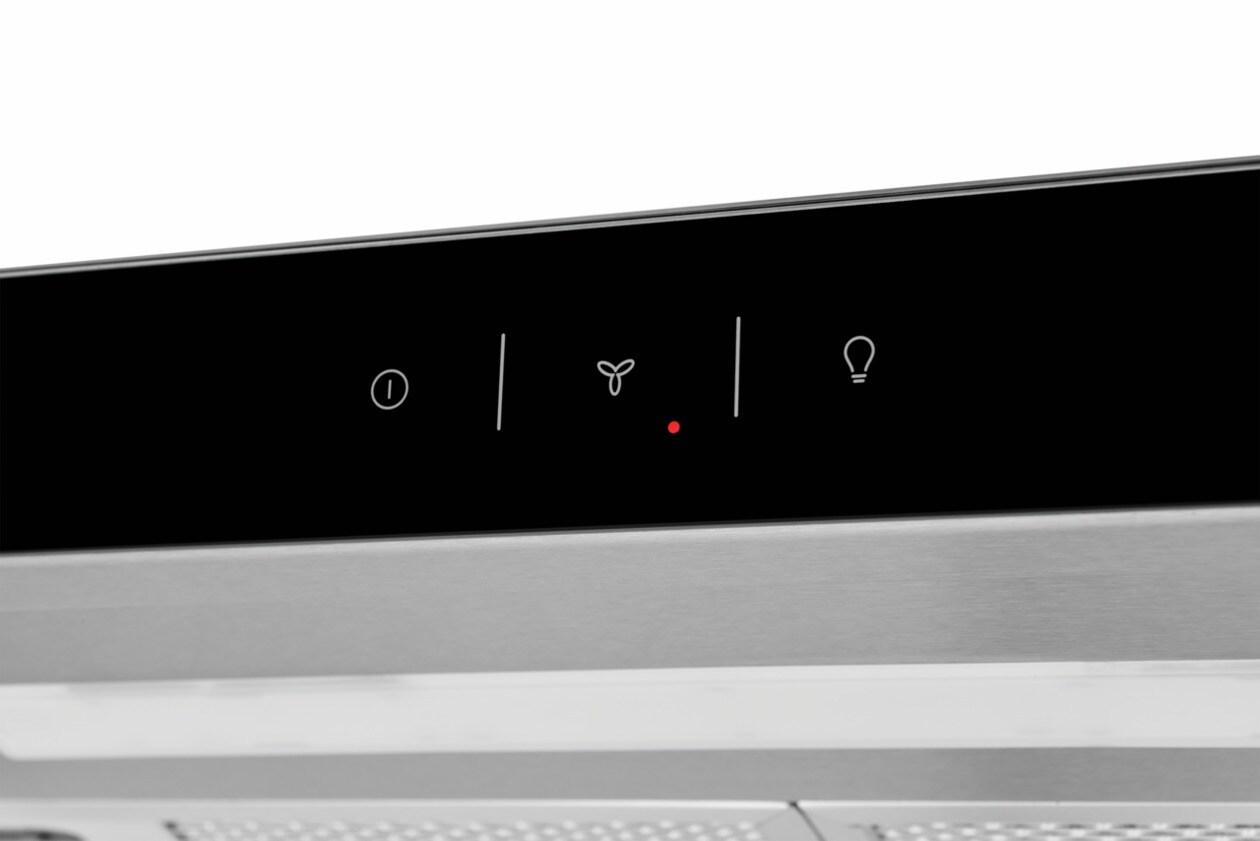

- Capacitive Touch Control Panel
- Convertible Design for Installation
- Power Button
- Stylish Built-in Look
- AHAM Certified
Product Line | Ventilation |
Power Type | Electric 120v |
Size | 30' |
Installation Type | Downdraft Vent |
Factory | Sourced |
Color | Stainless Steel |
Ventilation System | |
Ventilation Options | Convertible |
Ducted Vent | Optional (See Manual) |
Ductless Vent | Yes - Out of the Box |
Exhaust Fan Speeds | 3 |
Maximum Air Flow Capacity | 330 CFM |
Minimum Air Flow Capacity | 110 CFM |
Maximum Sones Rating | 10.1 sone |
Minimum Sones Rating | 1.7 sone |
Grease Filter Included | Yes |
Grease Filter Quantity | 2 |
Grease Filter Type | Aluminum Mesh |
Grease Filter Dishwasher Safe | Yes |
Charcoal Filter Included | Yes |
Charcoal Filter Quantity | 2 |
Controls | |
Control Type | Glass Touch |
Filter Change Indicator | Yes |
Surface Light System | |
Lighting Type | LED Strip |
Number of Lights | 1 |
Number of Light Settings | 3 |
Dimensions and Volume | |
Height | 4 15/16' |
Width | 30' |
Depth | 19 3/4' |
Electrical Specifications | |
Voltage Rating | 120 V |
Watts @ 120 Volts | 114 Watts |
Installation | |
Duct Exit Location | Top |
Hardwired | Yes |
Power Supply Connection Type | Hard Wired |
General Specifications | |
Product Weight | 13 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Certifications and Approvals | |
HVI Listed | Yes |
UL Listed | Yes |
cUL Listed | Yes |
