Frigidaire FCWD3027AS Frigidaire 30'' Double Electric Wall Oven With Fan Convection
Rebates &
Promotions
Achieve better baking results with Fan Convection

Get faster, more even multi-rack baking results with Fan Convection - in both ovens!
Your oven cleans itself - so you don't have to with Self Clean

Self clean options available in convenient 2, 3 and 4-hour cycles.
Peace of Mind with our Frigidaire® Fit Promise

We promise that your new 30" Frigidaire® double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs.

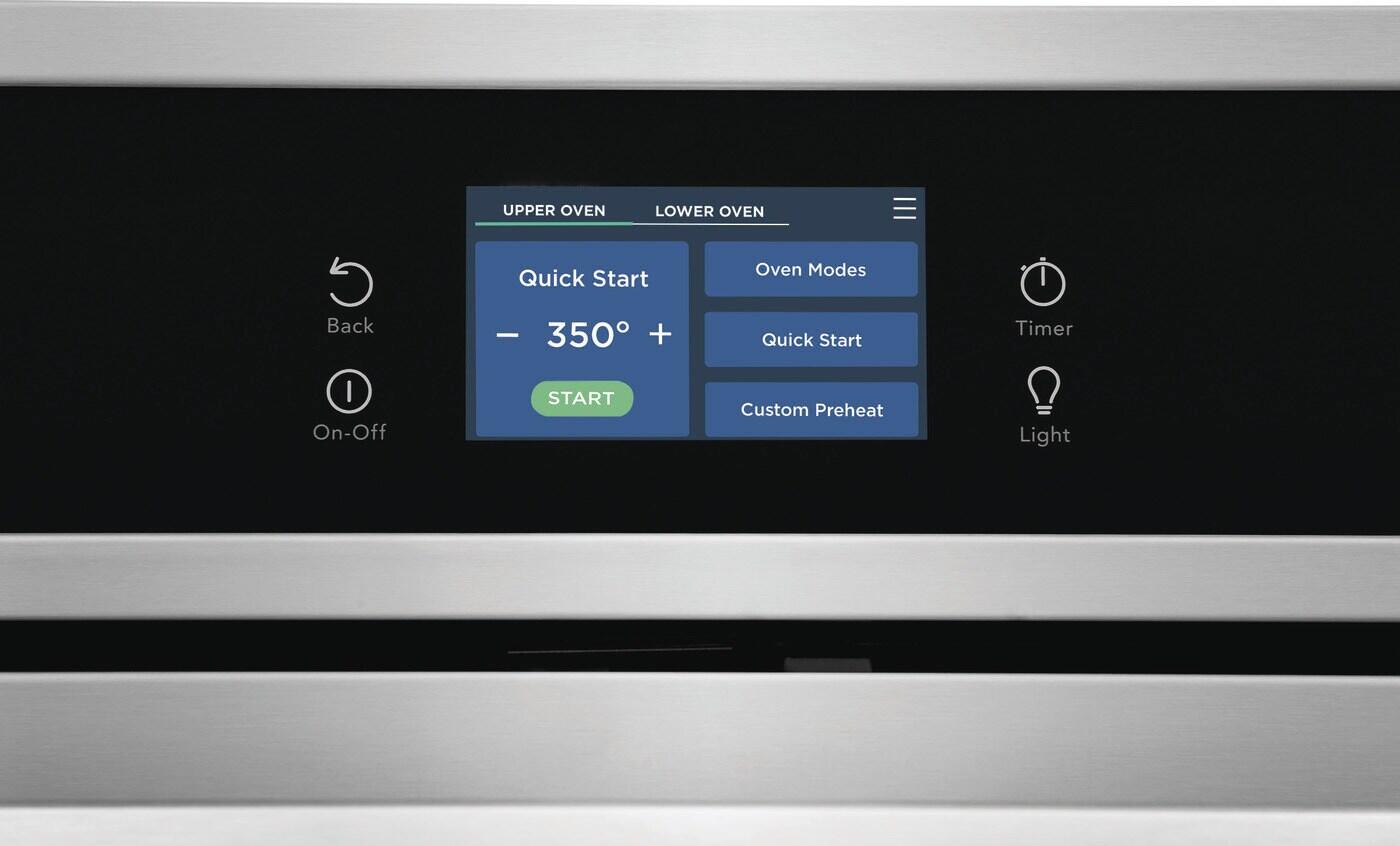

Premium Touch Screen Control Panel

Features a responsive 4.3 inch, full color, capacitive touch digital control panel.
Extra Large Oven Capacity

Cook more at once with a combined 10.6 cu.ft. of oven capacity.
Get that perfect finish with customizable Broil Temperatures

Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
Convenient Cook Time Setting

Allows you to program the amount of time you want your oven to cook and then turn off.
Height: 50.75"
Depth: 25.18”
Oven Lower Capacity: 5.3 Cu. Ft.
Oven Upper Capacity: 5.3 Cu. Ft.
Total Capacity: 10.6 Cu. Ft.
- Achieve better baking results with Fan Convection
- Your oven cleans itself - so you don't have to with Self Clean
- Peace of Mind with our Frigidaire® Fit Promise
- Premium Touch Screen Control Panel
- Extra Large Oven Capacity: Cook more at once with a combined 10.6 cu.ft. of oven capacity.
- Get that perfect finish with customizable Broil Temperatures
- Convenient Cook Time Setting
- Keep Warm Setting: Meals stay warm and are ready to serve when you are, using the Keep Warm setting.
| Dimensions and Volume | |
| Height | 50 3/4' |
| Width | 29 7/8' |
| Depth | 25 3/16' |
| Depth With Door 90° Open | 48 3/16' |
| Depth With Handle | 27 3/5' |
| Lower Oven Interior Height | 18 1/8' |
| Lower Oven Interior Width | 25 1/5' |
| Lower Oven Interior Depth | 19 7/8' |
| Upper Oven Interior Height | 18 1/8' |
| Upper Oven Interior Width | 25 1/5' |
| Upper Oven Interior Depth | 19 7/8' |
| Minimum Cutout Height | 48 7/8' |
| Minimum Cutout Width | 28 1/2' |
| Maximum Cutout Height | 50 1/4' |
| Maximum Cutout Width | 29' |
| Oven Lower Capacity | 5.3 Cu. Ft. |
| Oven Upper Capacity | 5.3 Cu. Ft. |
| Total Capacity | 10.6 Cu. Ft. |
| Display | |
| Control Location | Front |
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | Capacitive Touch |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 215 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Controls | |
| Control Lock | Yes |
| Sabbath Mode | Yes |
| Cooking Controls | |
| Bake | Yes |
| Bake Time | Yes |
| Broil | Yes |
| Cancel | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Cook Time | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Self Clean | Yes |
| Start | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| Electrical Specifications | |
| Connected Load @ 240V | 7.4 kW |
| Voltage Rating | 240 V |
| Cooking Controls Function | |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| Oven | |
| Bake Element | 2,500 Watts |
| Bake Element Pass | 4 |
| Bake Element Type | Hidden |
| Broil Element | 4,000 Watts |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Cleaning System | Yes |
| Convection | Yes |
| Convection Type | Fan |
| Number of Convection Fans | 1 |
| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 4 |
| Installation | |
| Power Supply Connection Location | Top Left |
| Exterior | |
| Handle Color | Stainless Steel |
| Safety Certifications and Approvals | |
| CSA Listed | Yes |
| UL Listed | Yes |
| RoHS | Yes |
