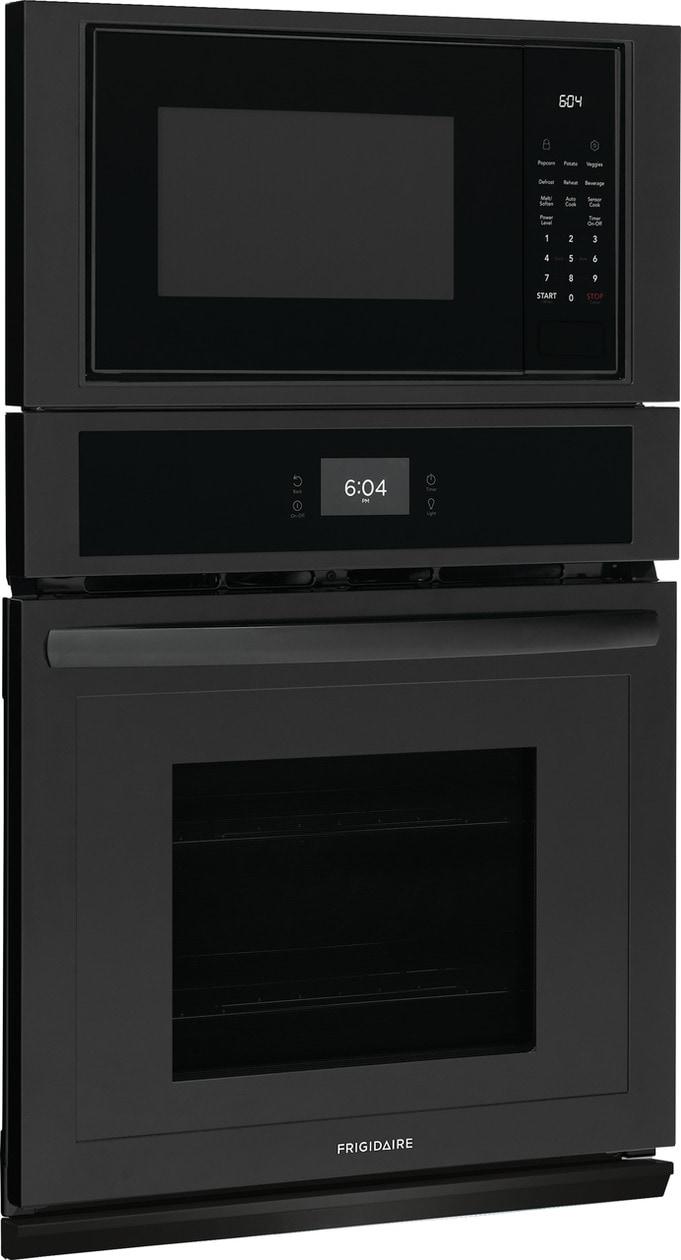

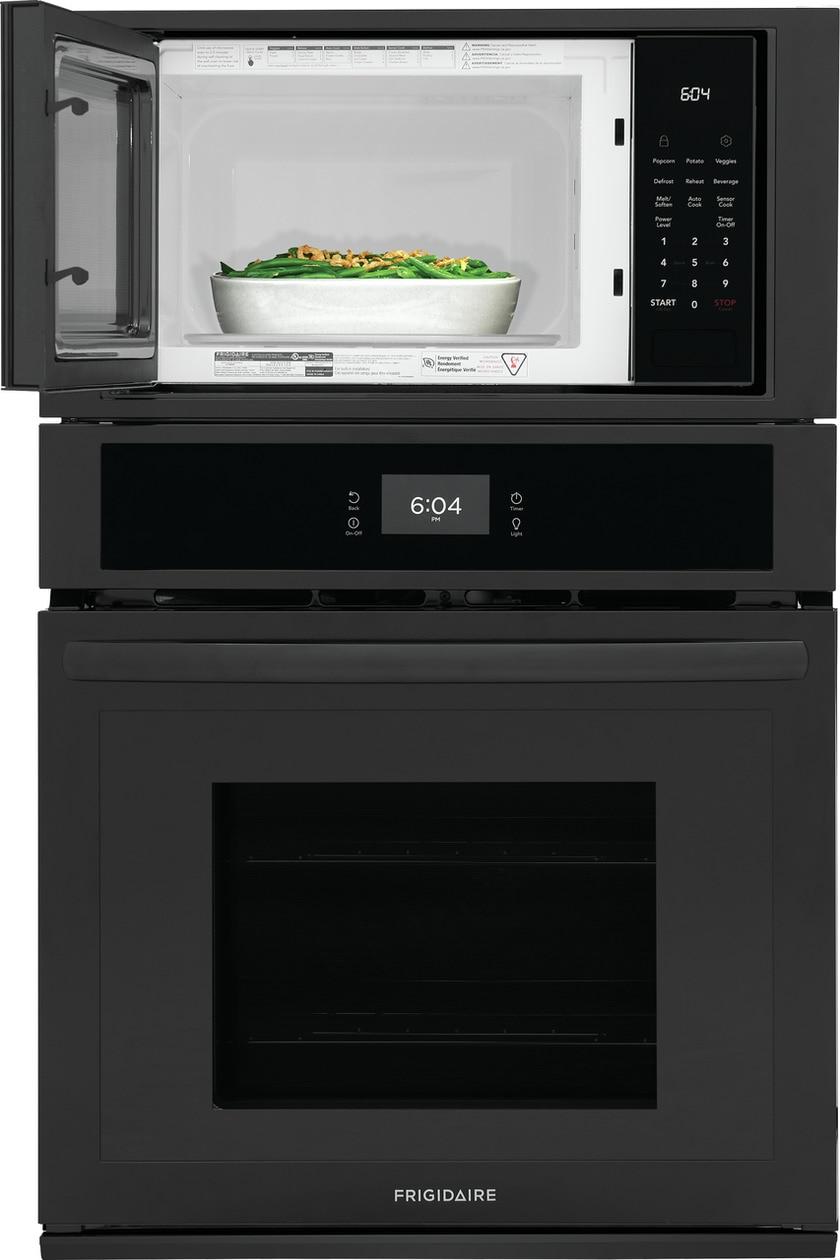

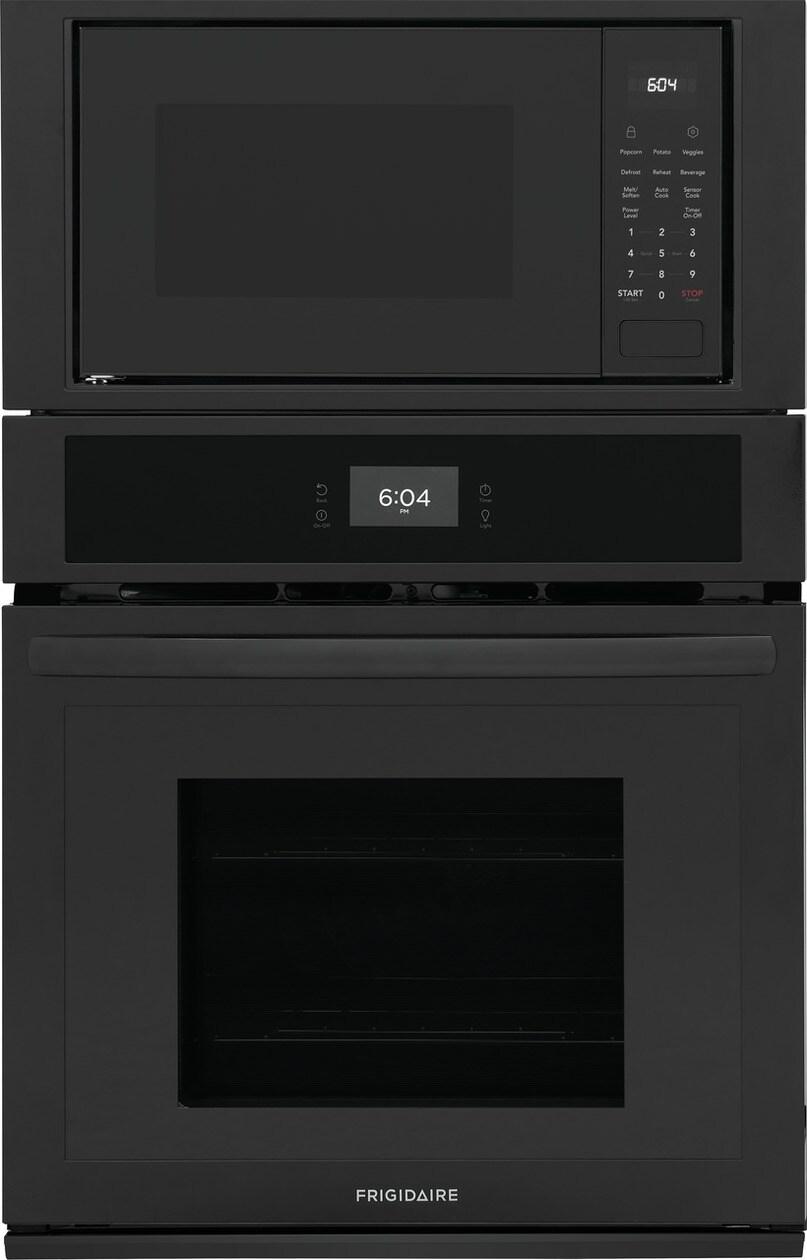

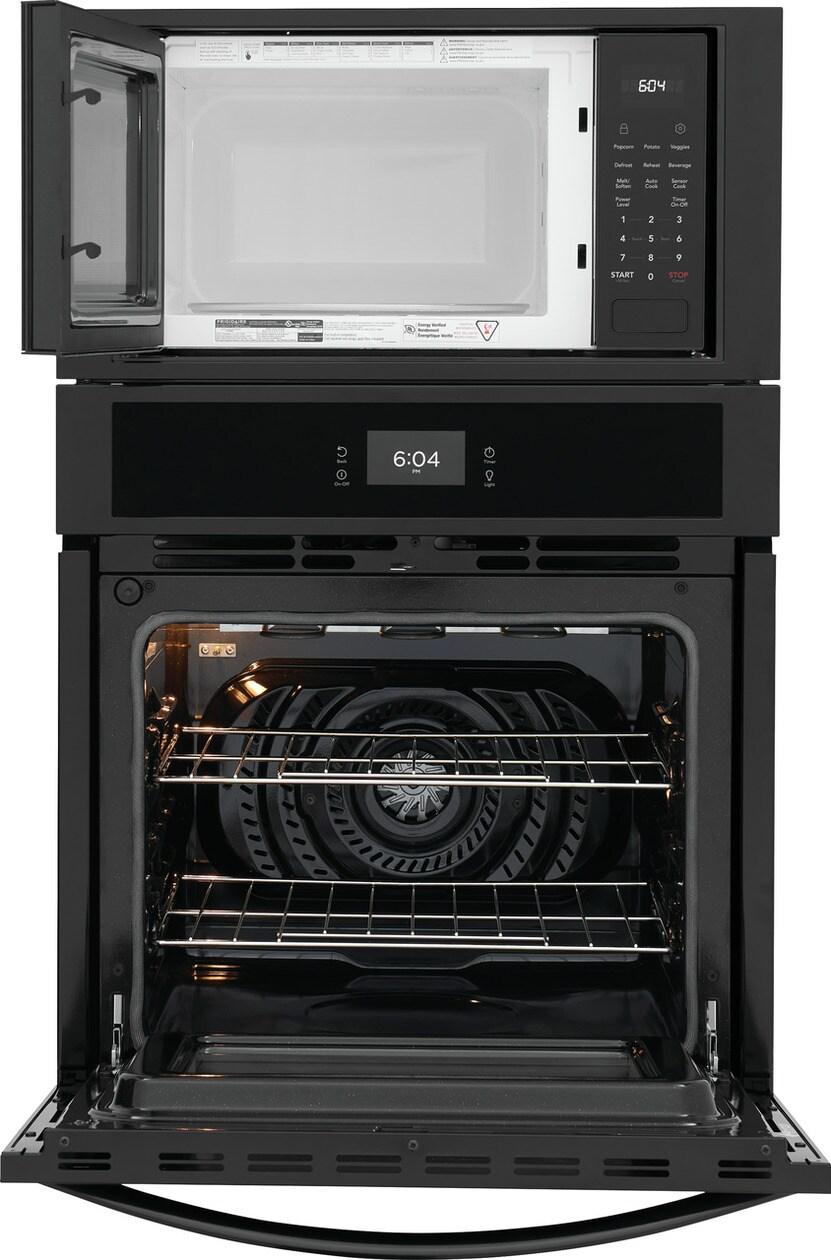

Frigidaire FCWM2727AB Frigidaire 27" Electric Wall Oven/Microwave Combination
Rebates &
Promotions

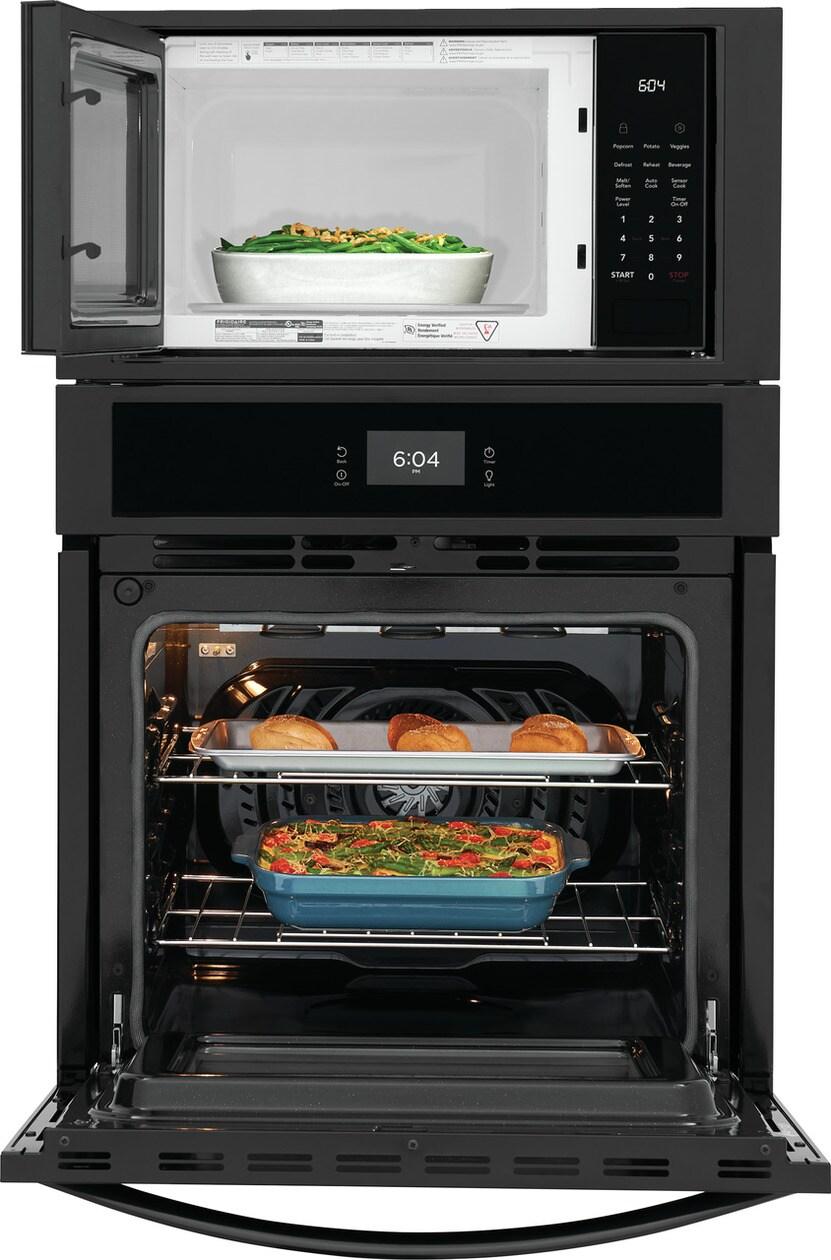

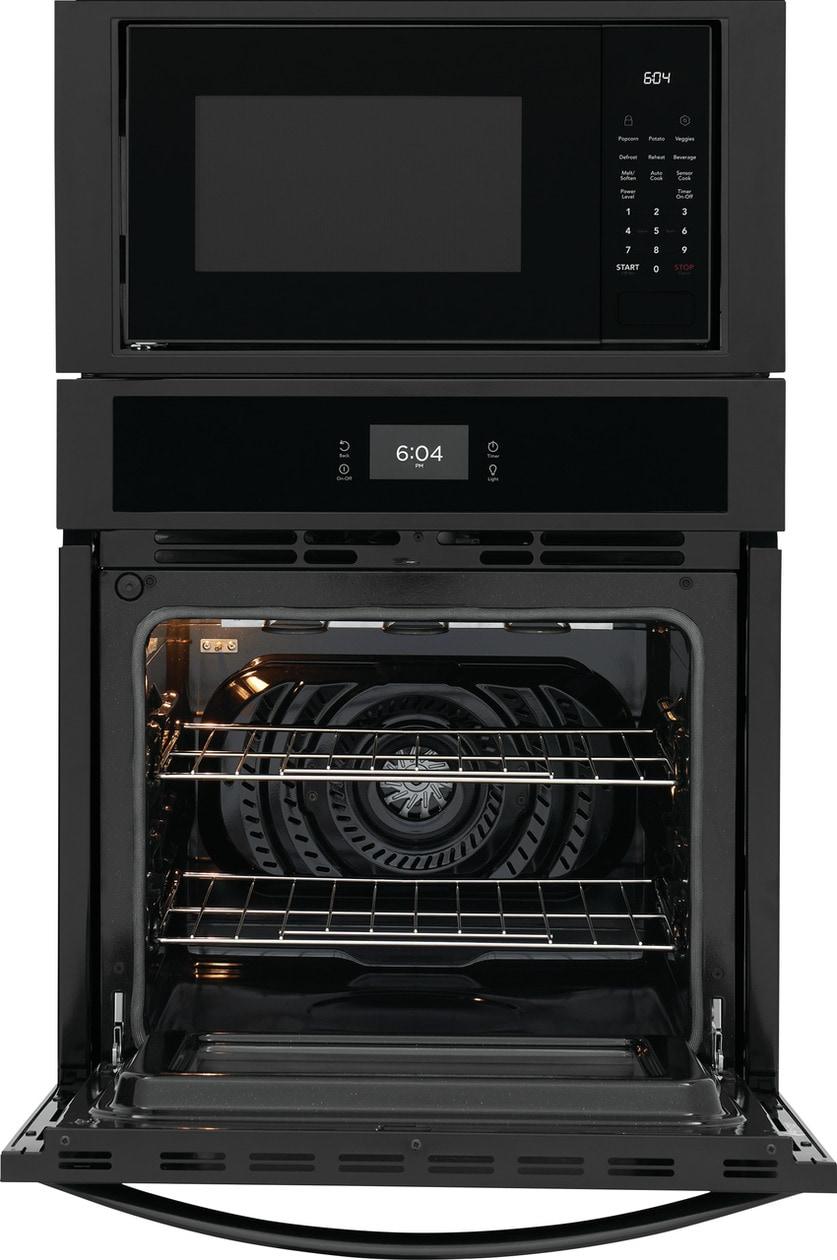

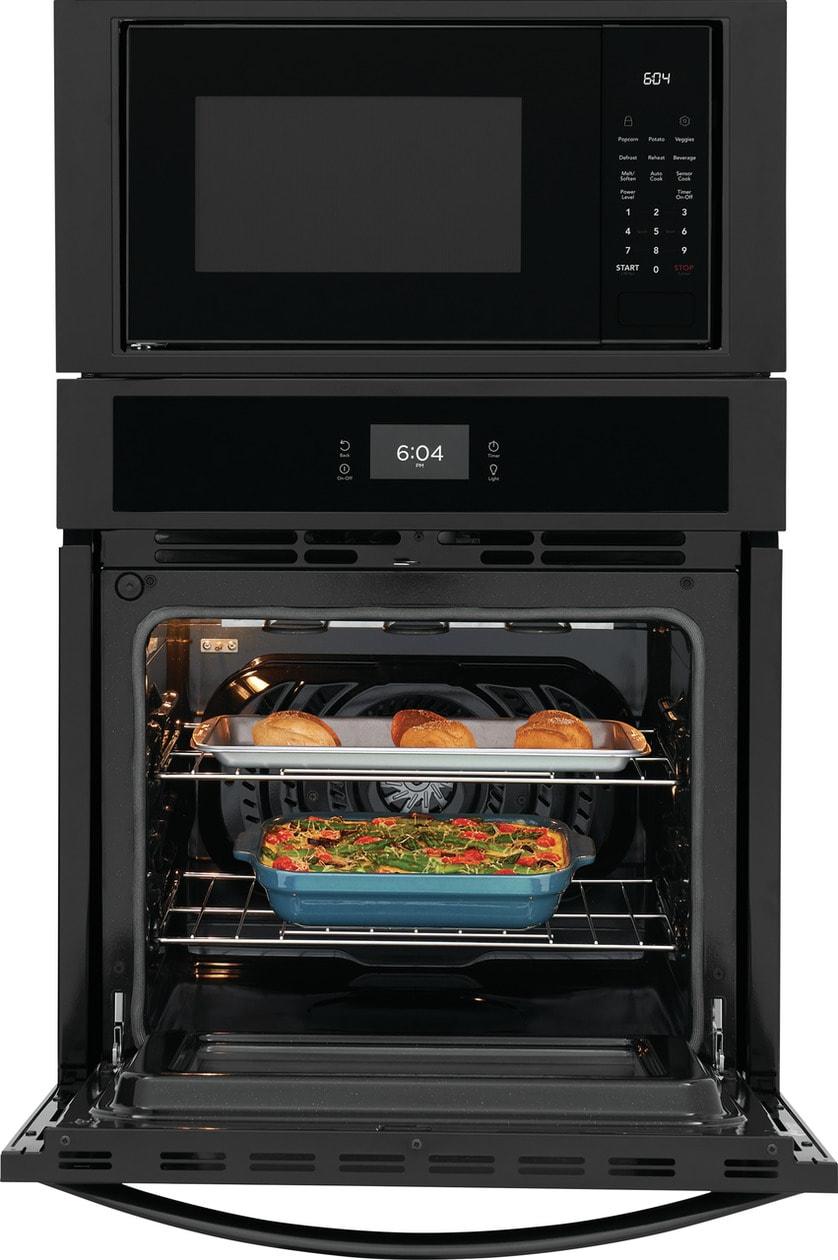

Achieve better baking results with Fan Convection
Get faster, more even multi-rack baking results with Fan Convection.
Your oven cleans itself - so you don't have to with Self Clean
Self clean options available in convenient 2, 3 and 4-hour cycles.

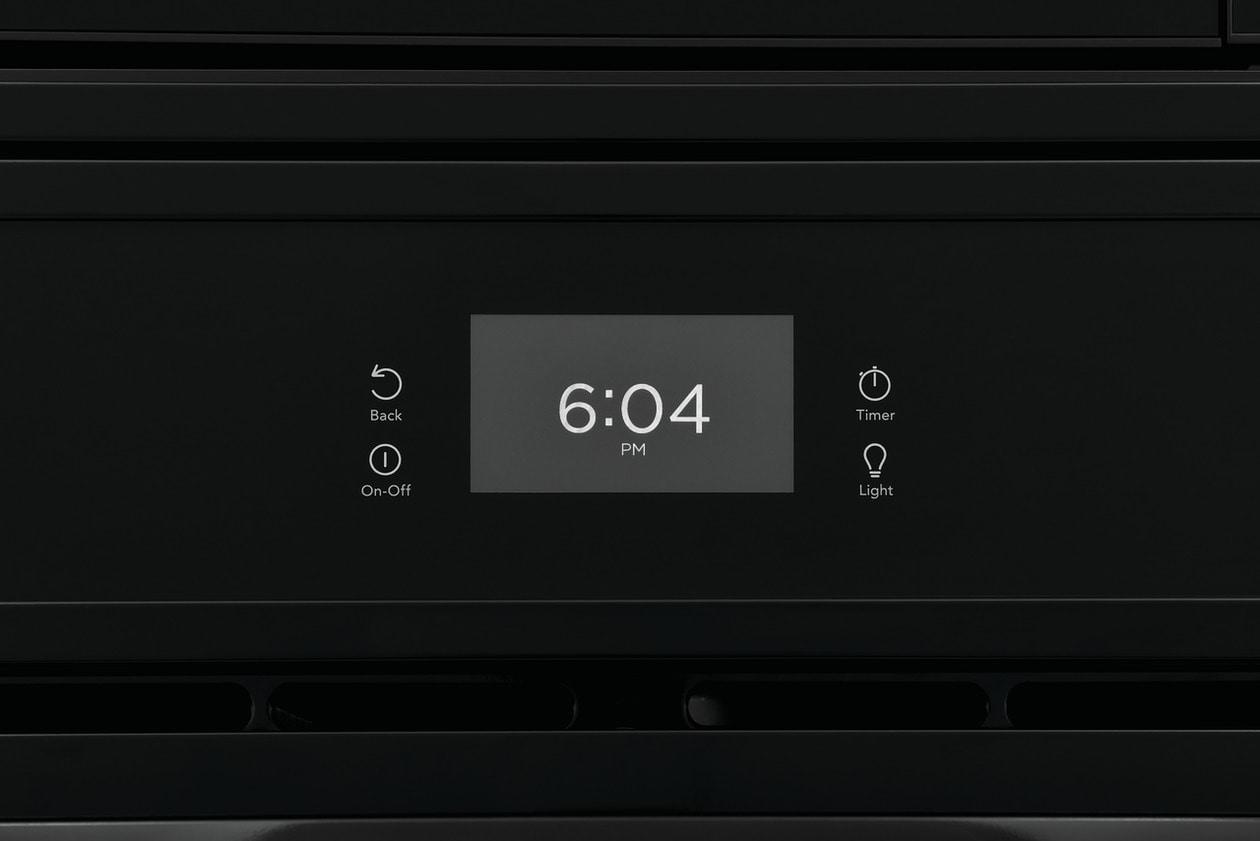

Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital oven control panel.
Get that perfect finish with customizable Broil Temperatures
Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.

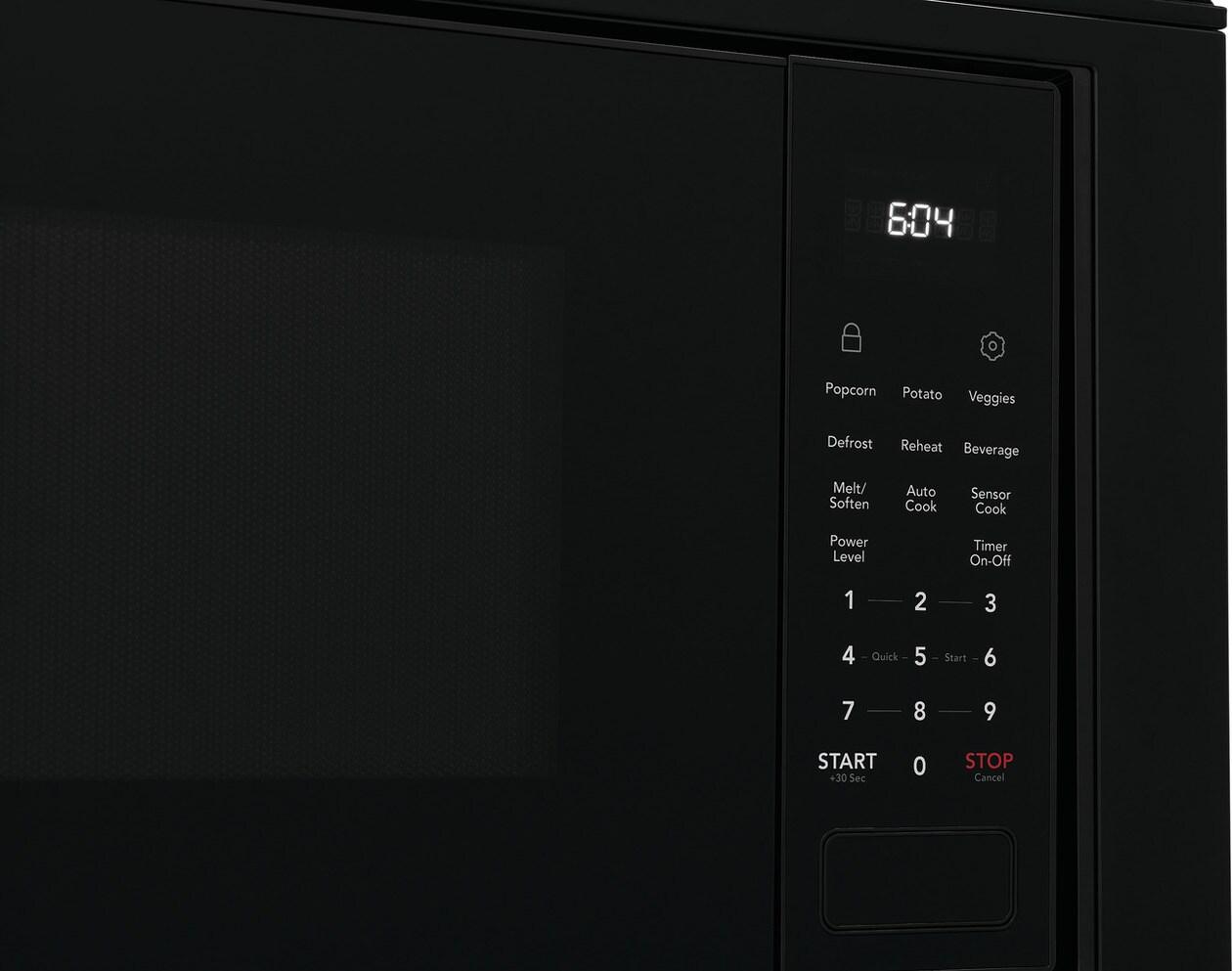

Take the guesswork out of cooking with Sensor Cook Technology
Microwave sensors detect and automatically adjust power levels and cooking times for a variety of items, providing great-tasting results every time.
Convenient Cook Time Setting
Allows you to program the amount of time you want your oven to cook and then turn off.
- Achieve better baking results with Fan Convection
- Your oven cleans itself - so you don't have to with Self Clean
- Premium Touch Screen Control Panel
- Get that perfect finish with customizable Broil Temperatures
- Take the guesswork out of cooking with Sensor Cook Technology
- Convenient Cook Time Setting
- Keep Warm Setting
Product Line | Microwave Combination Wall Oven |
Factory | Springfield |
Color | Black |
Installation | |
Power Supply Connection Location | Top Left |
Microwave Control Features | |
+ 30 Seconds | Yes |
General Specifications | |
Product Weight | 250 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Exterior | |
Door Swing | Side-Swing Door |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Accessories | |
Optional Trim Kit Part Number | WO27TRM3SS (Stainless), WO27TRM3BB (Black) |
Electrical Specifications | |
Amps @ 240 Volts | 40 Amps |
Connected Load @ 240V | 7.9 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
Certifications and Approvals | |
Star-K Certification | Yes |
Cooking Controls | |
Add A Min | Yes |
Bake | Yes |
Bake Time | Yes |
Broil | Yes |
Cancel | Yes |
Clock | Yes |
Convection Bake | Yes |
Cook Time | Yes |
Delay Start | Yes |
Kitchen Timer | Yes |
Light | Yes |
Off | Yes |
Oven Light | Yes |
Preheat | Yes |
Self Clean | Yes |
Start | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
Oven | |
Bake Element | 2,500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 4,000 Watts |
Broil Element Pass | 6 |
Cleaning System | Yes |
Convection | Yes |
Convection Type | Fan |
Number of Convection Fans | 1 |
Number of Rack Positions | 5 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Dimensions and Volume | |
Height | 42 3/4' |
Width | 27' |
Depth | 25' |
Depth With Door 90° Open | 41 3/16' |
Depth With Handle | 27 7/16' |
Oven Interior Height | 17' |
Oven Interior Width | 20 1/2' |
Oven Interior Depth | 18 3/4' |
Microwave Interior Height | 10 1/2' |
Microwave Interior Width | 17 3/8' |
Minimum Cutout Height | 41 1/4' |
Microwave Interior Depth | 18 5/8' |
Minimum Cutout Width | 24 7/8' |
Maximum Cutout Height | 41 7/8' |
Maximum Cutout Width | 25 1/4' |
Microwave Capacity | 1.6 Cu. Ft. |
Oven Capacity | 3.8 Cu. Ft. |
Safety Certifications and Approvals | |
CSA Listed | Yes |
UL Listed | Yes |
RoHS | Yes |
Internal Specifications | |
Interior Color | White |
Interior Light Quantity | 1 |
Interior Light Type | Halogen |
Interior Light Wattage | 40 Watts |
Turntable Diameter | 13 1/2' |
Turntable Material | Glass |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
Microwave Cooking | |
Microwave Cooking Power | 1100 Watts |
Auto Cook | Yes |
Beverage | Yes |
Defrost | Yes |
Melt / Soften | Yes |
Popcorn | Yes |
Potato | Yes |
Reheat | Yes |
Sensor Cooking | Yes |
Veggies | Yes |
Display | |
Control Location | Front |
Display Interface Color | White |
Display Light Color | White |
Display Type | Capacitive Touch |
27" Electric Wall Oven/Microwave Combination Black FCWM2727AB
