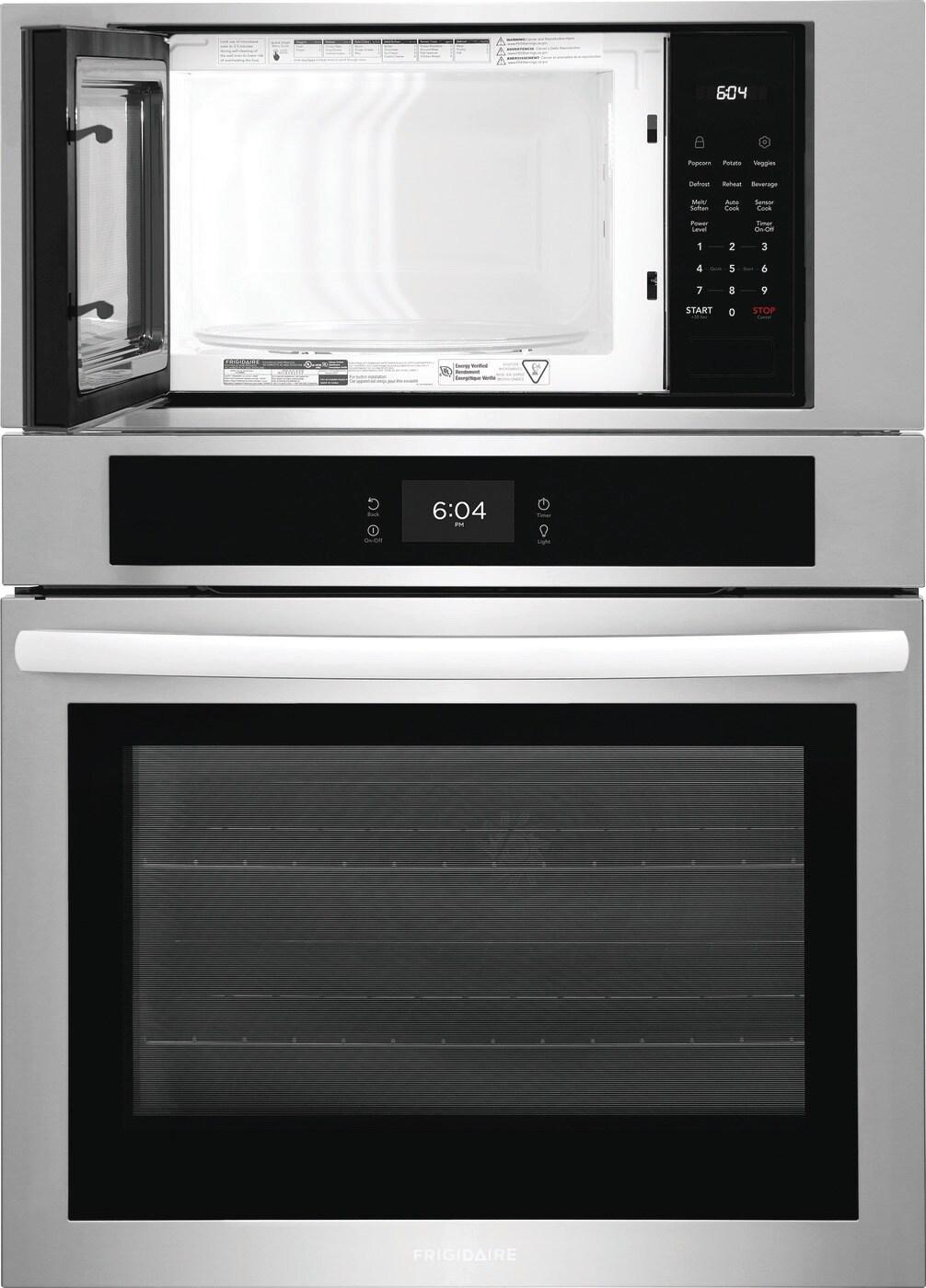

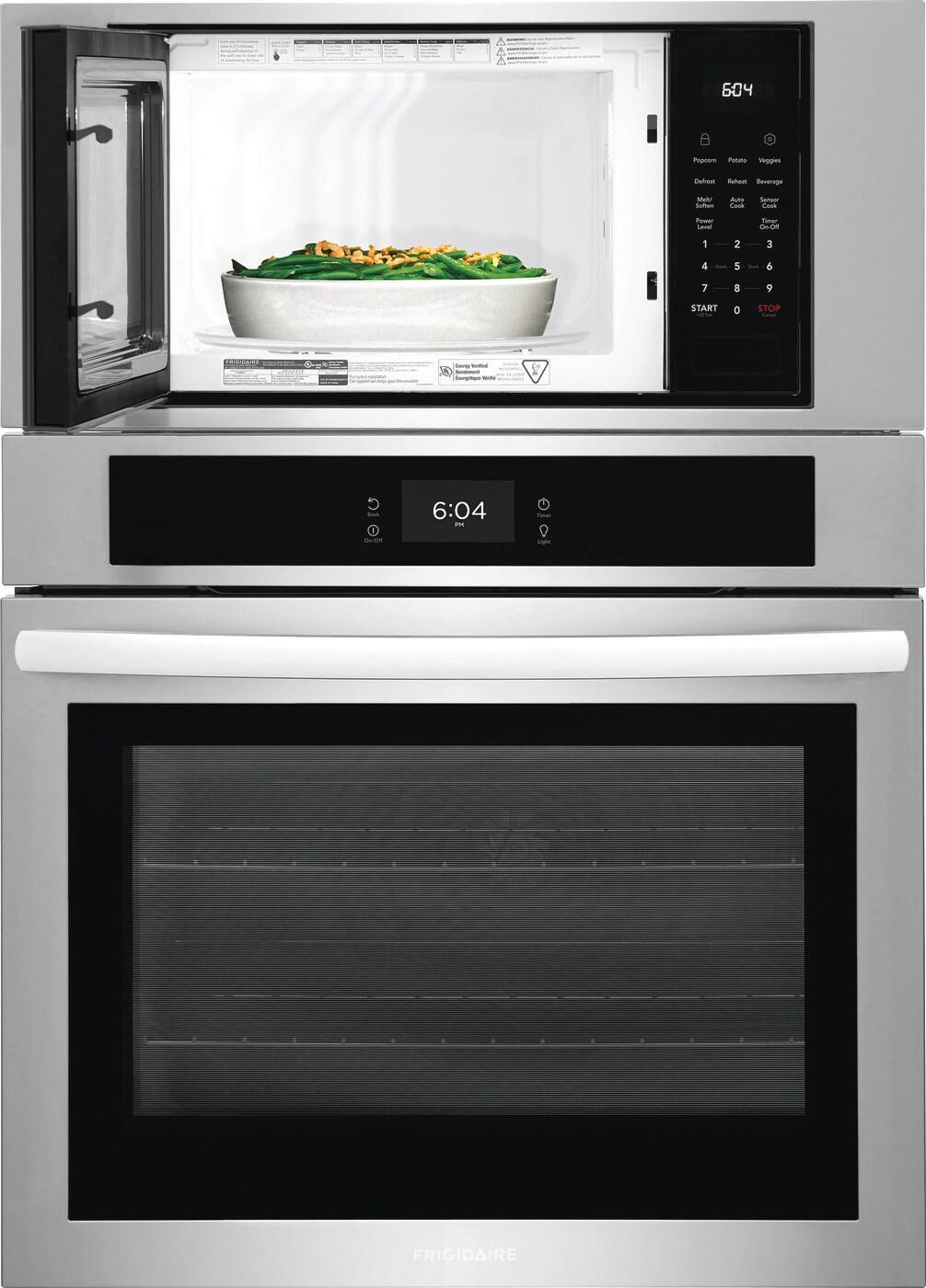

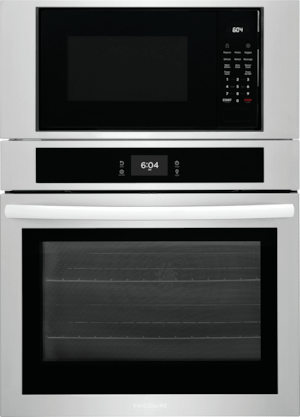

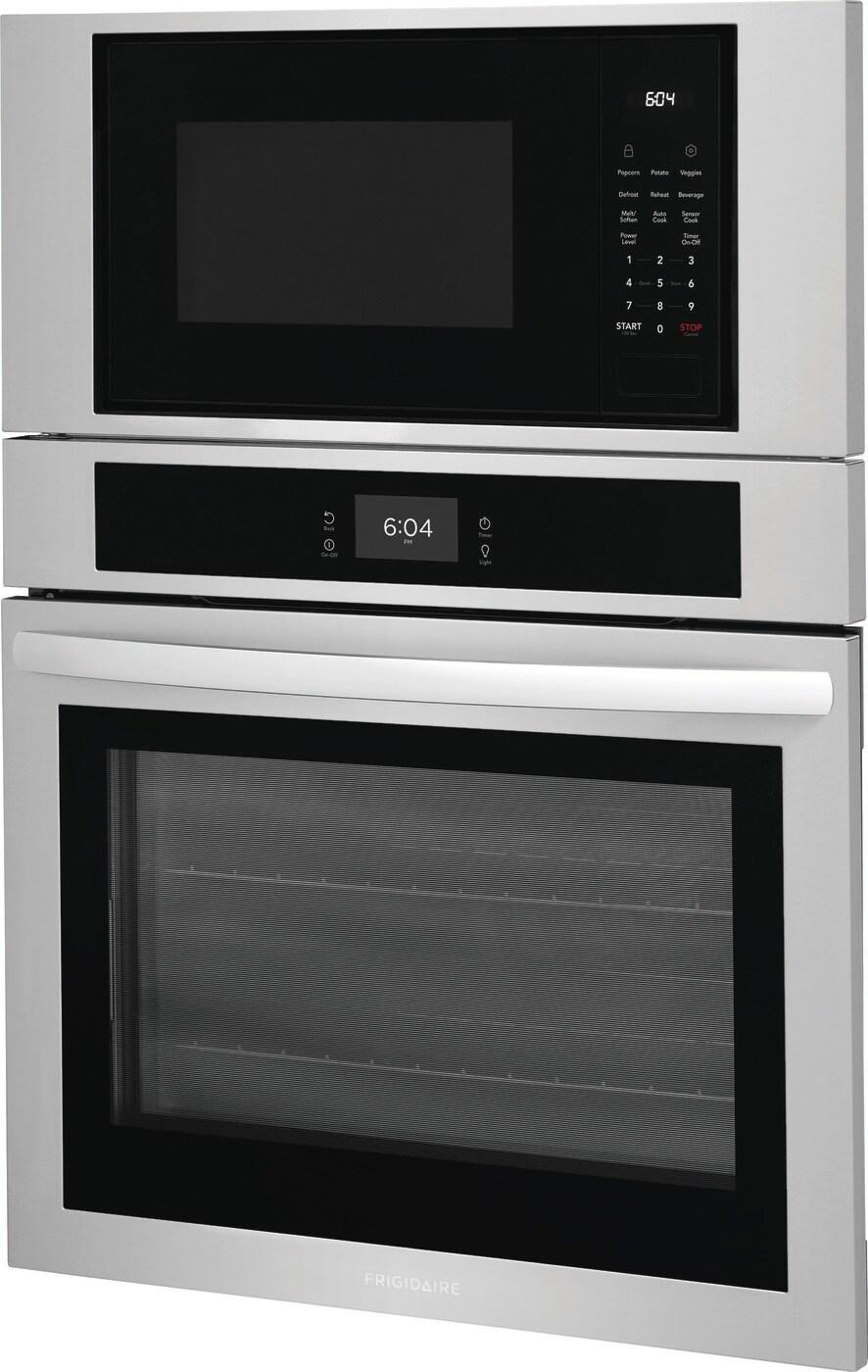

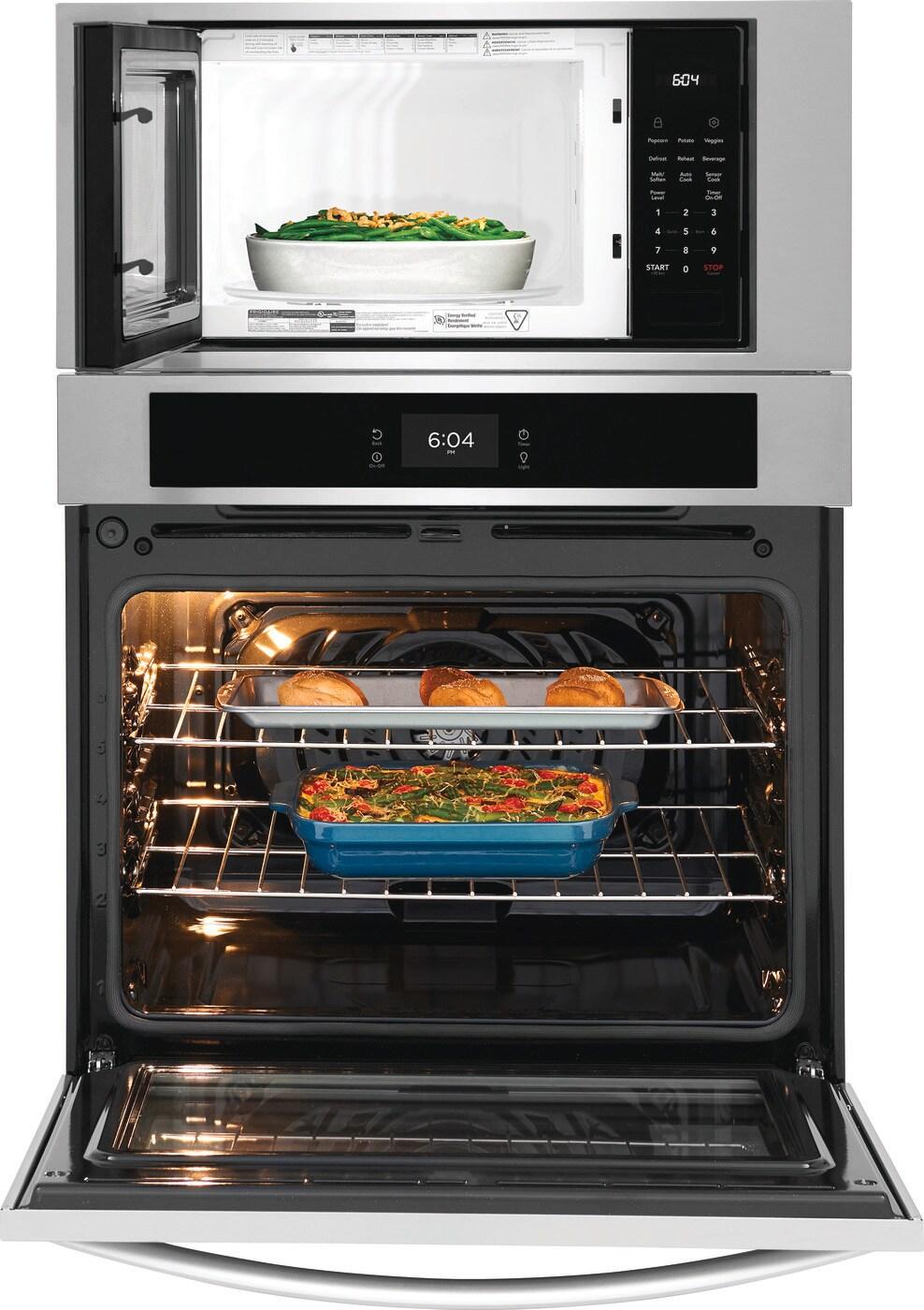

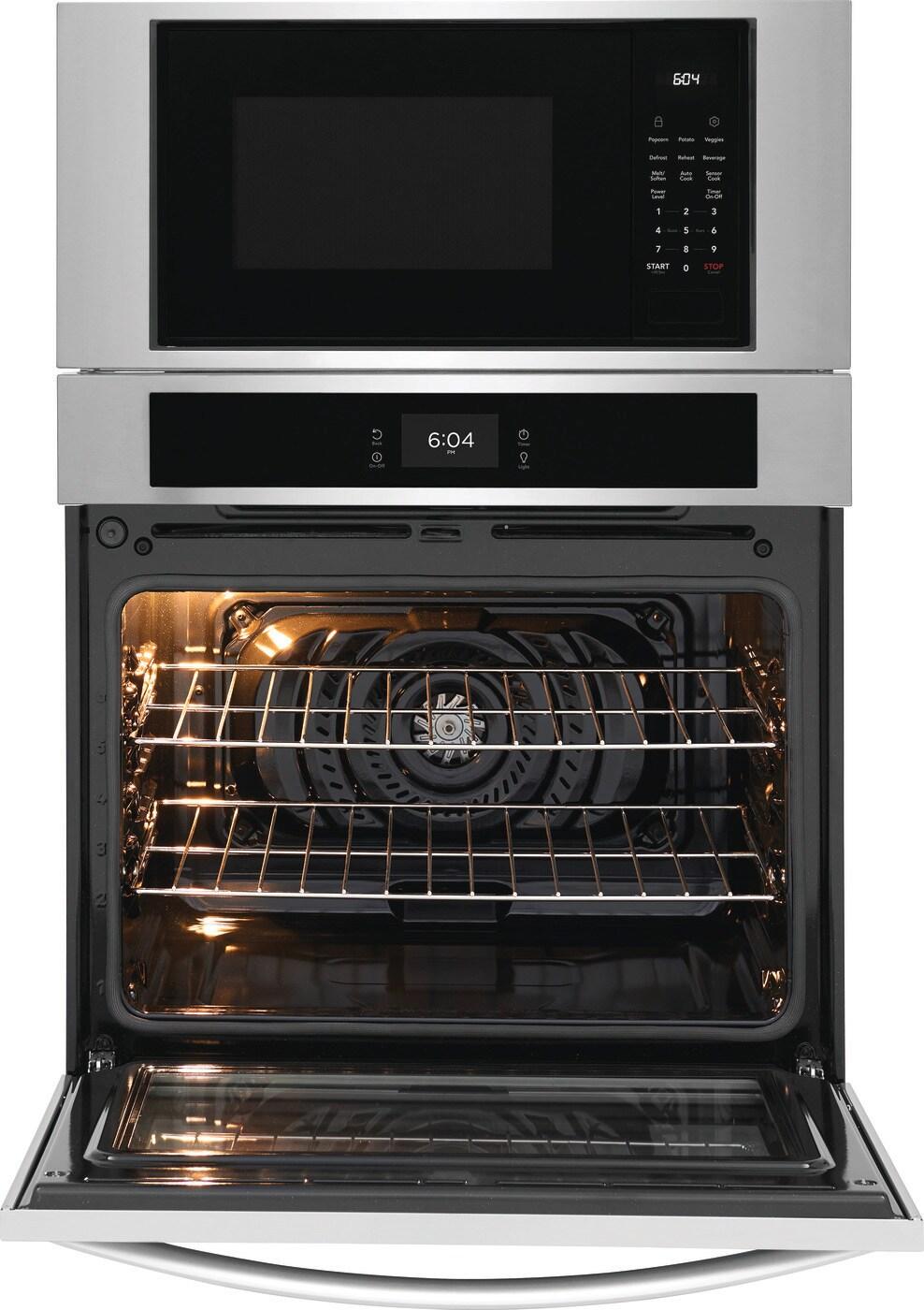

Frigidaire FCWM3027AS Frigidaire 30'' Electric Microwave Combination Oven With Fan Convection
Rebates &
Promotions

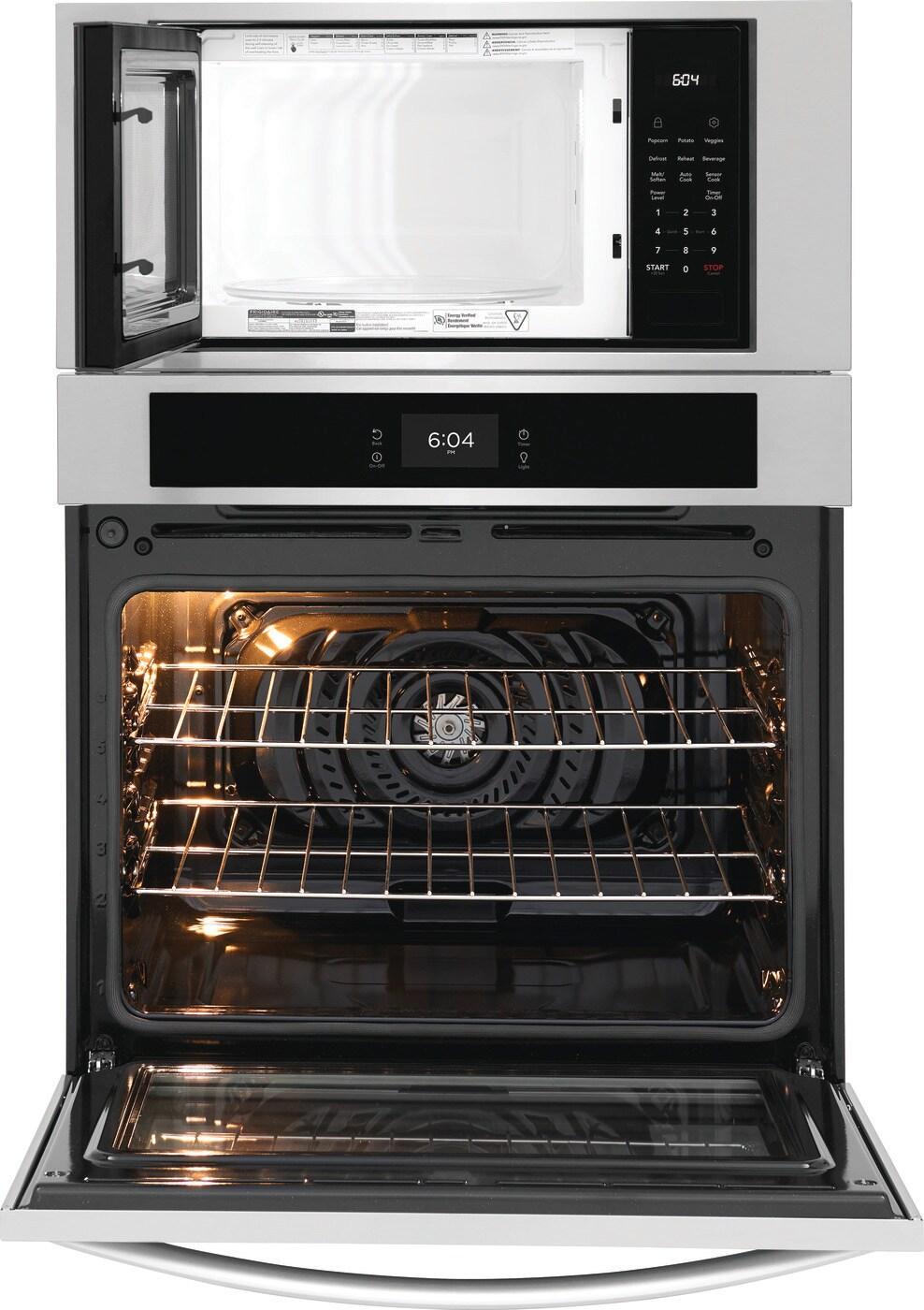

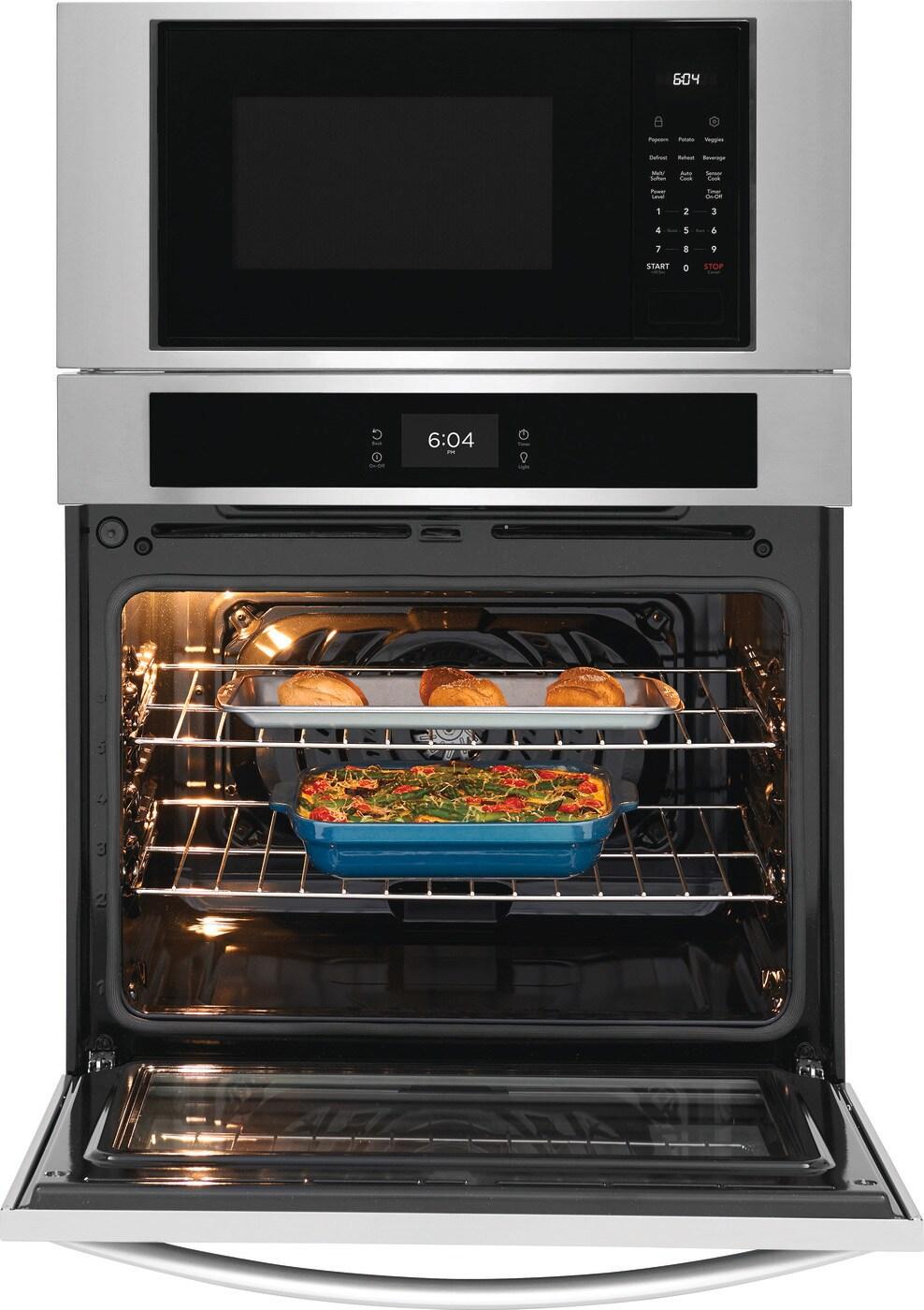

Achieve better baking results with Fan Convection
Get faster, more even multi-rack baking results with Fan Convection.
Your oven cleans itself - so you don't have to with Self Clean
Self clean options available in convenient 2, 3 and 4-hour cycles.

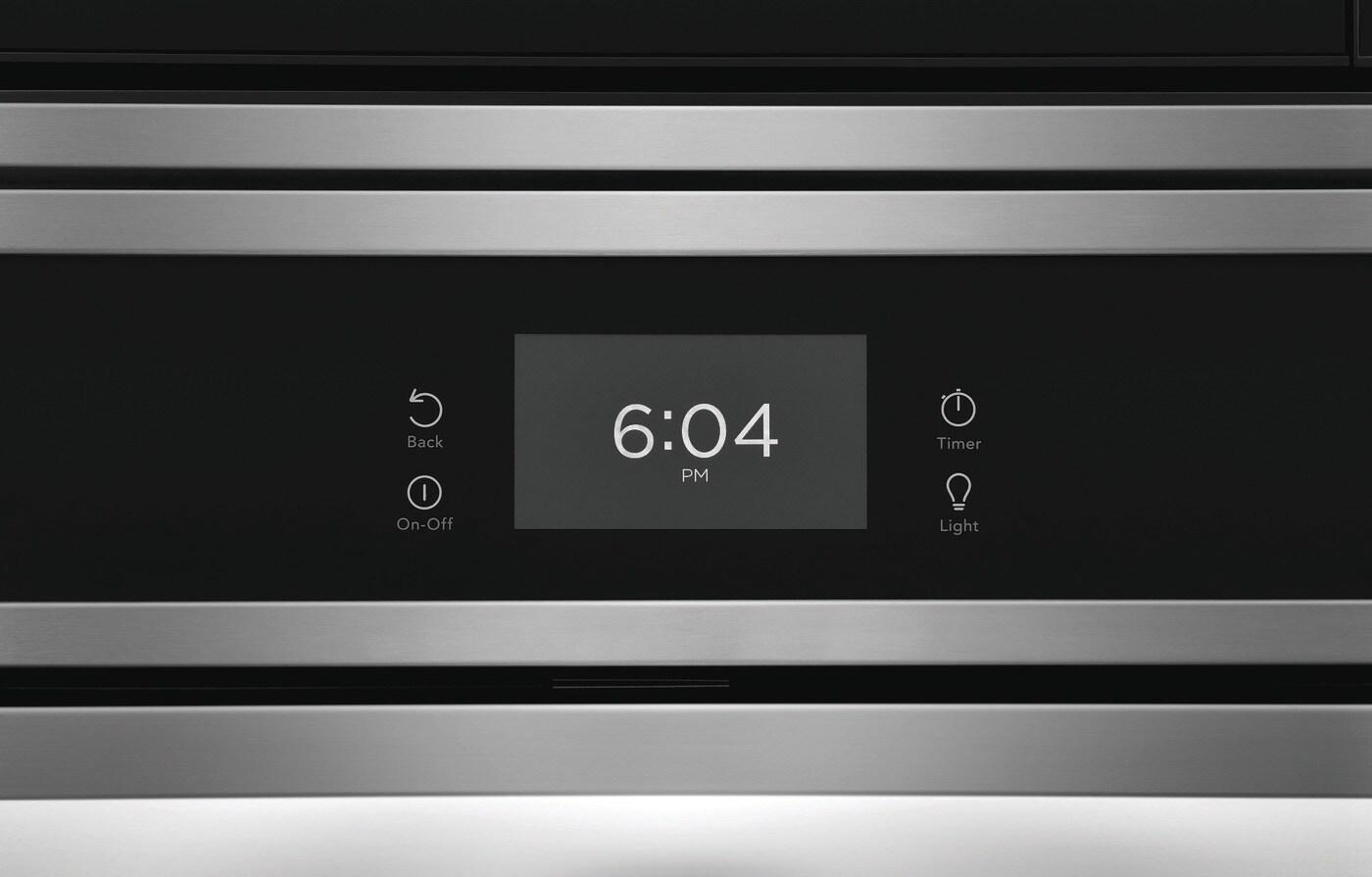

Premium Touch Screen Control Panel
Features a responsive 4.3 inch, full color, capacitive touch digital oven control panel.
Extra Large Oven Capacity
Cook more at once with our extra large, 5.3 cu.ft. capacity oven.
Get that perfect finish with customizable Broil Temperatures
Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.

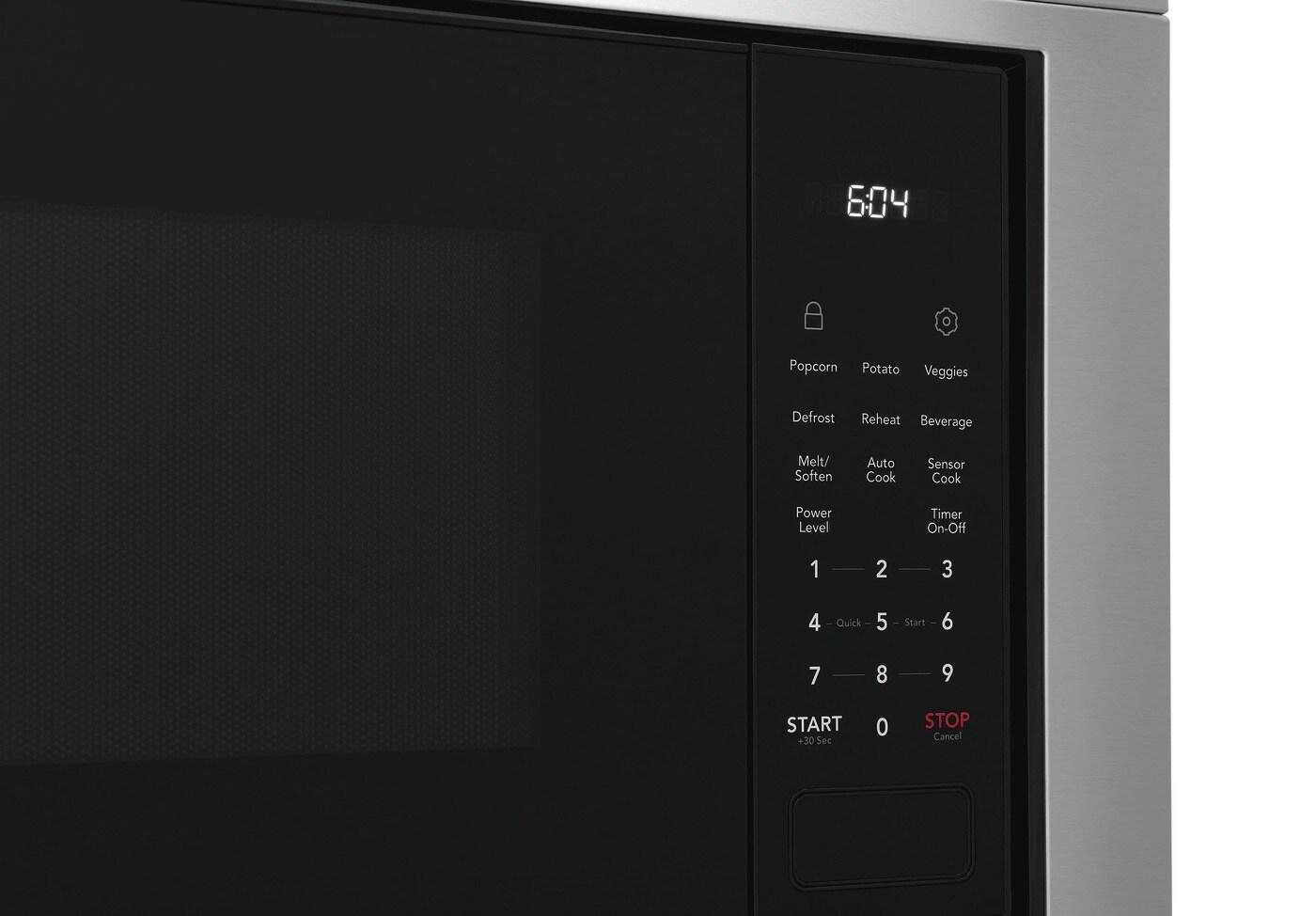

Take the guesswork out of cooking with Sensor Cook Technology
Microwave sensors detect and automatically adjust power levels and cooking times for a variety of items, providing great-tasting results every time.
It also features a premium touch screen digital control panel for the oven and the microwave offers convenient Sensor Cook and Auto Cook options.
Faster, more even baking results with Fan Convection
Self Clean available in convenient 2, 3 and 4-hour cycles
Features a premium, touchscreen 4.3 inch digital control panel Dimensions & Capacity Width: 29 7/8“
Height: 42“
Depth: 27 5/8“
Microwave Capacity: 1.6 Cu. Ft.
Oven Capacity: 5.3 Cu. Ft.
- Achieve better baking results with Fan Convection
- Your oven cleans itself - so you don't have to with Self Clean
- Premium Touch Screen Control Panel
- Extra Large Oven Capacity: Cook more at once with our extra large, 5.3 cu.ft. capacity oven.
- Get that perfect finish with customizable Broil Temperatures
- Take the guesswork out of cooking with Sensor Cook Technology
Dimensions and Volume | |
Height | 42' |
Width | 29 7/8' |
Depth | 25 3/16' |
Depth With Door 90° Open | 48 3/16' |
Depth With Handle | 27 3/5' |
Oven Interior Height | 18 1/8' |
Oven Interior Width | 25 1/5' |
Oven Interior Depth | 19 7/8' |
Microwave Interior Height | 10 1/2' |
Microwave Interior Width | 17 3/8' |
Minimum Cutout Height | 41 1/4' |
Microwave Interior Depth | 18 5/8' |
Minimum Cutout Width | 28 1/2' |
Maximum Cutout Height | 42 1/8' |
Maximum Cutout Width | 28 3/4' |
Microwave Capacity | 1.6 Cu. Ft. |
Oven Capacity | 5.3 Cu. Ft. |
Internal Specifications | |
Interior Color | White |
Interior Light Quantity | 1 |
Interior Light Type | Halogen |
Interior Light Wattage | 25 Watts |
Rack | Yes |
Turntable Diameter | 13 1/2' |
Turntable Material | Glass |
Display | |
Control Location | Front |
Display Interface Color | White |
Display Light Color | White |
Display Type | Membrane |
General Specifications | |
Frigidaire Fit Promise | No |
Product Weight | 275 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
Cooking Controls | |
Bake | Yes |
Bake Time | Yes |
Broil | Yes |
Cancel | Yes |
Clock | Yes |
Convection Bake | Yes |
Cook Time | Yes |
Delay Start | Yes |
Kitchen Timer | Yes |
Light | Yes |
Off | Yes |
Oven Light | Yes |
Preheat | Yes |
Self Clean | Yes |
Start | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
Electrical Specifications | |
Connected Load @ 240V | 7.9 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Microwave Cooking | |
Auto Cook | Yes |
Beverage | Yes |
Defrost | Yes |
Melt / Soften | Yes |
Popcorn | Yes |
Potato | Yes |
Reheat | Yes |
Sensor Cooking | Yes |
Veggies | Yes |
Oven | |
Bake Element | 2,600 Watts |
Bake Element Pass | 4 |
Bake Element Type | Hidden |
Broil Element | 4,000 Watts |
Broil Element Pass | 6 |
Cleaning System | Yes |
Convection | Yes |
Convection Type | Fan |
Number of Convection Fans | 1 |
Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 2 |
Installation | |
Power Supply Connection Location | Top Left |
Exterior | |
Door Swing | Side-Swing Door |
Microwave Control Features | |
+ 30 Seconds | Yes |
Certifications and Approvals | |
Star-K Certification | Yes |
CSA Listed | Yes |
UL Listed | Yes |
RoHS | Yes |
