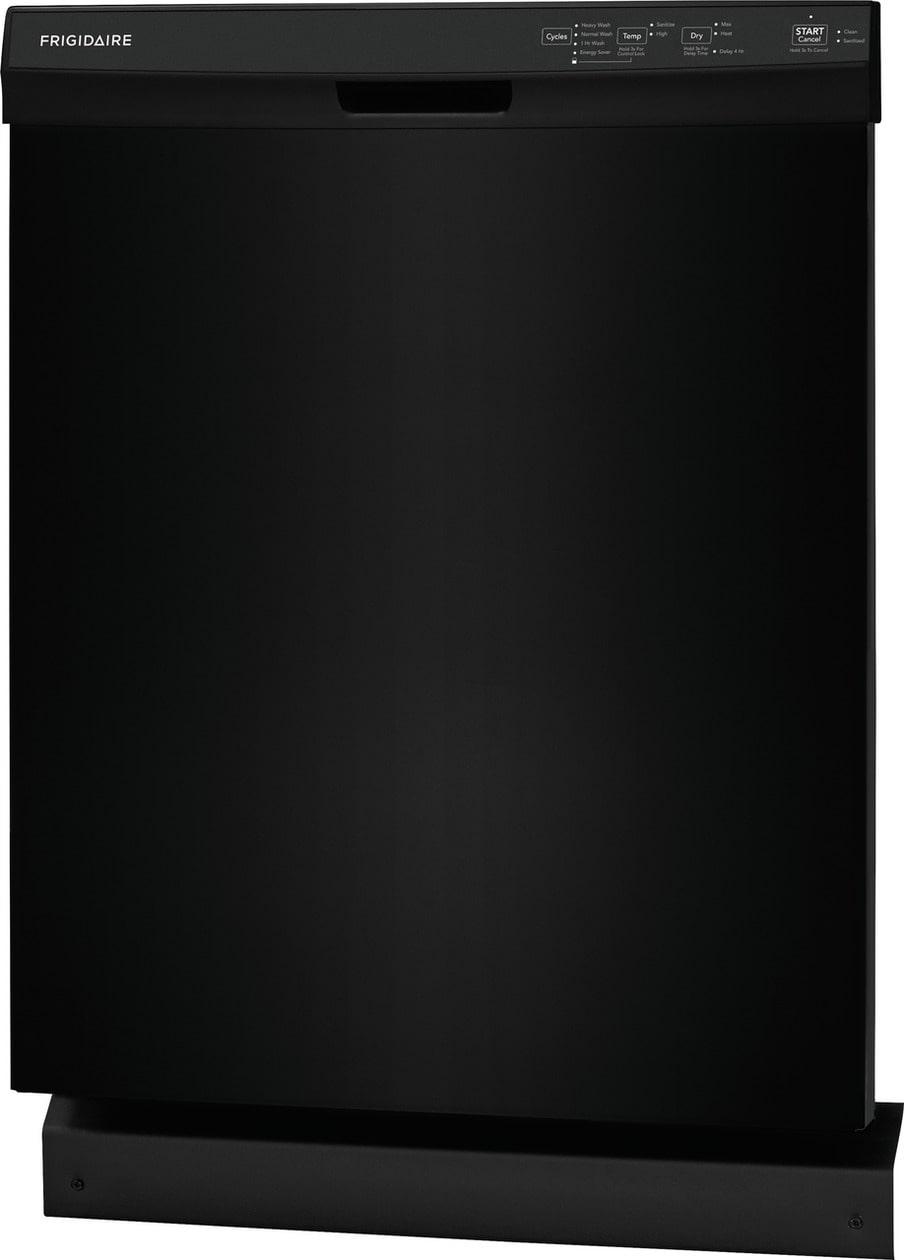

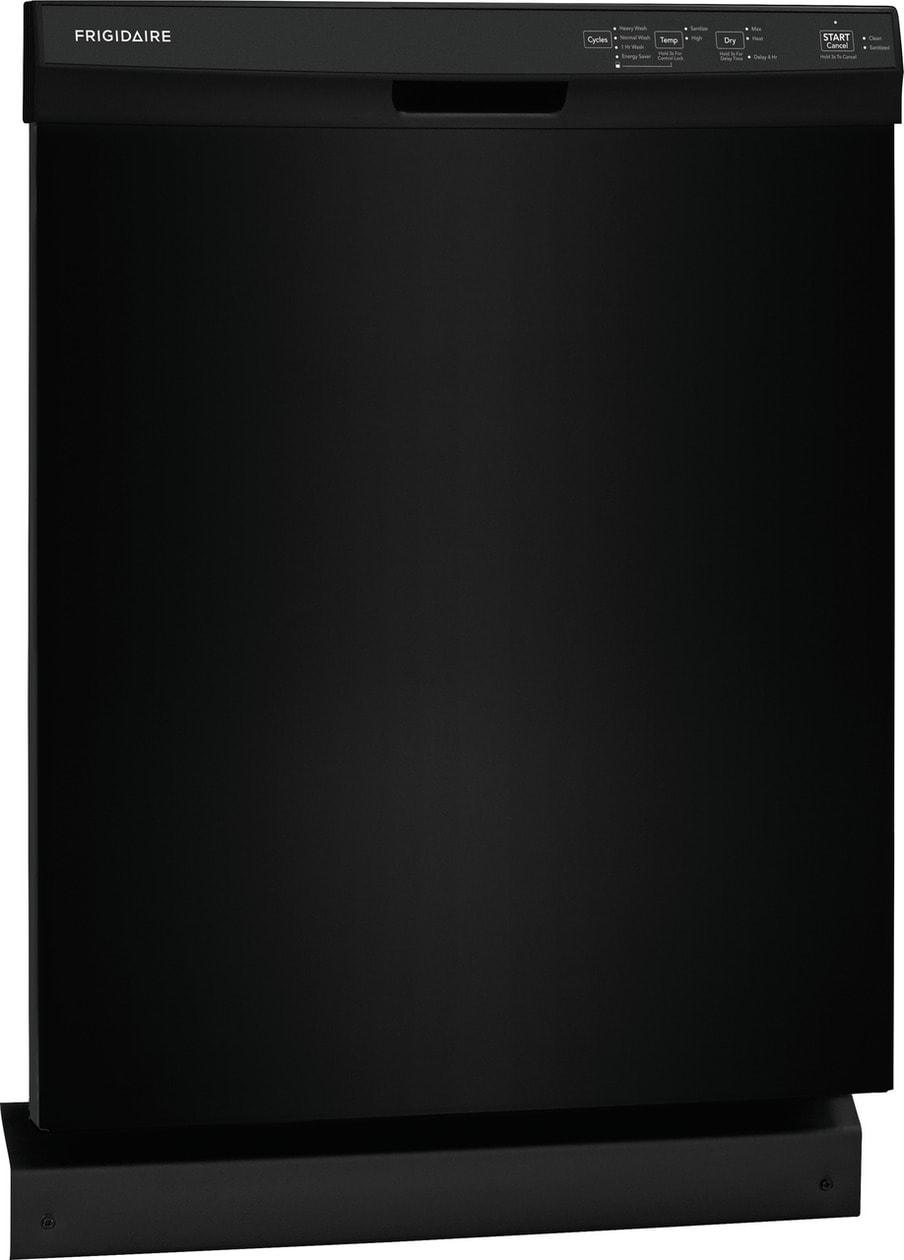

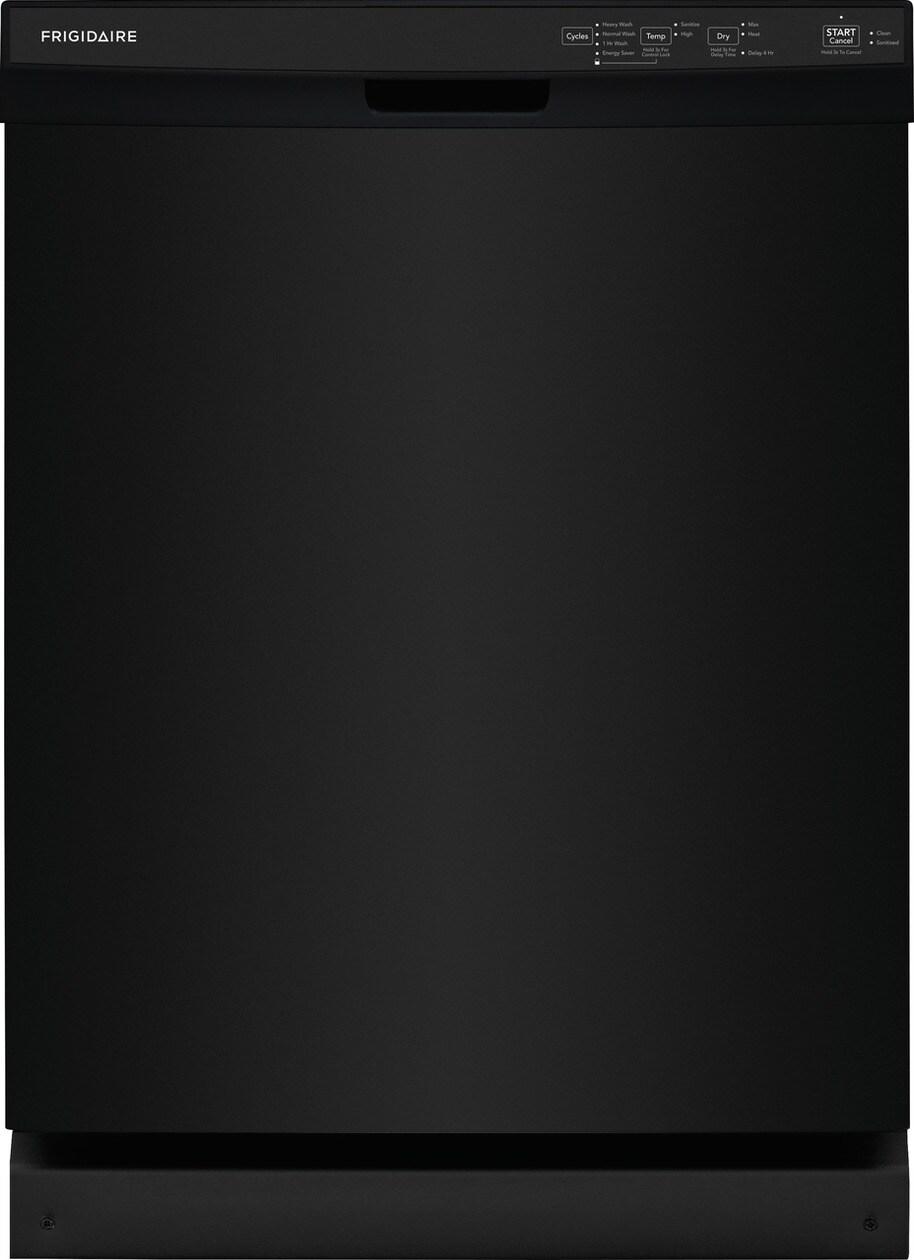

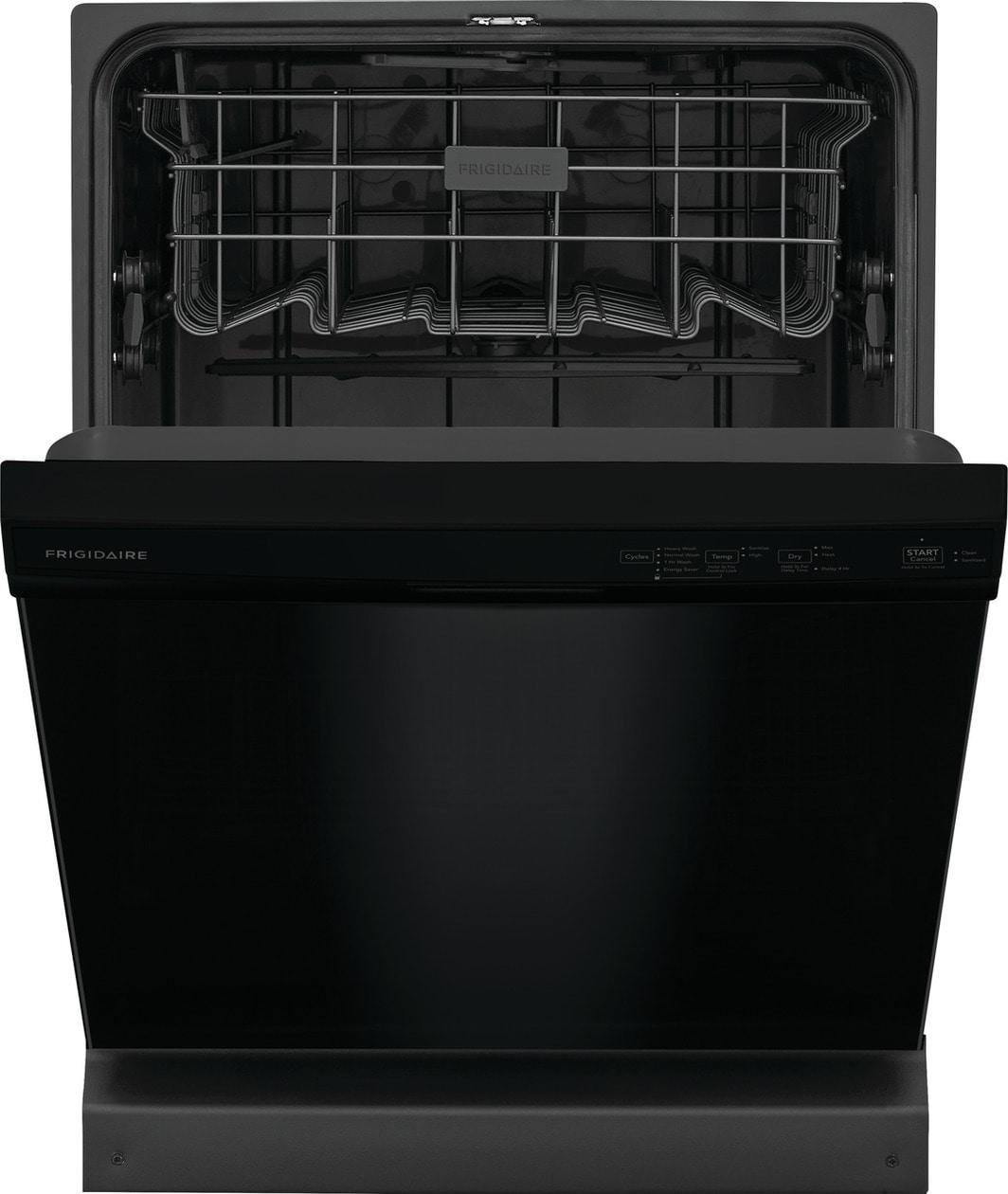

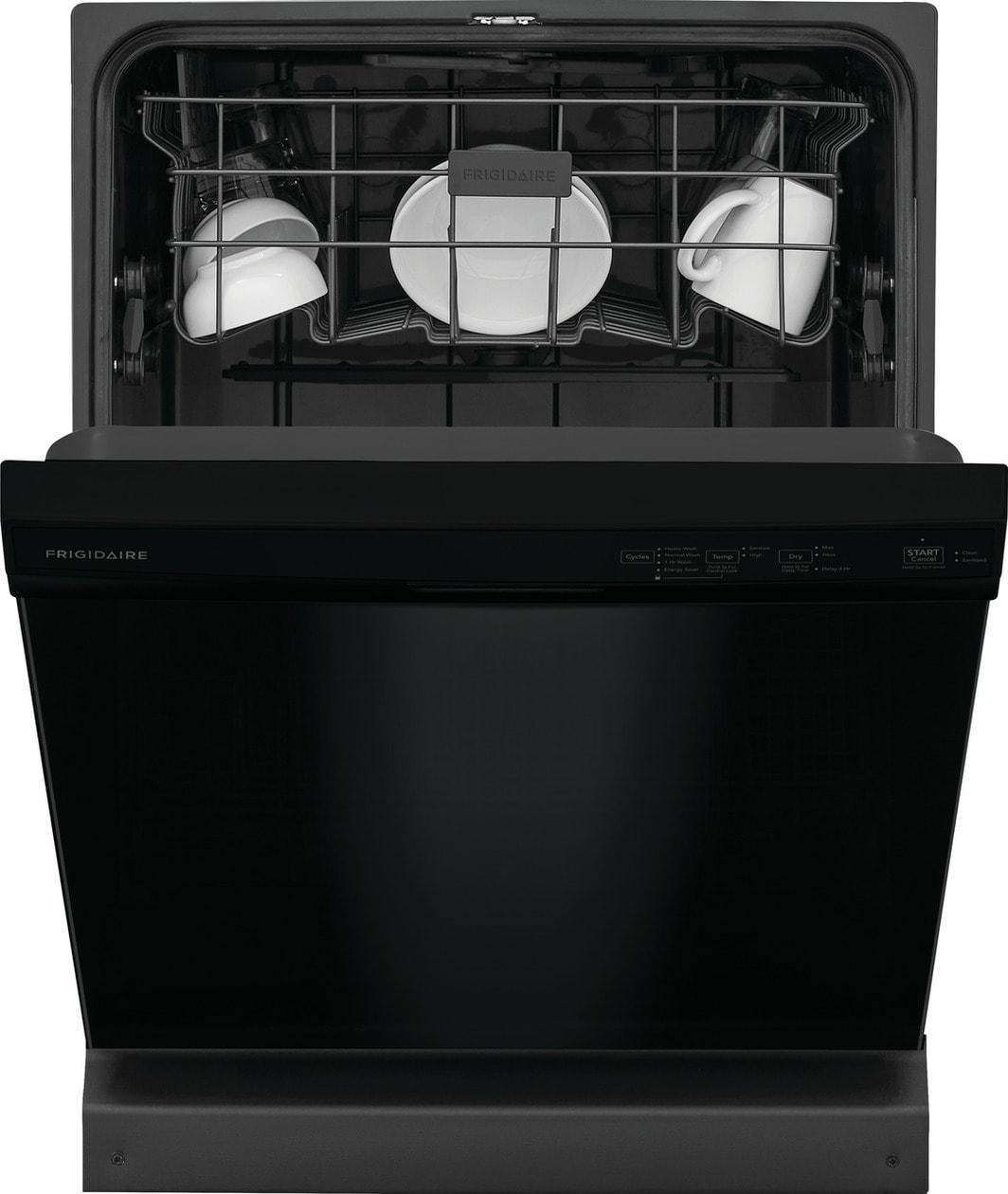

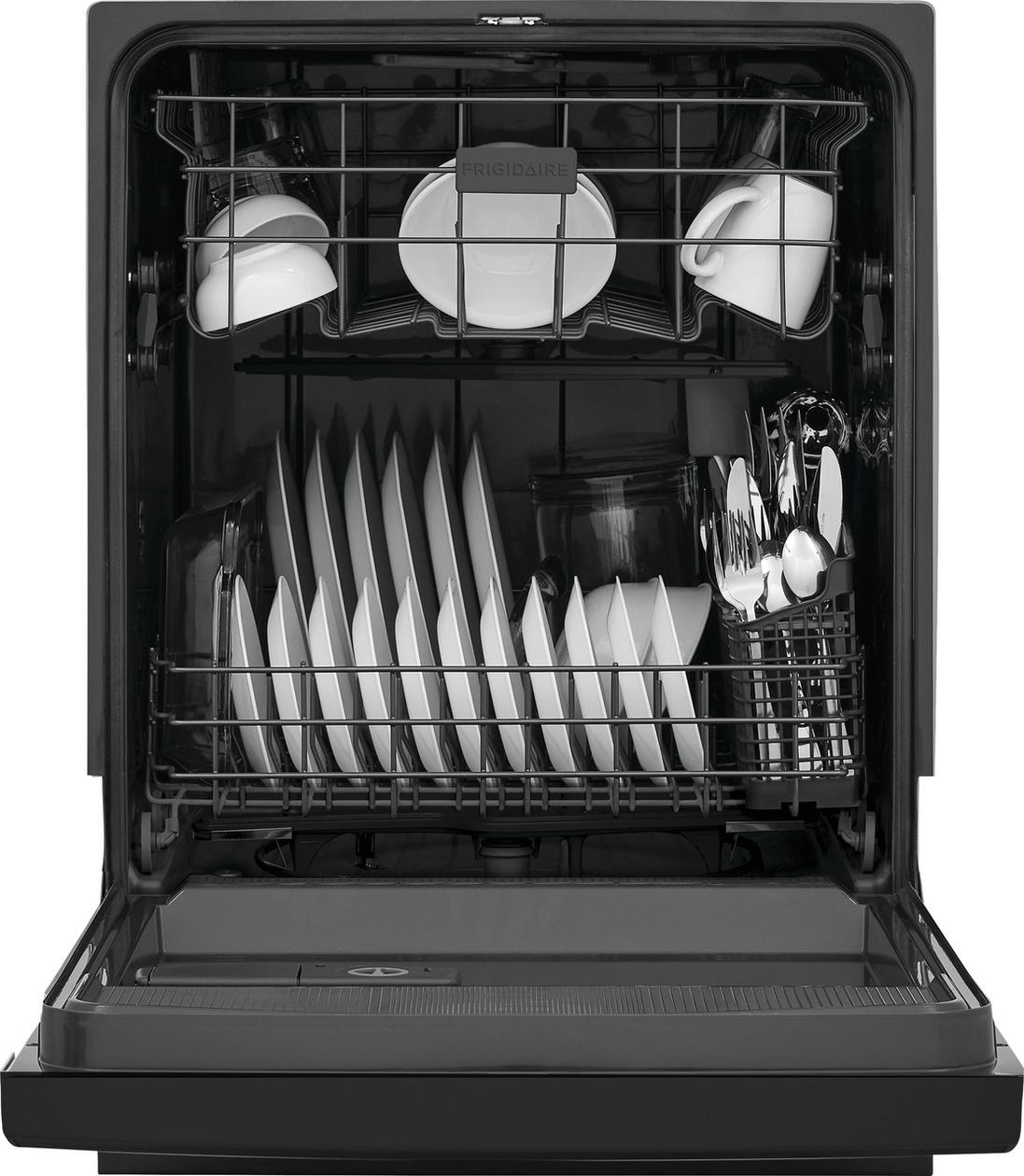

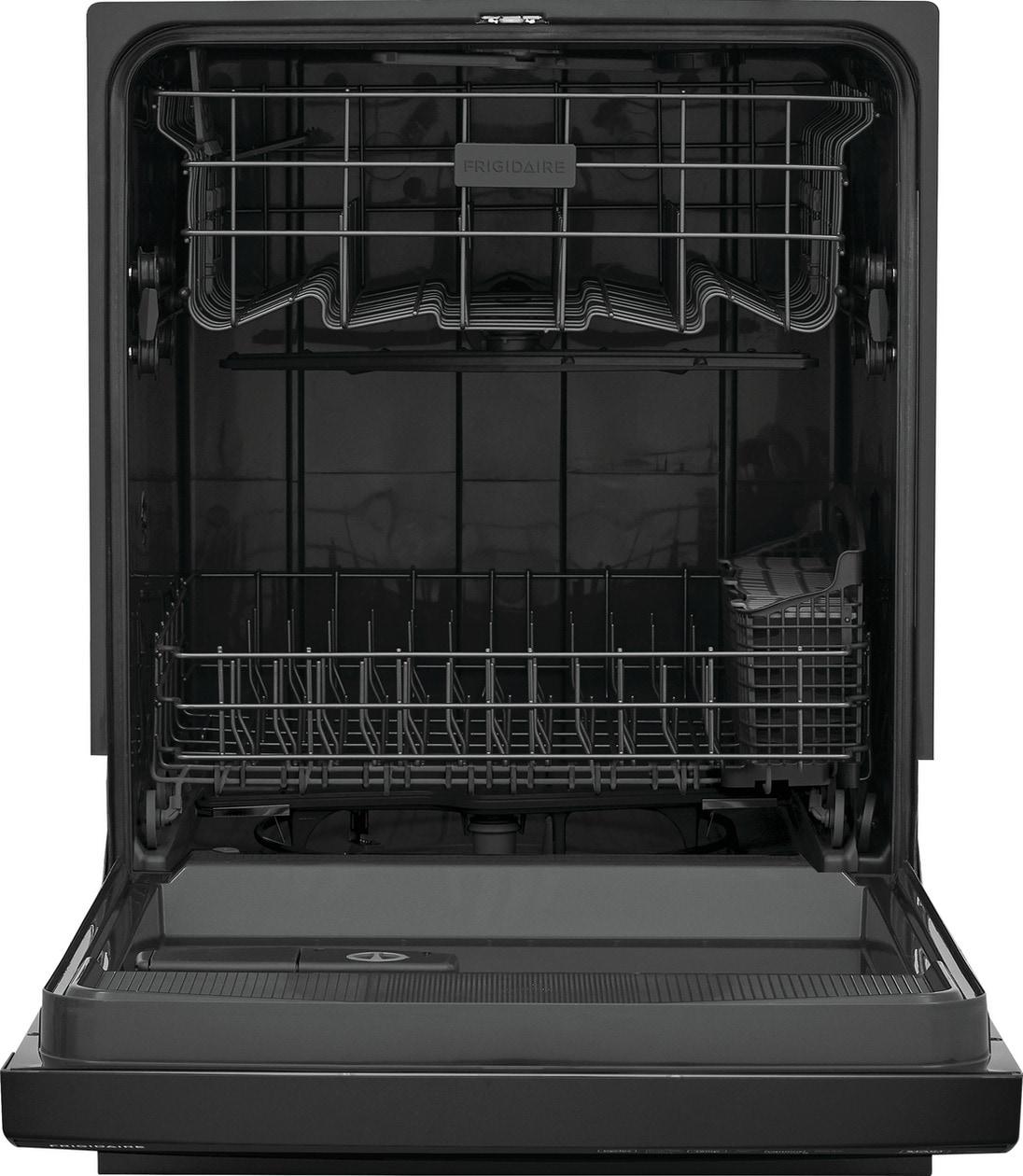

Frigidaire FDPC4314AB Frigidaire 24" Built-In Dishwasher
Triple the cleaning power
Give your dishes a more effective clean with our three spray arms, which achieve better water coverage during the cleaning cycle.
Enhanced drying results with MaxDry™
Get an enhanced dry with the MaxDry™ option, which raises the temperature and delivers better results reducing the need for towel drying.
Skip Pre-rinsing with DishSense® Sensor Technology
Get better cleaning results with our sensor technology that adjusts cleaning performance based on the soil level of your dishes.
Remove household bacteria with Sanitize Option
Remove 99.9% of common household bacteria with NSF-Certified Sanitize Option.
ENERGY STAR® Certified
Maximize your energy and dollar savings with ENERGY STAR® Certified appliances.
Quick with 60-minute wash
Quickly clean your dishes in our 60-minute wash cycle.
- Triple the cleaning power
- Enhanced drying results with MaxDry™
- Skip Pre-rinsing with DishSense® Sensor Technology
- Remove household bacteria with Sanitize Option
- ENERGY STAR® Certified
- Quick with 60-minute wash
- Keep your kitchen quiet with 54 dBA
- Sleek pocket handle
- Time saving delay start
- Open the door at any angle
Product Line | Dishwasher |
Power Type | Electric 120v |
Size | 24' |
Factory | Kinston |
Color | Black |
Dishwasher | |
Automatic Temperature Control | Yes |
Detergent Dispenser | Yes |
Filter Material | Plastic |
Filter Trap | Removable |
Filtered Water | 100 % |
Hard Food Disposer or Filtration | Yes |
Motor Speeds | Single-Speed |
Place Setting Capacity | 14 |
Rinse Aid Dispenser | Yes |
Smart Soil Sensor | Yes |
Lower Spray Arm | Bi-Beam |
Middle Spray Arm | Bi-Beam |
Upper Spray Arm | Spray Arm |
Tub Color | Midnight Ink |
Tub Design | Tall Tub |
Tub Material | Plastic |
Wash Levels | 5 |
Wash System | Direct Feed |
Water Pressure | 120 psi |
Water Usage | 3.2 Gallons |
Dishwasher Cycles | |
Energy Saver | Yes |
Heavy | Yes |
Normal | Yes |
Number of Cycles | 4 |
Quick | Yes |
Dishwasher Options | |
Air Dry | Yes |
Dry - Heat | Yes |
Dry - Max | Yes |
Drying System | Static Vent |
Heated Dry | Yes |
High Temperature | Yes |
Start/Cancel | Yes |
Washing Temperature - High | Yes |
Washing Temperature - Sanitize | Yes |
Lower Rack | |
Maximum Height Clearance | 13' |
Minimum Height Clearance | 11' |
Number of Silverware Basket | 1 |
Number of Silverware Basket Lids | 2 |
Rack Coating | PVC |
Rack Type | Standard |
Upper Rack | |
Minimum Height Clearance | 8' |
Rack Coating | PVC |
Rack Spacer | Yes |
Rack Type | Standard |
General Specifications | |
Sound Level | 54 dBA |
Annual Energy | 240 kWh |
Product Weight | 56 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |

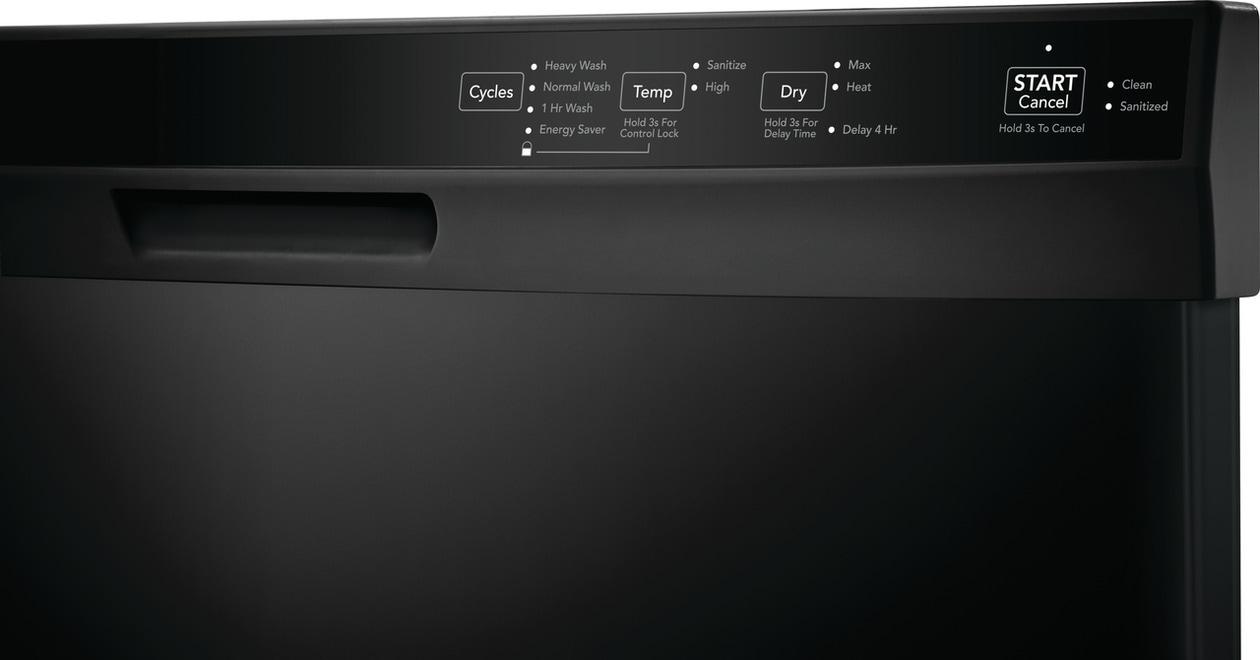

Controls | |
Control Location | Front |
Delay Start Hours | 4 Hours |
Control Lock | Yes |
Rinse Aid Indicator | Yes |
Exterior | |
Door and Handle Design | |
Door Latch | Pull |
Door Type | Standard |
Dimensions and Volume | |
Minimum Height | 33 1/2' |
Maximum Height | 35' |
Width | 24' |
Depth | 25' |
Depth With Door Open | 49 1/4' |
Electrical Specifications | |
Amps @ 120 Volts | 10 Amps |
Connected Load @ 120V | 1.2 kW |
Voltage Rating | 120 V |
Installation | |
Connection Location | Right Bottom |
Number of Leveling Legs | 4 |
Water Inlet Location | Left Bottom Front |
Performance Certifications and Approvals | |
CEE Tier | Tier 1 |
ENERGY STAR Certified | Yes |
UL Listed | Yes |
cUL Listed | Yes |
Meets ASSE 1006 Requirements | Yes |
NSF Certified | Yes |
